EM-182

[F9Q]

OVERHAUL

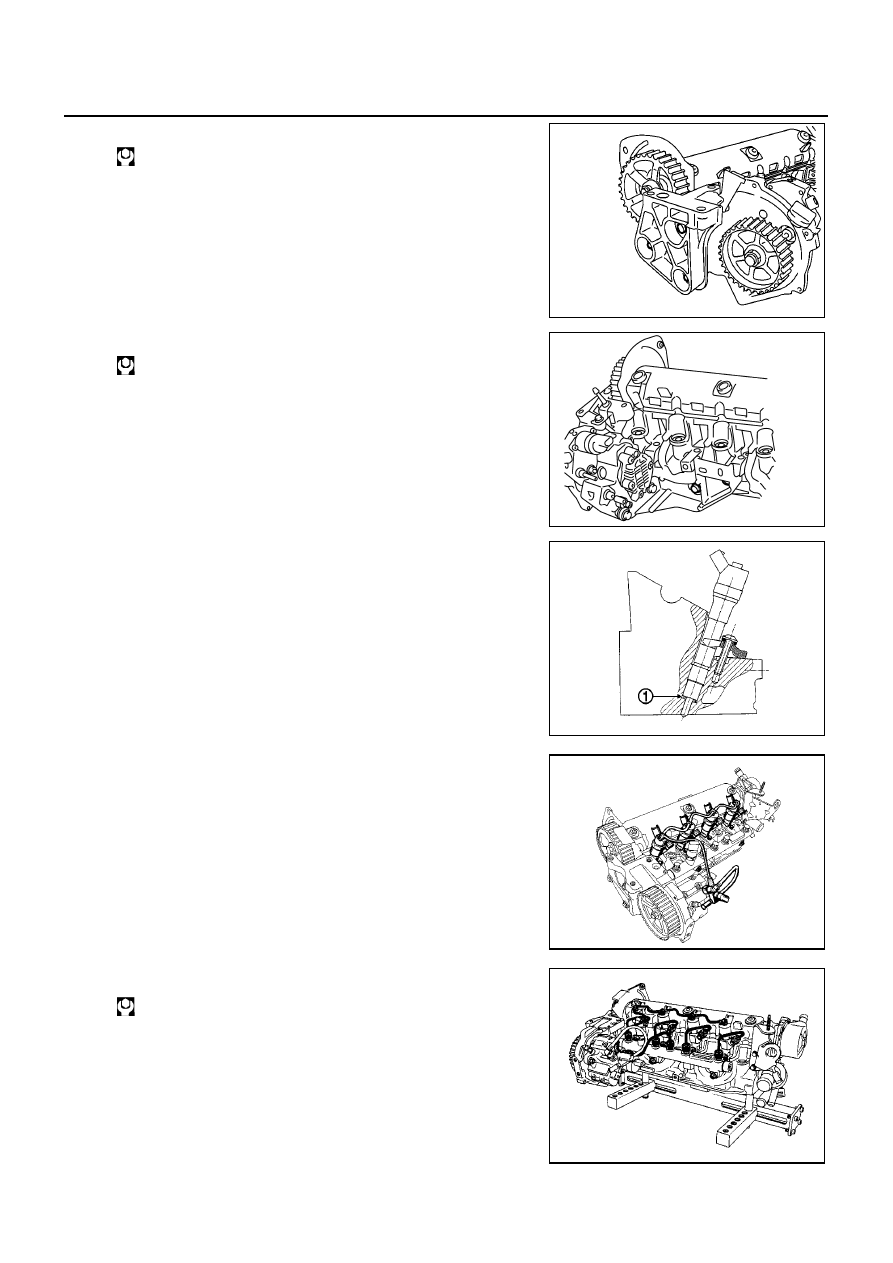

39. Install the cylinder head suspended mounting.

40. Tighten two bolts.

41. Change the washer (1) under the injector.

NOTE:
In order to install the high pressure pipe correctly, it is vital that
the following installing sequence be complied with.

42. Install the injector.

43. Install the injector bracket without blocking them.

44. Install the two rail bolt without blocking them.

45. Install the new diesel return pipe.

46. Tighten the injector flange.

47. Install the high-pressure pipe.

: 35 N·m (3.6 kg-m, 26 ft-lb)

MBIB0982E

: 30 N·m (3.1 kg-m, 22 ft-lb)

MBIB0985E

MBIB0748E

MBIB0749E

: 20 N·m (2.0 kg-m, 15 ft-lb)

MBIB0750E

OVERHAUL

EM-183

[F9Q]

C

D

E

F

G

H

I

J

K

L

M

A

EM

48. Tighten the high-pressure pipe nuts at the injector end.

49. Tighten the high-pressure pipe nuts at the rail end.

50. Tighten the rail tightening bolt.

51. Tighten the pump/rail high-pressure pipe.

Disassembly The Lower Engine

EBS00SBP

DIASSEMBLY

1.

Engine installed with a water pump driven by the timing belt.

2.

Remove the power steering pump.

3.

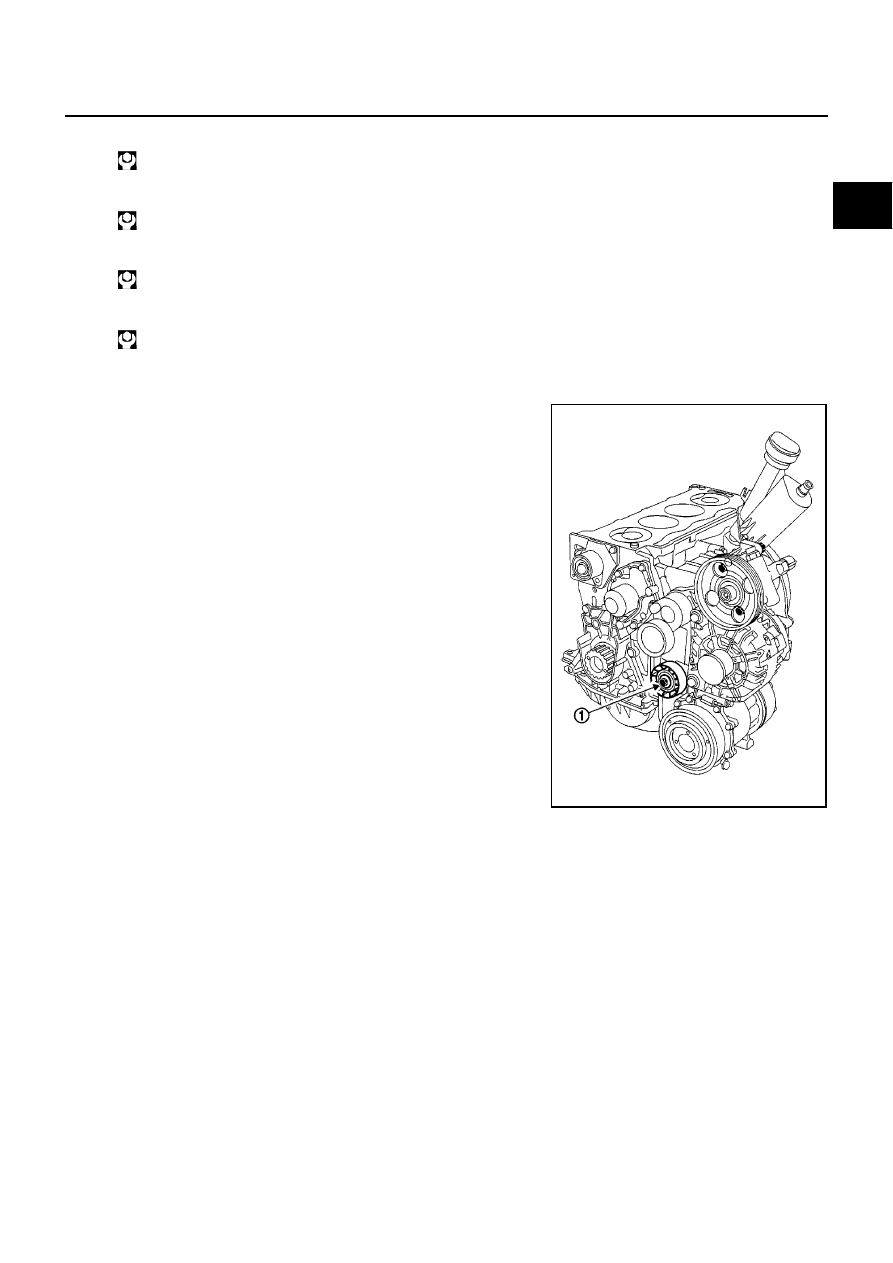

Remove the idler pulley by removing bolt (1).

: 25 N·m (2.6 kg-m, 18 ft-lb)

: 25 N·m (2.6 kg-m, 18 ft-lb)

: 22 N·m (2.2 kg-m, 16 ft-lb)

: 25 N·m (2.6 kg-m, 18 ft-lb)

MBIB0752E

EM-184

[F9Q]

OVERHAUL

4.

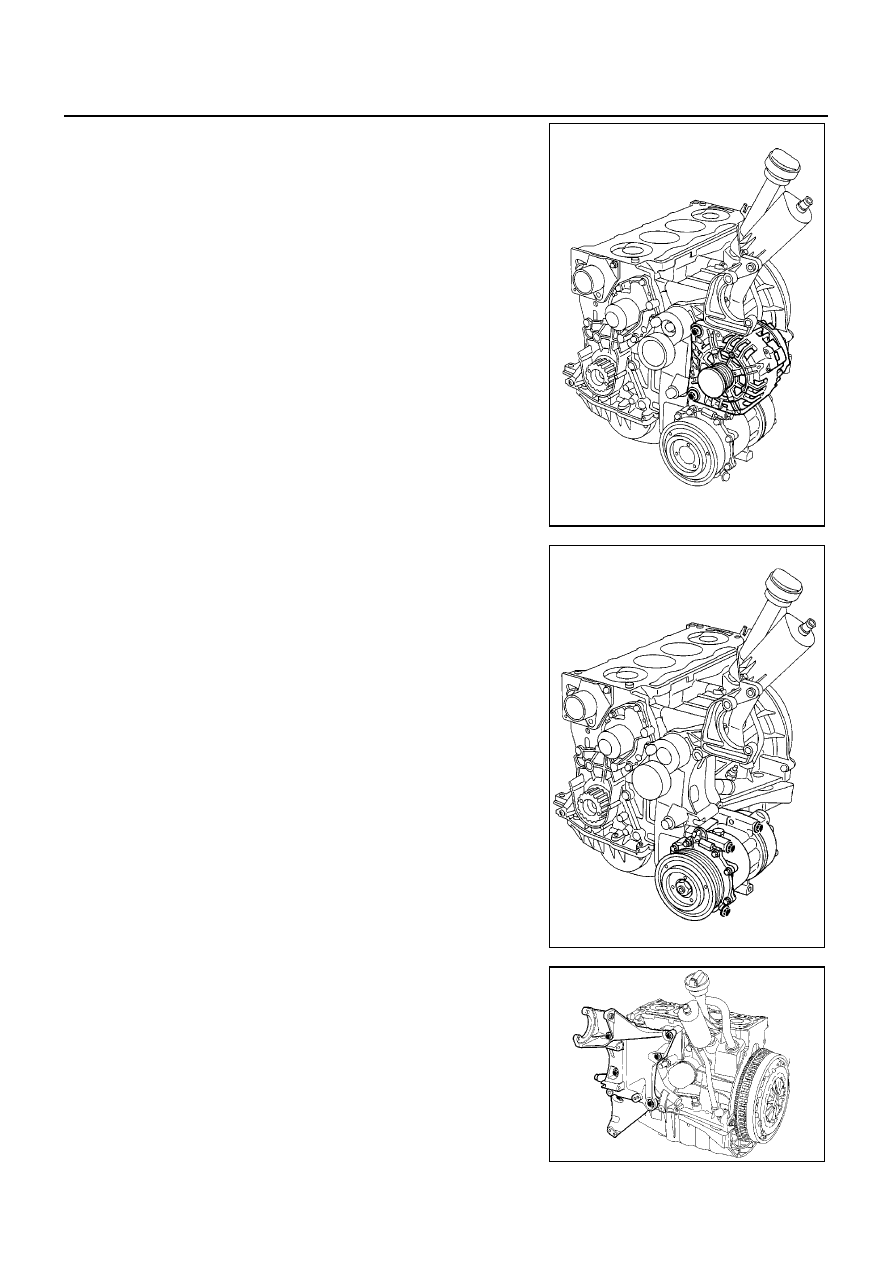

Remove the alternator.

5.

Remove the A/C compressor.

6.

Remove the alternator bracket.

MBIB0753E

MBIB0754E

MBIB0755E

OVERHAUL

EM-185

[F9Q]

C

D

E

F

G

H

I

J

K

L

M

A

EM

7.

Remove the oil separator.

8.

Remove the oil filter.

9.

Remove the oil cooler.

10. Remove the oil pressure switch.
11. Remove the oil level sensor.

12. Remove the coolant hose.

13. Remove the water pump inlet pipe.

14. Remove the clutch.

Checking the Flywheel and Friction Face

It is essential to change the flywheel is the contact surface is
“bluish” or if the friction face is “worn out”.

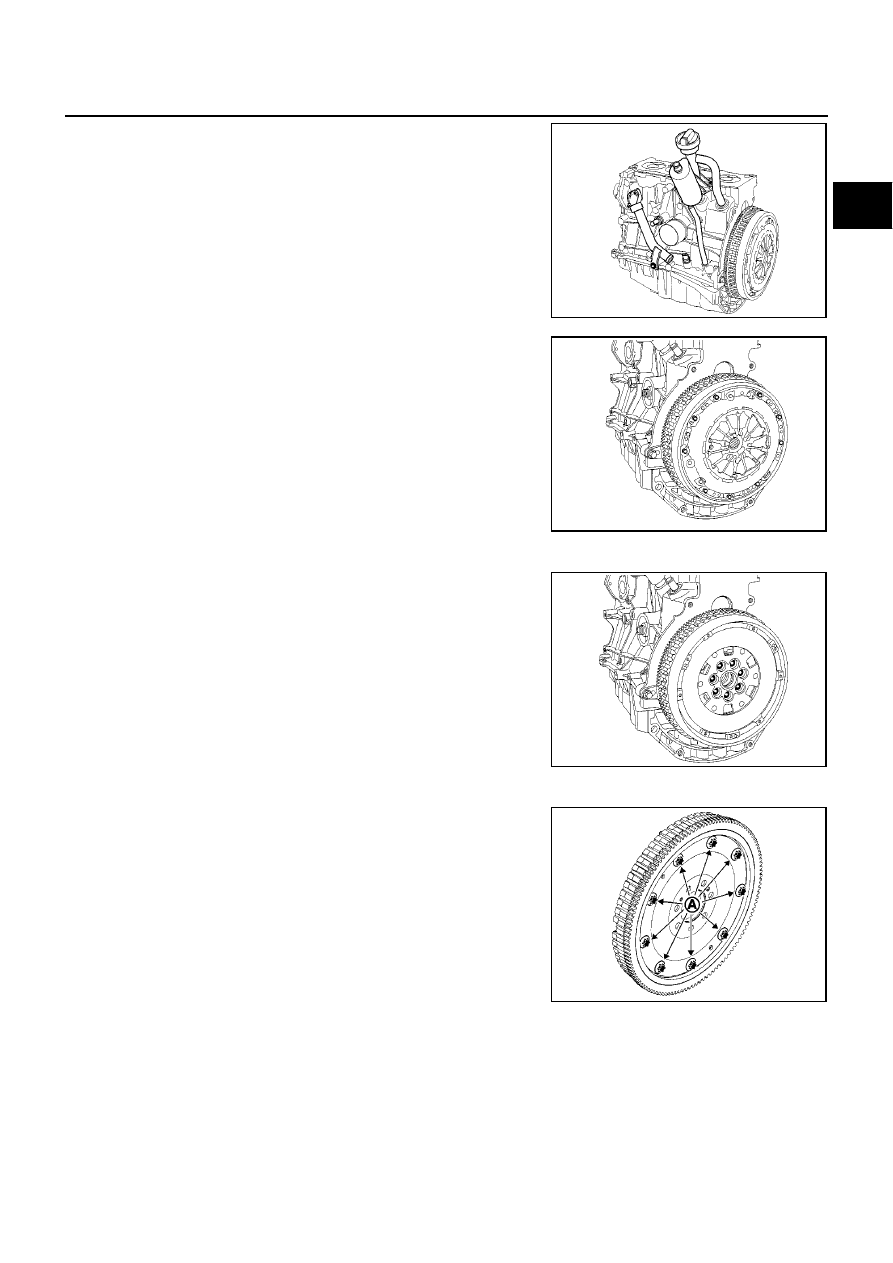

15. Position Tool KV113B0060 (Mot. 582-01) or KV113B0410 (Mot.

1677).

16. Remove the flywheel mounting bolts (these bolts must be

replaced).

17. Remove the flywheel.

Special Notes Concerning Engines Installed With a Flexible Flywheel

Under no circumstances should the bolts (A) be removed.

MBIB0756E

MBIB0757E

MBIB0758E

MBIB0759E
