EM-150

[F9Q]

OIL PAN

OIL PAN

PFP:11110

Removal and Installation

EBS00SK7

CAUTION:

To avoid the danger of being scalded, never drain the engine oil when the engine is hot.

REMOVAL

1.

Remove engine undercover.

2.

Remove RH front wheel.

3.

Remove right side splash cover.

4.

Remove front drive shaft assembly RH side. Refer to

FAX-11, "FRONT DRIVE SHAFT"

.

5.

Remove rear torque rod mounting bolt as shown.

6.

Drain engine oil. Refer to

LU-16, "Changing Engine Oil"

.

CAUTION:

Perform when engine is cold.

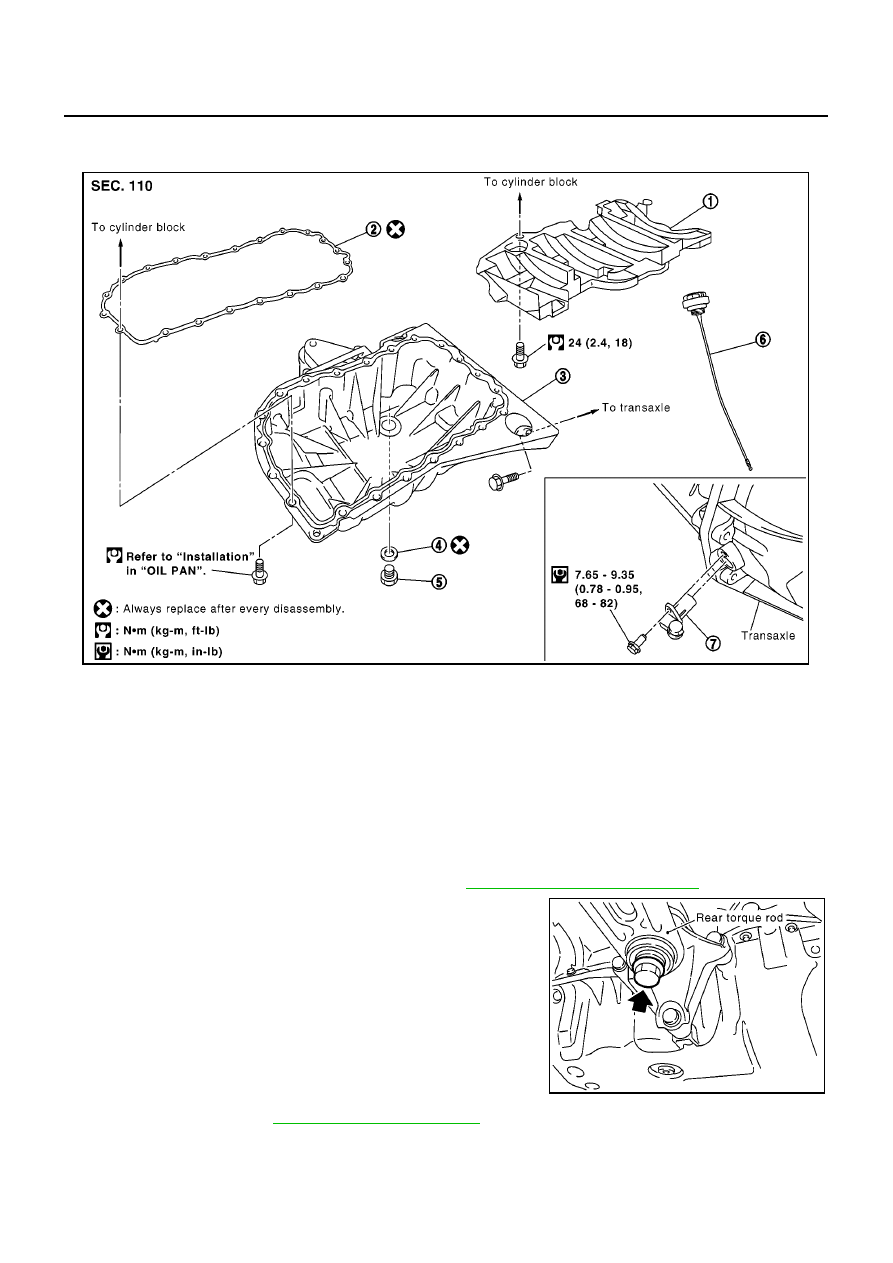

MBIB0951E

1.

Baffle plate

2.

Gasket

3.

Oil pan

4.

O-ring

5.

Drain plug

6.

Oil level gauge (with oil filer cap)

7.

Crankshaft position sensor

MBIB0952E

OIL PAN

EM-151

[F9Q]

C

D

E

F

G

H

I

J

K

L

M

A

EM

7.

Remove oil pan and transaxle joint bolts.

8.

Support the engine bottom of the oil pan with a transmission jack
etc.

9.

Remove oil pan bolts in the reverse order as shown.

Insert seal cutter (special service tool) between oil pan and
cylinder block. Slide tool by tapping on the side of the tool with
a hammer.

CAUTION:

Exercise care not to damage mating surface.

10. Remove oil pan.

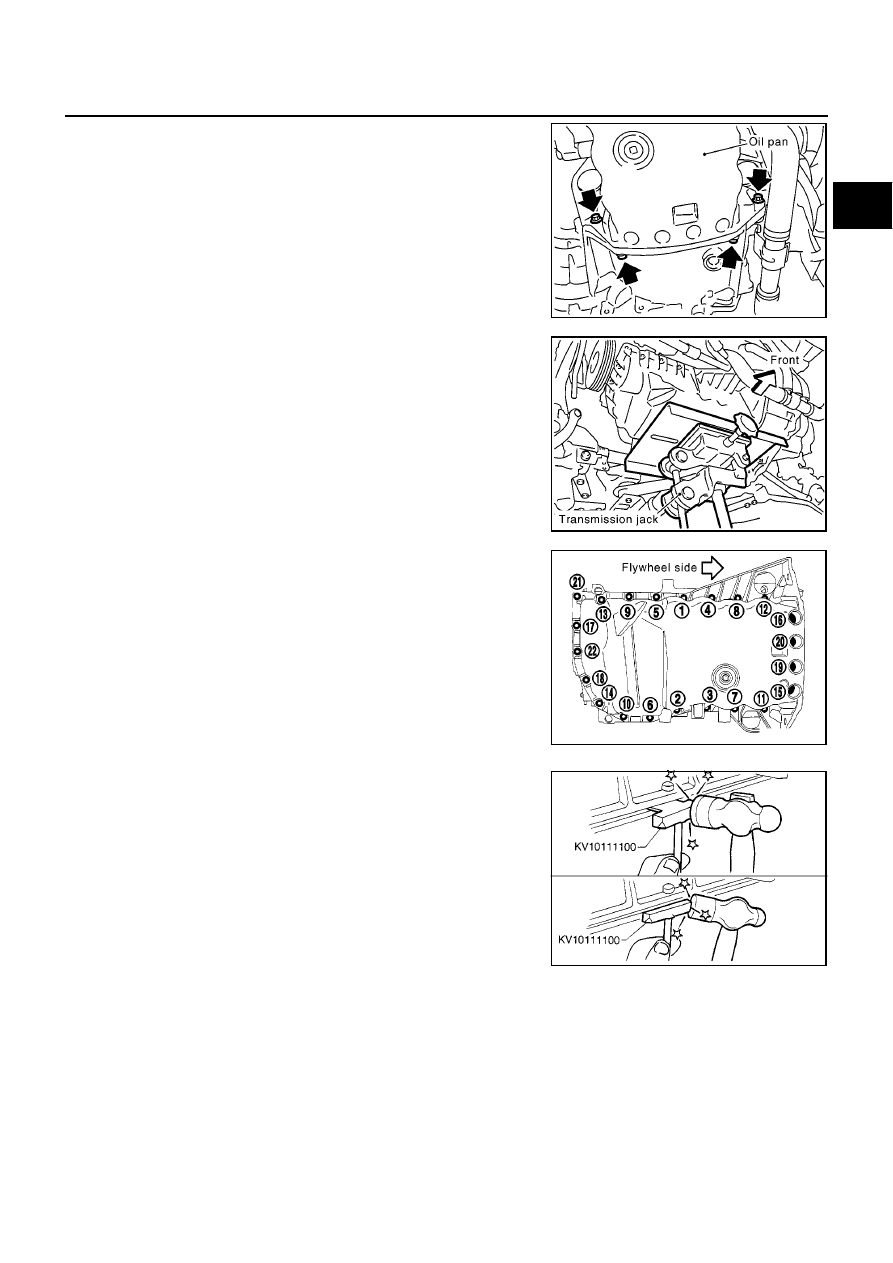

MBIB0953E

MBIB0954E

MBIB0820E

SEM365EA

EM-152

[F9Q]

OIL PAN

11. Remove baffle plate mounting bolt, then remove baffle plate.

INSPECTION AFTER REMOVAL

Clean oil pump assembly if any object attached.

INSTALLATION

Install in the reverse order of removal paying attention to the following.

1.

Install baffle plate.

2.

Apply liquid gasket as shown.

Use Genuine Liquid Gasket or equivalent.

3.

Install oil pan bolts in the numerical order as shown.

4.

At least 30 minutes after oil pan is installed, pour engine oil.

INSPECTION AFTER INSTALLATION

Inspection the engine oil level. Refer to

LU-16, "ENGINE OIL"

.

Start the engine, and make sure there is no leak of engine oil. Refer to

LU-16, "ENGINE OIL"

.

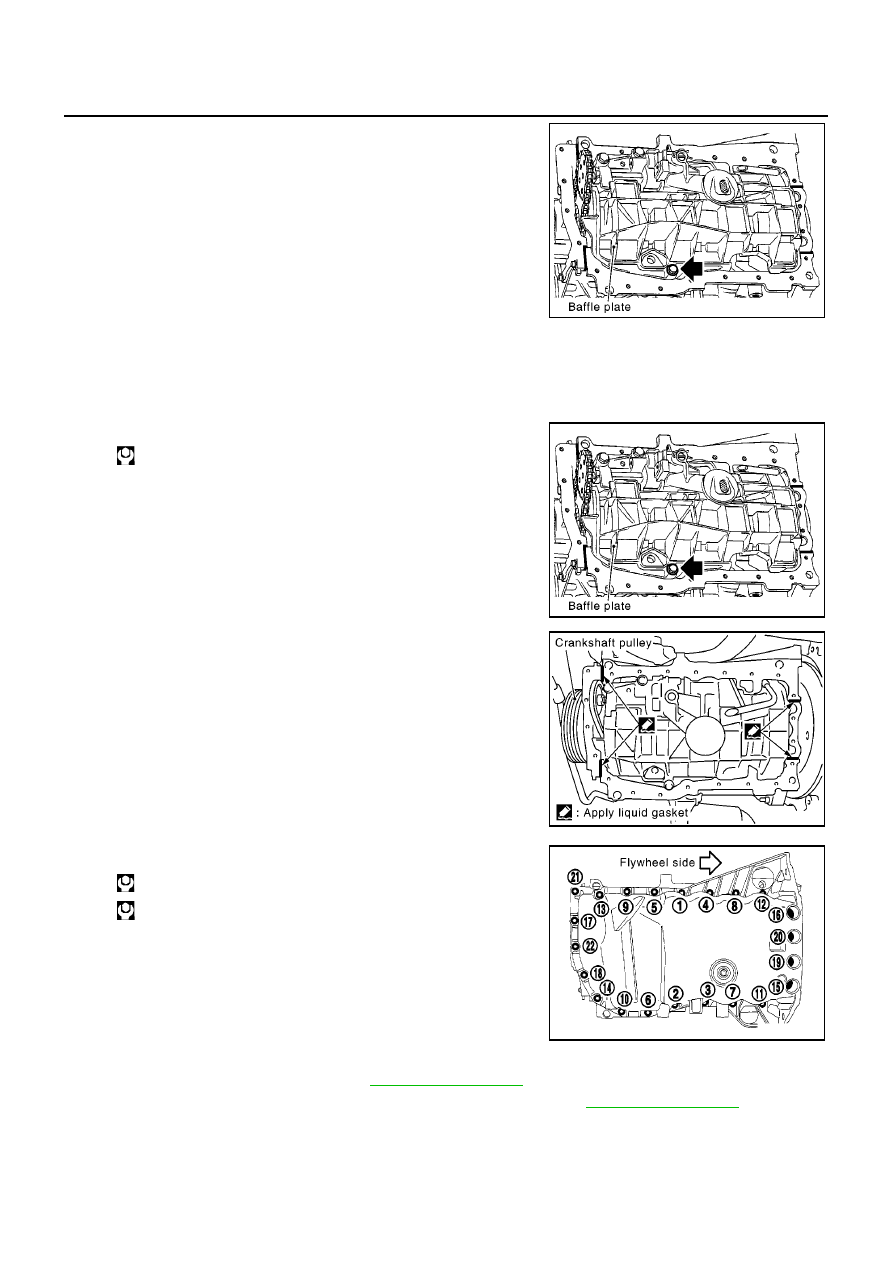

MBIB0955E

: 24 N·m (2.4 kg-m, 18 ft-lb)

MBIB0955E

MBIB0956E

1st step: 8 N·m (0.8 kg-m, 6 ft-lb)

2nd step: 15 N·m (1.5 kg-m, 11 ft-lb)

MBIB0820E

GLOW PLUG

EM-153

[F9Q]

C

D

E

F

G

H

I

J

K

L

M

A

EM

GLOW PLUG

PFP:22401

Removal and Installation

EBS00SK8

REMOVAL

CAUTION:

Remove glow plug only if necessary. If carbon adheres, it may be stuck and broken.

1.

Disconnect battery ground cable.

2.

Remove engine room cover. Refer to

EM-141, "ENGINE ROOM COVER"

.

3.

Disconnect harness from glow plug.

4.

Remove glow plug.

CAUTION:

When removing or installing, do not use such tools as an air impact wrench.

Handle it carefully without giving any impact, even after removal. [As a guide, if it drops from
height of 10 cm (3.94 in) or higher, always replace it.]

INSTALLATION

1.

Remove adhered carbon from glow plug installation hole with a reamer.

2.

Install glow plug.

3.

Install remaining parts in reverse order of removal.

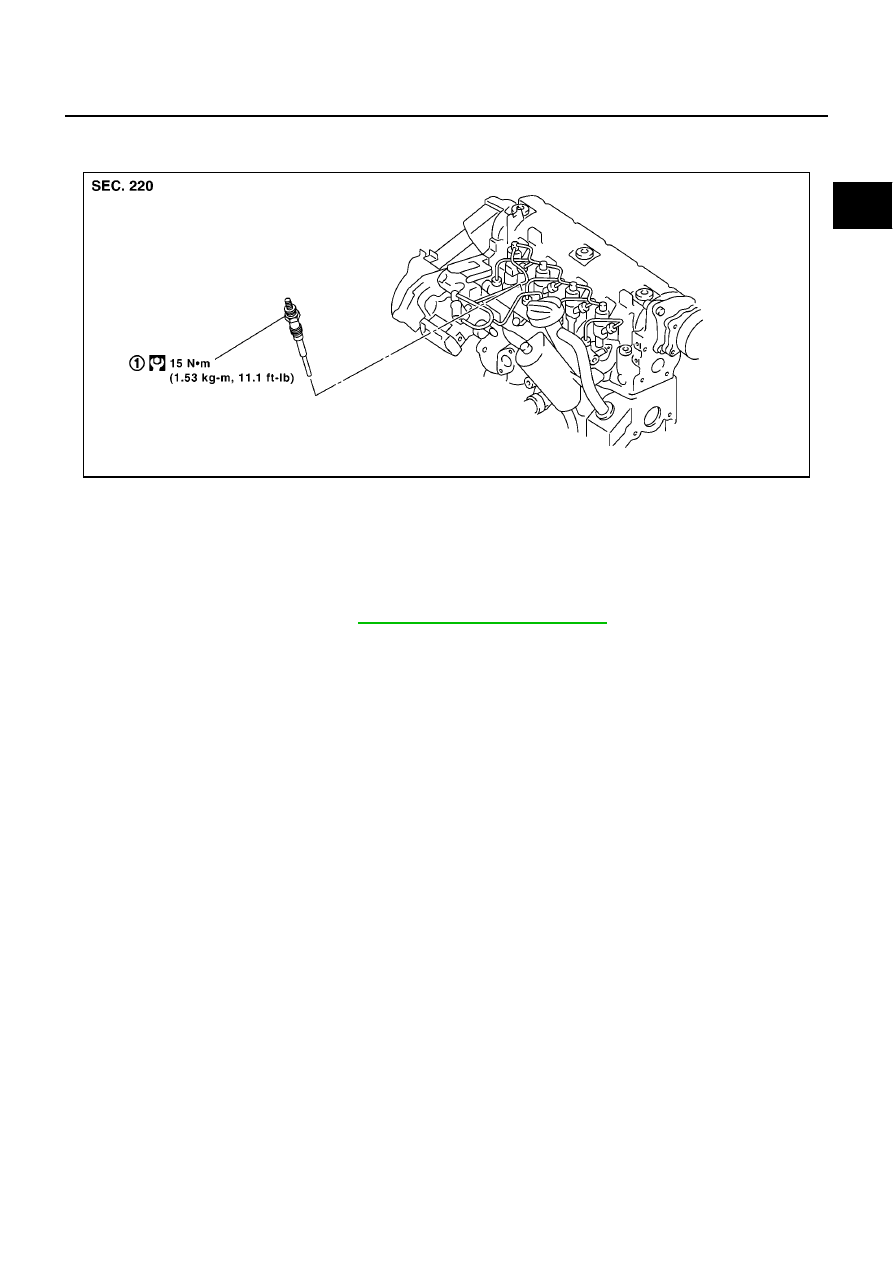

MBIB0957E

1.

Glow plug
