EM-138

[F9Q]

IDENTIFICATION INFORMATION

IDENTIFICATION INFORMATION

PFP:00010

Engine Identification

EBS00SB9

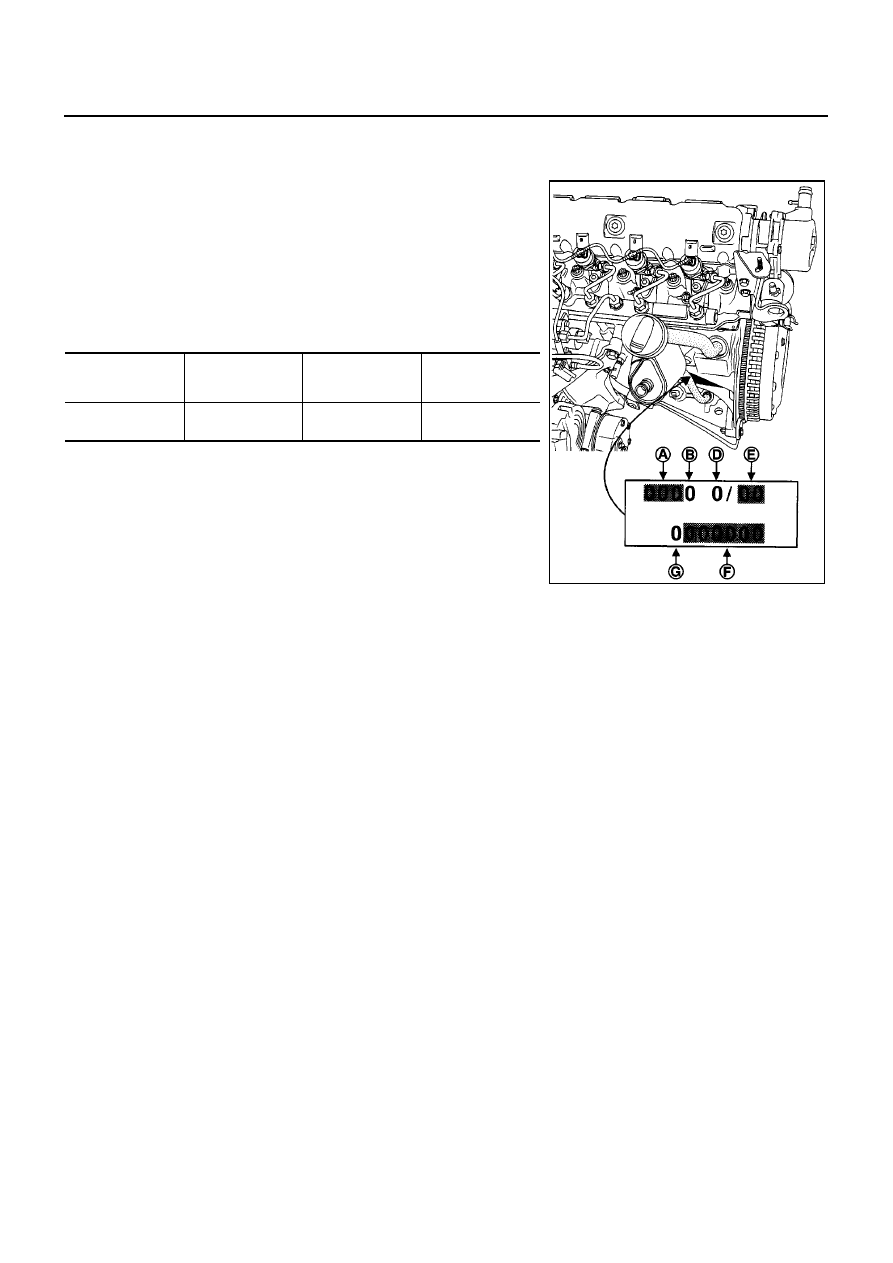

The engine identification is stamped on the cylinder block.
It includes:

A: engine type

B: engine approval letter

D: identification

E: engine suffix

F: engine serial number

G: engine assembly plant

Engine

Compression

Ratio

Bore and Stroke

mm (in)

Displacement

cm

3

(cu in)

F9Q

19:1

80

×

93 (3.15

×

3.66)

1,870 (114.11)

MBIB0667E

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

EM-139

[F9Q]

C

D

E

F

G

H

I

J

K

L

M

A

EM

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

PFP:00003

NVH Troubleshooting —Engine Noise

EBS00SJZ

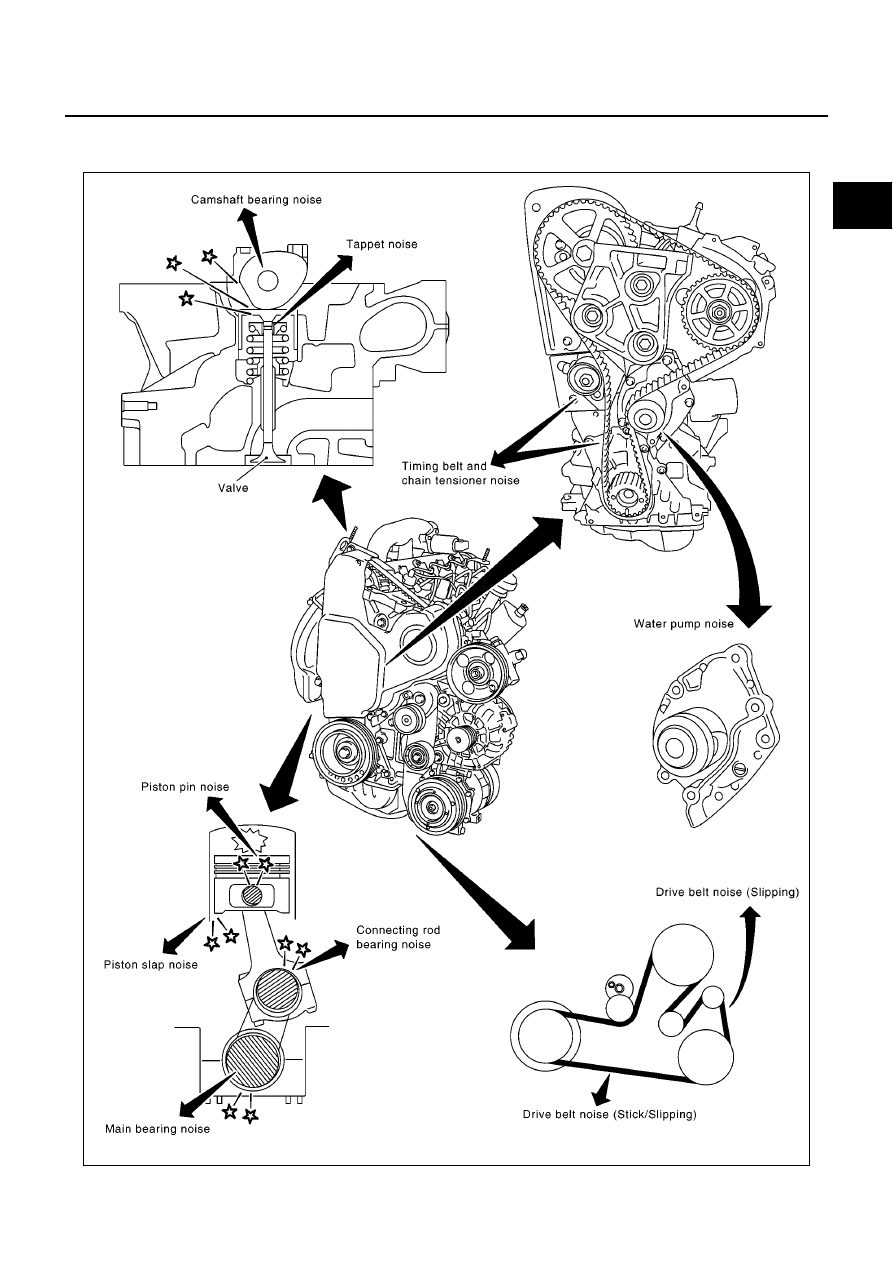

MBIB0942E

EM-140

[F9Q]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

CAUTION:

Do not start and run the engine when the drive belt is not properly installed. Running the engine in
such conditions may damage the pulley (damper pulley).

Use the Chart Below to Help You Find the Cause of the Symptom.

EBS00SK0

1.

Locate the area where noise occurs.

2.

Confirm the type of noise.

3.

Specify the operating condition of engine.

4.

Check specified noise source.

If necessary, repair or replace these parts.

A: Closely related

B: Related

C: Sometimes related

—: Not related

Location

of noise

Type of

noise

Operating condition of engine

Source of

noise

Check item

Refer-

ence page

Before

warm-

up

After

warm-

up

When

start-

ing

When

idling

When

racing

While

driving

Top of
engine
Rocker
cover
Cylinder
head

Ticking or
clicking

C

A

A

B

Tappet
noise

Valve clearance

EM-223

Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil pan

Slap or
rap

A

B

B

A

Piston
slap noise

Piston ring end gap

EM-225

Front of
engine
Timing
belt cover

Tapping or
ticking

A

A

B

B

B

Timing
belt
tensioner
noise

Timing belt tensioner
operation

EM-213

Front of
engine

Squeak-
ing or fizz-
ing

A

B

B

C

Drive belts
(Sticking
or slip-
ping)

Drive belts deflection

EM-218

Squall
Creak

A

B

B

A

B

Water
pump
noise

Water pump operation

CO-30

ENGINE ROOM COVER

EM-141

[F9Q]

C

D

E

F

G

H

I

J

K

L

M

A

EM

ENGINE ROOM COVER

PFP:14049

Removal and Installation

EBS00SK1

REMOVAL

Remove engine room cover from engine room cover bracket.

CAUTION:

Do not damage or scratch cover when installing or removing.

INSTALLATION

Install in the reverse order of removal.

NOTE:
Press on the until hearing the “click”.

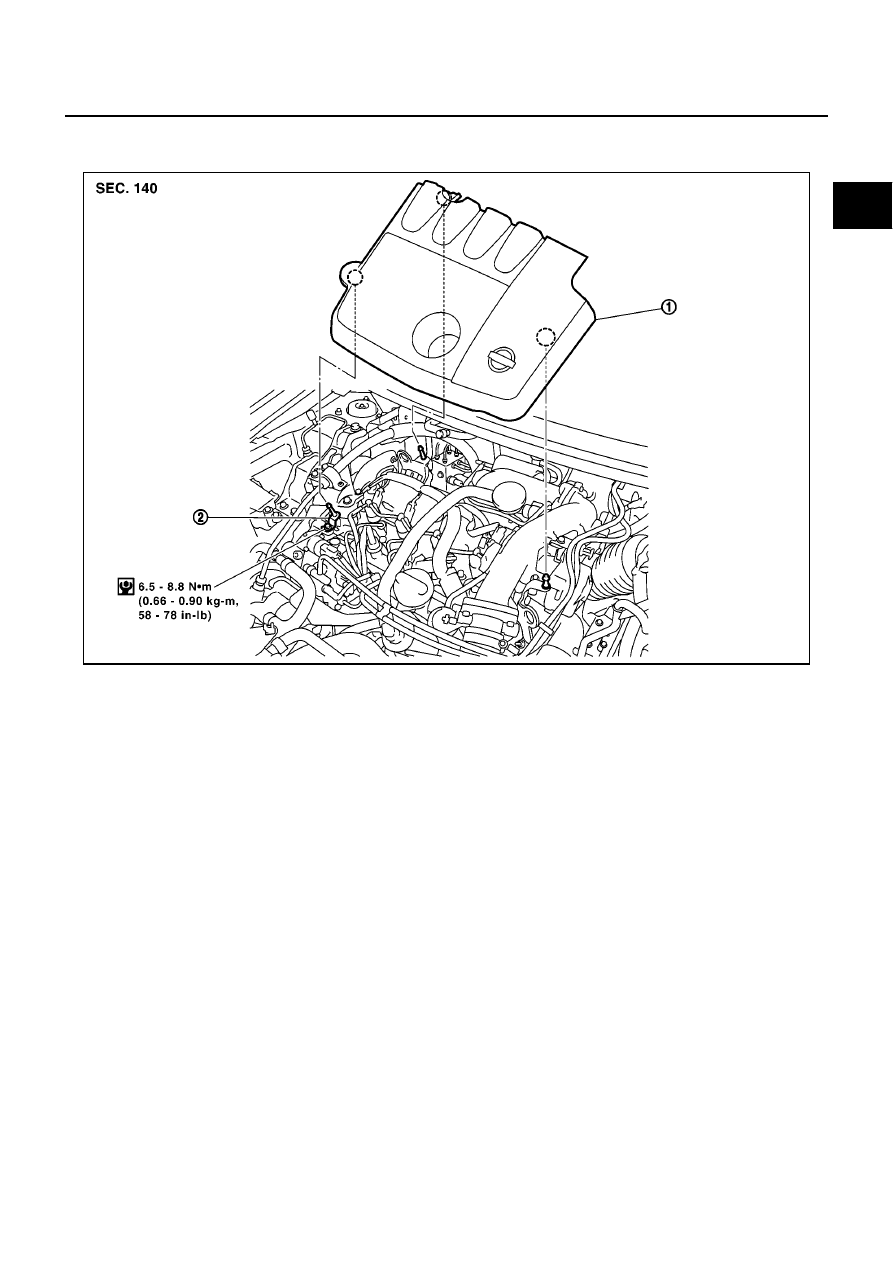

MBIB0943E

1.

Engine room cover

2.

Engine room cover bracket
