PNP SWITCH

EC-641

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

CHECK INTERMITTENT INCIDENT

Refer to

EC-408, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

EC-642

[YD (WITHOUT EURO-OBD)]

PSP SWITCH

PSP SWITCH

PFP:49761

Component Description

EBS015D7

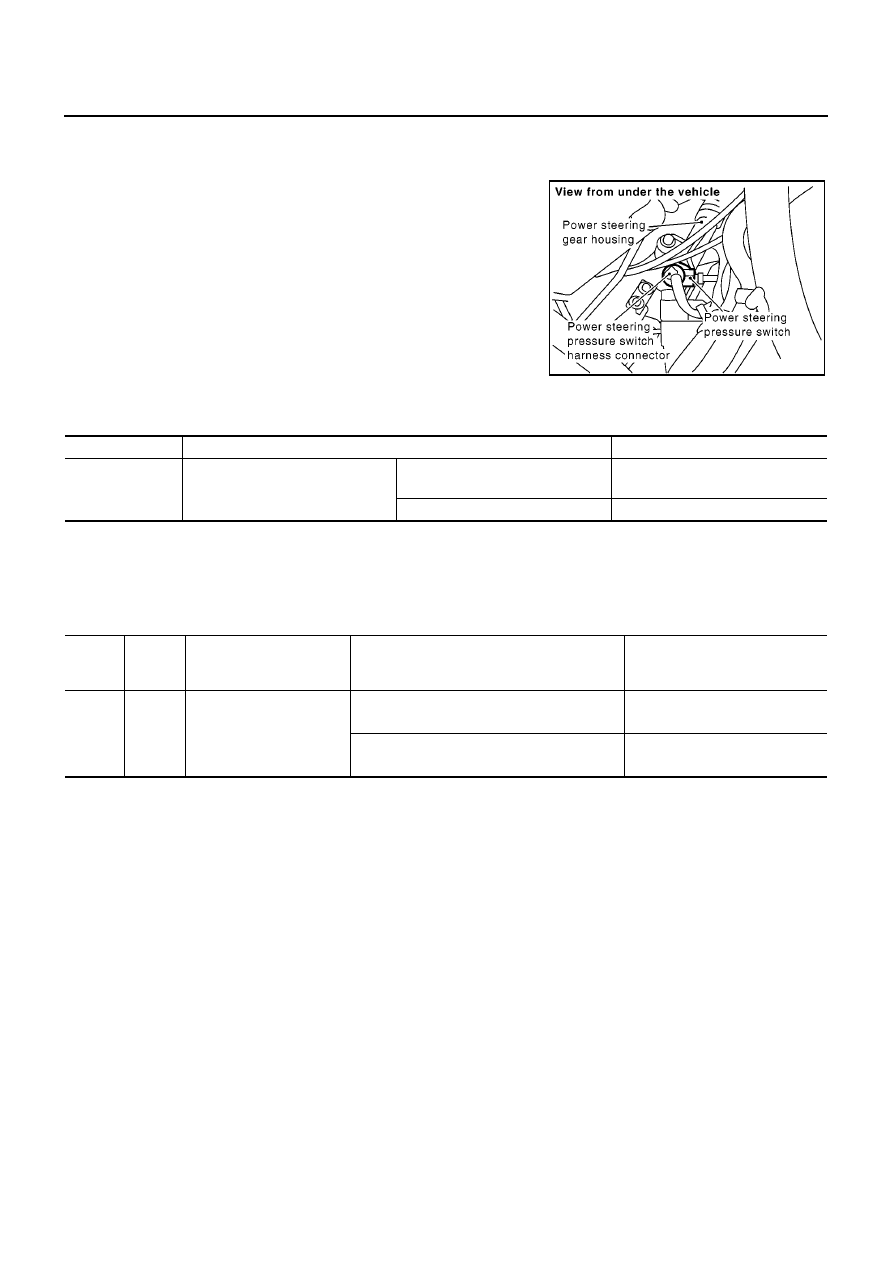

The power steering pressure switch is attached to the power steer-
ing high-pressure tube and detects a power steering load.
When a power steering load is detected, it signals the ECM. The
ECM adjusts the fuel injector pulse width to increase the idle speed
and adjust for the increased load.

CONSULT-II Reference Value in Data Monitor Mode

EBS015D8

Specification data are reference values.

ECM Terminals and Reference Value

EBS015D9

Specification data are reference values, and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

MBIB1019E

MONITOR ITEM

CONDITION

SPECIFICATION

PW/ST SIGNAL

Engine: After warming up, idle the
engine

Steering wheel is in neutral position.
(Forward direction)

OFF

Steering wheel is turned.

ON

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

111

R/B

Power steering pressure
switch

[Engine is running]

Steering wheel is being turned

Approximately 0V

[Engine is running]

Steering wheel is not being turned

BATTERY VOLTAGE
(11 - 14V)

PSP SWITCH

EC-643

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

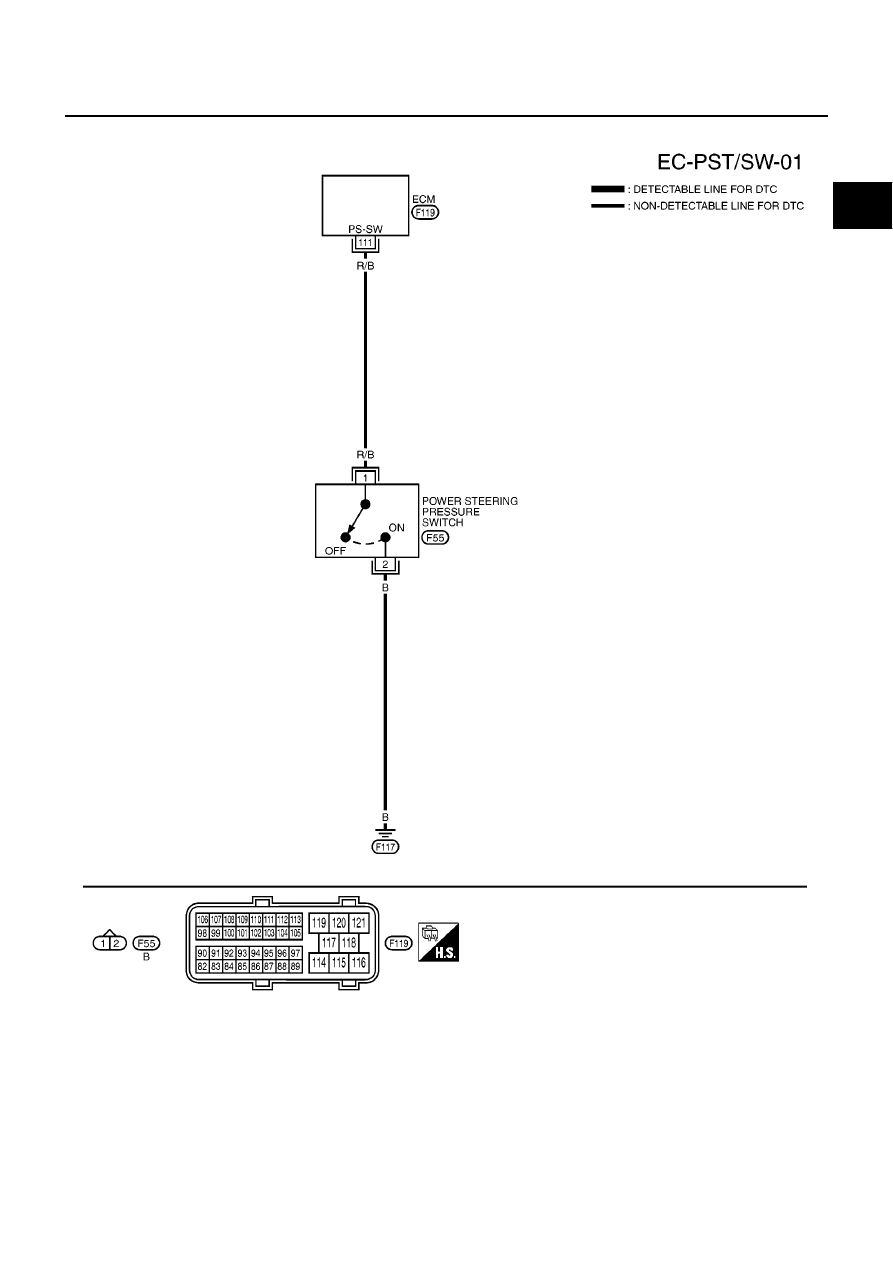

Wiring Diagram

EBS015DA

MBWA0391E

EC-644

[YD (WITHOUT EURO-OBD)]

PSP SWITCH

Diagnostic Procedure

EBS015DB

1.

CHECK OVERALL FUNCTION

With CONSULT-II

1.

Start engine.

2.

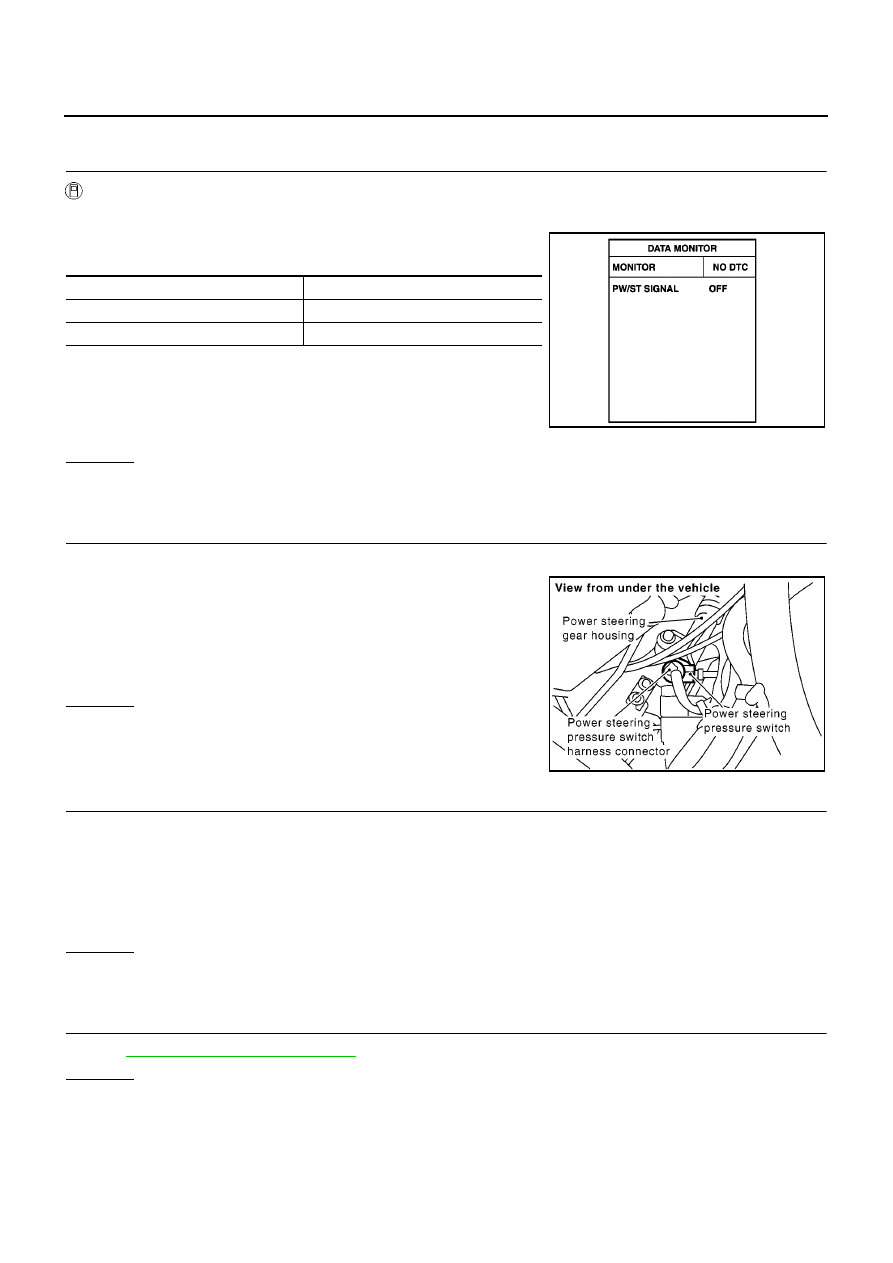

Check “PW/ST SIGNAL” in “DATA MONITOR” mode with CON-
SULT-II under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK POWER STEERING PRESSURE SWITCH GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect power steering pressure switch harness connector.

3.

Check harness continuity between power steering pressure
switch terminal 2 and ground. Refer to Wiring Diagram.

4.

Also check harness for short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to power in harness or con-

nectors.

3.

CHECK POWER STEERING PRESSURE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 111 and power steering pressure switch terminal 1.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK POWER STEERING PRESSURE SWITCH

Refer to

EC-645, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace power steering pressure switch.

Conditions

PW/ST SIGNAL

Steering wheel is in neutral position

OFF

Steering wheel is turned

ON

PBIB0434E

Continuity should exist.

MBIB1019E

Continuity should exist.
