Nissan Primera P12. Manual - part 349





DTC P1273 FUEL PUMP

EC-581

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

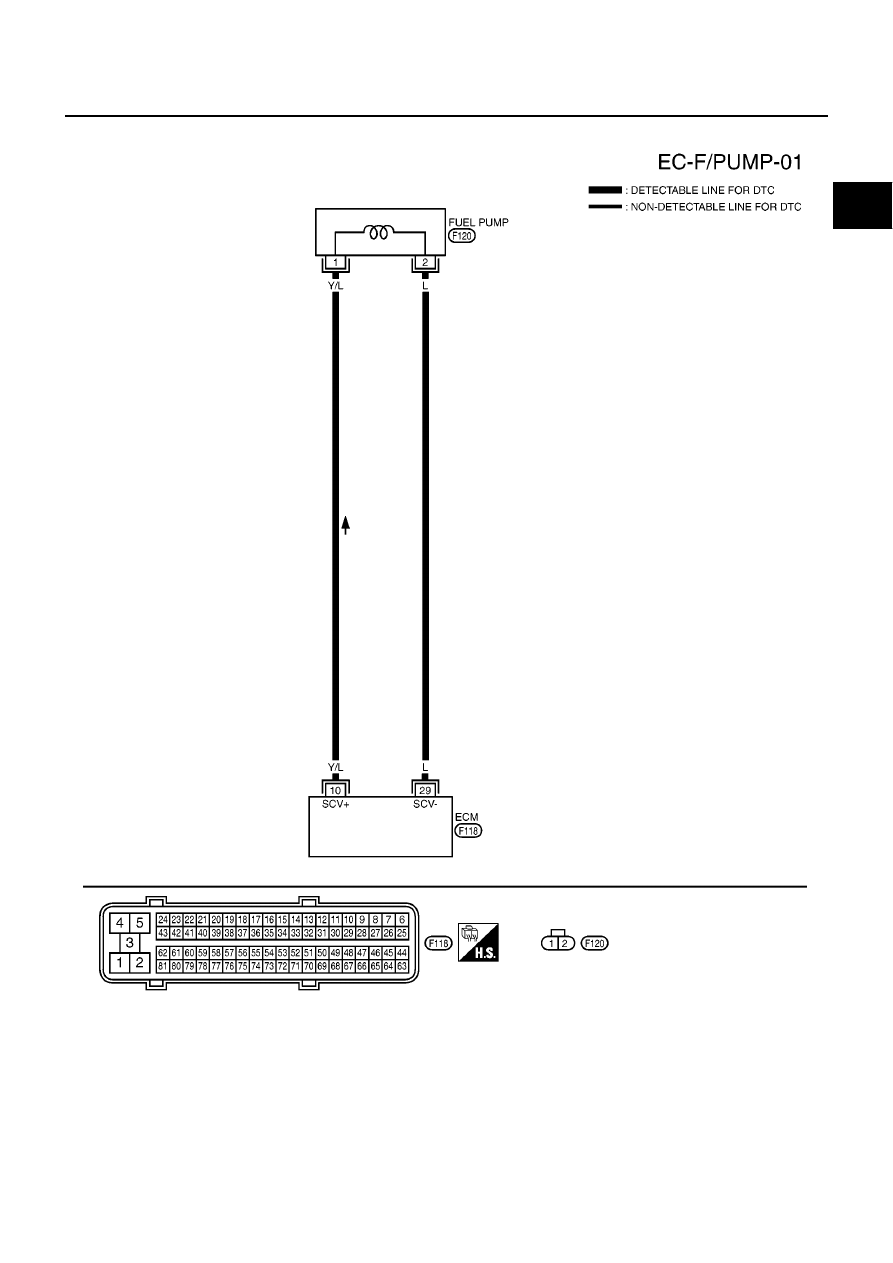

Wiring Diagram

EBS015AZ

MBWA0396E

EC-582

[YD (WITHOUT EURO-OBD)]

DTC P1273 FUEL PUMP

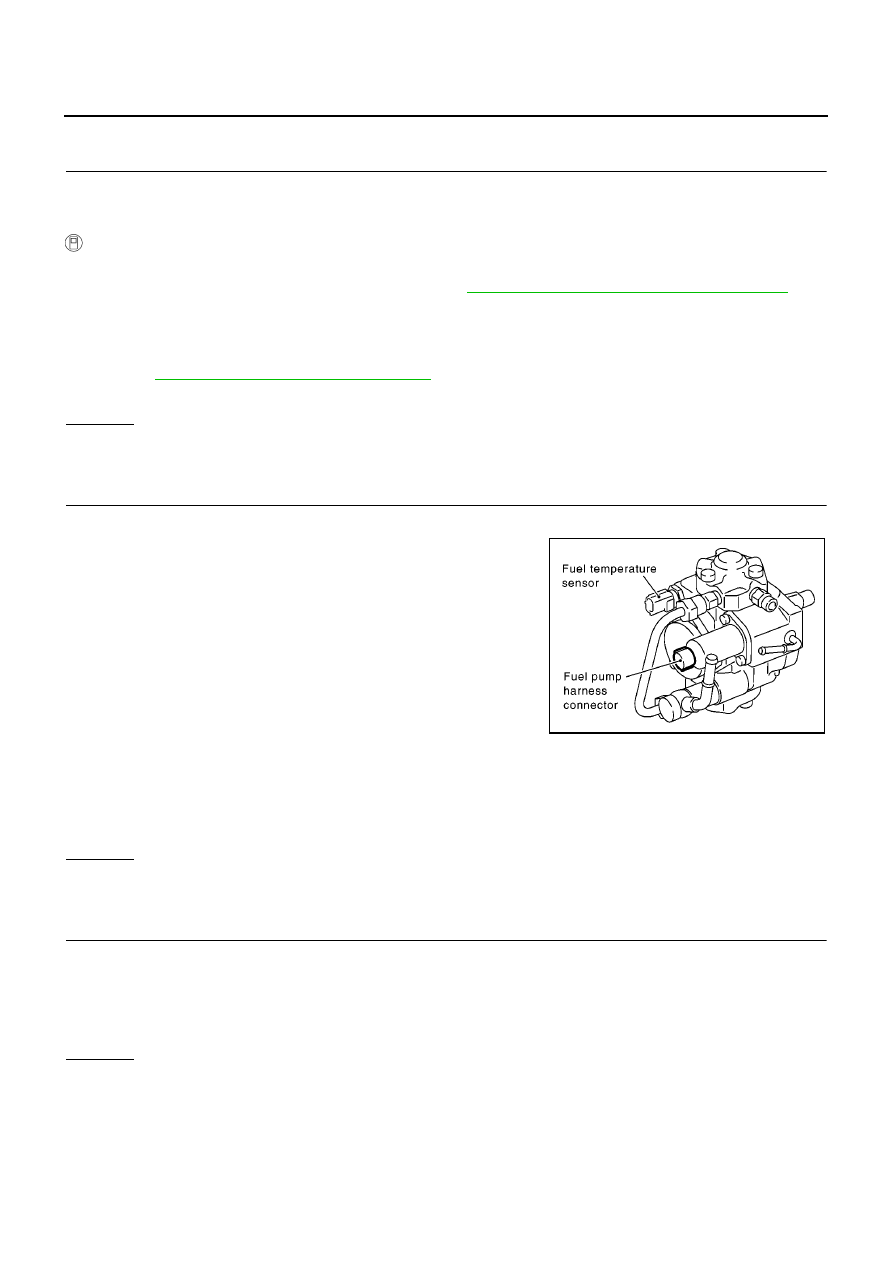

Diagnostic Procedure

EBS015B0

1.

PERFORM FUEL PUMP LEARNING VALUE CLEARING

NOTE:
If the DTC is detected because of air mixed with fuel (i.e.: caused by lack of fuel), it may become normal by
performing following procedure.

With CONSULT-II

1.

Turn ignition switch ON.

2.

Perform Fuel Pump Learning value clearing. Refer to

EC-368, "Fuel Pump Learning Value Clearing"

.

3.

Start engine and let it idle for at least 60 seconds.

4.

Select “SELF-DIAG RESULT” mode with CONSULT-II.

5.

Touch “ERASE”.

6.

Perform

EC-580, "DTC Confirmation Procedure"

, again.

7.

Is DTC detected again?

Yes or No

Yes

>> GO TO 2.

No

>> INSPECTION END

2.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector and fuel pump harness
connectors.

3.

Check harness continuity between ECM terminal 10 and fuel pump terminal 1.
Refer to Wiring Diagram.

4.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK FUEL PUMP GROUND CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between ECM terminal 29 and fuel pump terminal 2.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

PBIB1943E

Continuity should exist.

Continuity should exist.

DTC P1273 FUEL PUMP

EC-583

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

4.

CHECK FUEL RAIL PRESSURE SENSOR

Refer to

EC-456, "Component Inspection"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace fuel rail.

5.

CHECK FUEL PUMP

Refer to

EC-583, "Component Inspection"

.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

REPLACE FUEL PUMP

1.

Replace fuel pump.

2.

Perform Fuel Pump Learning Valve Clearing. Refer to

EC-368, "Fuel Pump Learning Value Clearing"

.

>> INSPECTION END

7.

CHECK INTERMITTENT INCIDENT

Refer to

EC-408, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

Component Inspection

EBS015B1

FUEL PUMP

1.

Check continuity between fuel supply pump terminals 1 and 2.

2.

If NG, replace fuel pump.

Removal and Installation

EBS015B2

FUEL PUMP

Refer to

EM-42, "FUEL PUMP"

.

Continuity should exist.

MBIB0623E

EC-584

[YD (WITHOUT EURO-OBD)]

DTC P1274 FUEL PUMP

DTC P1274 FUEL PUMP

PFP:16700

Description

EBS015B3

To control the amount of the fuel inhalation of the fuel pump, a plunger is built into the fuel pump. When the
amount of the fuel inhalation of fuel increases, the fuel pump raises the fuel exhalation pressure. As a result,
the fuel injection pressure is raised. When the load of the engine increases, the ECM sends a signal to the fuel
pump to raise the injection pressure.

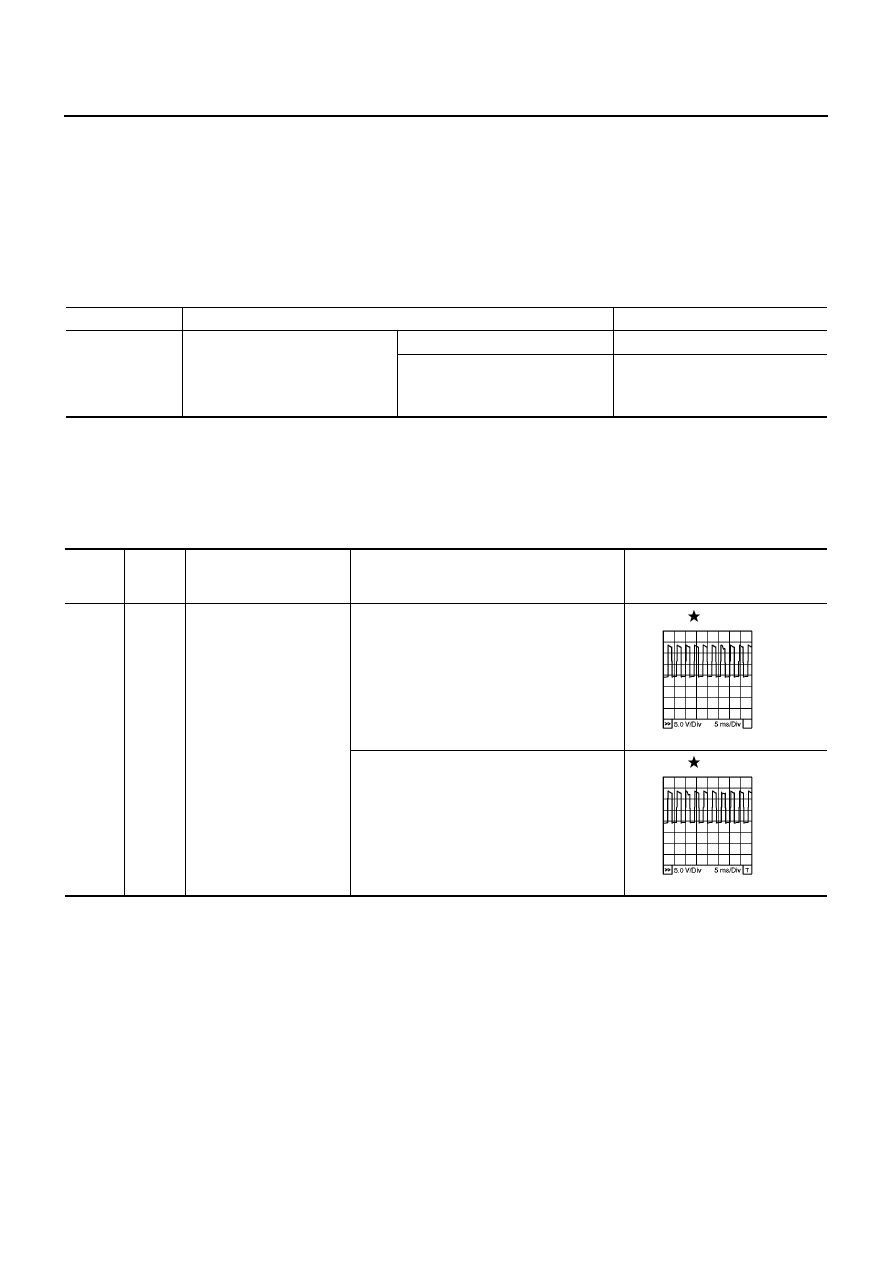

CONSULT-II Reference Value in Data Monitor Mode

EBS015B4

Specification data are reference values.

ECM Terminals and Reference Value

EBS015B5

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

MONITOR ITEM

CONDITION

SPECIFICATION

PUMP CURRENT

Engine: After warming up

Air conditioner switch: OFF

Shift lever: Neutral position

No-load

Idle

1,700 - 1,900 mA

2,000 rpm

1,600 - 1,800 mA

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

10

Y/L

Fuel pump power supply

[Engine is running]

Warm-up condition

Idle speed

0 - 12.5V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0 - 12.5V

MBIB0885E

MBIB0886E
