Nissan Primera P12. Manual - part 346





DTC P1268 - P1271 FUEL INJECTOR

EC-569

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

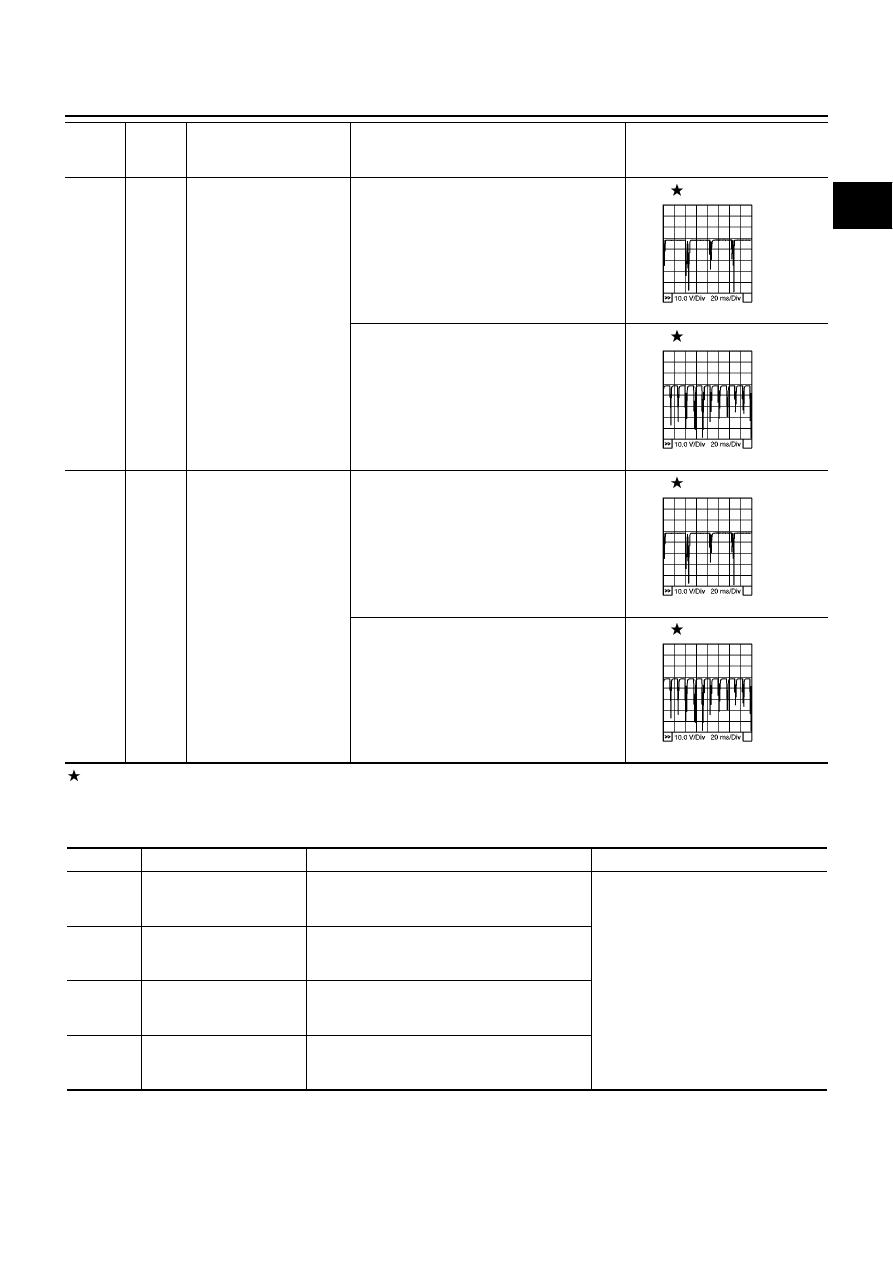

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

On Board Diagnosis Logic

EBS015AF

The MI will not light up for these self-diagnoses.

21
22
23
24

L
L
W
W

Fuel injector No. 2
Fuel injector No. 2
Fuel injector No. 3
Fuel injector No. 3

[Engine is running]

Warm-up condition

Idle speed

0 - 9V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0 - 9V

40
41
42
43

B/P
B/P
PU/G
PU/G

Fuel injector No. 4
Fuel injector No. 4
Fuel injector No. 1
Fuel injector No. 1

[Engine is running]

Warm-up condition

Idle speed

0 - 9V

[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm

0 - 9V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

MBIB0881E

MBIB0882E

MBIB0881E

MBIB0882E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1268

No. 1 cylinder fuel injector

The valve built into No. 1 cylinder fuel injector is
not closed properly (stuck open) when the injec-
tor is not energized.

Fuel injector

P1269

No. 2 cylinder fuel injector

The valve built into No. 2 cylinder fuel injector is
not closed properly (stuck open) when the injec-
tor is not energized.

P1270

No. 3 cylinder fuel injector

The valve built into No. 3 cylinder fuel injector is
not closed properly (stuck open) when the injec-
tor is not energized.

P1271

No. 4 cylinder fuel injector

The valve built into No. 4 cylinder fuel injector is
not closed properly (stuck open) when the injec-
tor is not energized.

EC-570

[YD (WITHOUT EURO-OBD)]

DTC P1268 - P1271 FUEL INJECTOR

DTC Confirmation Procedure

EBS015AG

CAUTION:

Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws when driv-
ing.

NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

WITH CONSULT-II

1.

Turn ignition switch ON, and select “DATA MONITOR” mode
with CONSULT-II.

2.

Restart engine and let it idle for about 15 minutes.

3.

If DTC is detected, go to

EC-572, "Diagnostic Procedure"

.

If DTC is not detected, go to next step.

4.

Drive vehicle and maintain the following conditions for at least
60 seconds.

5.

If DTC is detected, go to

EC-572, "Diagnostic Procedure"

.

CKPS·RPM

700 - 2000 rpm (A constant rotation is maintained)

COOLAN TEMP/S

Less than 75

°

C (167

°

F)

Shift lever

Suitable position

Accelerator pedal

Hold the accelerator pedal as steady as possible.

PBIB2156E

DTC P1268 - P1271 FUEL INJECTOR

EC-571

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

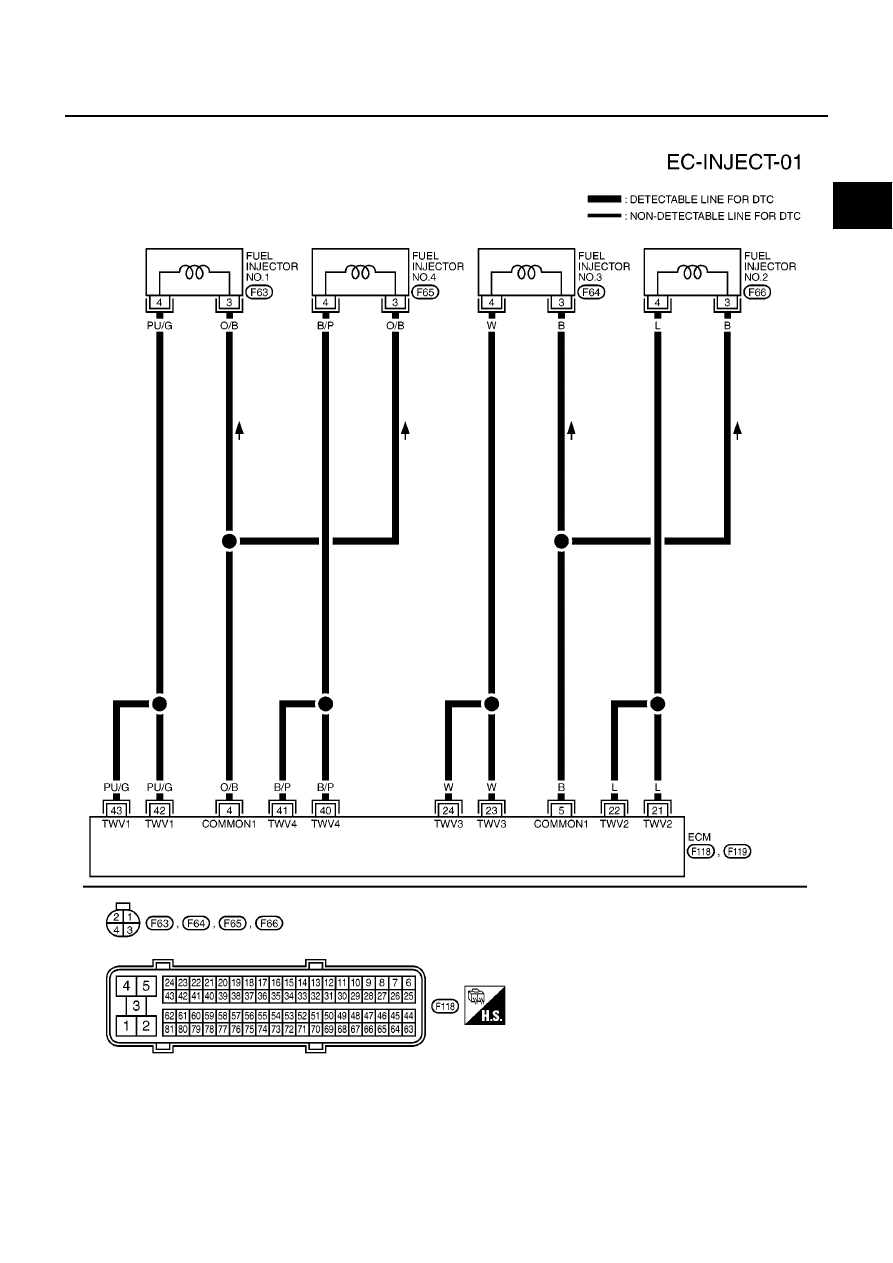

Wiring Diagram

EBS015AH

MBWA0634E

EC-572

[YD (WITHOUT EURO-OBD)]

DTC P1268 - P1271 FUEL INJECTOR

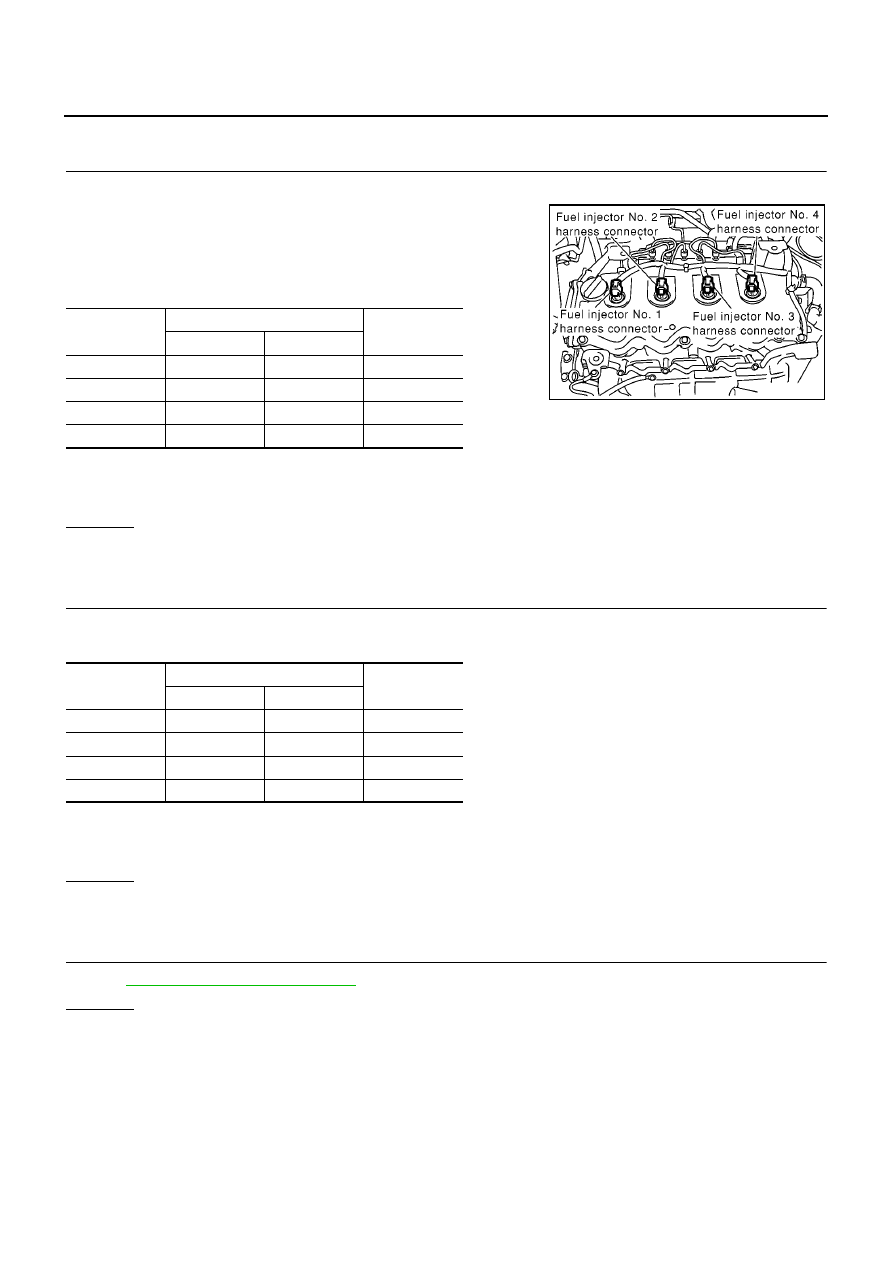

Diagnostic Procedure

EBS015AI

1.

CHECK FUEL INJECOR POWER SUPPLY CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Disconnect fuel injector harness connector.

4.

Check harness continuity between the following terminals corre-
sponding to the malfunctioning cylinder. Refer to Wiring Dia-
gram.

5.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 2.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

2.

CHECK ECM OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check harness continuity between the following terminals corresponding to the malfunctioning cylinder.
Refer to Wiring Diagram.

2.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK FUEL INJECTOR-I

Refer to

EC-573, "Component Inspection"

.

OK or NG

OK

>> GO TO 4.

NG

>> Replace fuel injector.

DTC

Terminal

Cylinder

ECM

Fuel injector

P1268

4

3

No.1

P1269

5

3

No.2

P1270

5

3

No.3

P1271

4

3

No.4

Continuity should exist.

MBIB0085E

DTC

Terminal

Cylinder

ECM

Fuel injector

P1268

42, 43

4

No.1

P1269

21, 22

4

No.2

P1270

23, 24

4

No.3

P1271

40, 41

4

No.4

Continuity should exist.
