Nissan Primera P12. Manual - part 150





WHEEL SENSORS

BRC-105

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

WHEEL SENSORS

PFP:47910

Removal and Installation

EFS002XW

CAUTION:

Be careful not to damage sensor edge and rotor tooth. Before removing front or rear wheel hub,
remove wheel sensor to avoid sensor wiring damage. Otherwise, sensor may be deactivated.

When removing sensor, avoid rotating it as much as possible. Do not forcibly pull sensor harness.

When installing, check sensor pick-up and mounting hole for foreign material such as iron chips.
Check no foreign material has been caught in sensor rotor. Remove any foreign material found.
Tighten mounting bolts and nuts to the specified torque.

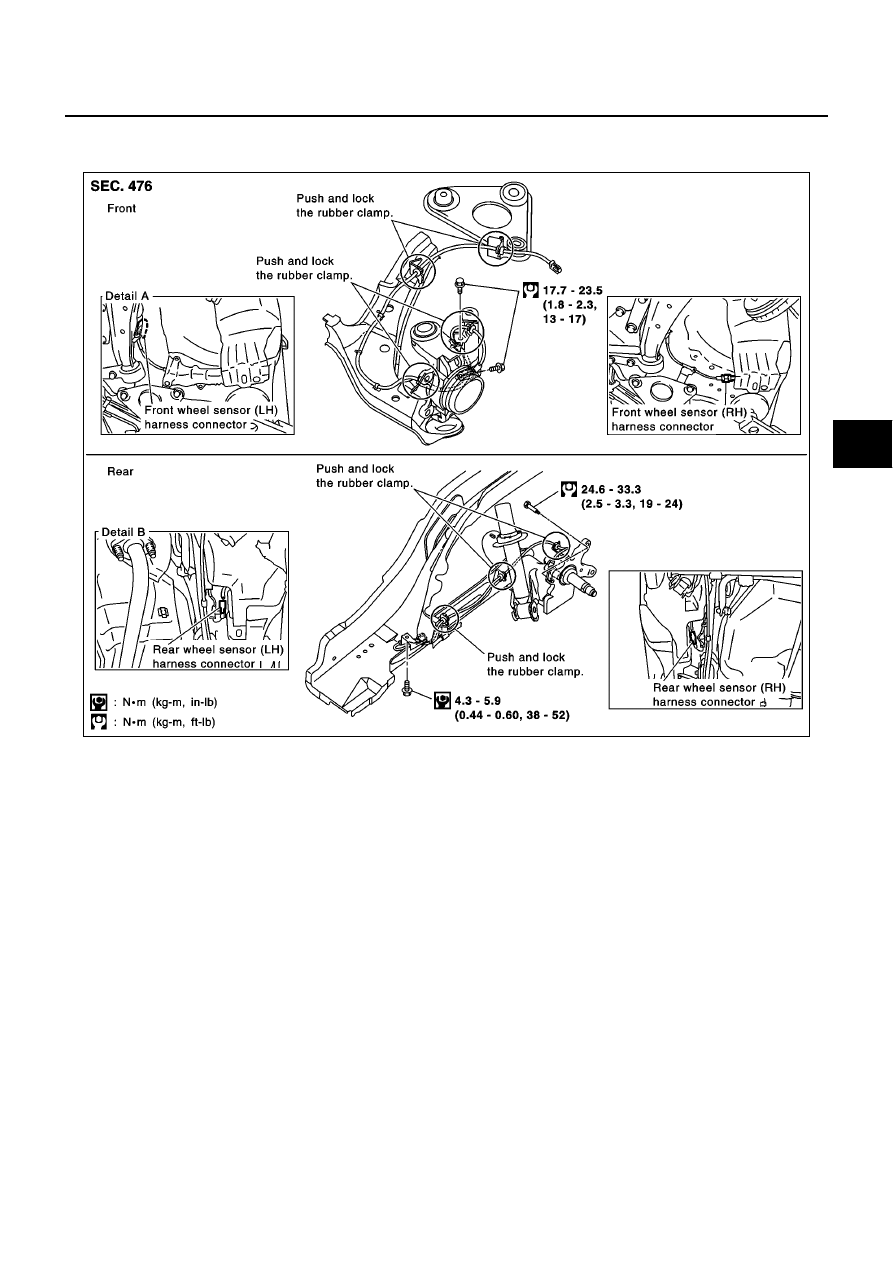

SFIA0421E

BRC-106

[ESP/TCS/ABS]

SENSOR ROTOR

SENSOR ROTOR

PFP:47970

Removal and Installation

EFS002XX

REMOVAL
Front

1.

Remove drive shaft. Refer to

FAX-11, "REMOVAL"

.

2.

Remove sensor rotor from drive shaft. Refer to “FAX Front axle/Drive shaft ”

FAX-14, "DISASSEMBLY"

Rear

1.

Remove wheel hub. Refer to

RAX-5, "REMOVAL"

.

2.

Remove sensor rotor from wheel hub. Refer to “RAX Rear axle/Wheel hub”

RAX-5, "REMOVAL"

INSTALLATION
Front

1.

Install sensor rotor to drive shaft. Refer to “FAX Front axle/Drive shaft”

FAX-17, "ASSEMBLY"

2.

Connect drive shaft. Refer to

FAX-13, "INSTALLATION"

in “FAX Front Axle/Drive Shaft”.

Rear

1.

Install sensor rotor to wheel hub. Refer to RAX Rear axle/Wheel hub”

RAX-6, "INSTALLATION"

2.

Connect wheel hub. Refer to

RAX-6, "INSTALLATION"

in “RAX Rear Axle/Wheel hub”.

ESP/TCS/ABS ACTUATOR AND RELAY BOX

BRC-107

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

ESP/TCS/ABS ACTUATOR AND RELAY BOX

PFP:47850

Removal and Installation

EFS002XY

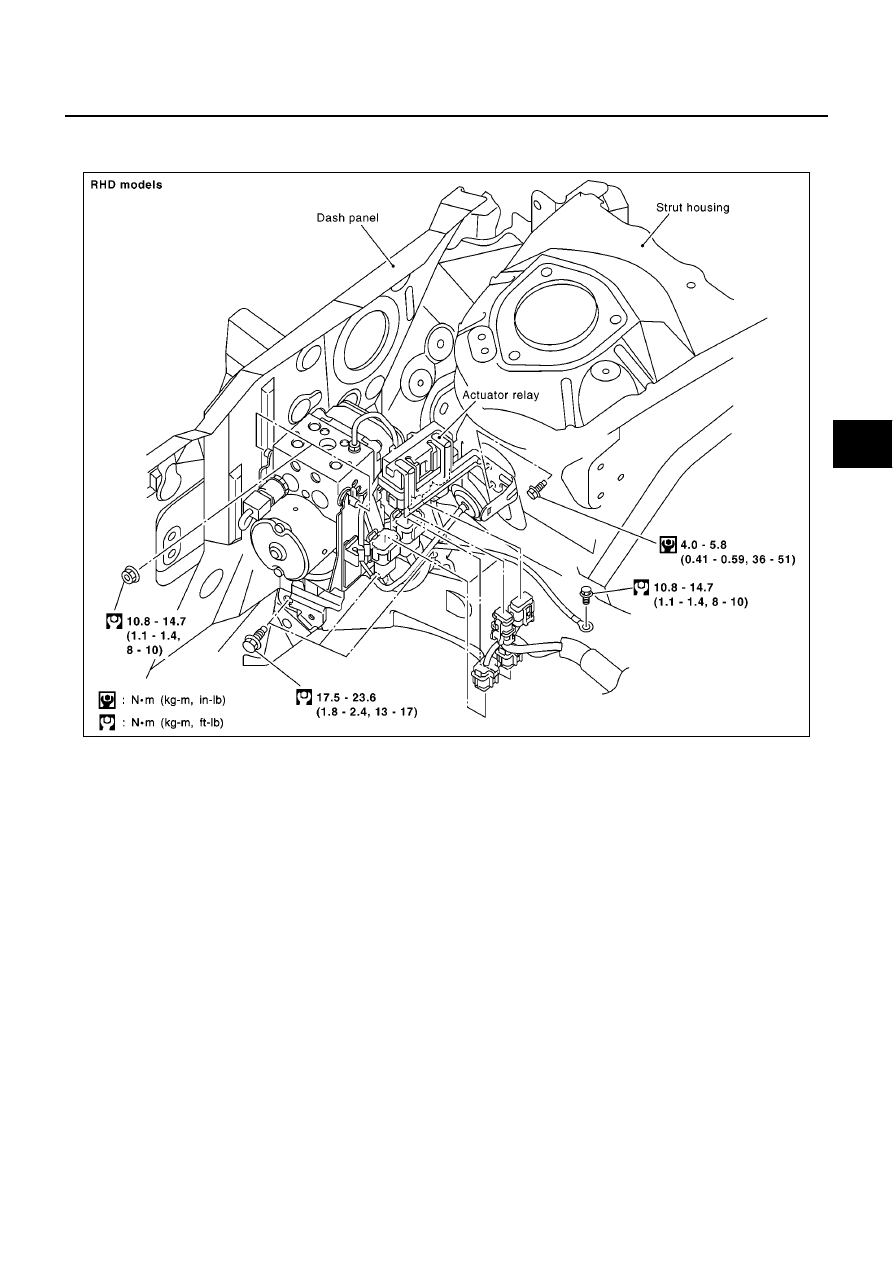

MFIA0006E

BRC-108

[ESP/TCS/ABS]

ESP/TCS/ABS ACTUATOR AND RELAY BOX

Be careful of the following.

CAUTION:

Before servicing, disconnect the battery terminals.

To remove the brake tube, use a flare nut wrench to prevent the flare nuts and brake tube from
being damaged. To install, use a brake tube torque wrench.

Do not remove and install the actuator by holding the harness.

After completing the work, bleed the brake piping of air. Refer to

BR-10, "Bleeding Brake System"

.

Make sure to connect the ground terminal securely.

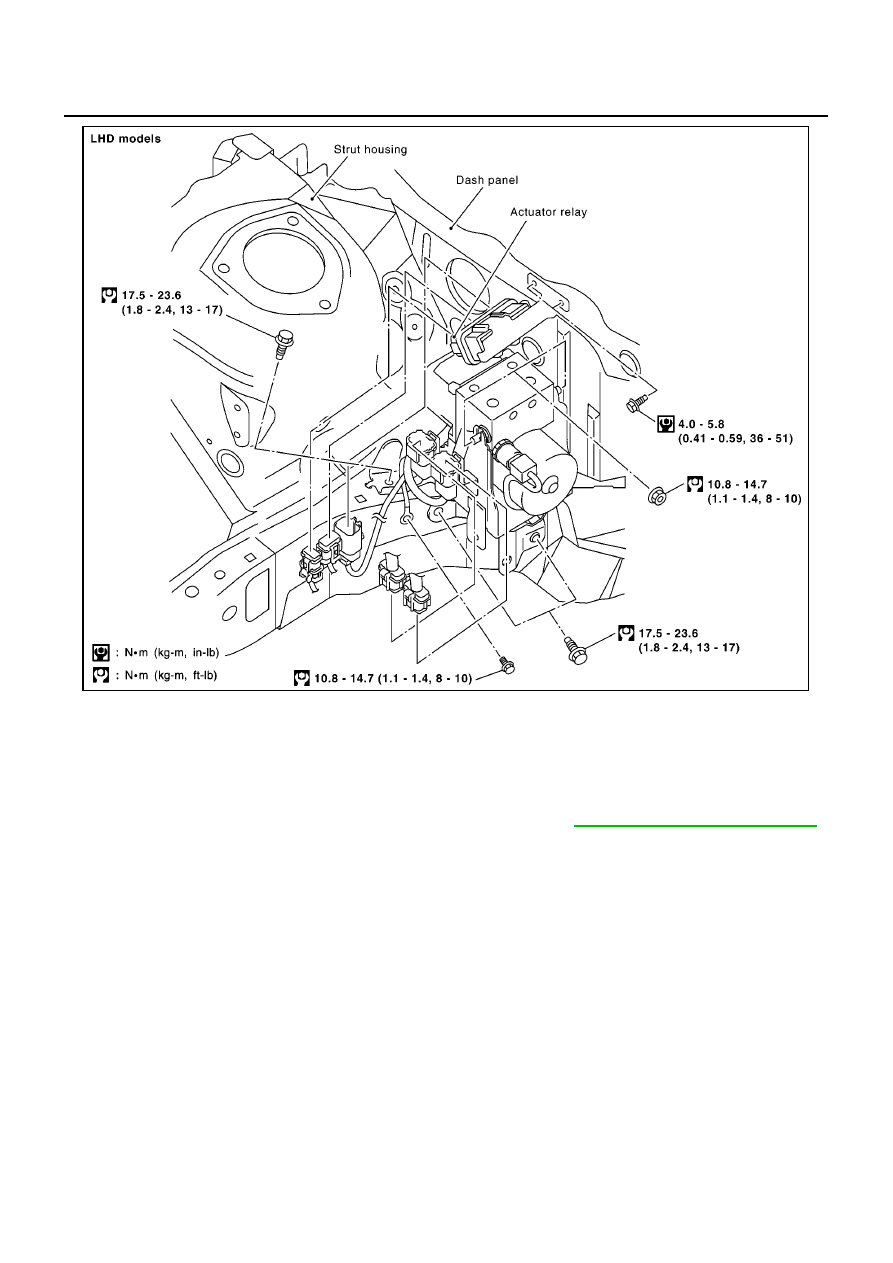

MFIA0007E
