Nissan Primera P12. Manual - part 134





GENERAL INFORMATION

BRC-41

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

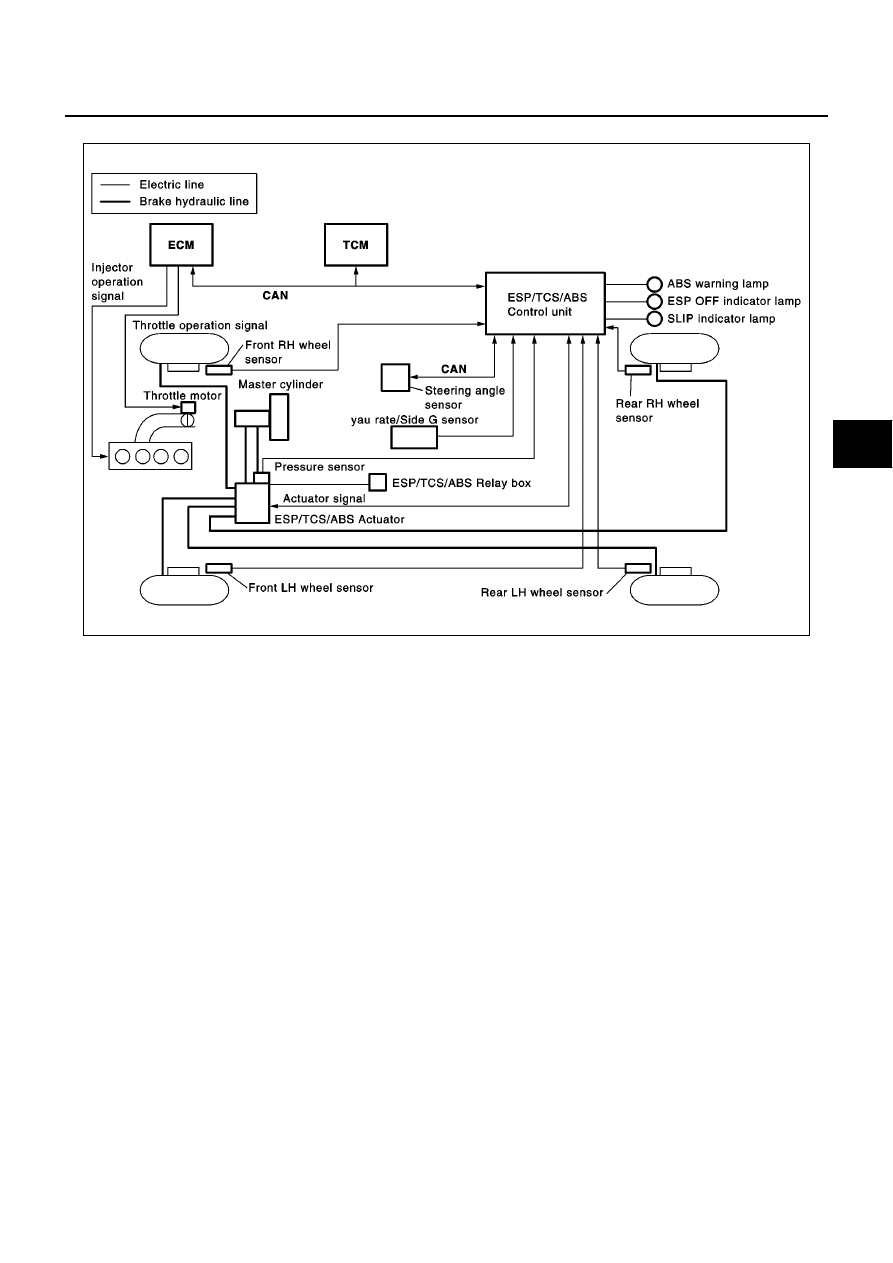

System Diagram

EFS002WW

SFIA0432E

BRC-42

[ESP/TCS/ABS]

CAN COMMUNICATION

CAN COMMUNICATION

PFP:23710

System Description

EFS002WX

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.

CAN Communication Unit

EFS003FB

×

:Applicable

Body type

Sedan/Wagon/Hatch back

Axle

2WD

Engine

YD22DDTi

F9Q

Transmission

M/T

Brake control

ESP

ABS

ESP

ABS

CAN communication unit

ECM

×

×

×

×

×

×

×

×

ESP/TCS/ABS control unit

×

×

×

×

ABS actuator and electric
unit (control unit)

×

×

×

×

Data link connector

×

×

×

×

×

×

×

×

Tyre pressure monitoring
control unit

×

×

×

×

Steering angle sensor

×

×

×

×

Smart entrance control unit

×

×

×

×

×

×

×

×

Combination meter

×

×

×

×

×

×

×

×

Can communication type

BRC-43, "TYPE

21,TYPE22/TYPE29,

TYPE30"

BRC-44, "TYPE

23,TYPE24/TYPE31,

TYPE32"

BRC-45, "TYPE 25/

TYPE26"

BRC-46, "TYPE 27/
TYPE28"

CAN COMMUNICATION

BRC-43

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

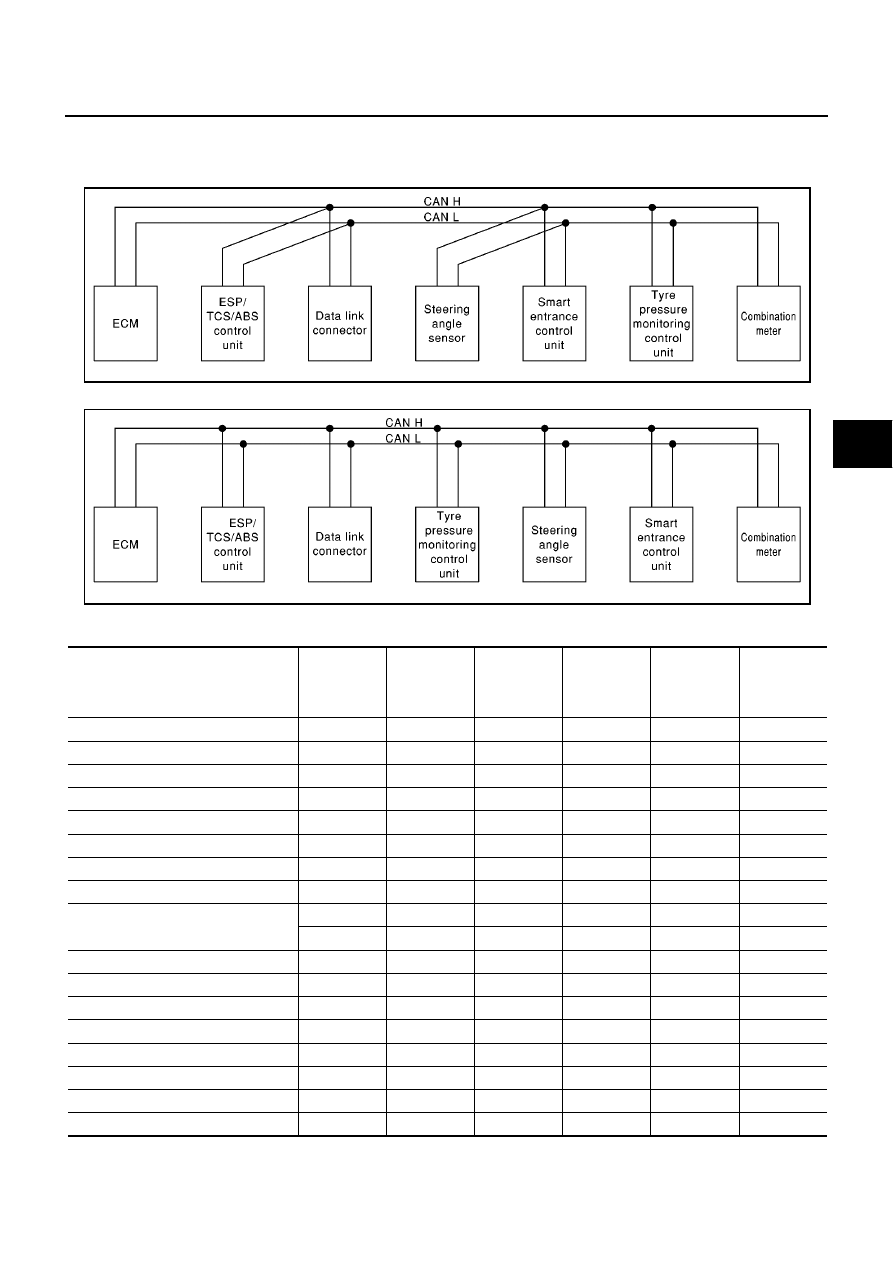

TYPE 21,TYPE22/TYPE29, TYPE30
System diagram

LHD models (Type21, Type22)

RHD models (Type29, Type30)

Input/output signal chart

T: Transmit R: Receive

SKIA1524E

SKIA1538E

Signals

ECM

ESP/ TCS /

ABS control

unit

Steering

angle sensor

Smart

entrance

control unit

Tyre pres-

sure monitor-

ing control

unit

Combination

meter

Engine speed signal

T

R

R

Accelerator pedal position signal

T

R

Steering angle sensor signal

R

T

Air conditioner switch signal

R

T

MI signal

T

R

Glow indicator lamp signal

T

R

Engine coolant temperature signal

T

R

Fuel consumption signal

T

R

Vehicle speed signal

T

R

R

R

T

Seat belt reminder signal

R

T

Lighting switch position signal

T

R

Flashing indicator signal

T

R

Engine cooling fan speed signal

T

R

Child lock indicator signal

T

R

Door switches state signal

T

R

A/C compressor signal

T

R

Tyre pressure signal

T

R

BRC-44

[ESP/TCS/ABS]

CAN COMMUNICATION

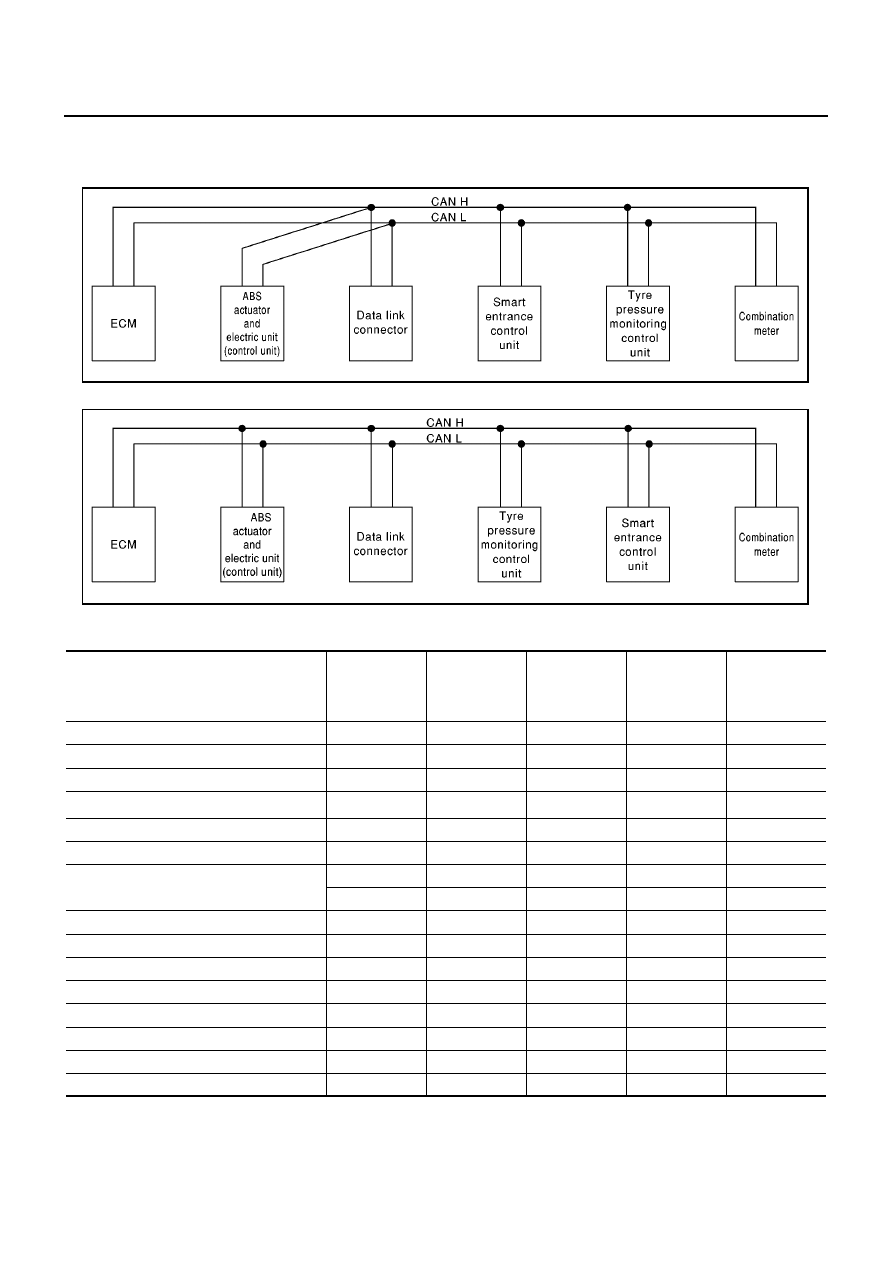

TYPE 23,TYPE24/TYPE31, TYPE32
System diagram

LHD models (Type23, Type24)

RHD models (Type31, Type32)

Input/output signal chart

T: Transmit R: Receive

SKIA1525E

SKIA1539E

Signals

ECM

ABS actuator

and electric

unit (control

unit)

Smart entrance

control unit

Tyre pressure

monitoring

control unit

Combination

meter

Engine speed signal

T

R

Air conditioner switch signal

R

T

MI signal

T

R

Glow indicator lamp signal

*1

T

R

Engine coolant temperature signal

T

R

Fuel consumption signal

T

R

Vehicle speed signal

T

R

R

R

T

Seat belt reminder signal

R

T

Lighting switch position signal

T

R

Flashing indicator signal

T

R

Engine cooling fan speed signal

T

R

Child lock indicator signal

T

R

Door switches state signal

T

R

A/C compressor signal

T

R

Tyre pressure signal

T

R
