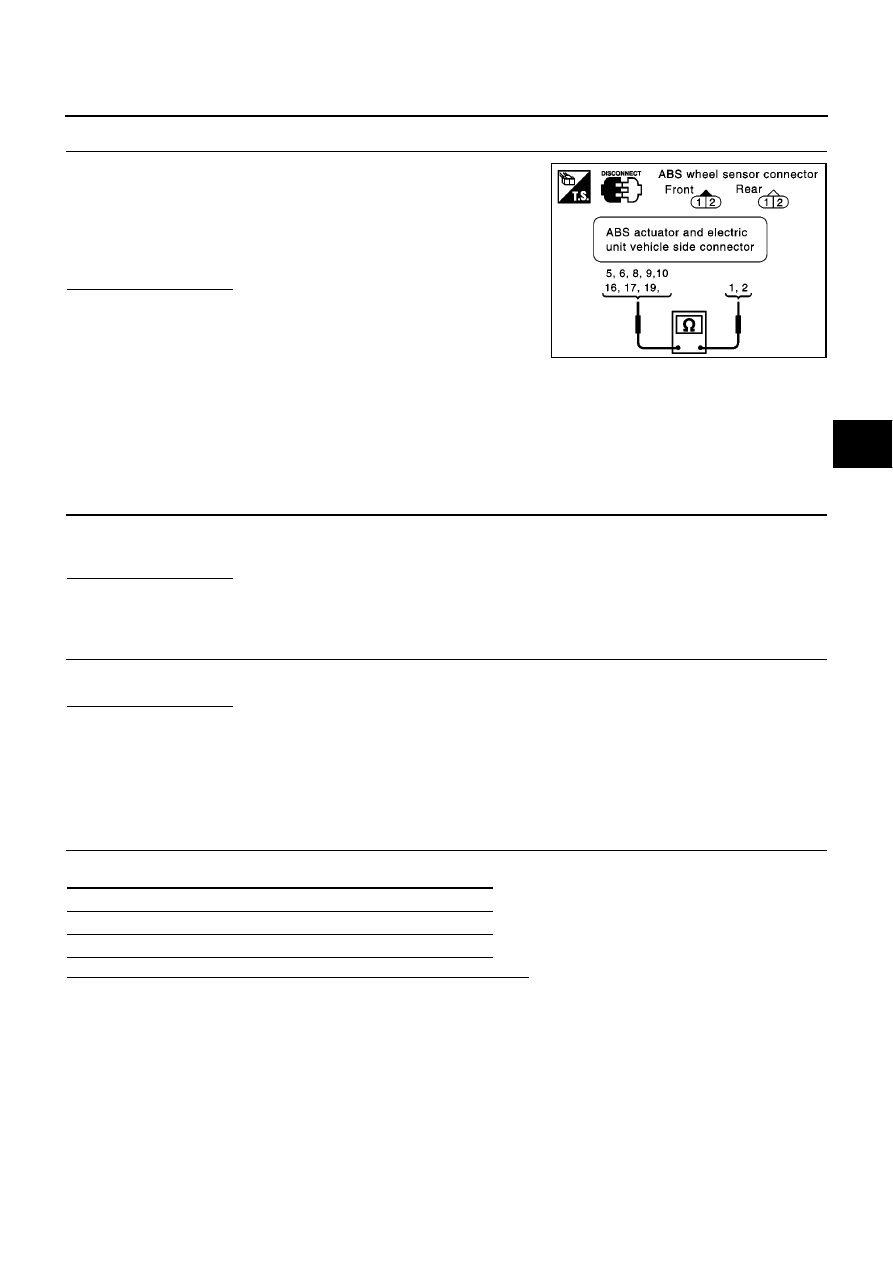

TROUBLE DIAGNOSIS BRC-25 [ABS] C D E G H I J K L M A B BRC 5. CHECK WHEEL SENSOR CIRCUIT. 1. Disconnect control unit connector and wheel sensor connector. 2. Check continuity between the ABS actuator and electric unit Is inspection result OK? OK >> Replace ABS actuator and electric unit. NG >> Repair or replace the harness. ABS warning lamp does not illuminate. (ABS warning lamp does not come on EFS002WA Replace the combination meter control unit. ABS warning lamp illuminates with ignition ON, but does not illuminates off EFS002WB 1. ABS ACTUATOR AND ELECTRIC UNIT CONNECTOR CONNECTION INSPECTION Remove glove box on the passenger side and check ABS actuator and electric unit connector for proper con- Is inspection result OK? OK >> Proceed to 2. (ABS actuator and electric unit connector is properly connected.) NG >> Connect the ABS actuator and electric unit connector and perform inspection again. 2. USING CONSULT-II, PERFORM SELF-DIAGNOSIS. Connect the CONSULT-II and perform self-diagnosis. Is inspection result OK? OK >> GO TO 3. (No self-diagnosis malfunction indicated.) NG >> Perform inspection according to the trouble codes displayed on the CONSULT-II. Refer to the “DTC chart”. CAN Communication Circuit EFS002WC Inspection procedure 1. SELF-DIAGNOSIS RESULT CHECK 1 Description Are any items other than above indicated in self-diagnosis results? YES >> Repair or replace affected items. NO >> GO TO 2. SFIA0420E Self-diagnosis results CONSULT-II CAN COMM CIRCUIT |
