TROUBLE DIAGNOSIS

BRC-13

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

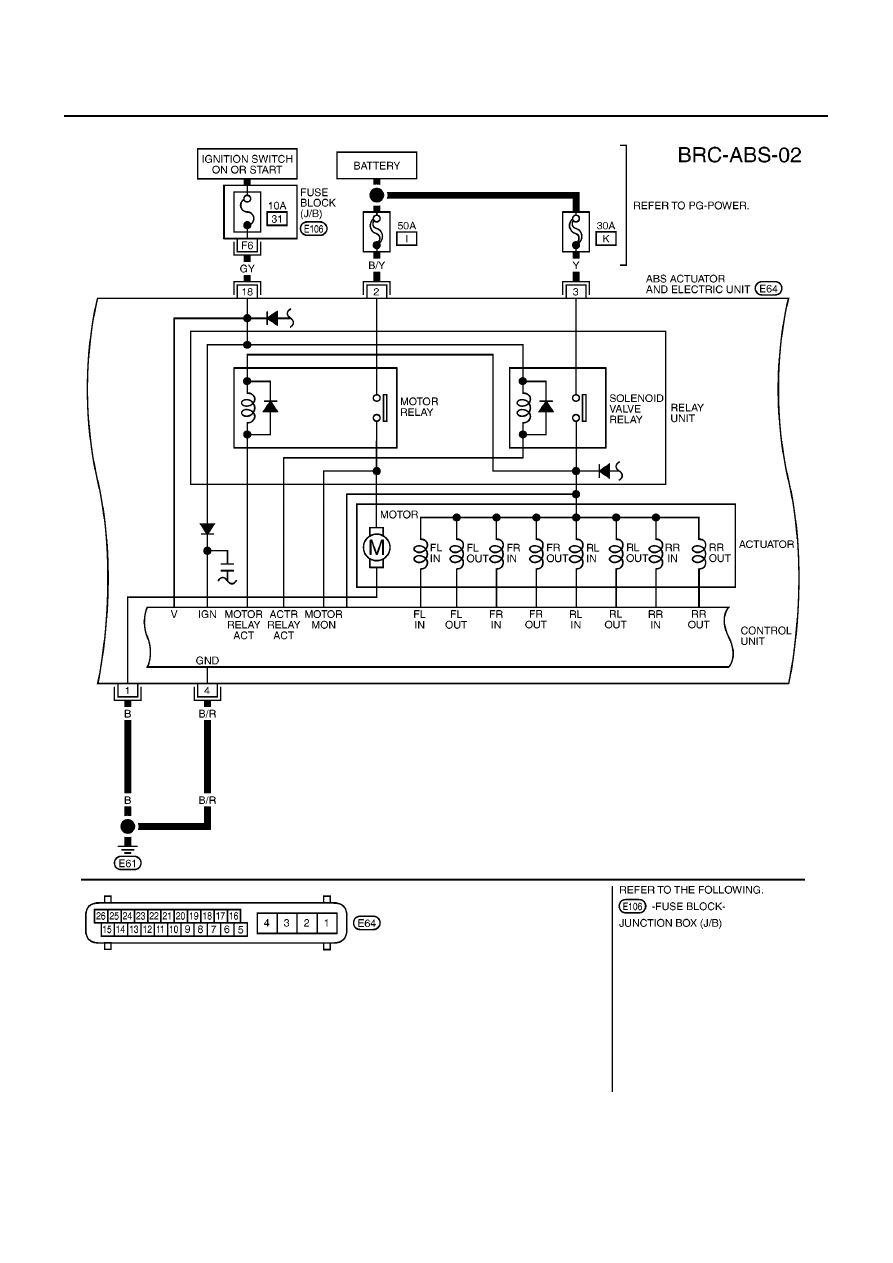

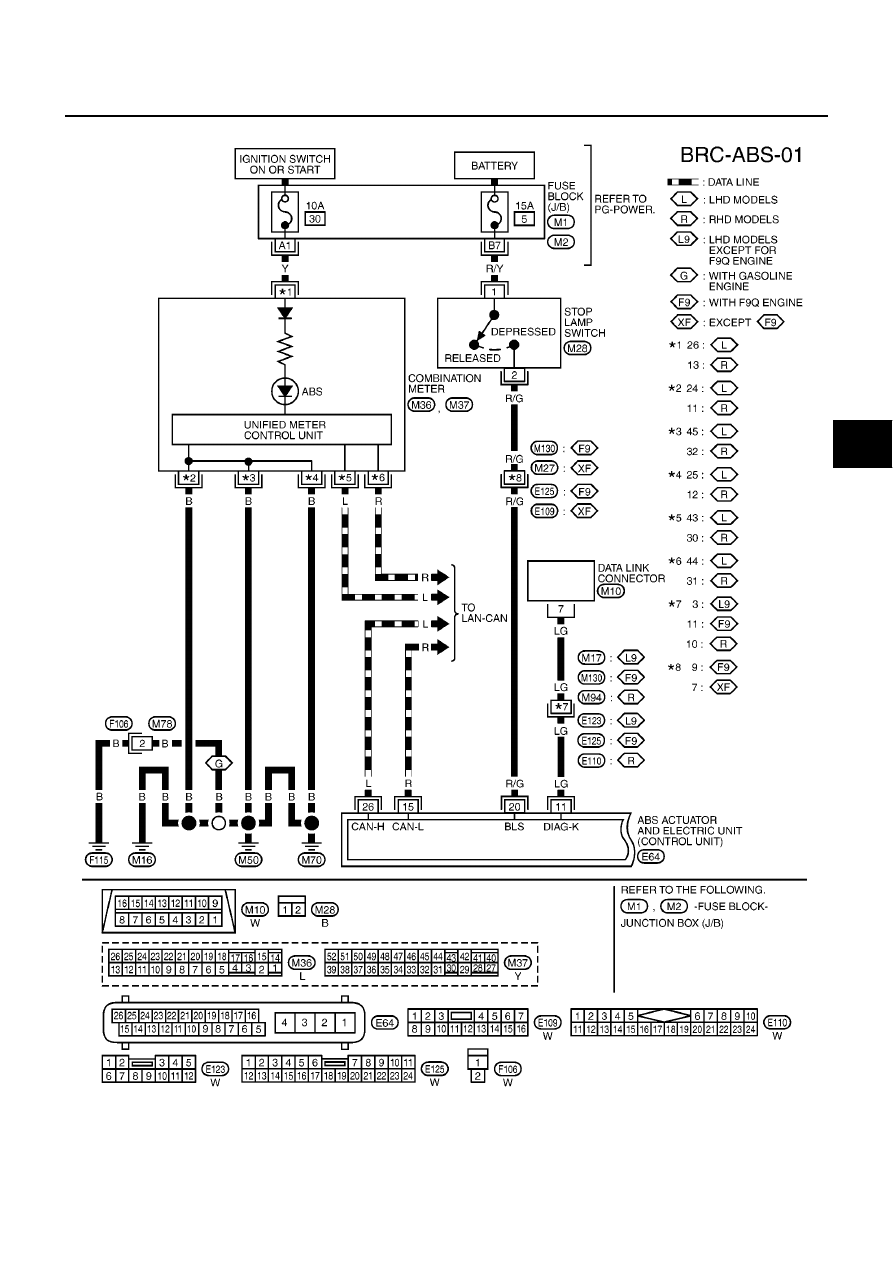

Wiring Diagram — ABS —

EFS002W3

MFWA0021E

BRC-14

[ABS]

TROUBLE DIAGNOSIS

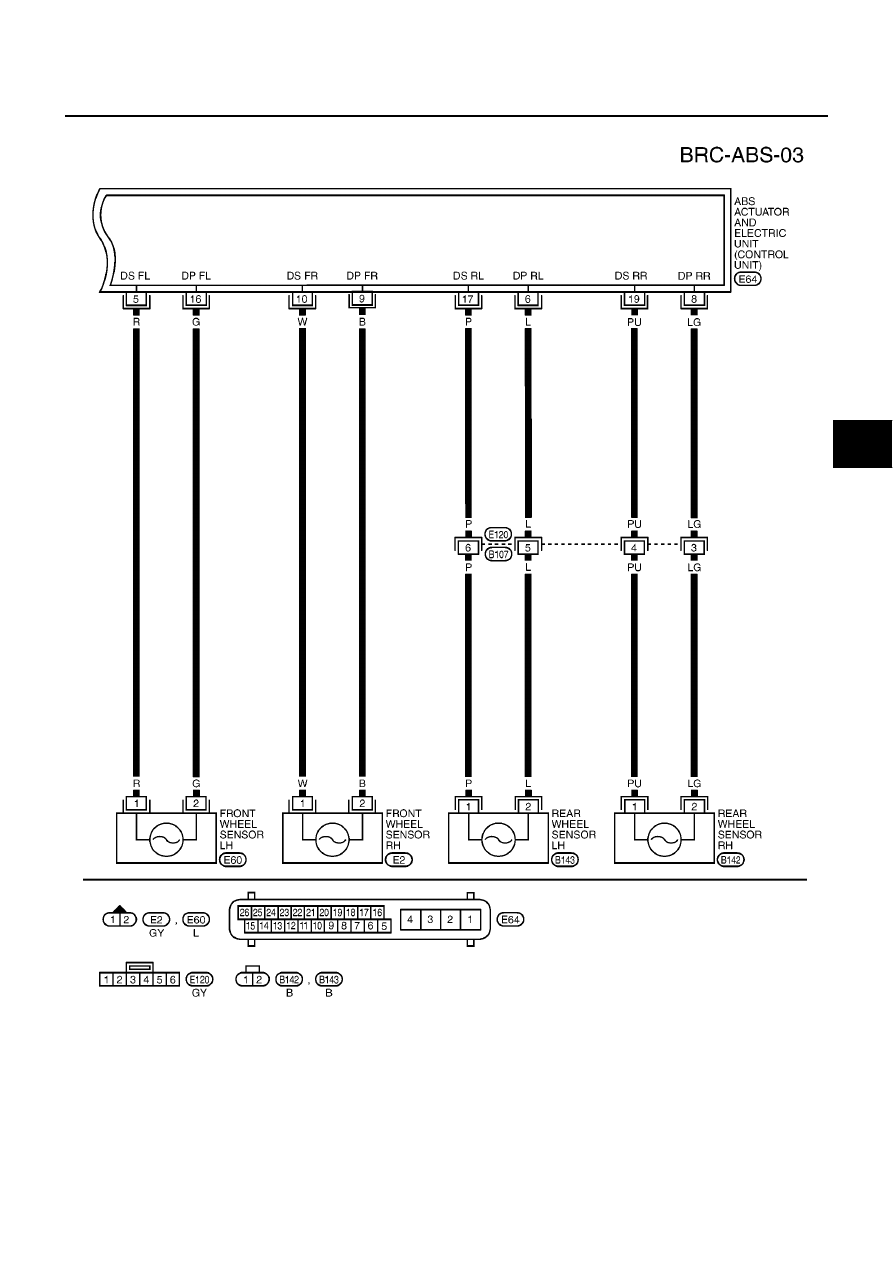

MFWA0022E

TROUBLE DIAGNOSIS

BRC-15

[ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

MFWA0023E

BRC-16

[ABS]

TROUBLE DIAGNOSIS

Trouble Diagnosis Chart by Symptom

EFS002W4

When ABS and warning lamps illuminate, perform self-diagnosis.

ABS actuator and electric unit Input/Output Signal Standard

EFS002W5

SPECIFICATIONS DEFINED BY CONSULT-II

Symptom

Condition

Check items

Reference page

ABS warning lamp does not illuminate
with ignition ON. (ABS warning lamp
check)

IGN-ON

Blown ABS warning lamp bulb

Blown fuse between ignition and ABS warning
lamp.

Open circuit of wiring between ignition and
ABS warning lamp.

Malfunction in ABS system

BRC-25

ABS warning lamp illuminates with
ignition ON, but does not illuminates off
after a few seconds. (ABS warning
lamp has been illuminated.)

IGN-ON

ABS actuator and electric unit connector dis-
connected

Malfunction in ABS system

BRC-25

Items to be monitored

Contents

Data monitor

(Reference)
Check points when result
was malfunctioning

Condition

Reference values in
normal operation

Wheel sensor FR,
FL, RR, RL

[km/h (MPH)]

Vehicle wheel speed

When the vehicle is
stopped

0 km/h (0 MPH)

Wheel sensor and harness

While driving (note:1)

Almost in accordance
with speedometer dis-
play (within

±

10%)

Stop lamp switch

Brake pedal status

Depress the brake
pedal.

ON

Stop lamp switch and path

Release brake pedal.

OFF

ENGINE RPM SIG-
NAL [STOP/RUN]

With engine running

Engine RPM below
400 rpm

STOP

Engine RPM signal path

Engine RPM 400 rpm
or higher

RUN

ABS inlet S/V
FR, FL, RR, RL

(ON/OFF)

Solenoid valve opera-
tion

Actuator and electric
unit (solenoid valve) is
activated (by active
test mode of CON-
SULT-II) or actuator
relay is not activated
(in fail-safe mode,
before starting engine)

ON

ABS solenoid valve path

ABS outlet S/V
FR, FL, RR, RL

(ON/OFF)

Actuator and electric
unit (solenoid valve) is
not activated and
actuator relay is acti-
vated (vehicle stopped
with engine running)

OFF

ABS actuator relay
(ON/OFF)

Actuator relay acti-
vated

Vehicle stopped
Ignition switch ON

OFF

ABS actuator relay and
harness

Vehicle stopped
Engine running

ON

ABS motor relay

(ON/OFF)

Motor relay and motor
activated

(Ignition switch ON or
engine is running):
ABS inactive

OFF

ABS motor and motor relay
harness

(Ignition switch ON or
engine is running):
ABS active

ON
