Nissan Primera P12. Manual - part 74





HOOD

BL-5

C

D

E

F

G

H

J

K

L

M

A

B

BL

HOOD

PFP:65100

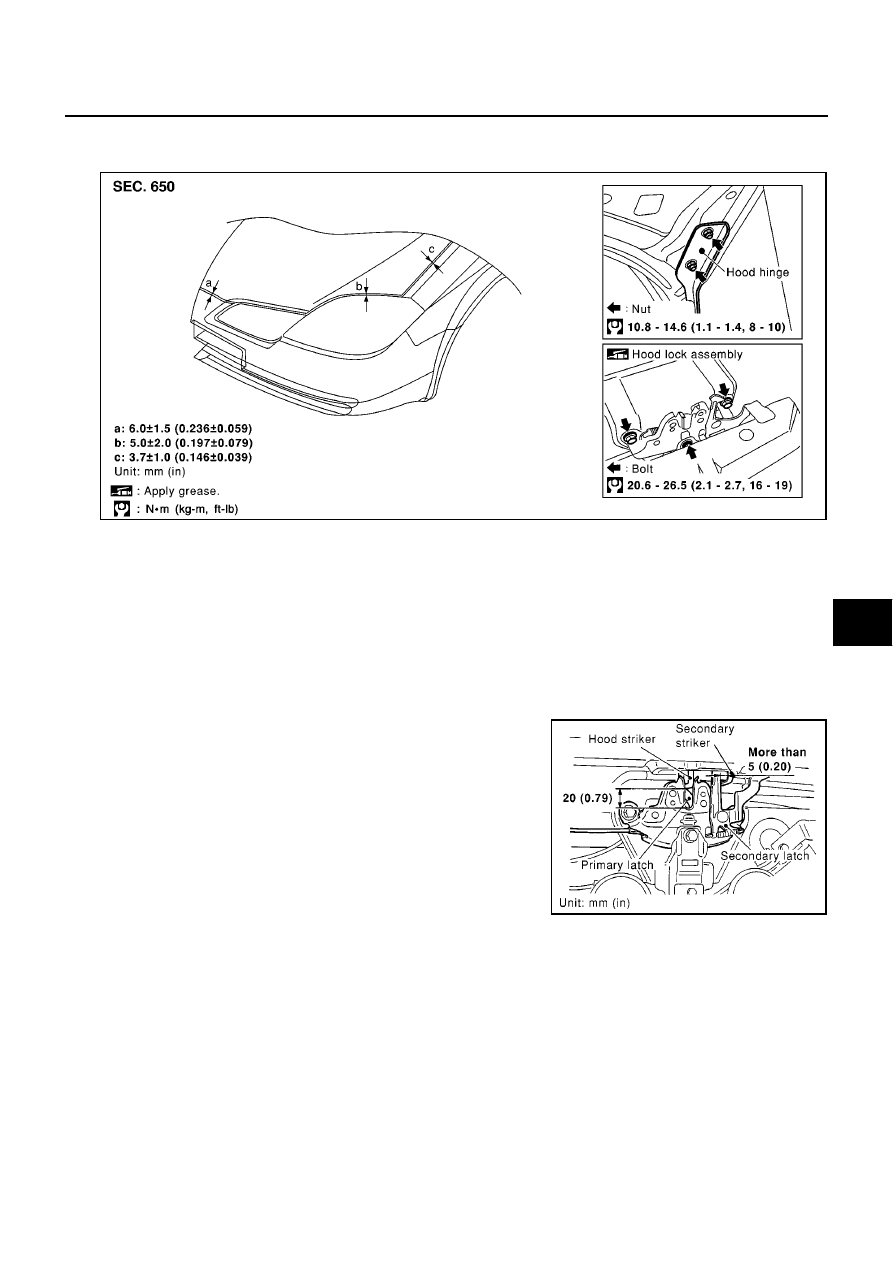

Fitting Adjustment

EIS005GI

FRONT END HEIGHT ADJUSTMENT AND LATERAL/LONGITUDINAL CLEARANCE ADJUST-
MENT

1.

Remove hood lock. Rotate bumper rubber to adjust height until hood becomes 1 to 1.5 mm (0.04 to 0.059
in) lower than the fender.

2.

Position hood lock and engage striker. Confirm hood lock and striker for looseness. Tighten lock mount
bolts to the specified torque.

SURFACE HEIGHT ADJUSTMENT

1.

Remove hood lock. Use bumper rubber (RH/LH) to make the hood and fender flush.

2.

Position hood lock. Move hood lock to left or right until vertically centered on the striker.

3.

Confirm secondary latch is securely engaged with secondary
striker by releasing it from a height of approximately 200 mm
(7.87 in) or by pressing it lightly approx.3kg (29 N).

NOTE:
Do not release hood from a height of 300 mm (11.81 in) or
higher.

4.

Move hood lock up and down until striker smoothly engages the
lock when the hood is closed.

5.

After adjustment, tighten lock mount bolts to the specified
torque.

SIIA0624E

PIIA0181E

BL-6

HOOD

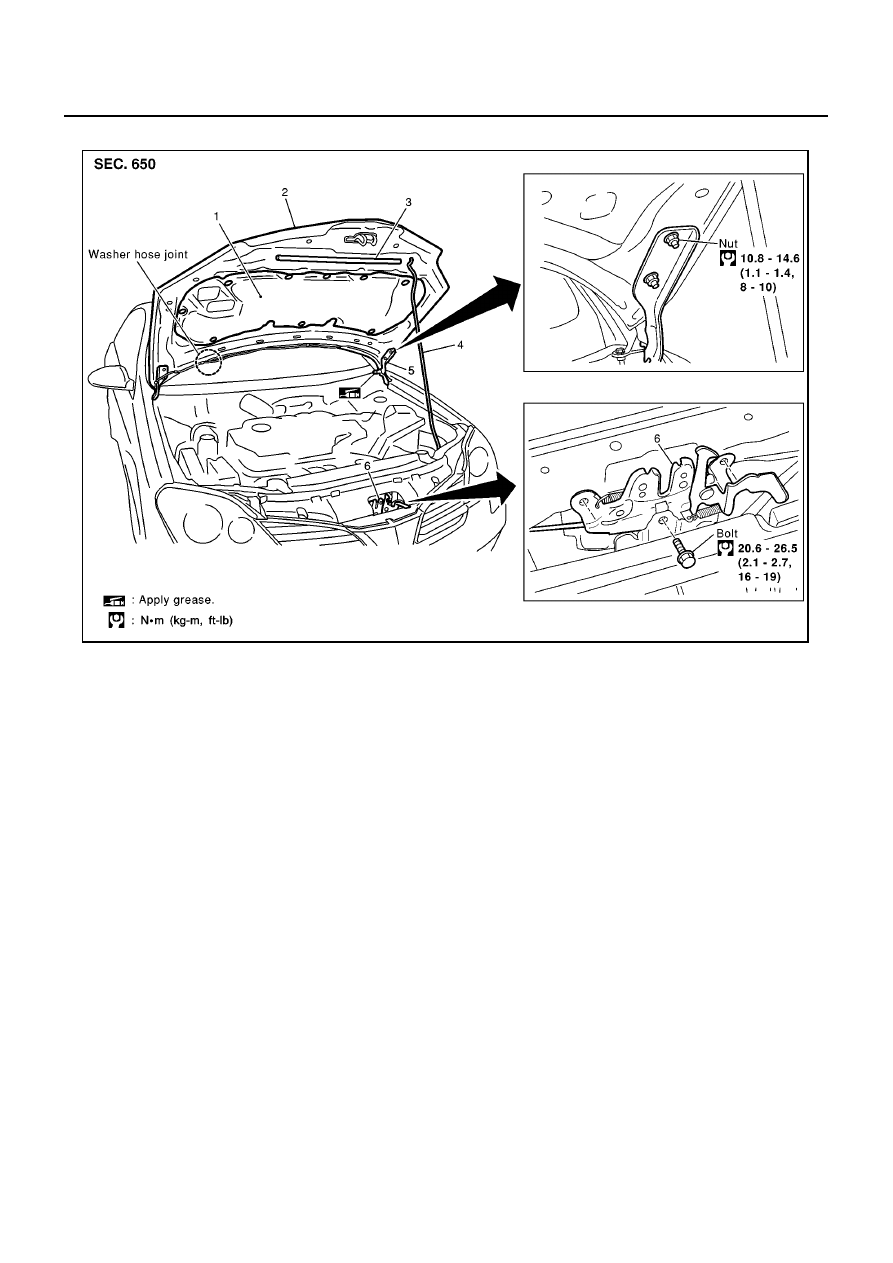

Removal and Installation of Hood Assembly

EIS005GJ

1.

Disconnect washer hose at the connection.

2.

Remove hinge mount nuts on the hood and then the hood assembly.

Install in the reverse order of removal.

1

: Hood insulator

2

: Hood assembly

3

: Radiator core support sealing rub-
ber

4

: Hood stay

5

: Hood hinge

6

: Hood lock assembly

SIIA0756E

HOOD

BL-7

C

D

E

F

G

H

J

K

L

M

A

B

BL

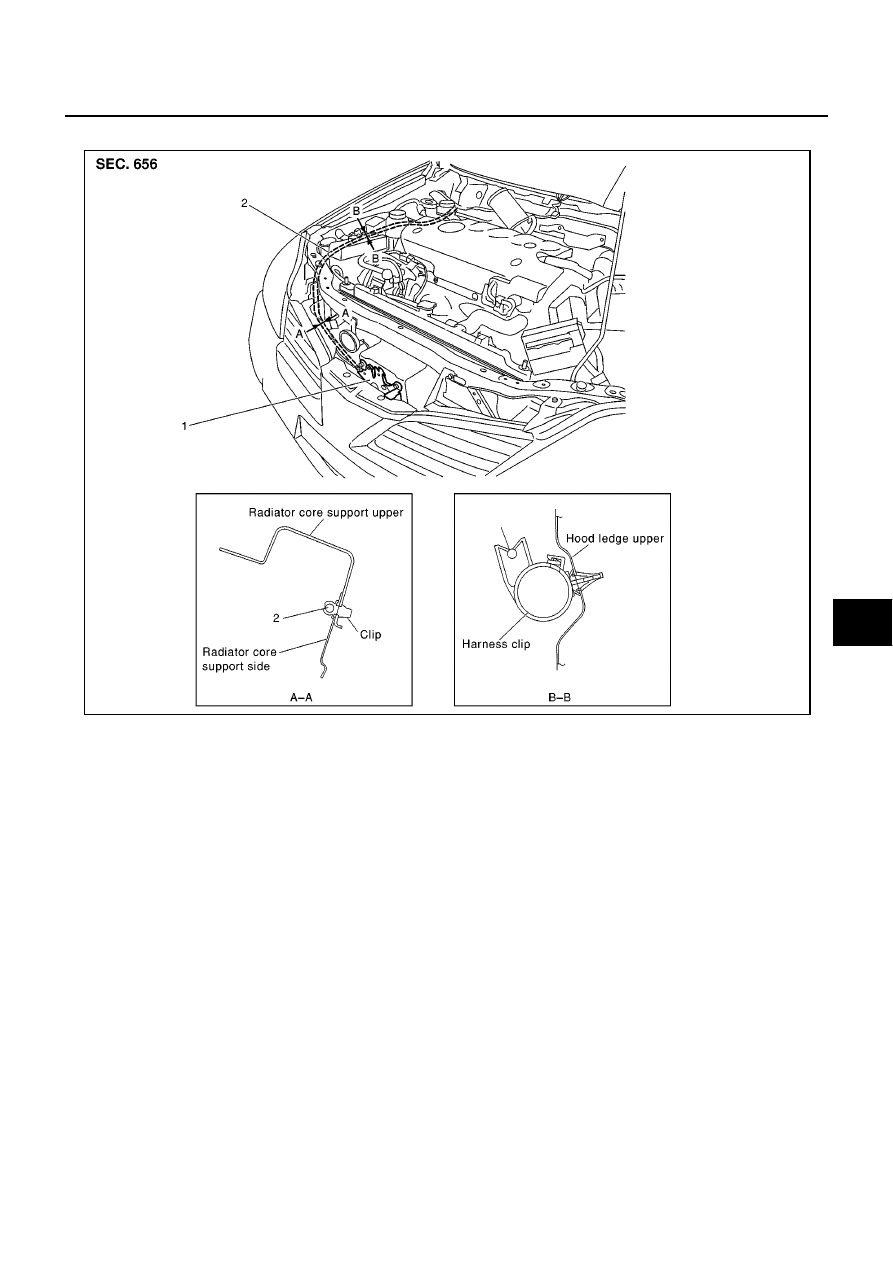

Removal and Installation of Hood Lock Control

EIS005GK

SIIA0628E

BL-8

HOOD

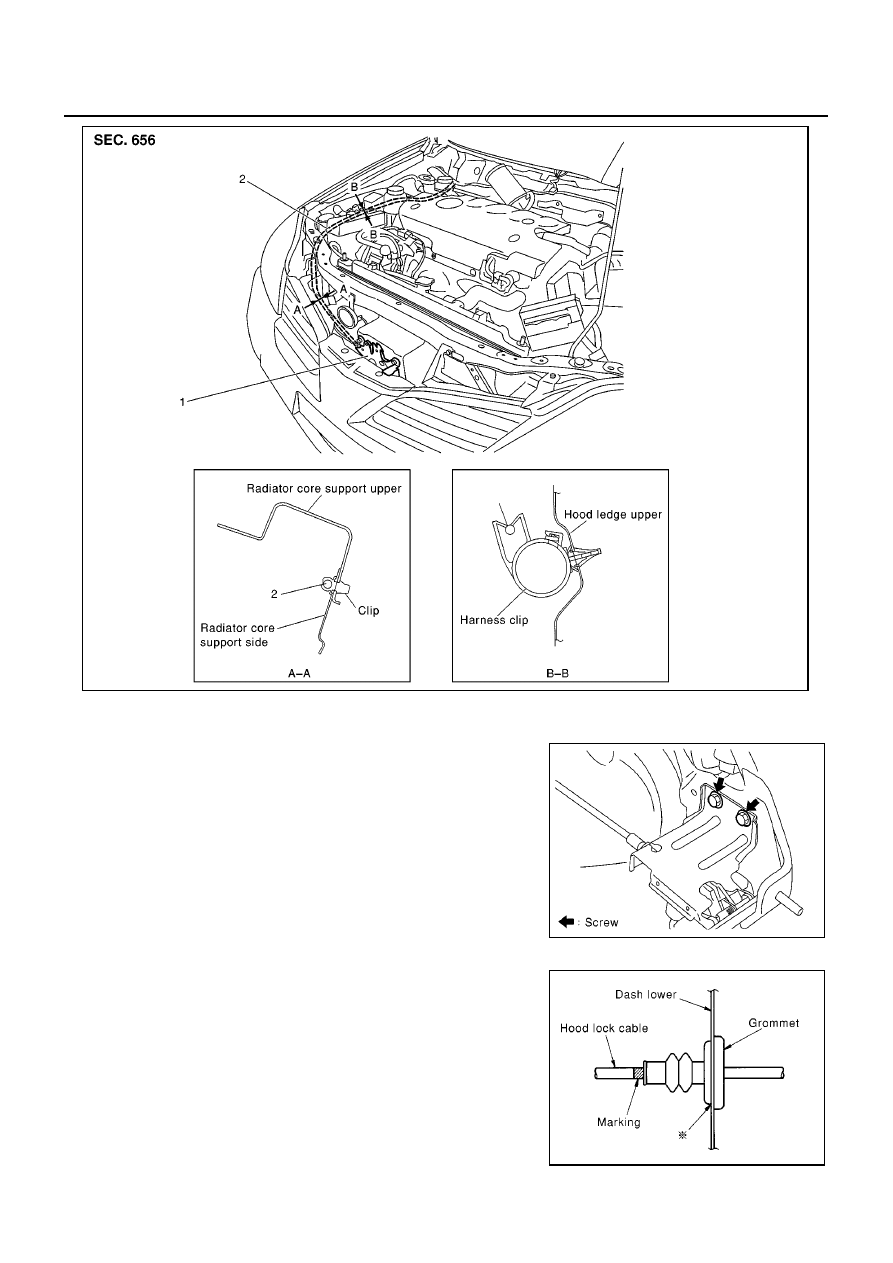

REMOVAL

1.

Remove hood lock cable and clip it from upper portion of radia-
tor core support and hood ledge.

2.

Remove dash side finisher. Refer to EI section in P12 ESM
(SM2E00-1P12E0E). .

3.

Remove attaching screw and then the hood opener.

4.

Remove dash panel grommet and pull hood lock cable toward
the passenger compartment.

NOTE:
When pulling the cable, be careful not to strip or scratch the
outer surface.

INSTALLATION

1.

Pass hood lock cable through the opening while keeping the
winding radius 100 mm (3.94 in) or larger.

2.

After confirming that the grommet is properly positioned, push
the grommet securely into the hole.

3.

Apply sealant to the area on the grommet indicated with the *
mark.

1

: Hood lock assembly

2

: Hood lock cable

SIIA0628E

SIIA0629E

PIIA0173E
