REAR DOOR LOCK

DLK-961

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

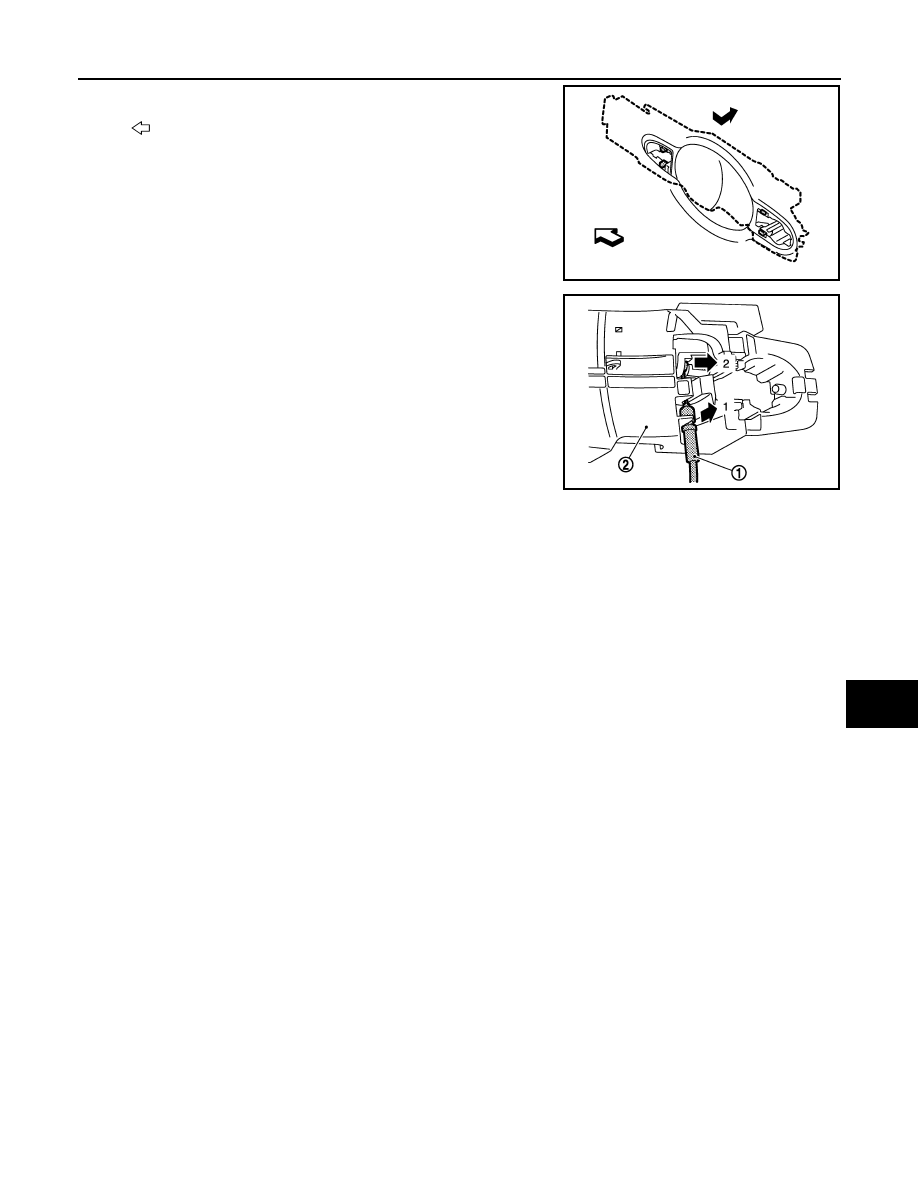

8.

Slide outside handle bracket toward rear of vehicle to remove.

9.

Disconnect outside handle cable (1) from outside handle bracket
(2) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

CAUTION:

Never bend the outside handle cable end.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check that door lock cables are normally engaged with inside handle and outside handle.
• After installation, check door open/close, and lock/unlock operation.

: Vehicle front

JMKIA5890ZZ

JMKIA5891ZZ

DLK-962

< REMOVAL AND INSTALLATION >

[TYPE 6]

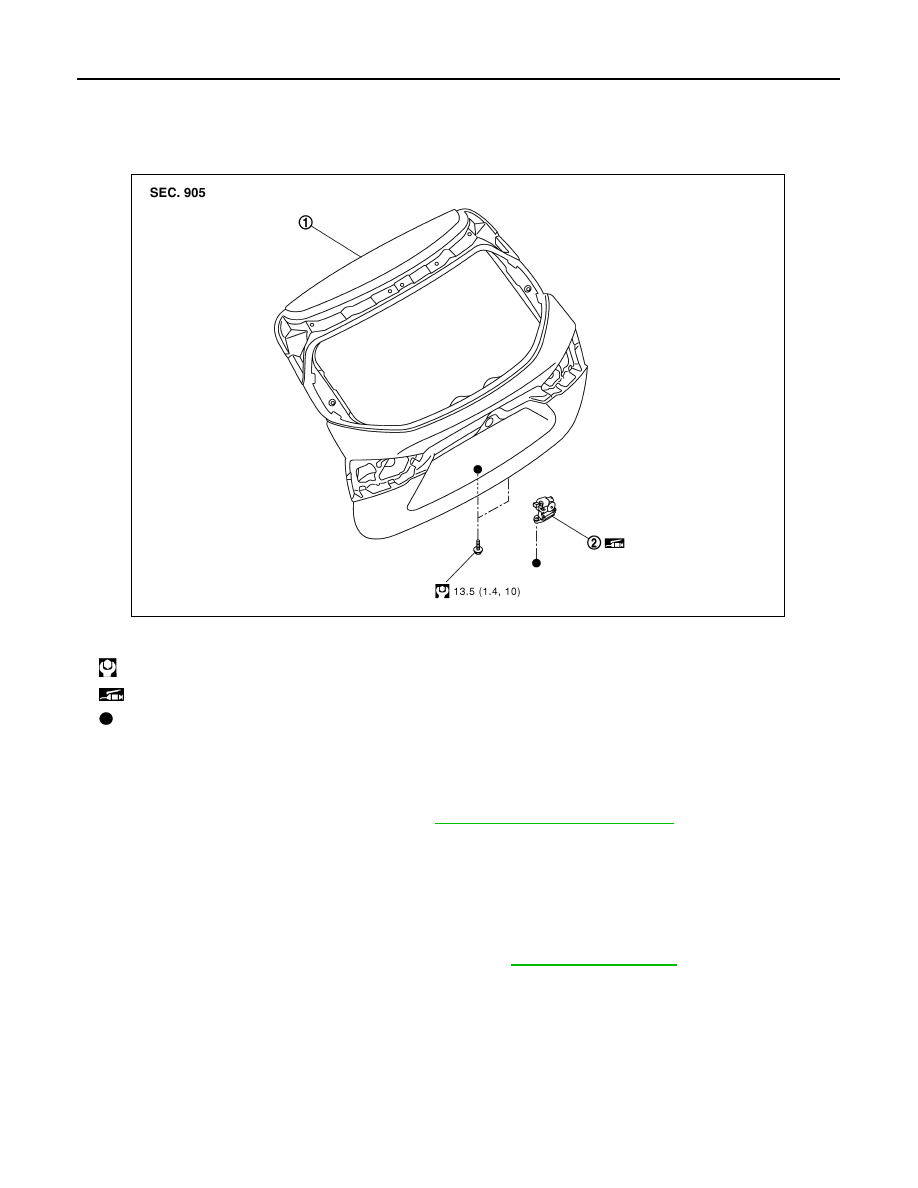

BACK DOOR LOCK

BACK DOOR LOCK

Exploded View

INFOID:0000000010678901

Removal and Installation

INFOID:0000000010678902

REMOVAL

1.

Remove back door trim finisher lower. Refer to

INT-31, "Removal and Installation"

.

2.

Disconnect back door lock harness connector.

3.

Remove back door assembly mounting bolts, and then remove back door lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check back door open/close, and lock/unlock operation.
• Check door lock assembly for poor lubrication. Refer to

DLK-963, "Inspection"

.

1.

Back door panel

2.

Back door lock assembly

: N·m (kg-m, ft-lb)

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3271GB

BACK DOOR LOCK

DLK-963

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

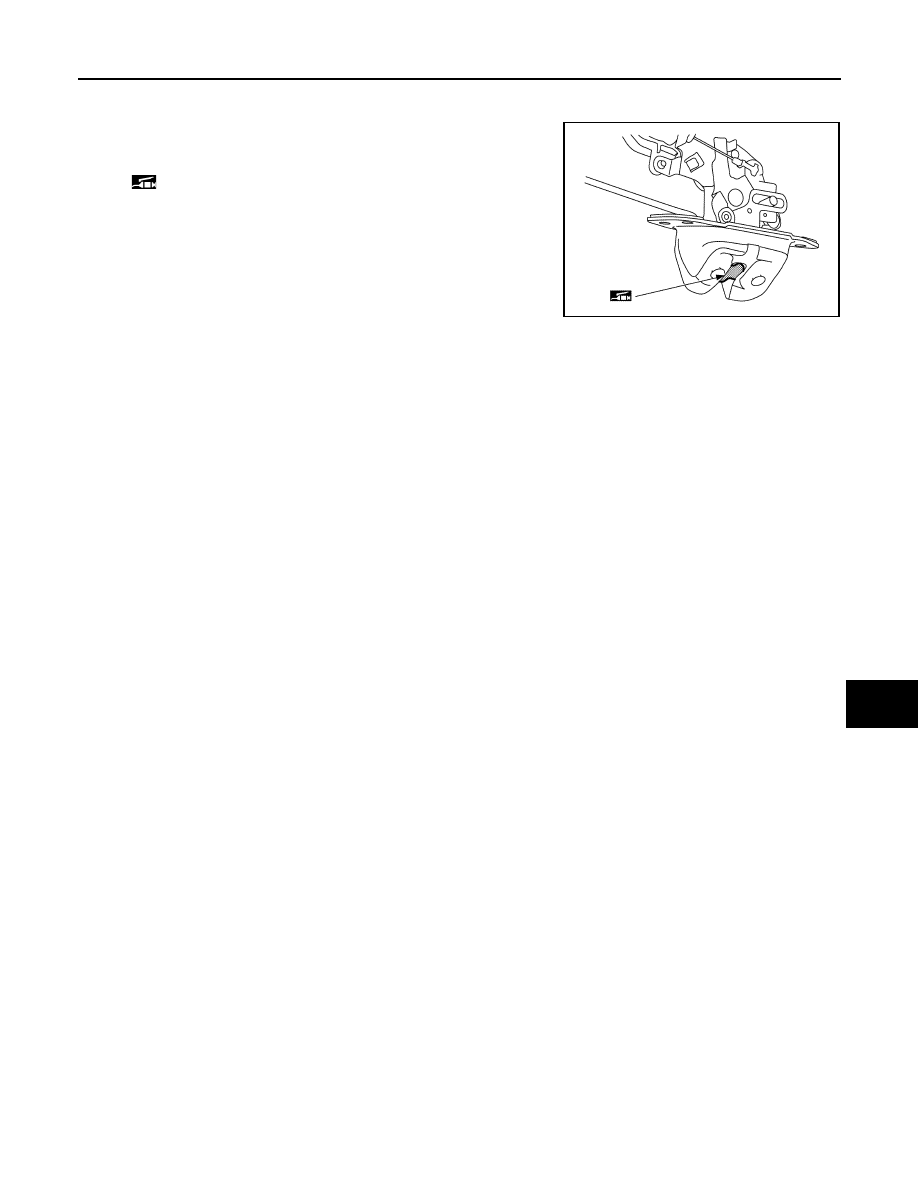

Inspection

INFOID:0000000010678903

Check door lock assembly for poor lubrication. Apply body grease if
necessary.

: Body grease

JMKIB0629ZZ

DLK-964

< REMOVAL AND INSTALLATION >

[TYPE 6]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

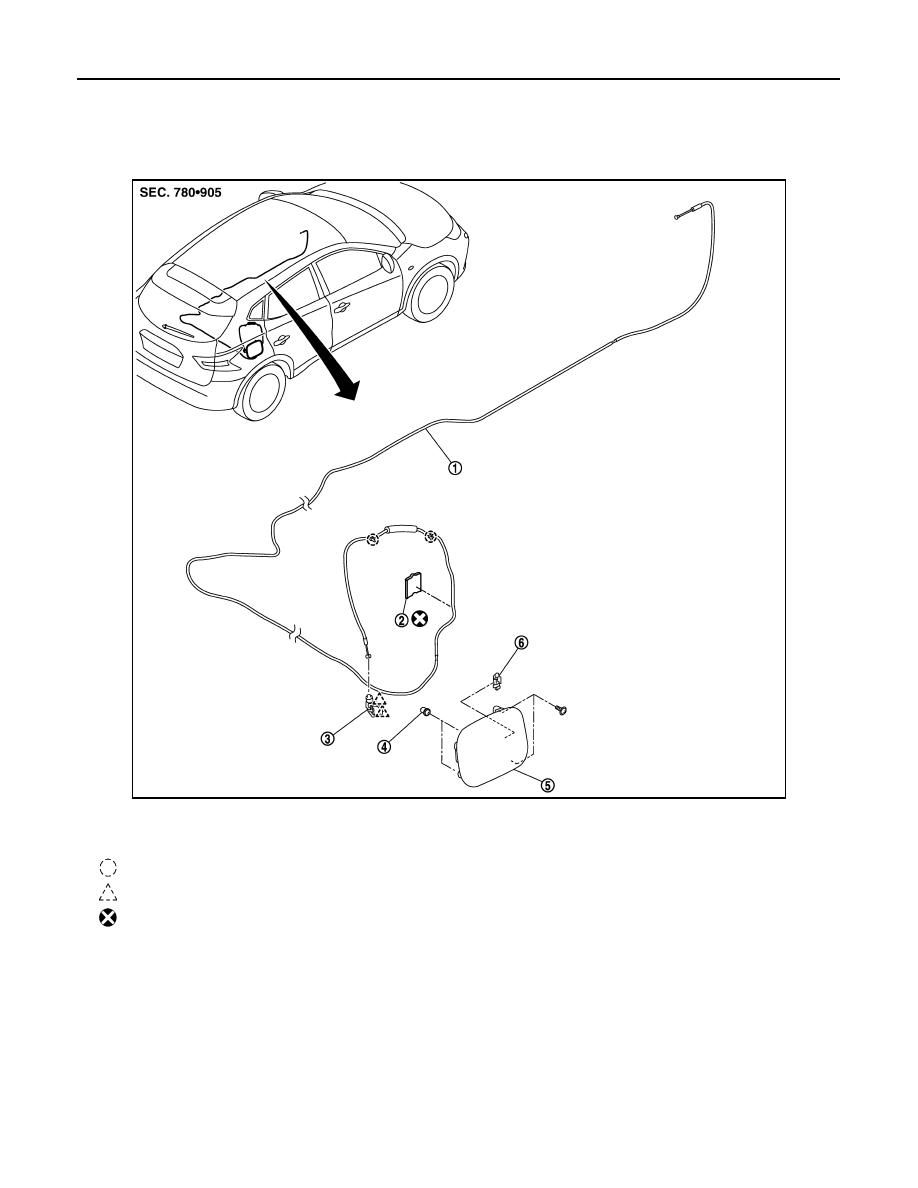

Exploded View

INFOID:0000000010678904

LHD models

JMKIB3264ZZ

1.

Fuel opener cable

2.

Cable protector

3.

Fuel filler lid lock assembly

4.

Bumper rubber

5.

Fuel filler lid assembly

6.

Fuel filler spring

: Clip

: Pawl

: Always replace after every disassembly.

FUEL FILLER LID OPENER

DLK-965

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

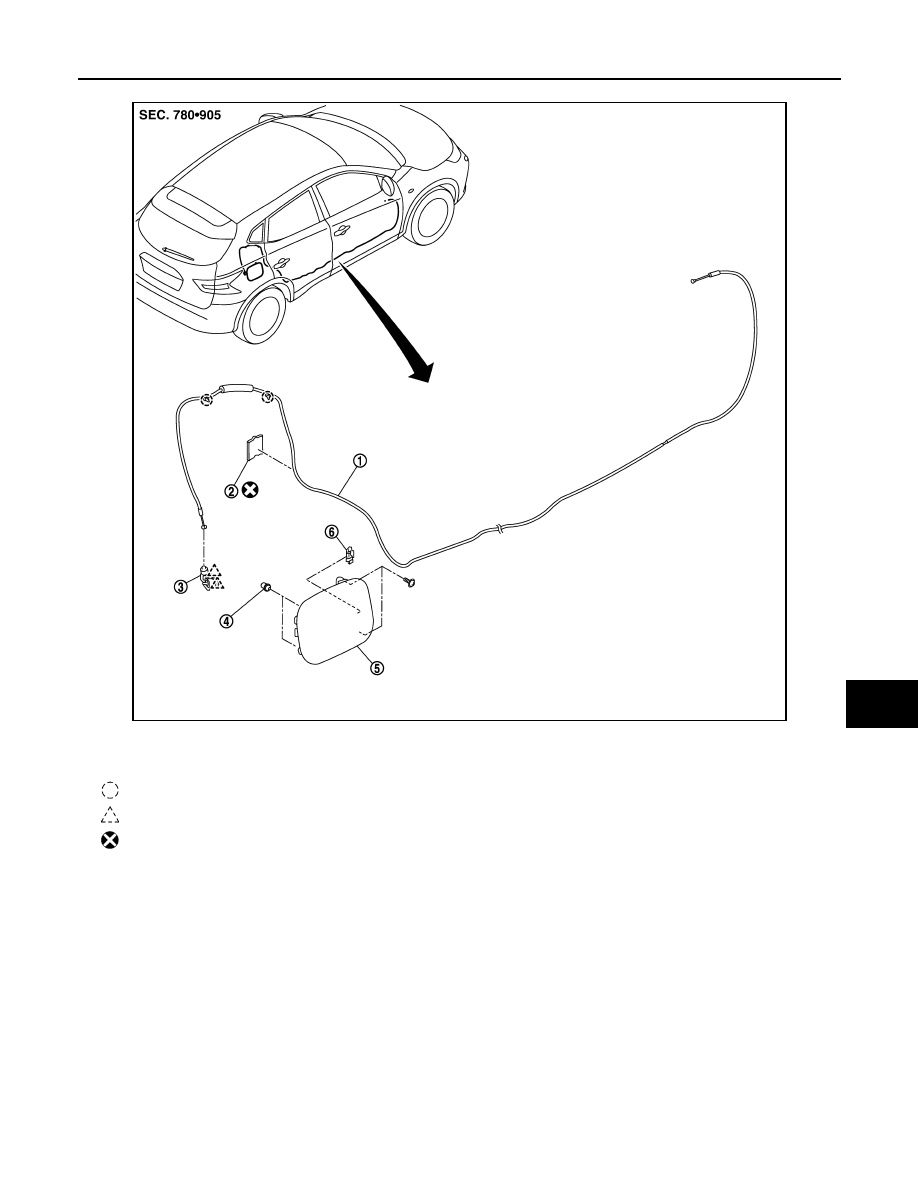

RHD models

FUEL FILLER LID

FUEL FILLER LID : Removal and Installation

INFOID:0000000010678905

REMOVAL

1.

Fully open fuel filler lid assembly.

JMKIB3263ZZ

1.

Fuel opener cable

2.

Cable protector

3.

Fuel filler lid lock assembly

4.

Bumper rubber

5.

Fuel filler lid assembly

6.

Fuel filler spring

: Clip

: Pawl

: Always replace after every disassembly.

DLK-966

< REMOVAL AND INSTALLATION >

[TYPE 6]

FUEL FILLER LID OPENER

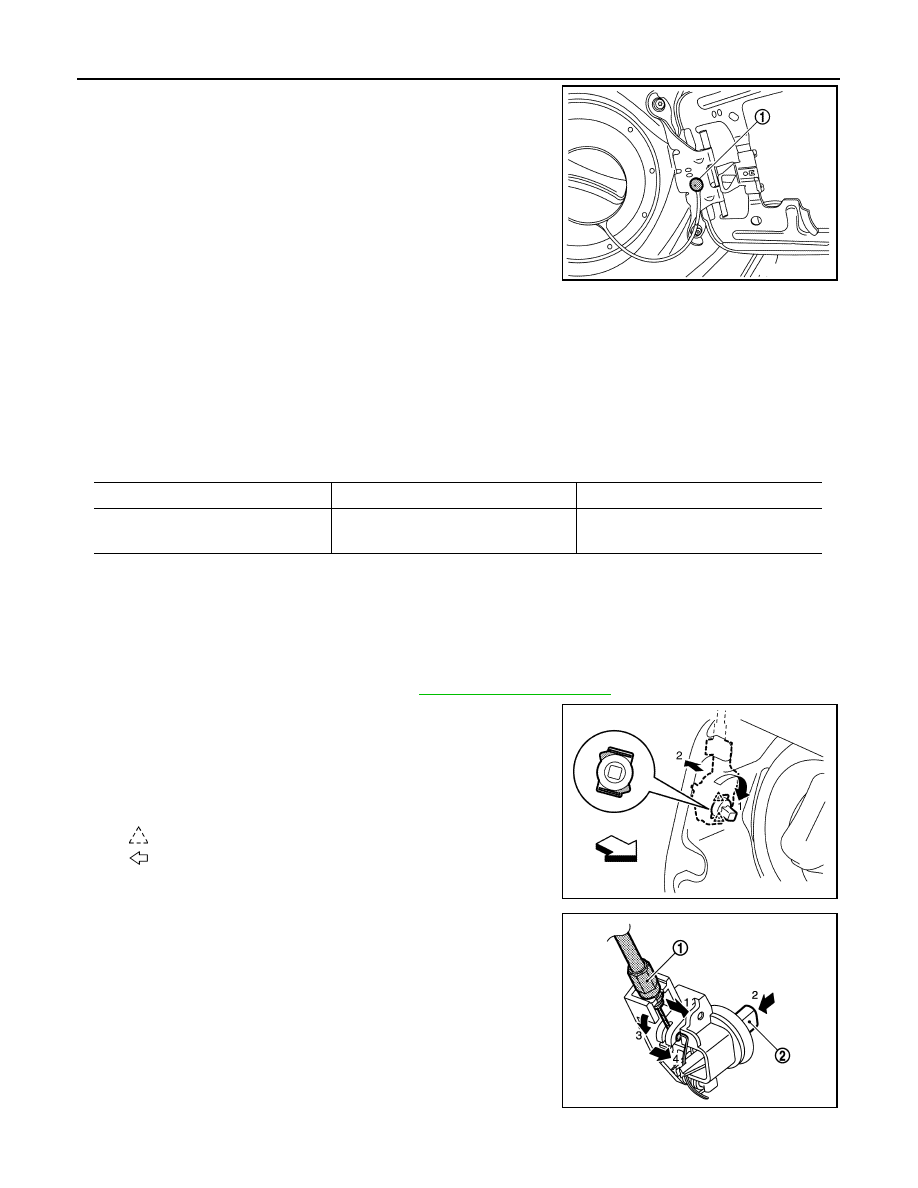

2.

Remove fuel mounting pin (1).

3.

Remove fixing screws, and then remove fuel filler lid assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check fuel filler lid assembly open/close, lock/unlock operation.
• After installation, apply the touch-up paint (the body color) onto the head of the fixing screws.
• Apply anti-corrosion wax to mounting surface of fixing screw and fuel filler lid to prevent rust.
NOTE:
The following table shows the specified values for checking normal installation status.

Unit: mm [in]

FUEL FILLER LID LOCK

FUEL FILLER LID LOCK : Removal and Installation

INFOID:0000000010678906

REMOVAL

1.

Fully open fuel filler lid.

2.

Remove luggage lower finisher RH. Refer to

INT-29, "Luggage side trim"

.

3.

In the order of 1

→

2 as shown in the figure, rotate and disengage

fuel filler lid lock assembly, and then remove fuel filler lid lock
assembly.
NOTE:
Operation is performed easily when rotating fuel filler lid lock
from passenger room side.

4.

In the order of 1

→

4 as shown in the figure. Disengage fuel filler

lid opener cable (1). Remove fuel filler lid opener cable while
pressing stopper pin (2).

JMKIB3183ZZ

Clearance

Evenness

Fuel filler lid – Body side outer

3.7 – 5.3

(0.146 – 0.209)

(-1.0) – (+1.0)

[(-0.039) – (+0.039)]

: Pawl

: Vehicle front

JMKIB1094ZZ

JMKIA5719ZZ

FUEL FILLER LID OPENER

DLK-967

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, check fuel filler lid assembly open/close, lock/unlock operation.

FUEL FILLER OPENER CABLE

FUEL FILLER OPENER CABLE : Removal and Installation

INFOID:0000000010678907

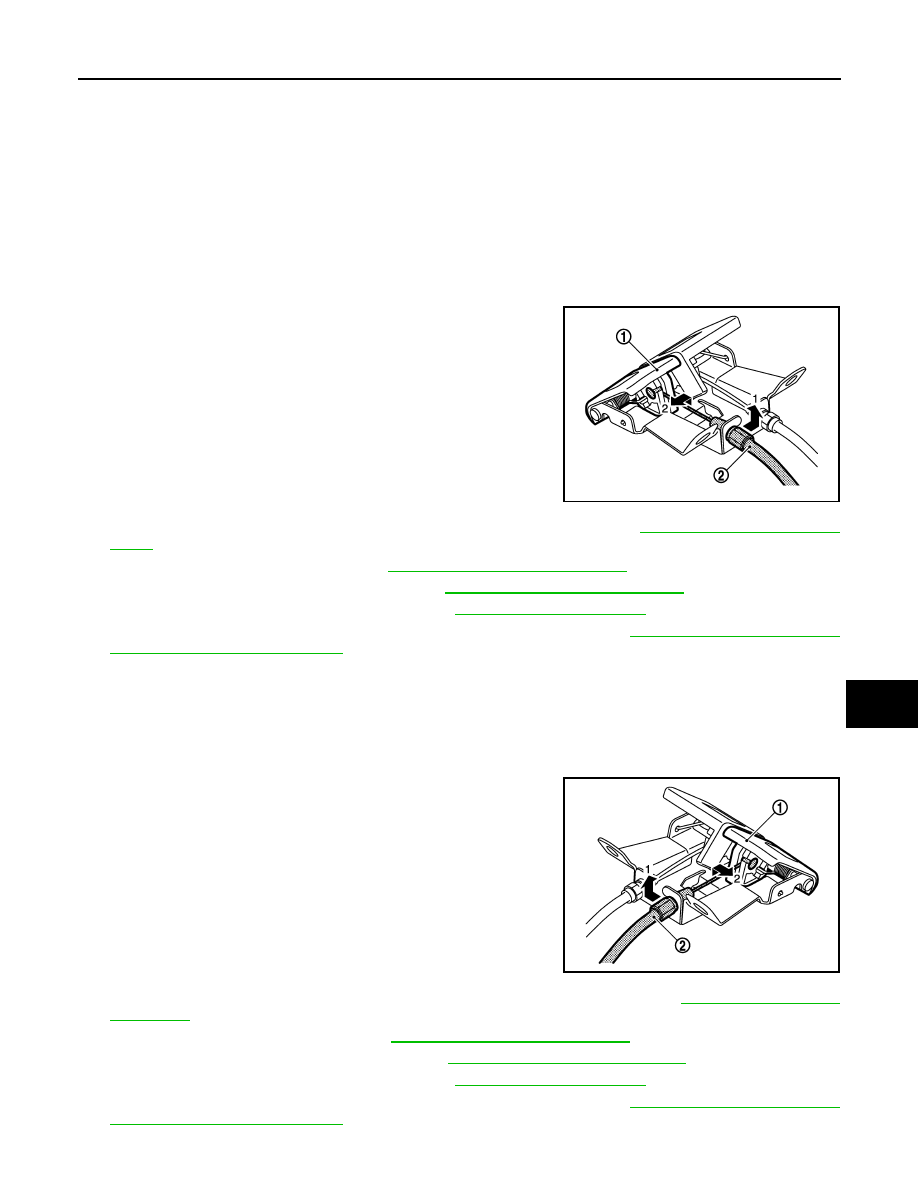

REMOVAL

LHD models

1.

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

Disconnect fuel opener cable (2) from fuel filler lid opener lever
(1) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

3.

Remove front kicking plate inner LH and rear kicking plate inner LH. Refer to

INT-18, "Removal and Instal-

lation"

.

4.

Remove dash side finisher LH. Refer to

INT-18, "Removal and Installation"

.

5.

Remove center pillar lower garnish LH. Refer to

INT-18, "Removal and Installation"

.

6.

Remove luggage side lower finisher RH. Refer to

INT-29, "Luggage side trim"

.

7.

Disconnect fuel opener cable from fuel filler lid lock assembly. Refer to

DLK-966, "FUEL FILLER LID

LOCK : Removal and Installation"

.

8.

Remove fuel opener cable from each harness protector.

9.

Remove cable protector.

10. Remove fuel opener cable fixing clips, and then remove fuel opener cable.

RHD models

1.

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

Disconnect fuel opener cable (2) from fuel filler lid opener lever
(1) according to the numerical order 1

→

2 indicated by arrows as

shown in the figure.

3.

Remove front kicking plate inner RH and rear kicking plate inner RH. Refer to

INT-18, "Removal and

Installation"

.

4.

Remove dash side finisher RH. Refer to

INT-18, "Removal and Installation"

.

5.

Remove center pillar lower garnish RH. Refer to

INT-18, "Removal and Installation"

.

6.

Remove luggage side lower finisher RH. Refer to

INT-29, "Luggage side trim"

.

7.

Disconnect fuel opener cable from fuel filler lid lock assembly. Refer to

DLK-966, "FUEL FILLER LID

LOCK : Removal and Installation"

.

JMKIA5901ZZ

JMKIA5672ZZ

DLK-968

< REMOVAL AND INSTALLATION >

[TYPE 6]

FUEL FILLER LID OPENER

8.

Remove fuel opener cable from each harness protector.

9.

Remove cable protector.

10. Remove fuel opener cable fixing clips, and then remove fuel opener cable.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse cable protector. Always replace it with a new one when it is removed.
• After installation, check fuel filler lid assembly open/close, lock/unlock operation.
• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.

DOOR SWITCH

DLK-969

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

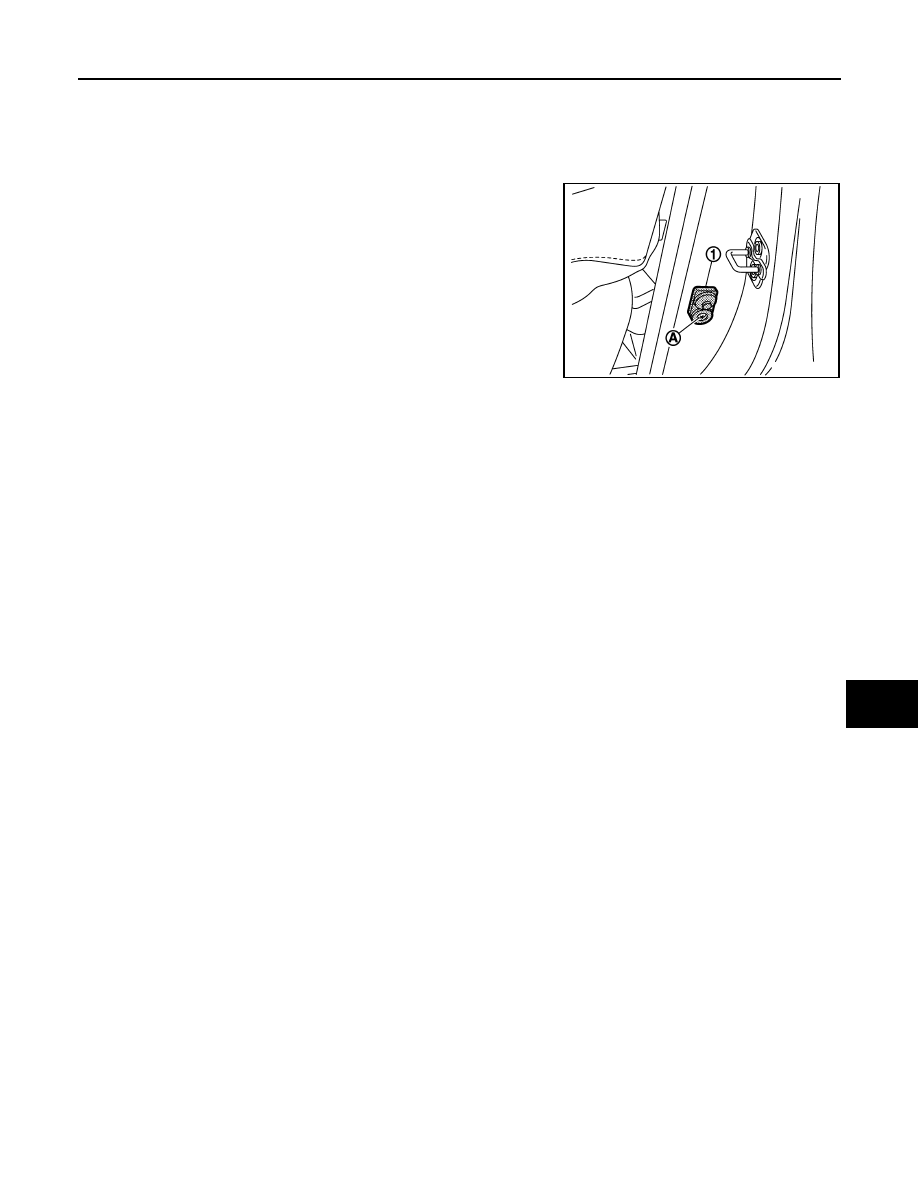

DOOR SWITCH

Removal and Installation

INFOID:0000000010672618

REMOVAL

Remove the TORX bolt (A), and then remove door switch (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2173ZZ

DLK-970

< REMOVAL AND INSTALLATION >

[TYPE 6]

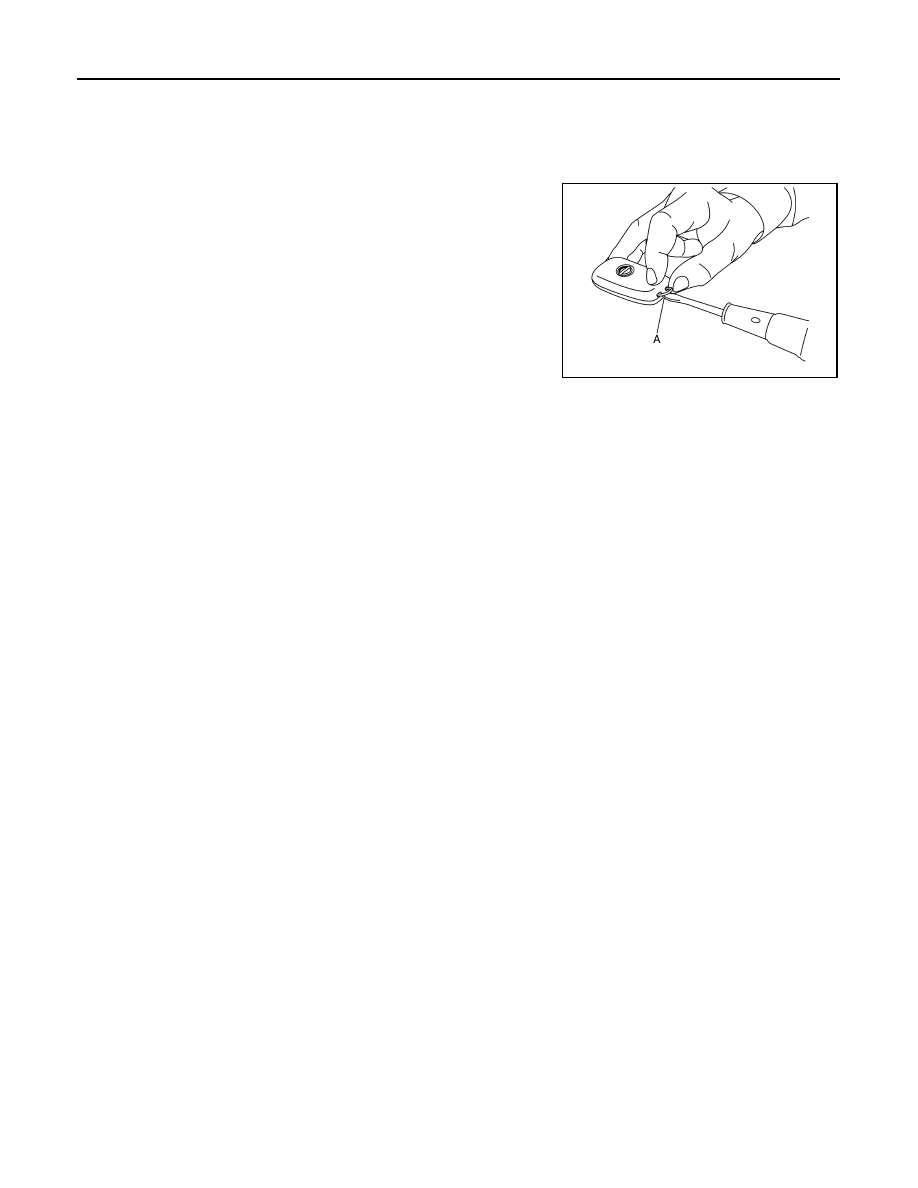

KEYFOB BATTERY

KEYFOB BATTERY

Removal and Installation

INFOID:0000000010672619

REMOVAL

1.

Insert a flat-blade screwdriver (A) wrapped with a cloth into the
slit of the corner and twist it to separate the upper part from the
lower part.

CAUTION:

• Do not touch the circuit board or battery terminal.
• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

2.

Replace the battery with new one.

CAUTION:

• When replacing battery, keep dirt, grease, and other foreign materials off the electrode contact

area.

• After replacing the battery, check that all Intelligent Key functions work normally.

INSTALLATION

Install in the reverse order of removal.

JMKIB3016ZZ

Battery replacement

:Coin-type lithium battery
(CR2032)
