Qashqai J11. Door & Lock - part 58





RADIATOR CORE SUPPORT

DLK-929

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CVT models

MR20DD : Removal and Installation

INFOID:0000000010678853

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-24, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-951, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-950,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-72, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-124, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

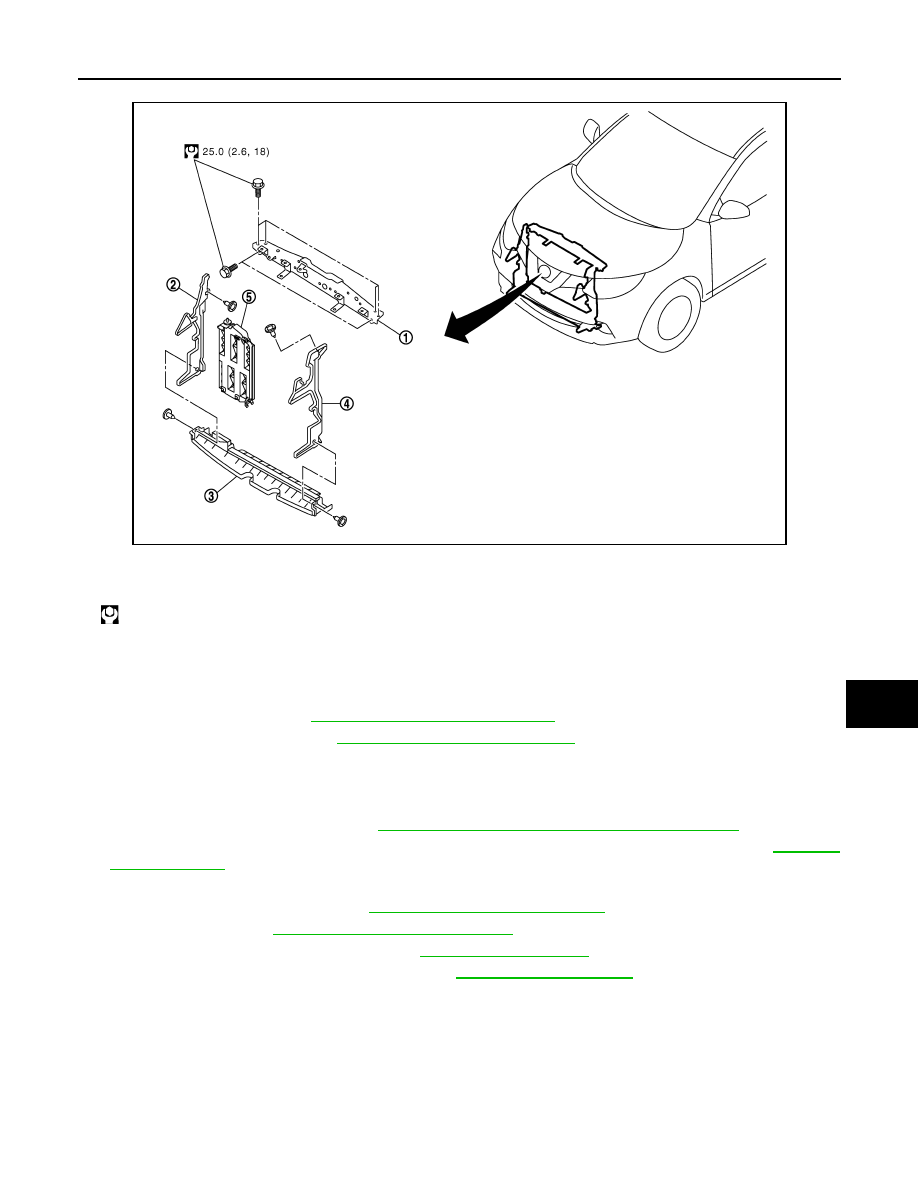

R9M

JMKIB3633GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

5.

Air guide plate

:N·m (kg-m, ft-lb)

DLK-930

< REMOVAL AND INSTALLATION >

[TYPE 6]

RADIATOR CORE SUPPORT

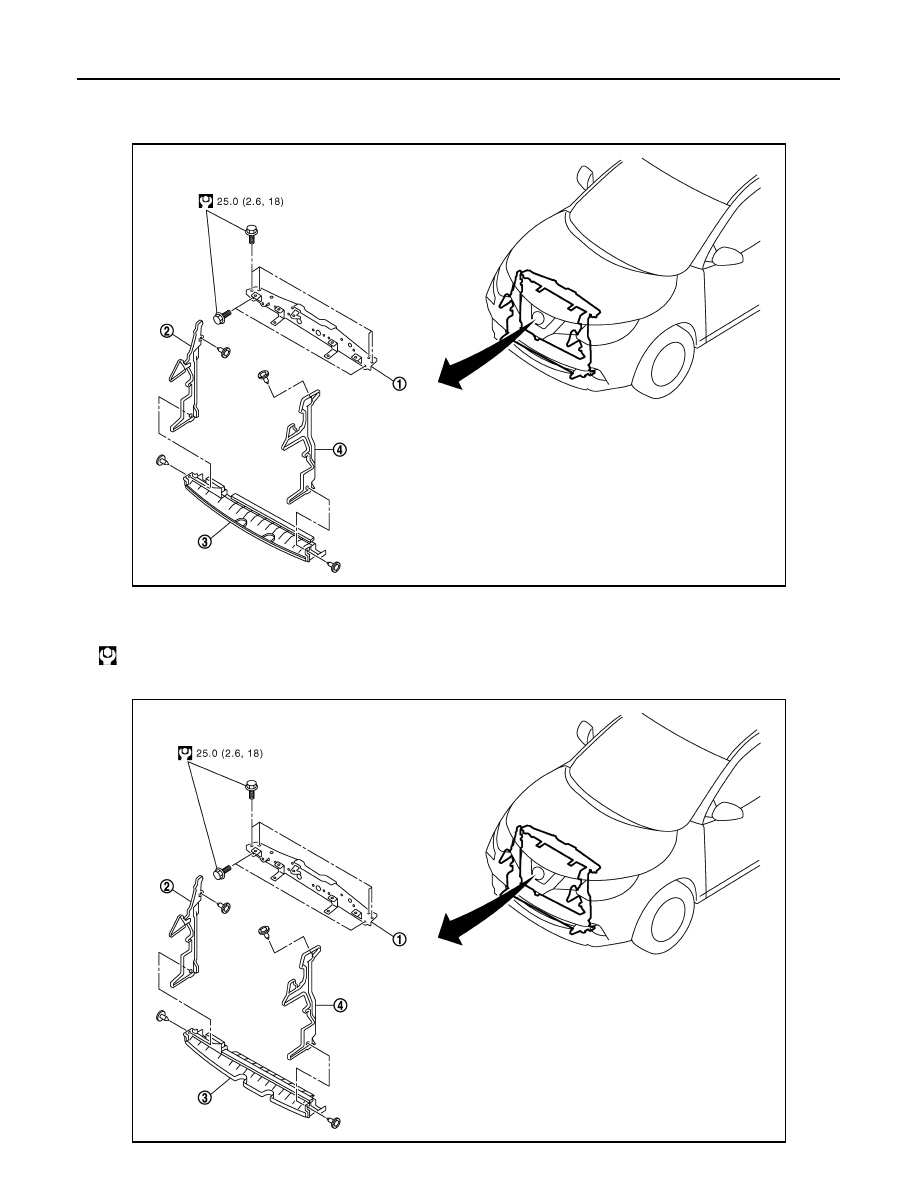

R9M : Exploded View

INFOID:0000000010678856

T/M models

CVT models

JMKIB3299GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3300GB

RADIATOR CORE SUPPORT

DLK-931

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

R9M : Removal and Installation

INFOID:0000000010678857

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-528, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-951, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-950,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-125, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-173, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

DLK-932

< REMOVAL AND INSTALLATION >

[TYPE 6]

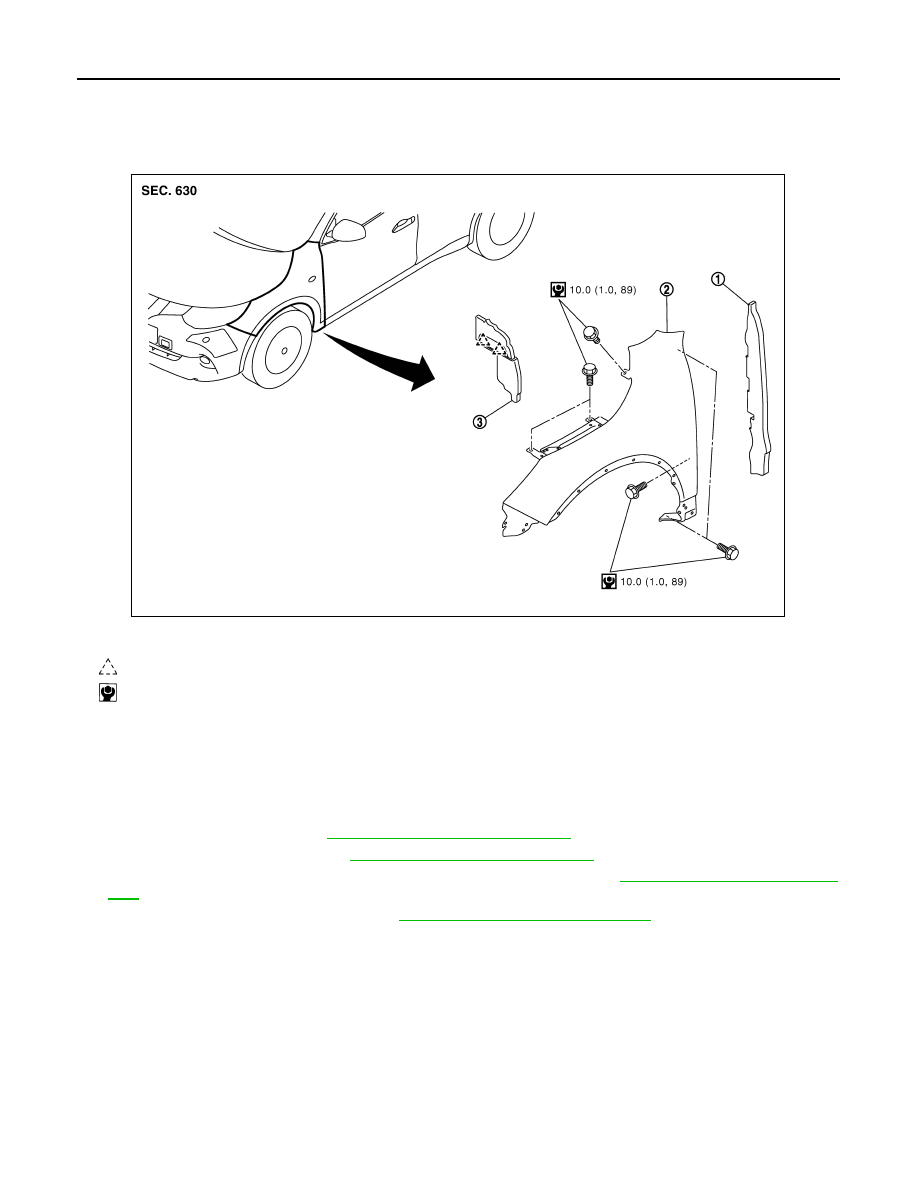

FRONT FENDER

FRONT FENDER

Exploded View

INFOID:0000000010678858

Removal and Installation

INFOID:0000000010678859

CAUTION:

Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Remove fillet molding. Refer to

EXT-38, "Removal and Installation"

.

2.

Remove fender protector. Refer to

EXT-33, "Removal and Installation"

.

3.

Remove front bumper fascia assembly and bumper side bracket. Refer to

EXT-20, "Removal and Installa-

tion"

.

4.

Remove front combination lamp. Refer to

EXL-319, "Removal and Installation"

.

5.

Remove front fender seal.

6.

Remove front fender assembly mounting bolts.

1.

Front fender seal

2.

Front fender assembly

3.

Hoodledge cover

: Pawl

: N·m (kg-m, in-lb)

JMKIB3315GB

FRONT FENDER

DLK-933

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

7.

Remove front fender stiffener (2) from the vehicle body while
carefully pulling upper portion of front fender (1) toward vehicle
outside.

8.

Remove front fender assembly.

CAUTION:

An viscous urethane foam is installed on the back surface of front fender. When removing the
front fender, be careful to not deform the front fender while performing the procedure and remov-
ing the viscous urethane foam a little at a time.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, apply the touch-up paint (the body color) onto the head of front fender mounting

bolts.

• After installation, adjust the following part.
- Hood assembly: Refer to

DLK-923, "HOOD ASSEMBLY : Adjustment"

.

- Front door: Refer to

DLK-935, "DOOR ASSEMBLY : Adjustment"

.

: Vehicle front

JMKIA5633ZZ

DLK-934

< REMOVAL AND INSTALLATION >

[TYPE 6]

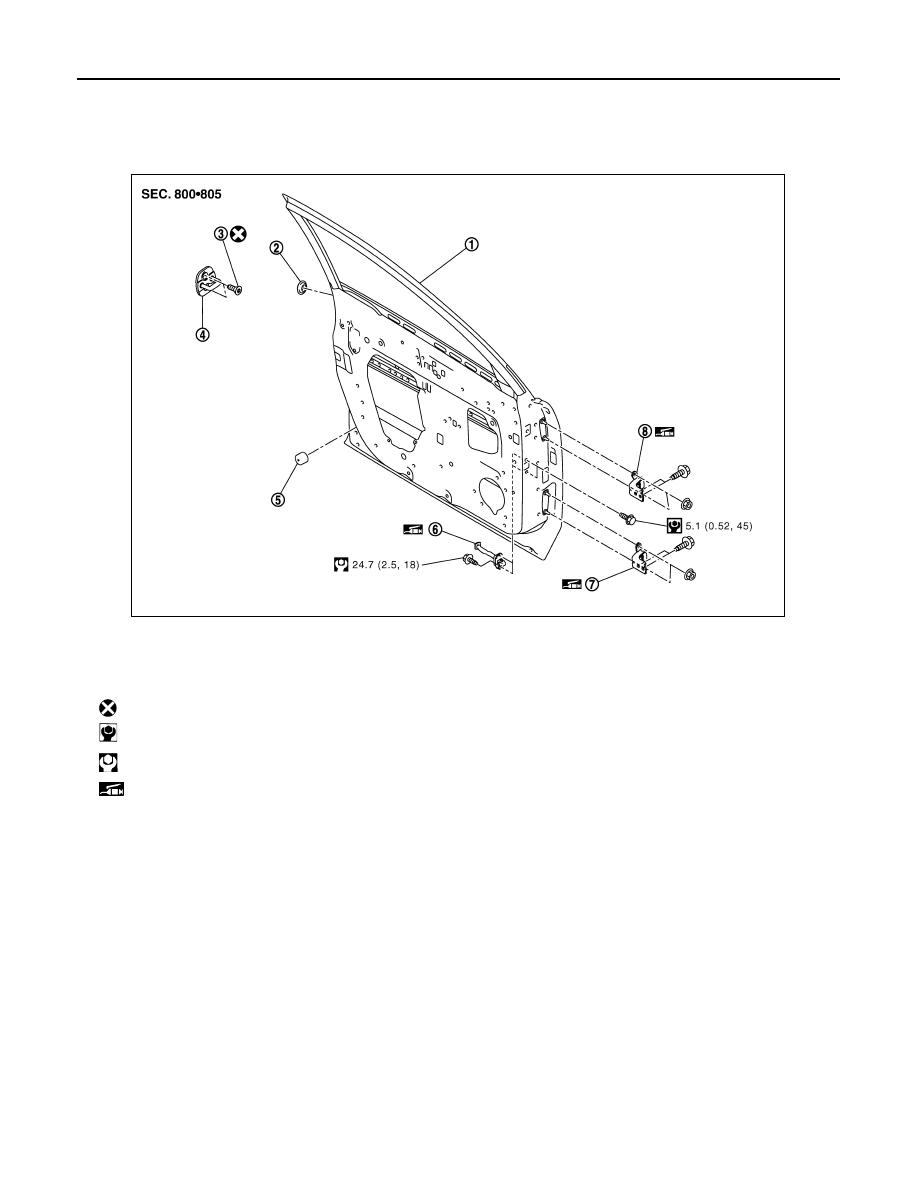

FRONT DOOR

FRONT DOOR

Exploded View

INFOID:0000000010678860

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010678861

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove front door harness grommet from vehicle body side, and then pull out front door harness.

2.

Disconnect front door harness connector.

3.

Remove mounting bolt of door check link on the vehicle body.

4.

Remove door hinge mounting nuts of door side, and then remove door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

1.

Front door panel

2.

Grommet

3.

TORX bolt

4.

Door striker

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3248GB

FRONT DOOR

DLK-935

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-935, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• Check door hinge and door check link rotating part for poor lubrication.
- Door hinge: Refer to

DLK-937, "DOOR HINGE : Inspection"

.

- Door check link: Refer to

DLK-937, "DOOR CHECK LINK : Removal and Installation"

.

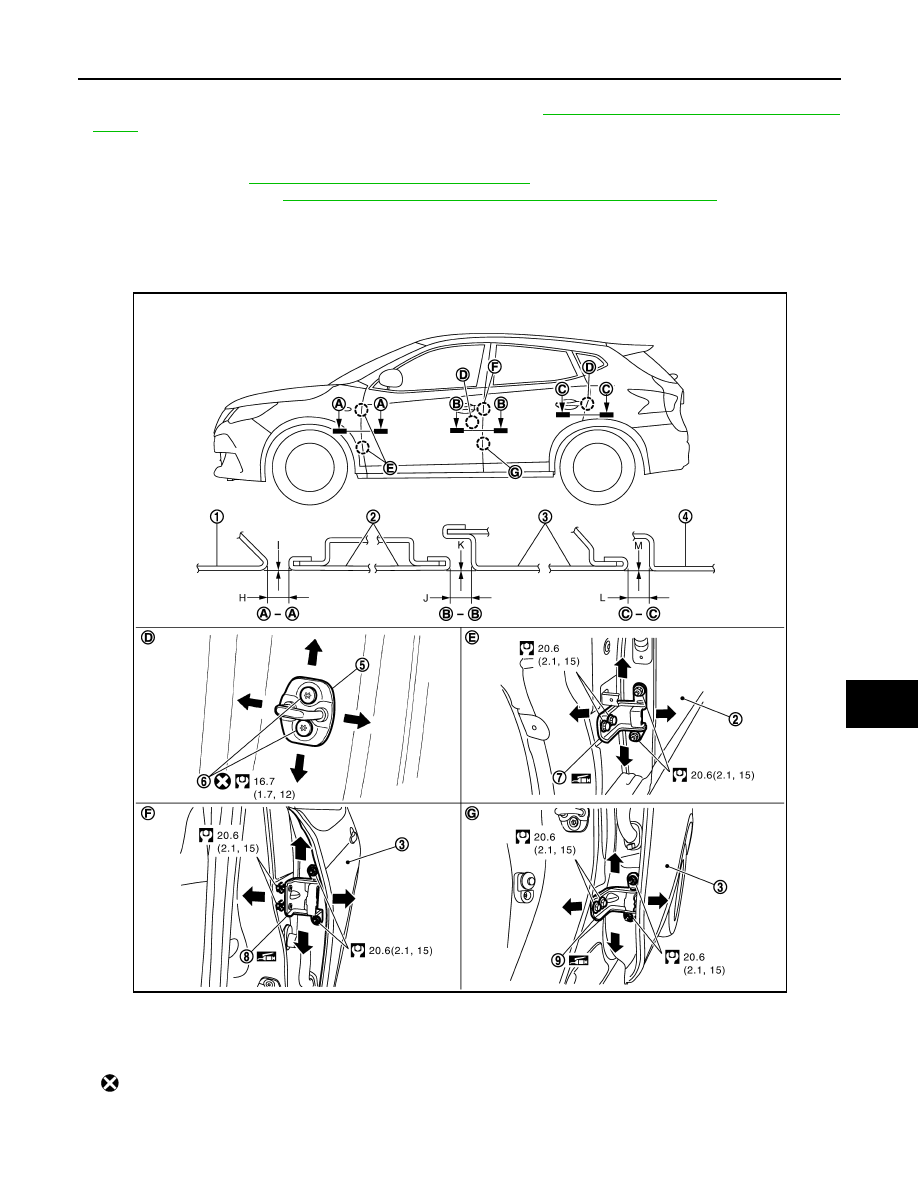

DOOR ASSEMBLY : Adjustment

INFOID:0000000010678862

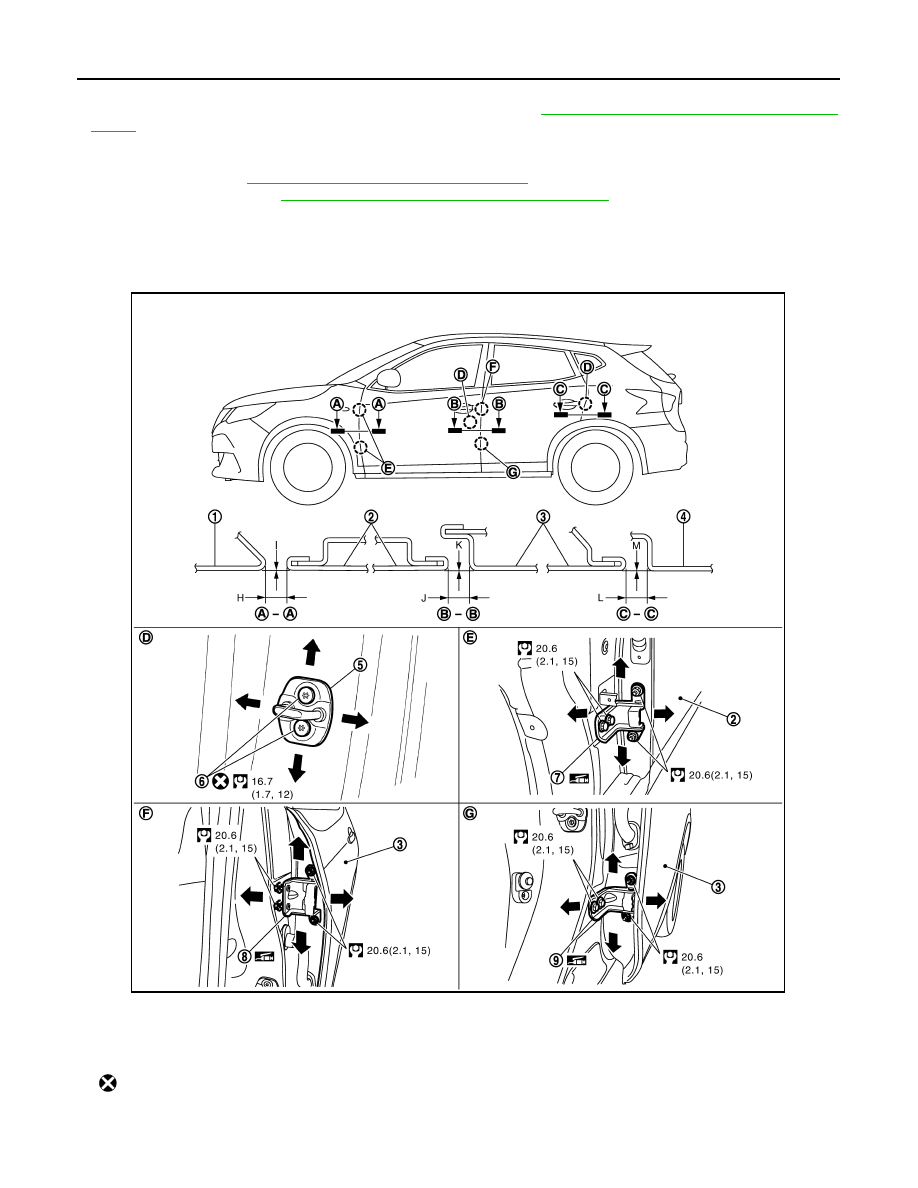

FITTING ADJUSTMENT

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

TORX bolt

7.

Front door hinge

8.

Rear door hinge (upper)

9.

Rear door hinge (lower)

: Always replace after every disassembly.

JMKIB3256GB

DLK-936

< REMOVAL AND INSTALLATION >

[TYPE 6]

FRONT DOOR

Fitting Adjustment Standard

Check the clearance and surface height between front door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm [in]

Fitting Adjustment Procedure

1.

Remove front fender. Refer to

DLK-932, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of front door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting bolts on vehicle body side.

6.

Raise front door at rear end to adjust clearance of the front door according to the fitting standard dimen-
sion.

7.

After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts

and nuts.

• Check door hinge rotating part for poor lubrication. Apply body grease if necessary. Refer to

DLK-937, "DOOR HINGE : Inspection"

.

8.

Install front fender. Refer to refer to

DLK-932, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000010678863

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse mounting TORX bolt. Always replace it with a new one when it is removed.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-935, "DOOR ASSEMBLY : Adjust-

ment"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000010678864

REMOVAL

: N·m (kg-m, ft-lb)

: Body grease

Portion

Standard

Front fender – Front door

A – A

H

Clearance

3.3 – 5.3

[0.130 – 0.209]

I

Surface

height

(

1.0) – (+1.0)

[(

0.039) – (+0.039)]

Front door – Rear door

B – B

J

Clearance

3.3 – 5.3

[0.130 – 0.209]

K

Surface

height

(

1.0) – (+1.0)

[(

0.039) – (+0.039)]

FRONT DOOR

DLK-937

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

1.

Remove front fender. Refer to

DLK-932, "Removal and Installation"

.

2.

Remove front door assembly. Refer to

DLK-934, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove front door hinge mounting bolts (body side), and then remove front door hinge.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-935, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check door hinge rotating part for poor lubrication. Refer to

DLK-937, "DOOR

HINGE : Inspection"

.

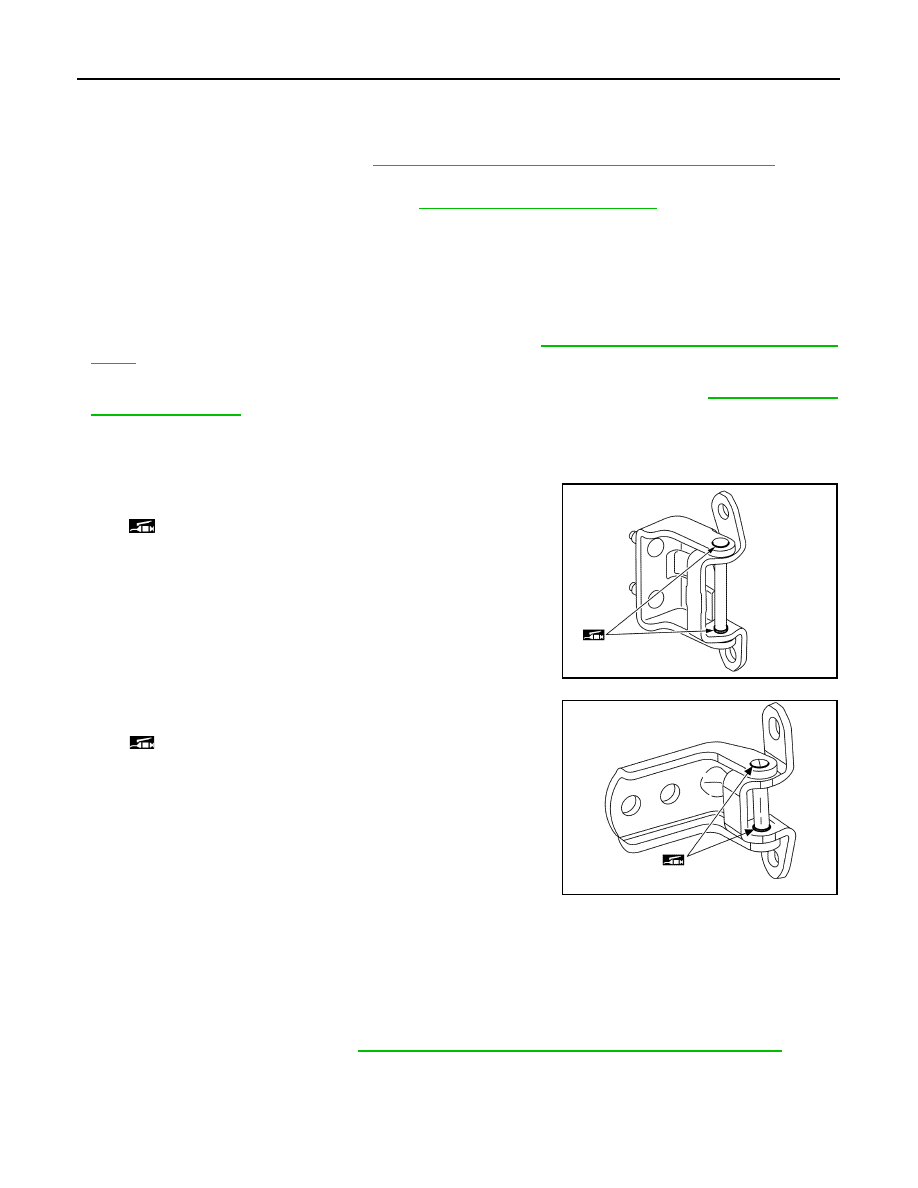

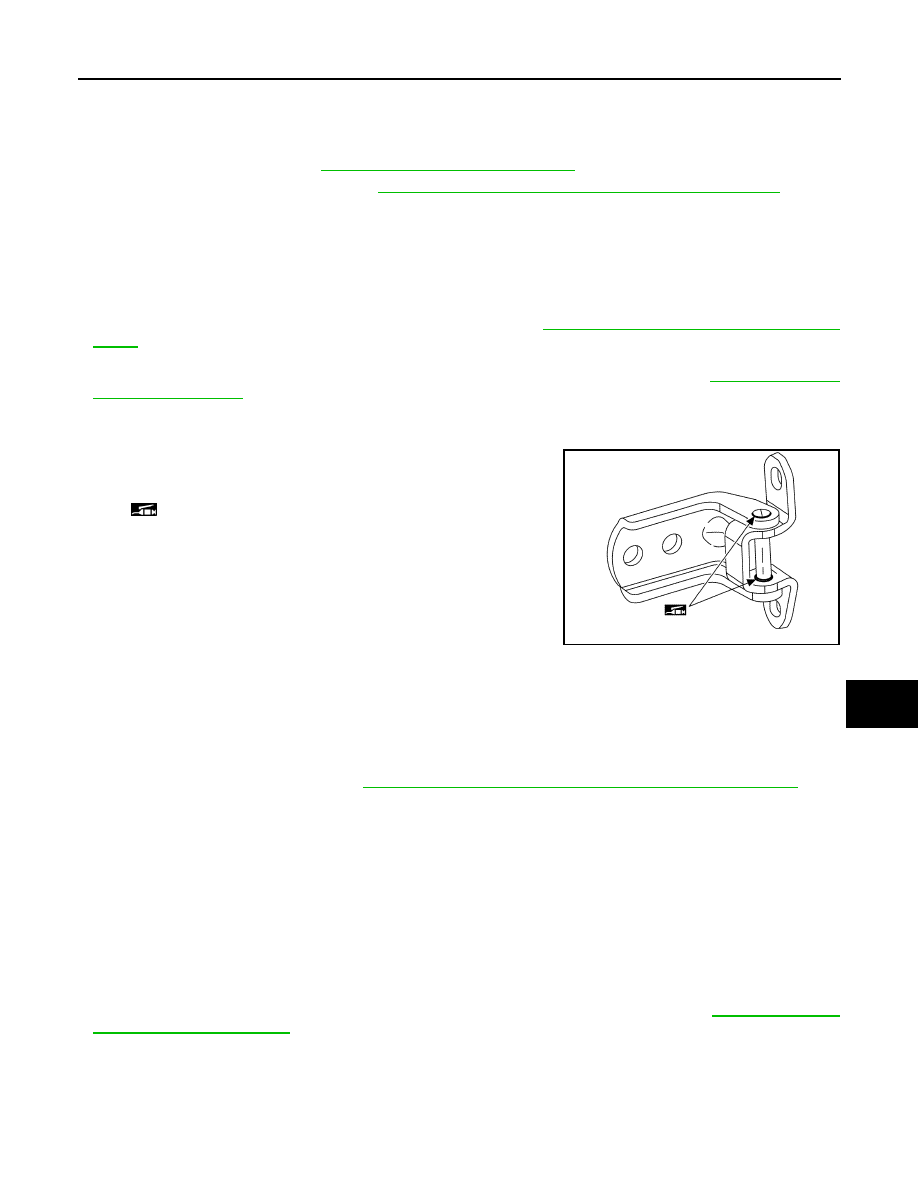

DOOR HINGE : Inspection

INFOID:0000000010678865

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

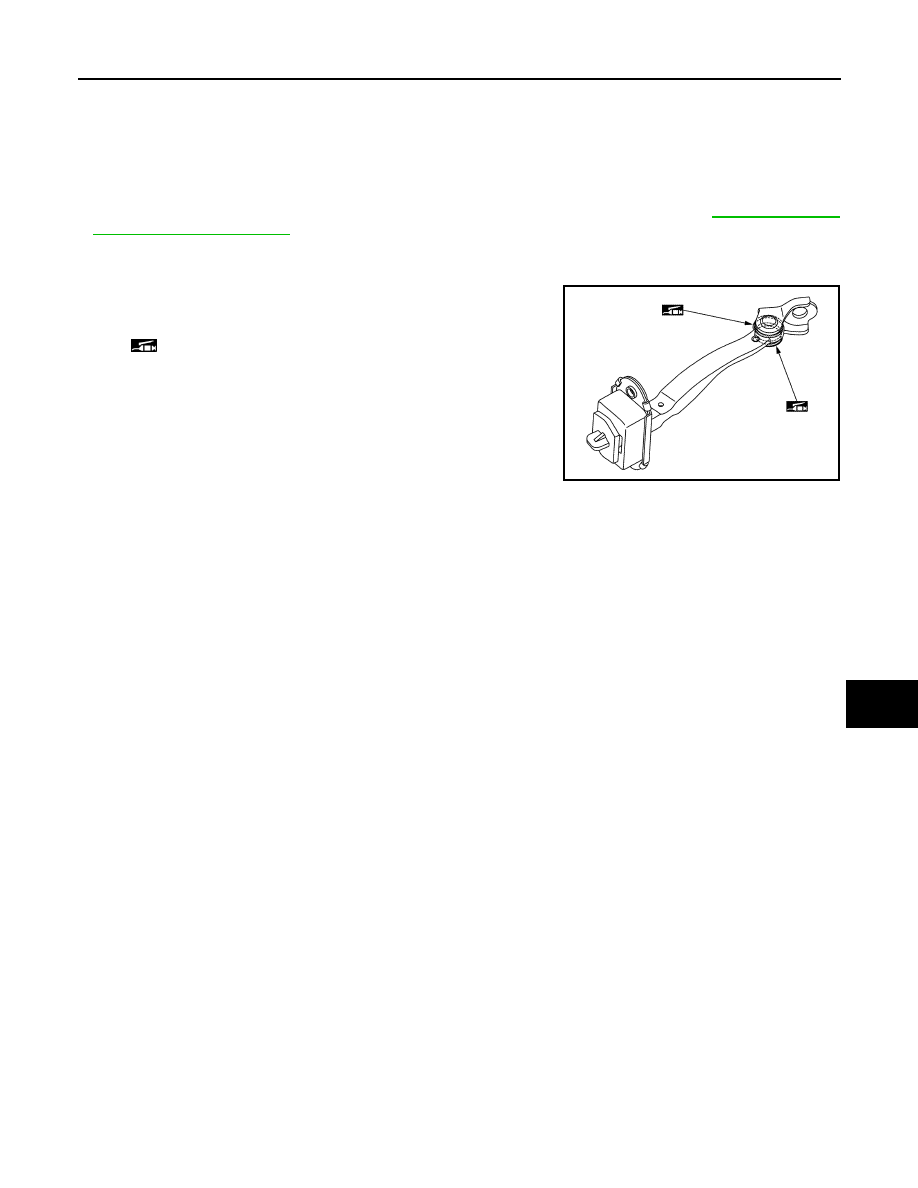

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000010678866

REMOVAL

1.

Fully close the front door glass.

2.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

3.

Remove front door speaker.

a.

Disconnect front door speaker harness connector.

b.

Remove front door speaker mounting bolts, and then remove front door speaker.

4.

Remove check link mounting bolts of vehicle body side.

5.

Remove check link mounting bolts of door side.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check front door open/close operation after installation.
• After installation, check door check link rotating part for poor lubrication. Refer to

DLK-938, "DOOR

CHECK LINK : Inspection"

.

: Body grease

JMKIB0321ZZ

DLK-938

< REMOVAL AND INSTALLATION >

[TYPE 6]

FRONT DOOR

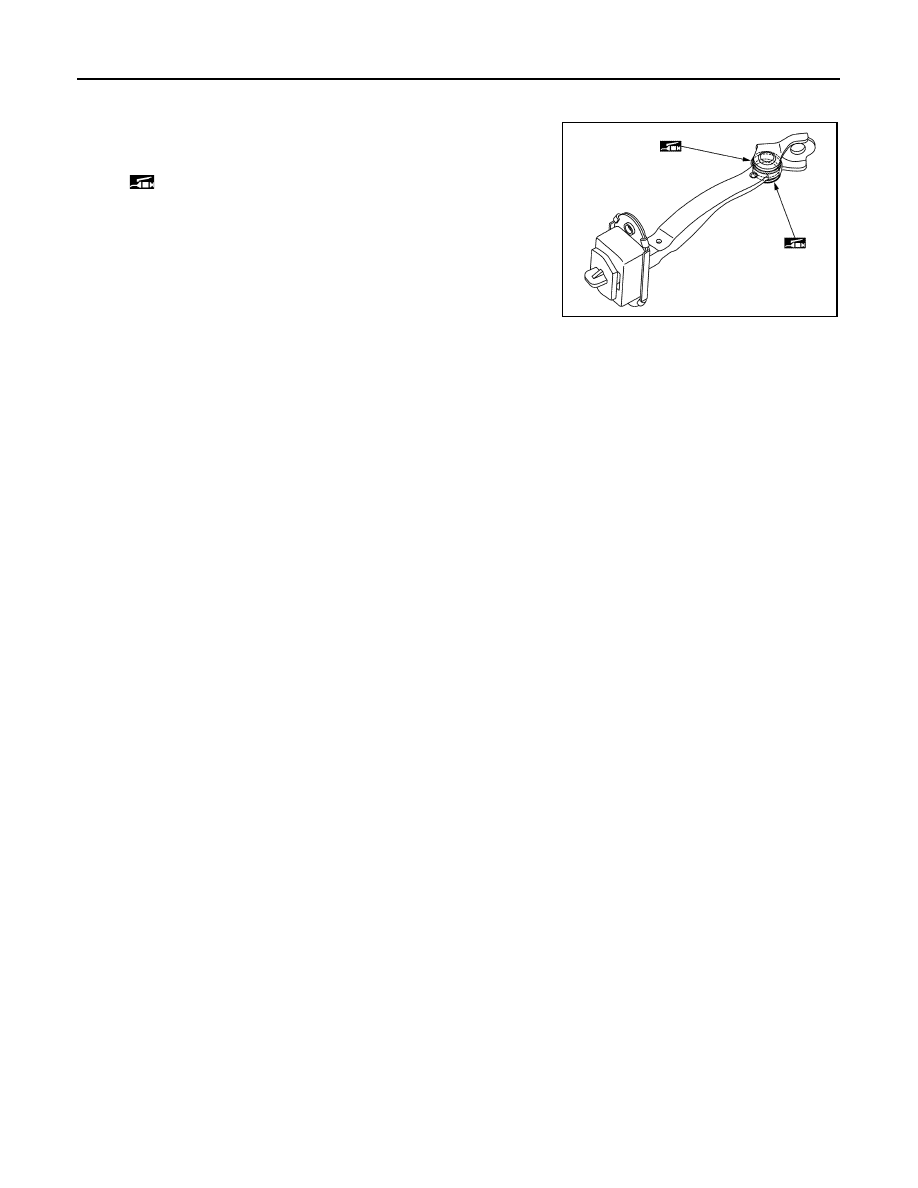

DOOR CHECK LINK : Inspection

INFOID:0000000010678867

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

: Body grease

JMKIB0322ZZ

REAR DOOR

DLK-939

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR

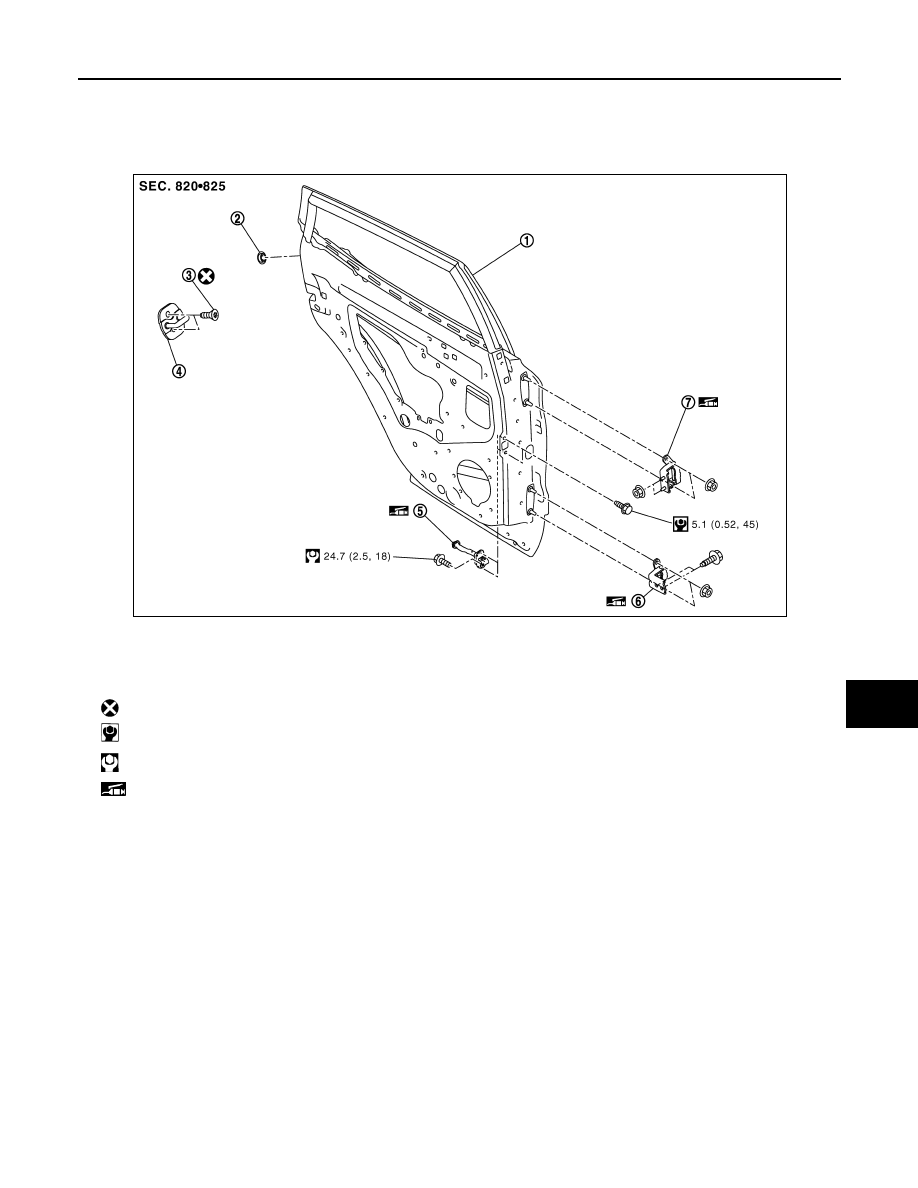

Exploded View

INFOID:0000000010678868

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010678869

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door harness grommet from vehicle body side, and then pull out rear door harness.

2.

Disconnect rear door harness connector.

3.

Remove mounting bolt of door check link on the vehicle.

4.

Remove door hinge mounting nuts of door side, and then remove rear door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

1.

Rear door panel

2.

Grommet

3.

TORX bolt

4.

Door striker

5.

Door check link

6.

Door hinge (lower)

7.

Door hinge (upper)

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3250GB

DLK-940

< REMOVAL AND INSTALLATION >

[TYPE 6]

REAR DOOR

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-940, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• Check door hinge and door check link rotating part for poor lubrication.
- Door hinge: Refer to

DLK-942, "DOOR HINGE : Inspection"

.

- Door check link: Refer to

DLK-943, "DOOR CHECK LINK : Inspection"

.

DOOR ASSEMBLY : Adjustment

INFOID:0000000010678870

FITTING ADJUSTMENT

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

TORX bolt

7.

Front door hinge

8.

Rear door hinge (upper)

9.

Rear door hinge (lower)

: Always replace after every disassembly.

JMKIB3256GB

REAR DOOR

DLK-941

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Fitting Adjustment Standard

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm [in]

Fitting Adjustment Procedure

1.

Remove center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting nuts and bolts on body side.

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts

and nuts.

• Check door hinge rotating part for poor lubrication. Refer to

DLK-937, "DOOR HINGE : Inspec-

tion"

.

8.

Install center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000010678871

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse mounting TORX bolt. Always replace it with a new one when it is removed.
• Check rear door open/close, lock/unlock operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-940, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000010678872

CAUTION:

• Perform work with 2 workers, because of its heavy weight.

: N·m (kg-m, ft-lb)

: Body grease

Portion

Standard

Front door – Rear door

B – B

J

Clearance

3.3 – 5.3

[0.130 – 0.209]

K

Surface

height

(

1.0) – (+1.0)

[(

0.039) – (+0.039)]

Rear door – Body side panel

C – C

L

Clearance

3.5 – 5.5

[0.138 – 0.217]

M

Surface

height

(

1.0) – (+1.0)

[(

0.039) – (+0.039)]

DLK-942

< REMOVAL AND INSTALLATION >

[TYPE 6]

REAR DOOR

• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door assembly. Refer to

DLK-939, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove door hinge mounting bolts of vehicle body side, and then remove door hinge (lower).

3.

Remove center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

4.

Remove door hinge mounting nuts of vehicle body side, and then remove door hinge (upper).

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-935, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check door hinge rotating part for poor lubrication. Refer to

DLK-942, "DOOR

HINGE : Inspection"

.

DOOR HINGE : Inspection

INFOID:0000000010678873

Check door hinge rotating part for poor lubrication. Apply body grease if necessary.
• Door hinge (upper)

• Door hinge (lower)

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000010678874

REMOVAL

1.

Fully close the rear door glass.

2.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Removal and Installation"

.

3.

Remove rear door speaker.

a.

Disconnect rear door speaker harness connector.

b.

Remove rear door speaker mounting bolts, and then remove rear door speaker.

4.

Remove check link mounting bolts of vehicle body side.

: Body grease

JMKIB0329ZZ

: Body grease

JMKIB0321ZZ

REAR DOOR

DLK-943

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

Remove check link mounting bolts of door side.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check front door open/close operation after installation.
• After installation, check door check link rotating part for poor lubrication. Refer to

DLK-943, "DOOR

CHECK LINK : Inspection"

.

DOOR CHECK LINK : Inspection

INFOID:0000000010678875

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

: Body grease

JMKIB0322ZZ

DLK-944

< REMOVAL AND INSTALLATION >

[TYPE 6]

BACK DOOR

BACK DOOR

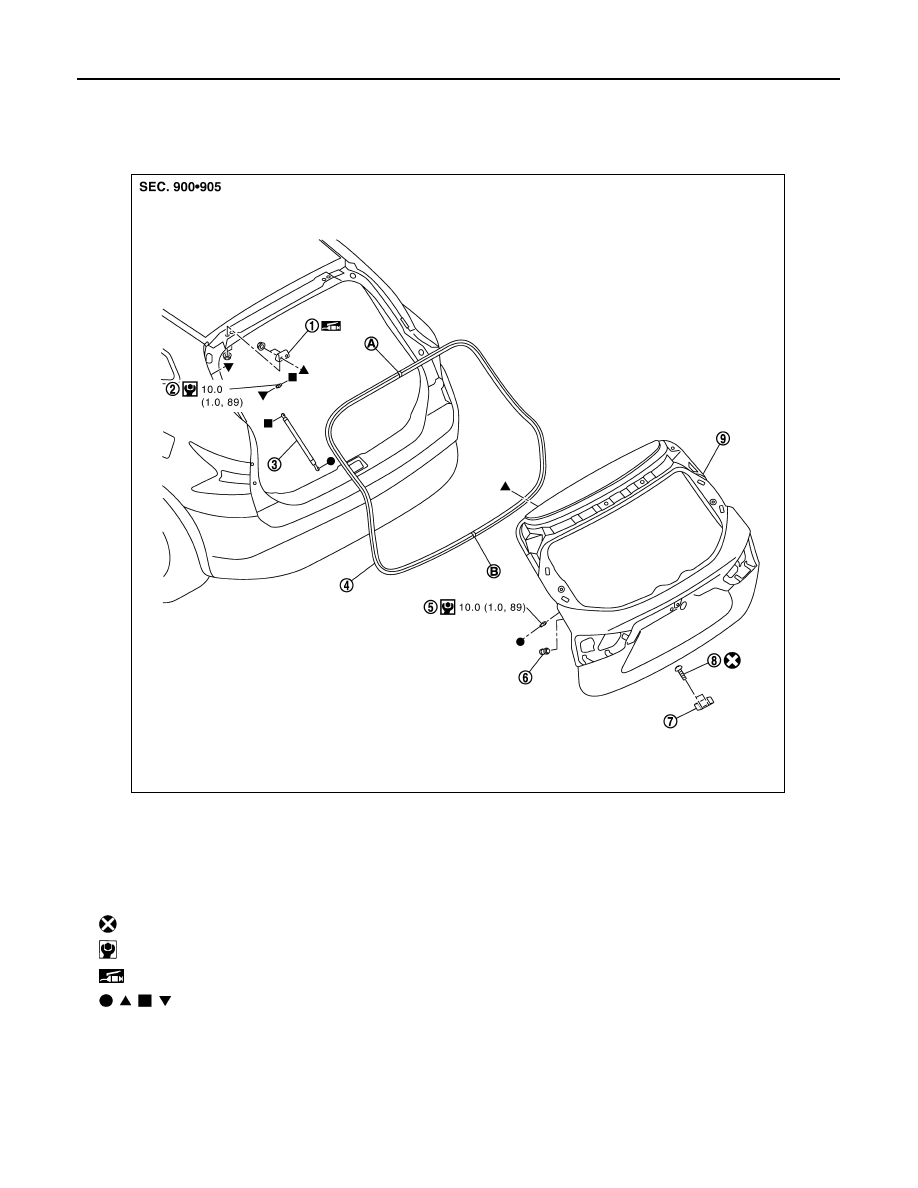

Exploded View

INFOID:0000000010678876

BACK DOOR ASSEMBLY

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010678877

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

1.

Back door hinge

2.

Stud ball

3.

Back door stay

4.

Back door weather-strip

5.

Stud ball

6.

Back door bumper rubber

7.

Back door striker

8.

TORX bolt

9.

Back door panel

A.

Center mark

B.

Seam

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3637GB















Content      ..     56      57      58      59     ..
