DOOR & LOCK SYSTEM

DLK-865

< WIRING DIAGRAM >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3986GB

DLK-866

< WIRING DIAGRAM >

[TYPE 6]

DOOR & LOCK SYSTEM

JRKWE3987GB

DOOR & LOCK SYSTEM

DLK-867

< WIRING DIAGRAM >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3988GB

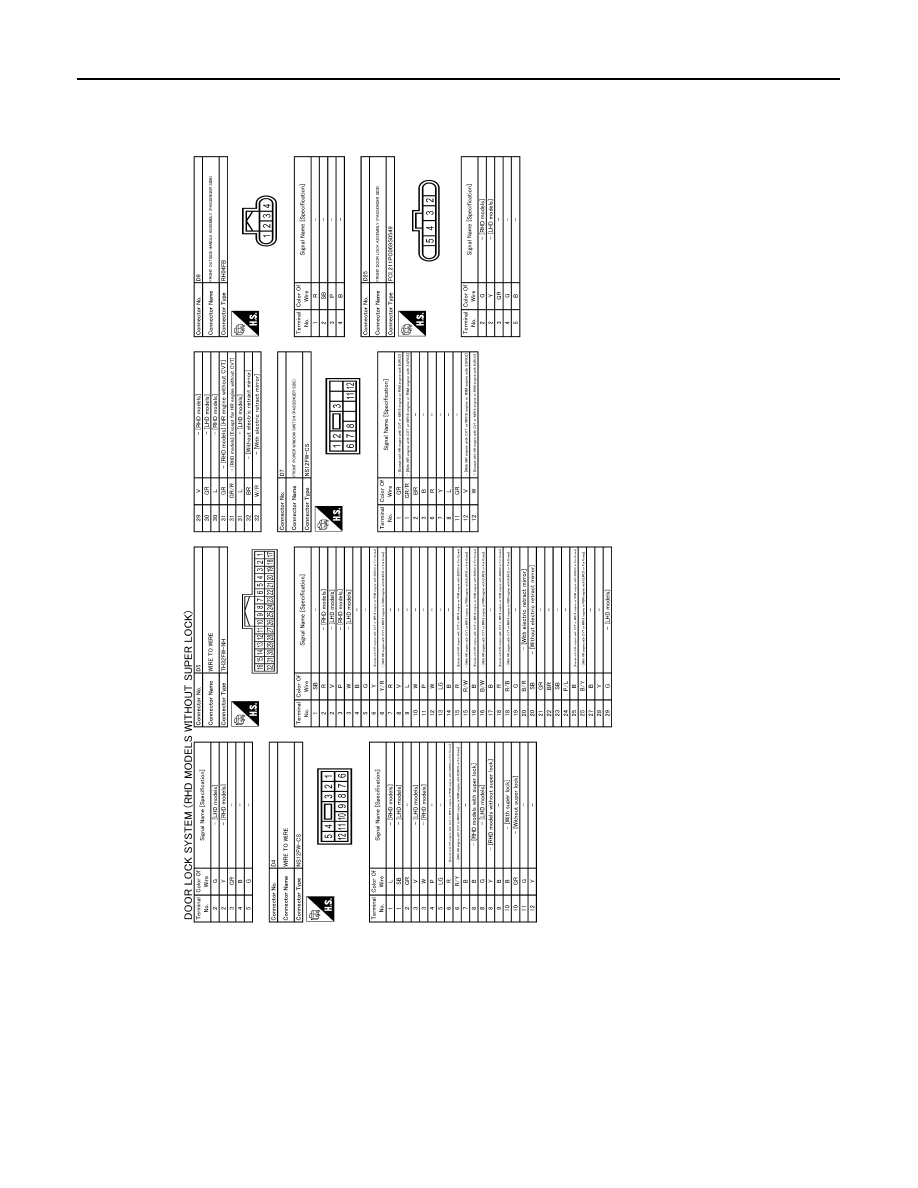

DLK-868

< WIRING DIAGRAM >

[TYPE 6]

DOOR & LOCK SYSTEM

JRKWE3989GB

DOOR & LOCK SYSTEM

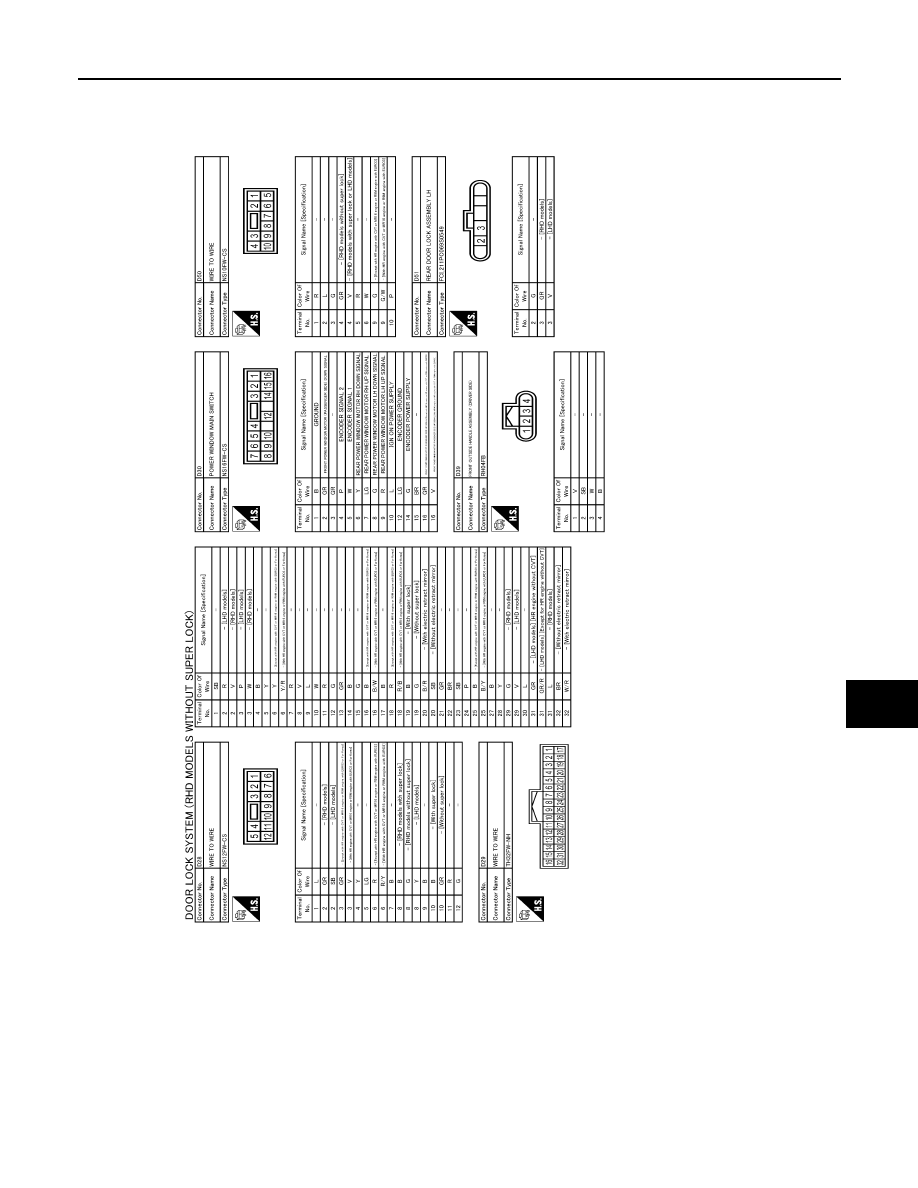

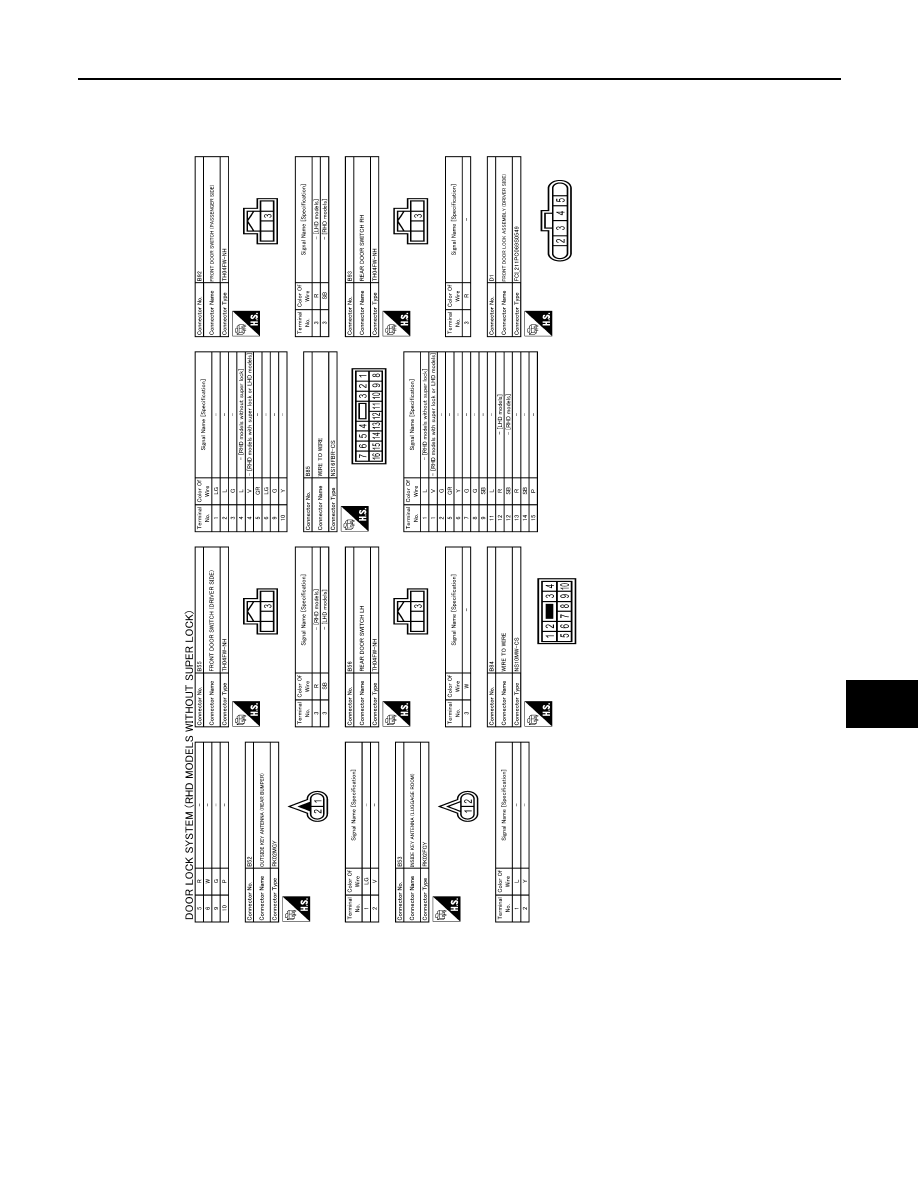

DLK-869

< WIRING DIAGRAM >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3990GB

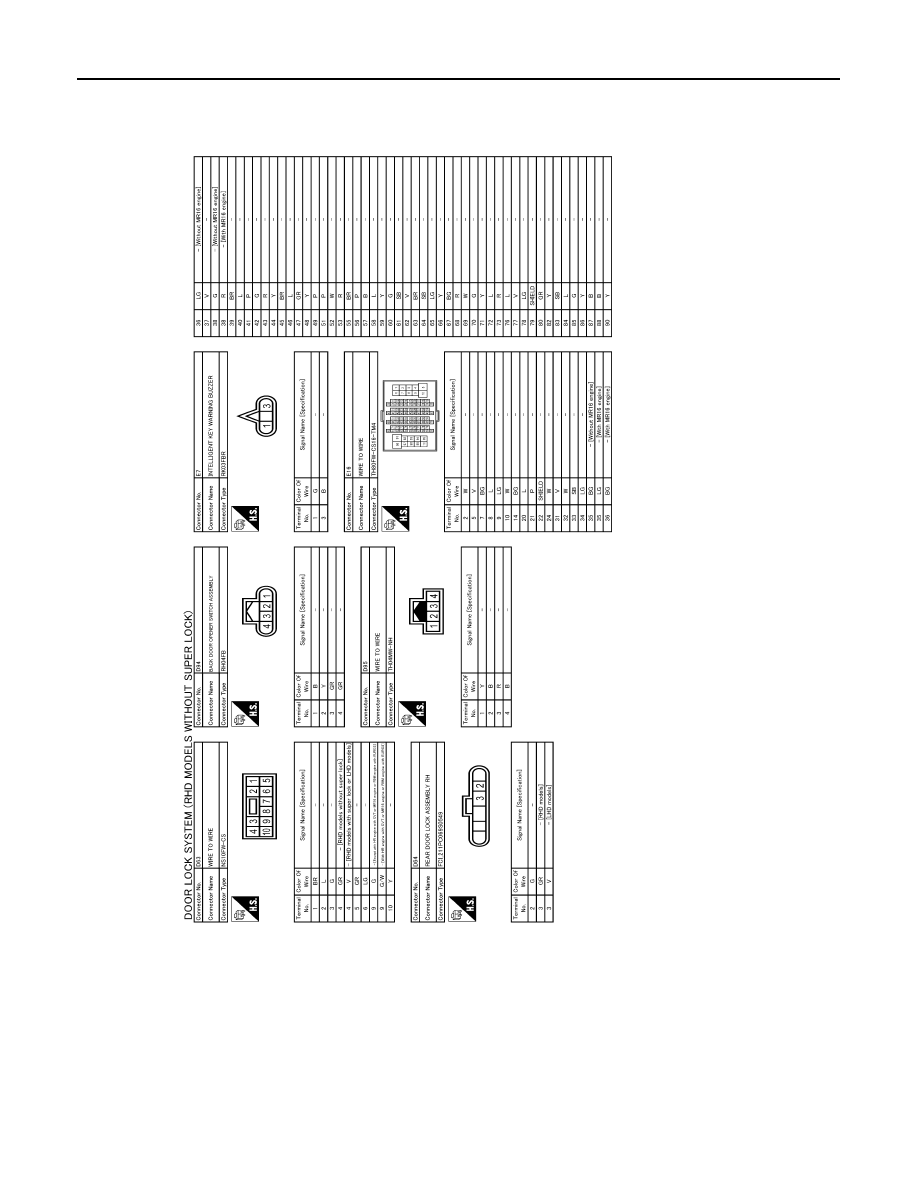

DLK-870

< WIRING DIAGRAM >

[TYPE 6]

DOOR & LOCK SYSTEM

JRKWE3991GB

DOOR & LOCK SYSTEM

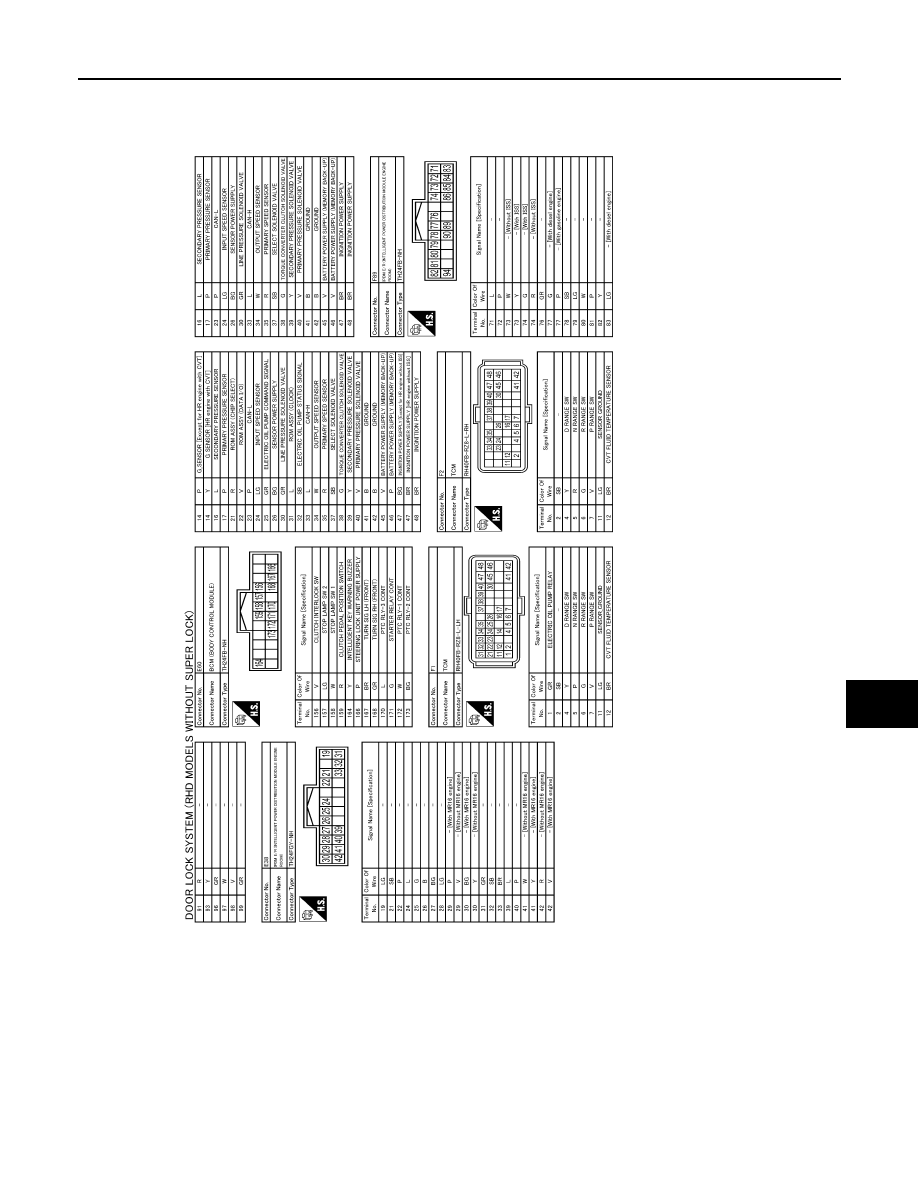

DLK-871

< WIRING DIAGRAM >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3992GB

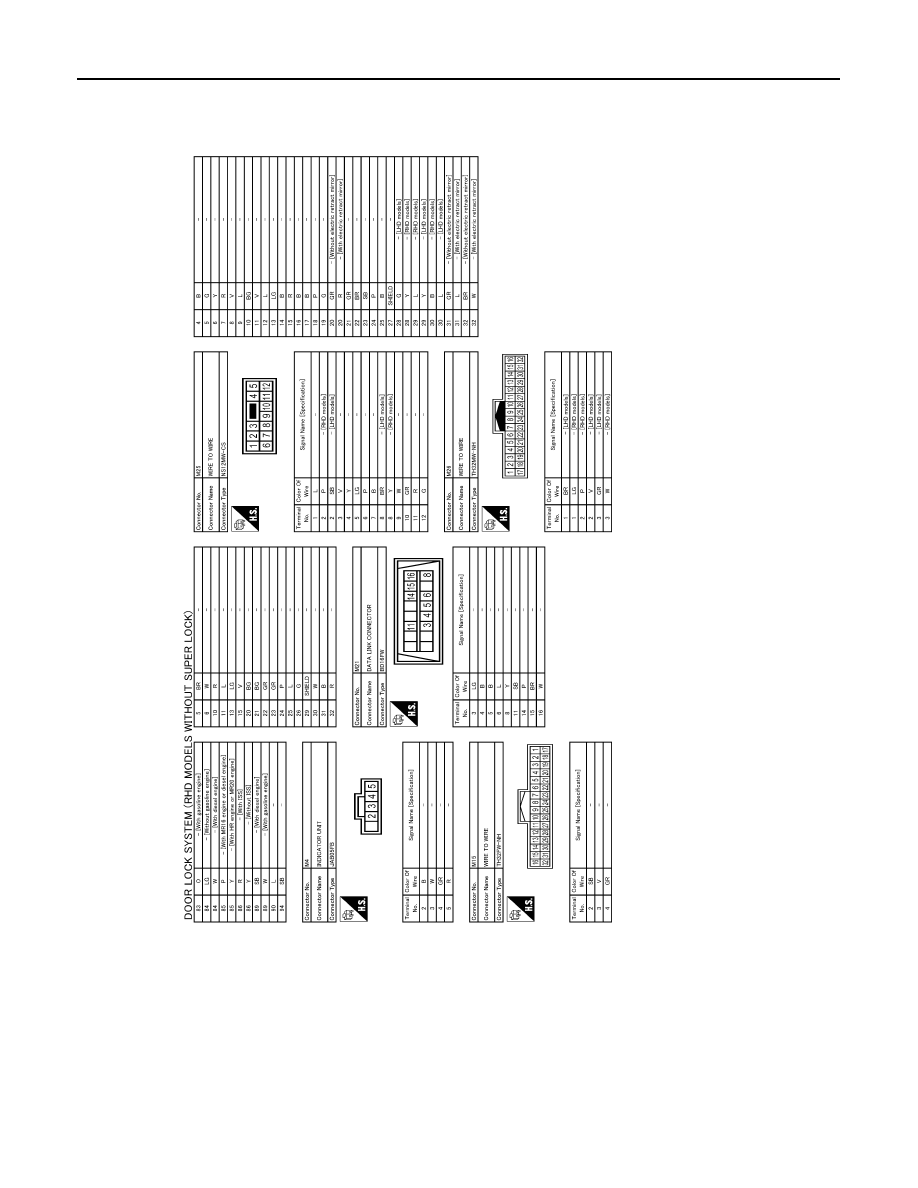

DLK-872

< WIRING DIAGRAM >

[TYPE 6]

DOOR & LOCK SYSTEM

JRKWE3993GB

DOOR & LOCK SYSTEM

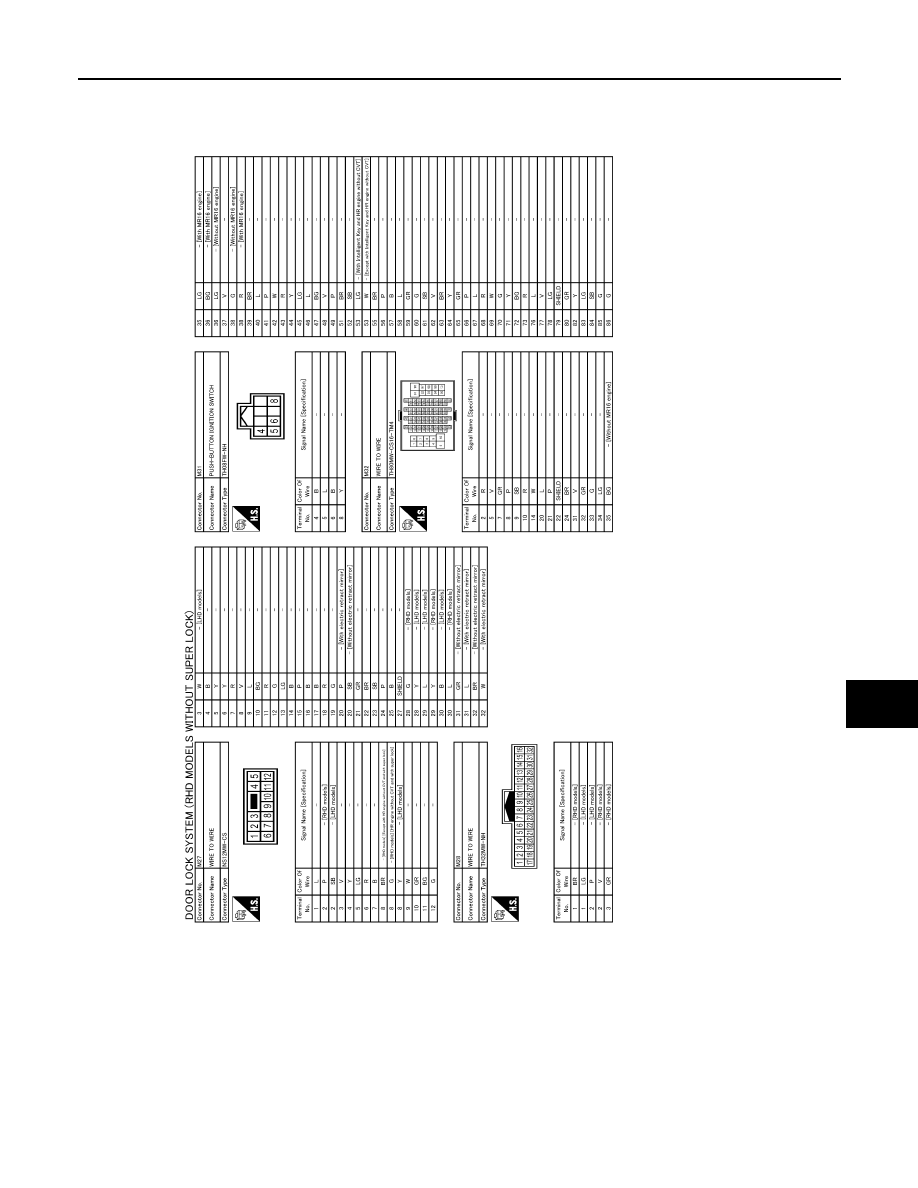

DLK-873

< WIRING DIAGRAM >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3994GB

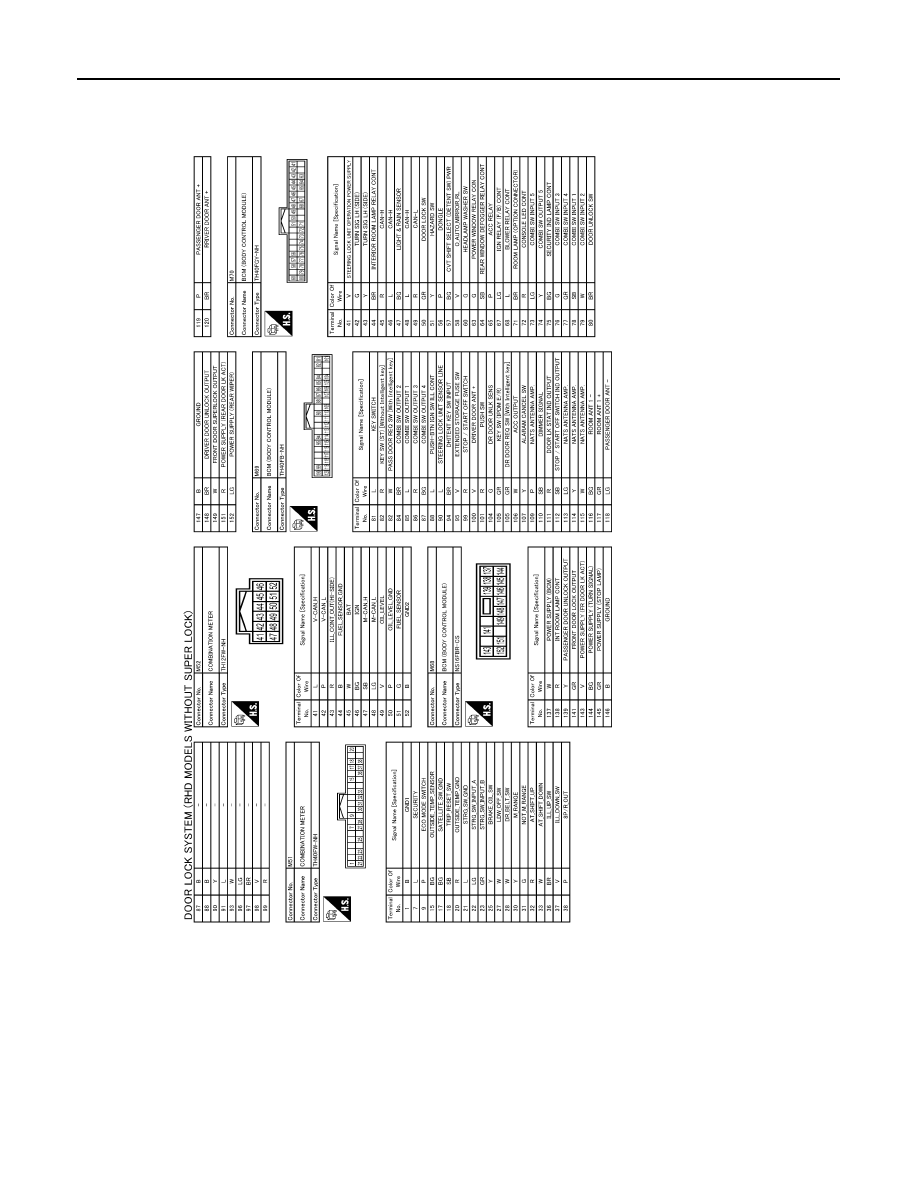

DLK-874

< WIRING DIAGRAM >

[TYPE 6]

DOOR & LOCK SYSTEM

JRKWE3995GB

DOOR & LOCK SYSTEM

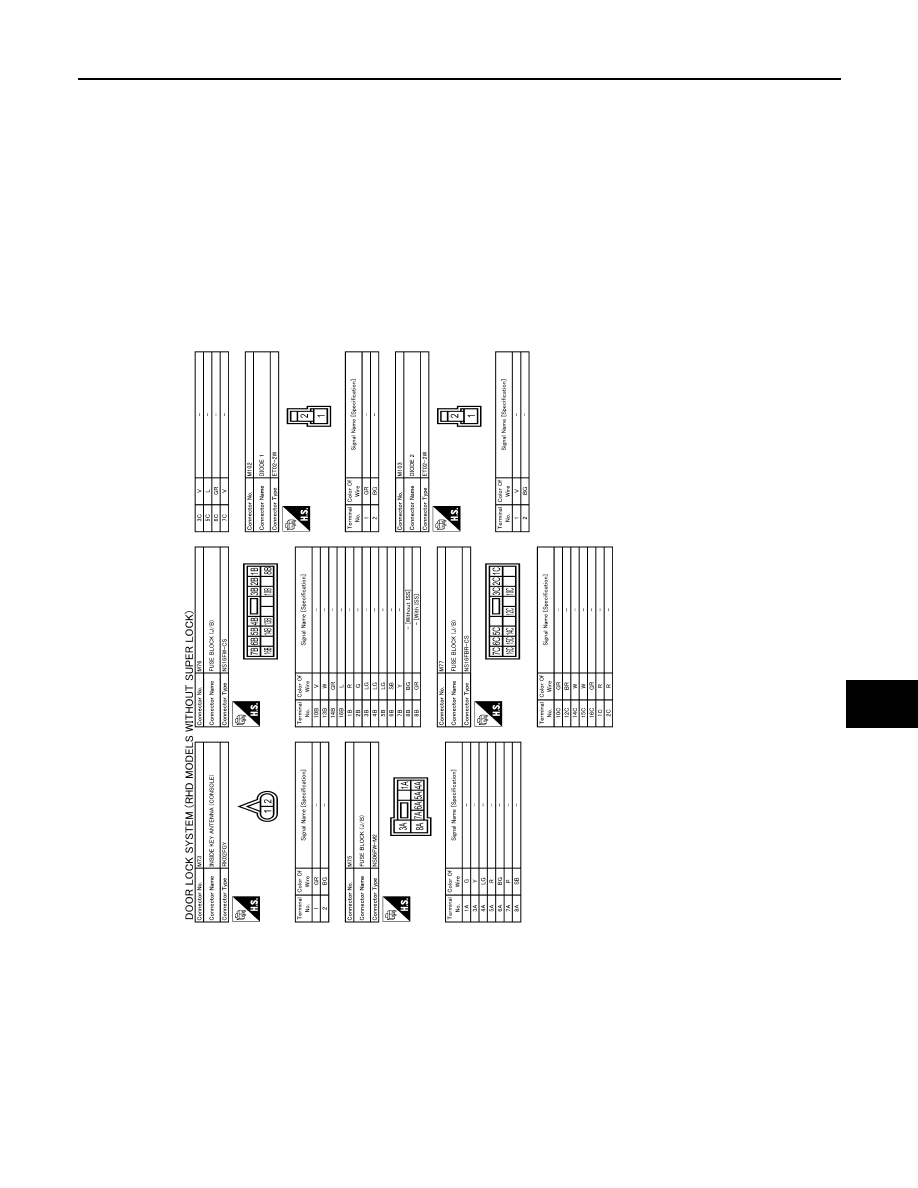

DLK-875

< WIRING DIAGRAM >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3996GB

DLK-876

< BASIC INSPECTION >

[TYPE 6]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010672496

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB

DIAGNOSIS AND REPAIR WORK FLOW

DLK-877

< BASIC INSPECTION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

GET INFORMATION FOR SYMPTOM

1.

Get detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurs).

2.

Check operation condition of the function that is malfunctioning.

>> GO TO 2.

2.

CHECK DTC

1.

Check DTC.

2.

Perform the following procedure if DTC is detected.

-

Record DTC and freeze frame data (Print them out using CONSULT.)

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Are any symptoms described and any DTC detected?

Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Also study the normal operation and fail-safe related to the symptom.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected
again. At this time, always connect CONSULT to the vehicle, and check self diagnostic results in real time.
If two or more DTCs are detected, refer to

BCS-88, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONFIRMATION PROCEDURE is not included on Service

Manual. This simplified check procedure is an effective alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.

Is DTC detected?

YES

>> GO TO 7.

NO

>> Check according to

GI-44, "Intermittent Incident"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptom.

Is the symptom described?

YES

>> GO TO 7.

NO

>> Monitor input data from related sensors or check voltage of related module terminals using CON-

SULT.

7.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

DLK-878

< BASIC INSPECTION >

[TYPE 6]

DIAGNOSIS AND REPAIR WORK FLOW

Inspect according to Diagnostic Procedure of the system.

Is malfunctioning part detected?

YES

>> GO TO 8.

NO

>> Check according to

GI-44, "Intermittent Incident"

.

8.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1.

Repair or replace the malfunctioning part.

2.

Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-
ment.

3.

Check DTC. If DTC is detected, erase it.

>> GO TO 9.

9.

FINAL CHECK

When DTC is detected in step 2, perform DTC CONFIRMATION PROCEDURE again, and then check that the
malfunction is repaired securely.
When symptom is described by the customer, refer to confirmed symptom in step 3 or 4, and check that the
symptom is not detected.

Is DTC detected and does symptom remain?

YES-1 >> DTC is detected: GO TO 7.
YES-2 >> Symptom remains: GO TO 4.
NO

>> Before returning the vehicle to the customer, always erase DTC.

KEYFOB ID REGISTRATION

DLK-879

< BASIC INSPECTION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEYFOB ID REGISTRATION

Description

INFOID:0000000010672497

Perform the system initialization when replacing BCM, replacing keyfob or registering an additional keyfob.
Refer to the CONSULT Immobilizer mode and follow the on-screen instructions.

DLK-880

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 6]

BACK DOOR OPENER ACTUATOR

DTC/CIRCUIT DIAGNOSIS

BACK DOOR OPENER ACTUATOR

Component Function Check

INFOID:0000000010672498

1.

CHECK FUNCTION

1.

Select “MULTI REMOTE ENT” of “BCM” using CONSULT.

2.

Select “TRUNK/BACK DOOR” in “ACTIVE TEST” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Back door opener actuator is OK.

NO

>> Refer to

DLK-880, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010672499

1.

CHECK BACK DOOR OPENER ACTUATOR INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect back door lock assembly connector.

3.

Check voltage between back door lock assembly harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK BACK DOOR OPENER ACTUATOR CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector and back door lock assembly harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK BACK DOOR OPENER ACTUATOR GROUND CIRCUIT

Check continuity between back door lock assembly harness connector and ground.

Monitor item

Status

TRUNK/BACK DOOR

OPEN

Back door

OPEN

(+)

(–)

Condition

Voltage

Back door lock assembly

Connector

Terminal

B2

1

Ground

Back door
opener switch

ON

9 - 16 V

BCM

Back door lock assembly

Continuity

Connector

Terminal

Connector

Terminal

B3

121

B2

1

Existed

BCM

Ground

Continuity

Connector

Terminal

B3

121

Not existed
