Qashqai J11. Door & Lock - part 52





INTELLIGENT KEY BATTERY

DLK-833

< REMOVAL AND INSTALLATION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000010672474

1.

Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2.

Insert a flat-blade screwdriver (A) wrapped with a cloth into the
slit of the corner and twist it to separate the upper part from the
lower part.

CAUTION:

• Do not touch the circuit board or battery terminal.
• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3.

Replace the battery with new one.

4.

Align the tips of the upper and lower parts, and then push them
together until it is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery
(CR2032)

PIIB6222E

DLK-834

< HOW TO USE THIS MANUAL >

[TYPE 6]

APPLICATION NOTICE

HOW TO USE THIS MANUAL

APPLICATION NOTICE

Information

INFOID:0000000010674130

Check the vehicle type to use the service information in this section.

Service information

Destination

Type 1

For Europe

With Intelligent Key and super lock

Type 2

• For Europe
• For South Africa
• For Russia, Ukraine and Kazakhstan

With Intelligent Key, without super lock

Type 3

For Europe

Without Intelligent Key, with super lock

Type 4

• For Europe
• For South Africa
• For Russia, Ukraine and Kazakhstan

Without Intelligent Key and super lock

Type 5

• For  Australia
• For General export

With Intelligent Key, without super lock

Type 6

• For  Australia
• For General export

Without Intelligent Key and super lock

PRECAUTIONS

DLK-835

< PRECAUTION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000011772973

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

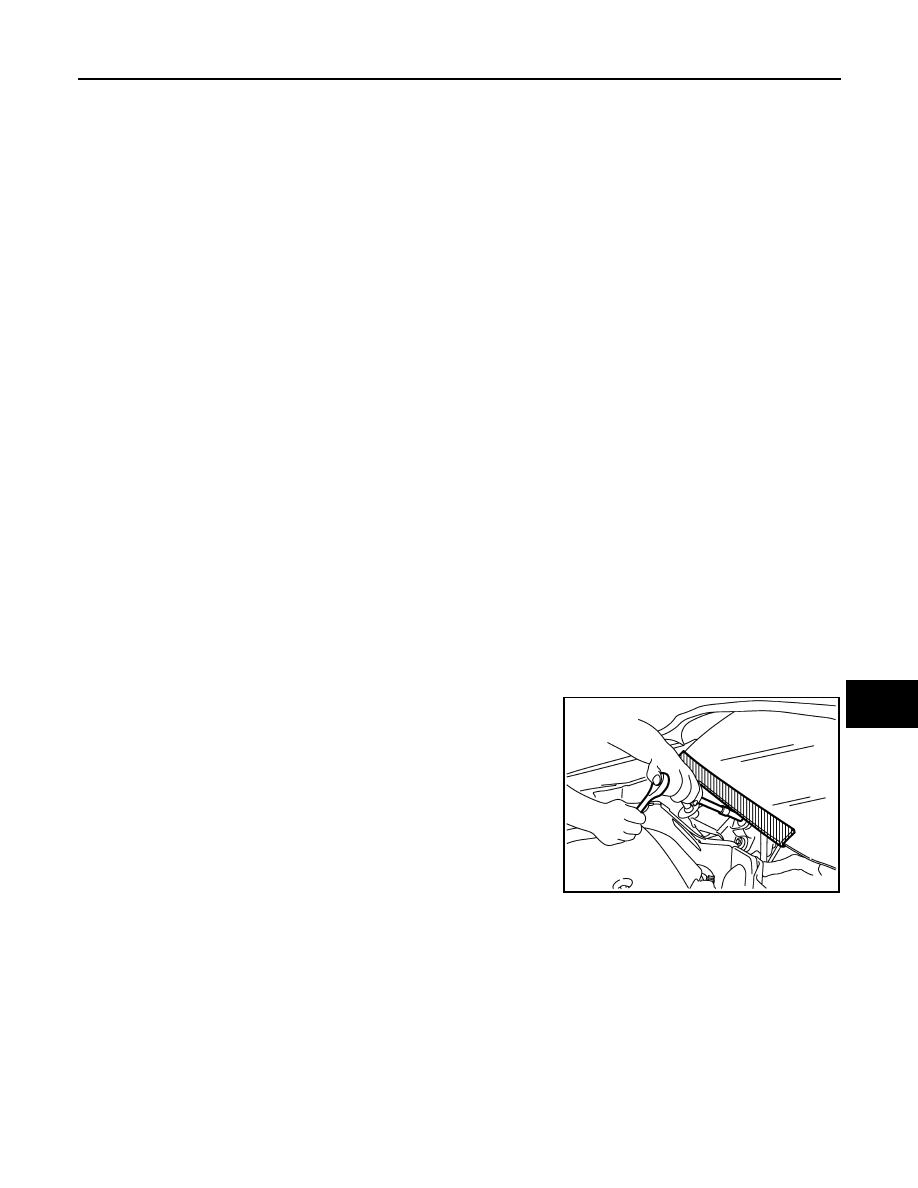

Precaution for Procedure without Cowl Top Cover

INFOID:0000000011772974

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions for Removing Battery Terminal

INFOID:0000000011772975

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

PIIB3706J

DLK-836

< PRECAUTION >

[TYPE 6]

PRECAUTIONS

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to instruction described below.
1.

Open the hood.

2.

Turn ignition switch to the ON position.

3.

Turn ignition switch to the OFF position with the driver side door opened.

4.

Get out of the vehicle and close the driver side door.

5.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Work

INFOID:0000000011772976

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operational.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

PREPARATION

DLK-837

< PREPARATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PREPARATION

PREPARATION

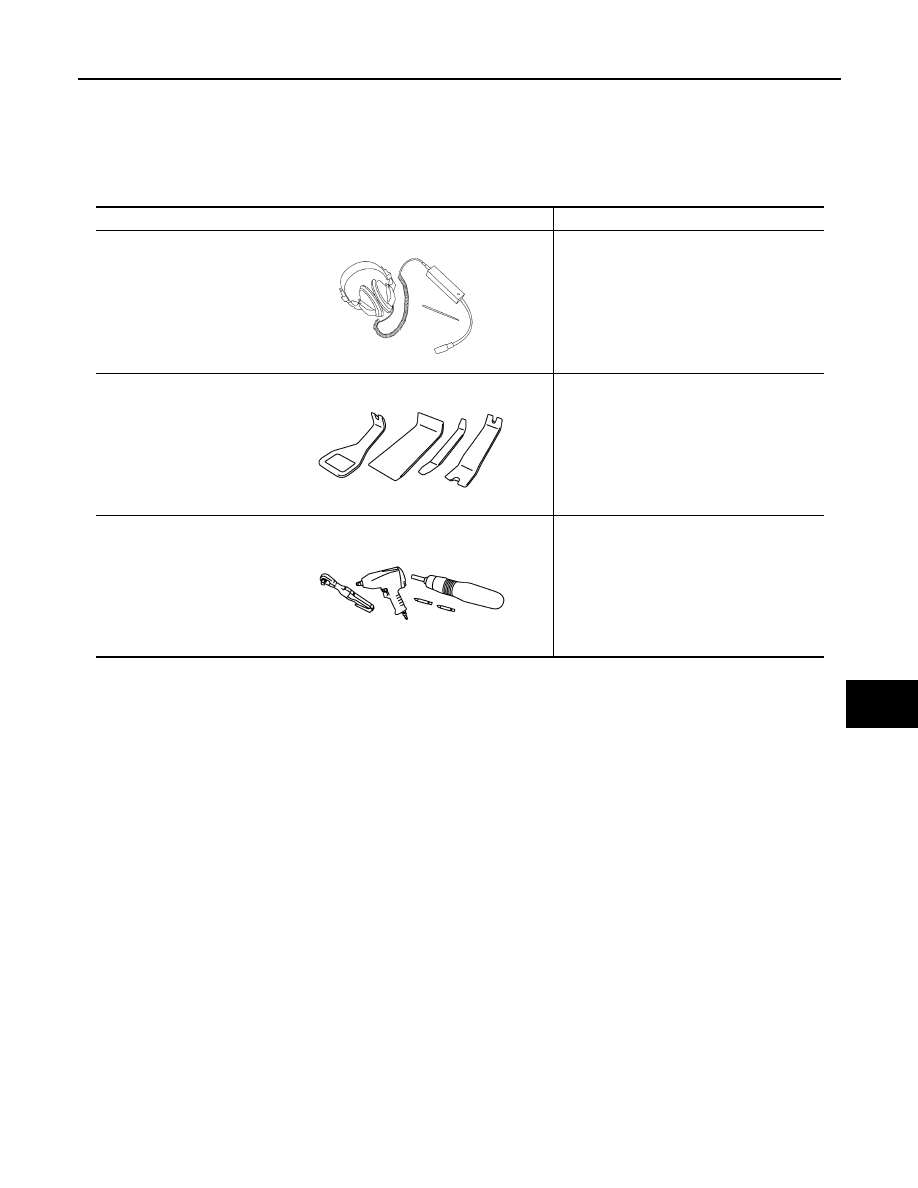

Commercial Service Tools

INFOID:0000000010672481

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clips, pawls, and metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

DLK-838

< SYSTEM DESCRIPTION >

[TYPE 6]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

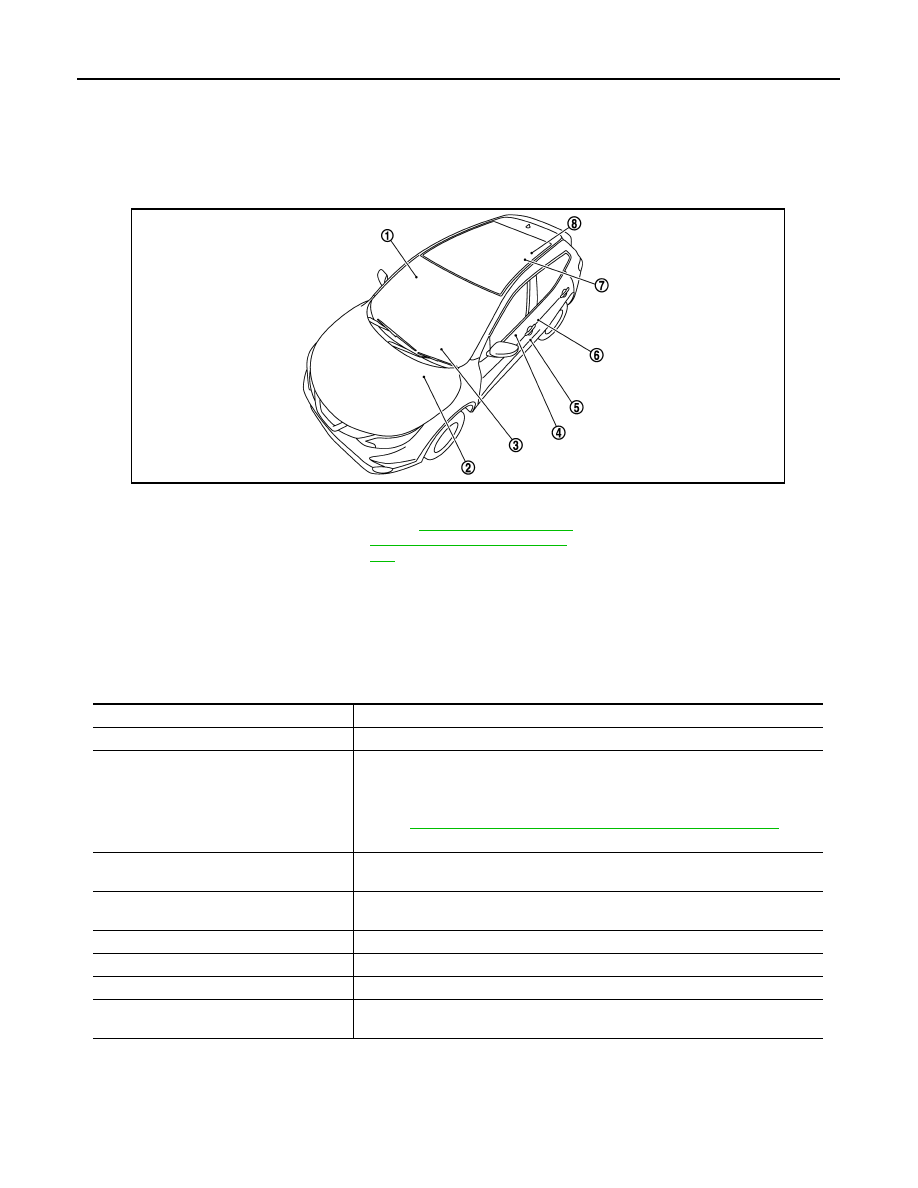

Component Parts Location

INFOID:0000000010672482

Component Description

INFOID:0000000010672483

1.

Power window main switch
(door lock/unlock switch)

2.

BCM
Refer to

BCS-6, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

3.

Combination meter

4.

Front power window switch (passen-
ger side) (door lock and unlock
switch)

5.

Door lock assembly

6.

Door switch

7.

Back door lock assembly

8.

Back door opener switch

JMKIB3273ZZ

Item

Function

Back door lock assembly

Opens the back door with the back door open signal from BCM.

BCM

BCM detects the vehicle status according to signals from each door switch and
each outside/inside key antenna. BCM transmits drive signal to door lock actuator
when BCM receives operation signal from remote keyless entry receiver and each
switch.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

Combination meter

• Performs operation method guide and warning with buzzer.
• Transmits vehicle seep signal to CAN communication line.

Door lock actuator

• Inputs locks/unlocks signal from BCM and locks/unlocks each door.
• Integrated in each door lock assembly.

Door lock and unlock switch

Transmits door lock/unlock operation to BCM.

Door switch

Detects door open/close condition.

Keyfob

Transmits button operation to remote keyless entry receiver.

Key switch

Key switch detects that ignition key is inserted into the ignition key cylinder, and
then transmits the signal to BCM.

POWER DOOR LOCK SYSTEM

DLK-839

< SYSTEM DESCRIPTION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER DOOR LOCK SYSTEM

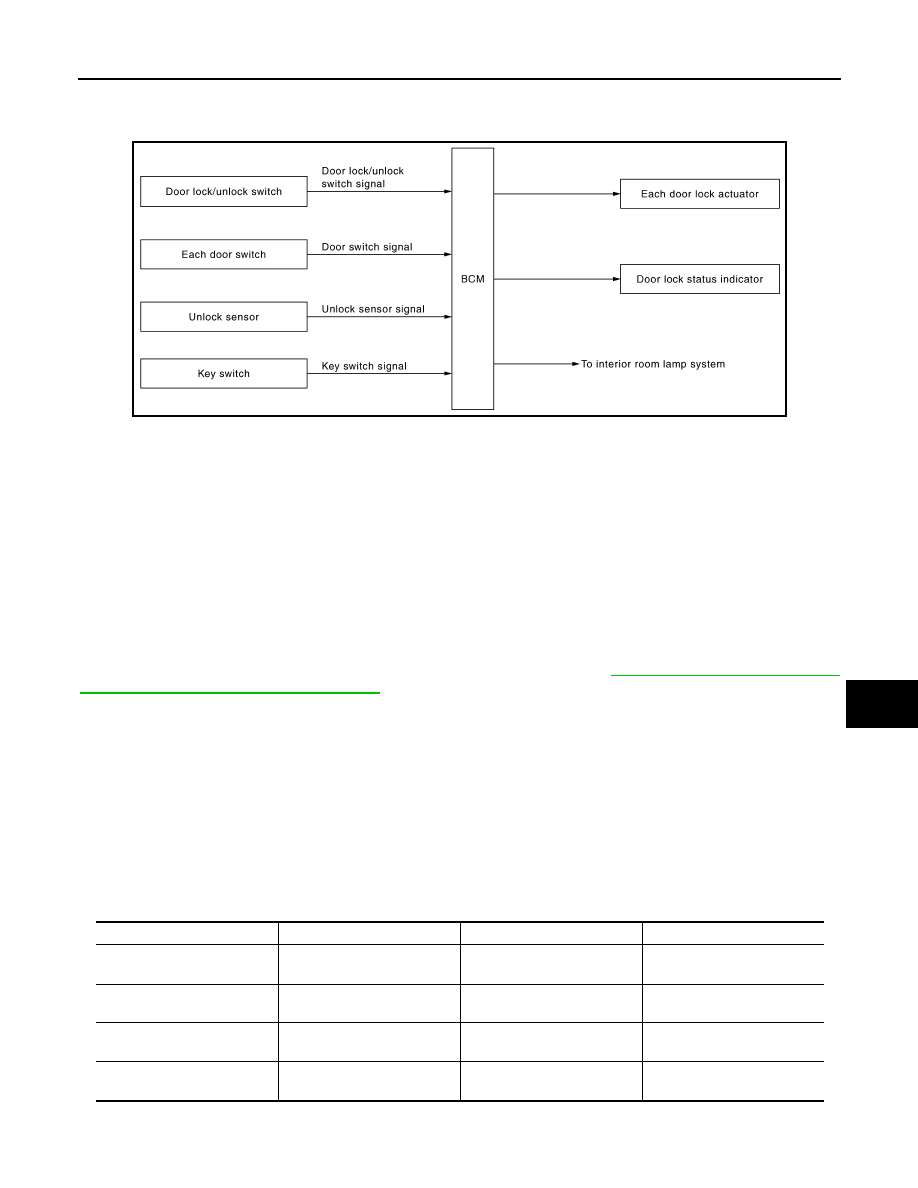

System Diagram

INFOID:0000000010672484

System Description

INFOID:0000000010672485

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is built into power window main switch.
• The door lock and unlock switch (passenger side) is built into front power window switch (passenger side).
• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock /unlock state, refer to

INL-8, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

AIR BAG INTERLOCK UNLOCK FUNCTION

When ignition switch is ON and BCM receives shock status signal, it operates automatically to unlock all
doors. Air bag diagnosis sensor unit sends the shock status signal to BCM via CAN communication.

KEY REMINDER FUNCTION

• While ignition key is inserted in ignition key cylinder and driver door is open, door is not locked when door

lock and unlock switch is pressed in the lock direction. This prevents keyfob from being left in the vehicle.

• While door lock and unlock switch is pressed in the lock direction, combination meter buzzer sounds and

warns.

DOOR LOCK STATUS INDICATOR OPERATION

The door lock status indicator indicates door lock status under the following condition.

JMKIB2483GB

Indicator operation

Ignition position

Door status

Lock operation

ON (30 minutes timer)

OFF

All doors are closed and door
is locked

Door lock and unlock switch

ON

ON

All doors are closed and door
is locked

Door lock and unlock switch

ON (1 minute timer)

OFF

All doors are closed and door
is locked

Keyfob or auto door lock func-

tion

ON

ON

All doors are closed and door
is locked

Keyfob or auto door lock func-

tion

DLK-840

< SYSTEM DESCRIPTION >

[TYPE 6]

POWER DOOR LOCK SYSTEM

ON

 OFF

(All doors are closed

 any

door is open) or (All doors are
locked

 any door is un-

locked)

ON (timer is running)

 ON

(timer is stop)

OFF

 ON

ON

 ON (30 minutes timer)

ON

 OFF

Door lock and unlock switch

ON

 ON (1 minute timer)

ON

 OFF

Keyfob or auto door lock func-

tion

Indicator operation

Ignition position

Door status

Lock operation

REMOTE KEYLESS ENTRY SYSTEM

DLK-841

< SYSTEM DESCRIPTION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY SYSTEM

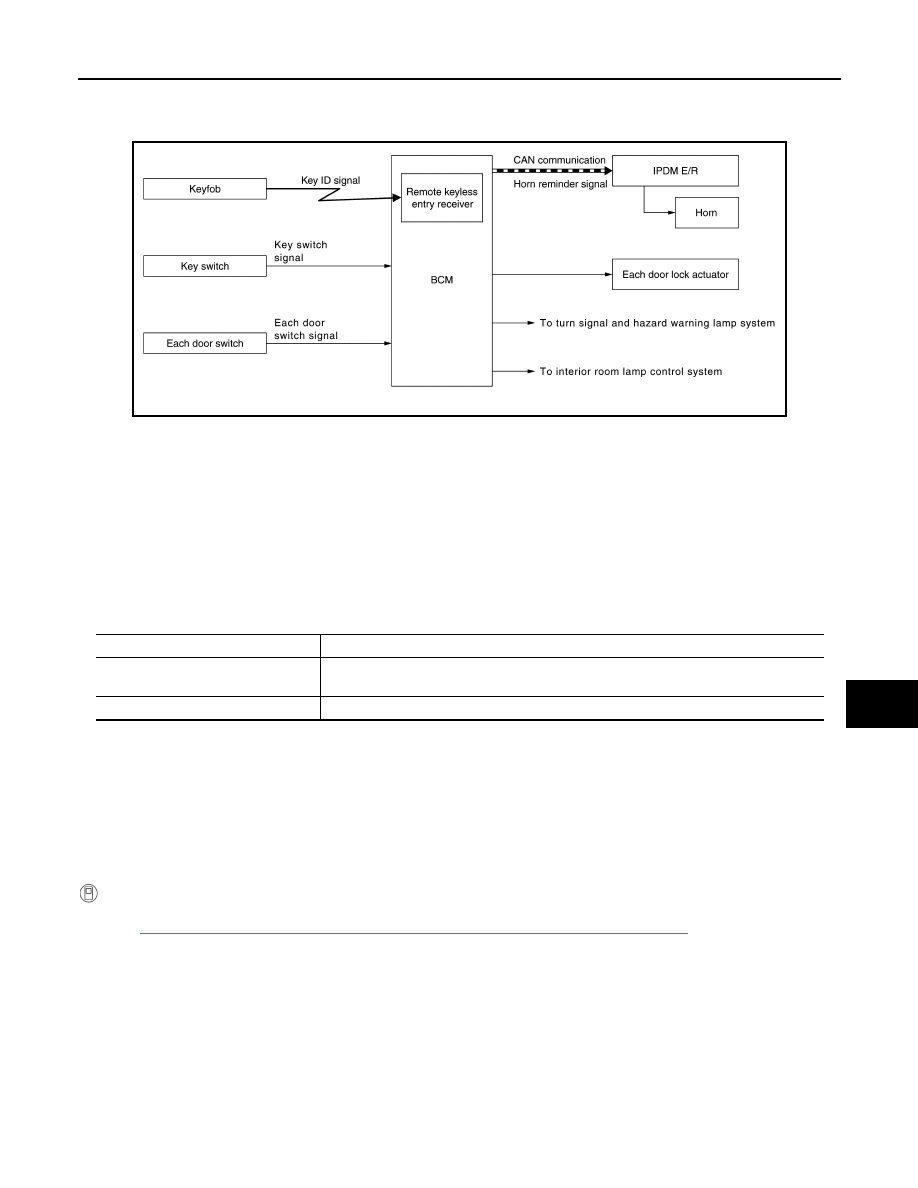

System Diagram

INFOID:0000000010672486

System Description

INFOID:0000000010672487

DOOR LOCK AND UNLOCK OPERATION

• When door lock and unlock button of keyfob is pressed, door lock and unlock signal transmits from keyfob to

BCM via remote keyless entry receiver.

• When BCM receives the door lock and unlock signal, it operates door lock actuator, blinks the hazard lamp

at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the keyfob is operated.

OPERATION AREA

To ensure that the keyfob works effectively, use within 100 cm (3 ft) range of each door, however the operable
range may differ according to surroundings.

SELECTIVE UNLOCK FUNCTION

• When LOCK signal is transmitted from keyfob, all doors are locked.
• When UNLOCK signal is transmitted from keyfob once, driver side door is unlocked.
• Then, if UNLOCK signal is transmitted from keyfob again, all other doors are unlocked.
How to change anti-hijack mode.

 With CONSULT

Selective unlock mode can be set to ON or OFF using CONSULT.
Refer to

DLK-845, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 6)"

.

PANIC ALARM FUNCTION

When keyfob panic alarm button is pressed while ignition switch is OFF, BCM transmits theft warning horn
request signal to IPDM E/R. Then, IPDM E/R turns on and off horn intermittently.
The horn sounds intermittently.
The alarm automatically turns off.
• After 25 seconds
• When BCM receives any signal from keyfob

REMINDER FUNCTION

When doors are locked or unlocked by keyfob, BCM blinks hazard warning lamps as a reminder and transmits
horn chirp signal to IPDM E/R. IPDM E/R sounds horn as a reminder.

JMKIB3618GB

Remote controller operation

Operation condition

Lock

• Key switch is off
• All doors are closed

Unlock

Key switch is off

DLK-842

< SYSTEM DESCRIPTION >

[TYPE 6]

REMOTE KEYLESS ENTRY SYSTEM

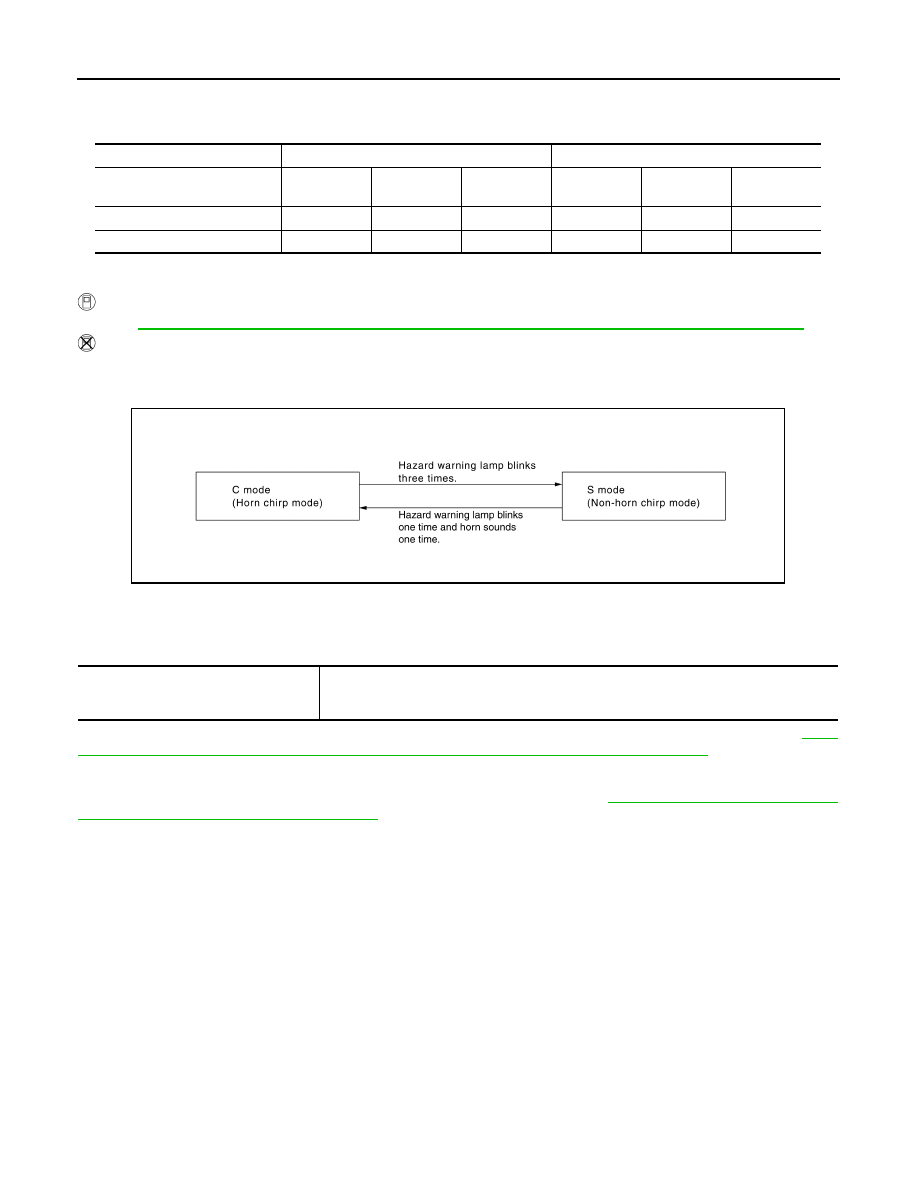

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating Function of Hazard and Horn Reminder

Hazard and horn reminder does not operate if ignition switch ON position.
How to change hazard and horn reminder mode

With CONSULT

Refer to

DLK-846, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 6)"

.

Without CONSULT

When LOCK and UNLOCK signals are sent from the Intelligent Key for more than 2 seconds at the same time,
the hazard and horn reminder mode is changed and hazard warning lamp blinks and horn sounds as per the
following items:

AUTO DOOR LOCK FUNCTION

After door is unlocked by keyfob button operation and if 60 seconds or more passes without performing the fol-
lowing operation, all doors are automatically locked. However, operation check function does not activate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

846, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 6)"

.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock/unlock state, refer to

INL-8, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

C mode

S mode

Keyfob operation

Lock

Unlock

Back door

open

Lock

Unlock

Back door

open

Hazard warning lamp blinks

Twice

Once

Twice

Horn  sound

Once

JMKIB1365GB

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Key switch is ON

BACK DOOR OPENER SYSTEM

DLK-843

< SYSTEM DESCRIPTION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

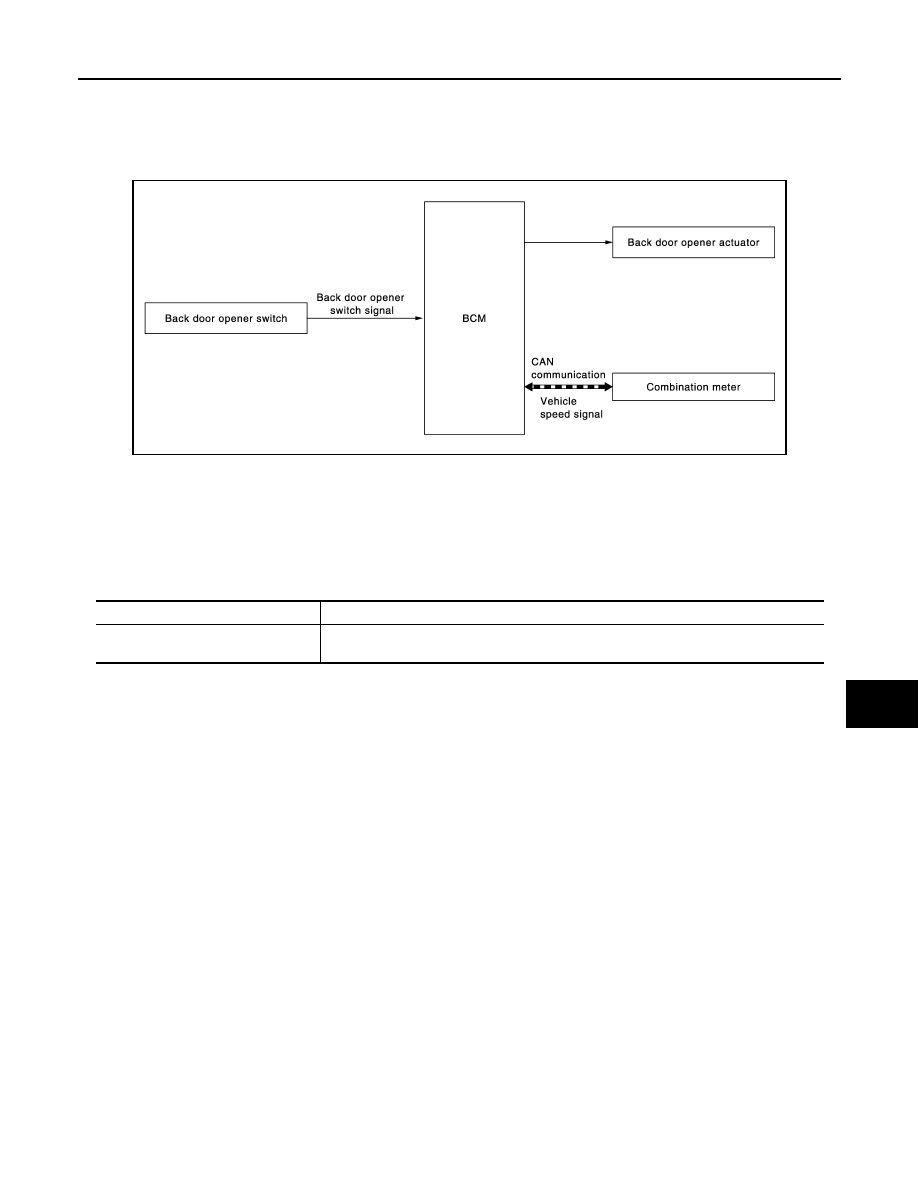

BACK DOOR OPENER SYSTEM

System Description

INFOID:0000000010672488

SYSTEM DIAGRAM

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM operates back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are satisfied, back door opener operation is performed.

NOTE:
• When battery terminal is disconnected and reconnected during all doors unlock state, back door may not

open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When battery terminal is reconnected and back door does not open, have BCM recognize that all doors are

in unlock state.

JMKIA6011GB

Back door opener switch operation

Operation condition

Back door open

• All doors are unlocked.
• Vehicle speed is less than 5 km/h (3 MPH)

DLK-844

< SYSTEM DESCRIPTION >

[TYPE 6]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010674528

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Exterior lamp

HEAD LAMP

×

×

×

Interior room lamp control

INT LAMP

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

PTC heater control

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

Interior room lamp battery saver

BATTERY SAVER

×

Back door open

TRUNK

×

Vehicle security

THEFT ALM

×

×

RAP

RETAINED PWR

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

Signal buffer system

SIGNAL BUFFER

×

×

DIAGNOSIS SYSTEM (BCM)

DLK-845

< SYSTEM DESCRIPTION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 6)

INFOID:0000000010672490

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

V

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

°

C

External temperature of the moment a particular DTC is detected

VEHICLE COND

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

IGN ON SW

Indicated [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicated [On/Off] condition of key switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicated [On/Off] condition of back door switch

LOCK STATUS

Indicated [On/Off] condition of front door driver side

ACC ON SW

Indicated [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicated [On/Off] condition of lock signal from key fob

KEYLESS UNLOCK

Indicated [On/Off] condition of unlock signal from key fob

SHOCK SENSOR

Indicates [NOMAL/On/Off] condition of circuit between BCM and air bag diag-
nosis sensor unit
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal

from air bag diagnosis sensor unit.)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

VEHICLE SPEED

Display the vehicle speed signal received from combination meter by numer-
ical value [Km/h]

DLK-846

< SYSTEM DESCRIPTION >

[TYPE 6]

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

MULTI REMOTE ENT

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 6)

INFOID:0000000010738355

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT screen is touched
• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT screen is

touched

• “BD ULK” is displayed, but cannot be used
• “OTR ULK” is displayed, but cannot be used

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Test item

Description

AUTO LOCK SET

Auto door lock time can be changed in this mode
• MODE 1: Non-operation
• MODE 2: 30 sec.
• MODE 3: 1 minute
• MODE 4: 2 minute
• MODE 5: 3 minute
• MODE 6: 4 minute
• MODE 7: 5 minute

ANSWER BACK

Reminder function (keyfob) mode can be selected from the following with this mode
• On: S mode (horn non-operation)
• Off: C mode (horn operate)

ANSWER BACK KEYLESS
LOCK UNLOCK

Reminder function (keyfob) mode can be selected from the following with this mode
• On: Horn and hazard warning lamp operate
• Off:  Only  hazard  warning lamp operate

WELCOME LIGHT OP SET

NOTE:
This item is displayed, but cannot be used

Monitor Item

Condition

CONFRM ID ALL

Indicates [Yet] at all time.Switches to [Done] when a registered key is inserted into ignition key
cylinder.

CONFRM ID4

CONFRM ID3

CONFRM ID2

CONFRM ID1

NOT REGISTERED

Indicates [ID OK] when key ID that is registered is received or is not yet received. Indicates [ID
NG] when key ID that is not registered is received.

TP 4

Indicates the number of IDs that are registered.

TP 3

TP 2

TP 1

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

DIAGNOSIS SYSTEM (BCM)

DLK-847

< SYSTEM DESCRIPTION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*

1

: It is displayed but does not operate on CVT models.

*

2

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

TRUNK

BRAKE SW 1

Indicates [On/Off]*

2

 condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status

DOOR STAT-RR

Indicates [LOCK/READY/UNLK] condition of rear door RH status

DOOR STAT-RL

Indicates [LOCK/READY/UNLK] condition of rear door LH status

BK DOOR STATE

NOTE:
This item is displayed, but cannot be monitored

STOP/START SW

Indicates [On/Off] condition of stop/start off switch

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from keyfob

KEY SW

Indicates [On/Off] condition of key switch

IGN SW

Indicates [On/Off] condition of ignition switch in ON position

START SW

Indicates [On/Off] condition of ignition switch in START position

Monitor Item

Condition

Test item

Description

FLASHER

This test is able to check flasher operation [LH/RH/Off]

HORN

This test is able to check horn operation
• On: Operates

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

MIRROR+5

NOTE:
This item is indicated, but not monitored

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is indicated, but not monitored

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk/luggage room lamp operation
• On: Operates
• Off: Non-operation

DLK-848

< SYSTEM DESCRIPTION >

[TYPE 6]

DIAGNOSIS SYSTEM (BCM)

TRUNK : CONSULT Function (BCM - TRUNK) (Type 6)

INFOID:0000000010672492

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Contents

STARTER CUT RELAY

Indicates [On/Off] condition of starter control relay

KEY CYL SW-TR

NOTE:
This item is displayed, but cannot be monitored

TR CANCEL SW

NOTE:
This item is displayed, but cannot be monitored

TRUNK LID OPENER SW

NOTE:
This item is displayed, but cannot be monitored

BACK DOOR OEPENR SW

Indicates [On/Off] condition of back door opener switch

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored















Content      ..     50      51      52      53     ..
