REAR DOOR

DLK-801

< REMOVAL AND INSTALLATION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Fitting Adjustment Standard

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm [in]

Fitting Adjustment Procedure

1.

Remove center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting nuts and bolts on body side.

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts

and nuts.

• Check door hinge rotating part for poor lubrication. Refer to

DLK-797, "DOOR HINGE : Inspec-

tion"

.

8.

Install center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000010678802

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse mounting TORX bolt. Always replace it with a new one when it is removed.
• Check rear door open/close, lock/unlock operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-800, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000010678803

CAUTION:

• Perform work with 2 workers, because of its heavy weight.

: N·m (kg-m, ft-lb)

: Body grease

Portion

Standard

Front door – Rear door

B – B

J

Clearance

3.3 – 5.3

[0.130 – 0.209]

K

Surface

height

(

1.0) – (+1.0)

[(

0.039) – (+0.039)]

Rear door – Body side panel

C – C

L

Clearance

3.5 – 5.5

[0.138 – 0.217]

M

Surface

height

(

1.0) – (+1.0)

[(

0.039) – (+0.039)]

DLK-802

< REMOVAL AND INSTALLATION >

[TYPE 5]

REAR DOOR

• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door assembly. Refer to

DLK-799, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove door hinge mounting bolts of vehicle body side, and then remove door hinge (lower).

3.

Remove center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

4.

Remove door hinge mounting nuts of vehicle body side, and then remove door hinge (upper).

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-795, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check door hinge rotating part for poor lubrication. Refer to

DLK-802, "DOOR

HINGE : Inspection"

.

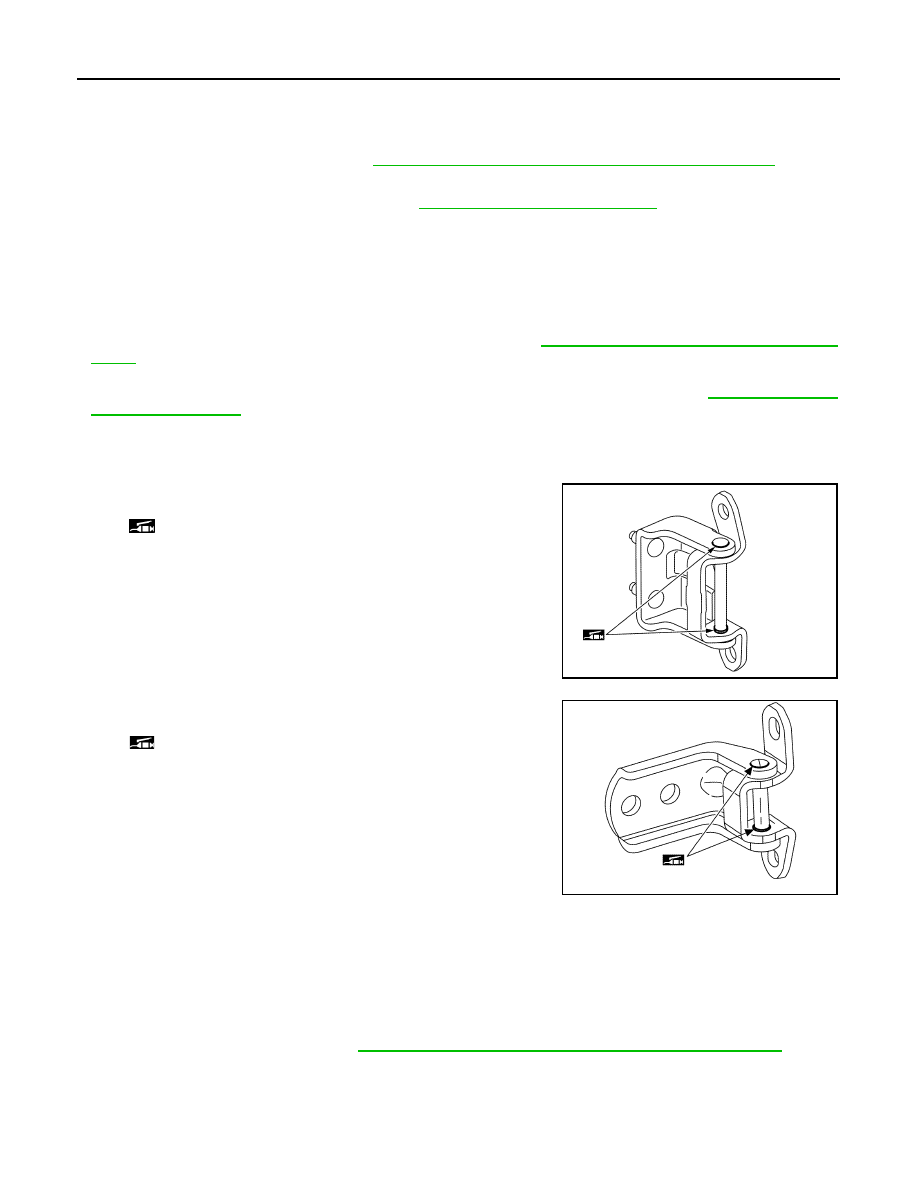

DOOR HINGE : Inspection

INFOID:0000000010678804

Check door hinge rotating part for poor lubrication. Apply body grease if necessary.
• Door hinge (upper)

• Door hinge (lower)

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000010678805

REMOVAL

1.

Fully close the rear door glass.

2.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Removal and Installation"

.

3.

Remove rear door speaker.

a.

Disconnect rear door speaker harness connector.

b.

Remove rear door speaker mounting bolts, and then remove rear door speaker.

4.

Remove check link mounting bolts of vehicle body side.

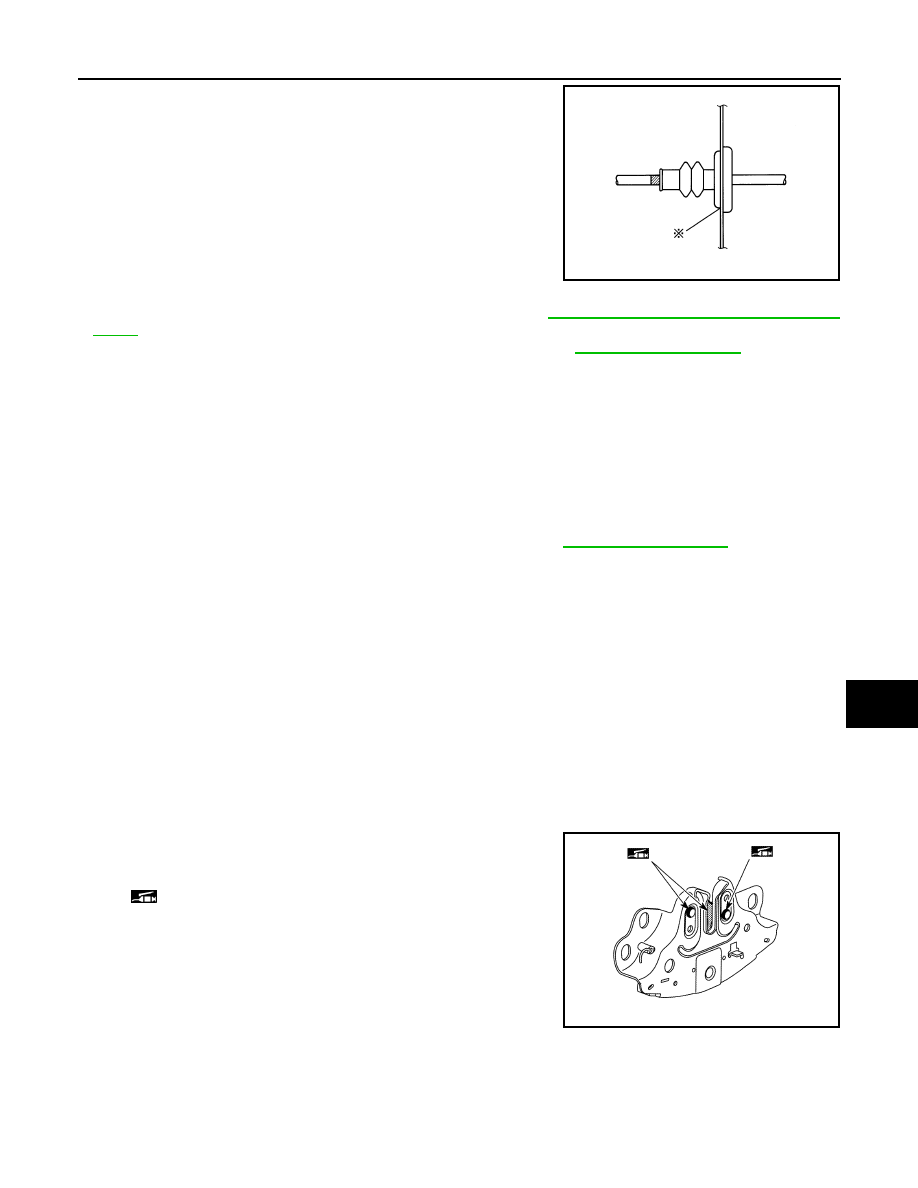

: Body grease

JMKIB0329ZZ

: Body grease

JMKIB0321ZZ

REAR DOOR

DLK-803

< REMOVAL AND INSTALLATION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

5.

Remove check link mounting bolts of door side.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check front door open/close operation after installation.
• After installation, check door check link rotating part for poor lubrication. Refer to

DLK-803, "DOOR

CHECK LINK : Inspection"

.

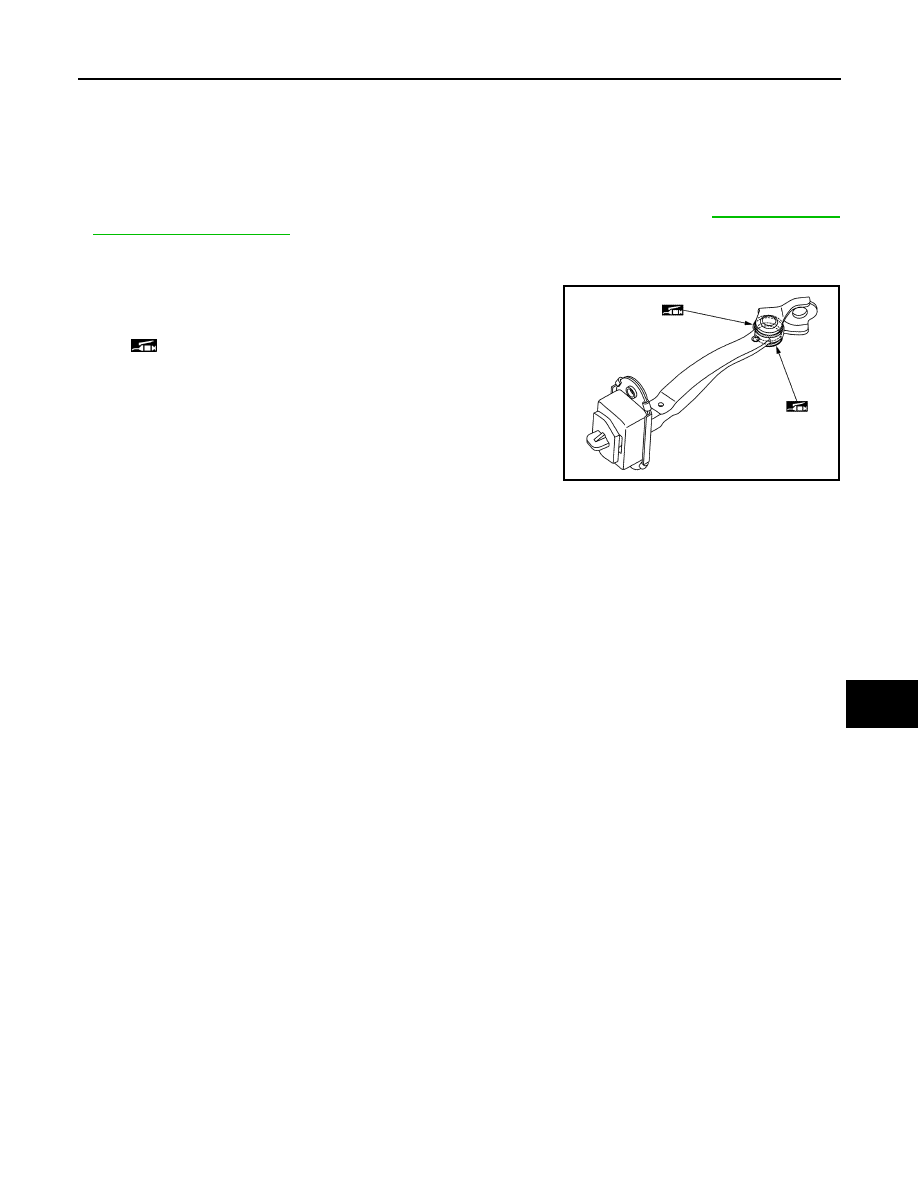

DOOR CHECK LINK : Inspection

INFOID:0000000010678806

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

: Body grease

JMKIB0322ZZ

DLK-804

< REMOVAL AND INSTALLATION >

[TYPE 5]

BACK DOOR

BACK DOOR

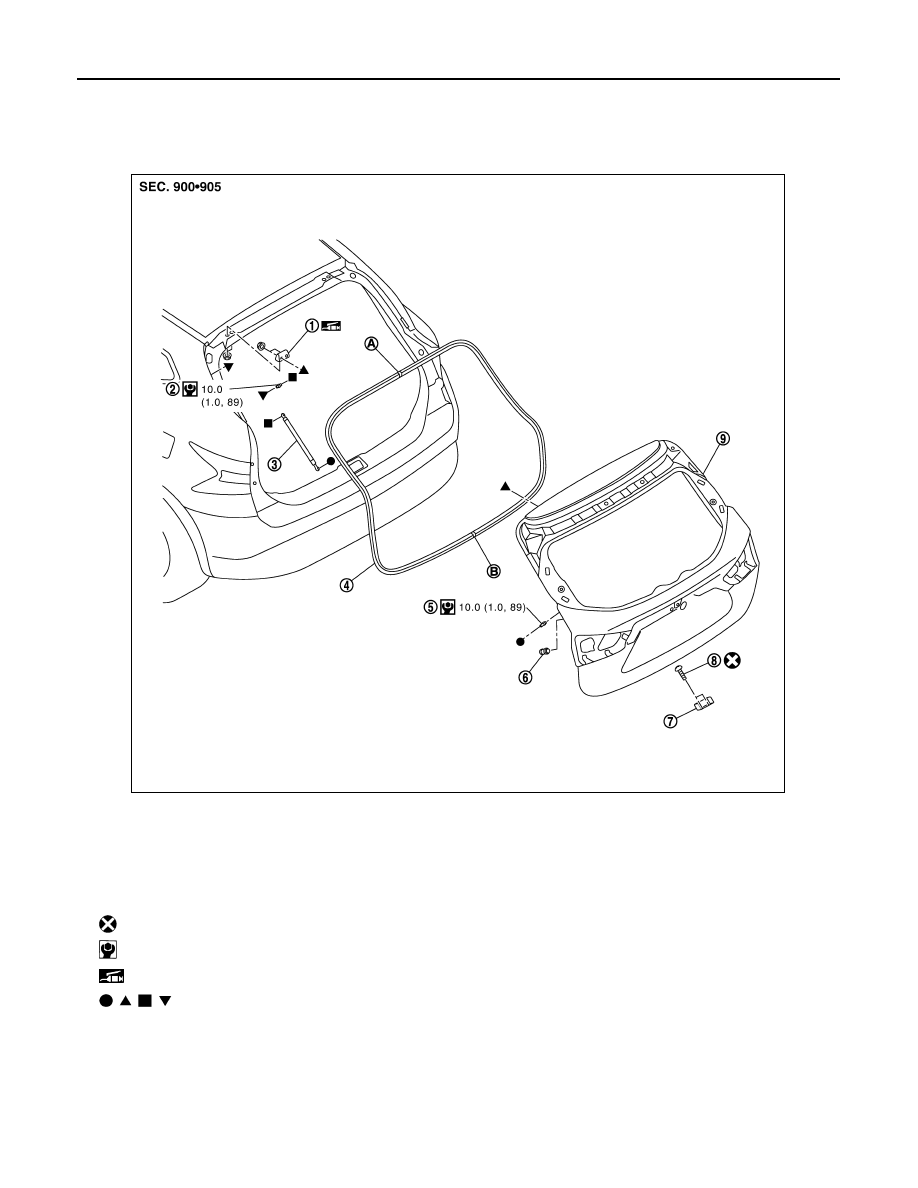

Exploded View

INFOID:0000000010678807

BACK DOOR ASSEMBLY

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010678808

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

1.

Back door hinge

2.

Stud ball

3.

Back door stay

4.

Back door weather-strip

5.

Stud ball

6.

Back door bumper rubber

7.

Back door striker

8.

TORX bolt

9.

Back door panel

A.

Center mark

B.

Seam

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

: Indicates that the part is connected at points with same symbol in actual vehicle.

JMKIB3637GB

BACK DOOR

DLK-805

< REMOVAL AND INSTALLATION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOVAL

1.

Remove back door trim finisher lower and back door trim finisher upper. Refer to

INT-31, "Removal and

Installation"

.

2.

Remove rear washer tube from back door panel. Refer to

WW-90, "WASHER TUBE : Removal and Instal-

lation"

.

3.

Disconnect back door harness connectors from body harness connectors.

4.

Remove harness grommet from back door panel.

5.

Pull out body harness LH from back door panel.

6.

Support back door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

7.

Remove back door stay of back door side. Refer to

DLK-808, "BACK DOOR STAY : Removal and Installa-

tion"

.

8.

Remove back door mounting nuts, and then remove back door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, perform the fitting adjustment. Refer to

DLK-805, "BACK DOOR ASSEMBLY :

Adjustment"

.

• Apply touch-up paint to the body color if the paint around back door hinge is peeled off.
• Check back door hinge rotating part for poor lubrication. Refer to

DLK-808, "BACK DOOR HINGE :

Inspection"

.

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000010678809

FITTING ADJUSTMENT

DLK-806

< REMOVAL AND INSTALLATION >

[TYPE 5]

BACK DOOR

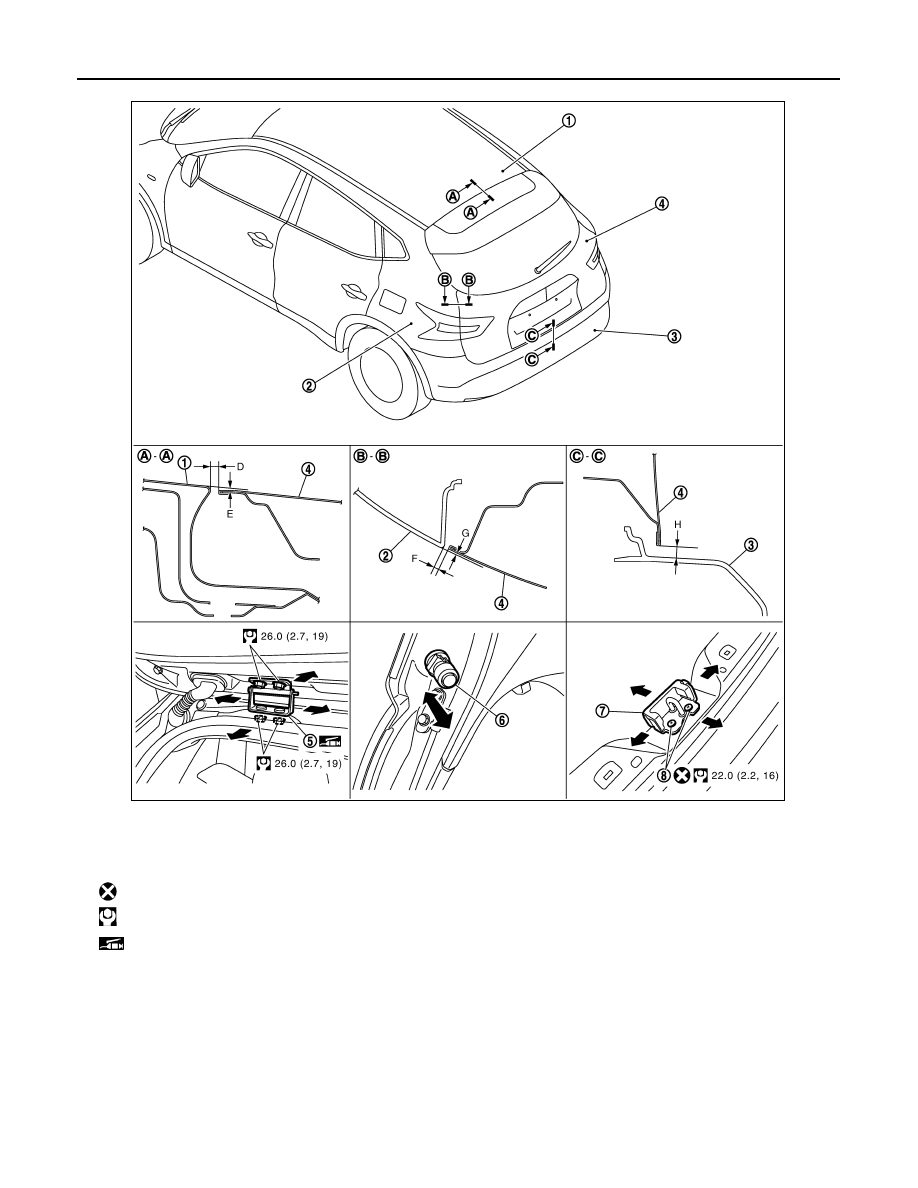

Fitting Adjustment Standard

Check the clearance and the surface height between back door and each part by seeing and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Roof panel

2.

Body side outer

3.

Rear bumper fascia

4.

Back door panel

5.

Back door hinge

6.

Back door bumper rubber

7.

Back door striker

8.

TORX bolt

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3321GB

BACK DOOR

DLK-807

< REMOVAL AND INSTALLATION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Unit: mm [in]

Fitting Adjustment Procedure

1.

Loosen back door striker mounting TORX bolts.

2.

Loosen back door hinge mounting nuts (back door side).

3.

Adjust back door using back door striker, back door hinge and back door bumper rubber to the specified
value, as shown in the following table.

4.

After adjustment tighten back door striker mounting bolts and back door hinge mounting nuts (back door
side) to the specified torque.

CAUTION:

• Apply touch-up paint to the body color if the paint around back door hinge, and back door hinge

mounting nuts is peeled off.

• Check back door hinge rotating part for poor lubrication. Refer to

DLK-808, "BACK DOOR HINGE :

Inspection"

.

BACK DOOR STRIKER ADJUSTMENT

Adjust back door striker so that it becomes parallel with back door lock insertion direction.

BACK DOOR STRIKER

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000010678810

REMOVAL

1.

Remove luggage rear plate. Refer to

INT-30, "Luggage floor trim"

.

2.

Remove TORX bolts, and then remove back door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse mounting TORX bolt. Always replace it with a new one when it is removed.
• After installation, perform the fitting adjustment. Refer to

DLK-805, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, check back door open/close, lock/unlock operation.

BACK DOOR HINGE

BACK DOOR HINGE : Removal and Installation

INFOID:0000000010678811

REMOVAL

1.

Remove back door assembly. Refer to

DLK-804, "BACK DOOR ASSEMBLY : Removal and Installation"

2.

Remove luggage side upper finisher LH and RH. Refer to

INT-29, "Luggage side trim"

.

3.

Lower the rear end of headlining to secure work space.

4.

Remove back door hinge mounting nut, and then remove back door hinge.

INSTALLATION

Portion

Standard

Difference

(RH/LH,MAX)

Back door – Roof panel

A – A

D

Clearance

5.0 – 7.0

[0.197 – 0.276]

E

Surface

height

0 – 2.0

[0 – 0.079]

Back door – Body side outer

B – B

F

Clearance

2.8 – 7.2

[0.110 – 0.283]

< 2.9

 [0.114]

G

Surface

height

0 – 4.0

[0 – 0.157]

< 2.5

 [0.098]

Back door – Rear bumper fascia

C – C

H

Clearance

4.8 – 9.2

[0.189 – 0.362]

DLK-808

< REMOVAL AND INSTALLATION >

[TYPE 5]

BACK DOOR

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check back door hinge rotating part for poor lubrication. Refer to

DLK-808, "BACK DOOR HINGE :

Inspection"

.

• After installation, perform the fitting adjustment. Refer to

DLK-805, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

BACK DOOR HINGE : Inspection

INFOID:0000000010678812

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

BACK DOOR STAY

BACK DOOR STAY : Removal and Installation

INFOID:0000000010678813

REMOVAL

1.

Support the back door with the suitable material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

CAUTION:

Use protective tape or shop cloth to protect from damage during removal and installation.

2.

Remove back door stay of vehicle body side.

a.

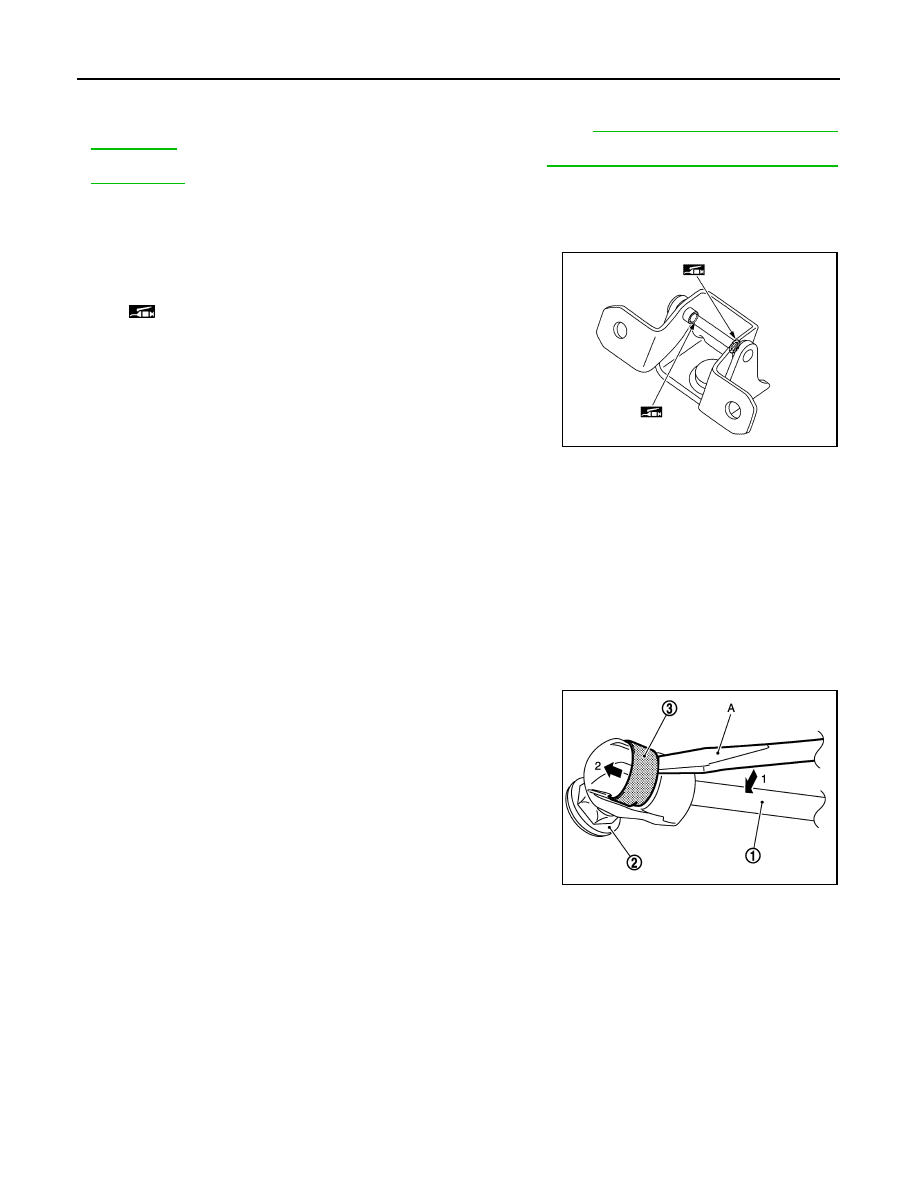

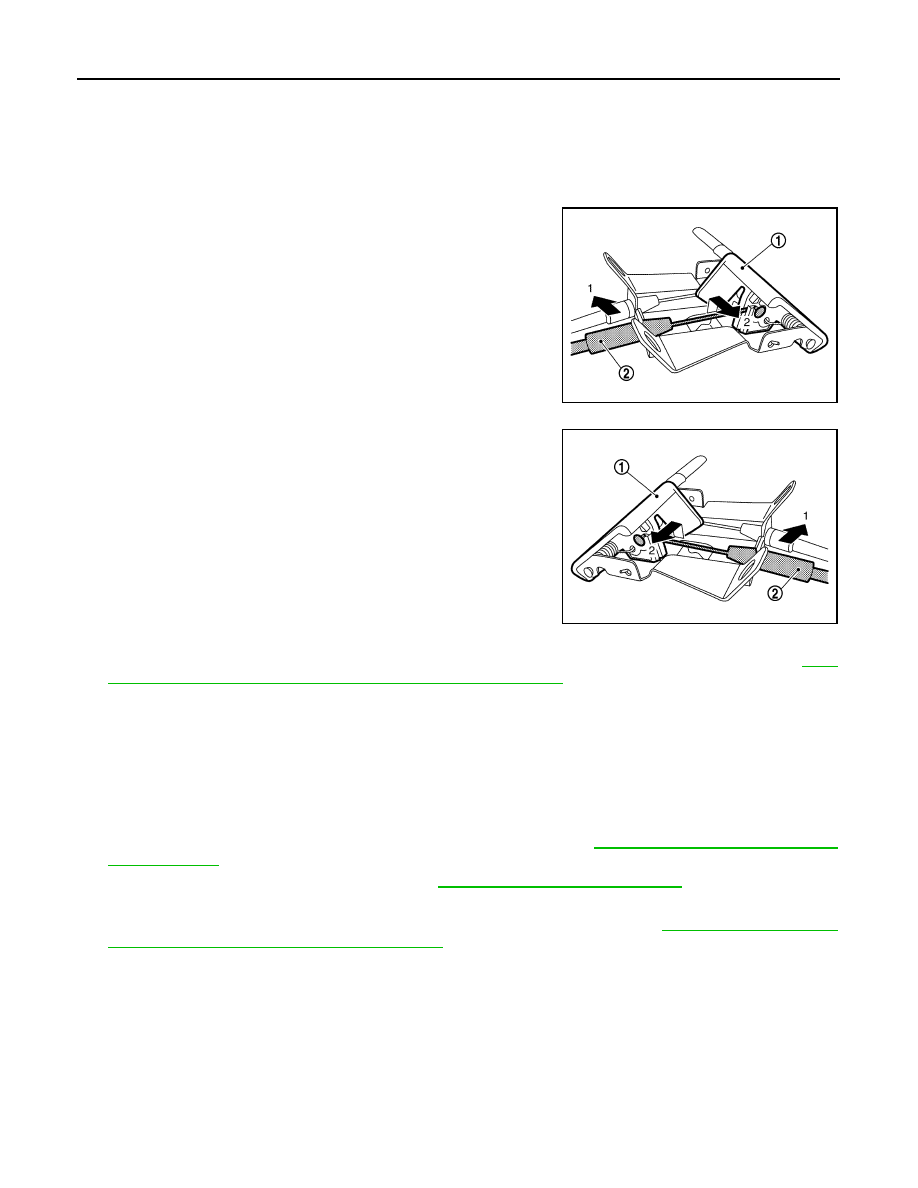

Remove the metal clip (3) located on the connection between
the back door stay (1) and the stud ball (2) by using a remover
tool (A) according to the numerical order 1

2 indicated by

arrows as shown in the figure.

b.

Disengage back door stay from stud ball.

3.

Remove back door stay mounting bolts of back door side, and then remove back door stay.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• After installation, check back door open/close, lock/unlock operation.

BACK DOOR STAY : Disposal

INFOID:0000000010678814

CAUTION:

When performing disposal operation, wear the protective glasses and protective gloves.

: Body grease

JMKIB0628ZZ

JMKIA2255ZZ

BACK DOOR

DLK-809

< REMOVAL AND INSTALLATION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Fix back door stay (1) using a vise (C)

CAUTION:

When cutting a hole on back door stay, always cover a
hacksaw (A) using a shop cloth (B) to avoid scattering
metal fragments or oil.

2.

Slowly cut a hole and drain the gas in the order of 1

2 as

shown in the figure using a hacksaw at 2 positions of (1) and (2).

BACK DOOR WEATHER-STRIP

BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000010678815

REMOVAL

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

Never pull strongly on weather-strip.

INSTALLATION

1.

Working from the upper section, align weather-strip center mark with vehicle center position mark and
install weather-strip onto the vehicle.

2.

For the lower section, align the weather-strip seam with center of back door striker.

3.

Pull weather-strip gently to ensure that there is no loose section.

CAUTION:

Securely fit each corner.

JMKIA3336ZZ

A

: 20 mm (0.787 in)

B

: Cat at the groove

JMKIA3609ZZ

DLK-810

< REMOVAL AND INSTALLATION >

[TYPE 5]

HOOD LOCK

HOOD LOCK

Exploded View

INFOID:0000000010678816

LHD models

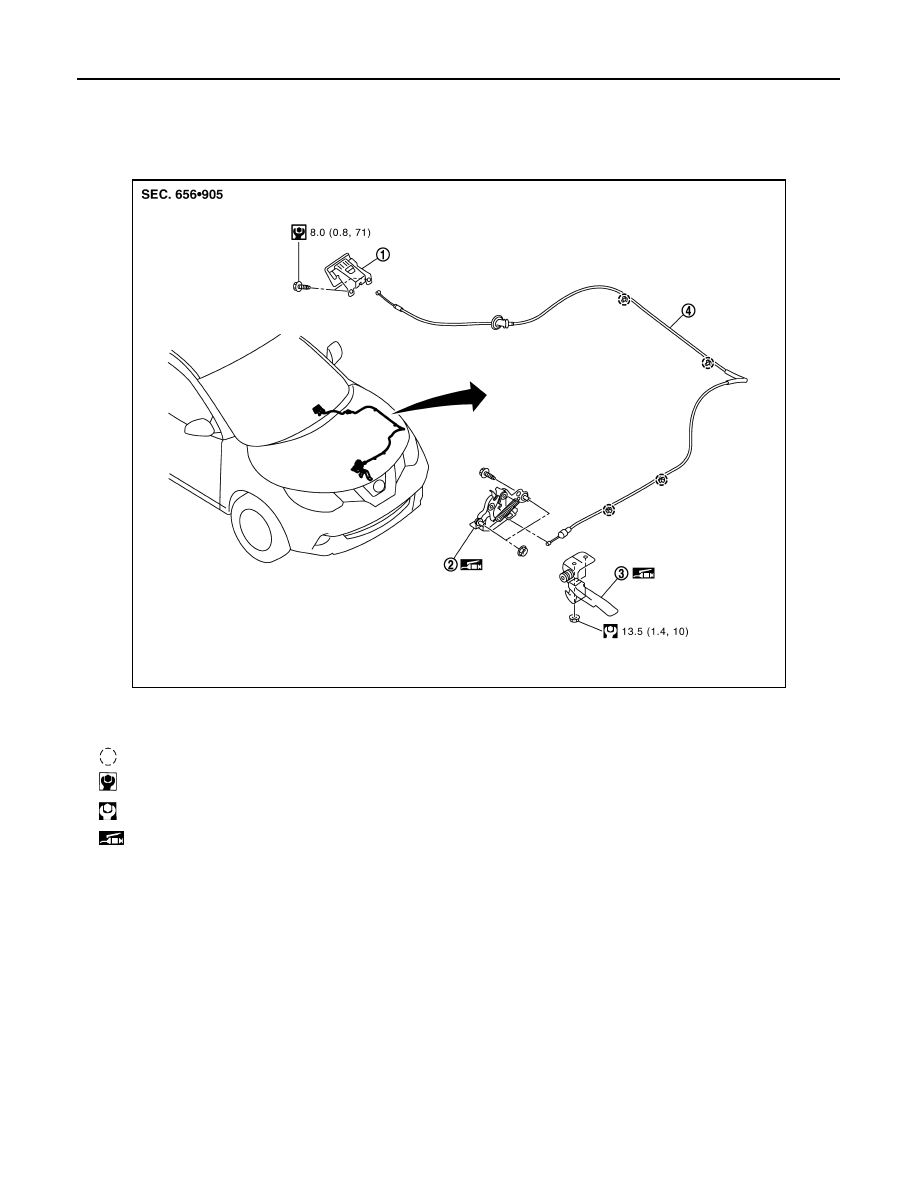

JMKIB3309GB

1.

Hood lock control handle

2.

Hood lock assembly

3.

Hood safety hook

4.

Hood lock control cable

: Clip

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

HOOD LOCK

DLK-811

< REMOVAL AND INSTALLATION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

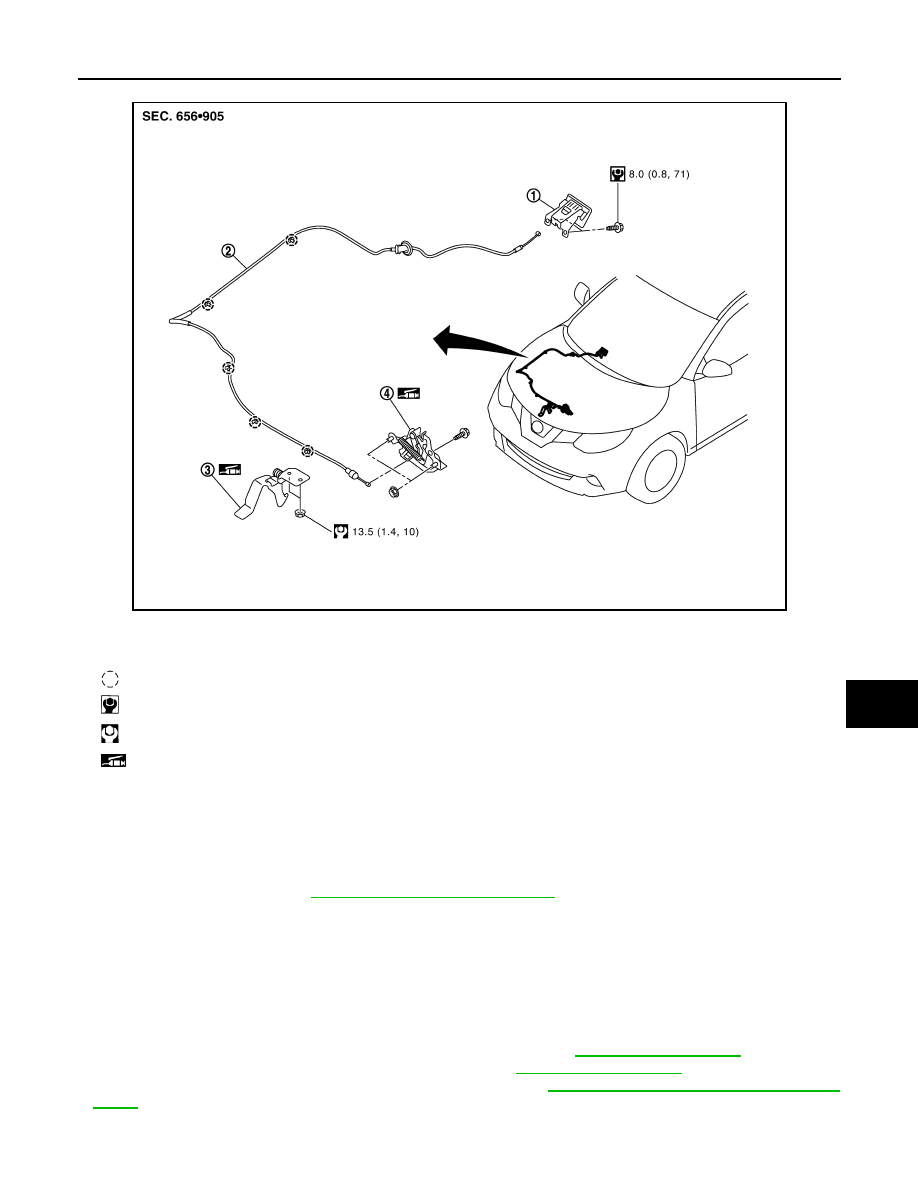

RHD models

HOOD LOCK

HOOD LOCK : Removal and Installation

INFOID:0000000010678817

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove hood lock assembly mounting bolt and nuts, and then remove hood lock assembly from radiator
core support upper.

3.

Disconnect hood lock control cable assembly from hood lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.
• After installation, perform hood lock control inspection. Refer to

DLK-813, "Inspection"

.

• Check hood lock assembly for poor lubrication. Refer to

DLK-813, "Inspection"

.

• After installation, perform hood fitting adjustment. Refer to

DLK-784, "HOOD ASSEMBLY : Adjust-

ment"

.

HOOD LOCK CONTROL HANDLE

JMKIB3308GB

1.

Hood lock control handle

2.

Hood lock control cable

3.

Hood safety hook

4.

Hood lock assembly

: Clip

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

DLK-812

< REMOVAL AND INSTALLATION >

[TYPE 5]

HOOD LOCK

HOOD LOCK CONTROL HANDLE : Removal and Installation

INFOID:0000000010678818

REMOVAL

1.

Remove hood lock control handle mounting bolts, and then remove hood lock control handle.

2.

Disconnect hood lock control cable (2) from hood opener lever (1) according to the numerical order 1

2

indicated by arrows as shown in the figure.
• LHD models

• RHD models

3.

Disconnect fuel opener cable from fuel filler lid opener lever of hood lock control handle. Refer to

DLK-

377, "FUEL FILLER OPENER CABLE : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

HOOD LOCK CONTROL CABLE

HOOD LOCK CONTROL CABLE : Removal and Installation

INFOID:0000000010678819

REMOVAL

1.

Disconnect hood lock control cable from hood lock assembly. Refer to

DLK-811, "HOOD LOCK : Removal

and Installation"

.

2.

Remove fender protector (driver side). Refer to

EXT-33, "Removal and Installation"

.

3.

Remove hood lock control cable fixing clips.

4.

Disconnect hood lock control cable from hood lock control handle. Refer to

DLK-812, "HOOD LOCK

CONTROL HANDLE : Removal and Installation"

.

5.

Remove grommet on the lower dash, and pull the hood lock control cable toward the passenger compart-
ment.

CAUTION:

While pulling, never damage (peeling) the outside of hood lock control cable.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never bend cable too much, keeping the radius 100 mm (3.937 in) or more.

JMKIB0324ZZ

JMKIB0327ZZ

HOOD LOCK

DLK-813

< REMOVAL AND INSTALLATION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark) properly.

• After installation, perform hood fitting adjustment. Refer to

DLK-784, "HOOD ASSEMBLY : Adjust-

ment"

.

• After installation, perform hood lock control inspection. Refer to

DLK-813, "Inspection"

.

HOOD SAFETY HOOK

HOOD SAFETY HOOK : Removal and Installation

INFOID:0000000010678820

REMOVAL

Remove mounting nuts, and then remove hood lock secondary assembly.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, perform hood lock control inspection. Refer to

DLK-813, "Inspection"

.

Inspection

INFOID:0000000010678821

NOTE:
If the hood lock cable is bent or deformed, replace it.
1.

Check that hood opener operating is condition 49 N (5.0 kg, 11.0 lb) or below.

2.

Check that secondary latch is securely engaged with secondary striker from the dead load of the hood
assembly.

3.

Check that primary latch is securely engaged with primary striker when hood assembly is closed [free-fall
from approximately 200 mm (7.874 in) height].

CAUTION:

Never free-fall hood assembly from a height of 300 (11.811 in) mm or more.

4.

While operating hood opener, carefully check that the front end of hood is raised by approximately 20.0
mm (0.787 in). Also check that hood opener returns to the original position.

5.

Check that secondary latch is properly engaged with secondary striker [4.0 mm (0.157 in)].

6.

Check the hood lock lubrication condition. If necessary, apply
body grease to hood lock assembly.

PIIB5801E

: Body grease

JMKIB1164ZZ

DLK-814

< REMOVAL AND INSTALLATION >

[TYPE 5]

FRONT DOOR LOCK

FRONT DOOR LOCK

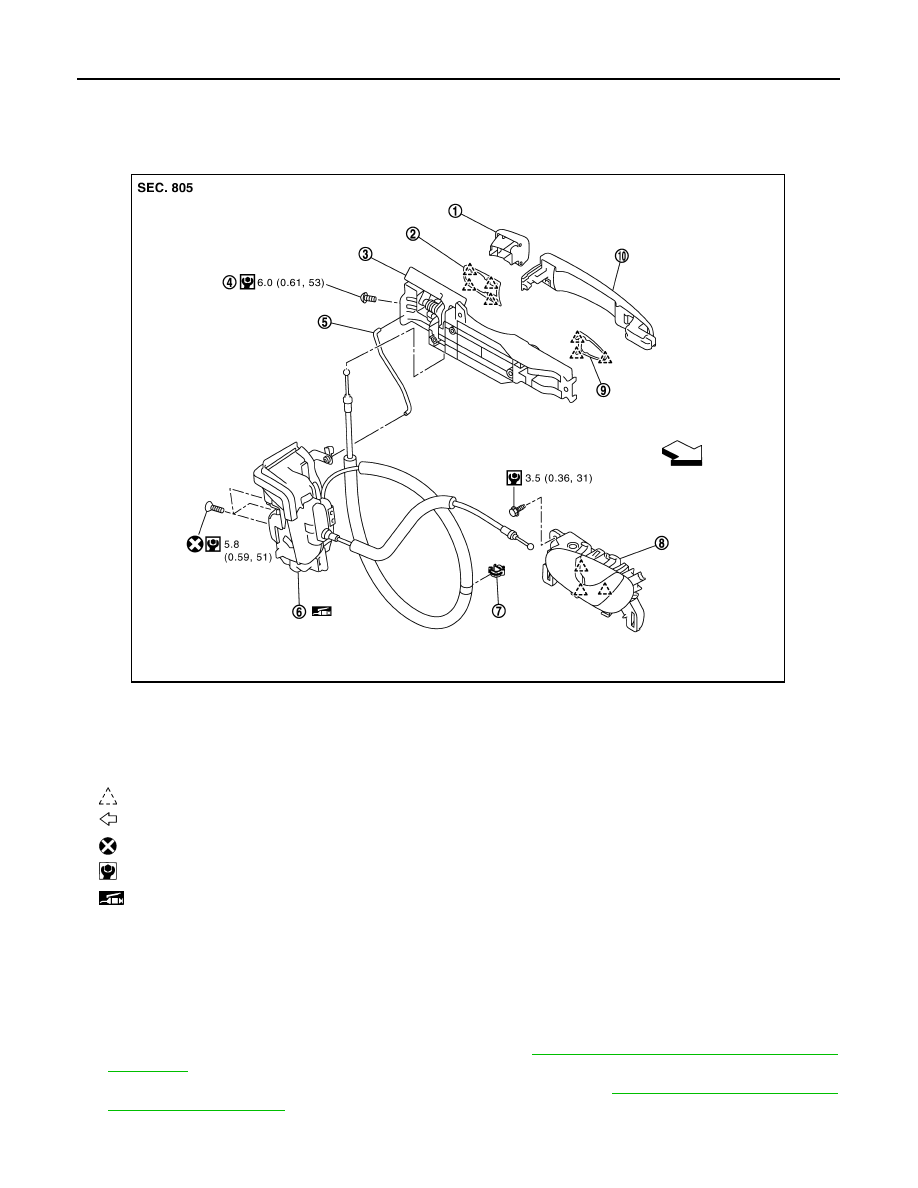

Exploded View

INFOID:0000000010678822

*

1

: Driver side only

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000010678823

REMOVAL

1.

Disconnect inside handle cable from inside handle. Refer to

DLK-815, "INSIDE HANDLE : Removal and

Installation"

.

2.

Disconnect outside handle cable from outside handle bracket. Refer to

DLK-815, "OUTSIDE HANDLE :

Removal and Installation"

.

3.

Disconnect door lock assembly harness connector.

1.

Outside handle escutcheon

2.

Rear gasket

3.

Outside handle bracket

4.

TORX bolt

5.

Key rod*

1

6.

Door lock assembly

7.

cable clip

8.

Inside handle

9.

Front gasket

10. Outside handle grip

: Pawl

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Body grease

JMKIB3253GB

FRONT DOOR LOCK

DLK-815

< REMOVAL AND INSTALLATION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4.

Remove door lock assembly screws, and then remove door lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse door lock assembly screw. Always replace it with a new one when it is removed.
• Check door lock cable is properly engaged with outside handle bracket.
• When installing key rod, rotate key rod holder until a click is felt.
• Check door lock assembly for poor lubrication. Refer to

DLK-815, "DOOR LOCK : Inspection"

• Check door open/close, lock/unlock operation after installation.

DOOR LOCK : Inspection

INFOID:0000000010678824

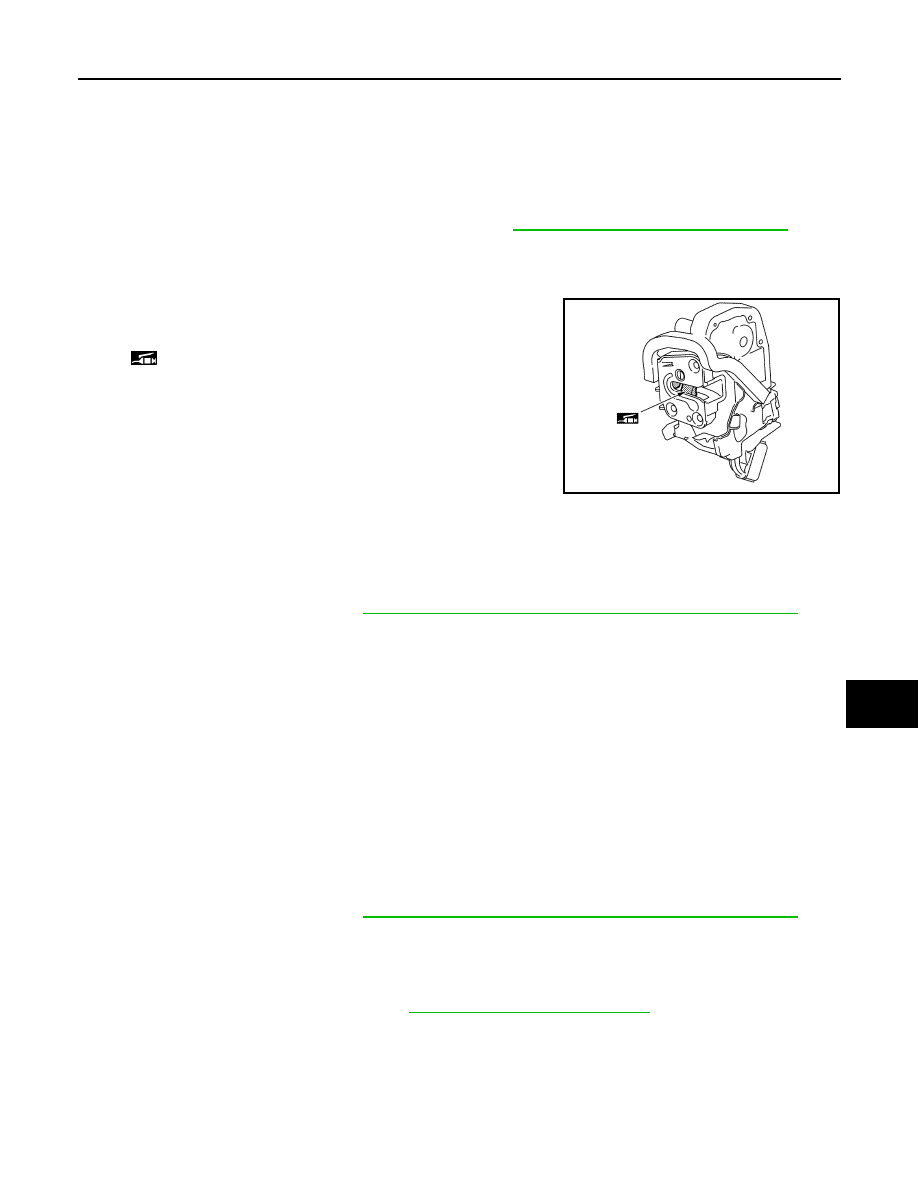

Check door lock assembly for poor lubrication. Apply body grease if
necessary.

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000010678825

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove inside handle mounting bolt.

3.

Disengage inside handle from door panel while sliding inside handle toward vehicle rear, and then sepa-
rate inside handle.

4.

Disconnect inside handle cable, and then remove inside handle.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000010678826

REMOVAL

1.

Fully close the front door glass.

2.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

3.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

Remove front door glass rear run. Refer to

GW-23, "Removal and Installation"

.

5.

Disengage outside handle cable from cable clip.

6.

Disengage rod holder, and then disconnect key rod from door lock assembly. (Driver side only)

7.

Disconnect outside handle harness connector.

: Body grease

JMKIA8534ZZ

DLK-816

< REMOVAL AND INSTALLATION >

[TYPE 5]

FRONT DOOR LOCK

8.

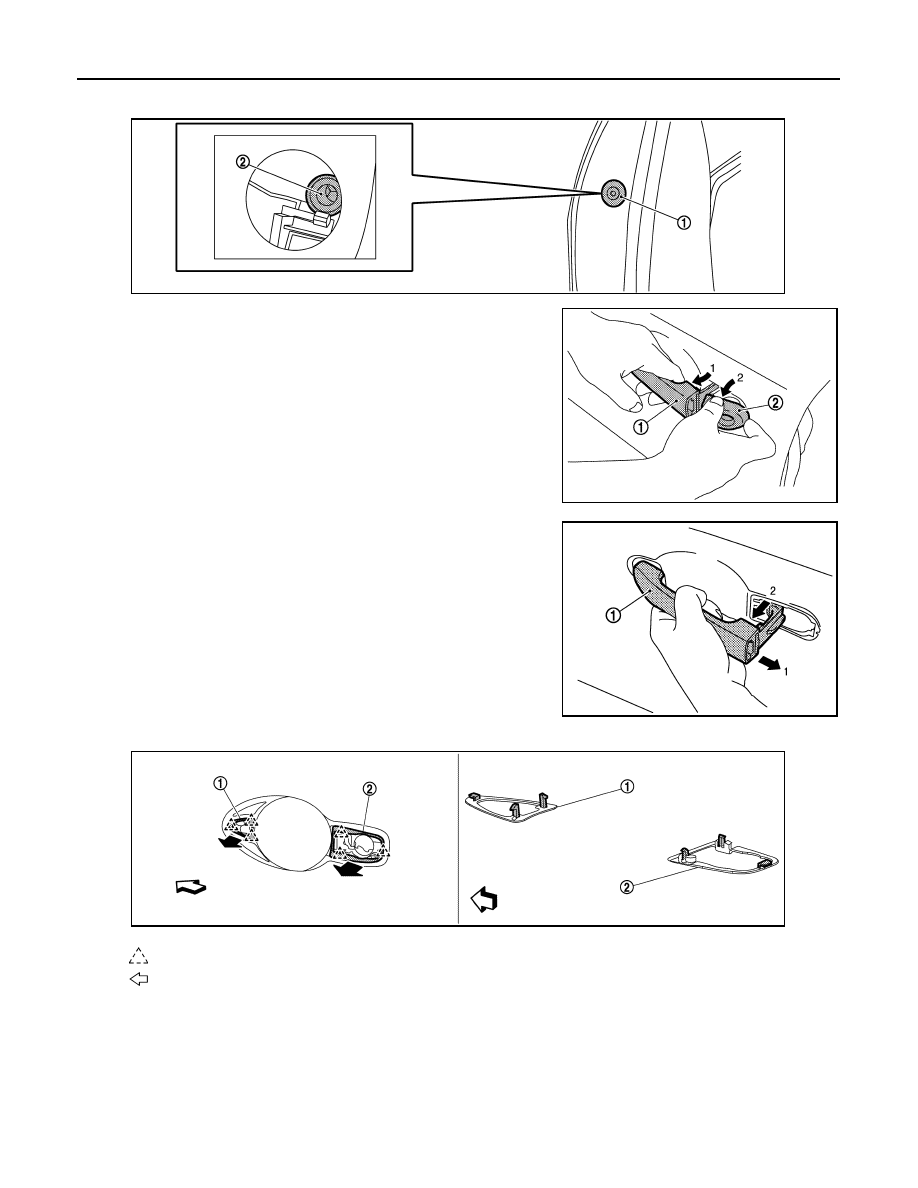

Remove grommet (1) of door side. Loosen, through grommet hole, TORX bolt (2) that fixes outside handle
escutcheon.

9.

While pulling outside handle (1) according to the numerical order
1

2 indicated by arrows as shown in the figure, remove outside

handle escutcheon (2).

10. While pulling outside handle (1) according to the numerical order

1

2 indicated by arrows as shown in the figure, slide toward

rear of vehicle to remove outside handle.

11. Remove front gasket (1) and rear gasket (2).

JMKIB2462ZZ

JMKIA8374ZZ

JMKIA0524ZZ

: Pawl

: Vehicle front

JMKIB1627ZZ















Content      ..     48      49      50      51     ..
