Qashqai J11. Door & Lock - part 41





COMPONENT PARTS

DLK-657

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Component Description

INFOID:0000000010672301

Item

Function

Door lock and unlock switch

• Transmits door lock/unlock operation to BCM.
• Integrated in the power window main switch and center console assembly.

Combination meter

• Performs operation method guide and warning with buzzer.
• Transmits vehicle speed signal to CAN communication line.

Push-button ignition switch

• BCM transmits the change in the power supply position with the push-button ignition switch

to IPDM E/R via CAN communication line. IPDM E/R transmits the power supply position
status via CAN communication line to BCM.

• Immobilizer antenna amp checks Intelligent Key transponder.

BCM

BCM detects the vehicle status according to signals from each door switch and each outside/
inside key antenna. BCM transmits drive signal to door lock actuator when BCM receives op-
eration signal from remote keyless entry receiver and each switch.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed in-

stallation location.

Door lock actuator

• Inputs locks/unlocks signal from BCM and locks/unlocks each door.
• Integrated in each door lock assembly.

Door request switch

• Transmits door lock/unlock operation to BCM.
• Integrated in the outside handle (driver side, passenger side and back door).

Door switch

Detects door open/close condition.

Inside key antenna

• Detects whether Intelligent Key is inside the vehicle.
• Installed in the instrument center, consol and luggage room.

Intelligent Key warning buzzer

Warns for an inappropriate operation.

Outside key antenna

• Detects whether Intelligent Key is outside the vehicle.
• Integrated in the outside handle.

Intelligent Key

The following functions are available when having and carrying electronic ID.
• Door lock/unlock
• Engine start
• Remote control entry function is available when operating on button.

Unlock sensor

Built-in in driver side door lock assembly
• Detects door lock condition of driver door

DLK-658

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (POWER DOOR LOCK SYSTEM)

SYSTEM (POWER DOOR LOCK SYSTEM)

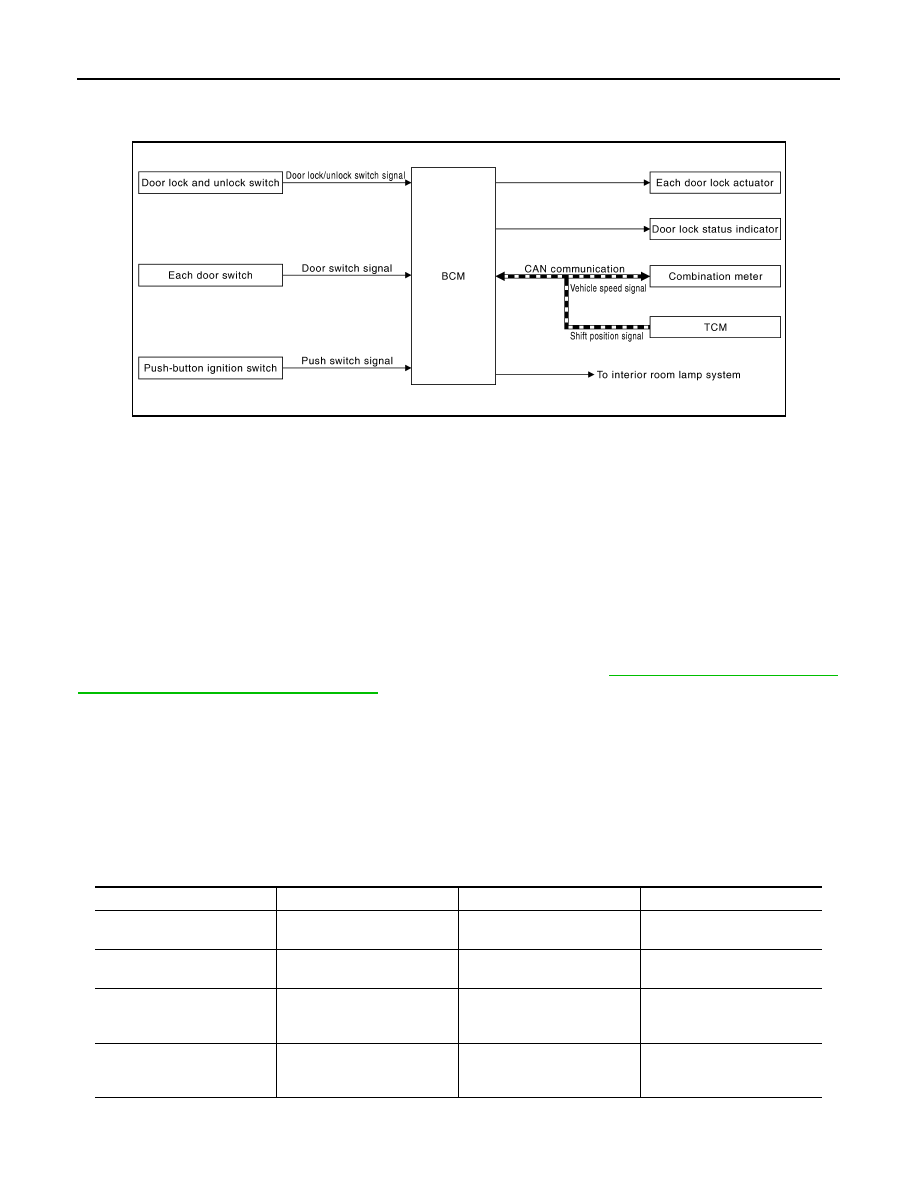

System Diagram

INFOID:0000000010672302

System Description

INFOID:0000000010672303

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is built into power window main switch.
• The door lock and unlock switch (passenger side) is built into front power window switch (passenger side).
• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock /unlock state, refer to

INL-8, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

AIR BAG INTERLOCK UNLOCK FUNCTION

When ignition switch is ON and BCM receives shock status signal, it operates automatically to unlock all
doors. Air bag diagnosis sensor unit sends the shock status signal to BCM via CAN communication.

IGNITION POSITION WARNING FUNCTION

When ignition switch position is ON or ACC and any door is open, all doors cannot locked when door lock and
unlock switch is operated in lock direction.

DOOR LOCK STATUS INDICATOR OPERATION

The door lock status indicator indicates door lock status under the following condition.

JMKIB3634GB

Indicator operation

Ignition position

Door status

Lock operation

ON (30 minutes timer)

OFF

All doors are closed and door
is locked

Door lock and unlock switch

ON

ON

All doors are closed and door
is locked

Door lock and unlock switch

ON (1 minute timer)

OFF

All doors are closed and door
is locked

Intelligent Key, door request

switch or auto door lock func-

tion

ON

ON

All doors are closed and door
is locked

Intelligent Key, door request

switch or auto door lock func-

tion

SYSTEM (POWER DOOR LOCK SYSTEM)

DLK-659

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (LOCK OPERATION)

The interlock door lock function is the function that locks all doors linked with the vehicle speed or shift posi-
tion. It has 2 types as per the following items.

Vehicle Speed Sensing Auto Door Lock

All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more
BCM outputs the lock signal to all door lock actuators when it detects all doors are closed and the vehicle
speed received from the combination meter via CAN communication becomes 24 km/h (15 MPH) or more.

P Range Interlock Door Lock

All doors are locked when shifting the selector lever from the P position to any position other than P.
BCM outputs the lock signal to all door lock actuators when it detects the shift position signal received from the
TCM via CAN communication is shifted from the P position to any position other than P.

Setting Change of Automatic Door Lock/Unlock Function

The lock operation setting of the automatic door lock/unlock function can be changed.

 With CONSULT

Automatic door lock/unlock function operation mode can be changed using CONSULT.
Refer to

DLK-675, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 5)"

.

 Without CONSULT

The automatic door lock/unlock function (lock operation) ON/OFF can be switched by performing the following
operation.

1.

Close all doors (door switch OFF)

2.

Ignition switch: OFF

ON

3.

Press and hold the door lock and unlock switch for 5 seconds or more in the lock direction within 20 sec-
onds after turning the ignition switch ON.

4.

The switching complete when the hazard lamp blinks.

AUTOMATIC DOOR LOCK/UNLOCK FUNCTION (UNLOCK OPERATION)

The automatic door lock/unlock function is the function that unlocks all doors linked with the key position or
shift position. It has 2 types as per the following items.

IGN OFF Interlock Door Unlock

All doors are unlocked when the ignition position is changed from ON to OFF.
BCM outputs the unlock signal to all door lock actuators when it detects that the ignition position is changed
from ignition switch ON to OFF.

P Range Interlock Door Unlock

All doors are unlocked when shifting the selector lever from any position other than the P to P position.
BCM outputs the unlock signal to all door lock actuators when it detects the shift position signal received from
TCM via CAN communication is shifted from any position other than the P to P position.

Setting Change of Automatic Door Lock/Unlock Function

The unlock operation setting of the automatic door lock/unlock function can be changed.

 With CONSULT

Automatic door lock/unlock function operation mode can be changed using CONSULT.

ON

 OFF

(All doors are closed

 any

door is open) or (All doors are
locked

 any door is un-

locked)

ON (timer is running)

 ON

(timer is stop)

OFF

 ON

ON

 ON (30 minutes timer)

ON

 OFF

Door lock and unlock switch

ON

 ON (1 minute timer)

ON

 OFF

Intelligent Key, door request

switch or auto door lock func-

tion

Indicator operation

Ignition position

Door status

Lock operation

OFF

 ON

: 2 blinks

ON

 OFF

: 1 blink

DLK-660

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (POWER DOOR LOCK SYSTEM)

Refer to

DLK-675, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 5)"

.

 Without CONSULT

The automatic door lock/unlock function (unlock operation) ON/OFF can be switched by performing the follow-
ing operation.

1.

Close all doors (door switch OFF)

2.

Ignition switch: OFF

ON

3.

Press and hold the door lock and unlock switch for 5 seconds or more in the unlock direction within 20
seconds after turning the power supply position ON.

4.

The switching is complete when the hazard lamp blinks.

OFF

 ON

: 2 blinks

ON

 OFF

: 1 blink

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-661

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

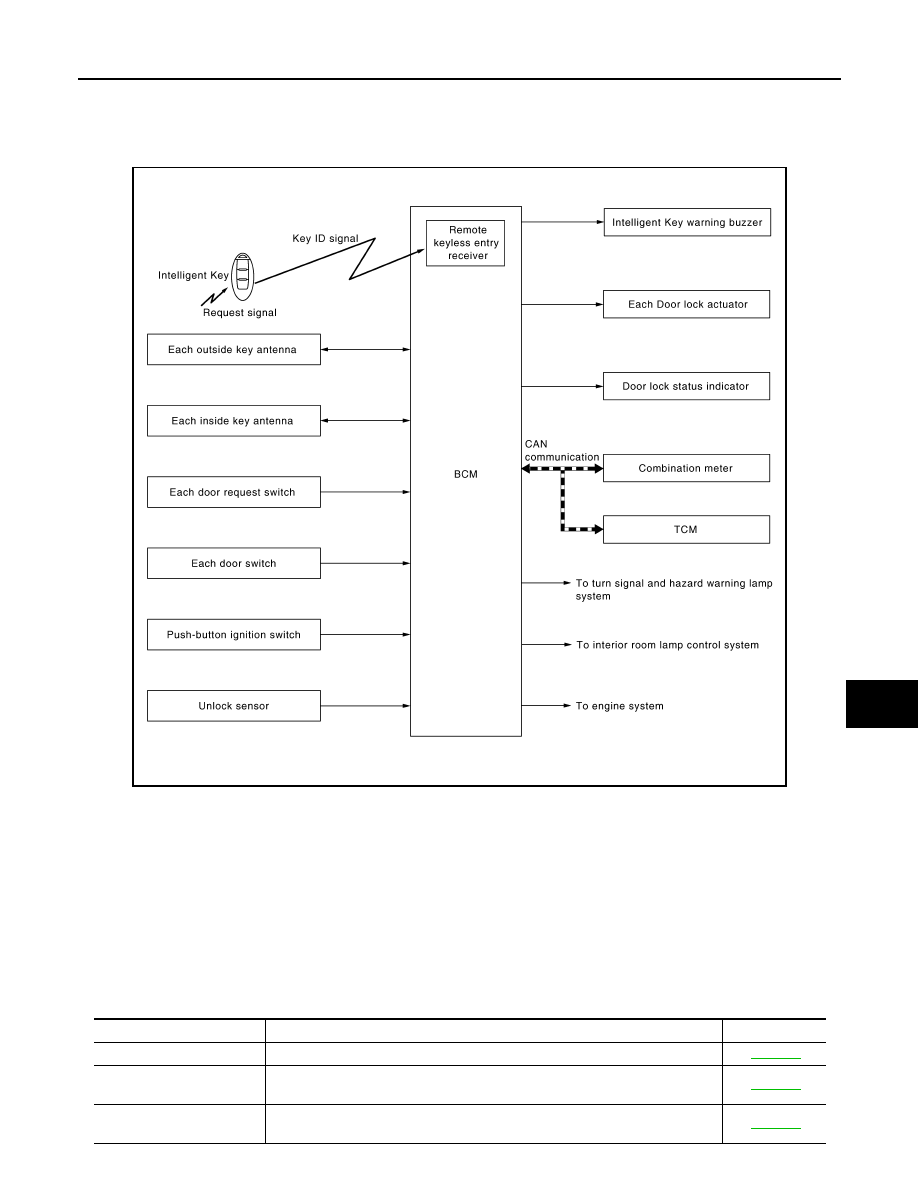

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000010672304

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000010672305

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIB3316GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-662

Back door open

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch.

DLK-665

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key

DLK-666

DLK-662

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (INTELLIGENT KEY SYSTEM)

DOOR LOCK FUNCTION

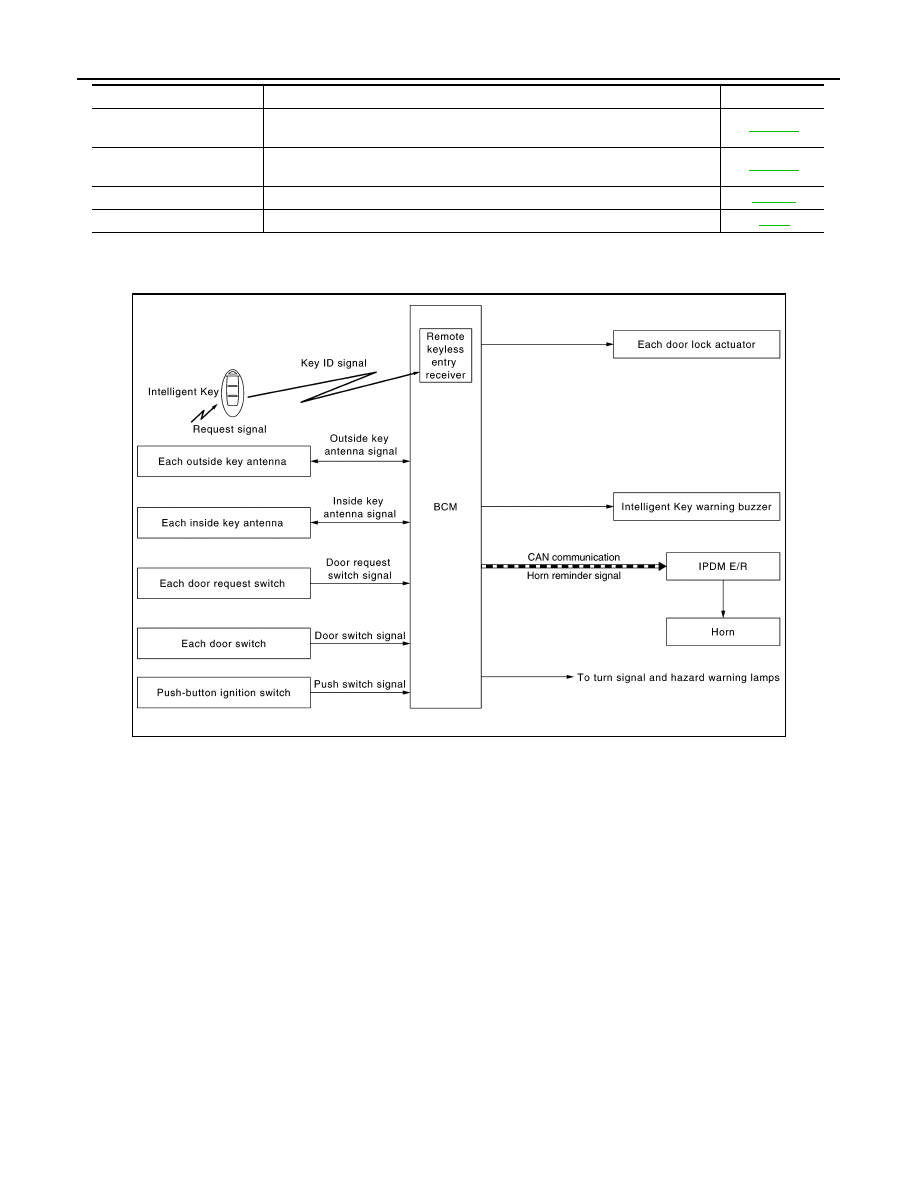

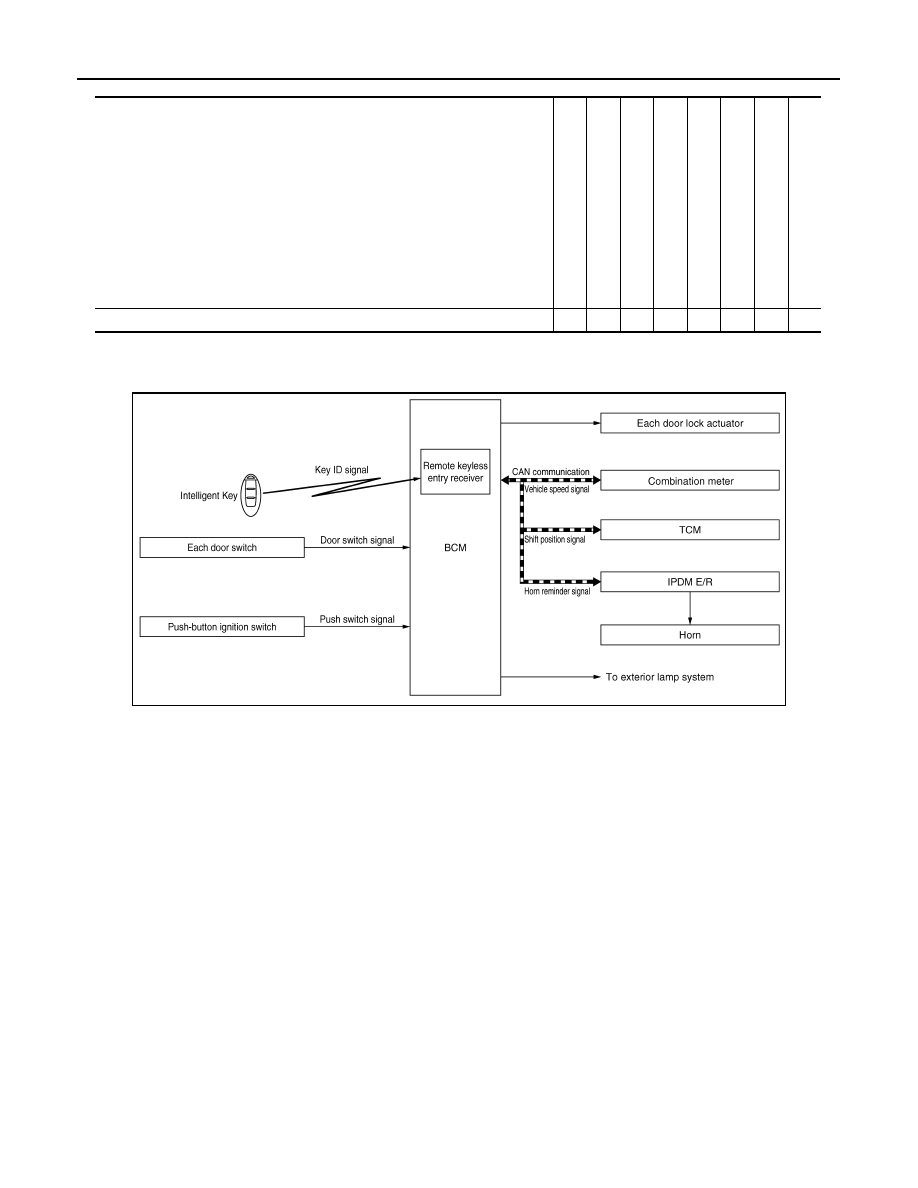

DOOR LOCK FUNCTION : System Diagram

INFOID:0000000010672306

DOOR LOCK FUNCTION : System Description

INFOID:0000000010672307

When pressing the door request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it starts the outside key antenna and inside

key antenna corresponding to the pressed door request switch and transmits the request signal to the Intelli-
gent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM lock/unlock each door lock actuator.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is
operated.

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-668

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-669

Engine start

The engine can be turned on while carrying the Intelligent Key

SEC-15

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

INL-8

Function

Description

Refer

JMKIB3553GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-663

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

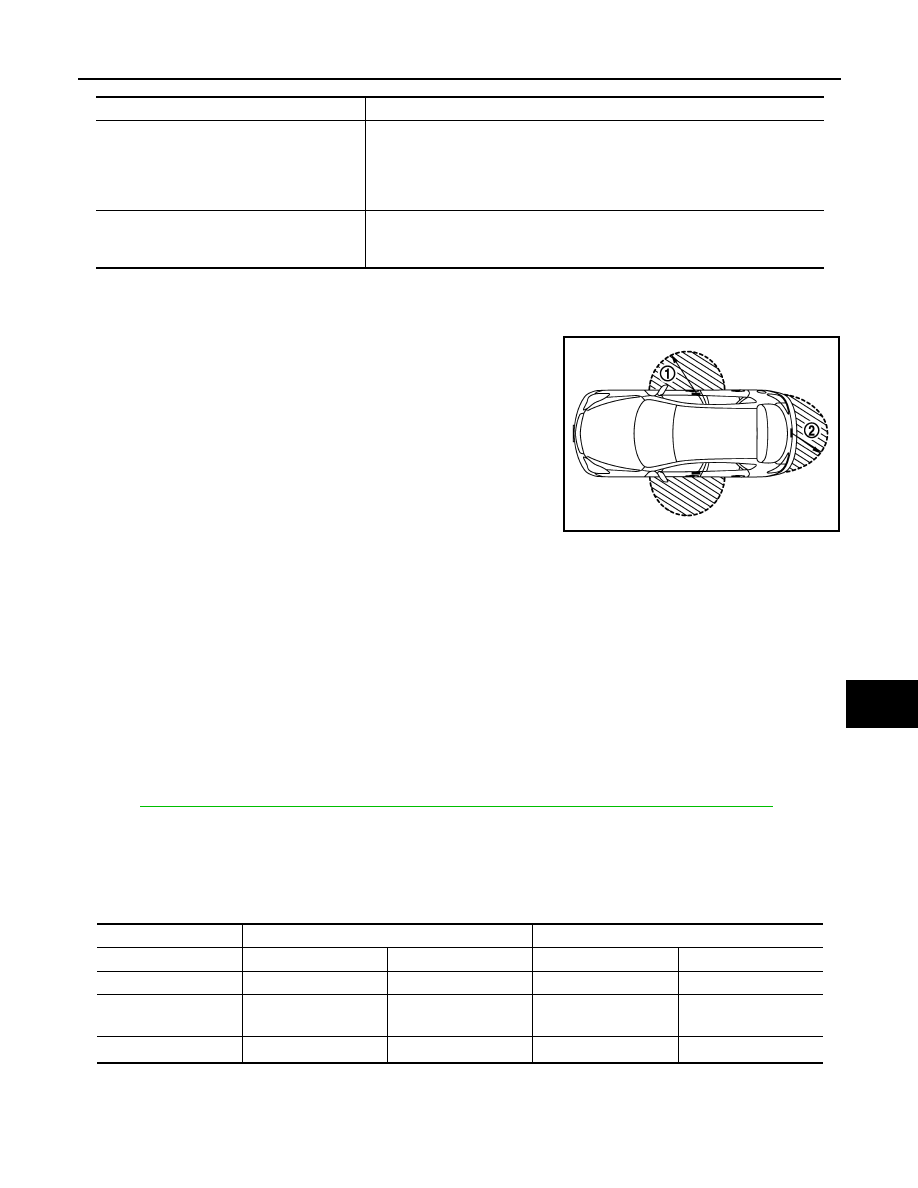

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver, passenger door handles (1) and back door handle (2). How-
ever, this operating range depends on the ambient conditions.

SELECTIVE UNLOCK FUNCTION (DOOR REQUEST SWITCH)

Lock Operation

When lock signal is sent from door request switch, all doors are locked.

Unlock Operation

• When unlock signal from front door request switch (driver side) is transmitted, driver door unlocks. When

front door request switch (driver side) is operated again within 60

*

 seconds, passenger door and rear door

unlock.

• When unlock signal from front door request switch (passenger side) is transmitted, passenger door unlock.

When front door request switch (passenger side) is operated again within 60

*

 seconds, all doors unlocks.

*

: Default value is 60 seconds. This time changes according to auto door lock function operation time.

How to Change Selective Unlock Function Operation Mode

Selective unlock function operation mode can be changed using CONSULT.
Refer to

DLK-676, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 5)"

.

REMINDER FUNCTION (DOOR REQUEST SWITCH)

When doors are locked or unlocked by door request switch, BCM blinks hazard warning lamps as a reminder
and transmits Intelligent Key warning buzzer request signal to Intelligent Key warning buzzer or horn reminder
signal to IPDM E/R via CAN communication. Reminder function does not operate if ignition switch in ON posi-
tion. The reminder function has C mode and S mode.

*1

: Work support mode [ANSWER BACK I-KEY LOCK UNLOCK] setting is [BUZZER]

*2

: Work support mode [ANSWER BACK I-KEY LOCK UNLOCK] setting is [HORN]

How to Change Reminder Function Operation Mode

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Selective unlock function is not operating
• P position warning is not activated
• Intelligent Key is outside the vehicle

• Intelligent Key is within outside key antenna detection area

*

Unlock
(One touch unlock function is setting in OFF)

• Vehicle speed: 0 km/h
• Intelligent Key is outside the vehicle

• Intelligent Key is within outside key antenna detection area

*

JMKIA4534ZZ

Operation

C mode

S mode

Door request switch

Lock

Unlock

Lock

Unlock

Hazard warning lamp

Twice

Once

Twice

Intelligent Key warning

buzzer

*1

Twice

Once

Horn

*2

Once

DLK-664

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (INTELLIGENT KEY SYSTEM)

 With CONSULT

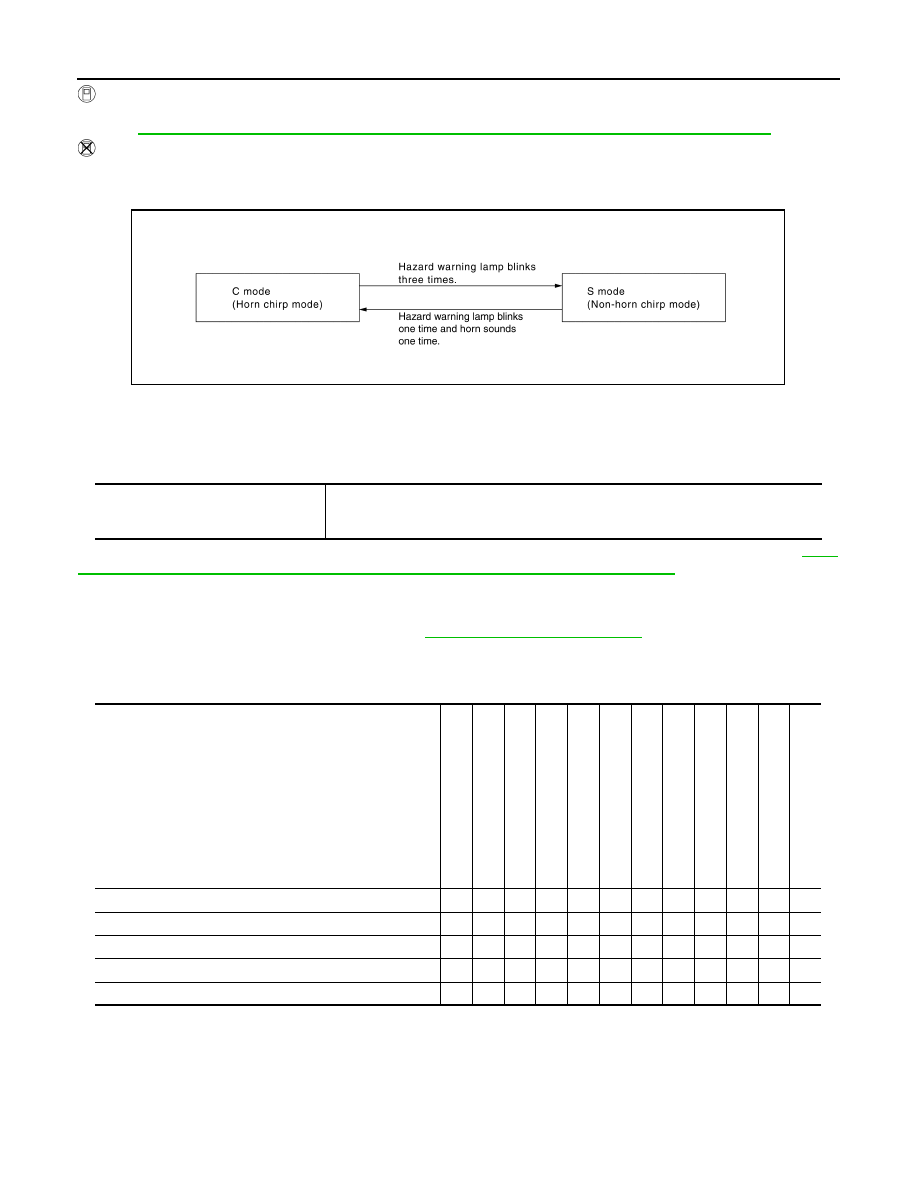

Reminder function operation mode can be changed using CONSULT.
Refer to

DLK-676, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 5)"

.

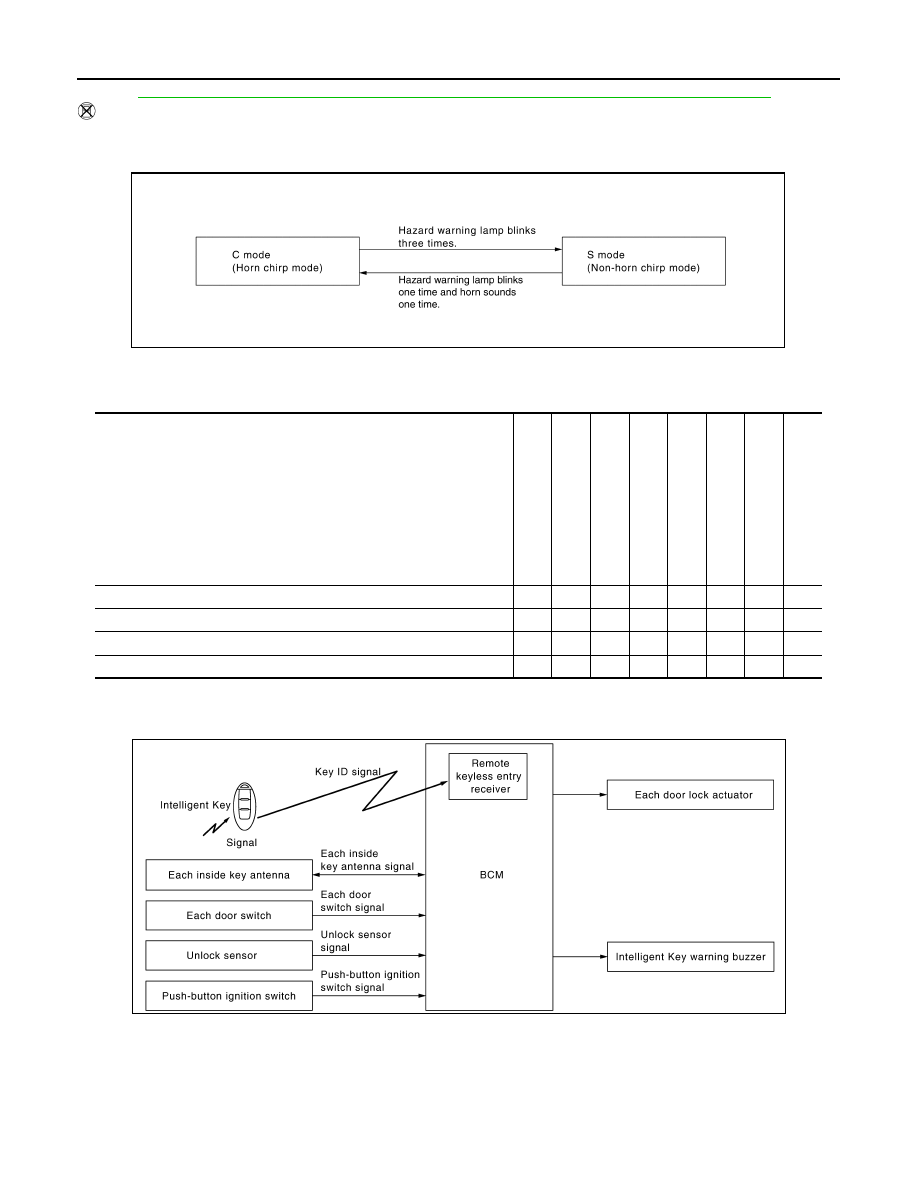

 Without CONSULT

When lock and unlock signal are sent from the Intelligent Key for more than 4 seconds at the same time, the
hazard and buzzer reminder mode is changed and hazard warning lamp blinks and horn sounds as per the fol-
lowing items:

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 60 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

676, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 5)"

.

DOOR LOCK STATUS INDICATOR OPERATION

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-658, "System Description"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

BACK DOOR OPEN FUNCTION

JMKIB1365GB

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

Door lock function

In

te

lli

ge

nt K

e

y

Rem

o

te

ke

yle

s

s e

n

tr

y re

ce

iv

er

Do

or swi

tch

Doo

r re

qu

es

t s

w

itc

h

Do

or lo

ck

 ac

tu

at

o

r

In

si

de

 key an

ten

n

a

O

u

tsi

d

e

 ke

an

ten

n

a

CAN c

o

m

m

uni

ca

tio

n

 sy

st

em

BCM

Hazard warning

lamp

Pu

sh

-bu

tto

n i

g

n

iti

on

 swi

tch

Com

b

ina

tio

n me

ter

Door lock/unlock function

×

×

×

×

×

×

×

×

Reminder function

×

×

×

×

Door lock status indicator operation

×

Selective unlock function

×

×

×

×

×

×

Auto door lock function

×

×

×

×

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-665

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

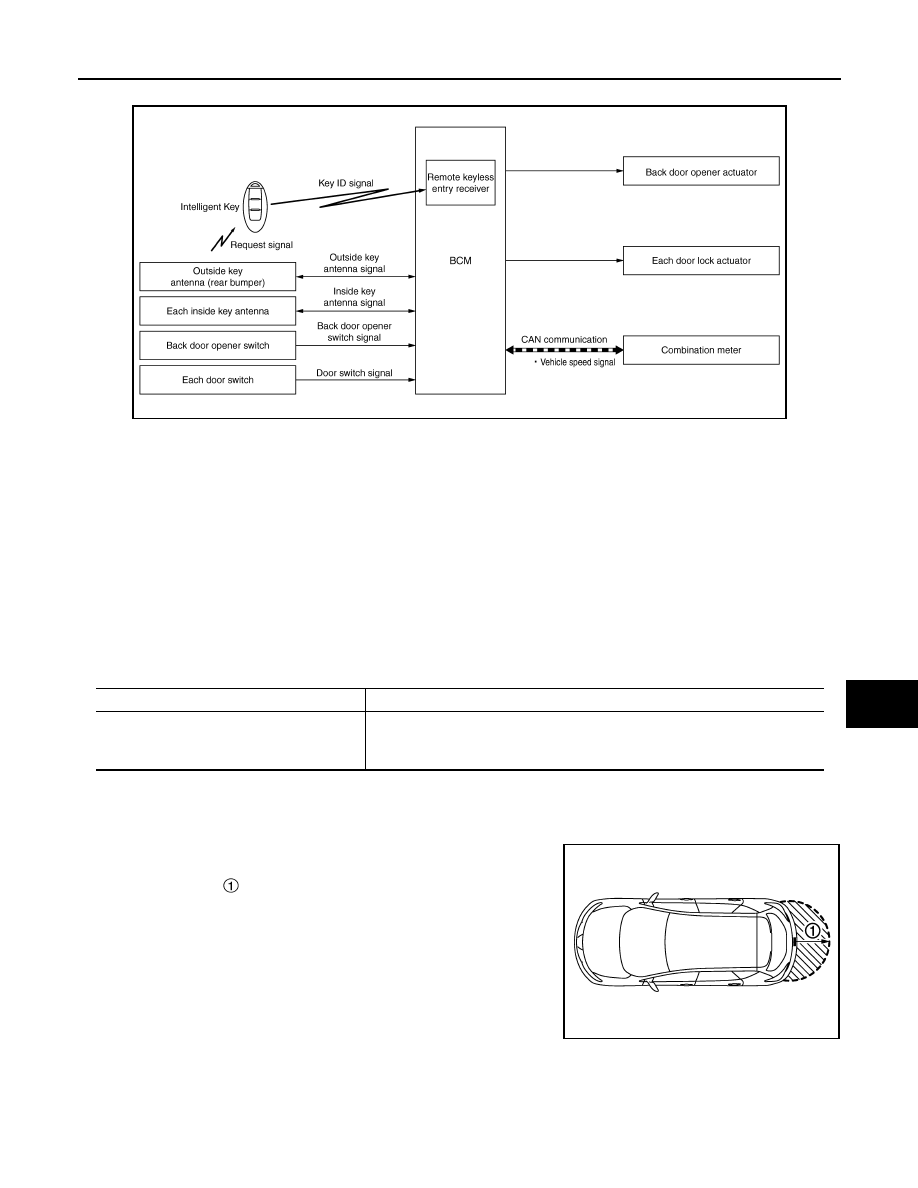

BACK DOOR OPEN FUNCTION : System Diagram

INFOID:0000000010683762

BACK DOOR OPEN FUNCTION : System Description

INFOID:0000000010683763

BACK DOOR OPEN FUNCTION

• When the BCM detects that back door opener switch is pressed, it activates the outside key antenna (rear

bumper) and inside key antenna and transmits the request signal to the Intelligent Key. And then, check that
the Intelligent Key is near the back door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• If the verification result is OK, BCM opens back door.

OPERATION CONDITION

If the following conditions are satisfied, the back door can be opened.

*

: Even with a registered Intelligent Key remaining inside the vehicle, back door can be opened from outside of

the vehicle with a spare Intelligent Key as long as key IDs are different.

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of back door open function
is in the range of approximately 80 cm (31.50 in) surrounding back
door opener switch

. However, this operating range depends on

the ambient conditions.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

JMKIB3635GB

Back door opener switch operation

Operation condition

Open

• All door: locked and closed
• Ignition switch: OFF

• Intelligent Key is within outside key antenna (rear bumper) detection area

*

JMKIA1955ZZ

DLK-666

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (INTELLIGENT KEY SYSTEM)

REMOTE KEYLESS ENTRY FUNCTION

REMOTE KEYLESS ENTRY FUNCTION : System Diagram

INFOID:0000000010672308

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000010672309

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the door lock/unlock button.

OPERATION

Remote keyless entry system controls operation of the following items.
• Door lock/unlock
• Selective unlock function
• Panic alarm
• Reminder function
• Auto door lock
• Door lock status indicator operation

OPERATION AREA

To check that the Intelligent Key works normally, use within 1 m (3 ft) range of each doors, however the opera-
ble range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal is transmitted

from Intelligent Key to BCM via remote keyless entry receiver.

• BCM receives the signal and compares it with the registered key ID to the vehicle.
• BCM lock/unlock each door lock actuator, when key ID matches.

OPERATION CONDITION

Function

In

te

llige

n

t Key

Re

mo

te

 ke

yl

es

s en

try rec

e

iv

e

r

Ba

ck

 do

or op

en

e

r a

c

tu

a

tor

Ba

ck

 do

or swi

tch

In

si

de

 ke

y an

ten

n

a

Ou

ts

ide

 k

e

y

 an

te

nn

a (re

ar

bum

p

e

r)

BC

M

Ba

ck

 do

or op

en

e

r s

w

it

c

h

Back open function (back door opener switch)

×

×

×

×

×

×

×

×

JMKIB3636GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-667

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

If the following condition are satisfied, remote keyless entry operation is performed when the Intelligent Key is
operated.

SELECTIVE UNLOCK FUNCTION (INTELLIGENT KEY)

Lock Operation

When lock signal is sent from Intelligent Key, all doors are locked.

Unlock Operation

When unlock signal from Intelligent Key is transmitted, driver door are unlocked. When unlock signal is trans-
mitted from Intelligent Key within 60

*

 seconds again, passenger door and rear doors are unlocked.

*

: Default value is 60 seconds. This time changes according to auto lock function operation time.

How to Change Selective Unlock Function Operation Mode

Selective unlock function operation mode can be changed using CONSULT.
Refer to

DLK-676, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 5)"

.

PANIC ALARM FUNCTION

When ignition switch is OFF, BCM transmits theft warning horn request signal to IPDM E/R. Then, IPDM E/R
turns on and off horn intermittently.
The horn sounds intermittently.
The alarm automatically turns off.
• After 25 seconds
• When BCM receives any signal from Intelligent Key

AUTO DOOR LOCK FUNCTION

After door is unlocked by Intelligent Key button operation and if 60 seconds or more passes without performing
the following operation, all doors are locked. However, operation check function does not activate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

676, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 5)"

.

DOOR LOCK STATUS INDICATOR OPERATION

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-658, "System Description"

.

REMINDER FUNCTION

Operation Description

When doors are locked or unlocked by Intelligent Key button operation, BCM blinks hazard warning lamps as
a reminder and transmits horn reminder signal to IPDM E/R via CAN communication. The reminder function
has C mode and S mode.

Operation Condition

• Reminder function does not operate if ignition switch in ON position.
• When any door is open, reminder function does not operate according to door lock operation.

How to Change Reminder Function Operation Mode

 With CONSULT

Reminder function operation mode can be changed using CONSULT.

Intelligent Key button opera-

tion

Operation condition

Lock

P position warning is not activated

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

Operation

C mode

S mode

Intelligent Key Operation

Lock

Unlock

Lock

Unlock

Hazard warning lamp blinks

Twice

One

Twice

Horn sound

One

DLK-668

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (INTELLIGENT KEY SYSTEM)

Refer to

DLK-676, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 5)"

.

 Without CONSULT

When lock and unlock signal are sent from the Intelligent Key for more than 4 seconds at the same time, the
hazard and buzzer reminder mode is changed and hazard warning lamp blinks and horn sounds as per the fol-
lowing items:

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

KEY REMINDER FUNCTION

KEY REMINDER FUNCTION : System Diagram

INFOID:0000000010672310

KEY REMINDER FUNCTION : System Description

INFOID:0000000010672311

Key reminder is the function that prevents the key from being left in the vehicle.
Key reminder has the following 3 functions.

JMKIB1365GB

Remote keyless entry functions

In

tel

lig

en

t Ke

y

Do

or swi

tch

Do

or l

o

c

k

 ac

tu

at

o

r

Pu

sh

-bu

tto

n i

g

n

itio

n

 swit

ch

CAN co

mm

un

ic

ati

o

n

 sys

tem

BCM

Co

mb

in

at

io

n

 met

e

r

Hazard warning

lamp

Door lock/unlock function by remote control button

×

×

×

×

×

Reminder function

×

×

×

×

×

×

Selective unlock function

×

×

×

×

×

×

Auto door lock function

×

×

×

JMKIB3319GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-669

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation is perform in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function does not operate when the Intel-
ligent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system some-
times does not operate if the Intelligent Key is in the door pocket for the open door.

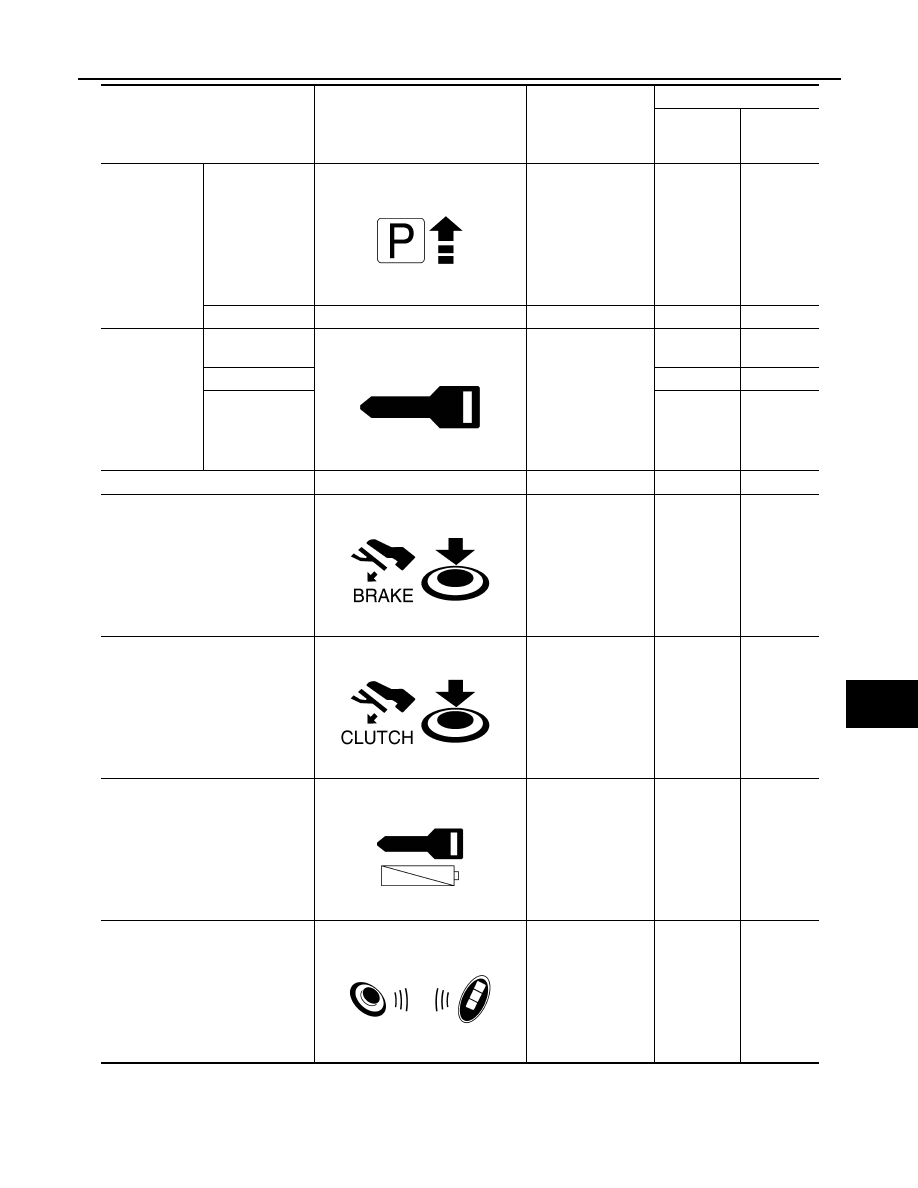

WARNING FUNCTION

WARNING FUNCTION : System Description

INFOID:0000000010672312

OPERATION DESCRIPTION

The warning function are as per the following items and are given to the user as warning information and
warnings using combinations of Intelligent Key warning buzzer, combination meter buzzer and information dis-
play in combination meter.
• Intelligent Key system malfunction
• OFF position warning
• P position warning
• Take away warning
• Door lock operation warning
• Engine start information
• Intelligent Key low battery warning
• Key ID verification information
• Steering lock information
• Key ID warning

OPERATION CONDITION

Operation condition of warning and information is as per the following table.

Key remainder function

Operation condition

Operation

Driver door closed*

When all doors other than driver door are locked, driver door locks within
0.2 seconds after driver door is closed

All doors unlock

Door is open to closed

When all of the following conditions are satisfied
• Locked all doors with door lock and unlock switch
• [Any door: open]

 [all doors: closed]

• Registered Intelligent Key is inside the vehicle

• All doors unlock
• Honk Intelligent Key warn-

ing buzzer

Back door is closed

When all of the following conditions are satisfied
• [Back door: Open]

 [Back door: closed]

• All doors (except for back door): closed
• All doors (except for back door): locked
• Registered Intelligent Key is inside vehicle

• All doors unlock
• Back door can open with

back door opener switch

• Honk Intelligent Key warn-

ing buzzer

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

A malfunction is detected on BCM and key warning lamp turns ON

OFF position warning

When condition A or B is satisfied
• Condition A
- Turn ignition switch from ON to OFF while door is open
• Condition B
- Intelligent Key backside is contacted to push-button ignition switch while

brake pedal is depressed and ignition switch is LOCK or OFF (When the In-
telligent Key battery is discharged)

- Door switch (driver side): ON (Door is open)

P position warning*

For internal

• Shift position: Except P position
• Engine is running to stopped (Ignition switch is ON to OFF)

For external

• P position warning (For internal) operates
• Door switch: ON to OFF (Door is open to close)
• Intelligent Key cannot be detected inside the vehicle

DLK-670

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (INTELLIGENT KEY SYSTEM)

*: M/T models do not apply.

WARNING METHOD

The following table shows the alarm or warning methods with chime.

Take away warning

Door status changes
from open to close

• Ignition switch: Except LOCK or OFF position
• Door switch: ON to OFF (Door is open to close)
• Registered Intelligent Key is not detected inside the vehicle

Door status is open

• Ignition switch: Except OFF position
• Door switch: ON (Door is open)
• Registered Intelligent Key is not detected inside the vehicle during Key ID ver-

ification for 5 seconds

Push button-ignition
switch operation

• Ignition switch: OFF position
• Press push-button ignition switch
• Registered Intelligent Key is not detected inside the vehicle

Door lock operation warning

When door lock operation is requested while door lock operating condition of
door request switch not satisfied

Engine start information

Ignition switch is ON po-
sition

• Ignition switch: ON position
• Shift position: P position*
• Engine is stopped

Ignition switch is except
ON position

• Ignition switch: Except ON position
• Shift position: P position*
• Intelligent Key can be detected inside the vehicle

Ignition switch is ON po-
sition to OFF position

• Ignition switch: ON position to OFF position
• Shift position: P position
NOTE:
Engine start information turns ON for several seconds and then turns OFF, when
ignition switch is turned to the ON position from the OFF position. Engine start
information does not turn ON until opening and closing of driver door is detected
again.

Intelligent Key low battery warning

BCM detects that Intelligent Key is low battery, after ignition switch is turned ON

Key ID verification information

• Ignition switch: LOCK position
• Push-button ignition switch: Pressed
• Registered Intelligent Key is not detected inside the vehicle

Steering lock information

When the steering lock can not be unlocked

Key ID warning

• Push-button ignition switch is pressed
• Registered Intelligent Key is not detected inside the vehicle

Warning/Information functions

Operation procedure

Warning/Information functions

Information display

(Symbol)

Information display

(Message)

Warning chime

Combina-

tion meter

buzzer

Intelligent

Key warn-

ing buzzer

Intelligent Key system malfunction

Key System Error
See Owner

s Manu-

al

OFF position warning

Activate

JMKIB1526ZZ

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-671

< SYSTEM DESCRIPTION >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

P position warn-
ing

For internal

Shift to Park

Activate

For external

Active

Take away
warning

Door is open to
close

No Key Detected

Activate

Activate

Door is open

Push-ignition
switch operation

Activate

Door lock operation warning

Activate

Engine start information (A/T mod-
els)

Engine start information (M/T mod-
els)

Intelligent Key low battery warning

Key Battery Low

Key ID verification information

Warning/Information functions

Information display

(Symbol)

Information display

(Message)

Warning chime

Combina-

tion meter

buzzer

Intelligent

Key warn-

ing buzzer

JMKIB1527ZZ

JMKIB1526ZZ

JMKIB1396ZZ

JMKIB3307ZZ

JMKIB1529ZZ

JMKIB1399ZZ

DLK-672

< SYSTEM DESCRIPTION >

[TYPE 5]

SYSTEM (INTELLIGENT KEY SYSTEM)

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

Steering lock information

Key ID warning

Key ID Incorrect

Warning/Information functions

Information display

(Symbol)

Information display

(Message)

Warning chime

Combina-

tion meter

buzzer

Intelligent

Key warn-

ing buzzer

JMKIB1401ZZ

JMKIB1526ZZ

Function

In

te

lli

ge

nt K

e

y

Pu

sh

-bu

tto

n i

g

n

iti

on

 swi

tch

Do

or swi

tch

Doo

r re

qu

es

t s

w

itc

h

In

si

de

 key an

ten

n

a

O

u

tsi

d

e

 ke

an

ten

n

a

S

tee

ring

 l

o

c

k

 u

n

it

In

te

lli

ge

nt K

e

y

 warn

in

g b

u

z

z

e

r

Co

mbi

n

at

io

n

 m

e

te

r (wa

rni

n

g

 bu

zz

er)

Com

b

ina

tio

n me

ter (inf

orm

a

ti

on

 di

sp

la

y)

CAN c

o

m

m

uni

ca

tio

n

 sy

st

em

BCM

Intelligent Key system malfunction

×

×

×

OFF position warning

×

×

×

×

P position warning

×

×

×

×

×

Take away warning

Door is open or close

×

×

×

×

×

×

×

×

Door is open

×

×

×

×

×

×

Push-button ignition switch
operation

×

×

×

×

×

×

×

Door lock operation warning

×

×

×

×

×

×

×

Engine start information

×

×

×

×

×

×

Intelligent Key low battery warning

×

×

×

×

×

Key ID verification information

×

×

×

×

×

×

Steering lock information

×

×

×

×

Key ID warning

×

×

×

×

×















Content      ..     39      40      41      42     ..
