Qashqai J11. Door & Lock - part 32





PREPARATION

DLK-513

< PREPARATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PREPARATION

PREPARATION

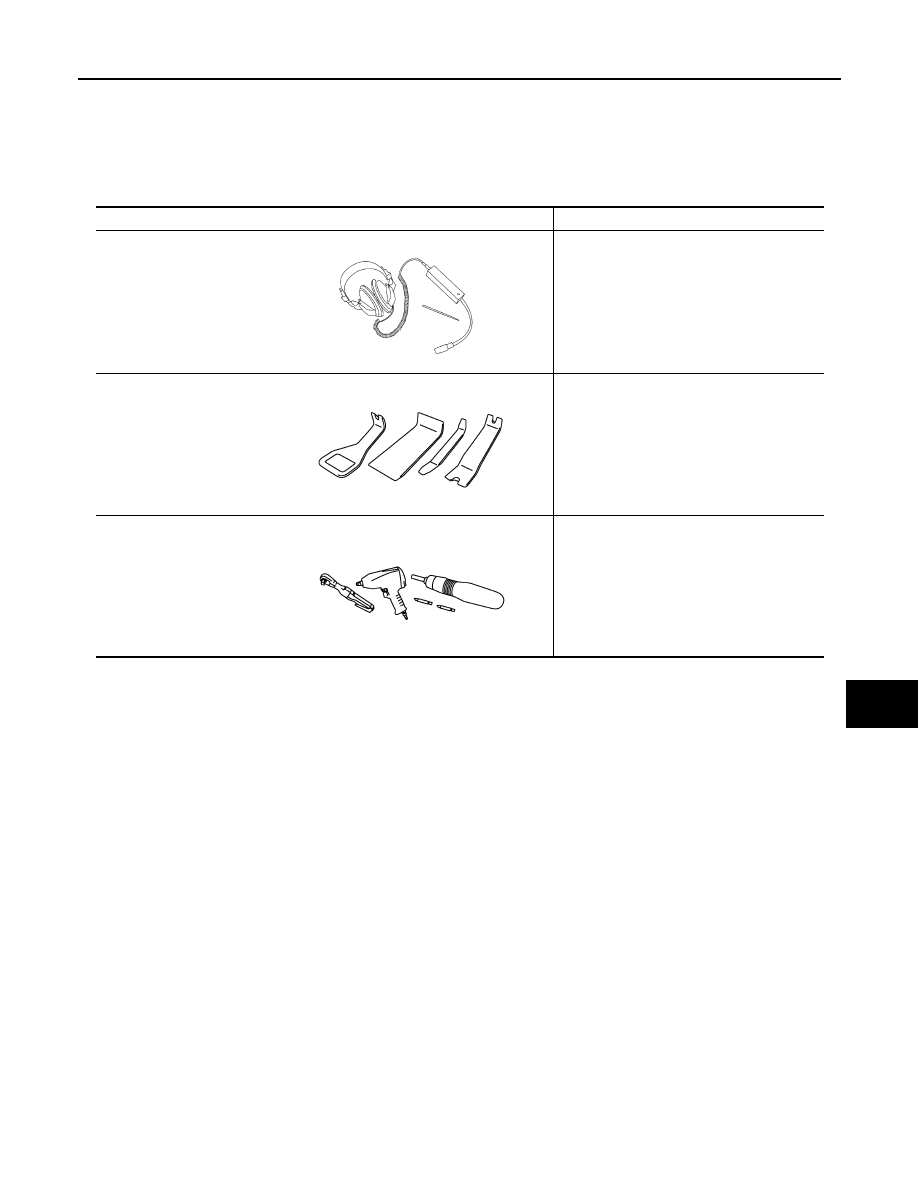

Commercial Service Tools

INFOID:0000000010435118

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clips, pawls, and metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

DLK-514

< SYSTEM DESCRIPTION >

[TYPE 4]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

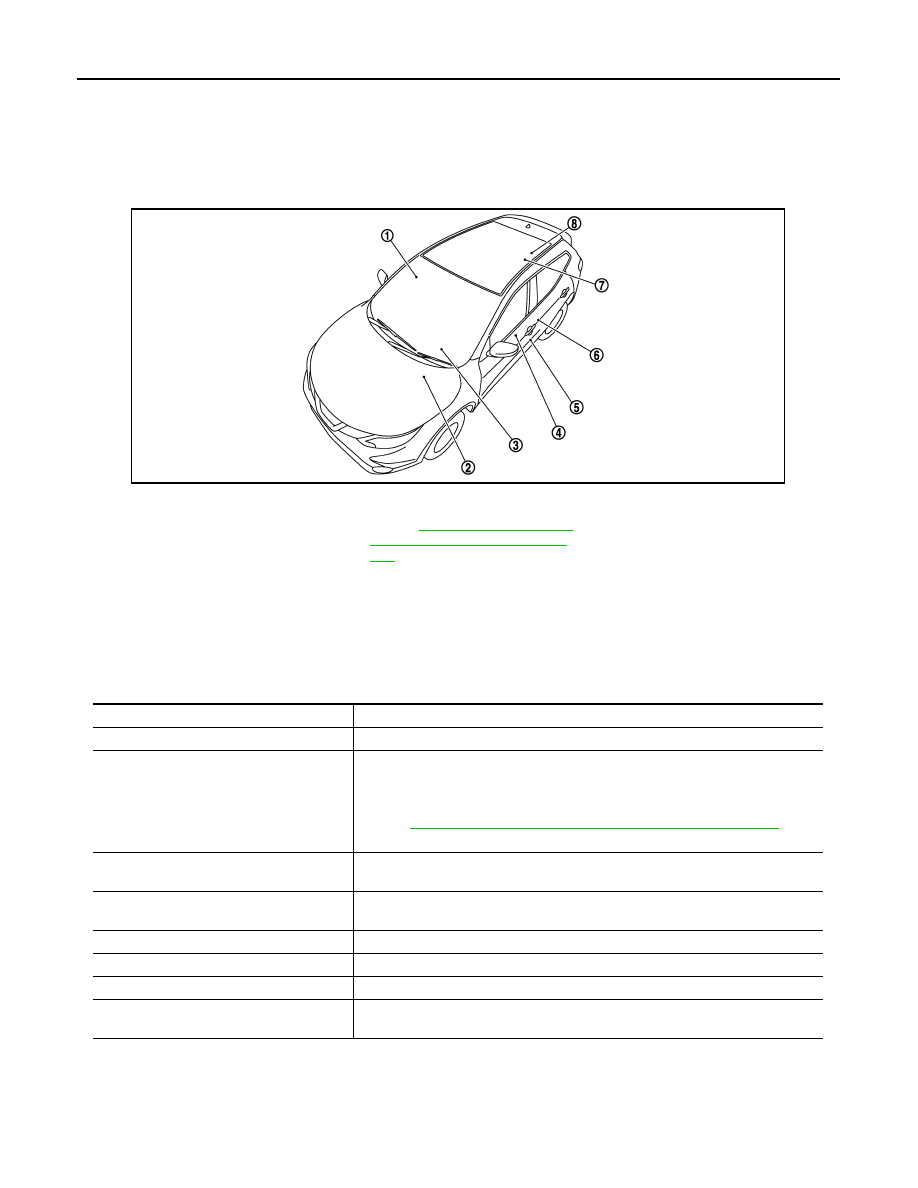

Component Parts Location

INFOID:0000000010435119

Component Description

INFOID:0000000010435120

1.

Power window main switch
(door lock/unlock switch)

2.

BCM
Refer to

BCS-6, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

3.

Combination meter

4.

Front power window switch (passen-
ger side) (door lock and unlock
switch)

5.

Door lock assembly

6.

Door switch

7.

Back door lock assembly

8.

Back door opener switch

JMKIB3273ZZ

Item

Function

Back door lock assembly

Opens the back door with the back door open signal from BCM.

BCM

BCM detects the vehicle status according to signals from each door switch and
each outside/inside key antenna. BCM transmits drive signal to door lock actuator
when BCM receives operation signal from remote keyless entry receiver and each
switch.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

Combination meter

• Performs operation method guide and warning with buzzer.
• Transmits vehicle seep signal to CAN communication line.

Door lock actuator

• Inputs locks/unlocks signal from BCM and locks/unlocks each door.
• Integrated in each door lock assembly.

Door lock and unlock switch

Transmits door lock/unlock operation to BCM.

Door switch

Detects door open/close condition.

Keyfob

Transmits button operation to remote keyless entry receiver.

Key switch

Key switch detects that ignition key is inserted into the ignition key cylinder, and
then transmits the signal to BCM.

POWER DOOR LOCK SYSTEM

DLK-515

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER DOOR LOCK SYSTEM

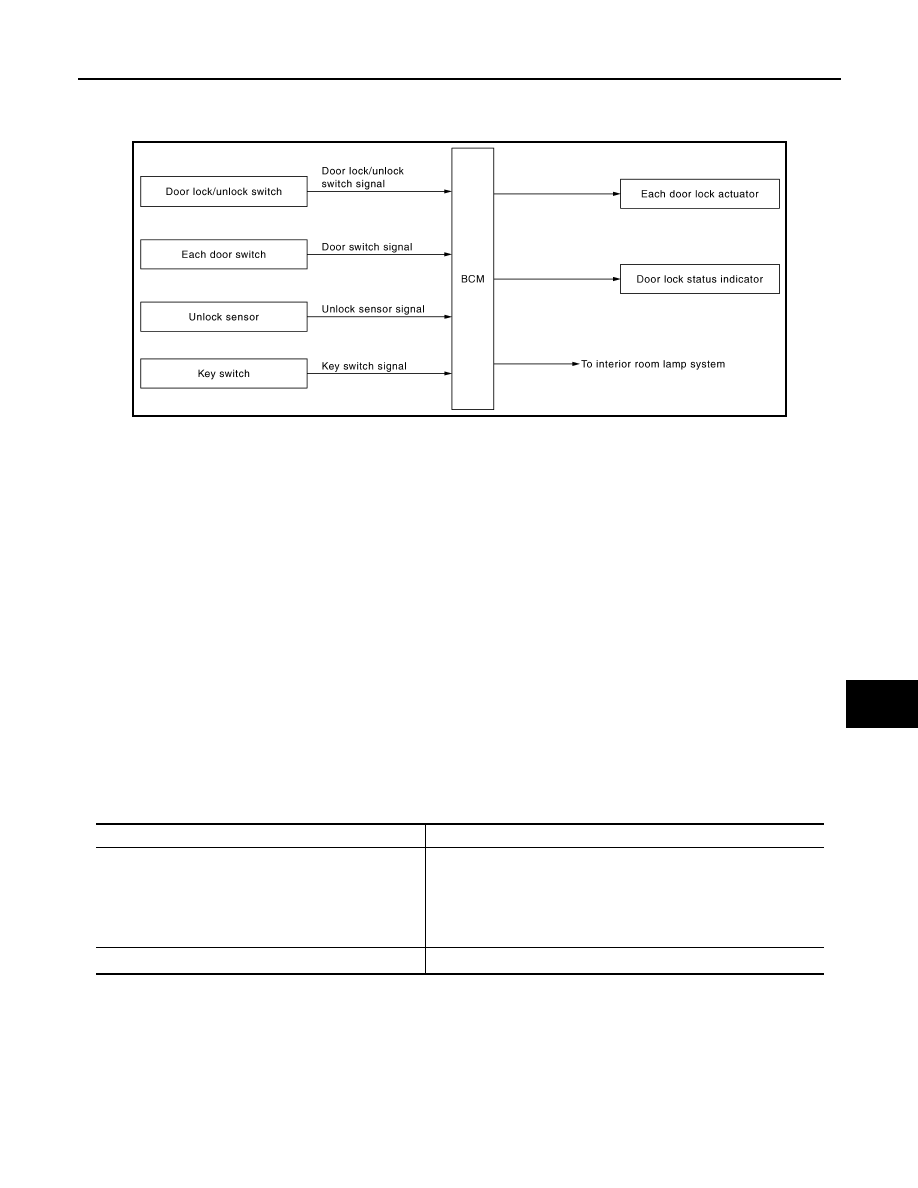

System Diagram

INFOID:0000000010435121

System Description

INFOID:0000000010435122

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is built into power window main switch.
• The door lock and unlock switch (passenger side) is built into front power window switch (passenger side).
• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

Unlock Sensor

• BCM locks all doors or unlocks all doors, when driver door lock knob is operated.
• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position, locks door

lock actuator of all doors.

• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position, unlocks

door lock actuator of all doors.

Operation Condition

If all of the following conditions are satisfied, door lock and unlock operation is performed using the door lock
and unlock switch.

*

1

: While door lock and unlock switch is pressed in the lock direction during this state, combination meter buzzer sounds and warns.

*

2

: When this item becomes OK according to keyfob ID verification, door lock/unlock operation is allowed.

KEY REMINDER FUNCTION

• While ignition key is inserted in ignition key cylinder and driver door is open, door is not locked when door

lock and unlock switch is pressed in the lock direction. This prevents keyfob from being left in the vehicle.

• While door lock and unlock switch is pressed in the lock direction, combination meter buzzer sounds and

warns.

DOOR LOCK STATUS INDICATOR OPERATION

JMKIB2483GB

Door lock and unlock switch operation

Operation condition

LOCK

• Ignition Key is removed from ignition key cylinder and closed driver

side door*

1

• Doors other than drivers door are closed*

1

• Door are not locked by keyfob*

2

• Door lock that is requested is not auto door lock*

2

UNLOCK

Door are not locked by keyfob*

2

DLK-516

< SYSTEM DESCRIPTION >

[TYPE 4]

POWER DOOR LOCK SYSTEM

The door lock status indicator indicates door lock status under the following condition.

UNLOCK LINK FUNCTION

When driver door or passenger door is opened using the override function, all doors are unlocked.
Unlock function operates when driver door or passenger door is open while all of the following conditions are
satisfied.

NOTE:
When anti-hijack function is activated, only the applicable door is unlocked.

Indicator operation

Ignition position

Door status

Lock operation

ON (30 minutes timer)

OFF

All doors are closed and door
is locked

Door lock and unlock switch

ON

ON

All doors are closed and door
is locked

Door lock and unlock switch

ON (1 minute timer)

OFF

All doors are closed and door
is locked

Keyfob or auto door lock func-

tion

ON

ON

All doors are closed and door
is locked

Keyfob or auto door lock func-

tion

ON

 OFF

(All doors are closed

 any

door is open) or (All doors are
locked

 any door is un-

locked)

ON (timer is running)

 ON

(timer is stop)

OFF

 ON

ON

 ON (30 minutes timer)

ON

 OFF

Door lock and unlock switch

ON

 ON (1 minute timer)

ON

 OFF

Keyfob or auto door lock func-

tion

Operation condition

• Doors are locked by door lock/unlock switch or by automatic lock/unlock function
• Driver or passenger door switch is switched from OFF to ON
• Anti-hijack function is not activated
• Vehicle speed is 5 km/h (3 MPH) or less

REMOTE KEYLESS ENTRY SYSTEM

DLK-517

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY SYSTEM

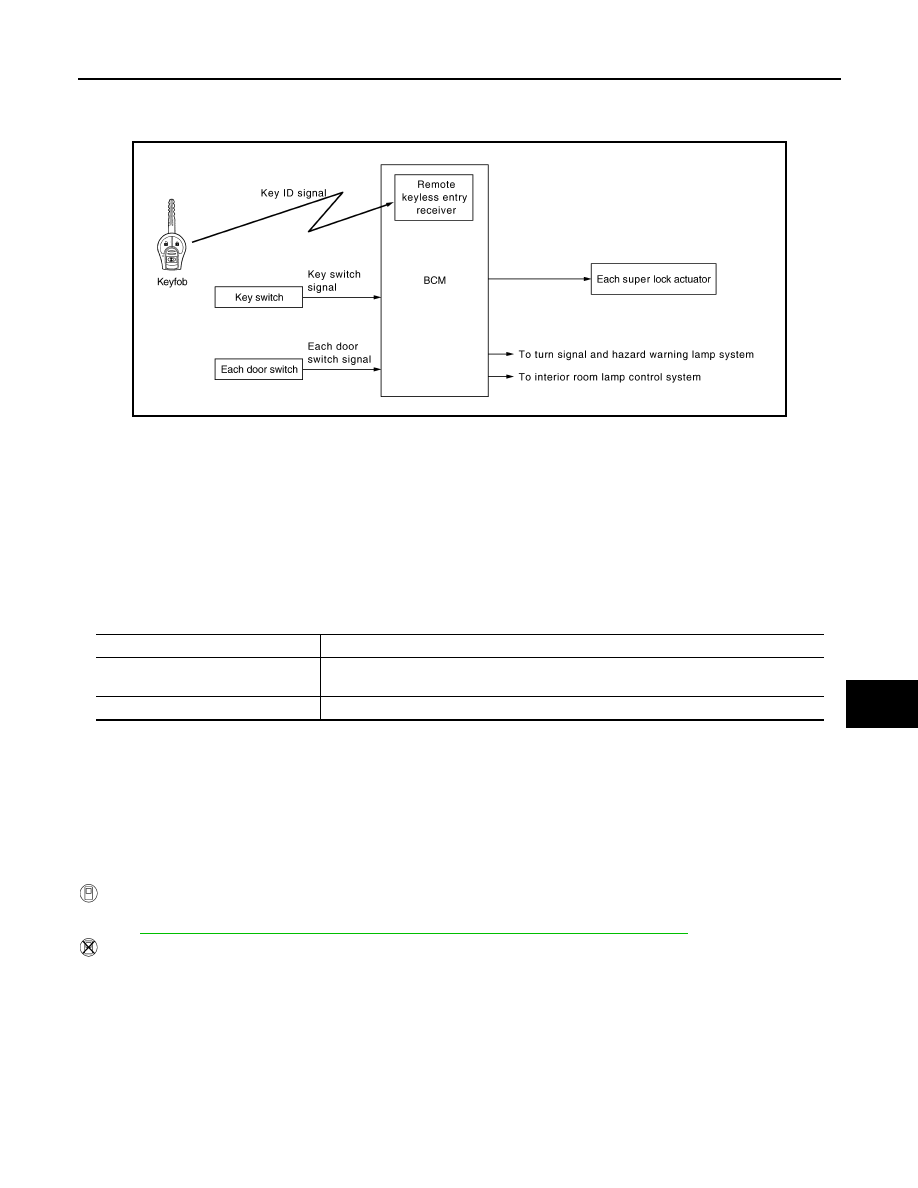

System Diagram

INFOID:0000000010435123

System Description

INFOID:0000000010435124

DOOR LOCK AND UNLOCK OPERATION

• When door lock and unlock button of keyfob is pressed, door lock and unlock signal transmits from keyfob to

BCM via remote keyless entry receiver.

• When BCM receives the door lock and unlock signal, it operates door lock actuator, blinks the hazard lamp

at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the keyfob is operated.

OPERATION AREA

To ensure that the keyfob works effectively, use within 100 cm (3 ft) range of each door, however the operable
range may differ according to surroundings.

ANTI-HIJACK FUNCTION

• When an LOCK signal is transmitted from keyfob, all doors are locked.
• When an UNLOCK signal is transmitted from keyfob once, driver side door is unlocked.
• Then, if an UNLOCK signal is transmitted from keyfob again, all other doors are unlocked.
How to change anti-hijack mode.

 With CONSULT

Anti-hijack mode can be set to ON or OFF using CONSULT.
Refer to

DLK-521, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 4)"

.

 Without CONSULT

• ON/OFF can be switched when keyfob lock button and unlock button are pressed simultaneously for 5 sec-

onds or more while steering lock is locked.

• When mode is switched, hazard warning lamp blinks.

HAZARD REMINDER FUNCTION

Operation Description

JMKIB3324GB

Remote controller operation

Operation condition

Lock

• Key switch is off
• All doors are closed

Unlock

Key switch is off

OFF

 ON

: 1 blinks

ON

 OFF

: 3 blink

DLK-518

< SYSTEM DESCRIPTION >

[TYPE 4]

REMOTE KEYLESS ENTRY SYSTEM

When doors are locked or unlocked by keyfob button operation, BCM blinks hazard warning lamps as a
reminder.

AUTO DOOR LOCK FUNCTION

After door is unlocked by keyfob button operation and if 30 seconds or more passes without performing the fol-
lowing operation, all doors are automatically locked. However, operation check function does not activate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

522, "MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 4)"

.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock/unlock state, refer to

INL-8, "INTERIOR ROOM LAMP

CONTROL SYSTEM : System Description"

.

Door lock operation

(With keyfob button)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Key switch is ON

BACK DOOR OPENER SYSTEM

DLK-519

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPENER SYSTEM

System Description

INFOID:0000000010479511

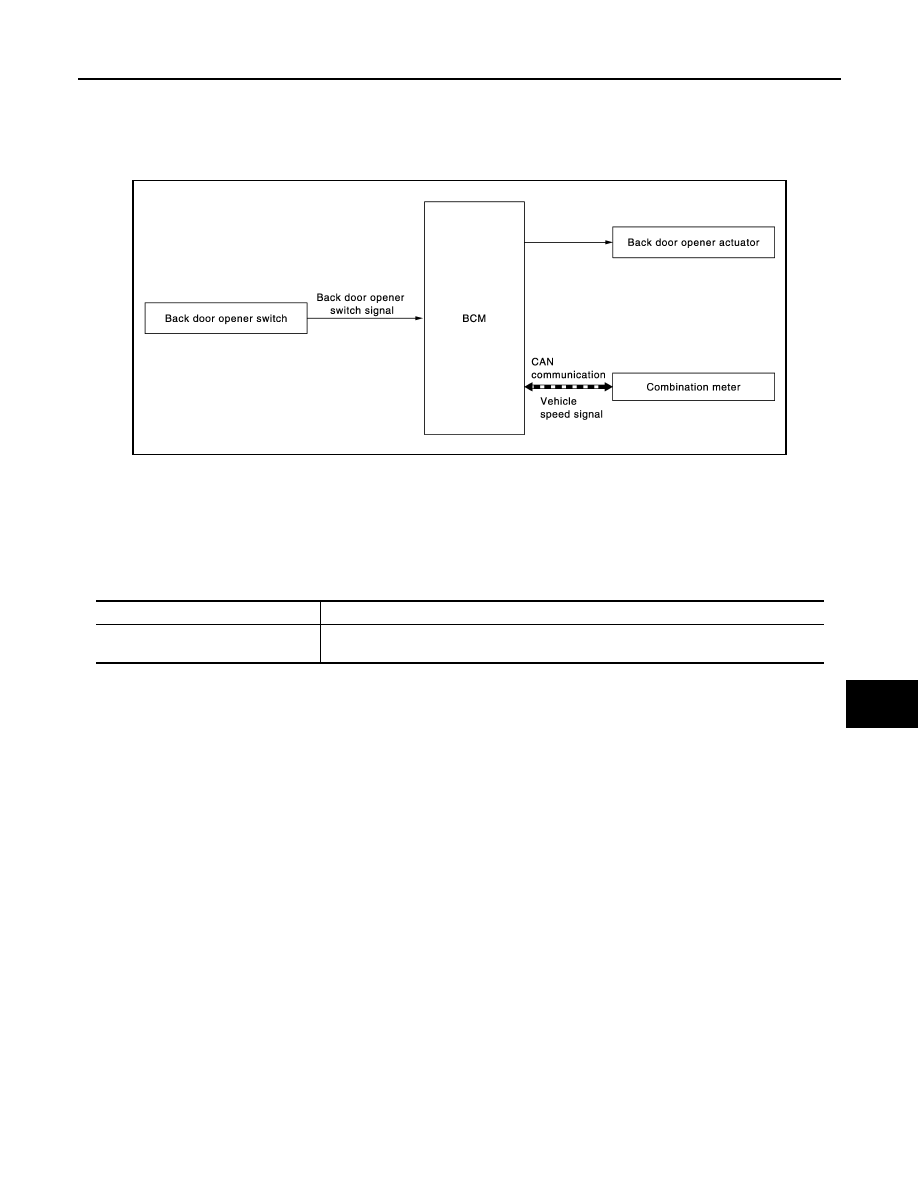

SYSTEM DIAGRAM

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM operates back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are satisfied, back door opener operation is performed.

NOTE:
• When battery terminal is disconnected and reconnected during all doors unlock state, back door may not

open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When battery terminal is reconnected and back door does not open, have BCM recognize that all doors are

in unlock state.

JMKIA6011GB

Back door opener switch operation

Operation condition

Back door open

• All doors are unlocked.
• Vehicle speed is less than 5 km/h (3 MPH)

DLK-520

< SYSTEM DESCRIPTION >

[TYPE 4]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010435125

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:
*: This item is displayed, but is not used.

DOOR LOCK

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp control

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Manual A/C

AIR CONDITONER

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

IMMU*

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

THEFT ALM*

×

×

×

RETAINED PWR*

×

×

Signal buffer system

SIGNAL BUFFER

×

×

Panic alarm

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM)

DLK-521

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 4)

INFOID:0000000010435126

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

MULTI REMOTE ENT

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

IGN ON SW

Indicated [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicated [On/Off] condition of key switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicated [On/Off] condition of back door switch

LOCK STATUS

Indicated [On/Off] condition of front door driver side

ACC ON SW

Indicated [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicated [On/Off] condition of lock signal from key fob

KEYLESS UNLOCK

Indicated [On/Off] condition of unlock signal from key fob

SHOCK SENSOR

NOTE:
This item is displayed, but cannot be monitored

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

VEHICLE SPEED

Display the vehicle speed signal received from combination meter by numer-
ical value [Km/h]

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT screen is touched
• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT screen is

touched

• “BD ULK” is displayed, but cannot be used
• “OTR ULK” is displayed, but cannot be used

DOOR LOCK IND

NOTE:
This item is displayed, but cannot be used

SUPER LOCK

NOTE:
This item is displayed, but cannot be used

DLK-522

< SYSTEM DESCRIPTION >

[TYPE 4]

DIAGNOSIS SYSTEM (BCM)

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 4)

INFOID:0000000010738154

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Test item

Description

AUTO LOCK SET

Auto door lock time can be changed in this mode
• MODE 1: Non-operation
• MODE 2: 30 sec.
• MODE 3: 1 minute
• MODE 4: 2 minute
• MODE 5: 3 minute
• MODE 6: 4 minute
• MODE 7: 5 minute

ANSWER BACK

NOTE:
This item is displayed, but cannot be used

ANSWER BACK KEYLESS
LOCK UNLOCK

NOTE:
This item is displayed, but cannot be used

WELCOME LIGHT OP SET

NOTE:
This item is displayed, but cannot be used

Monitor Item

Condition

CONFRM ID ALL

Indicates [Yet] at all time.Switches to [Done] when a registered key is inserted into ignition key
cylinder.

CONFRM ID4

CONFRM ID3

CONFRM ID2

CONFRM ID1

NOT REGISTERED

Indicates [ID OK] when key ID that is registered is received or is not yet received. Indicates [ID
NG] when key ID that is not registered is received.

TP 4

Indicates the number of IDs that are registered.

TP 3

TP 2

TP 1

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

2

 condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status

DOOR STAT-RR

Indicates [LOCK/READY/UNLK] condition of rear door RH status

DOOR STAT-RL

Indicates [LOCK/READY/UNLK] condition of rear door LH status

BK DOOR STATE

NOTE:
This item is displayed, but cannot be monitored

STOP/START SW

Indicates [On/Off] condition of stop/start off switch

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

DIAGNOSIS SYSTEM (BCM)

DLK-523

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*

1

: It is displayed but does not operate on CVT models.

*

2

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

TRUNK

TRUNK : CONSULT Function (BCM - TRUNK) (Type 4)

INFOID:0000000010503019

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from keyfob

KEY SW

Indicates [On/Off] condition of key switch

IGN SW

Indicates [On/Off] condition of ignition switch in ON position

START SW

Indicates [On/Off] condition of ignition switch in START position

Monitor Item

Condition

Test item

Description

FLASHER

This test is able to check flasher operation [LH/RH/Off]

HORN

NOTE:
This item is indicated, but not monitored

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

MIRROR+5

NOTE:
This item is indicated, but not monitored

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is indicated, but not monitored

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk/luggage room lamp operation
• On: Operates
• Off: Non-operation

Monitor Item

Contents

STARTER CUT RELAY

Indicates [On/Off] condition of starter control relay

KEY CYL SW-TR

NOTE:
This item is displayed, but cannot be monitored

TR CANCEL SW

NOTE:
This item is displayed, but cannot be monitored

TRUNK LID OPENER SW

NOTE:
This item is displayed, but cannot be monitored

DLK-524

< SYSTEM DESCRIPTION >

[TYPE 4]

DIAGNOSIS SYSTEM (BCM)

BACK DOOR OEPENR SW

Indicates [On/Off] condition of back door opener switch

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Contents

BCM

DLK-525

< ECU DIAGNOSIS INFORMATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000010435129

ECU

Reference

BCM

BCS-63, "Reference Value"

BCS-87, "Fail-safe"

BCS-88, "DTC Inspection Priority Chart"

BCS-89, "DTC Index"

DLK-526

< WIRING DIAGRAM >

[TYPE 4]

DOOR & LOCK SYSTEM

WIRING DIAGRAM

DOOR & LOCK SYSTEM

LHD

LHD : Wiring Diagram

INFOID:0000000011487294

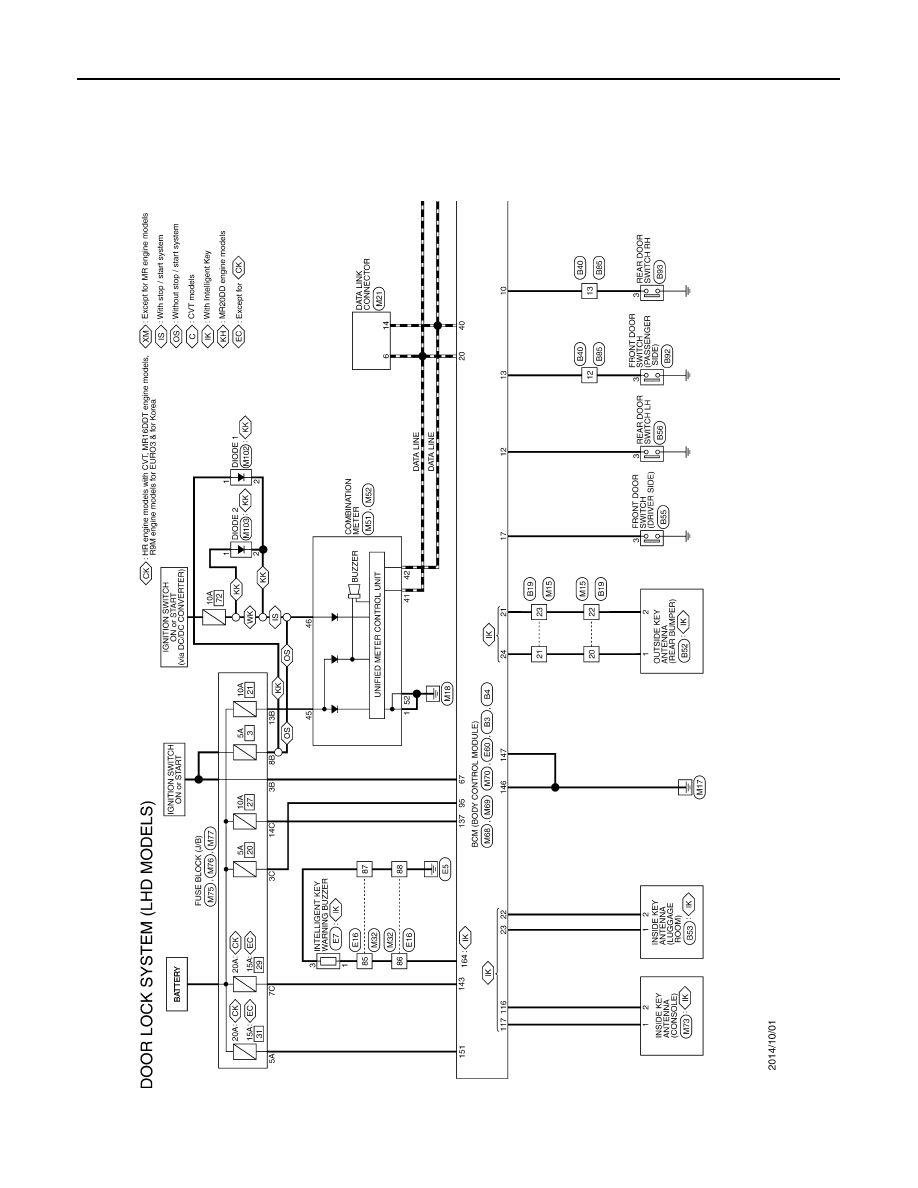

JRKWE3958GB

DOOR & LOCK SYSTEM

DLK-527

< WIRING DIAGRAM >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

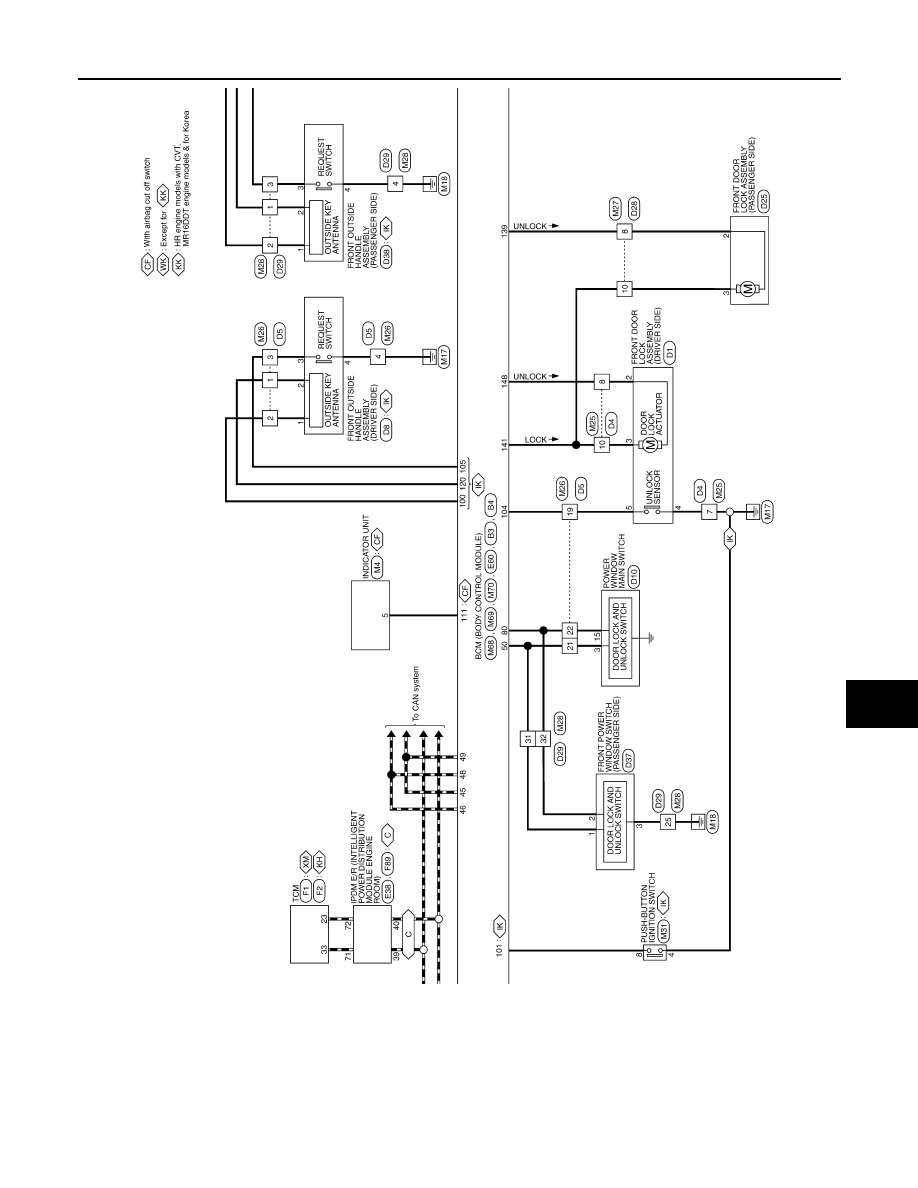

JRKWE3959GB

DLK-528

< WIRING DIAGRAM >

[TYPE 4]

DOOR & LOCK SYSTEM

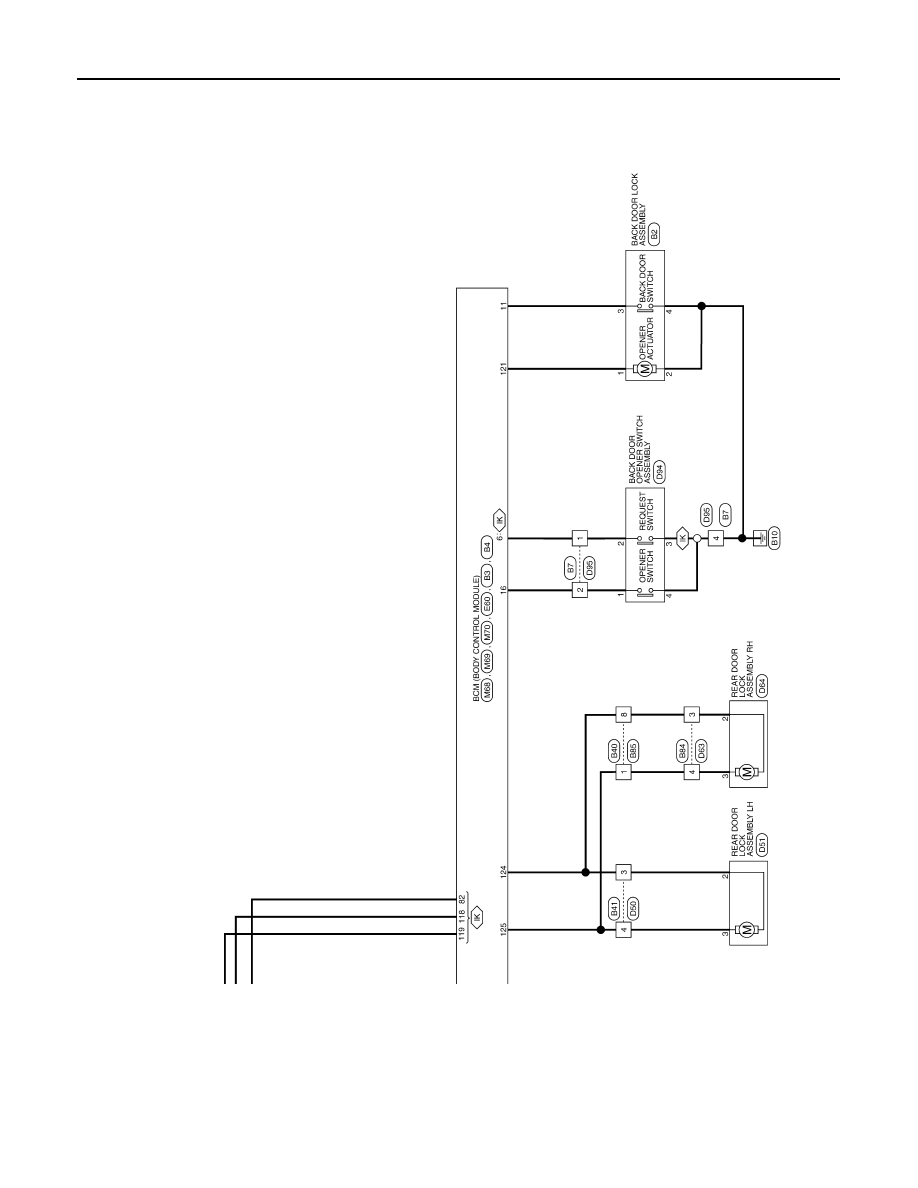

JRKWE3960GB















Content      ..     30      31      32      33     ..
