Qashqai J11. Door & Lock - part 18

HAZARD FUNCTION

DLK-289

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD FUNCTION

Component Function Check

INFOID:0000000010487312

1.

CHECK FUNCTION

1.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2.

Select “FLASHER” in “ACTIVE TEST” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-289, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010487313

1.

CHECK HAZARD OPERATION

Refer to

EXL-26, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Description"

 (LED

headlamp models) or

EXL-195, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Descrip-

tion"

 (halogen headlamp models).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

EXL-146, "Symptom Table"

 (LED headlamp models) and

EXL-303, "Symptom Table"

(halogen headlamp models).

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Monitor item

Status

FLASHER

LH

Front turn signal lamp LH

Turns ON

RH

Front turn signal lamp RH

Turns ON

OFF

Front turn signal lamp

Turns OFF

DLK-290

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

INFORMATION DISPLAY

INFORMATION DISPLAY

Diagnosis Procedure

INFOID:0000000010487314

1.

CHECK COMBINATION METER

Refer to

MWI-28, "Description"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

INTELLIGENT KEY BATTERY

DLK-291

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

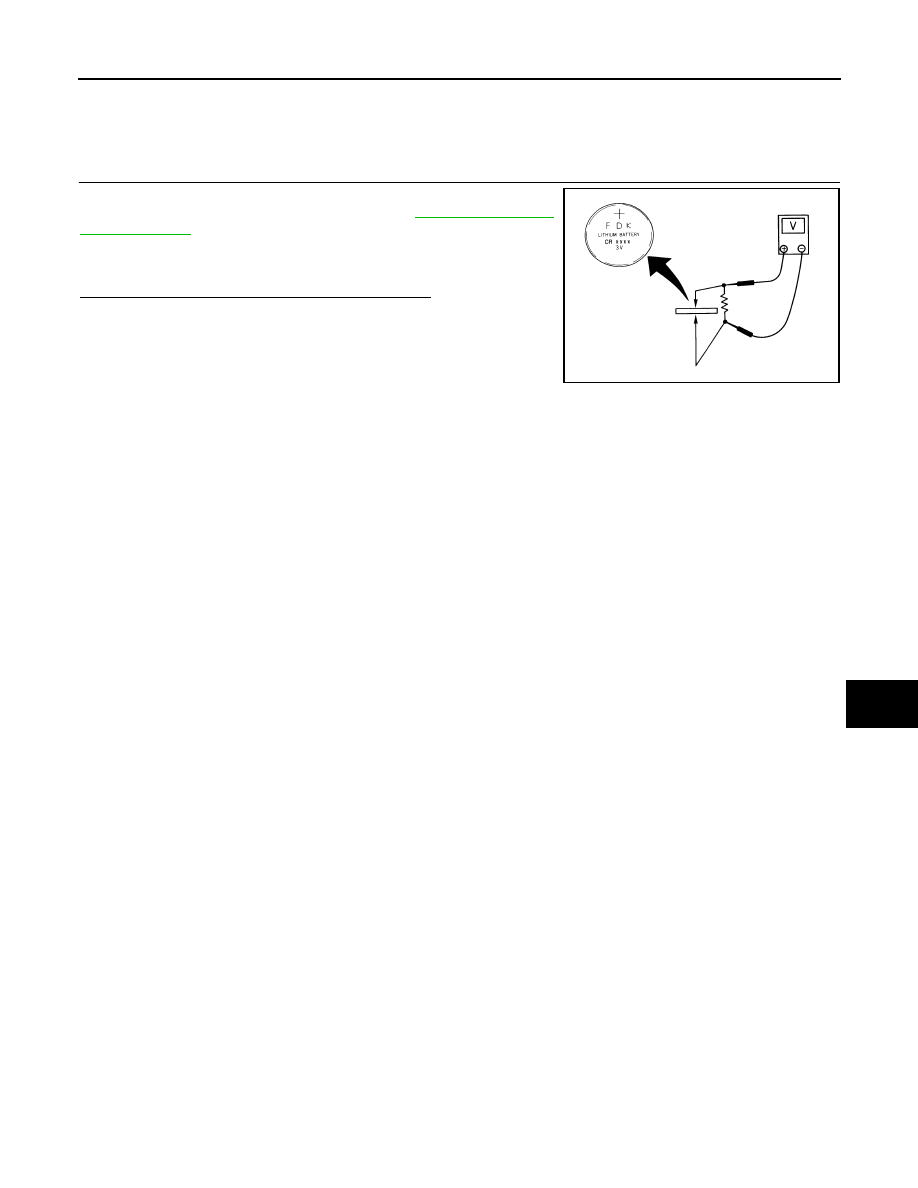

INTELLIGENT KEY BATTERY

Component Inspection

INFOID:0000000010487315

1.

CHECK INTELLIGENT KEY BATTERY

Check by connecting a resistance (approximately 300

Ω

) so that the

current value becomes about 10 mA. Refer to

DLK-199, "Removal

and Installation"

.

Is the measurement value within the specification?

YES

>> INSPECTION END

NO

>> Replace Intelligent Key battery.

Standard

: Approx. 2.5 - 3.0 V

OCC0607D

DLK-292

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Component Function Check

INFOID:0000000010487316

1.

CHECK FUNCTION

1.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2.

Select “OUTSIDE BUZZER” in “ACTIVE TEST” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Intelligent Key warning buzzer is OK.

NO

>> Refer to

DLK-292, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010487317

1.

CHECK INTELLIGENT KEY WARNING BUZZER POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect Intelligent Key warning buzzer connector.

3.

Check voltage between Intelligent Key warning buzzer harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK INTELLIGENT KEY WARNING BUZZER CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector and Intelligent Key warning buzzer harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK GROUND CIRCUIT

Check continuity between Intelligent Key warning buzzer harness connector and ground.

Monitor item

Status

OUTSIDE BUZZER

ON

Outside warning buzzer

Buzzer sounds

OFF

Buzzer does not sound

(+)

(–)

Condition

Voltage

Intelligent Key warning buzzer

Connector

Terminal

E7

1

Ground

Operate Intelligent Key
buzzer

9 – 16 V

BCM

Intelligent Key warning buzzer

Continuity

Connector

Terminal

Connector

Terminal

E60

164

E7

1

Existed

BCM

Ground

Continuity

Connector

Terminal

E60

164

Not existed

INTELLIGENT KEY WARNING BUZZER

DLK-293

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace Intelligent Key warning buzzer.

NO

>> Repair or replace the malfunctioning parts.

Intelligent Key warning buzzer

Ground

Continuity

Connector

Terminal

E7

3

Existed

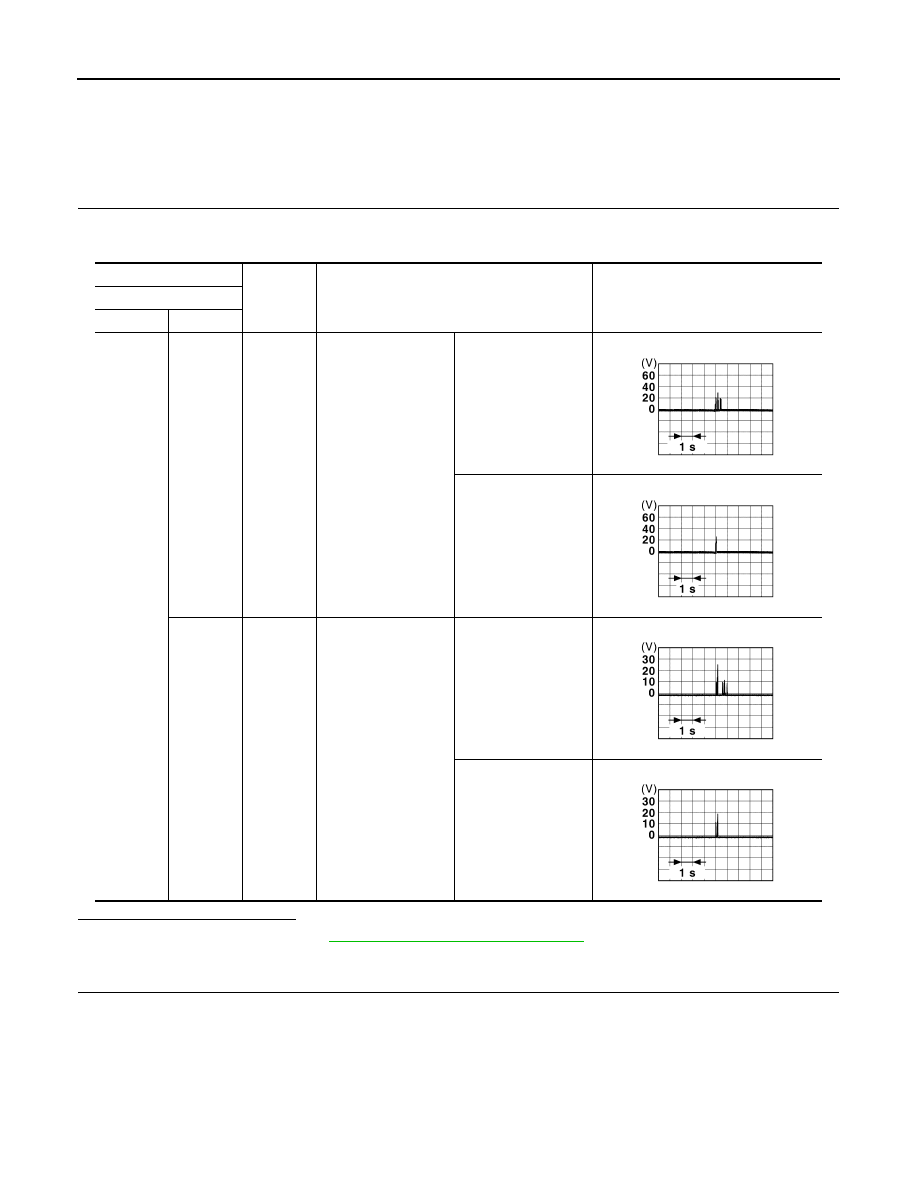

DLK-294

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

OUTSIDE KEY ANTENNA

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000010487318

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and front outside handle assembly (driver side) connector.

2.

Check continuity between BCM harness connector and front outside handle assembly (driver side) har-
ness connector.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

100

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

120

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1348GB

JSMIA1406GB

JSMIA1507GB

JSMIA1506GB

OUTSIDE KEY ANTENNA

DLK-295

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

LHD models

RHD models

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace front outside handle assembly (driver side). (New antenna or other antenna)

2.

Connect BCM connector and front outside handle assembly (driver side) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

BCM

Front outside handle assembly (driver side)

Continuity

Connector

Terminal

Connector

Terminal

M69

100

D8

1

Existed

120

2

BCM

Front outside handle assembly (driver side)

Continuity

Connector

Terminal

Connector

Terminal

M69

100

D39

1

Existed

120

2

BCM

Ground

Continuity

Connector

Terminal

M69

100

Not existed

120

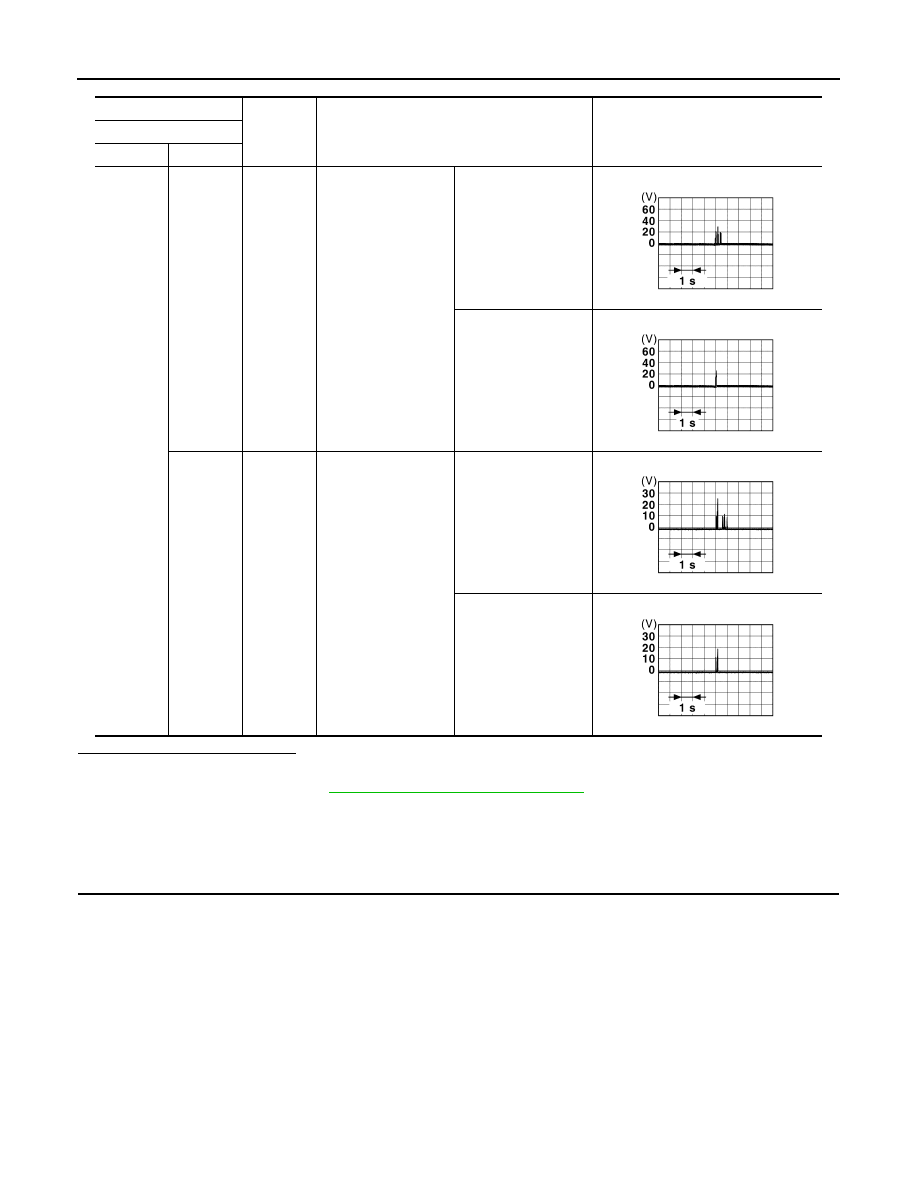

DLK-296

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

OUTSIDE KEY ANTENNA

Is the inspection result normal?

YES

>> Replace outside handle grip RH.

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

PASSENGER SIDE

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000010487319

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

100

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

120

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1348GB

JSMIA1406GB

JSMIA1507GB

JSMIA1506GB

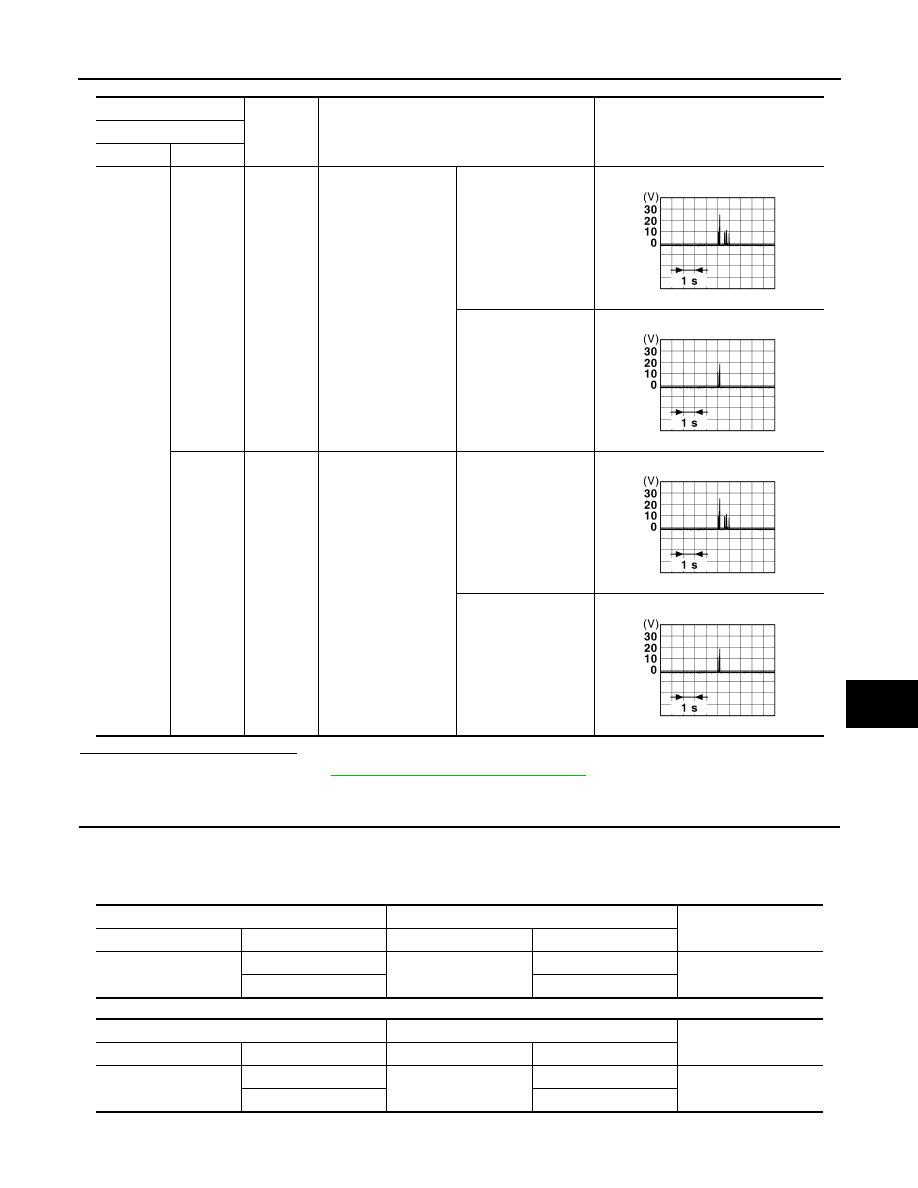

OUTSIDE KEY ANTENNA

DLK-297

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and front outside handle assembly (passenger side) connector.

2.

Check continuity between BCM harness connector and front outside handle assembly (passenger side)
harness connector.

LHD models

RHD models

3.

Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

118

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

119

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1507GB

JSMIA1506GB

JSMIA1507GB

JSMIA1506GB

BCM

Front outside handle assembly (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

M69

118

D38

2

Existed

119

1

BCM

Front outside handle assembly (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

M69

118

D9

2

Existed

119

1

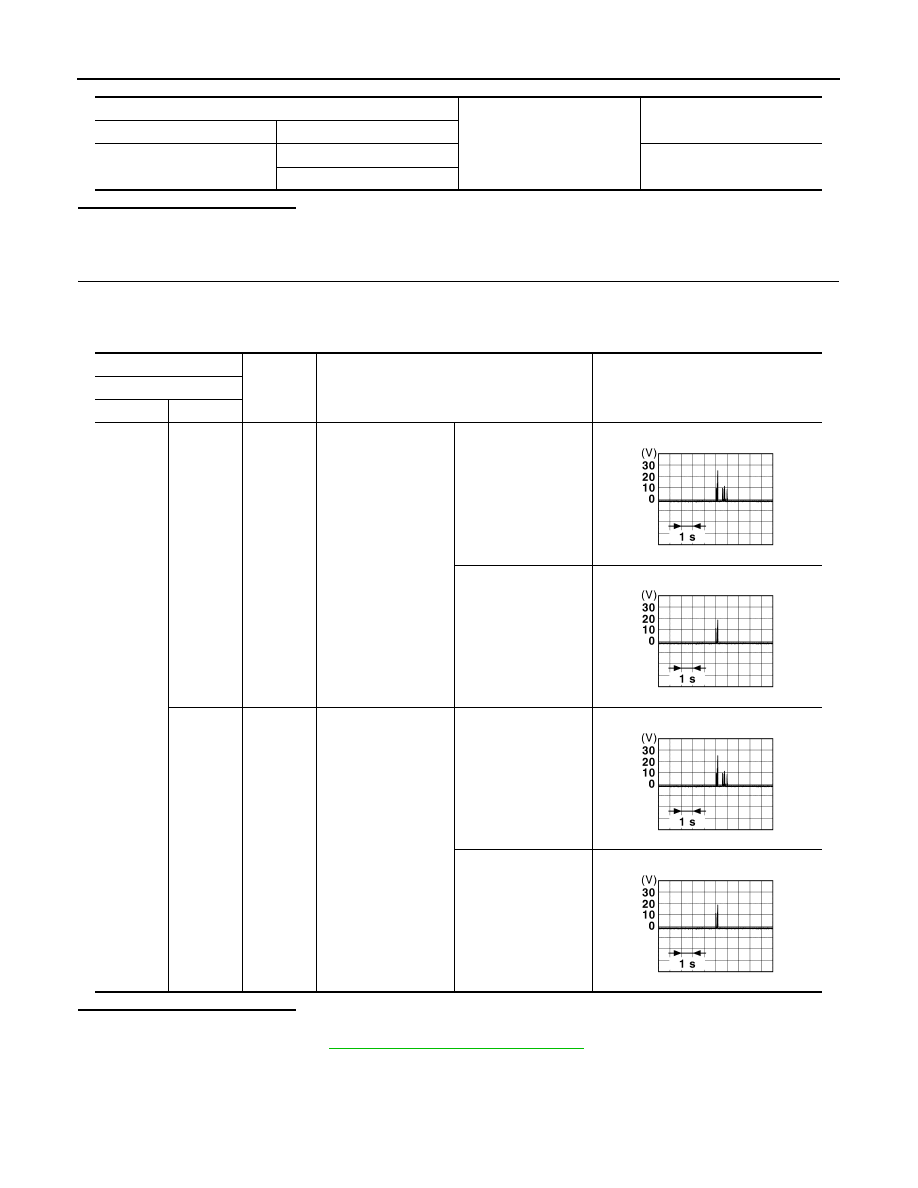

DLK-298

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

OUTSIDE KEY ANTENNA

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace front outside handle assembly (passenger side). (New antenna or other antenna)

2.

Connect BCM connector and front outside handle assembly (passenger side) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside handle grip LH.

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

REAR BUMPER

BCM

Ground

Continuity

Connector

Terminal

M69

118

Not existed

119

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

118

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

119

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1507GB

JSMIA1506GB

JSMIA1507GB

JSMIA1506GB

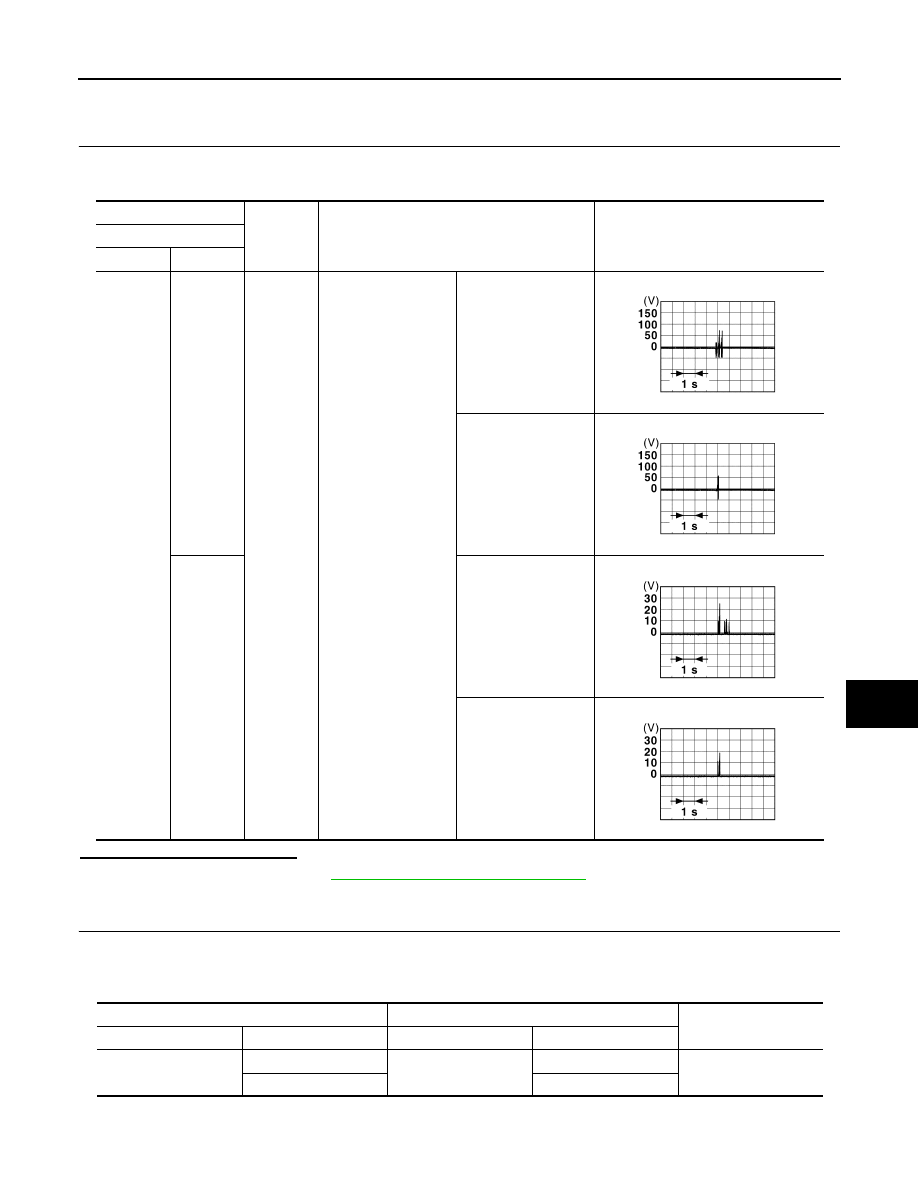

OUTSIDE KEY ANTENNA

DLK-299

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR BUMPER : Diagnosis Procedure

INFOID:0000000010487320

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and outside key antenna (rear bumper) connector.

2.

Check continuity between BCM harness connector and outside key antenna (rear bumper) harness con-
nector.

3.

Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

B4

21

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

24

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JMMIA1652GB

JMMIA1653GB

JSMIA1507GB

JSMIA1506GB

BCM

Outside key antenna (rear bumper)

Continuity

Connector

Terminal

Connector

Terminal

B4

21

B52

2

Existed

24

1

DLK-300

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

OUTSIDE KEY ANTENNA

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace outside key antenna (rear bumper). (New antenna or other antenna)

2.

Connect BCM and outside key antenna (rear bumper) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (rear bumper).

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

BCM

Ground

Continuity

Connector

Terminal

B4

21

Not existed

24

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

B4

21

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

24

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JMMIA1652GB

JMMIA1653GB

JSMIA1507GB

JSMIA1506GB

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

DLK-301

< SYMPTOM DIAGNOSIS >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

SYMPTOM DIAGNOSIS

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK
SWITCH

ALL DOOR

ALL DOOR : Description

INFOID:0000000010488224

All doors do not lock/unlock using door lock and unlock switch.

ALL DOOR : Diagnosis Procedure

INFOID:0000000010488225

1.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check front door lock and unlock power supply and ground circuit.
Refer to

DLK-110, "FRONT DOOR : Diagnosis Procedure"

 (front door) or

DLK-110, "REAR DOOR : Diagnosis

Procedure"

 (rear door).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DOOR LOCK AND UNLOCK SWITCH

Check door lock and unlock switch.
Refer to

DLK-89, "DRIVER SIDE : Component Function Check"

 (driver side) or

DLK-90, "PASSENGER SIDE

: Component Function Check"

 (passenger side).

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (driver side).
Refer to

DLK-84, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CHECK DOOR SWITCH

Check door switch.
Refer to

DLK-95, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace the malfunctioning parts.

5.

REPLACE BCM

1.

Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

2.

Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

FRONT DOOR

FRONT DOOR : Description

INFOID:0000000010488226

Front doors do not lock/unlock using door lock and unlock switch.

FRONT DOOR : Diagnosis Procedure

INFOID:0000000010488227

1.

CHECK POWER SUPPLY AND GROUND CIRCUIT

DLK-302

< SYMPTOM DIAGNOSIS >

[TYPE 2]

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

Check front door lock and unlock power supply and ground circuit.
Refer to

DLK-110, "FRONT DOOR : Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DOOR LOCK ACTUATOR

Check front door lock actuator (driver side).
Refer to

DLK-273, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

1.

Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

2.

Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

REAR DOOR

REAR DOOR : Description

INFOID:0000000010488228

Rear doors do not lock/unlock using door lock and unlock switch.

REAR DOOR : Diagnosis Procedure

INFOID:0000000010488229

1.

CHECK POWER SUPPLY AND GROUND CIRCUIT

Check rear doors lock and unlock power supply and ground circuit.
Refer to

DLK-110, "REAR DOOR : Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK DOOR LOCK ACTUATOR

Check rear door lock actuator.
Refer to

DLK-86, "REAR LH : Component Function Check"

 (LH) and

DLK-87, "REAR RH :

Component Function Check"

 (RH).

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

REPLACE BCM

1.

Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

2.

Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

DRIVER SIDE

DRIVER SIDE : Description

INFOID:0000000010488230

Driver side door does not lock/unlock using door lock and unlock switch.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000010488231

1.

CHECK DOOR LOCK ACTUATOR

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

DLK-303

< SYMPTOM DIAGNOSIS >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Check front door lock assembly (driver side).
Refer to

DLK-84, "DRIVER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1.

Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

2.

Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

PASSENGER SIDE

PASSENGER SIDE : Description

INFOID:0000000010488232

Passenger side door does not lock/unlock using door lock and unlock switch.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000010488233

1.

CHECK DOOR LOCK ACTUATOR

Check front door lock assembly (passenger side).
Refer to

DLK-85, "PASSENGER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1.

Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

2.

Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

REAR LH

REAR LH : Description

INFOID:0000000010488234

Rear LH side door does not lock/unlock using door lock and unlock switch.

REAR LH : Diagnosis Procedure

INFOID:0000000010488235

1.

CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly LH.
Refer to

DLK-86, "REAR LH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1.

Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

2.

Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

REAR RH

DLK-304

< SYMPTOM DIAGNOSIS >

[TYPE 2]

DOOR DOES NOT LOCK/UNLOCK WITH DOOR LOCK AND UNLOCK SWITCH

REAR RH : Description

INFOID:0000000010488236

Rear RH side door does not lock/unlock using door lock and unlock switch.

REAR RH : Diagnosis Procedure

INFOID:0000000010488237

1.

CHECK DOOR LOCK ACTUATOR

Check rear door lock assembly RH.
Refer to

DLK-87, "REAR RH : Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

1.

Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

2.

Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.
