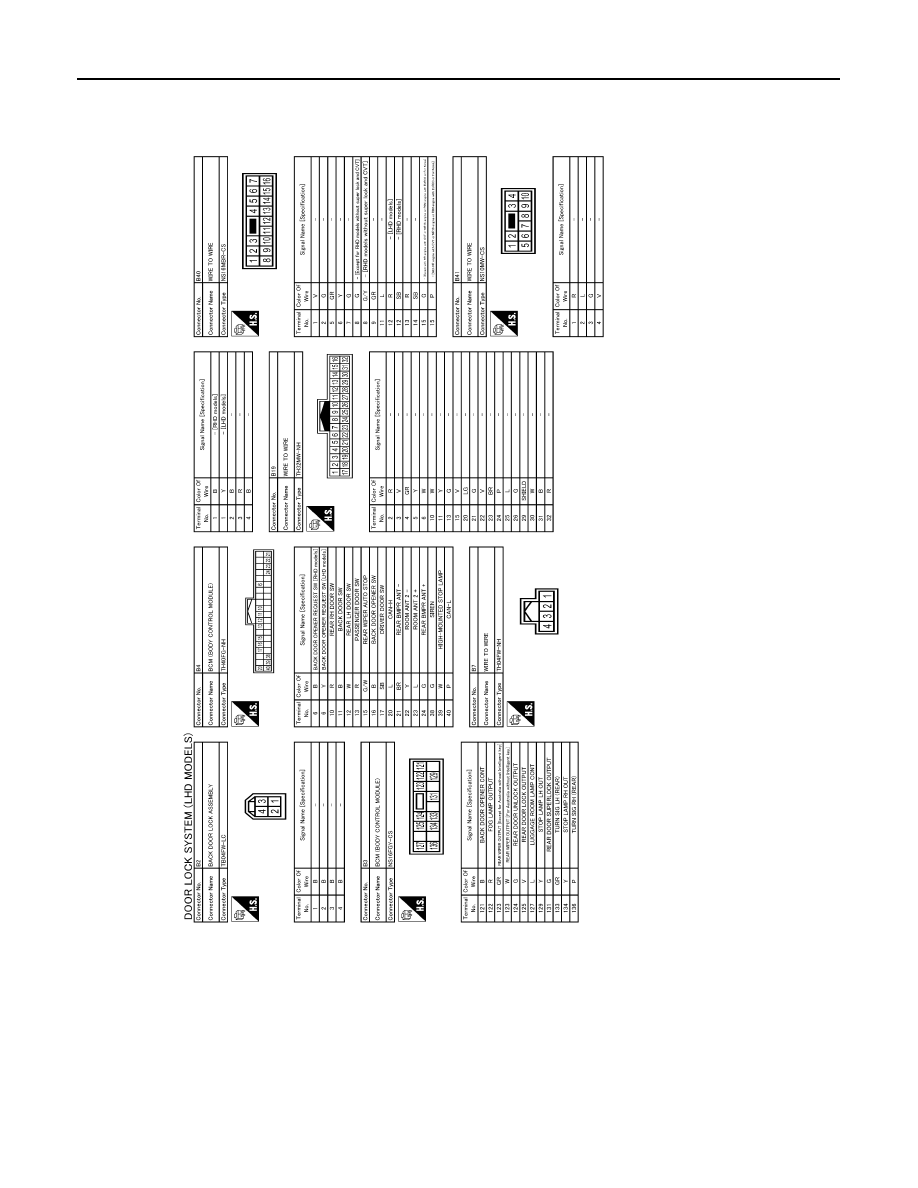

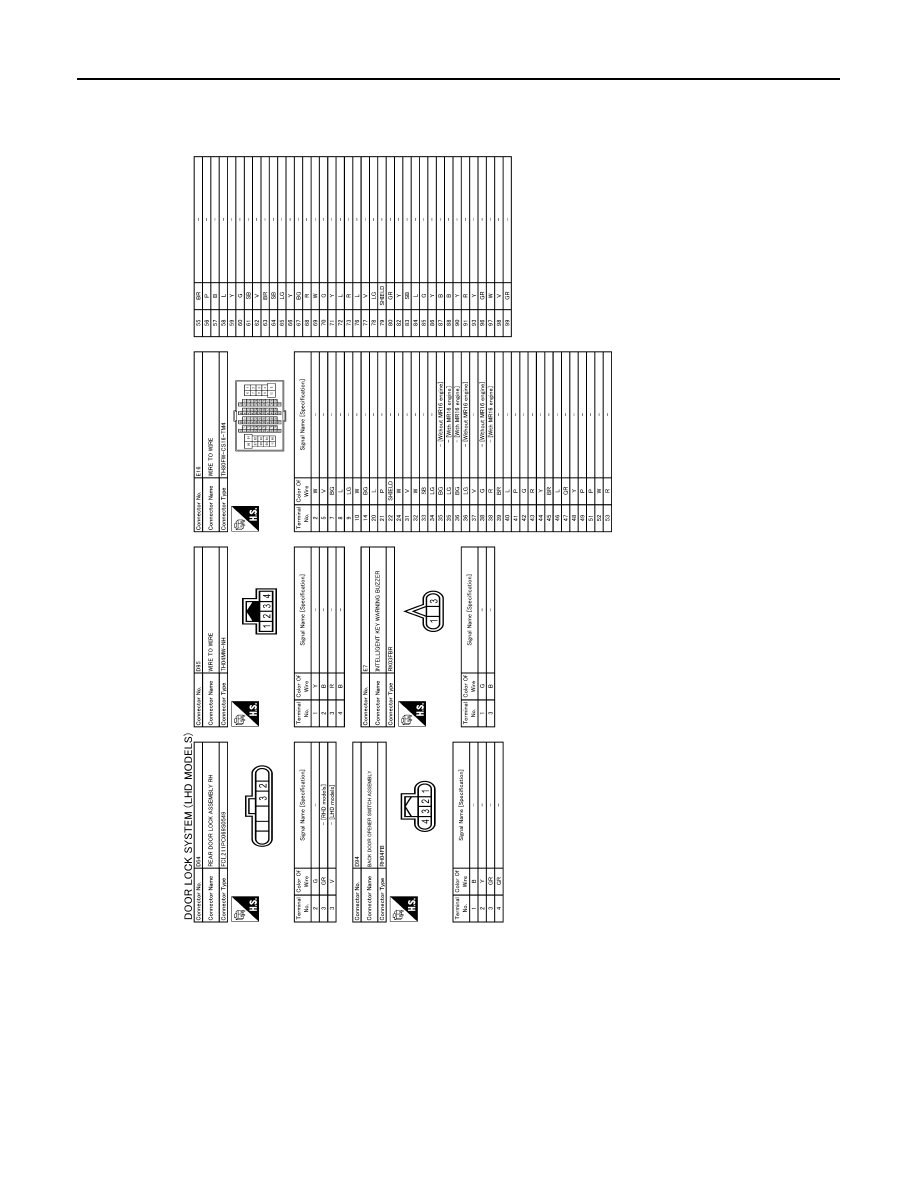

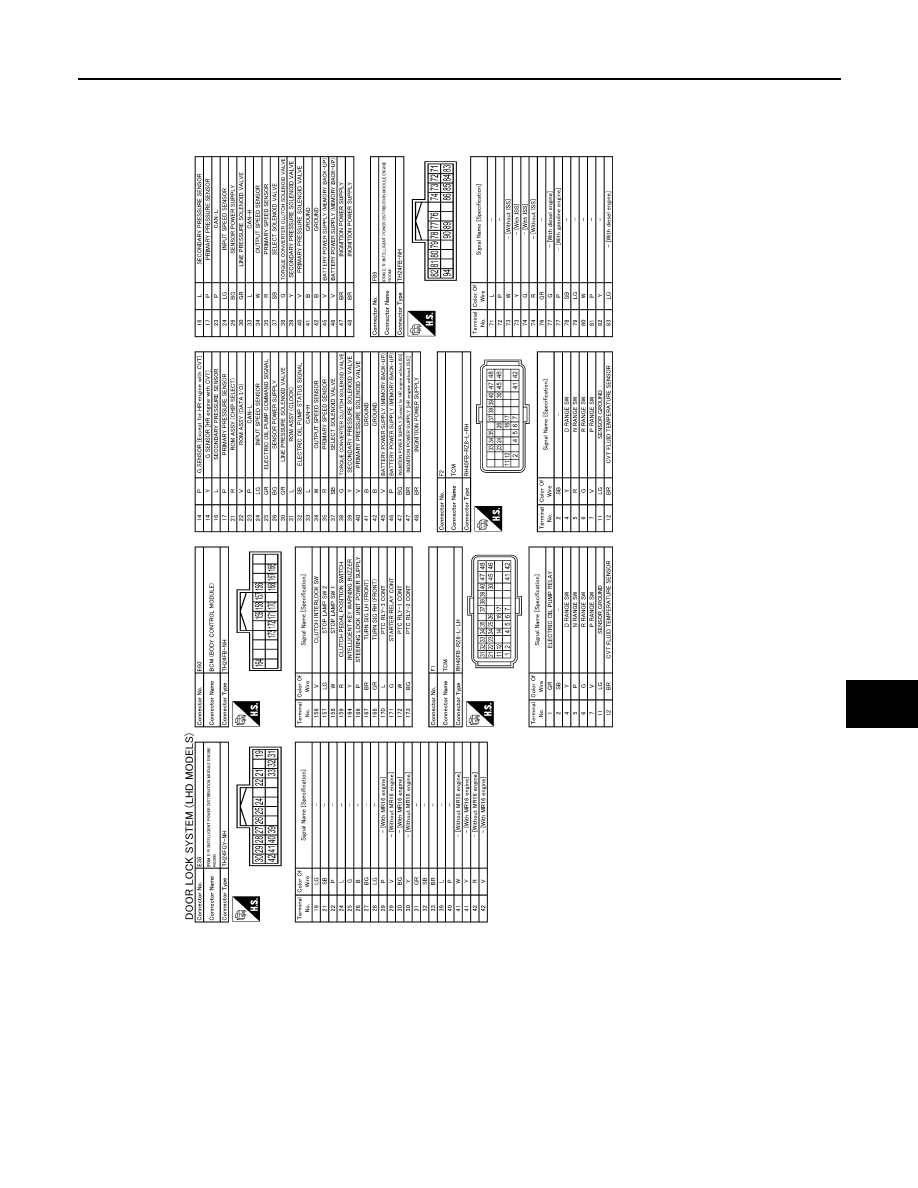

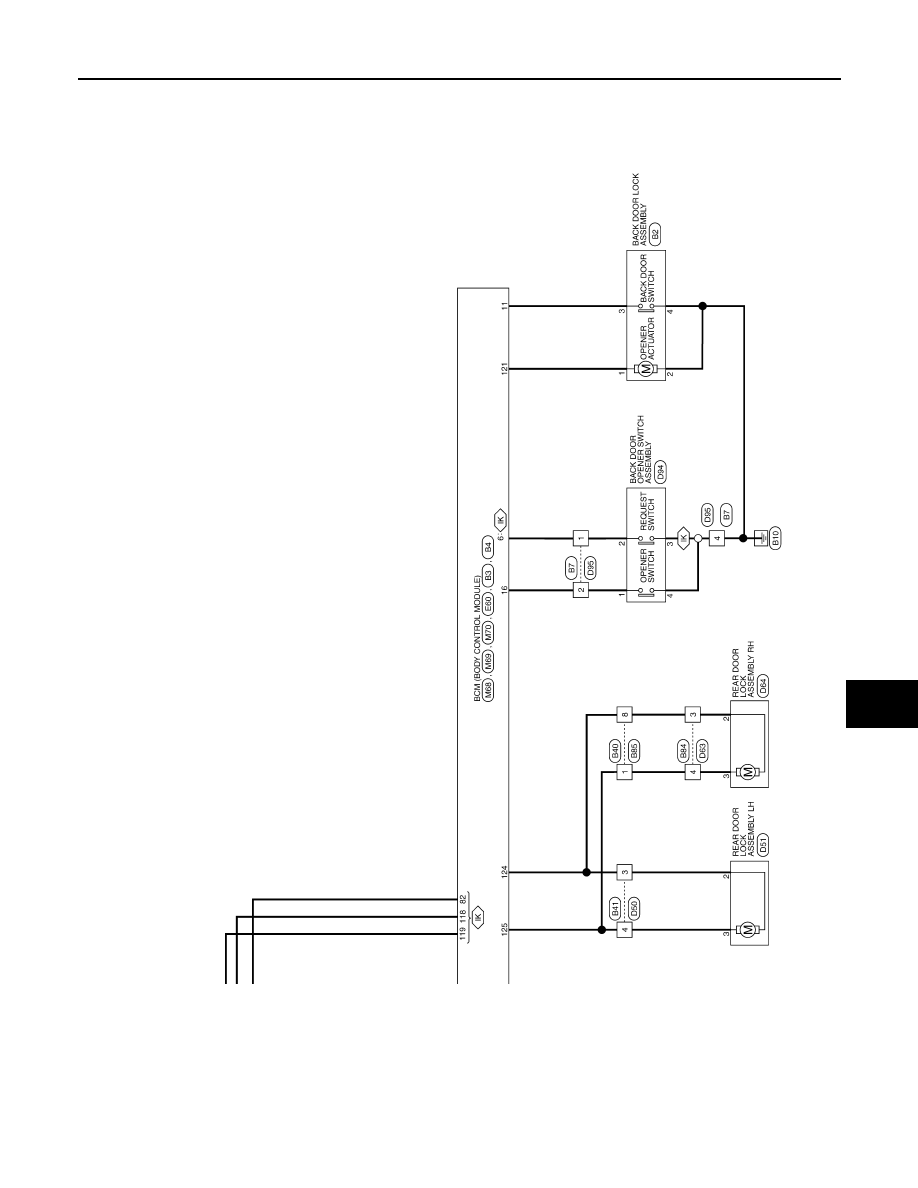

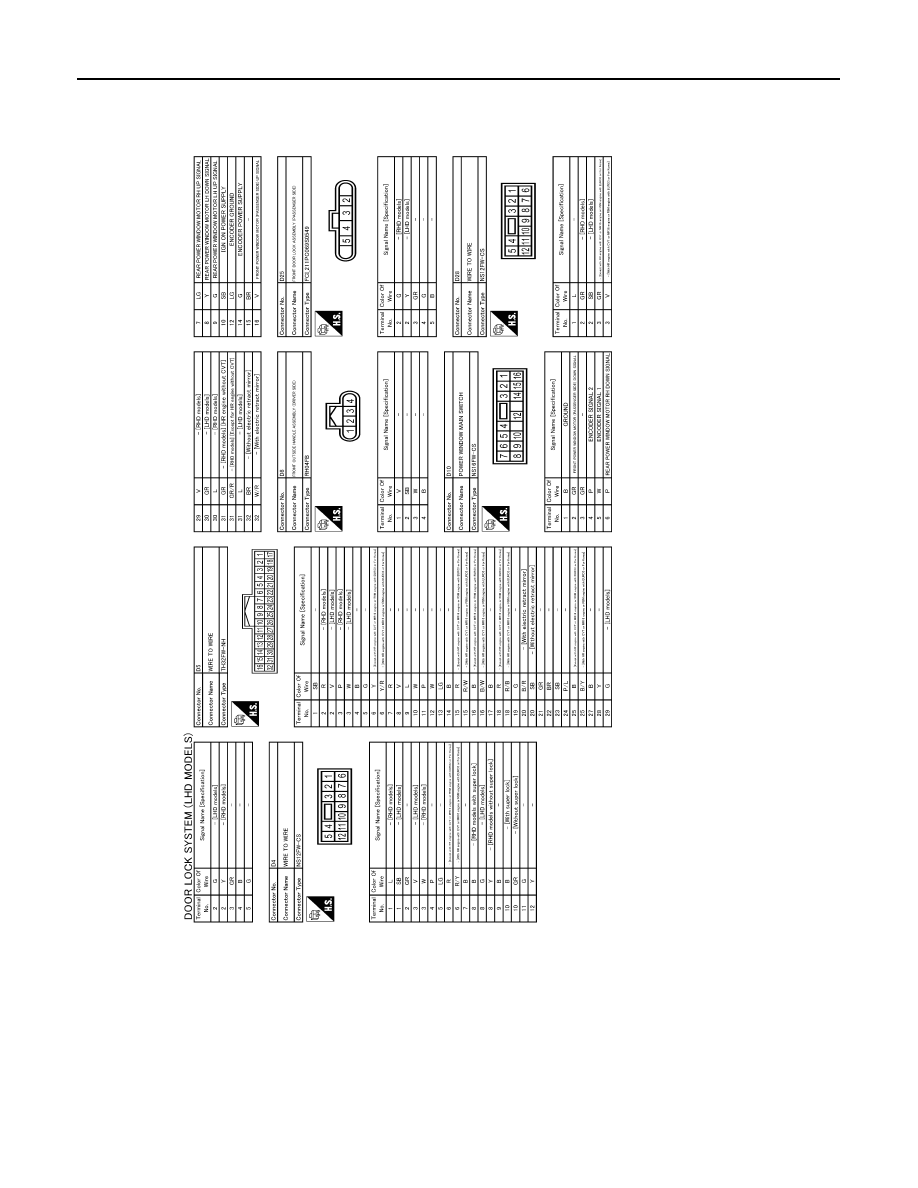

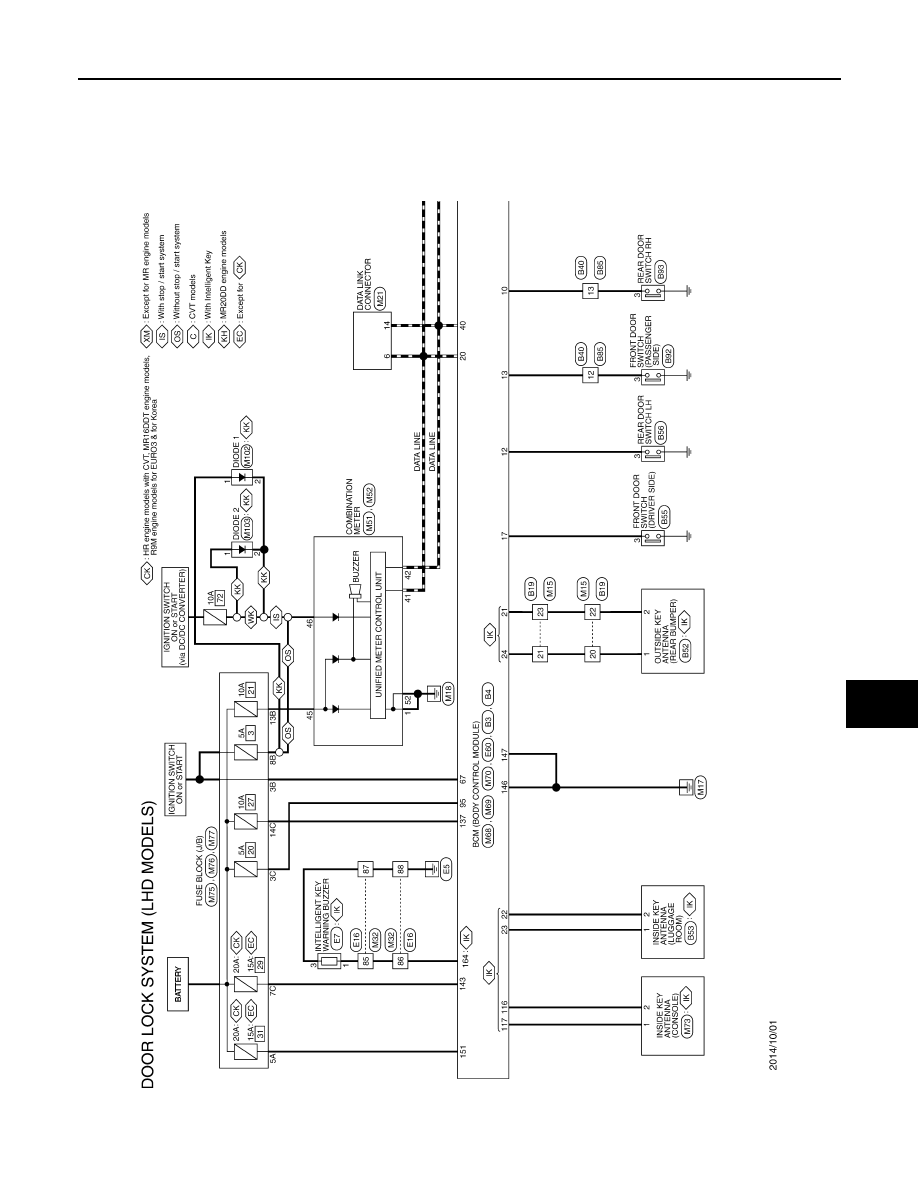

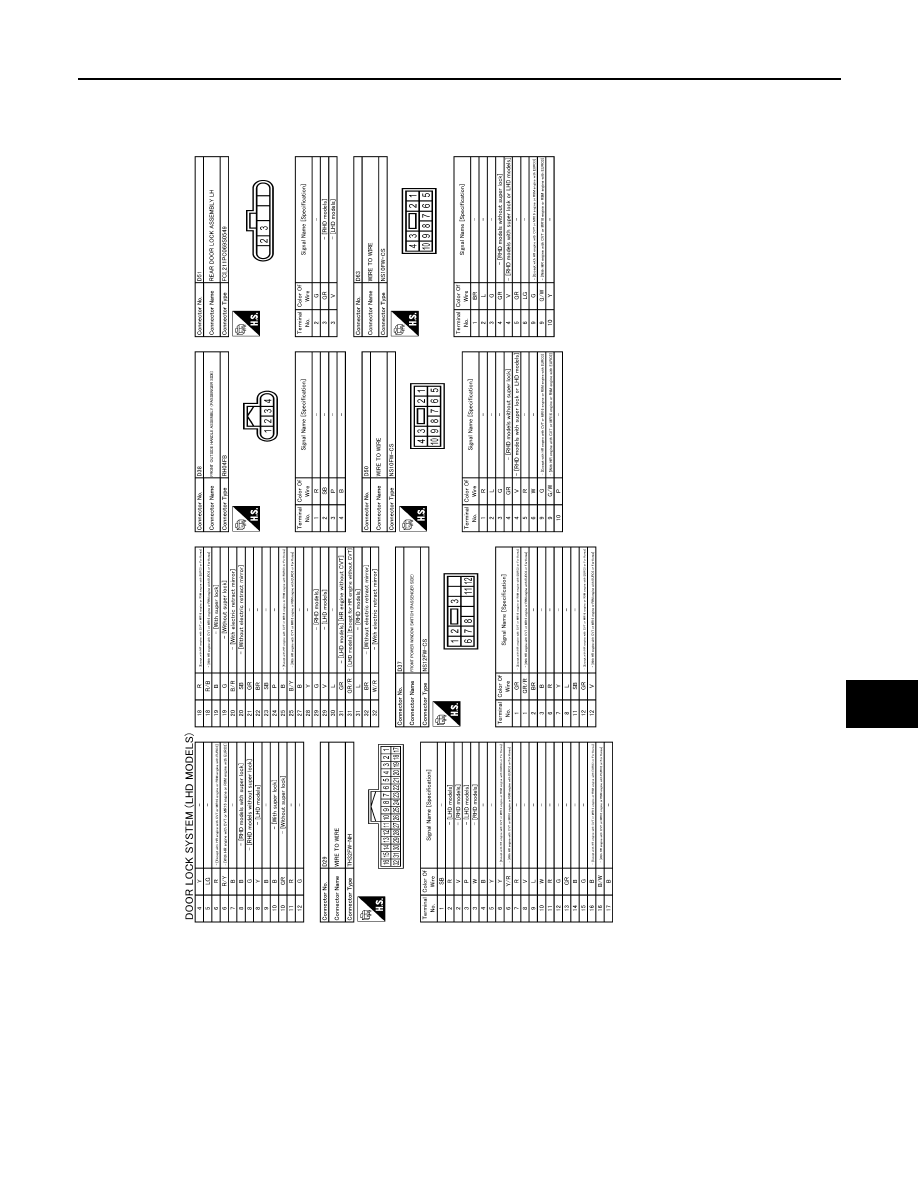

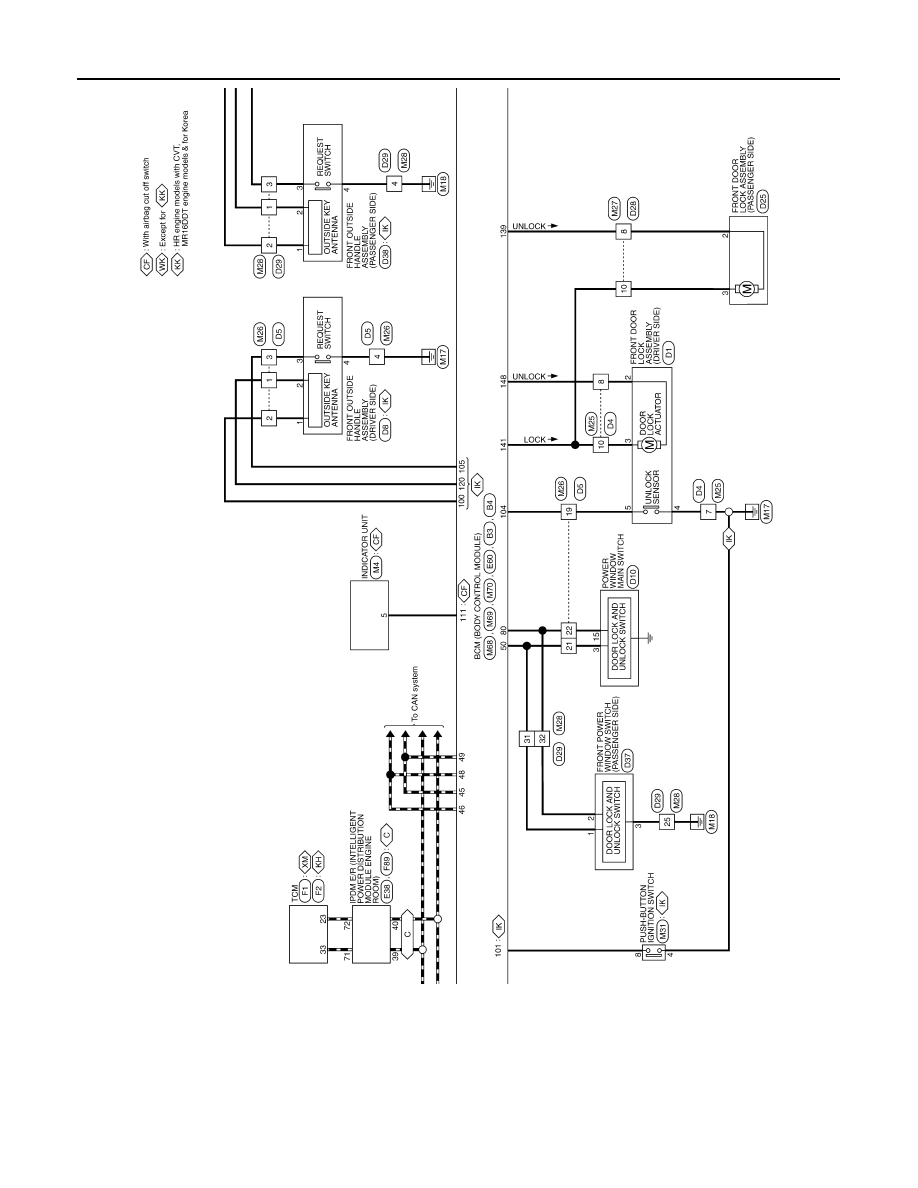

DIAGNOSIS SYSTEM (BCM) DLK-225 < SYSTEM DESCRIPTION > [TYPE 2] C D E F G H I J L M A B DLK N O P SELF-DIAG RESULT DATA MONITOR NOTE: Monitor item Description INSIDE ANT DIAGNOSIS This function allows inside key antenna self-diagnosis LOCK/UNLOCK BY I-KEY Door lock/unlock function by door request switch mode can be changed to operation in this ENGINE START BY I-KEY Engine start function mode can be changed to operation with this mode TRUNK/GLASS HATCH OPEN NOTE: AUTO LOCK SET Auto door lock operation time can be changed in this mode SHORT CRANKING OUTPUT NOTE: IGN/ACC BATTERY SAVER Ignition battery saver system mode can be changed to operation with this mode ANSWER BACK NOTE: ANSWER BACK I-KEY LOCK UN- Reminder function (door request switch) mode can be selected from the following with this ANSWER BACK KEYLESS LOCK Reminder function (Intelligent Key) mode can be selected from the following with this mode WELCOME LIGHT OP SET NOTE: Monitor Item Condition REQ SW -DR Indicates [On/Off] condition of door request switch (driver side) REQ SW -AS Indicates [On/Off] condition of door request switch (passenger side) REQ SW -BD/TR Indicates [On/Off] condition of back door request switch PUSH SW Indicates [On/Off] condition of push-button ignition switch CLUTCH SW* 1 Indicates [On/Off] condition of clutch interlock switch BRAKE SW 1 Indicates [On/Off]* 2 condition of stop lamp switch power supply BRAKE SW 2 Indicates [On/Off] condition of stop lamp switch DETE/CANCL SW Indicates [On/Off] condition of P position START CLUTCH SW Indicates [On/Off] condition of clutch pedal position switch PUSH SW -IPDM Indicates [On/Off] condition of push-button ignition switch |
