received by tire pressure receiver, and controls the low tire pres-
sure warning lamp operations. It also has a judgment function to
detect a system malfunction.

Tire Pressure Sensor

INFOID:0000000010339509

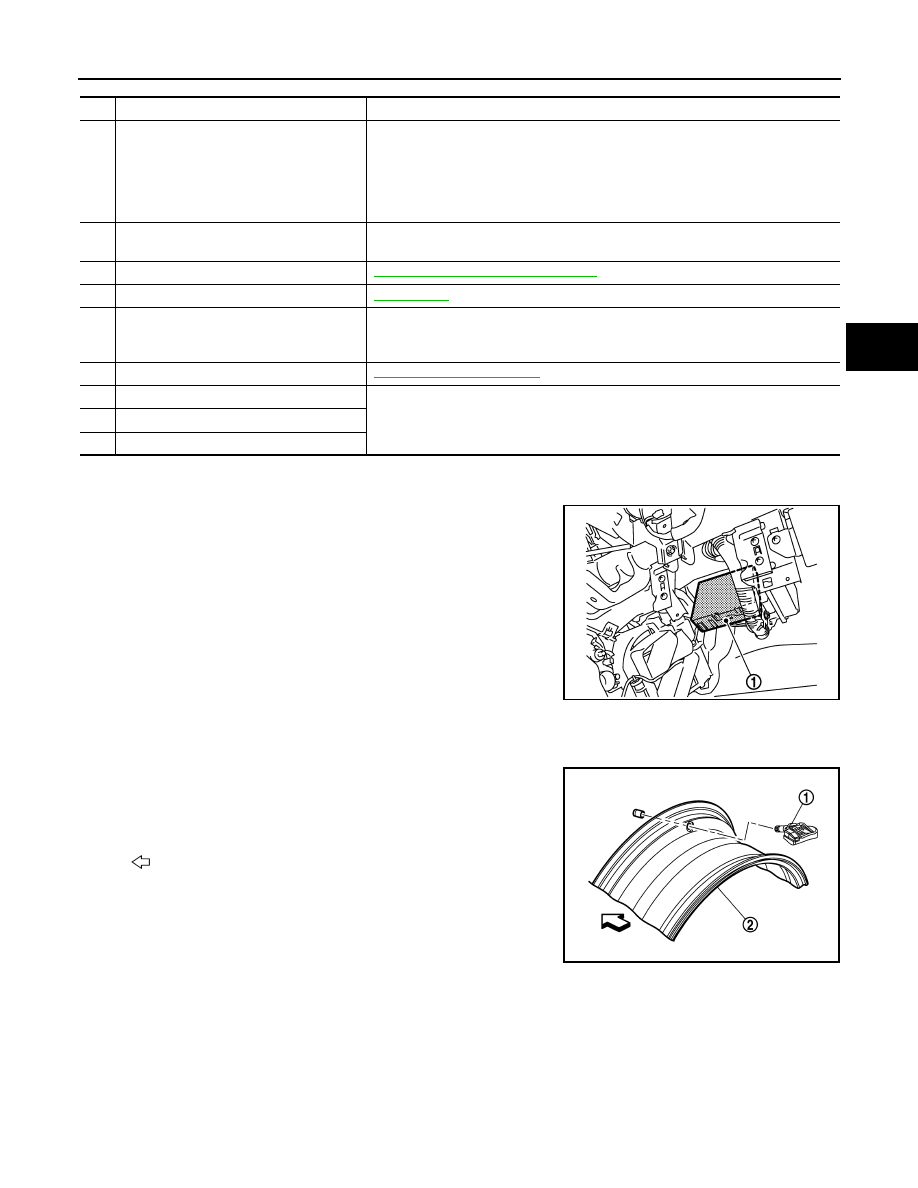

The tire pressure sensor (1) integrated with the valve is installed in
each wheel (2), and transmits the detected tire pressure and tire
temperature signal in the form of the radio wave. The radio signal is
received by the BCM (tire pressure receiver).

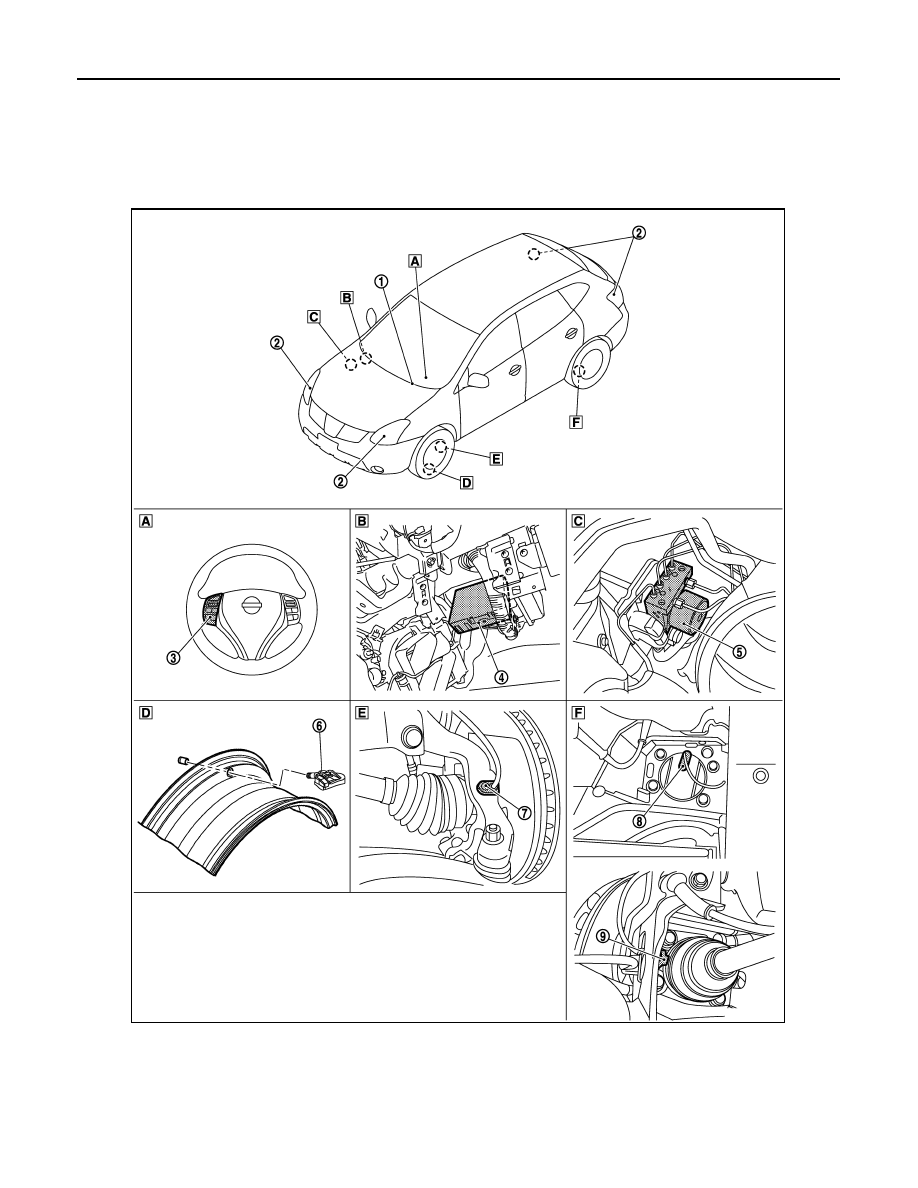

No.

Component parts

Function

Combination meter

Mainly receives the following signals from BCM via CAN communication.
• Low tire pressure warning lamp signal
• Low tire pressure wheel location signal
• TPMS malfunction warning lamp signal
Mainly transmits the following signals to BCM via CAN communication.
• TPMS reset signal

Turn signal lamp (Hazard warning lamp)

ID registration of each wheel has been completed, turn signal lamp (hazard warning
lamp) flashes.

Steering wheel switches

WT-14, "TPMS temperature calibration"

BCM

WT-9, "BCM"

ABS actuator and electric unit (control unit)

Mainly transmits the following signals to BCM via CAN communication.
• Vehicle speed signal (ABS)
• wheel sensor pulse signal (ABS)

Tire pressure sensor

WT-9, "Tire Pressure Sensor"

Front wheel sensor

Location of wheel is specified due to the synchronism of wheel sensor position and
tire pressure sensor position.

Rear wheel sensor (2WD)

Rear wheel sensor (4WD)

JMEIA0245ZZ

: Outside

JSEIA0747ZZ

WT-10

< SYSTEM DESCRIPTION >

[WITH TPMS]

SYSTEM

SYSTEM

System Description

INFOID:0000000010339510

• During driving, the TPMS (Tire Pressure Monitoring System) receives the signal transmitted from tire pres-

sure sensor installed in each wheel. The BCM of this system has pressure judgment and trouble diagnosis
functions. When the TPMS (Tire Pressure Monitoring System) detects low inflation pressure or another
unusual symptom, the low tire pressure warning lamps in the combination meter comes on.

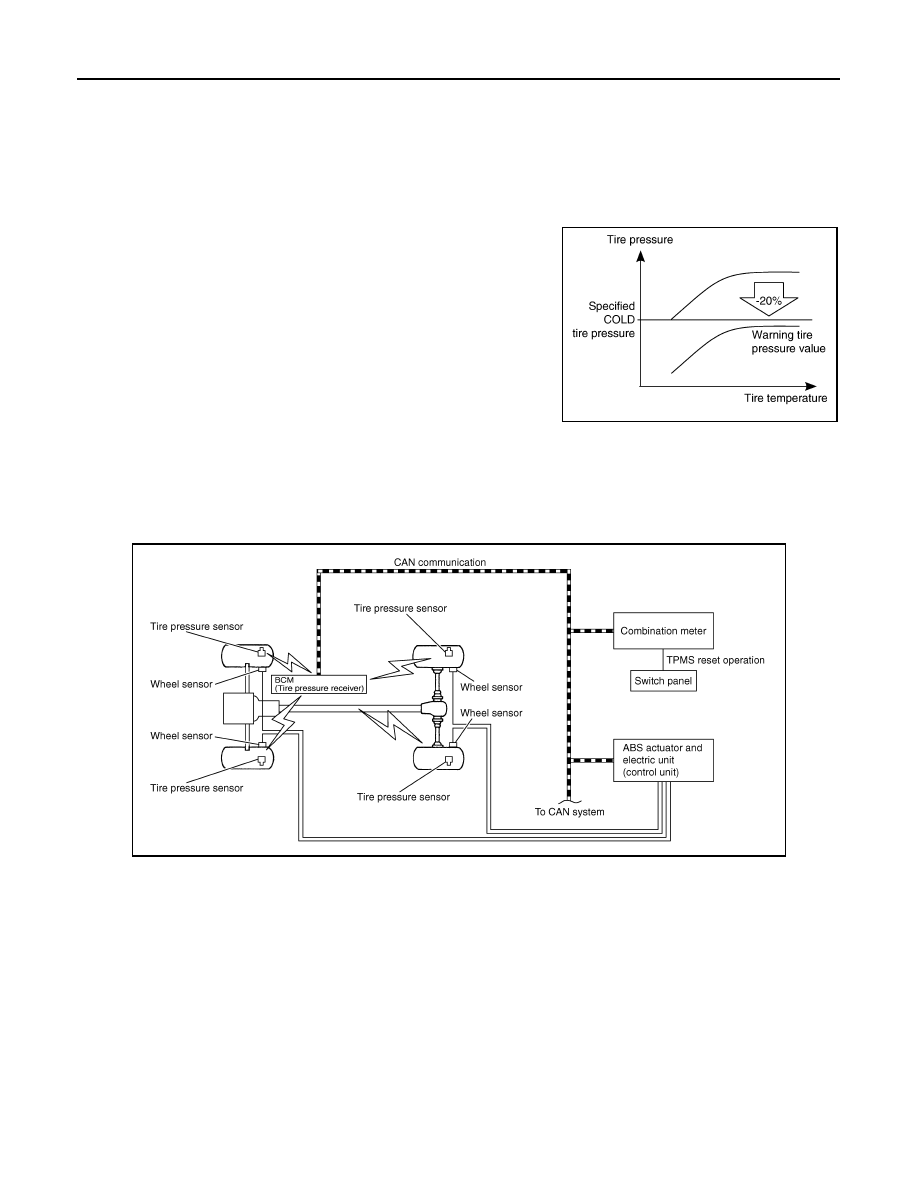

• Tire pressure varies as per the change in tire temperature. There-

fore, warning tire pressure value is varied as per the change in tire
temperature. TPMS temperature calibration is required for record-
ing basic temperature and tire pressure at the time of adjusting tire
pressure.

• If the tire pressure is less than the warning tire pressure value, the

low tire pressure warning lamp illuminates.

• Location of wheel is specified due to the synchronism of wheel sensor position and tire pressure sensor

position.

• Activates the TPMS (Tire Pressure Monitoring System) when the vehicle speed is 40 km/h (25 MPH) or

more.

SYSTEM DIAGRAM

INPUT/OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

JMEIA0240GB

JMEIA0246GB

SYSTEM

WT-11

< SYSTEM DESCRIPTION >

[WITH TPMS]

LOW TIRE PRESSURE WARNING LAMP INDICATION CONDITION

Uses CAN communication from the BCM to illuminate the low tire pressure warning lamp on the combination
meter.

TPMS TEMPERATURE CLIBRATION CONDITION

TPMS temperature calibration the following conditions.
• Adjust tire pressure.
• Replace tire or road wheel. Refer to

WT-60, "Removal and Installation"

• After performing tire rotation. Refer to

WT-59, "Tire Rotation"

TPMS temperature calibration: Refer to

WT-14, "TPMS temperature calibration"

HAZARD WARNING LAMP INDICATION CONDITION

The hazard warning lamp blinks under the following conditions.
• When ID registration is completed. Refer to

WT-29, "Work Procedure"

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp

INFOID:0000000010339511

INFORMATION DISPLAY (COMBINATION METER)

Component parts

Signal item

BCM

Mainly transmits the following signals to combination meter via CAN communication.
• Low tire pressure warning lamp signal
• Low tire pressure wheel location signal
• TPMS malfunction warning lamp signal
Mainly receives the following signals from combination meter via CAN communication.
• TPMS reset signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• Vehicle speed signal (ABS)
• Wheel sensor pulse signal (ABS)

Combination meter

ABS actuator and electric unit (con-
trol unit)

Mainly transmits the following signals to BCM via CAN communication.
• Vehicle speed signal (ABS)
• Wheel sensor pulse signal (ABS)

Condition

Low tire pressure warning lamp

Ignition switch OFF

OFF

Ignition switch ON
(system normal)

Warning lamp turns ON for 1 second, then turns OFF.

Low tire pressure

Configuration not performed in tire pressure
monitoring system

Warning lamp blinks 1 minute, then turns ON.

Tire pressure sensor ID not registered in BCM

Tire pressure monitoring system malfunction
(Other diagnostic item)

Name

Design

Layout/Function

Low tire pressure warn-
ing lamp

For layout, refer to

MWI-7, "Component Description"

For function, refer to

WT-47, "Symptom Table"

WT-12

< SYSTEM DESCRIPTION >

[WITH TPMS]

SYSTEM

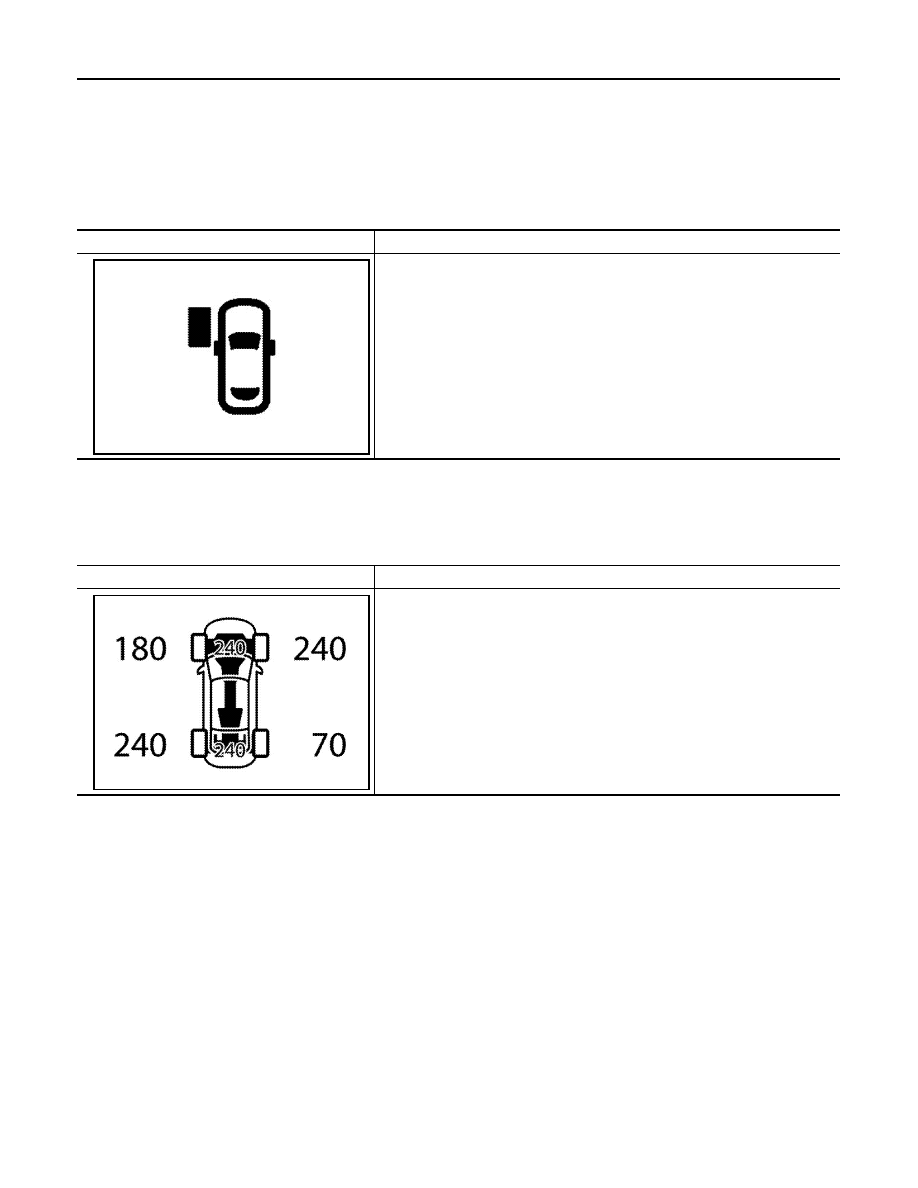

INFORMATION DISPLAY (COMBINATION METER) : Low Tire Pressure Location In-
dicator

INFOID:0000000010362967

The low tire pressure location indicator is displayed in the information display of combination meter with the
low tire pressure warning lamp and warning message when following conditions;
• Tire pressure is low.
• Tire goes flat.

INFORMATION DISPLAY (COMBINATION METER) : Tire Pressure Display

INFOID:0000000010435830

The adoption of this function allows tire pressure indication on the information display installed to the combina-
tion meter.

Design

Description

Following warning message is displayed with low tire pressure warning lamp and
low tire pressure location indicator when BCM detects low tire pressure or flat tire.
• Tyre Pressure Low Add AIr
• Flat Tyre Visit Dealer

JMEIA0247ZZ

Design

Description

• Tire pressure of each tire is displayed at side of each tire.
• Setting tire pressure of front and rear tires are displayed between front/rear

tires.

JMEIA0248ZZ

OPERATION

WT-13

< SYSTEM DESCRIPTION >

[WITH TPMS]

OPERATION

Recommended tire pressure setting

INFOID:0000000010415455

DESCRIPTION

Recommended tire pressure setting can set the tire pressure as a TPMS reference value.
NOTE:
• Setting is done separately in the front and rear tires.
• When “Factory reset”“SETTINGS” menu is performed, recommended tire pressure setting can be reset back

to the factory default. Set the recommended tire pressure setting again if necessary.

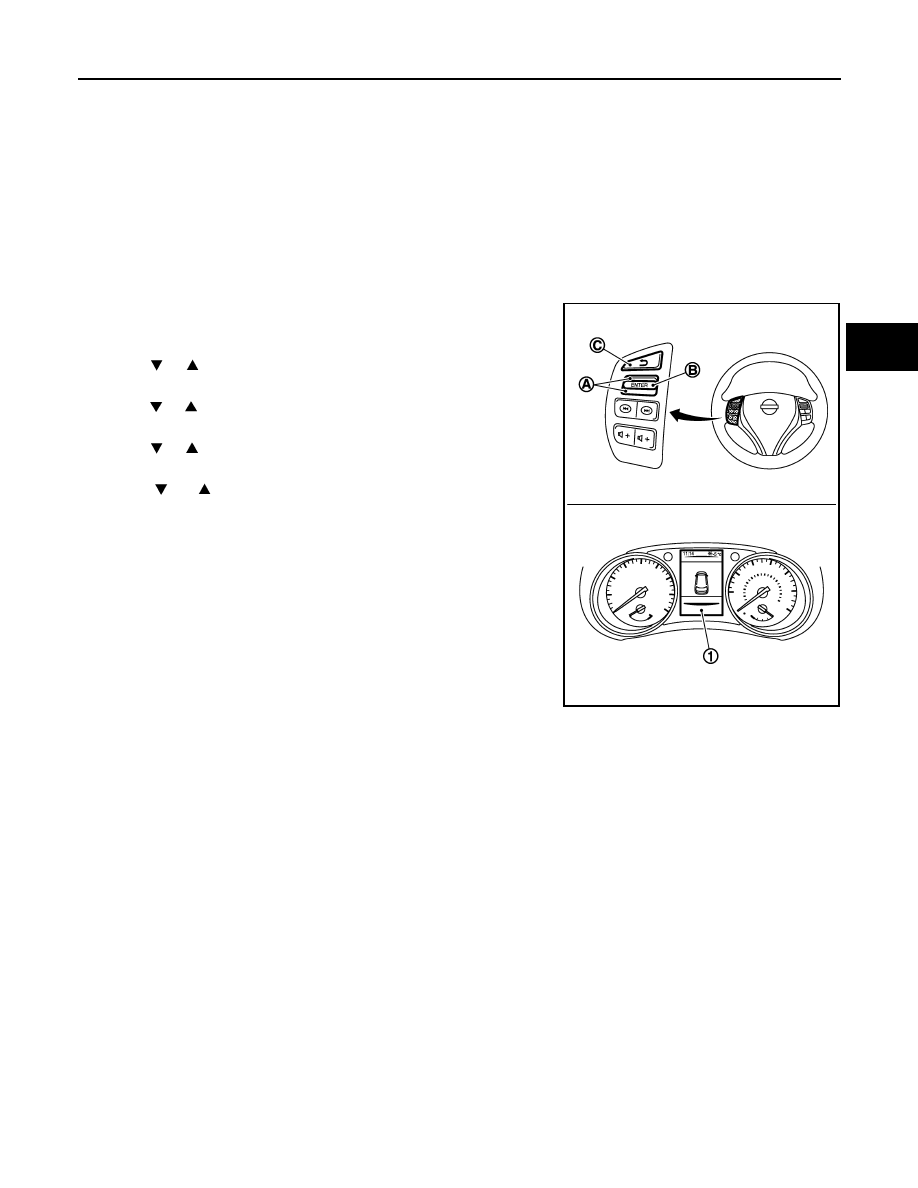

RECOMMENDED TIRE PRESSURE SETTING PROCEDURE

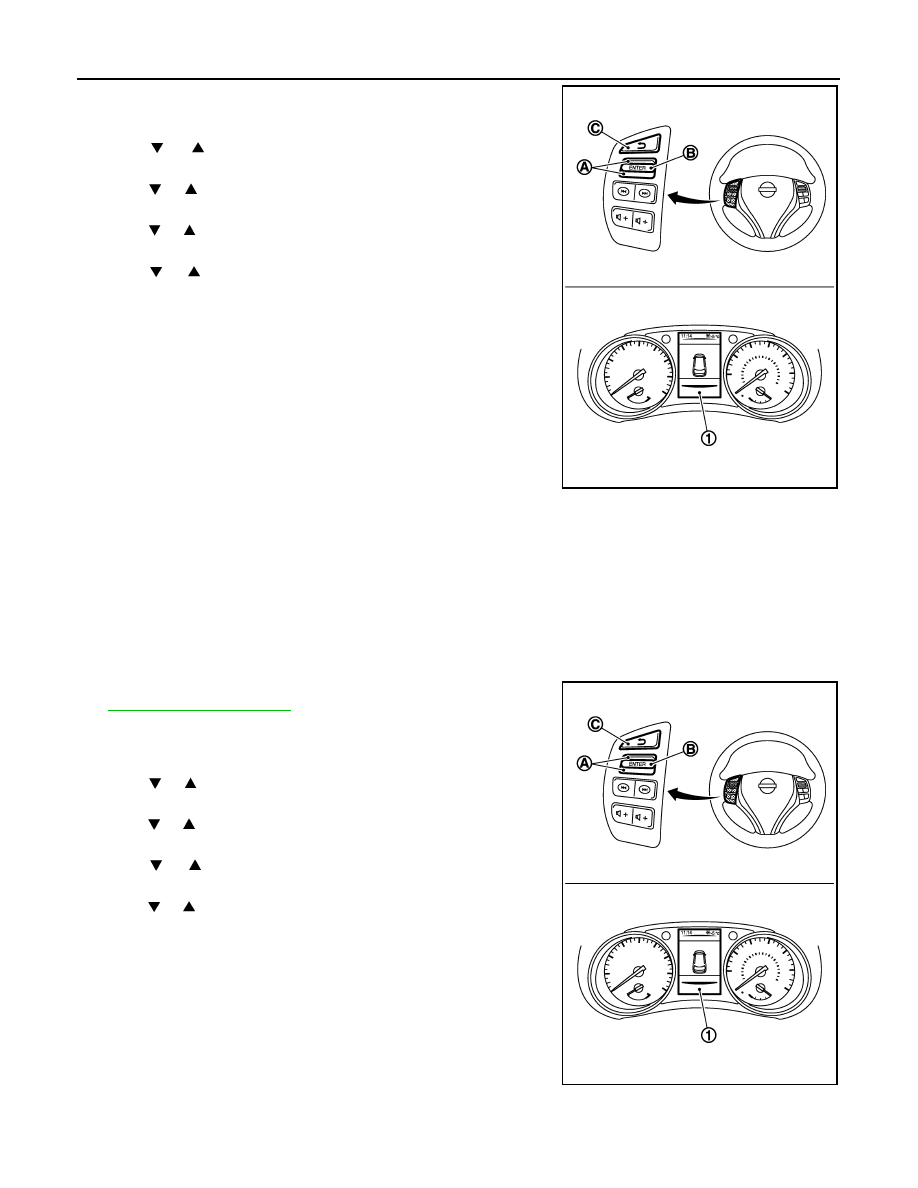

Place Ignition in the ON position.

CAUTION:

Never start the engine.

Push or button (A) to select “SETTINGS” in the information
display (1), then press ENTER button (B).

Push or button (A) to select “Tyre pressures” in the informa-
tion display (1), then press ENTER button (B).

Push or button (A) to select “Target front” or “Target rear” in
the information display (1), then press ENTER button (B).

Push or button (A) to select tire pressure, then press
ENTER button (B) to set recommended tire pressure.

NOTE:
Press the BACK button (C) to return to the previous display screen
or menu level, or to cancel the selection if it is not completed.

Tire pressure unit setting

INFOID:0000000010415457

DESCRIPTION

Tire pressure unit setting can change tire pressure unit.
NOTE:
Tire pressure unit can be selected from “kPa”, “psi”, “bar” and “kgf/cm

”.

TIRE PRESSURE UNIT SETTING PROCEDURE

JMEIA0249ZZ

WT-14

< SYSTEM DESCRIPTION >

[WITH TPMS]

OPERATION

Place Ignition in the ON position.

CAUTION:

Never start the engine.

Push or button (A) to select “SETTINGS” in the vehicle
information display (1), then press ENTER button (B).

Push or button (A) to select “Tyre pressures” in the vehicle
information display (1), then press ENTER button (B).

Push or button (A) to select “Tyre pressure unit” in the vehi-
cle information display (1), then press ENTER button (B).

Push or button (A) to select tire pressure unit, then press
ENTER button (B) to set tire pressure unit.

NOTE:
• Press the BACK button (C) to return to the previous display screen

or menu level, or to cancel the selection if it is not completed.

• Tire pressure unit can be changed from “Units” of “SETTINGS”

menu as well.

TPMS temperature calibration

INFOID:0000000010339513

DESCRIPTION

TPMS temperature calibration sets the current temperature as the TPMS reference value.
This procedure must be performed:
• After tire pressure adjustment
• After tire or road wheel replacement
• After performing tire rotation

TPMS TEMPERRATURE CALIBRATION PROCEDURE

Adjust tire pressure for all wheels to the specified value. Refer to

WT-66, "Tire Air Pressure"

Place Ignition in the ON position.

CAUTION:

Never start the engine.

Push or button (A) to select “SETTINGS” in the information
display (1), then press ENTER button (B).

Push or button (A) to select “Tyre pressures” in the informa-
tion display (1), then press ENTER button (B).

Push or button (A) to select “Calibrate” in the information
display (1), then press ENTER button (B).

Push or button (A) to select “Start” in the information display
(1), then press ENTER button (B) to start calibration precess.
NOTE:
When the calibration process is active, message “Resetting tyre
pressure system” will be displayed in the information display (1).

Drive the vehicle between 25 km/h (16 MPH) and 100 km/h (62
MPH) for 2 minutes or more.
NOTE:
The TPMS settings are updated to driving.

CAUTION:

TPMS detects low tire pressure after this calibration. Before
calibration finish, low tire warning lamp does not turn ON. (This is not broken.)

NOTE:

JMEIA0249ZZ

OPERATION

WT-15

< SYSTEM DESCRIPTION >

[WITH TPMS]

Press the BACK button (C) to return to the previous display screen or menu level, or to cancel the selection if
it is not completed.

WT-16

< SYSTEM DESCRIPTION >

[WITH TPMS]

DIAGNOSIS SYSTEM (TIRE PRESSURE MONITORING SYSTEM)

DIAGNOSIS SYSTEM (TIRE PRESSURE MONITORING SYSTEM)

CONSULT Function (TIRE PRESSURE MONITORING SYSTEM)

INFOID:0000000010339514

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

ACTIVE TEST

ECU IDENTIFICATION

BCM part number can be read.

SELF DIAGNOSTIC RESULT

NOTE:
Before performing Self Diagnostic Result, be sure to register the tire pressure sensor ID or the actual malfunc-
tion may be different from that displayed on CONSULT.
Refer to following:

WT-20, "DTC Index"

FREEZE FRAME DATA (FFD)

The following vehicle status is recorded when DTC is detected and is displayed on CONSULT.

Diagnosis mode

Function Description

ECU identification

Parts number of BCM can be read.

Active Test

Send the drive signal from CONSULT to the actuator. The operation check can be performed.

Self Diagnostic Result

Retrieve DTC from BCM and display diagnostic items.

Self Diagnostic Result

Self-diagnostic results and freeze frame data can be read and erased quickly.

Data Monitor

Monitor the input/output signal of the BCM in real time.

Work Support

This mode enables a technician to adjust some devices faster and more accurately.

Re/programming, Configuration

• Read and save the vehicle specification (TYPE ID).
• Write the vehicle specification (TYPE ID) when replacing BCM.

Test Item

Description

FLASHER

This test is able to check turn signal lamp operation [On/Off].

WARNING LAMP

This test is able to check tire pressure warning lamp operation [On/Off].

ID REGIST WARNING

This test is able to check ID regist warning chime operation [On/Off].

HORN

This test is able to check horn operation [On].

Item name

Display item

SET AIR PRESSURE 2 FL

Tire pressure calculated by reference temperature front left tire

SET AIR PRESSURE 2 FR

Tire pressure calculated by reference temperature front right tire

SET AIR PRESSURE 2 RR

Tire pressure calculated by reference temperature rear right tire

SET AIR PRESSURE 2 RL

Tire pressure calculated by reference temperature rear left tire

WARNING AIR PRESSURE FL

Warning air pressure front left

WARNING AIR PRESSURE FR

Warning air pressure front right

WARNING AIR PRESSURE RR

Warning air pressure rear right

WARNING AIR PRESSURE RL

Warning air pressure rear left

AIR PRESS FL

Air pressure front left

AIR PRESS RL

Air pressure front right

AIR PRESS RR

Air pressure rear right

AIR PRESS RL

Air pressure rear left

SET TEMPERATURE

Set temperature

TIRE TEMPERATURE FL

Tire temperature front left

DIAGNOSIS SYSTEM (TIRE PRESSURE MONITORING SYSTEM)

WT-17

< SYSTEM DESCRIPTION >

[WITH TPMS]

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

WORK SUPPORT

TIRE TEMPERATURE FR

Tire temperature front right

TIRE TEMPERATURE RR

Tire temperature rear right

TIRE TEMPERATURE RL

Tire temperature rear left

Item name

Display item

Monitor Item (Unit)

Description

Vehicle Speed (km/h)

Vehicle speed of the moment a particular DTC is detected

AIR PRESS FL (kPa, kgf/cm

or Psi)

Indicates air pressure of front left tire.

AIR PRESS FR (kPa, kgf/cm

or Psi)

Indicates air pressure of front right tire.

AIR PRESS RR (kPa, kgf/cm

or Psi)

Indicates air pressure of rear right tire.

AIR PRESS RL (kPa, kgf/cm

or Psi)

Indicates air pressure of rear left tire.

LOW TIRE PRESSURE W/L (Off/On)

Indicates condition of low tire pressure warning lamp in combination meter.

BUZZER 2 (Off/On)

Indicates condition of buzzer in combination meter.

TIRE TEMPERATURE FL (

Indicates tire temperature of front left tire.

TIRE TEMPERATURE FR (

Indicates tire temperature of front right tire.

TIRE TEMPERATURE RR (

Indicates tire temperature of rear right tire.

TIRE TEMPERATURE RL (

Indicates tire temperature of rear left tire.

HAZARD (Off/On)

Indicates condition of hazard.

WARNING AIR PRESSURE FL (kPa, kgf/cm

or Psi)

Indicates warning air pressure front left tire.

WARNING AIR PRESSURE FR (kPa, kgf/cm

or Psi)

Indicates warning air pressure front right tire.

WARNING AIR PRESSURE RR (kPa, kgf/cm

or Psi)

Indicates warning air pressure rear right tire.

WARNING AIR PRESSURE RL (kPa, kgf/cm

or Psi)

Indicates warning air pressure rear left tire.

SET AIR PRESSURE 1 FL (kPa, kgf/cm

or Psi)

Reference pressure front left tire.

SET AIR PRESSURE 1 FR (kPa, kgf/cm

or Psi)

Reference pressure front right tire.

SET AIR PRESSURE 1 RR (kPa, kgf/cm

or Psi)

Reference pressure rear right tire.

SET AIR PRESSURE 1 RL (kPa, kgf/cm

or Psi)

Reference pressure rear left tire.

SET AIR PRESSURE 2 FL (kPa, kgf/cm

or Psi)

Tire pressure calculated by reference temperature front left tire.

SET AIR PRESSURE 2 FR (kPa, kgf/cm

or Psi)

Tire pressure calculated by reference temperature front right tire.

SET AIR PRESSURE 2 RR (kPa, kgf/cm

or Psi)

Tire pressure calculated by reference temperature rear right tire.

SET AIR PRESSURE 2 RL (kPa, kgf/cm

or Psi)

Tire pressure calculated by reference temperature rear left tire.

SET TEMPERATURE (

Reference temperature registered after resetting the TPMS.

TPMS SET SWITCH (Off/On)

Indicates condition of tire pressure monitor system set switch.

HORN (Off/On)

Indicates condition of horn.

Support Item

Description

ID REGIST

Refer to

WT-29, "Description"

WT-18

< ECU DIAGNOSIS INFORMATION >

[WITH TPMS]

TIRE PRESSURE MONITORING SYSTEM

ECU DIAGNOSIS INFORMATION

TIRE PRESSURE MONITORING SYSTEM

Reference Value

INFOID:0000000010417793

VALUES ON THE DIAGNOSIS TOOL

CAUTION:

The reference values in the table below come from the control unit calculation data. The normal values
may in some cases be displayed even though the power circuit (harness) is open or shorted.
NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor item

Data monitor

Condition

Reference values for normal operation

VHCL SPEED SE

Drive the vehicle.

Vehicle speed (km/h) or (MPH)

AIR PRESS FL

• Drive at a speed of 40 km/h (25 MPH)

or more then drive normally for 10 min-
utes.

• Turn the ignition switch ON and use the

activation tool to transmit the registra-
tion signal.

Tire pressure (kPa), (kgf/cm

) or (Psi)

AIR PRESS FR

AIR PRESS RR

AIR PRESS RL

LOW TIRE PRESSURE W/L

Ignition switch ON

Low tire pressure warning lamp ON: On
Low tire pressure warning lamp OFF: Off

BUZZER 2

Ignition switch ON

Combination meter buzzer ON: On
Combination meter buzzer OFF: Off

TIRE TEMPERATURE FL

Ignition switch ON

Indicates tire temperature of front left tire (

TIRE TEMPERATURE FR

Ignition switch ON

Indicates tire temperature of front right tire (

TIRE TEMPERATURE RR

Ignition switch ON

Indicates tire temperature of rear right tire (

TIRE TEMPERATURE RL

Ignition switch ON

Indicates tire temperature of rear left tire (

HAZARD

Ignition switch ON

Hazard lamp ON: On
Hazard lamp OFF: Off

WARNING AIR PRESSURE FL

Ignition switch ON

Indicates warning air pressure front left tire (kPa),

(kgf/cm

) or (Psi)

WARNING AIR PRESSURE FR

Ignition switch ON

Indicates warning air pressure front right tire (kPa),

(kgf/cm

) or (Psi)

WARNING AIR PRESSURE RR

Ignition switch ON

Indicates warning air pressure rear right tire (kPa),

(kgf/cm

) or (Psi)

WARNING AIR PRESSURE RL

Ignition switch ON

Indicates warning air pressure rear left tire (kPa), (kgf/

) or (Psi)

SET AIR PRESSURE 1 FL

Ignition switch ON

Reference pressure front left tire (kPa), (kgf/cm

) or

(Psi)

SET AIR PRESSURE 1 FR

Ignition switch ON

Reference pressure front right tire (kPa), (kgf/cm

) or

(Psi)

SET AIR PRESSURE 1 RR

Ignition switch ON

Reference pressure rear right tire (kPa), (kgf/cm

) or

(Psi)

SET AIR PRESSURE 1 RL

Ignition switch ON

Reference pressure rear left tire (kPa), (kgf/cm

) or

(Psi)

SET AIR PRESSURE 2 FL

Ignition switch ON

Tire pressure calculated by reference temperature

front left tire (kPa), (kgf/cm

) or (Psi)

SET AIR PRESSURE 2 FR

Ignition switch ON

Tire pressure calculated by reference temperature

front right tire (kPa), (kgf/cm

) or (Psi)

TIRE PRESSURE MONITORING SYSTEM

WT-19

< ECU DIAGNOSIS INFORMATION >

[WITH TPMS]

TERMINAL LAYOUT

Refer to

BCS-64, "Reference Value"

PHYSICAL VALUES

Refer to

BCS-64, "Reference Value"

DTC Inspection Priority Chart

INFOID:0000000010417794

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

SET AIR PRESSURE 2 RR

Ignition switch ON

Tire pressure calculated by reference temperature

rear right tire (kPa), (kgf/cm

) or (Psi)

SET AIR PRESSURE 2 RL

Ignition switch ON

Tire pressure calculated by reference temperature

rear left tire (kPa), (kgf/cm

) or (Psi)

SET TEMPERATURE

Ignition switch ON

Reference temperature registered after resetting the
TPMS (

TPMS SET SWITCH

Ignition switch ON

TPMS reset switch ON: On
TPMS reset switch OFF: Off

HORN

Ignition switch ON

Horn ON: On

Monitor item

Data monitor

Condition

Reference values for normal operation

Priority

Detected items (DTC)

C1769 CONFIG SETTING

C1734 CONTROL UNIT

C1735 IGNITION SIGNAL

• U1000 CAN COMM CIRCUIT
• U1010 CONTROL UNIT (CAN)

C1729 VHCL SPEED SIG ERR

• C1765 WHEEL TOP DATA FL
• C1766 WHEEL TOP DATA FR
• C1767 WHEEL TOP DATA RL
• C1768 WHEEL TOP DATA RR

• C1716 [PRESSDATA ERR] FL
• C1717 [PRESSDATA ERR] FR
• C1718 [PRESSDATA ERR] RR
• C1719 [PRESSDATA ERR] RL

• C1761 TEMPERATURE DATA FL
• C1762 TEMPERATURE DATA FR
• C1763 TEMPERATURE DATA RR
• C1764 TEMPERATURE DATA RL

• C1708 [NO DATA] FL
• C1709 [NO DATA] FR
• C1710 [NO DATA] RR
• C1711 [NO DATA] RL

• C1704 LOW PRESSURE FL
• C1705 LOW PRESSURE FR
• C1706 LOW PRESSURE RR
• C1707 LOW PRESSURE RL

• C1770 G SENSOR FL
• C1771 G SENSOR FR
• C1772 G SENSOR RL
• C1773 G SENSOR RR

WT-20

< ECU DIAGNOSIS INFORMATION >

[WITH TPMS]

TIRE PRESSURE MONITORING SYSTEM

DTC Index

INFOID:0000000010417795

NOTE:
If some DTCs are displayed at the same time, refer to

WT-19, "DTC Inspection Priority Chart"

DTC

Items (CONSULT screen terms)

Reference

C1704

LOW PRESSURE FL

WT-32, "DTC Description"

C1705

LOW PRESSURE FR

C1706

LOW PRESSURE RR

C1707

LOW PRESSURE RL

C1708

[NO DATA] FL

WT-34, "DTC Description"

C1709

[NO DATA] FR

C1710

[NO DATA] RR

C1711

[NO DATA] RL

C1716

[PRESSDATA ERR] FL

WT-36, "DTC Description"

C1717

[PRESSDATA ERR] FR

C1718

[PRESSDATA ERR] RR

C1719

[PRESSDATA ERR] RL

C1729

VHCL SPEED SIG ERR

WT-37, "DTC Description"

C1734

CONTROL UNIT

WT-38, "DTC Description"

C1735

IGNITION SIGNAL

WT-39, "DTC Description"

C1761

TEMPERATURE DATA FL

WT-40, "DTC Description"

C1762

TEMPERATURE DATA FR

C1763

TEMPERATURE DATA RR

C1764

TEMPERATURE DATA RL

C1765

WHEEL TOP DATA FL

WT-41, "DTC Description"

C1766

WHEEL TOP DATA FR

C1767

WHEEL TOP DATA RL

C1768

WHEEL TOP DATA RR

C1769

CONFIG SETTING

WT-42, "DTC Description"

C1770

G SENSOR FL

WT-43, "DTC Description"

C1771

G SENSOR FR

C1772

G SENSOR RL

C1773

G SENSOR RR

U1000

CAN COMM CIRCUIT

WT-44, "DTC Description"

U1010

CONTROL UNIT (CAN)

WT-45, "DTC Description"

Content .. 1 2 ..
