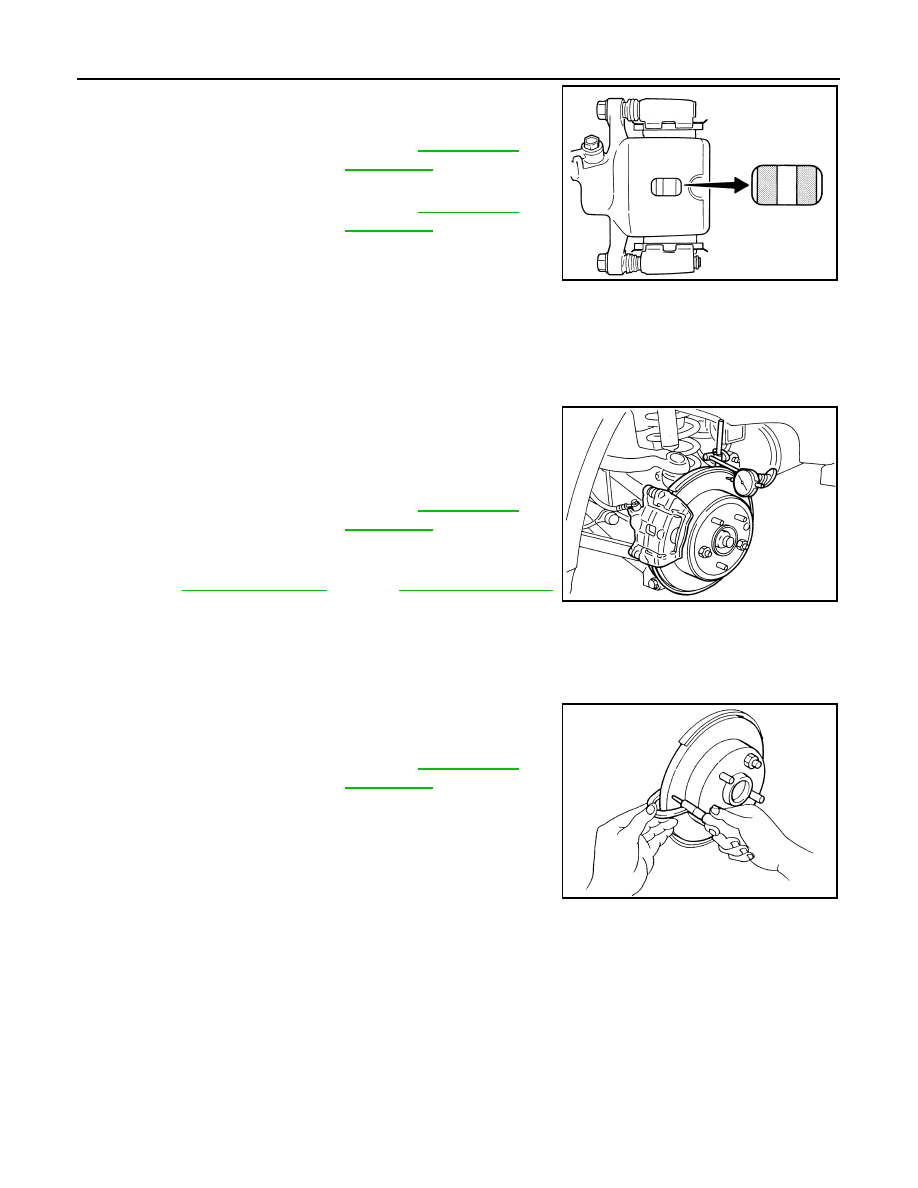

Check pad thickness from an inspection hole on cylinder body.
Check using a scale if necessary.

REAR DISC BRAKE (RHD) : Inspection

INFOID:0000000011497407

APPEARANCE

Check surface of disc rotor for uneven wear, cracks, and serious damage. Replace if there are.

RUNOUT

Fix the disc rotor to the wheel hub and bearing assembly with
wheel nuts (2 points at least).

Inspect the runout with a dial gauge. [Measured at 10 mm (0.39
in) inside disc edge.]

NOTE:
Check the wheel bearing axial end play before the inspection.
Refer to

RAX-3, "Inspection"

(2WD),

RAX-10, "Inspection"

(4WD).

Find the installation position with a minimum runout by shifting the disc rotor-to-wheel hub and bearing
assembly installation position by one hole at a time if the runout exceeds the limit value.

Replace or lathe the disc rotor if the runout exceeds the limit even after the above operation.

THICKNESS

Check the thickness of the disc rotor using a micrometer. Replace
the disc rotor if the thickness is below the wear limit.

STEERING GEAR AND LINKAGE

STEERING GEAR AND LINKAGE : Inspection

INFOID:0000000010355434

STEERING GEAR

Standard thickness

: Refer to

BR-90, "Rear

Disc Brake"

Wear limit thickness

: Refer to

BR-90, "Rear

Disc Brake"

BRA0010D

Runout limit

: Refer to

BR-90, "Rear

Disc Brake"

BRA0697D

Wear limit thickness

: Refer to

BR-90, "Rear

Disc Brake"

SFIA2284E

CHASSIS MAINTENANCE

MA-163

< PERIODIC MAINTENANCE >

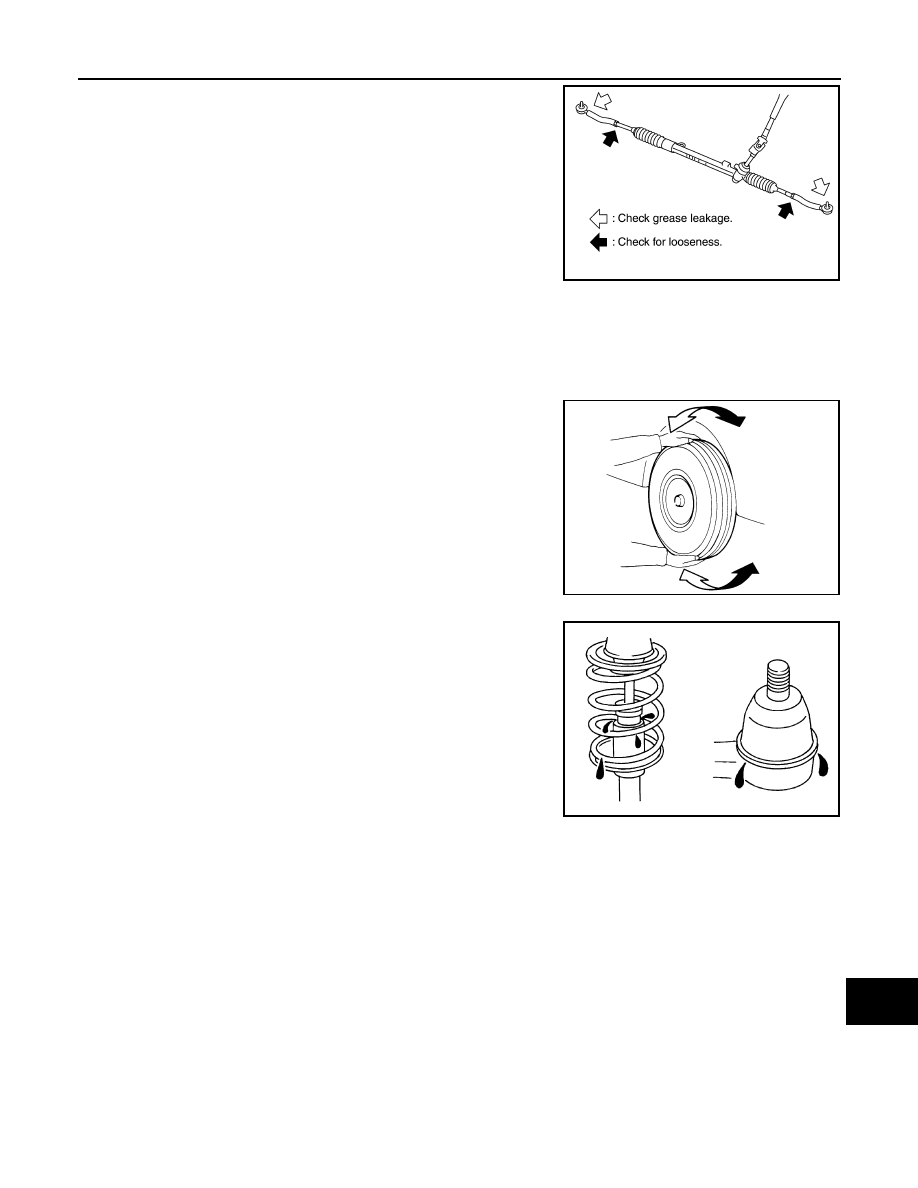

• Check gear housing and boots for looseness, damage and grease

leakage.

• Check connection with steering column for looseness.

STEERING LINKAGE

Check ball joint, dust cover and other component parts for looseness, wear, damage and grease leakage.

AXLE AND SUSPENSION PARTS

AXLE AND SUSPENSION PARTS : Inspection

INFOID:0000000010355435

Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.
• Shake each wheel to check for excessive play.
• Check wheel bearings for smooth operation.
• Check axle and suspension nuts and bolts for looseness.
• Check strut (shock absorber) for oil leakage or other damage.
• Check suspension ball joint for grease leakage and ball joint dust

cover for cracks or other damage.

DRIVE SHAFT

DRIVE SHAFT : Inspection (2WD)

INFOID:0000000011497412

• Check drive shaft mounting point and joint for looseness and other damage.
• Check boot for cracks and other damage.

CAUTION:

Replace entire drive shaft assembly when noise or vibration occur from drive shaft.

DRIVE SHAFT : Inspection (4WD)

INFOID:0000000011497414

INSPECTION AFTER REMOVAL

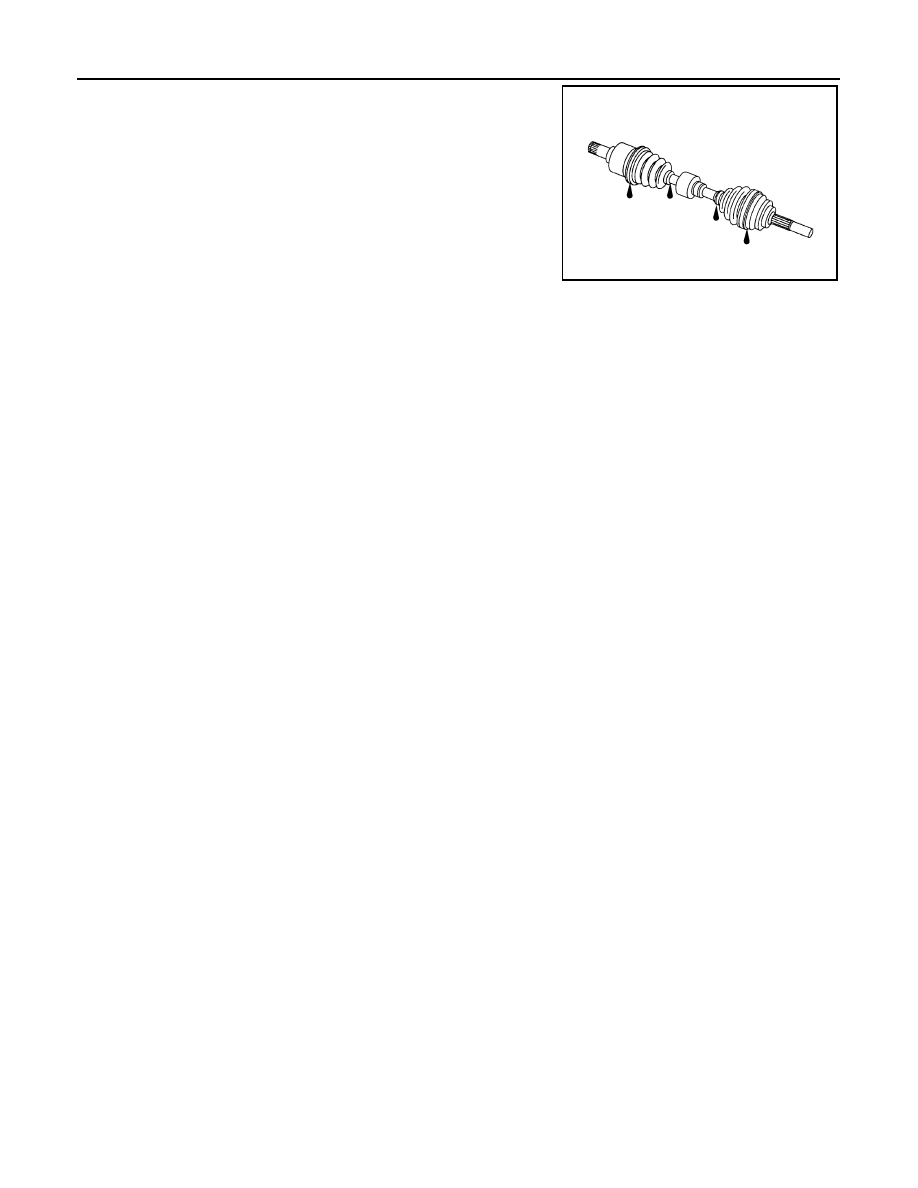

• Move joint up/down, left/right, and in the axial directions. Check for motion that is not smooth and for signifi-

cant looseness.

JPPIA0013GB

SMA525A

JPPIA0011ZZ

MA-164

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

• Check boot for cracks, damage, and leakage of grease.
• Disassemble drive shaft and exchange malfunctioning part if there

is a non-standard condition.

INSPECTION AFTER DISASSEMBLY

Shaft

Check shaft for runout, cracks, or other damage. Replace if there are.

Dynamic Damper

Check damper for cracks or wear. Replace if necessary.

Joint Sub-Assembly (Wheel Side)

Check the following:
• Joint sub-assembly for rough rotation and excessive axial looseness
• The inside of the joint sub-assembly for entry of foreign material
• Joint sub-assembly for compression scars, cracks, and fractures inside of joint sub-assembly
Replace joint sub-assembly if there are any non-standard conditions of components.

Housing and Spider assembly (Transaxle Side)

Replace housing and spider assembly if there is scratching or wear of housing roller contact surface or spider
roller contact surface.
NOTE:
Housing and spider assembly are used in a set.

Support Bearing (Right Side)

Make sure wheel bearing rolls freely and is free from noise, cracks, pitting or wear. Replace support bearing if
there are any non-standard conditions.

Support Bearing Bracket (Right Side)

Check for bending, cracks, or damage. Replace support bearing bracket if there are any non-standard condi-
tions.

SDIA1190J

BODY MAINTENANCE

MA-165

< PERIODIC MAINTENANCE >

BODY MAINTENANCE

LOCKS, HINGES AND HOOD LATCH

LOCKS, HINGES AND HOOD LATCH : Lubricating

INFOID:0000000010355652

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS

SEAT BELT, BUCKLES, RETRACTORS, ANCHORS AND ADJUSTERS : Inspection

INFOID:0000000010355653

For front seat belt illustration. Refer to

SE-24, "Exploded View"

For rear seat belt illustration. Refer to

SE-33, "Exploded View"

CAUTION:

• After any collision, inspect all seat belt assemblies, including retractors and other attached hard-

wares (I.e. anchor bolt, guide rail set). Nissan recommends to replace all seat belt assemblies in use
during a collision, unless not damaged and properly operating after minor collision.
Also inspect seat belt assemblies not in use during a collision, and replace if damaged or improperly
operating.
Seat belt pre-tensioner should be replaced even if the seat belts are not in use during a frontal colli-
sion where the driver and passenger air bags are deployed.

• If any component of seat belt assembly is questionable, do not repair.

Replace as seat belt assembly.

• If webbing is cut, frayed, or damaged, replace belt assembly.
• Never oil tongue and buckle.
• Use a genuine NISSAN seat belt assembly.
For details, refer to

SE-20, "Inspection Procedure"

in SB section.

• Check anchors for loose mounting
• Check belts for damage
• Check retractor for smooth operation
• Check function of buckles and tongues when buckled and released

BODY CORROSION

BODY CORROSION : Checking Body Corrosion

INFOID:0000000010355654

Visually check body panels for collision damage (scratches, chipping, rubbing, etc.) or damage to the anti-cor-
rosion materials. In particular, check the following locations.

HEMMED PANELS

Hood front end, door lower end, trunk lid rear end, etc.

PANEL JOINT

PART

TYPE 1

TYPE 2

TYPE 3

TYPE 4

HOOD
