and/or damage to some part of the vehicle.
WARNING indicates the possibility of personal injury if instructions are not followed.
CAUTION indicates the possibility of component damage if instructions are not followed.
BOLD TYPED STATEMENTS except WARNING and CAUTION give you helpful information.
Standard value: Tolerance at inspection and adjustment.
Limit value: The maximum or minimum limit value that should not be exceeded at inspection and adjust-
ment.

Units

INFOID:0000000010242404

• The UNITS given in this manual are primarily expressed as the SI UNIT (International System of Unit), and

alternatively expressed in the metric system and in the yard/pound system.
Also with regard to tightening torque of bolts and nuts, there are descriptions both about range and about the
standard tightening torque.

“Example”
Range

Standard

Contents

INFOID:0000000010242405

• A QUICK REFERENCE INDEX, a black tab (e.g.

) is provided on the first page. You can quickly find the

first page of each section by matching it to the section's black tab.

• THE CONTENTS are listed on the first page of each section.
• THE TITLE is indicated on the upper portion of each page and shows the part or system.
• THE PAGE NUMBER of each section consists of two or three letters which designate the particular section

and a number (e.g. “BR-5”).

• THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of

work and hidden or tricky steps which are not shown in the previous large illustrations.
Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle
or transmission, etc. are presented in a step-by-step format where necessary.

Outer Socket Lock Nut

: 59 - 78 N·m (6.0 - 8.0 kg-m, 43 - 58 ft-lb)

Drive Shaft Installation Bolt

: 44.3 N·m (4.5 kg-m, 33 ft-lb)

GI-4

< HOW TO USE THIS MANUAL >

HOW TO USE THIS MANUAL

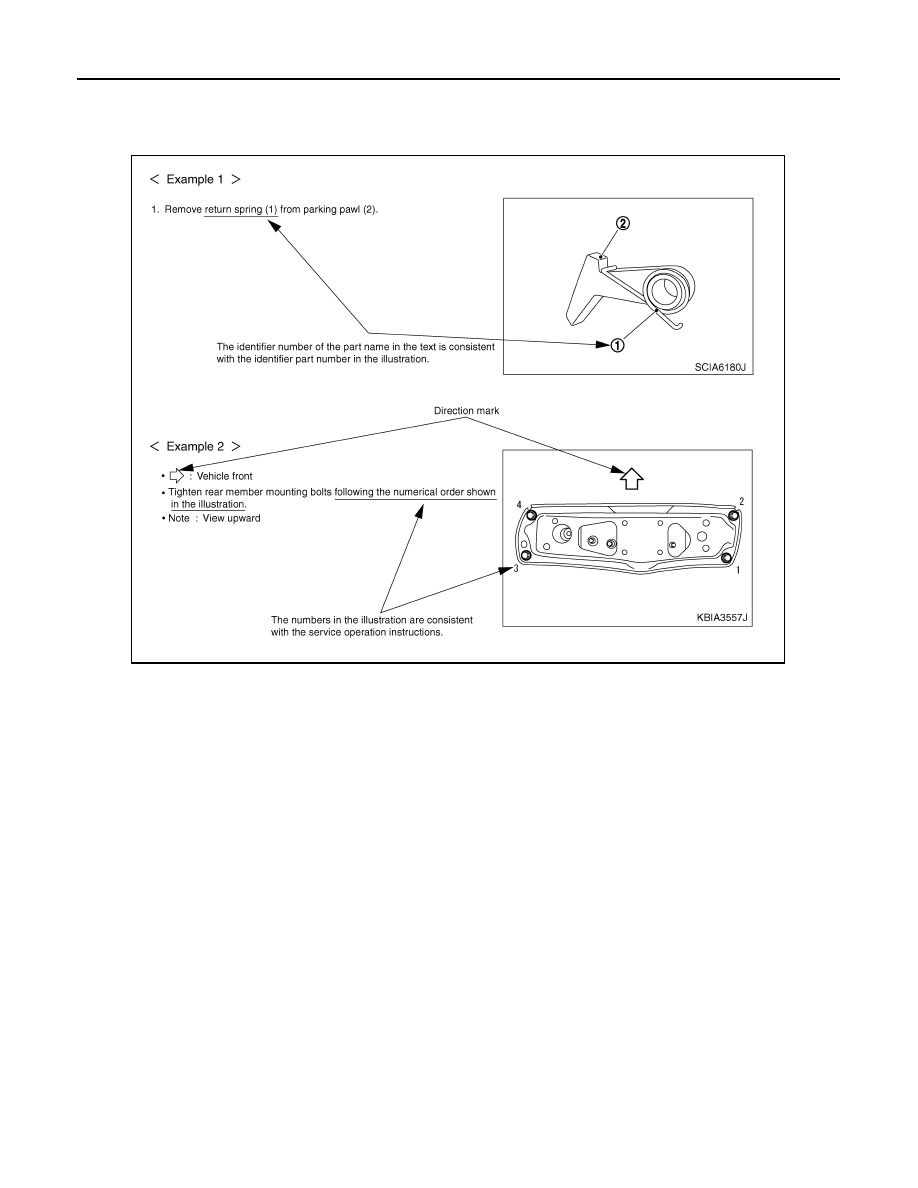

Relation between Illustrations and Descriptions

INFOID:0000000010242406

The following sample explains the relationship between the part description in an illustration, the part name in
the text and the service procedures.

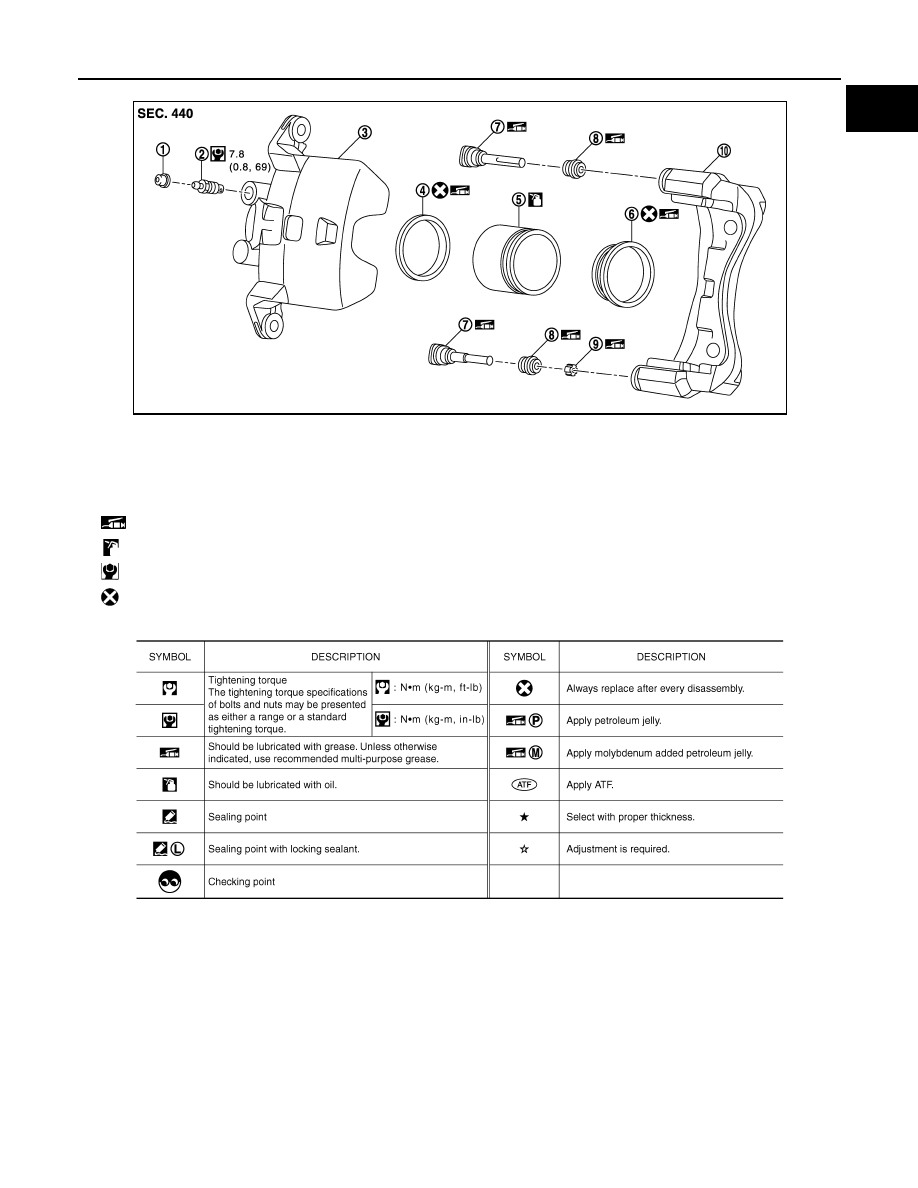

Components

INFOID:0000000010242407

• THE LARGE ILLUSTRATIONS are exploded views (see the following) and contain tightening torques, lubri-

cation points, section number of the PARTS CATALOG (e.g. SEC. 440) and other information necessary to
perform repairs.
The illustrations should be used in reference to service matters only. When ordering parts, refer to the appro-
priate PARTS CATALOG.
Components shown in an illustration may be identified by a circled number. When this style of illustration is
used, the text description of the components will follow the illustration.

SAIA0519E

HOW TO USE THIS MANUAL

GI-5

< HOW TO USE THIS MANUAL >

SYMBOLS

Cap

Bleeder valve

Cylinder body

Piston seal

Piston

Piston boot

Sliding pin

Sliding pin boot

Bushing

10.

Torque member

: Apply rubber grease.

: Apply brake fluid.

: N·m (kg-m, in-lb)

: Always replace after every disassembly

JPFIA0511GB

SAIA0749E

GI-6

< HOW TO USE THIS MANUAL >

HOW TO FOLLOW TROUBLE DIAGNOSES

HOW TO FOLLOW TROUBLE DIAGNOSES

Description

INFOID:0000000010242408

NOTICE:
Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following
instructions before diagnosing.
• Before performing trouble diagnoses, read the “Work Flow” in each section.
• After repairs, re-check that the problem has been completely eliminated.
• Refer to Component Parts and Harness Connector Location for the Systems described in each section for

identification/location of components and harness connectors.

• When checking circuit continuity, ignition switch should be OFF.
• Refer to the Circuit Diagram for quick pinpoint check.

If you need to check circuit continuity between harness connectors in more detail, such as when a sub-har-
ness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG section for identi-
fication of harness connectors.

• Before checking voltage at connectors, check battery voltage.
• After accomplishing the Diagnosis Procedures and Electrical Components Inspection, check that all harness

connectors are reconnected as they were.

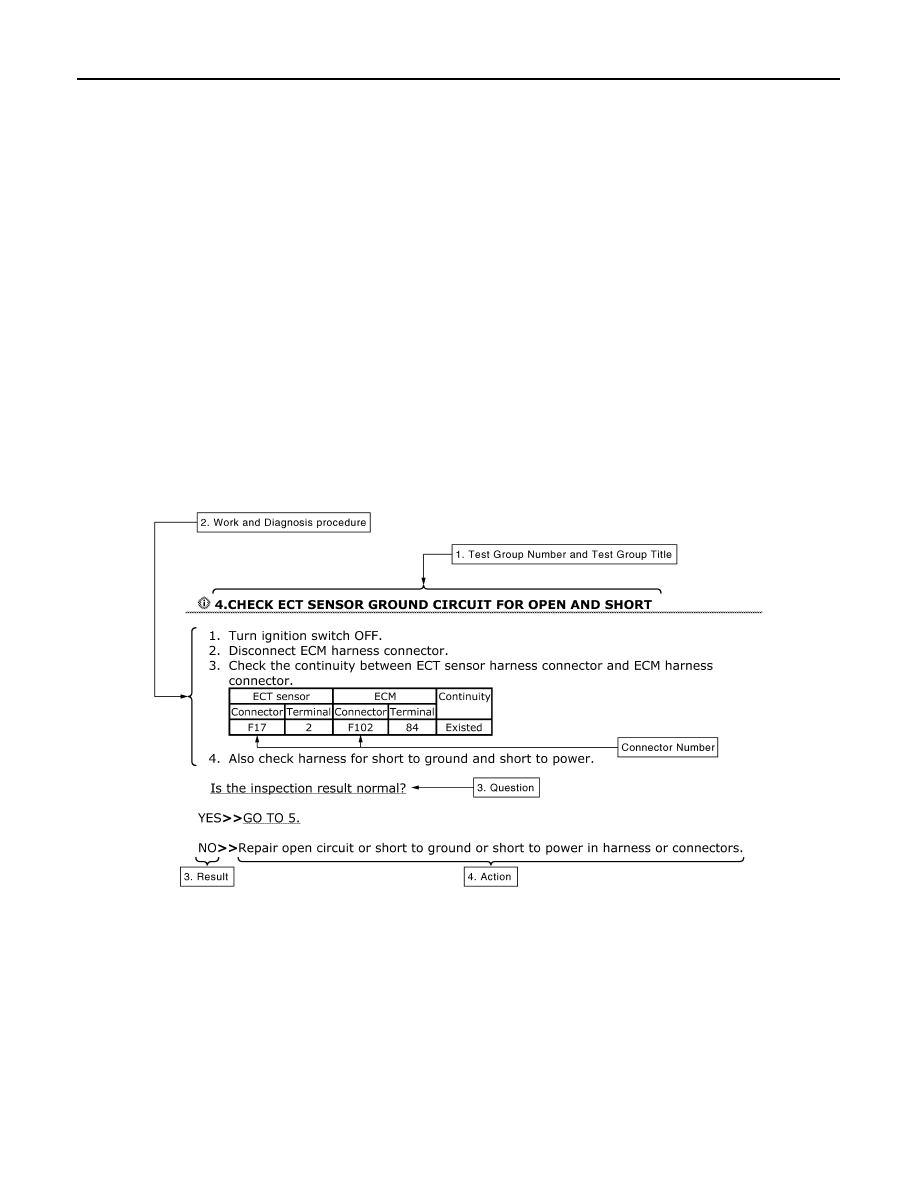

How to Follow Test Groups in Trouble Diagnosis

INFOID:0000000010242409

Test group number and test group title
• Test group number and test group title are shown in the upper portion of each test group.

Work and diagnosis procedure
• Start to diagnose a problem using procedures indicated in enclosed test groups.

Questions and results
• Questions and required results are indicated in test group.

Action
• Next action for each test group is indicated based on result of each question.

JPAIA0021GB

HOW TO FOLLOW TROUBLE DIAGNOSES

GI-7

< HOW TO USE THIS MANUAL >

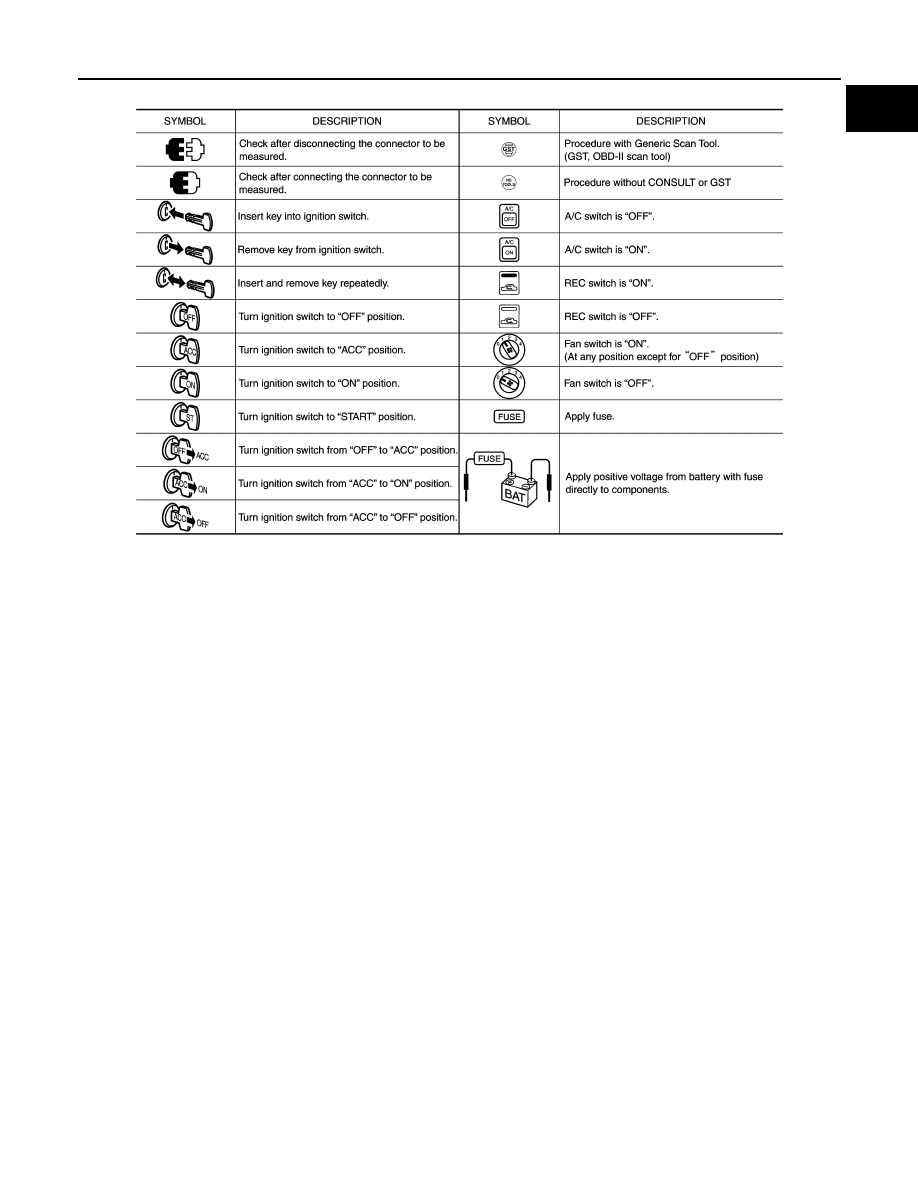

Key to Symbols Signifying Measurements or Procedures

INFOID:0000000010242410

JPAIA0982GB

GI-8

< HOW TO USE THIS MANUAL >

HOW TO FOLLOW TROUBLE DIAGNOSES

JSAIA1461GB

HOW TO READ WIRING DIAGRAMS

GI-9

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

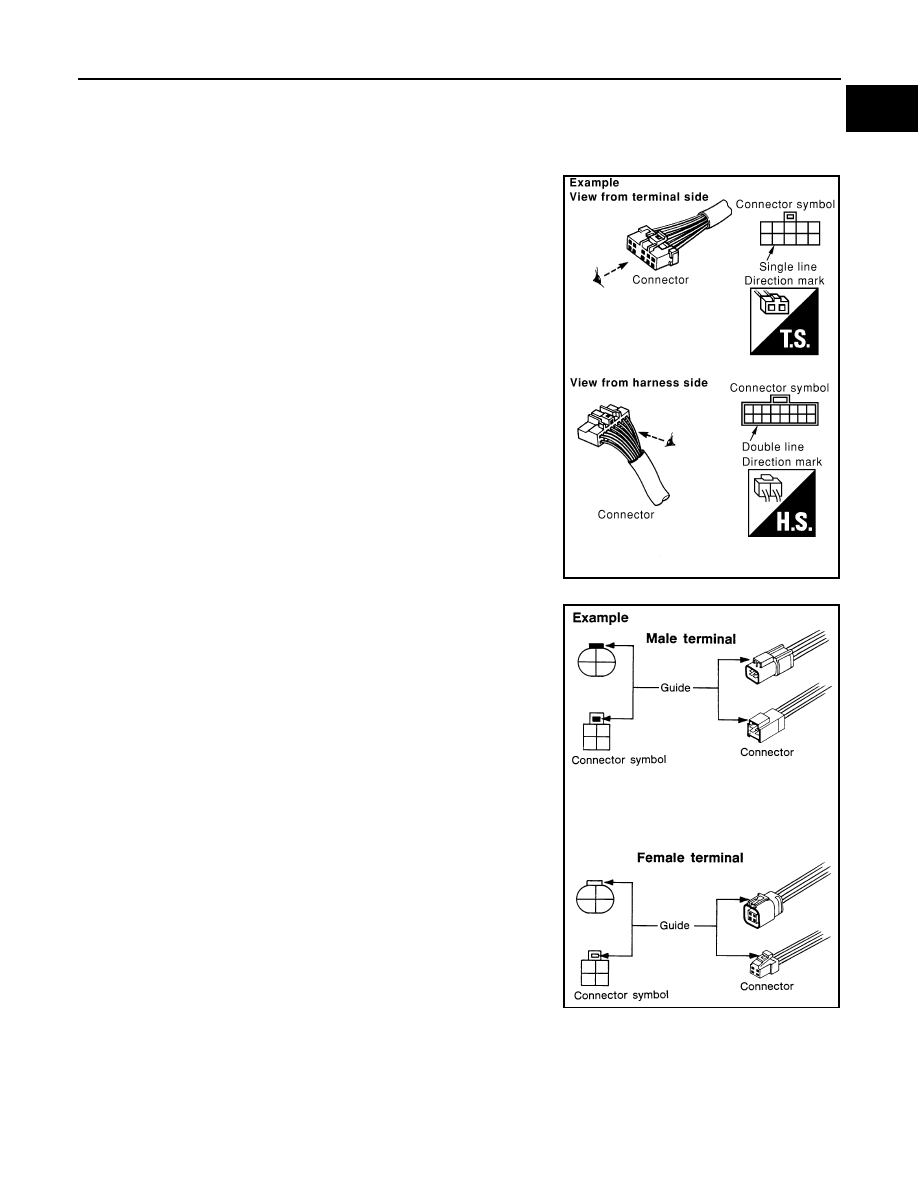

Connector Symbols

INFOID:0000000010242411

Most of connector symbols in wiring diagrams are shown from the terminal side.
• Connector symbols shown from the terminal side are enclosed by

a single line and followed by the direction mark.

• Connector symbols shown from the harness side are enclosed by

a double line and followed by the direction mark.

• Certain systems and components, especially those related to

OBD, may use a new style slide-locking type harness connector.
For description and how to disconnect, refer to PG section,
“Description”, “HARNESS CONNECTOR”.

• Male and female terminals

Connector guides for male terminals are shown in black and
female terminals in white in wiring diagrams.

SAIA0257E

SGI363

GI-10

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

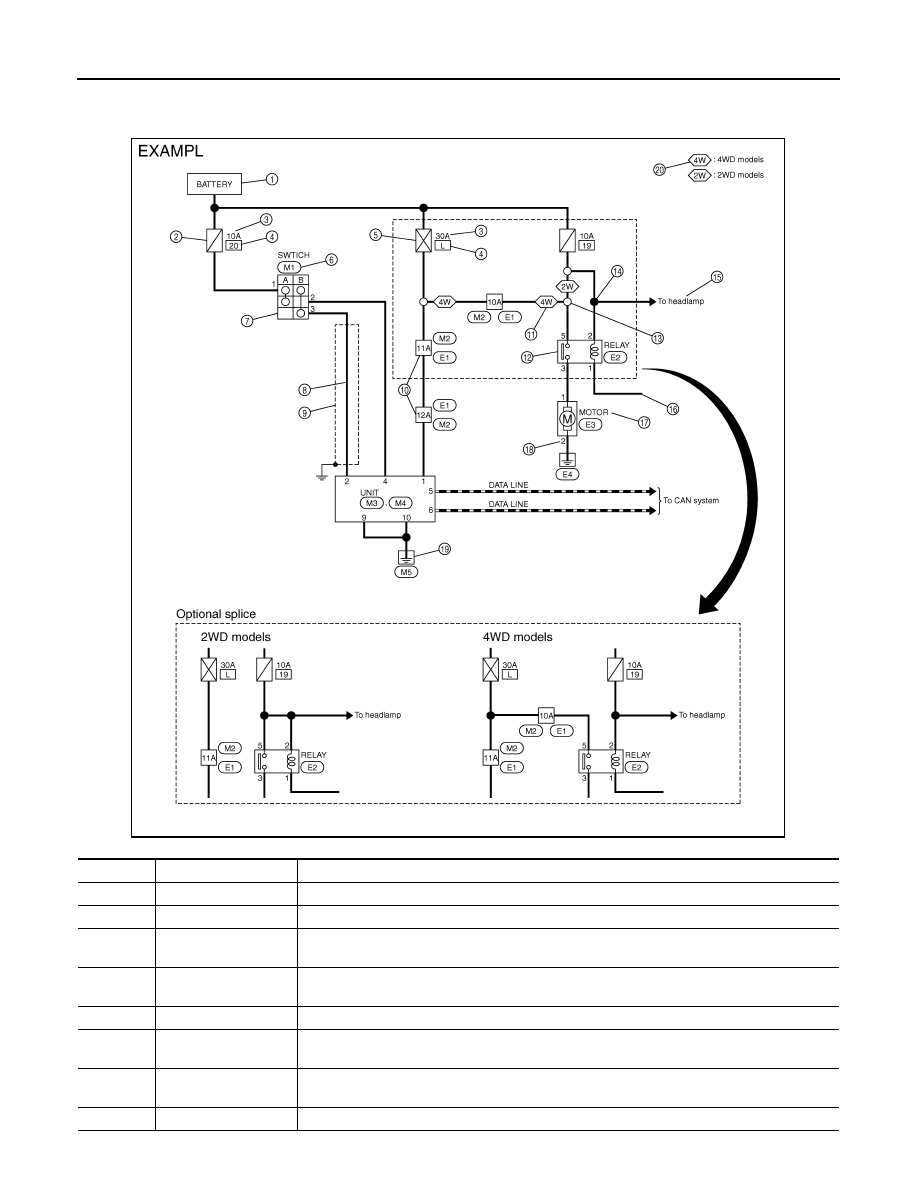

Sample/Wiring Diagram -Example-

INFOID:0000000010242412

Each section includes wiring diagrams.

Description

JCAWA0150GB

Number

Item

Description

Power supply

• This means the power supply of fusible link or fuse.

Fuse

• “/” means the fuse.

Current rating of fusible
link/fuse

• This means the current rating of the fusible link or fuse.

Number of fusible link/
fuse

• This means the number of fusible link or fuse location.

Fusible link

• “X” means the fusible link.

Connector number

• Alphabetic characters show to which harness the connector is placed.
• Numeric characters show the identification number of connectors.

Switch

• This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-

tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.

Circuit (Wiring)

• This means the wiring.

HOW TO READ WIRING DIAGRAMS

GI-11

< HOW TO USE THIS MANUAL >

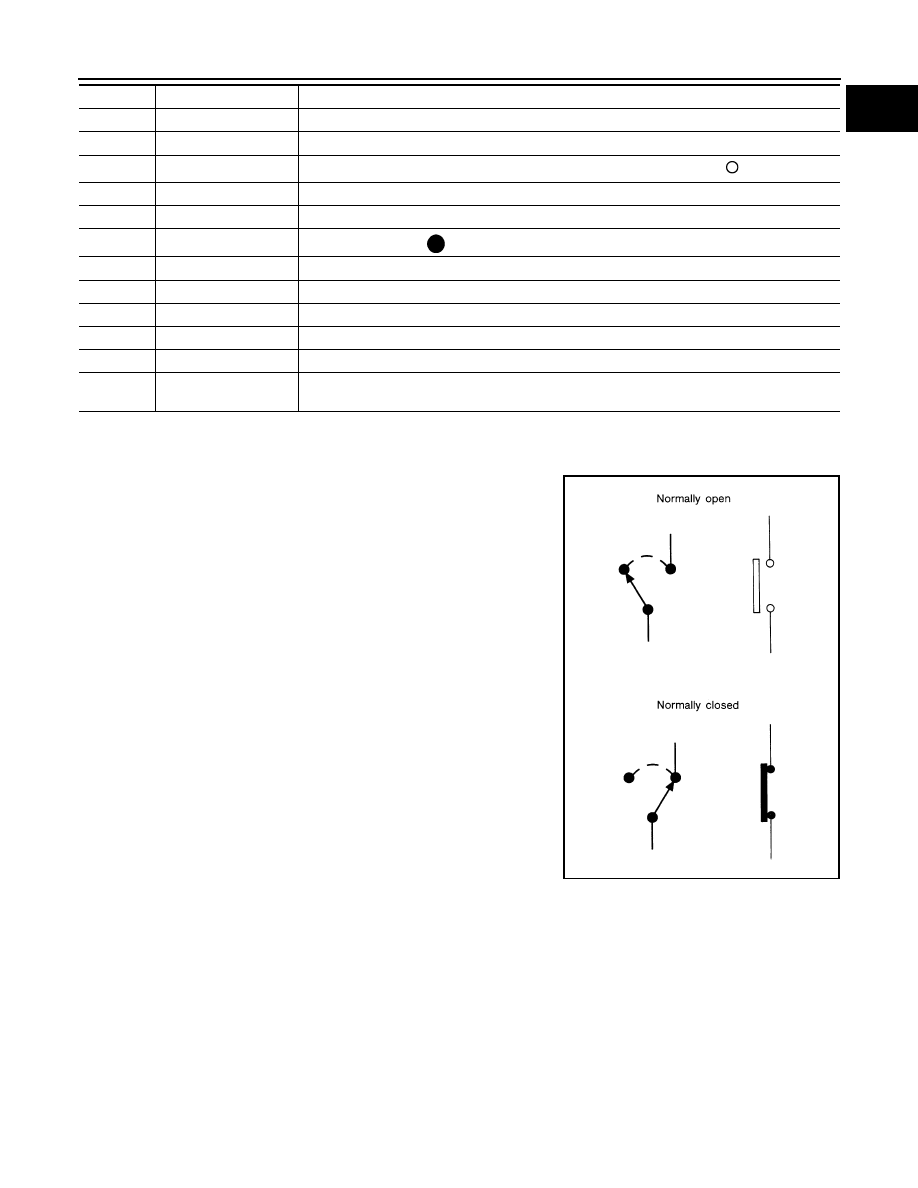

SWITCH POSITIONS

Switches are shown in wiring diagrams as if the vehicle is in the “normal” condition.
A vehicle is in the “normal” condition when:
• ignition switch is “OFF”
• doors, hood and trunk lid/back door are closed
• pedals are not depressed
• parking brake is released

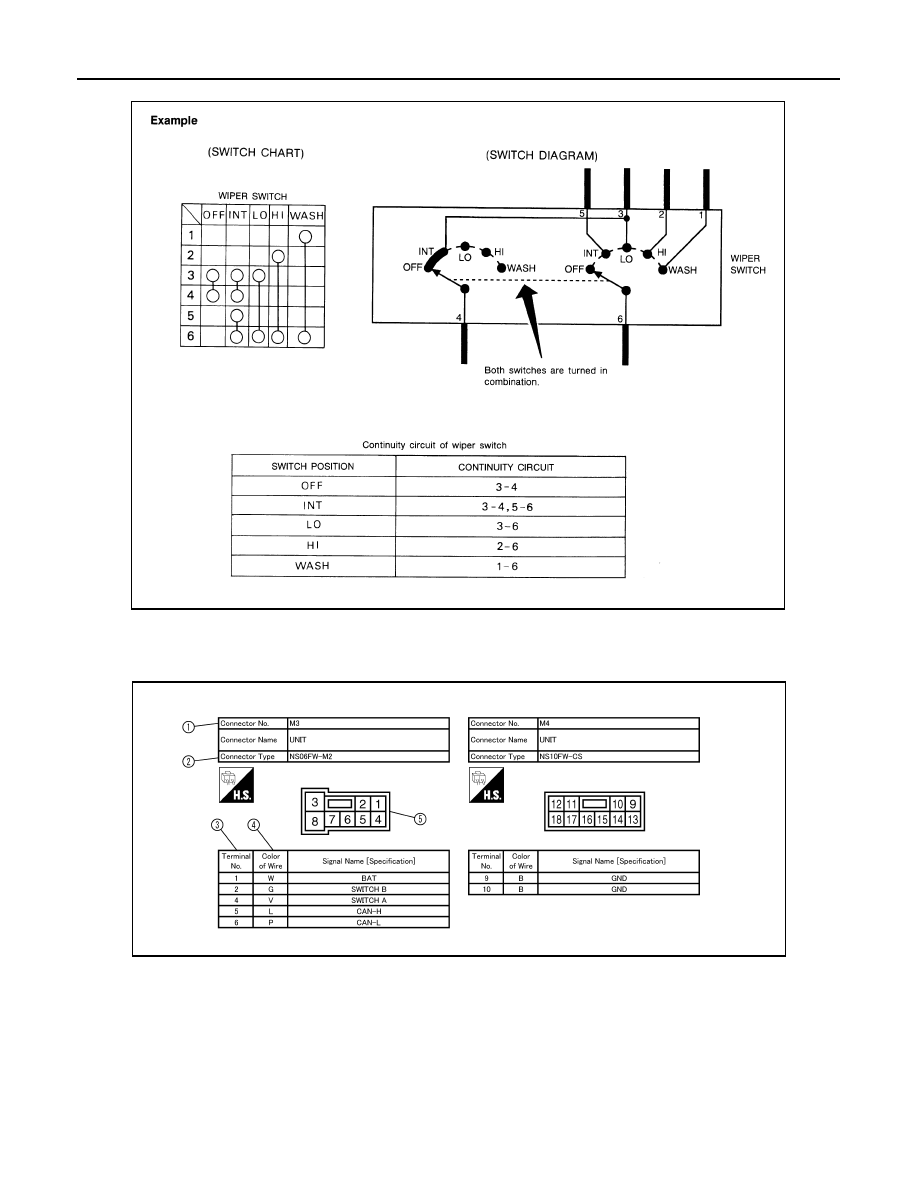

MULTIPLE SWITCH

The continuity of multiple switch is described in two ways as shown below.
• The switch chart is used in schematic diagrams.

Shielded line

• The line enclosed by broken line circle shows shield wire.

Connectors

• This means that a transmission line bypasses two connectors or more.

Option abbreviation

• This means the vehicle specifications which layouts the circuit between “

”.

Relay

• This shows an internal representation of the relay.

Optional splice

• The open circle shows that the splice is optional depending on vehicle application.

Splice

• The shaded circle “

” means the splice.

System branch

• This shows that the circuit is branched to other systems.

Page crossing

• This circuit continues to an adjacent page.

Component name

• This shows the name of a component.

Terminal number

• This means the terminal number of a connector.

Ground (GND)

• This shows the ground connection.

Explanation of option
description

• This shows a description of the option abbreviation used on the page.

Number

Item

Description

SGI860

GI-12

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

• The switch diagram is used in wiring diagrams.

Connector Information

INFOID:0000000010242413

HOW TO USE CONNECTOR INFORMATION

JSAIA0017GB

JCAWA0152GB

HOW TO READ WIRING DIAGRAMS

GI-13

< HOW TO USE THIS MANUAL >

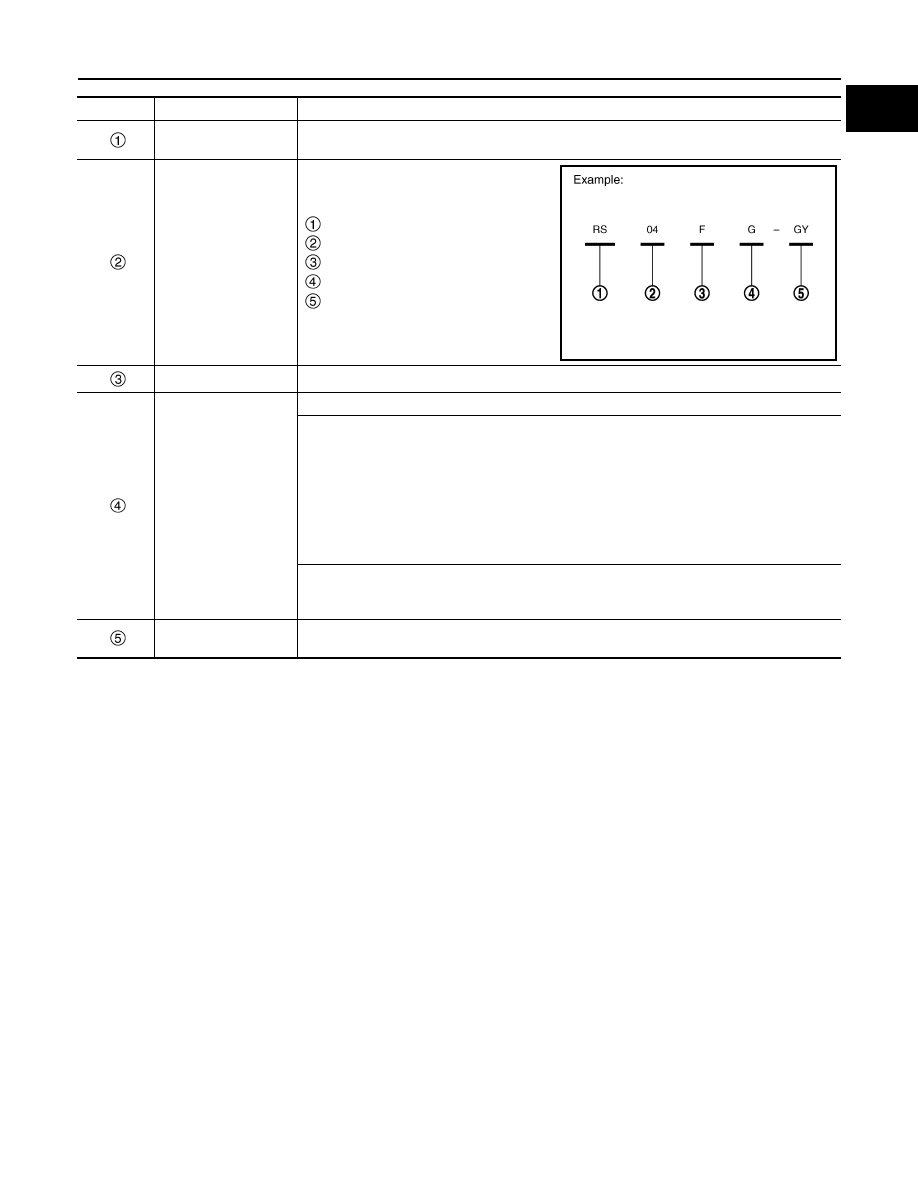

Description

Number

Item

Description

Connector number

• Alphabetic characters show to which harness the connector is placed.
• Numeric characters show the identification number of connectors.

Connector type

: Connector model

: Cavity

: Male (M) and female (F) terminals

: Connector color

: Special type

Terminal number

• This means the terminal number of a connector.

Wire color

• This shows a code for the color of the wire.

B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green
BG or BE = Beige
LA = Lavender

BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green

• When the wire color is striped, the base color is given first, followed by the stripe color as

shown below:
Example: L/W = Blue with White Stripe

Connector

• This means the connector information.
• This unit-side is described by the connector symbols.

JPMIA0113GB

GI-14

< HOW TO USE THIS MANUAL >

ABBREVIATIONS

ABBREVIATIONS

Abbreviation List

INFOID:0000000010242414

The following ABBREVIATIONS are used:

ABBREVIATION

DESCRIPTION

A/C

Air conditioner

A/C

Air conditioning

A/F sensor

Air fuel ratio sensor

A/T

Automatic transaxle/transmission

ABS

Anti-lock braking system

ACCS

Advance climate control system

ACL

Air cleaner

Accelerator pedal

APP

Accelerator pedal position

ATF

Automatic transmission fluid

Audio visual

AWD

All wheel drive

ABBREVIATION

DESCRIPTION

BARO

Barometric pressure

BCI

Back-up collision intervention

BCM

Body control module

BLSD

Brake limited slip differential

BPP

Brake pedal position

BSW

Blind spot warning

ABBREVIATION

DESCRIPTION

CKP

Crankshaft position

Closed loop

CMP

Camshaft position

CPP

Clutch pedal position

CTP

Closed throttle position

CVT

Continuously variable transaxle/transmission

ABBREVIATION

DESCRIPTION

Drive range first gear

Drive range second gear

Drive range third gear

Drive range fourth gear

DCA

Distance control assist

DDS

Downhill drive support

DFI

Direct fuel injection system

DLC

Data link connector

DTC

Diagnostic trouble code
