PRECAUTIONS

BRM-385

< PRECAUTION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

BRM-386

< PRECAUTION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPAIRING HIGH STRENGTH STEEL

REPAIRING HIGH STRENGTH STEEL

High Strength Steel (HSS)

INFOID:0000000010499147

High strength steel is used for body panels in order to reduce vehicle weight.
Accordingly, precautions in repairing automotive bodies made of high strength steel are described below:

Tensile strength

Major applicable parts

440 - 780 MPa

• Trans control reinforcement

(Center front floor assembly component part)

• 2nd crossmember

(Front floor assembly component part)

• 3rd crossmember

(Front floor assembly component part)

• 3rd crossmember reinforcement

(Front floor assembly component part)

• Lower dash crossmember

(Lower dash assembly component part)

• Side dash

(Side dash assembly component part)

• Inner front pillar reinforcement

(Side dash assembly component part)

• Front suspension spring support

(Front strut housing assembly component part)

• Engine mounting bracket reinforcement

(Front strut housing assembly component part)

• Engine mounting bracket

(Front strut housing assembly component part)

• Front bumper reinforcement assembly
• Lower front bumper stay
• Front side member closing plate (Front)

(Side member closing plate assembly component part)

• Outer add on frame bracket

(Side member closing plate assembly component part)

• Closing plate reinforcement

(Side member closing plate assembly component part)

• Front side member assembly
• Engine mounting member bracket assembly
• Front suspension mounting rear bracket assembly
• Inner sill extension

(Rear side member assembly component part)

• Inner rear sill

(Rear side member assembly component part)

• Outer rear anchor reinforcement

(Rear side member assembly component part)

• Rear side member extension assembly
• Inner front side roof rail assembly
• Upper inner front pillar assembly
• Inner center pillar (Lower)

(Inner center pillar assembly component part)

• Lower front pillar hinge brace
• Rear bumper stay assembly

REPAIRING HIGH STRENGTH STEEL

BRM-387

< PRECAUTION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

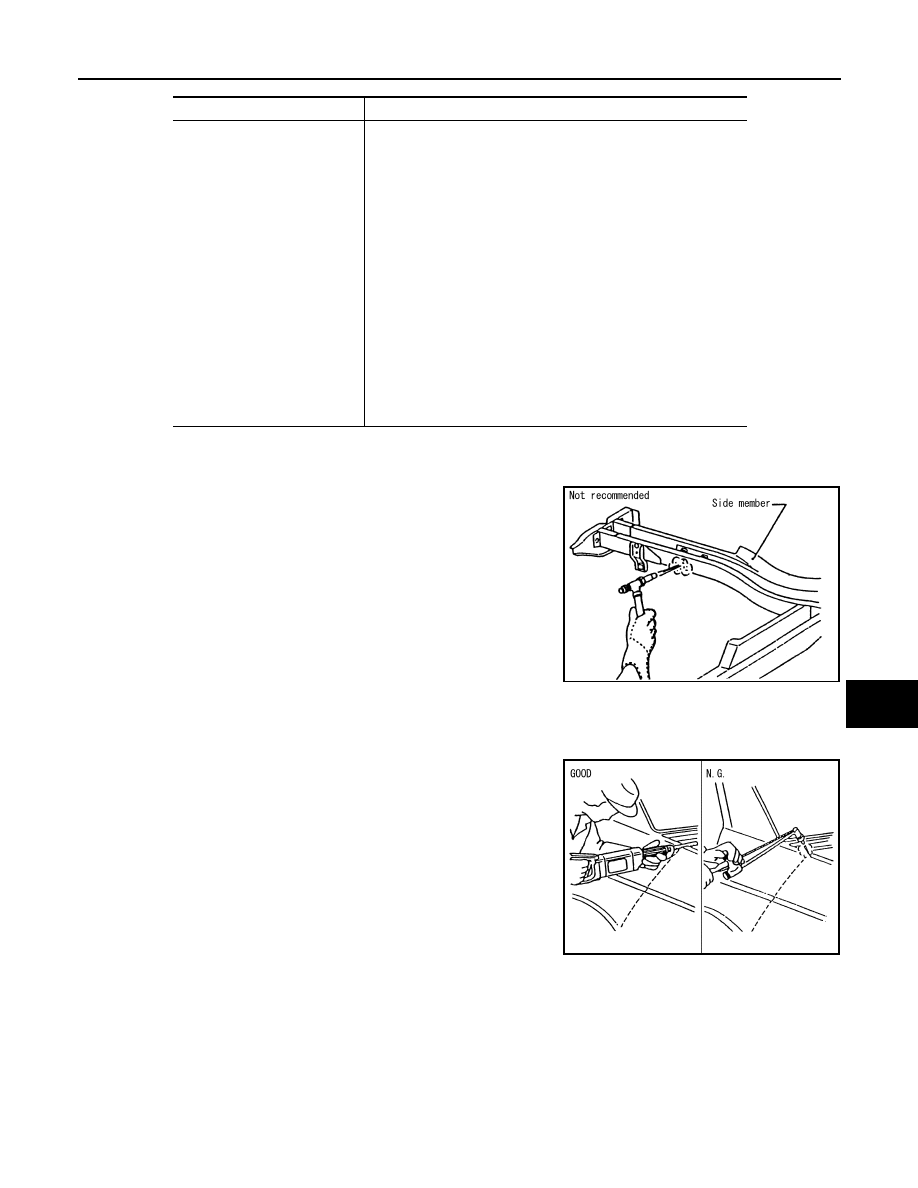

Read the following precautions when repairing HSS:

1.

Additional points to consider
• The repair of reinforcements (such as side members) by heat-

ing is not recommended, because it may weaken the compo-
nent. When heating is unavoidable, never heat HSS parts
above 550

°

C (1,022

°

F).

Verify heating temperature with a thermometer.
(Crayon-type and other similar type thermometer are appropri-
ate.)

• When straightening body panels, use caution in pulling any HSS panel. Because HSS is very strong,

pulling may cause deformation in adjacent sections of the body. In this case, increase the number of
measuring points, and carefully pull the HSS panel.

• When cutting HSS panels, avoid gas (torch) cutting if possible.

Instead, use a saw to avoid weakening surrounding areas due
to heat. If gas (torch) cutting is unavoidable, allow a minimum
margin of 50 mm (1.97 in).

Tensile strength

Major applicable parts

980 - 1350 MPa

• Front side member rear extension

(Front floor assembly component part)

• Inner sill assembly
• Lower center dash crossmember assembly
• Front bumper reinforcement assembly
• Front side member closing plate (Rear)

(Side member closing plate assembly component part)

• Front side member (Rear)

(Front side member assembly component part)

• Inner center pillar (Upper)

(Inner center pillar assembly component part)

• Outer side roof rail
• Center pillar hinge brace (Upper)

(Center pillar hinge brace assembly component part)

• Outer front pillar reinforcement

(Front pillar hinge brace assembly component part)

• Outer sill reinforcement

(Outer sill reinforcement assembly component part)

• Rear bumper reinforcement assembly

PIIA0115E

PIIA0117E

BRM-388

< PRECAUTION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPAIRING HIGH STRENGTH STEEL

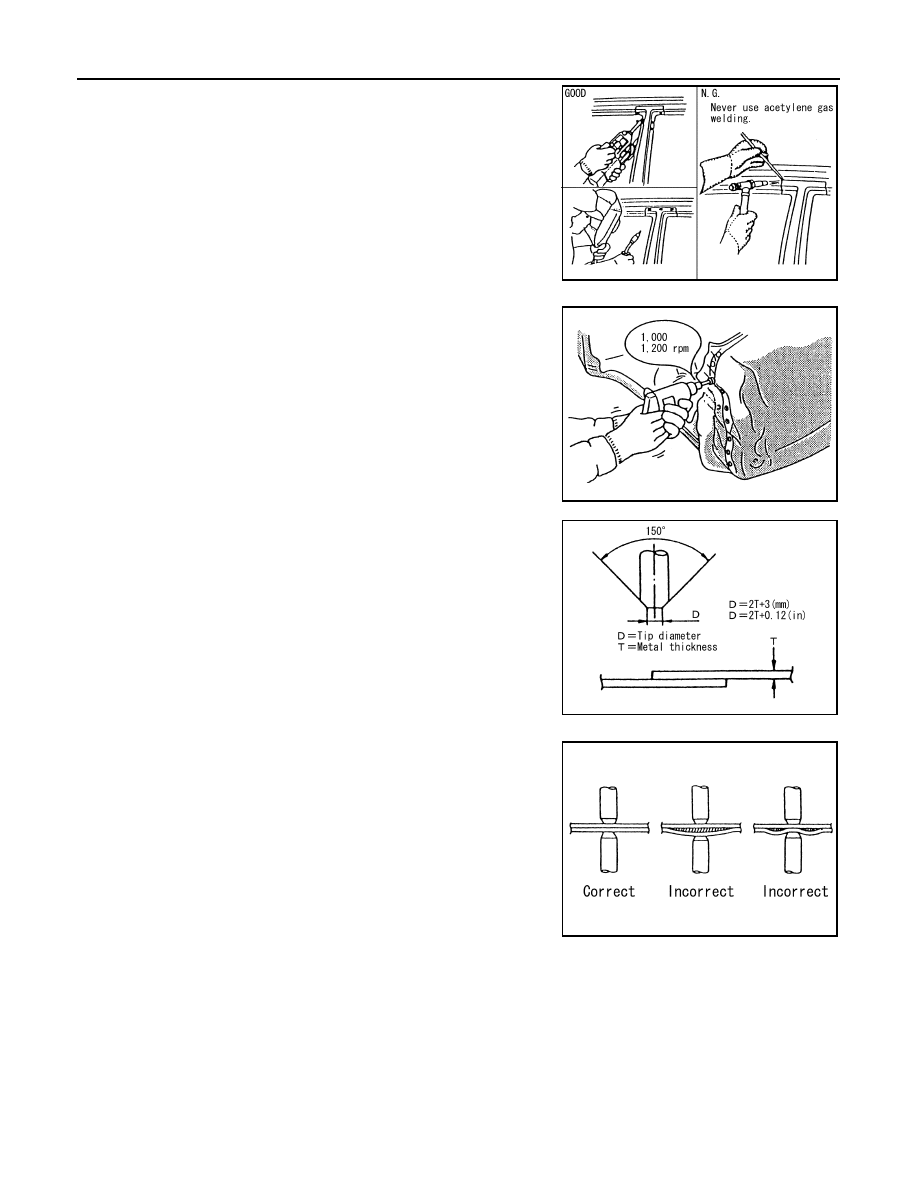

• When welding HSS panels, use spot welding whenever possi-

ble in order to minimize weakening surrounding areas due to
heat.
If spot welding is impossible, use MIG. welding. Do not use
gas (torch) for welding because it is inferior in welding
strength.

• Spot welding on HSS panels is harder than that of an ordinary

steel panel.
Therefore, when cutting spot welds on a HSS panel, use a low
speed high torque drill (1,000 to 1,200 rpm) to increase drill bit
durability and facilitate the operation.

2.

Precautions in spot welding HSS
This work should be performed under standard working condi-
tions. Always note the following when spot welding HSS:
• The electrode tip diameter must be sized properly according to

the metal thickness.

• The panel surfaces must fit flush to each other, leaving no

gaps.

PIIA0144E

PIIA0145E

PIIA0146E

PIIA0147E

REPAIRING HIGH STRENGTH STEEL

BRM-389

< PRECAUTION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

• Follow the specifications for the proper welding pitch.

Unit: mm (in)

Thickness (T)

Minimum pitch (L)

0.6 (0.024)
0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.6 (0.063)
1.8 (0.071)

10 (0.39) or more
12 (0.47) or more
18 (0.71) or more
20 (0.79) or more
27 (1.06) or more
31 (1.22) or more

JSKIA0781ZZ

BRM-390

< PREPARATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPAIRING MATERIAL

PREPARATION

REPAIRING MATERIAL

Foam Repair

INFOID:0000000010309463

During factory body assembly, foam insulators are installed in certain body panels and locations around the
vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

URETHANE FOAM APPLICATIONS

Use commercially available Urethane foam for sealant (foam material) repair of material used on vehicle.

Read instructions on product for fill procedures.

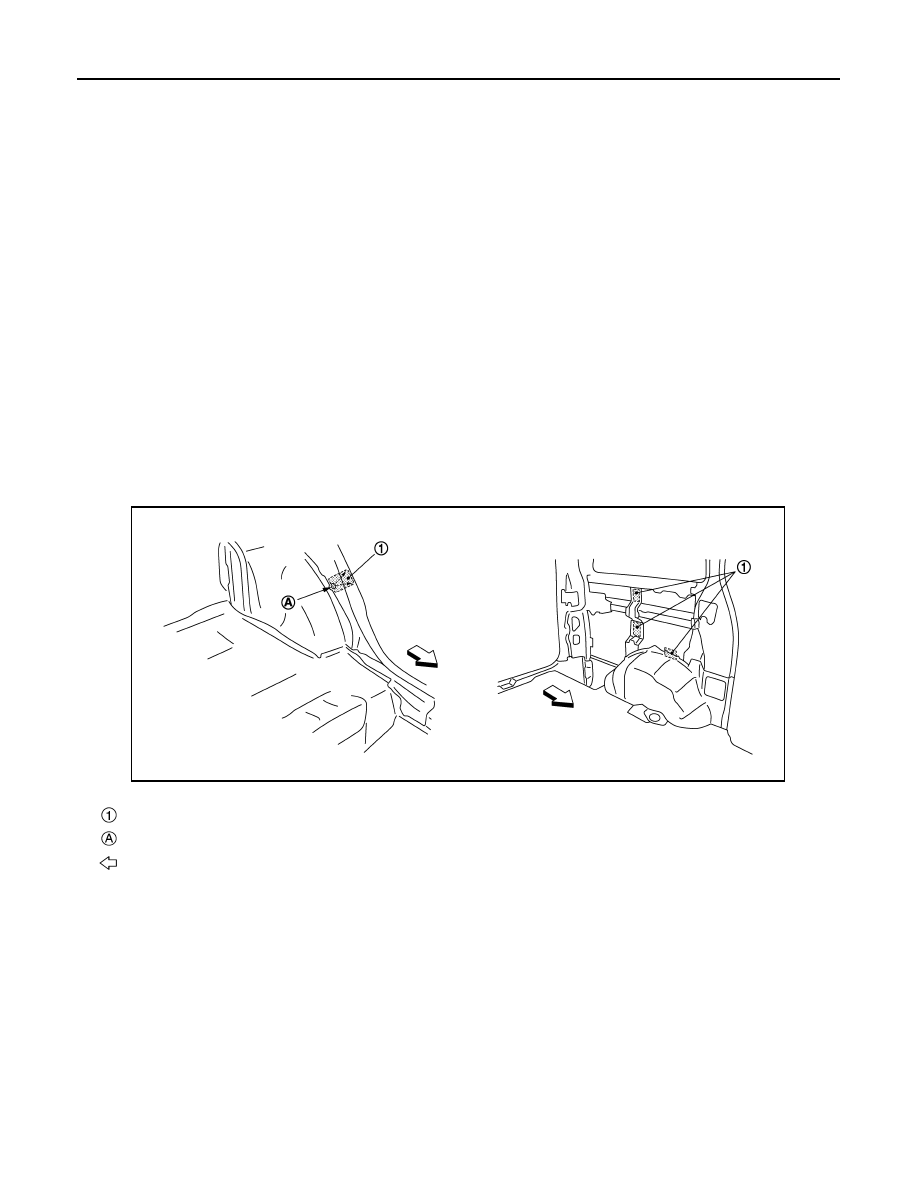

Example of foaming agent filling operation procedure

1.

Fill procedures after installation of service part.

a.

Eliminate foam material remaining on vehicle side.

b.

Clean area after eliminating form insulator and foam material.

c.

Install service part.

d.

Insert nozzle into hole near fill area and fill foam material or fill enough to close gap with the service part.

2.

Fill procedures before installation of service part.

a.

Eliminate foam material remaining on vehicle side.

b.

Clean area after eliminating foam insulator and foam material.

c.

Fill foam material on wheelhouse outer side.

<Urethane foam for foaming agent>

3M™ Automix™ Flexible Foam 08463 or equiva-
lent

Urethane foam

Nozzle insert hole

: Vehicle front

JSKIA0129GB

REPAIRING MATERIAL

BRM-391

< PREPARATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

NOTE:
Fill enough to close gap with service part while avoiding flange
area.

d.

Install service part.
NOTE:
Refer to label for information on working times.

Urethane foam

Fill while avoiding flange area

: Vehicle front

JSKIA0130GB

BRM-392

< PREPARATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

BODY COMPONENT PARTS

BODY COMPONENT PARTS

Ultra High Strength Steel Part

INFOID:0000000010505350

DESCRIPTION

Ultra high strength steel parts signify high strength steel plates with tensile strength of 980 MPa or more.
When replacing parts made of ultra high strength steel or parts including ultra high strength steel, never per-
form the prohibition described below:

PROHIBITION

WARNING:

Never cut ultra high strength steel parts or perform butt welding. Violation of this prohibition causes
extreme strength degradation, and the strength before damage cannot be secured.

PART REPLACEMENT

To replace an ultra high strength part, be sure to replace it by panel supply unit of ultra high strength steel part.
For the welding method, refer to

BRM-410, "Welding of Ultra High Strength Steel"

Underbody Component Parts

INFOID:0000000010499752

Refer to parts catalogue for the replacement parts.

BODY COMPONENT PARTS

BRM-393

< PREPARATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

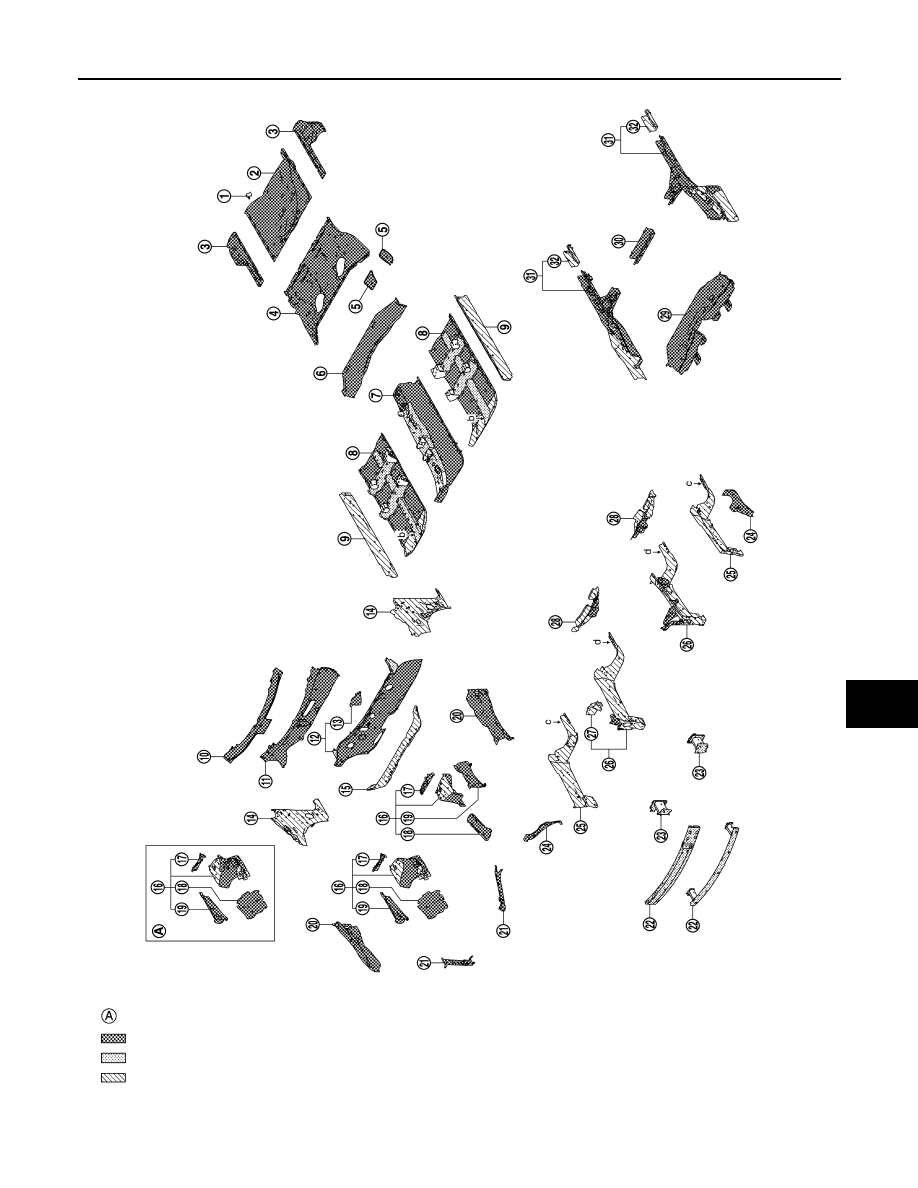

R9M engine models

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA3939ZZ

BRM-394

< PREPARATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

BODY COMPONENT PARTS

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Spare wheel clamp bracket assembly

Under 440

—

Rear floor rear

Under 440

×

Rear floor side assembly (RH & LH)

Under 440

×

Rear floor front

Under 440

×

Inner rear belt anchor reinforcement assembly (RH & LH)

Under 440

×

Rear seat crossmember

Under 440

×

Center front floor assembly

780

×

Front floor assembly (RH & LH)

b.

LH

1350MPa

caution

T=1.4 mm (0.055 in)

590

×

RH

980MPa

caution

T=1.8 mm (0.071 in)

Inner sill assembly (RH & LH)

980MPa

caution

T=1.4 mm (0.055 in)

—

×

Cowl top

Under 440

×

Upper dash assembly

Under 440

×

Lower dash assembly

780

×

Steering hole cover assembly

Under 440

×

Side dash assembly (RH & LH)

590

×

Lower center dash crossmember assembly

980MPa

caution

T=2.0 mm (0.079 in)

—

×

Front strut housing assembly (RH & LH)

445

×

Upper side cowl top (RH & LH)

Under 440

×

Lower front hoodledge (RH & LH)

Under 440

×

Upper hoodledge assembly (RH & LH)

Under 440

×

Hoodledge reinforcement assembly (RH & LH)

Under 440

×

Side radiator core support assembly (RH & LH)

Under 440

×

Front bumper reinforcement assembly

1180MPa

caution

T=1.2 mm (0.079 in)

440

—

Lower front bumper stay (RH & LH)

600

—

Hoodledge connector assembly (RH & LH)

Under 440

×

Side member closing plate assembly (RH & LH)

c.

980MPa

caution

T=2.0 mm (0.079 in)

590

×

Front side member assembly (RH & LH)

d.

980MPa

caution

T=2.0 mm (0.079 in)

750

×

Engine mounting member bracket assembly

445

×

Front suspension mounting rear bracket assembly (RH & LH)

590

×

Rear floor front extension assembly

Under 440

×

Center rear crossmember assembly

Under 440

×

BODY COMPONENT PARTS

BRM-395

< PREPARATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

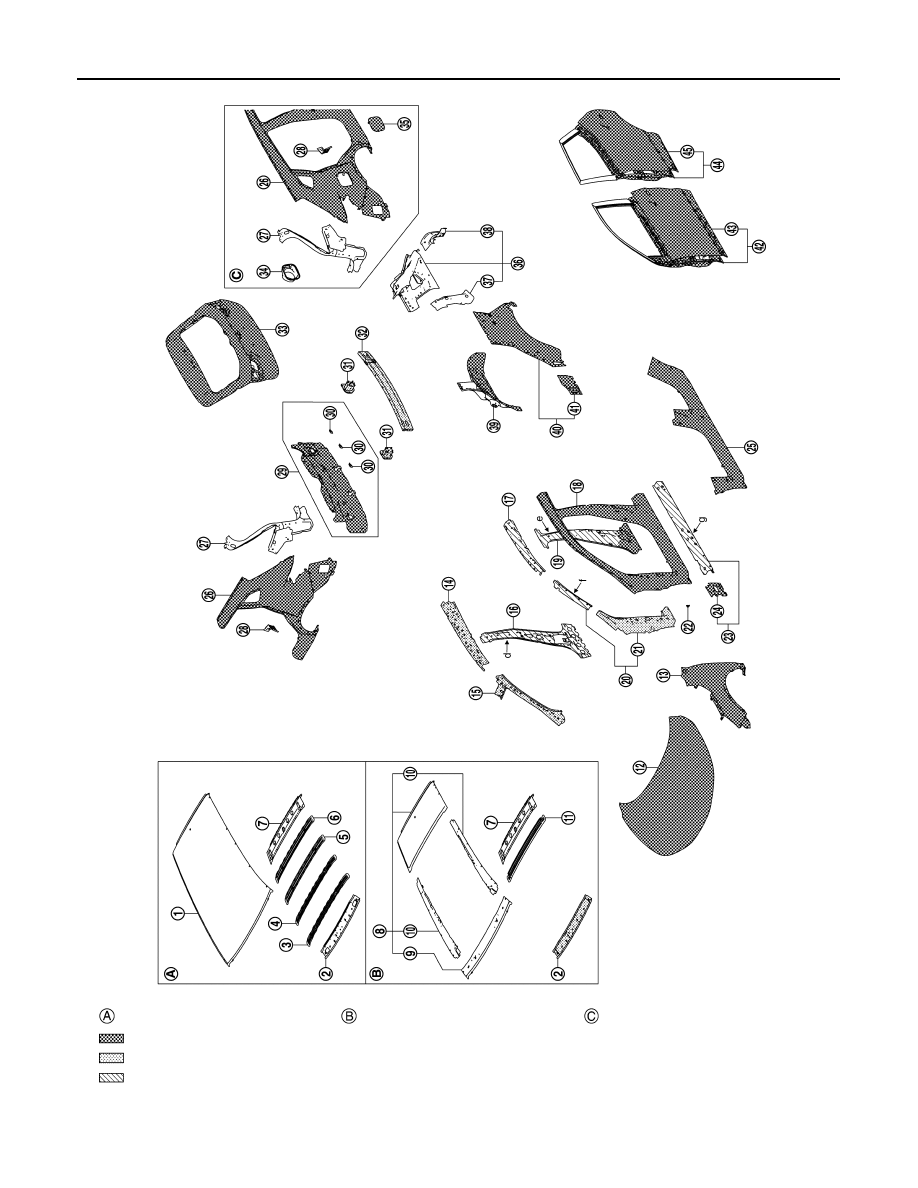

Body Component Parts

INFOID:0000000010499753

Refer to parts catalogue for the replacement parts.

Rear side member assembly (RH & LH)

590

×

Rear side member extension assembly (RH & LH)

780

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

BRM-396

< PREPARATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

BODY COMPONENT PARTS

Without sunroof models

With sunroof models

Right side

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA3886ZZ

BODY COMPONENT PARTS

BRM-397

< PREPARATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Roof

Under 440

—

Front roof rail assembly

Under 440

—

1st roof bow

Under 440

—

2nd roof bow

Under 440

—

3rd roof bow

Under 440

—

4th roof bow

Under 440

—

Rear roof rail assembly

Under 440

—

Sunroof assembly

Under 440

—

Upper front roof rail

Under 440

—

Roof extension assembly

Under 440

—

Center roof bow

Under 440

—

Hood assembly

Under 440

×

Front fender assembly (RH & LH)

Under 440

×

Inner front side roof rail assembly (RH & LH)

450

—

Upper inner front pillar assembly (RH & LH)

590

—

Inner center pillar assembly (RH & LH)

d.

980MPa

caution

T=1.2 mm (0.047 in)

590

×

Outer side roof rail (RH & LH)

980MPa

caution

T=1.0 mm (0.039 in)

—

×

Outer front side body (RH & LH)

Under 440

×

Center pillar hinge brace assembly (RH &
LH)

e.

980MPa

caution

T=1.2 mm (0.047 in)

Under 440

×

Front pillar hinge brace assembly (RH &
LH)

f.

980MPa

caution

T=1.4 mm (0.055 in)

590

×

Lower front pillar hinge brace (RH & LH)

590

×

Front fender bracket (RH & LH)

Under 440

×

Outer sill reinforcement assembly (RH &
LH)

g.

980MPa

caution

T=1.0 mm (0.039 in)

Under 440

×

Lower front pillar reinforcement (RH & LH)

Under 440

×

Outer sill assembly (RH & LH)

Under 440

×

Rear fender assembly (RH & LH)

Under 440

×

Rear fender extension complete (RH & LH)

Under 440

—

Striker retainer assembly (RH & LH)

Under 440

—

Upper rear panel assembly

450

×

Upper rear bumper retainer

Under 440

×

Rear bumper stay assembly (RH & LH)

600

—

Rear bumper reinforcement assembly

1180MPa

caution

T=1.2 mm (0.047 in)

—

—

Back door assembly

Under 440

×

BRM-398

< PREPARATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

BODY COMPONENT PARTS

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

Fuel filler base assembly

Under 440

—

Fuel filler lid assembly

Under 440

×

Inner rear pillar assembly (RH & LH)

Under 440

—

Inner rear pillar reinforcement (RH & LH)

Under 440

—

Lower inner rear pillar (RH & LH)

Under 440

—

Inner rear wheelhouse assembly (RH & LH)

Under 440

×

Outer rear wheelhouse assembly (RH & LH)

Under 440

×

Outer rear wheelhouse extension (RH & LH)

Under 440

×

Front door assembly (RH & LH)

Under 440

×

Outer front door (RH & LH)

Under 440

×

Rear door assembly (RH & LH)

Under 440

×

Outer rear door (RH & LH)

Under 440

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

CORROSION PROTECTION

BRM-399

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

REMOVAL AND INSTALLATION

CORROSION PROTECTION

Description

INFOID:0000000010499152

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in
NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-
rosive measures.

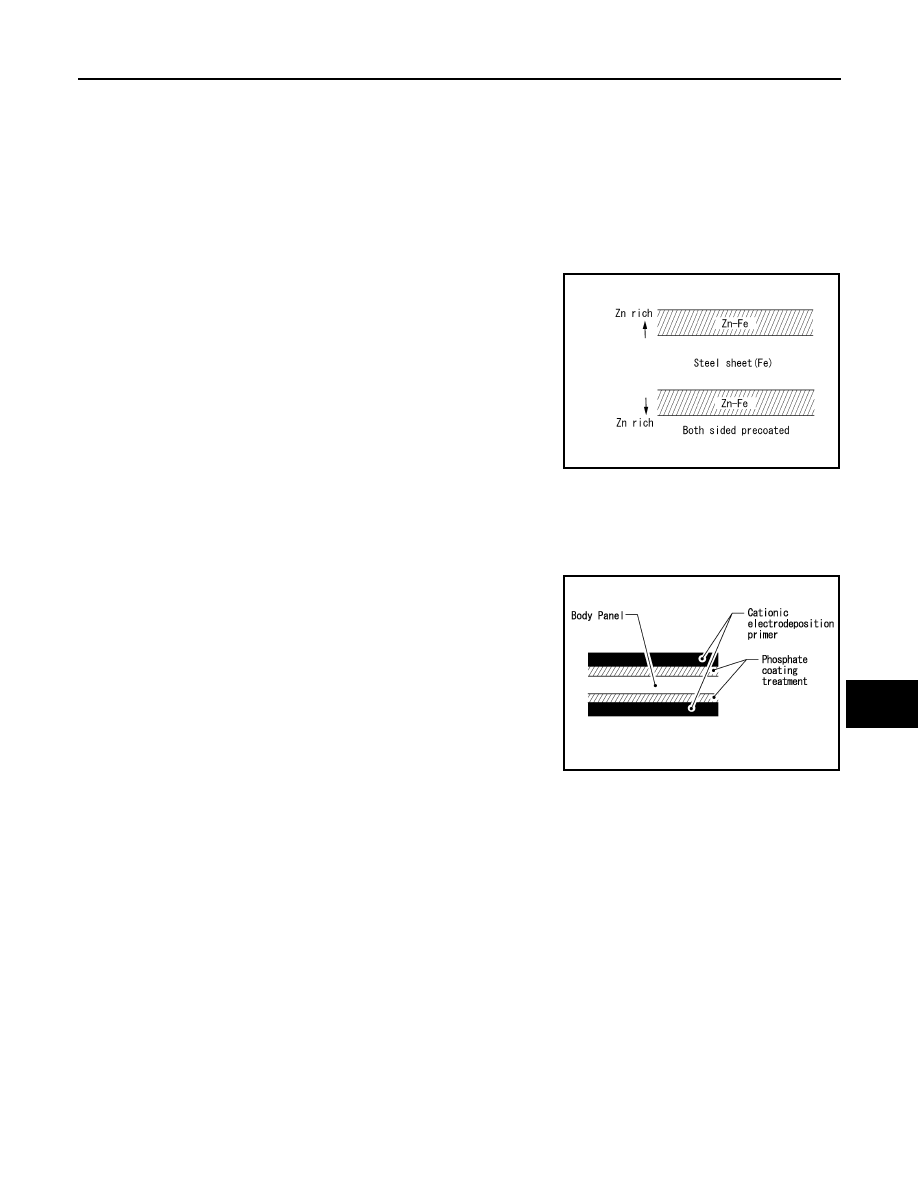

Anti-Corrosive Precoated Steel (Galvannealed Steel)

To improve repairability and corrosion resistance, a new type of anti-
corrosive precoated steel sheet is adopted replacing conventional
zinc-coated steel sheet.
Galvannealed steel is electroplated and heated to form Zinc-iron
alloy, which provides excellent and long term corrosion resistance
with cationic electrodeposition primer.

NISSAN genuine parts are fabricated from galvannealed steel. Therefore, it is recommended that NISSAN
genuine parts or an equivalent be used for panel replacement to maintain the anti-corrosive performance built
into the vehicle at the factory.

Phosphate Coating Treatment and Cationic Electrodeposition Primer

A phosphate coating treatment and a cationic electrodeposition
primer, which provide excellent corrosion protection, are applied to
all body components.

CAUTION:

Confine paint removal during welding operation to an absolute
minimum.

NISSAN genuine parts are also treated in the same manner. Therefore, it is recommended that NISSAN gen-
uine parts or an equivalent be used for panel replacement to maintain anti-corrosive performance built into the
vehicle at the factory.

Anti-corrosive Wax

INFOID:0000000010499153

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-
tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of
the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf
life.

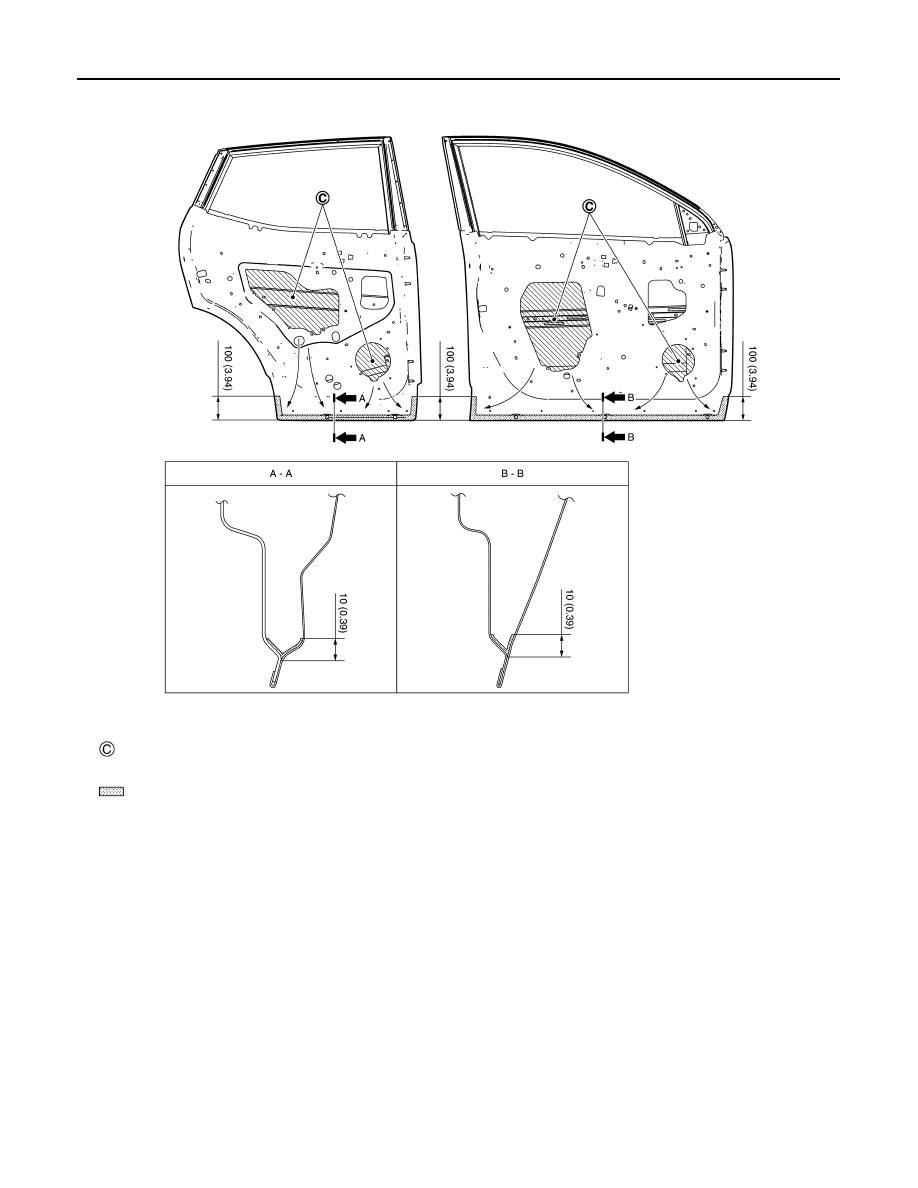

DOOR

SIIA2294E

PIIA0095E

BRM-400

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

CORROSION PROTECTION

Undercoating

INFOID:0000000010499154

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-
ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-
ing which is rust resistant, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in Undercoating

1.

Never apply undercoating to any place unless specified (such as the areas above the muffler and three
way catalyst that are subjected to heat).

2.

Never undercoat the exhaust pipe or other parts that become hot.

3.

Never undercoat rotating parts.

4.

Apply bitumen wax after applying undercoating.

5.

After putting seal on the vehicle, put undercoating on it.

Nozzle insert hole

Unit: mm (in)

: Anti-corrosive wax coated portions

JSKIA3887GB
