Qashqai J11. Warning chime system - part 2





WCS

DIAGNOSIS SYSTEM (COMBINATION METER)

WCS-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SPECIAL FUNCTION

Special menu

W/L ON HISTORY

• “W/L ON HISTORY” indicates the “TIME” when the warning/ indicator lamp is turned on.
• The “TIME” above is:
- 0: The condition that the warning/indicator lamp has been turned on 1 or more times after starting the engine

and waiting for 30 seconds.

- 1 - 39: The number of times the engine was restarted after the 0 condition.
- NO W/L ON HISTORY: No warning/indicator lamp history is stored.
NOTE:
• W/L ON HISTORY is not stored for approximately 30 seconds after the engine starts.
• Brake warning lamp does not store any history when the parking brake is applied or the brake fluid level gets

low.

AIR PRES W/L
[On/Off]

Displays [On/Off] condition of tire pressure warning lamp.

KEY G/Y W/L
[On/Off]

Displays [On/Off] condition of key green warning lamp.

EPS W/L
[On/Off]

Displays [On/Off] condition of EPS warning indicator.

LCD

Displays the value of Intelligent Key system message indication.

SHIFT IND
[P, R, N, D, L]

Displays shift selector position.

FUEL CAP W/L
[On/Off]

Displays [On/Off] condition of loose fuel cap warning message.

O/D OFF SW
[On/Off]

Displays [On/Off] condition of O/D Off switch.

PKB SW
[On/Off]

Displays [On/Off] condition of parking brake switch.

BUCKLE SW
[On/Off]

Displays [On/Off] condition of seat belt buckle switch LH.

PASS BUCKLE SW
[On/Off]

Displays [On/Off] condition of seat belt buckle switch RH.

BRAKE OIL SW
[On/Off]

Displays [On/Off] condition of brake fluid level switch.

DISTANCE
[Mi] or [km]

Displays distance to empty.

OUTSIDE TEMP
[

°

F or

°

C]

Displays the ambient air temperature which is input from the ambient sensor.

FUEL LOW SIG
[On/Off]

Displays [On/Off] condition of low-fuel warning signal.

STRG SW INPUT
[SW 1-SW 10, NOT INPUT]

Displays [SW 1-SW 10, NOT INPUT] condition of steering switches.

BUZZER
[On/Off]

X

Buzzer status (in the combination meter) is detected from the buzzer output signal
received from each unit via CAN communication and the warning output condition
of the combination meter.

BSW IND
[On/Off]

Displays [On/Off] condition of blind spot warning indicator.

BSW W/L
[On/Off]

Displays [On/Off] condition of blind spot warning message in the information dis-
play.

Display item [Unit]

MAIN

SIGNALS

Description

Display item

Description

W/L ON HISTORY

Lighting history of warning lamp and indicator lamp can be checked.

WCS-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010438767

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

BUZZER

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

c

u

 Id

en

tifi

ca

tio

n

Se

lf

 Di

ag

no

st

ic

 Re

su

lt

Da

ta

 Mo

ni

tor

A

c

ti

ve

 T

e

st

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

Back door open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

WCS

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

WCS-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BUZZER : CONSULT Function (BCM - BUZZER) (With Intelligent Key System)

INFOID:0000000010438768

DATA MONITOR

ACTIVE TEST

Monitor Item [Unit]

Description

PUSH -SW [On/Off]

Indicates condition of push-button ignition switch.

VEH SPEED 1 [km/h]

Indicates vehicle speed signal received from ABS on CAN communication line.

TAIL LAMP SW [On/Off]

Indicates condition of combination switch.

FR FOG SW [On/Off]

Indicates condition of front fog lamp switch.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

Test Item

Description

SEAT BELT WARN TEST

This test is able to check seat belt warning chime operation [On/Off].

LIGHT WARN ALM

This test is able to check light warning chime operation [On/Off].

REVERSE WARNING

This test is able to check reverse warning chime operation [On/Off].

ID REGIST WARNING

This test is able to check TPMS sensor ID regist warning chime operation [On/Off].

WCS-20

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010438769

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

BUZZER

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

c

u

 Id

en

tifi

ca

tio

n

Se

lf

 Di

ag

no

st

ic

 Re

su

lt

Da

ta

 Mo

ni

tor

A

c

ti

ve

 T

e

st

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

Exterior lamp

HEADLAMP

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

Back door open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

WCS

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

WCS-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BUZZER : CONSULT Function (BCM - BUZZER) (Without Intelligent Key System)

INFOID:0000000010438770

DATA MONITOR

ACTIVE TEST

Monitor Item [Unit]

Description

TAIL LAMP SW [On/Off]

Indicates condition of combination switch.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

Test Item

Description

SEAT BELT WARN TEST

This test is able to check seat belt warning chime operation [On/Off].

LIGHT WARN ALM

This test is able to check light warning chime operation [On/Off].

REVERSE WARNING

This test is able to check reverse warning chime operation [On/Off].

ID REGIST WARNING

This test is able to check TPMS sensor ID regist warning chime operation [On/Off].

WCS-22

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

ECU DIAGNOSIS INFORMATION

COMBINATION METER

Reference Value

INFOID:0000000010503091

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

SPEED METER
[km/h]

Ignition switch
ON

While driving

Input value of vehicle speed signal
(CAN communication signal)
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

SPEED OUTPUT
[km/h]

Ignition switch
ON

While driving

Output value of vehicle speed signal
(CAN communication signal)
NOTE:
655.35 is displayed when the malfunc-
tion signal is received

ODO OUTPUT

Ignition switch
ON

Output value of odometer signal (CAN
communication signal)

TACHO METER
[rpm]

Ignition switch
ON

While driving

Input value of engine speed signal
(CAN communication signal)
NOTE:
8191.875 is displayed when the mal-
function signal is received

FUEL METER
[lit]

Ignition switch
ON

Input value of fuel level sensor signal

W TEMP METER
[

°

C]

Ignition switch
ON

Input value of engine coolant tempera-
ture signal (CAN communication sig-
nal)
NOTE:
215 is displayed when the malfunction
signal is input

ABS W/L

Ignition switch
ON

ABS warning lamp ON

On

ABS warning lamp OFF

Off

VDC/TCS IND

Ignition switch
ON

VDC OFF indicator lamp ON

On

VDC OFF indicator lamp OFF

Off

SLIP IND

Ignition switch
ON

VDC warning lamp ON

On

VDC warning lamp OFF

Off

BRAKE W/L

Ignition switch
ON

Brake warning lamp ON

On

Brake warning lamp OFF

Off

DOOR W/L

Ignition switch
ON

During door open warning indication

On

Other than the above

Off

TRUNK/GLAS-H

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

HI-BEAM IND

Ignition switch
ON

High beam indicator lamp ON

On

High beam indicator lamp OFF

Off

TURN IND

Ignition switch
ON

Turn signal indicator lamp ON

On

Turn signal indicator lamp OFF

Off

FR FOG IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

WCS

COMBINATION METER

WCS-23

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

RR FOG IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

LIGHT IND

Ignition switch
ON

Position lamp indicator lamp ON

On

Position lamp indicator lamp OFF

Off

OIL W/L

Ignition switch
ON

Engine oil pressure warning lamp ON

On

Engine oil pressure warning lamp OFF

Off

MIL

Ignition switch
ON

Malfunction indicator (Yellow) ON

On

Malfunction indicator (Yellow) OFF

Off

GLOW IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

C-ENG2 W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

CRUISE IND

Ignition switch
ON

Cruise indicator ON

On

Cruise indicator OFF

Off

SET IND

Ignition switch
ON

SET indicator ON

On

SET indicator OFF

Off

O/D OFF IND

Ignition switch
ON

OD OFF indicator lamp ON

On

OD OFF indicator lamp OFF

Off

ATC/T-AMT W/L

Ignition switch
ON

A/T CHECK indicator lamp ON

On

A/T CHECK indicator lamp OFF

Off

ATF TEMP W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

CVT IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

4WD W/L

Ignition switch
ON

AWD warning lamp ON

On

AWD warning lamp OFF

Off

4WD LOCK IND

Ignition switch
ON

AWD LOCK indicator lamp ON

On

AWD LOCK indicator lamp OFF

Off

FUEL W/L

Ignition switch
ON

During low fuel warning indication

On

Other than the above

Off

WASHER W/L

Ignition switch
ON

During low washer fluid warning indication

On

Other than the above

Off

AIR PRES W/L

Ignition switch
ON

Low tire pressure warning lamp ON

On

Other than the above

Off

KEY G/Y W/L

Ignition switch
ON

Intelligent Key system malfunction ON

On

Intelligent Key system malfunction OFF

Off

KEY R W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

KEY KNOB W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

EPS W/L

Ignition switch
ON

EPS warning lamp ON

On

EPS warning lamp OFF

Off

Monitor Item

Condition

Value/Status

WCS-24

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

DPF W/L

Engine running

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

TRAILER IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

SHIFT IND

Ignition switch
ON

During the indication of “P” by shift position
indicator

P

During the indication of “R” by shift position
indicator

R

During the indication of “N” by shift position
indicator

N

During the indication of “D” by shift position
indicator

D

During the indication of “L” by shift position
indicator

L

During the indication of “M1” by shift posi-
tion indicator

M1

During the indication of “M2” by shift posi-
tion indicator

M2

During the indication of “M3” by shift posi-
tion indicator

M3

During the indication of “M4” by shift posi-
tion indicator

M4

During the indication of “M5” by shift posi-
tion indicator

M5

During the indication of “M6” by shift posi-
tion indicator

M6

M RANGE SW

Ignition switch
ON

Selector lever in manual mode position

On

Other than the above

Off

NM RANGE SW

Ignition switch
ON

Selector lever in manual mode position

Off

Other than the above

On

AT SFT UP SW

Ignition switch
ON

Selector lever in + position

On

Other than the above

Off

AT SFT DWN SW

Ignition switch
ON

Selector lever in – position

On

Other than the above

Off

A/C LOW TEMP

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

COMP F/B SIG

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

PKB SW

Ignition switch
ON

Parking brake switch ON

On

Parking brake switch OFF

Off

BUCKLE SW

Ignition switch
ON

Driver seat belt not fastened

On

Driver seat belt fastened

Off

BRAKE OIL SW

Ignition switch
ON

Brake fluid level switch ON

On

Brake fluid level switch OFF

Off

AMB POWER

Ignition switch
ON

Other than the following

On

Receives A/C auto amp. connection recog-
nition signal

Off

Monitor Item

Condition

Value/Status

WCS

COMBINATION METER

WCS-25

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NOTE:
Some items are not available according to vehicle specification.

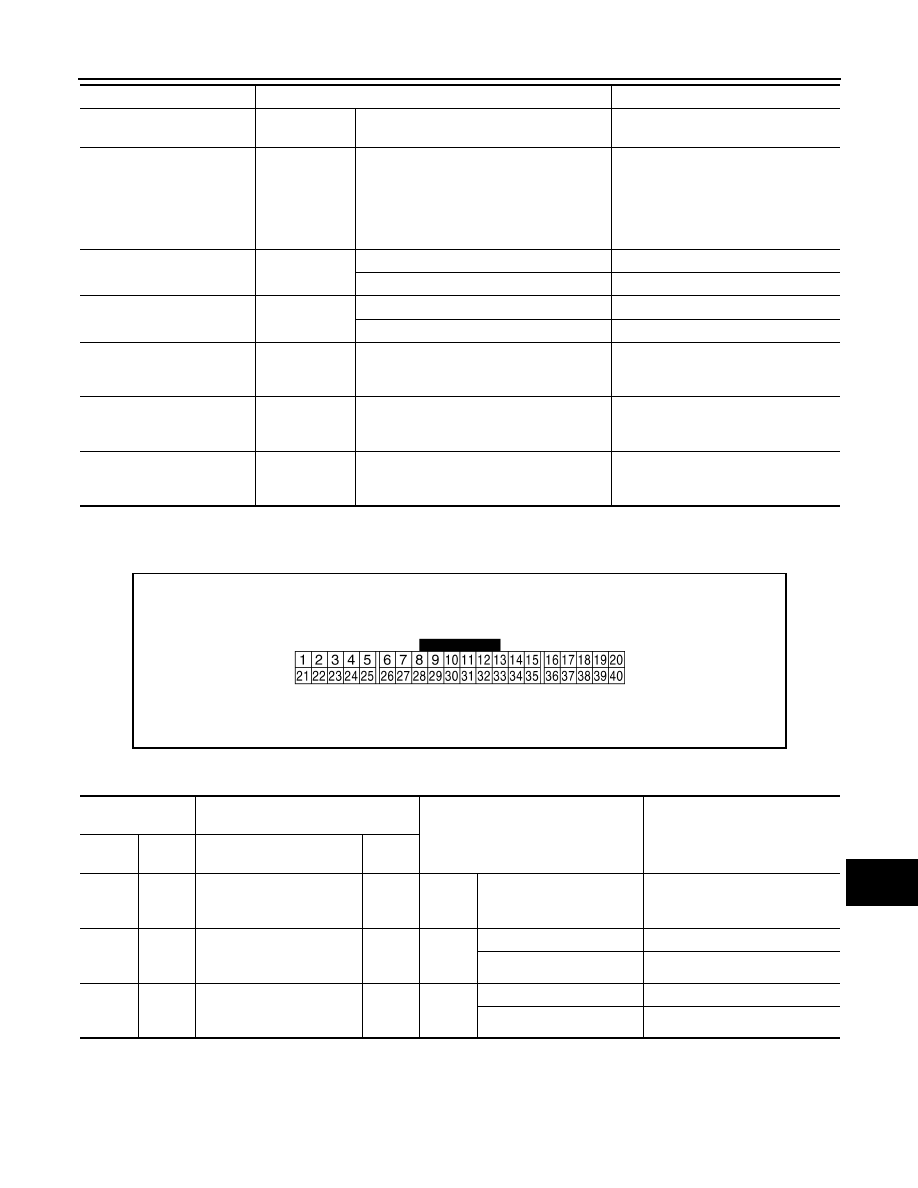

TERMINAL LAYOUT

PHYSICAL VALUES

DISTANCE
[km]

Ignition switch
ON

Distance to empty calculated by com-
bination meter

OUTSIDE  TEMP
[

°

C or

°

F]

Ignition switch
ON

Input value ofoutside temperature
sender sensor signal (CAN communi-
cation signal)
NOTE:
This may not match the indicated value
on the information display.

FUEL LOW SIG

Ignition switch
ON

Low fuel warning displayed

On

Low fuel warning not displayed

Off

BUZZER

Ignition switch
ON

Buzzer ON

On

Buzzer OFF

Off

ASCD SPD BLNK

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ASCD STATUS

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ASCD REQ SPD
[km/h or Off]

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

Monitor Item

Condition

Value/Status

JSNIA0457ZZ

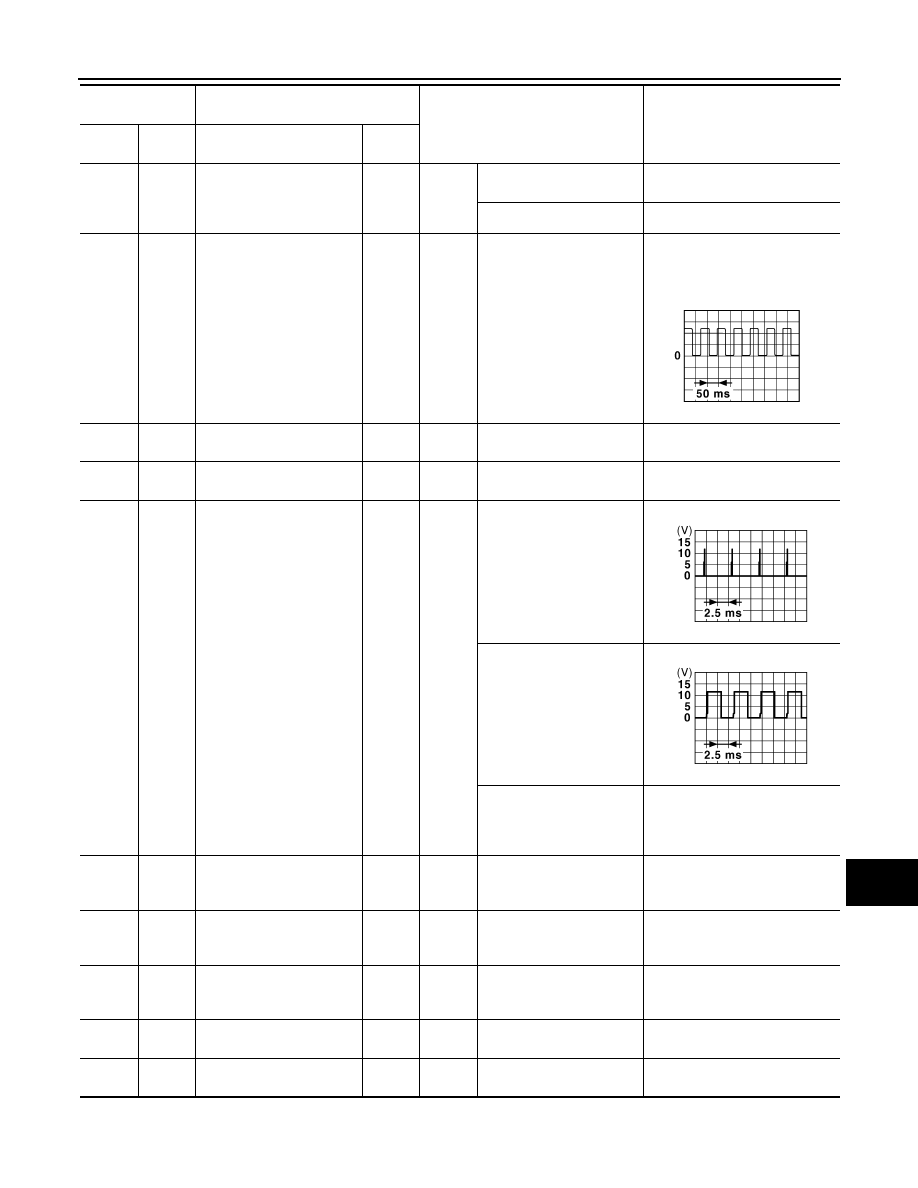

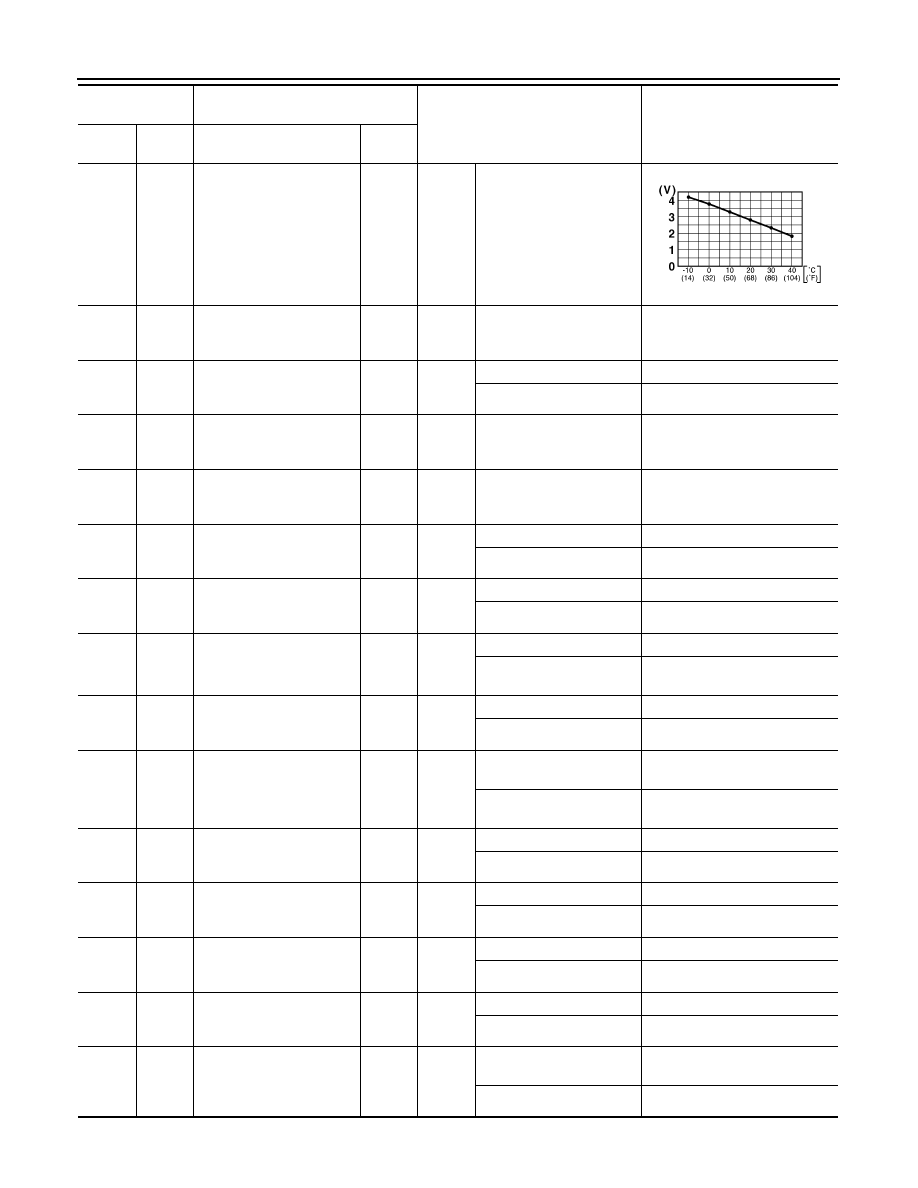

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

1

(B)

Ground

Ground 1

Ignition
switch
ON

0  V

7

(L)

Ground

Security signal

Input

Ignition
switch
OFF

Security warning lamp ON

0 V

Security warning lamp OFF

12 V

9

(P)

Ground

ECO MODE switch signal

Input

Ignition
switch
OFF

ECO MODE switch ON

0 V

ECO MODE switch OFF

12 V

WCS-26

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

15

(BG)

Ground

Outside temperature send-
er (ambient sensor) signal

Input

Ignition
switch
ON

17

(BG)

Ground

Satellite switch ground

Ignition
switch
ON

0  V

18

(SB)

Ground

TRIP RESET SWITCH

Input

Ignition
switch
OFF

TRIP RESET switch ON

12 V

TRIP RESET switch OFF

0 V

20

(R)

Ground

Outside temperature sen-
sor ground

Ignition
switch
ON

0  V

21

(L)

Ground

Steering switch (trip com-
puter) ground

Input

Ignition
switch
ON

0  V

22

(LG)

Ground

Steering switch (trip com-
puter) input A signal

Input

Ignition
switch
ON

Press the steering switch

0 V

Other than above

5 V

23

(GR)

Ground

Steering switch  (trip com-
puter) input B signal

Input

Ignition
switch
ON

Press the steering switch

0 V

Other than above

5 V

25

(Y)

Ground

Brake fluid level switch sig-
nal

Input

Ignition
switch
ON

Brake fluid level is normal

5 V

Brake fluid level is less than
low level

0 V

27

(W)

Ground

LDW OFF switch signal

Input

Ignition
switch
OFF

LDW OFF switch ON

0 V

LDW OFF switch OFF

12 V

28

(W)

Ground

Seat belt buckle switch sig-
nal (driver side)

Input

Ignition
switch
ON

When driver seat belt is fas-
tened

12 V

When driver seat belt is not
fastened

0 V

30

(Y)

Ground

M RANGE

Input

Ignition
switch
ON

Manual mode

0 V

Other than the above

12 V

31

(G)

Ground

Not M RANGE

Input

Ignition
switch
ON

Manual mode

12 V

Other than the above

0 V

32

(R)

Ground

A/T shift up signal

Input

Ignition
switch
ON

Selector lever (+) position

0 V

Other than the above

12 V

33

(W)

Ground

A/T shift down signal

Input

Ignition
switch
ON

Selector lever (–) position

0 V

Other than the above

12 V

36

(BR)

Ground

Illumination control switch
signal (+)

Input

Ignition
switch
OFF or
ON

When illumination switch
(+) is pressed

0 V

Other than above

5 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

JSNIA0014GB

WCS

COMBINATION METER

WCS-27

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

37

(V)

Ground

Illumination control switch
signal (-)

Input

Ignition
switch
OFF or
ON

When illumination switch (-)
is pressed

0 V

Other than above

5 V

38

(P)

Ground

Vehicle speed signal
(8-pulse)

Output

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

41

(L)

CAN-H

42

(P)

CAN-L

43

(R)

Ground

Illumination control signal

Output

Ignition
switch
ON

• Lighting switch 1ST posi-

tion

• When meter illumination

is maximum

• Lighting switch 1ST posi-

tion

• When meter illumination

is step 11

• Lighting switch 1ST posi-

tion

• When meter illumination

is minimum

12 V

44

(B)

Ground

Fuel level sensor signal
ground

Ignition
switch
ON

0  V

45

(W)

Ground

Battery power supply

Input

Ignition
switch
OFF

Battery voltage

46

(BG)

Ground

Ignition signal

Input

Ignition
switch
ON

Battery voltage

47

(SB

M-CAN-H

48

(LG)

M-CAN-L

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

JSNIA0015GB

JPNIA1687GB

JPNIA1686GB

WCS-28

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

Fail-safe

INFOID:0000000010503092

The combination meter activates the fail-safe control if the CAN communication lines between each unit are
malfunctioning.

49

(V)

50

(P)

Oil level sensor signal

Input

Ignition
switch
ON

51

(G)

44

(B)

Fuel level sensor signal

Input

Ignition
switch
ON

52

(B)

Ground

Ground 2

Ignition
switch
ON

0  V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

JSNIA3463ZZ

JSNIA3463ZZ

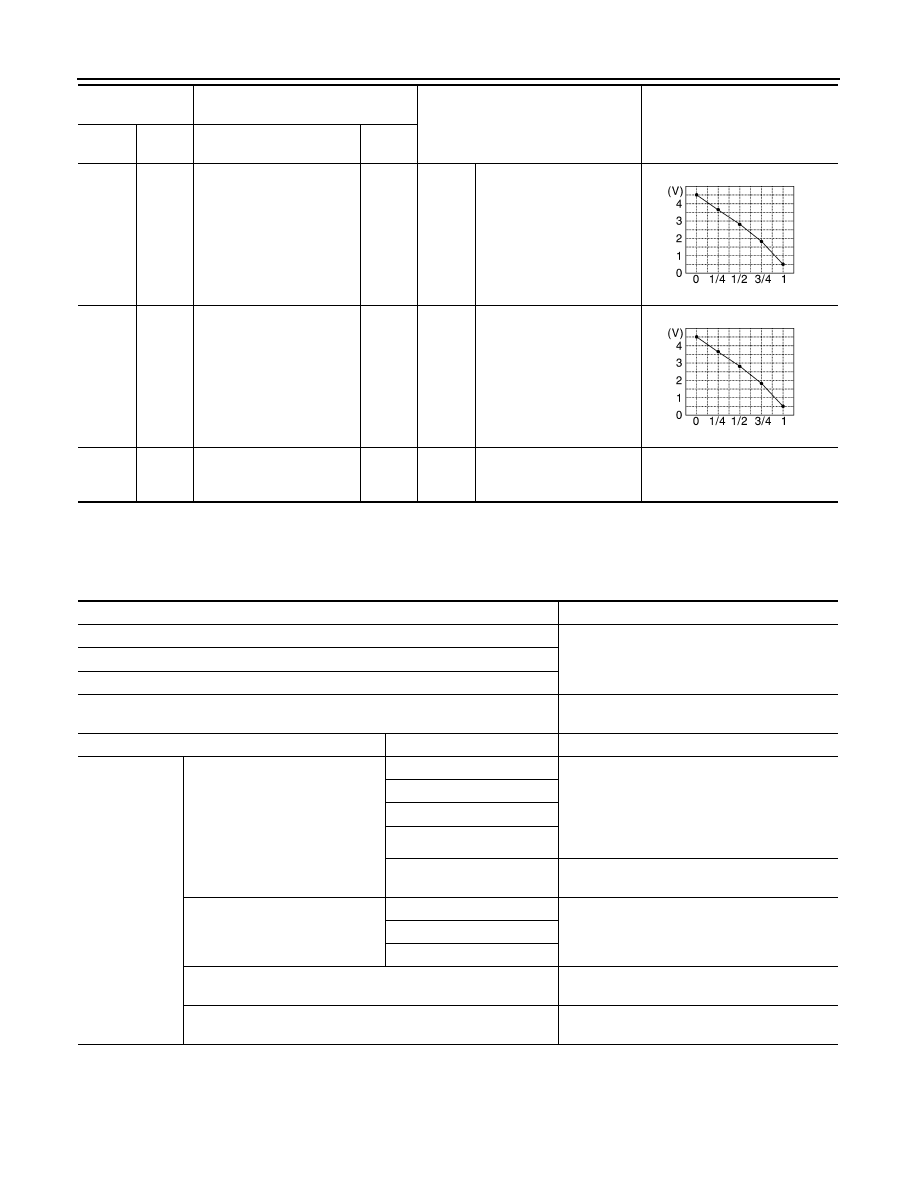

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Engine coolant temperature gauge

Meter illumination control

When suspending communication, changes to
nighttime mode.

Buzzer

Turned off by suspending communication.

Information dis-
play

Trip computer

Current fuel consumption

• When reception time of an abnormal signal is

2 seconds or less, the last received datum is
used for calculation to indicate the result.

• When reception time of an abnormal signal is

more than 2 seconds, the last result calculat-
ed during normal condition is indicated.

Average fuel consumption

Average vehicle speed

Range (Distance to empty)

Driving distance

An indicated value is maintained at communica-
tions blackout.

Interrupt indication

Door open warning

The indicator turns OFF by suspending commu-
nication.

Low tire pressure warning

Fuel filler cap warning

Odo/trip meter

An indicated value is maintained at communica-
tions blackout.

Shift position indicator

The indicator turns OFF by suspending commu-
nication.

WCS

COMBINATION METER

WCS-29

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC Index

INFOID:0000000010438773

Warning lamp/
indicator lamp

ABS warning lamp

Turned on by suspending communication.

Brake warning lamp

EPS warning lamp

VDC warning lamp

AWD warning lamp

Malfunction indicator lamp

VDC OFF indicator lamp

Turned off by suspending communication.

SPORT mode indicator lamp

AWD LOCK indicator lamp

Oil pressure warning lamp

High beam indicator lamp

Turn signal indicator lamp

Position lamp indicator lamp

A/T CHECK indicator lamp

Low tire pressure warning lamp

After blinking for 1 minute, the lamp remains
ON.

Function

Specifications

Display contents of CONSULT

Diagnostic item is detected when...

Refer to

CAN COMM CIRCUIT
[U1000]

Combination meter is not transmitting or receiving CAN communication signal for 2
seconds or more.

MWI-56,

"DTC Logic"

CONTROL UNIT (CAN)
[U1010]

Detecting error during the initial diagnosis of CAN controller of combination meter.

MWI-57,

"DTC Logic"

VEHICLE SPEED
[B2205]

The abnormal vehicle speed signal is input from ABS actuator and electric unit (con-
trol unit) for 2 seconds or more.

MWI-58,

"DTC Logic"

ENGINE SPEED
[B2267]

ECM continuously transmits abnormal engine speed signals for 2 seconds or more.

MWI-59,

"DTC Logic"

WATER TEMP
[B2268]

ECM continuously transmits abnormal engine coolant temperature signals for 60
seconds or more.

MWI-60,

"DTC Logic"

WCS-30

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000010438774

ECU

Reference

BCM

BCS-64, "Reference Value"

BCS-88, "Fail-safe"

BCS-89, "DTC Inspection Priority Chart"

BCS-90, "DTC Index"

WCS

WARNING CHIME SYSTEM

WCS-31

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WIRING DIAGRAM

WARNING CHIME SYSTEM

Wiring Diagram

INFOID:0000000010438775

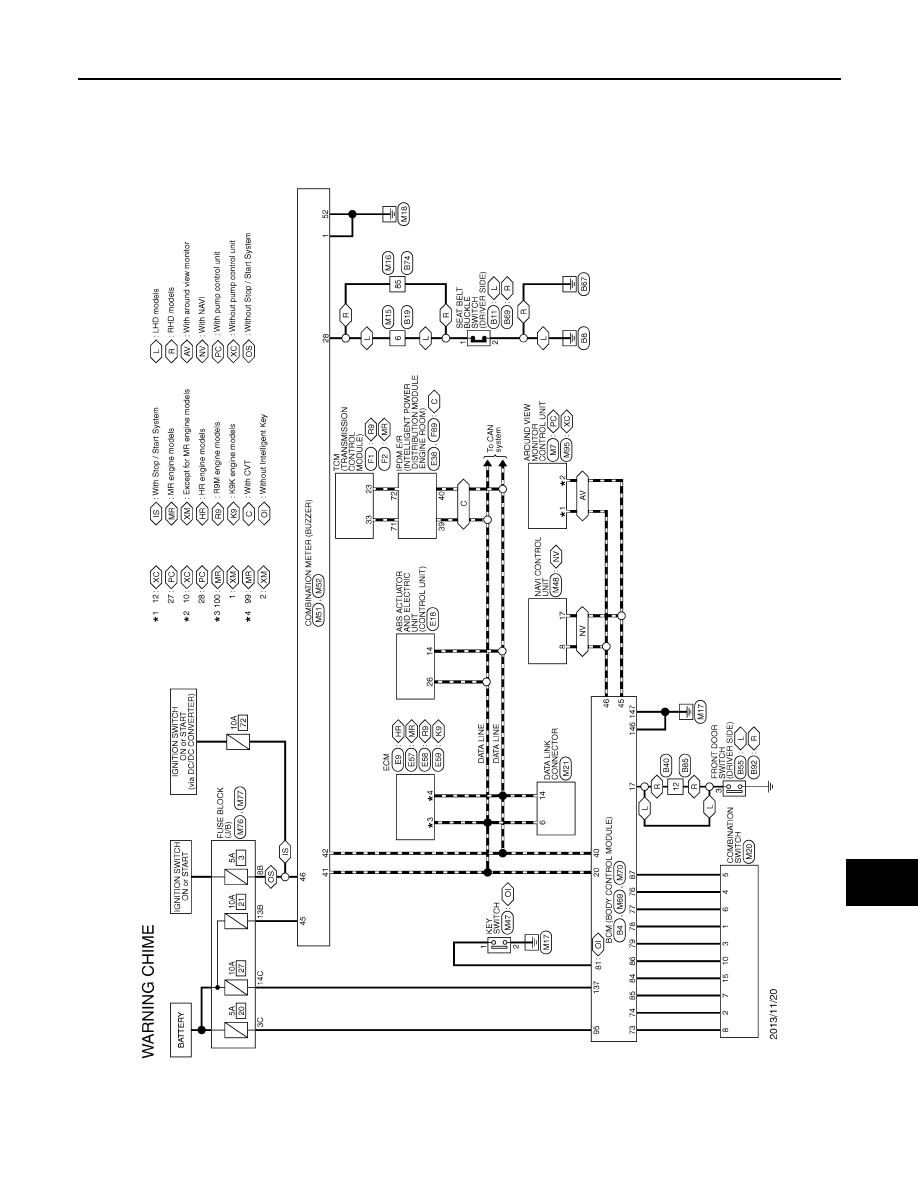

JRNWD1341GB

WCS-32

< WIRING DIAGRAM >

WARNING CHIME SYSTEM

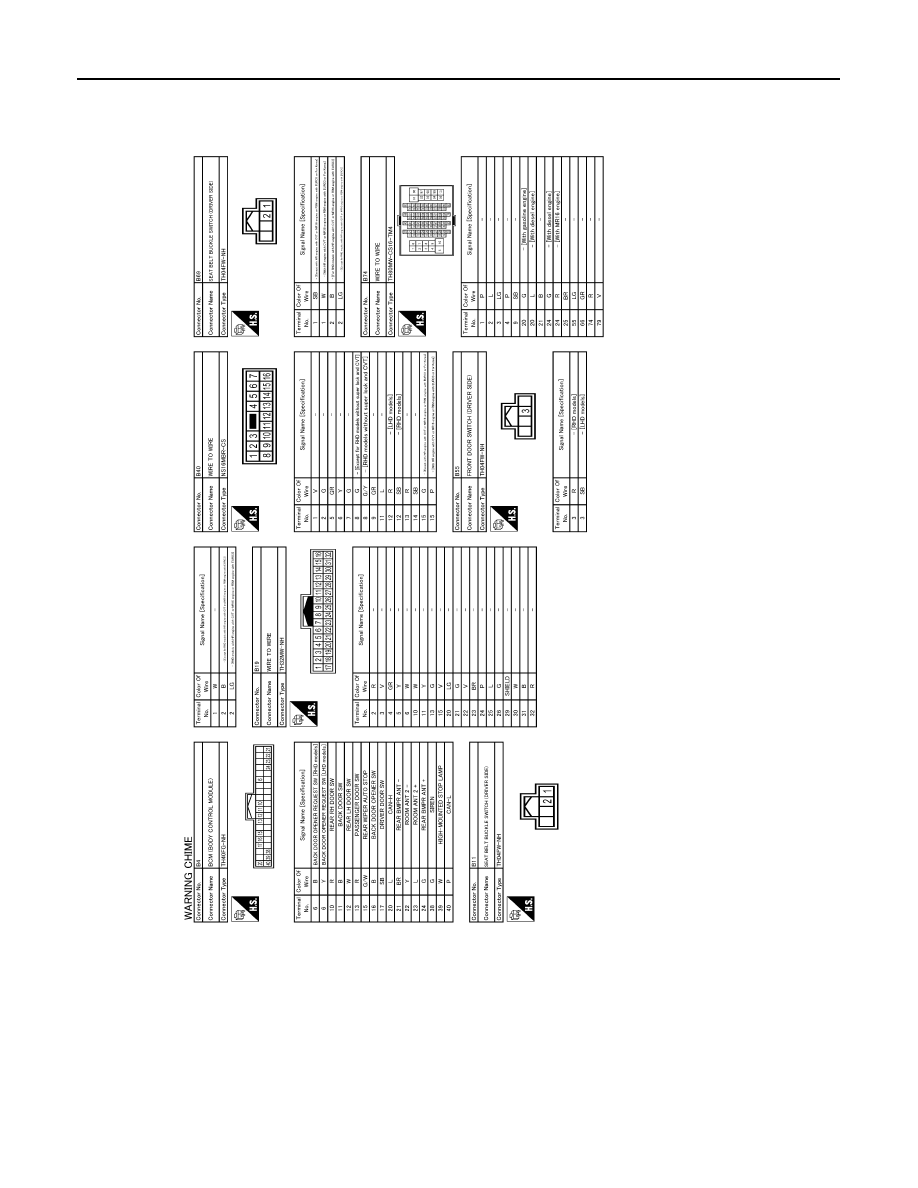

JRNWE0830GB















Content      ..      1      2      3      ..
