Qashqai J11. Warning chime system - part 1

WCS

PRECAUTIONS

WCS-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010519162

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010519172

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

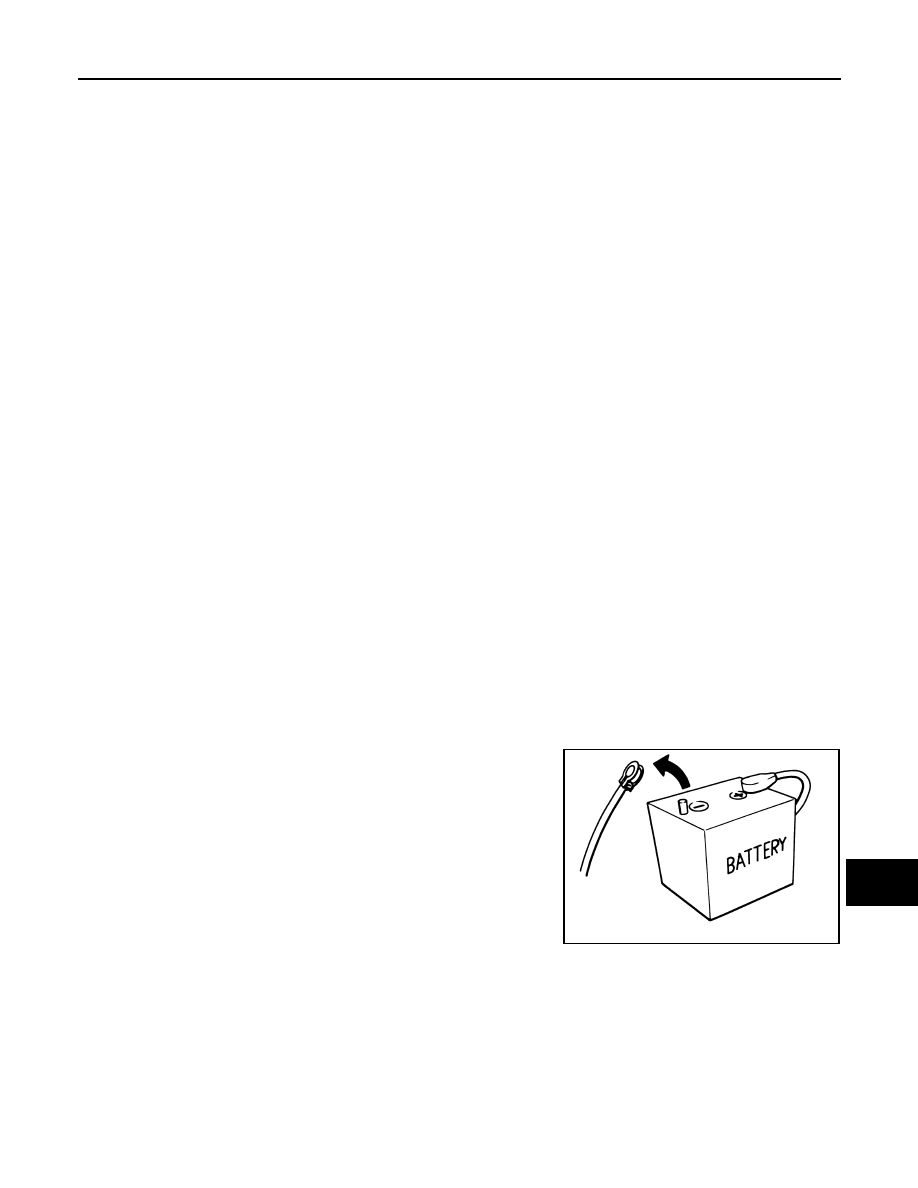

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

SEF289H

WCS-4

< PRECAUTION >

PRECAUTIONS

5.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

WCS

COMPONENT PARTS

WCS-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

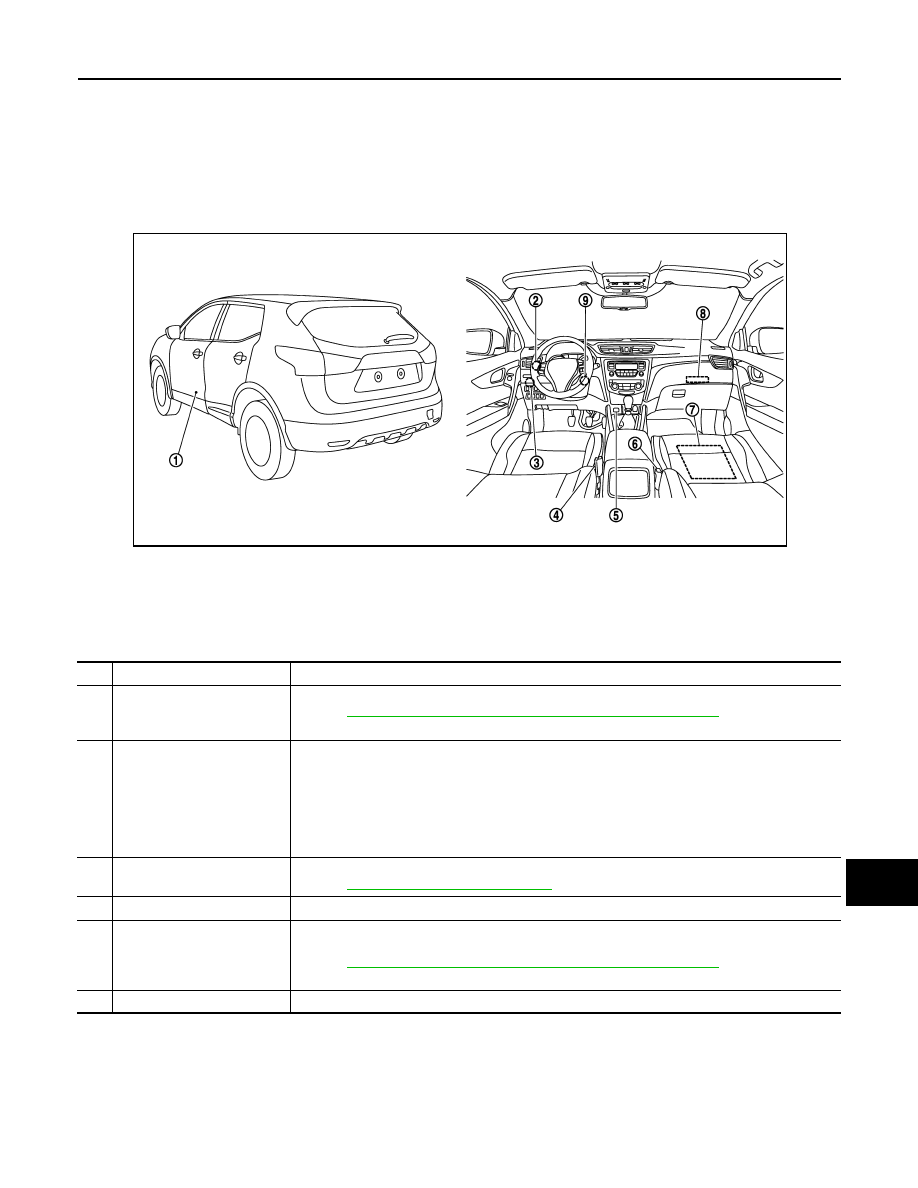

Component Parts Location

INFOID:0000000010438757

1.

Door switch

2.

Combination switch (Lighting switch) 3.

Intelligent key unit

4.

Front seat belt buckle switch (driver
side)

5.

Electric parking brake switch

6.

Front seat belt buckle switch (pas-
senger side

7.

Occupant detection unit

8.

BCM

9.

Key switch

E1NIA0083ZZ

No.

Component

Function

1.

Key switch

Transmits the key switch signal to the BCM.
Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

  for detailed installa-

tion location.

2.

Combination meter

• Receives a buzzer output signal from the BCM with CAN communication line and sounds the

buzzer.

• Controls the following with the vehicle speed signal received from ABS actuator and electric

unit (control unit) via CAN communication and the signals from switches:

- Seat belt reminder warning chime
- Parking brake release warning chime
- Key warning chime

3.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.
Refer to

BRC-8, "Component Parts Location"

 for detailed installation location.

4.

Parking brake switch

Transmits the parking brake switch signal to the combination meter.

5.

BCM

Based on the signals received from various units and switches, transmits the buzzer output signal
to the combination meter via CAN communication.
Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed installa-

tion location.

6.

Seat belt buckle switch LH

Transmits a seat belt buckle switch signal LH to the combination meter.

WCS-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

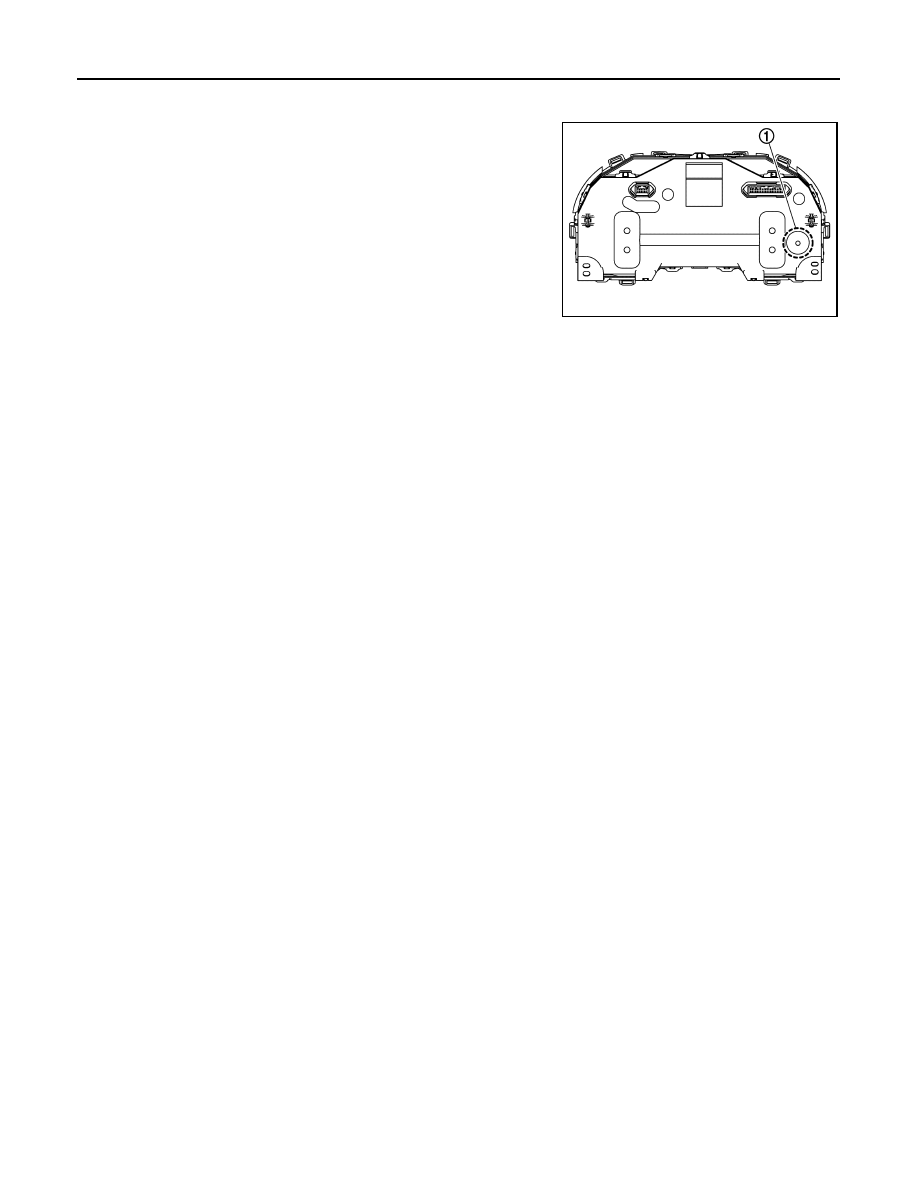

Combination Meter

INFOID:0000000010438758

The combination meter has a built-in buzzer (1) and sounds the fol-
lowing warnings, according to signals from each switch and unit:

• Light reminder warning
• Parking brake release warning chime
• Seat belt warning
• Key warning chime

JSNIA5954ZZ

WCS

SYSTEM

WCS-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

WARNING CHIME SYSTEM

WARNING CHIME SYSTEM : System Description

INFOID:0000000010438759

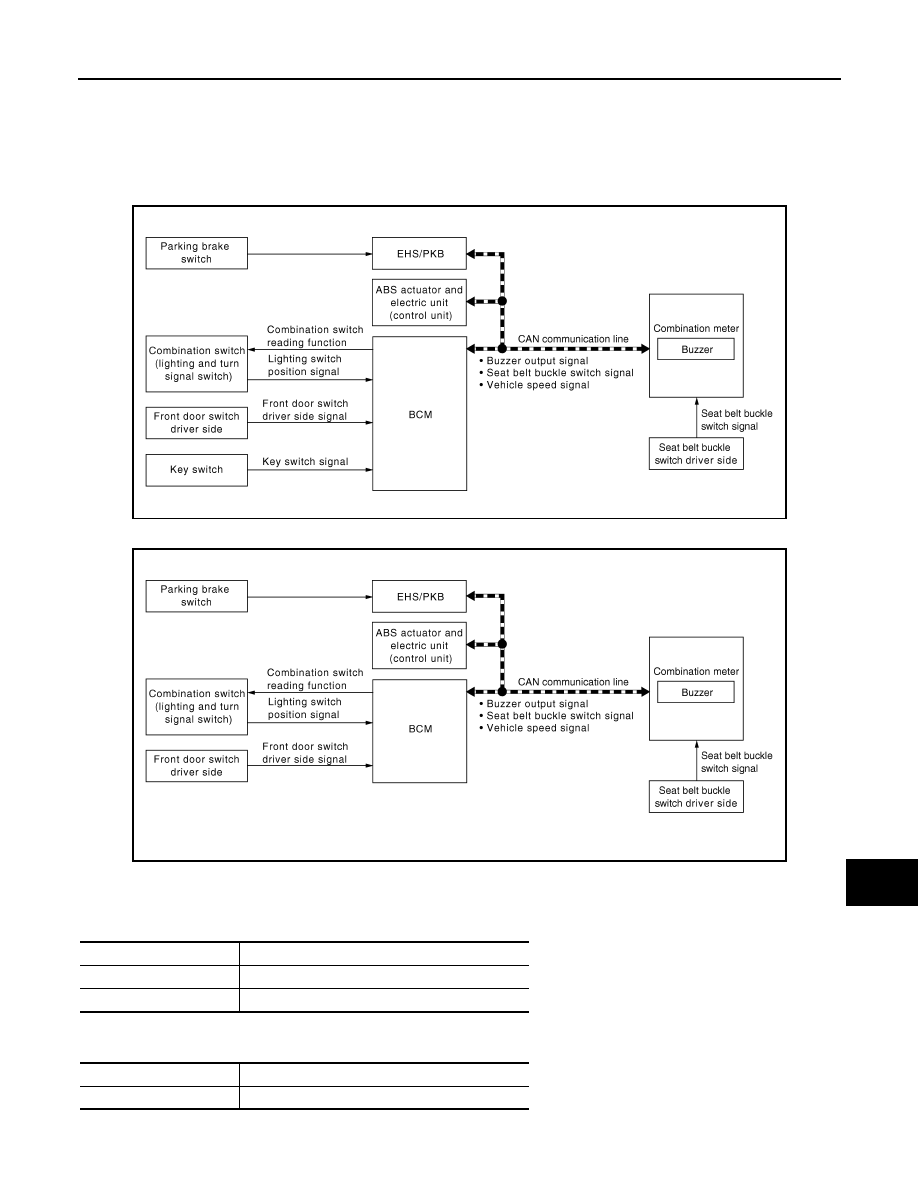

SYSTEM DIAGRAM (WITH INTELLIGENT KEY SYSTEM)

SYSTEM DIAGRAM (WITHOUT INTELLIGENT KEY SYSTEM)

COMBINATION METER INPUT/OUTPUT SIGNAL (CAN COMMUNICATION SIGNAL)

Input signal

Output signal

BCM INPUT/OUTPUT SIGNAL (CAN COMMUNICATION SIGNAL)

E1NIA0085GB

E1NIA0084GB

Signal name

Transmit unit

Vehicle speed signal

ABS actuator and electric unit (control unit)

Buzzer output signal

BCM

Signal name

Reception unit

Vehicle speed signal

BCM

WCS-8

< SYSTEM DESCRIPTION >

SYSTEM

Input signal

Output signal

DESCRIPTION

Combination Meter

The combination meter sounds the alarm buzzer installed in the combination meter when receiving the buzzer
output signal transmitted from each unit.

BCM

BCM receives signals from various units and transmits a buzzer output signal to the combination meter via
CAN communication if it judges that the warning buzzer should be activated.

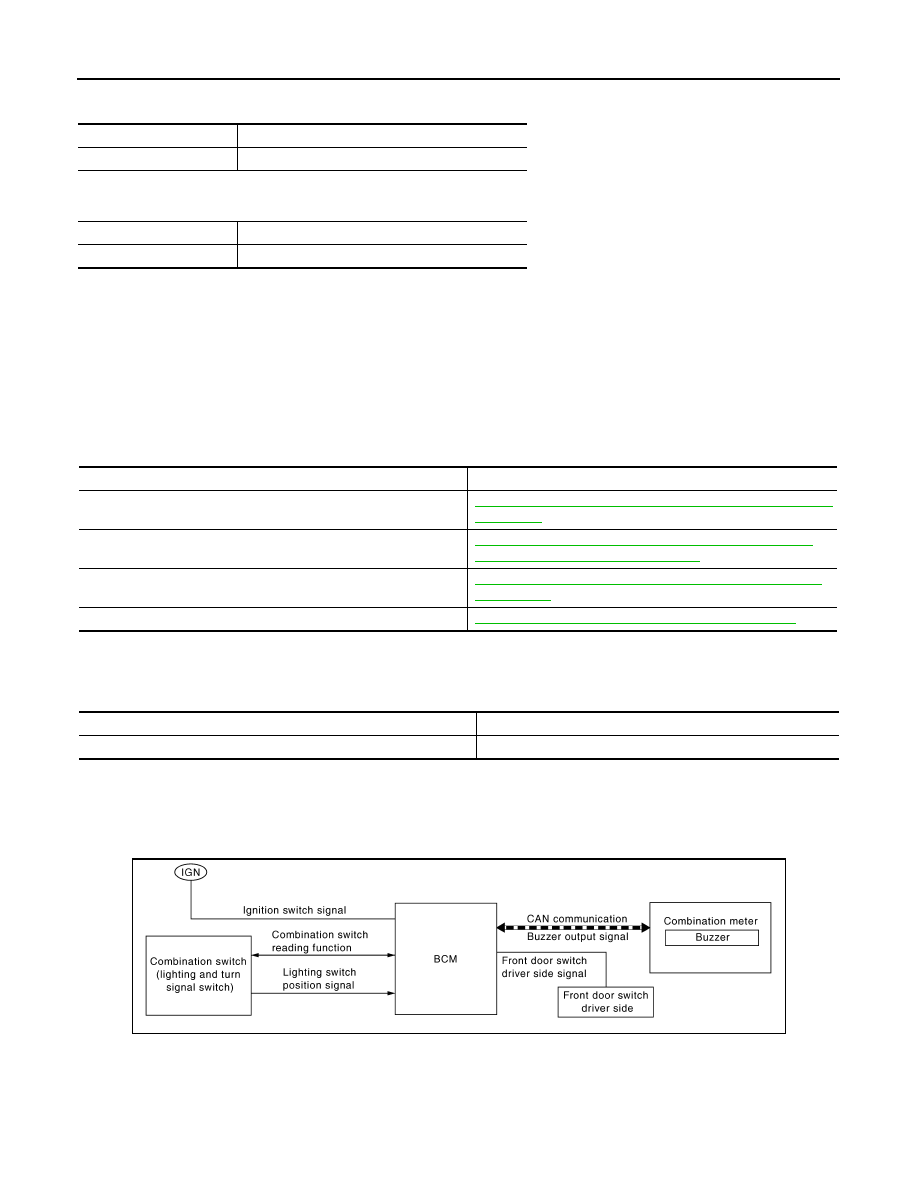

WARNING CHIME FUNCTION LIST

WARNING CHIME SYSTEM : Fail-safe

INFOID:0000000010438760

The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

LIGHT REMINDER WARNING CHIME

LIGHT REMINDER WARNING CHIME : Light Reminder Warning

INFOID:0000000010438761

WARNING CHIME OPERATION CONDITIONS

If all of the following conditions are fulfilled.

Signal name

Transmit unit

Vehicle speed signal

Combination meter

Signal name

Reception unit

Buzzer output signal

Combination meter

Warning functions

Refer to

Light reminder warning

WCS-8, "LIGHT REMINDER WARNING CHIME : Light Remind-
er Warning"

Parking brake release warning chime

WCS-9, "PARKING BRAKE RELEASE WARNING CHIME :
Parking Brake Release Warning Chime"

Seat belt warning

WCS-10, "SEAT BELT REMINDER WARNING CHIME : Seat
belt Warning"

Key warning chime (without Intelligent Key system)

WCS-11, "KEY WARNING CHIME : Key Warning Chime"

Function

Specifications

Buzzer

The buzzer turns OFF by suspending communication.

E1NIA0086GB

WCS

SYSTEM

WCS-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WARNING CHIME CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.

SIGNAL PATH

1.

BCM requires warning chime output to combination meter when it judges light reminder warning chime is
necessary from signals below.

2.

Combination meter sounds integrated buzzer, following the warning chime output requirement (below sig-
nal) from BCM.

PARKING BRAKE RELEASE WARNING CHIME

PARKING BRAKE RELEASE WARNING CHIME : Parking Brake Release Warning
Chime

INFOID:0000000010438762

SYSTEM DIAGRAM

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled.

Operation conditions

Ignition switch

OFF

Combination switch (Lighting switch)

1st or 2nd position

Driver side door

Open [front door switch LH ON]

Operation conditions

Ignition switch

ON

Combination switch (Lighting switch)

OFF or AUTO position

Driver side door

Close [front door switch LH OFF]

Signal name

Signal source

Ignition switch signal

—

Combination switch signal

Combination switch (Lighting switch)

 BCM

Driver door switch signal

Front door switch LH

 BCM

Signal name

Signal source

Buzzer output signal

BCM

Combination

meter

E1NIA0087GB

Operation conditions

Ignition switch

ON

WCS-10

< SYSTEM DESCRIPTION >

SYSTEM

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions are fulfilled.

SIGNAL PATH

Combination meter sounds integrated buzzer when it judges that parking brake release warning chime is nec-
essary from signals below.

SEAT BELT REMINDER WARNING CHIME

SEAT BELT REMINDER WARNING CHIME : Seat belt Warning

INFOID:0000000010438763

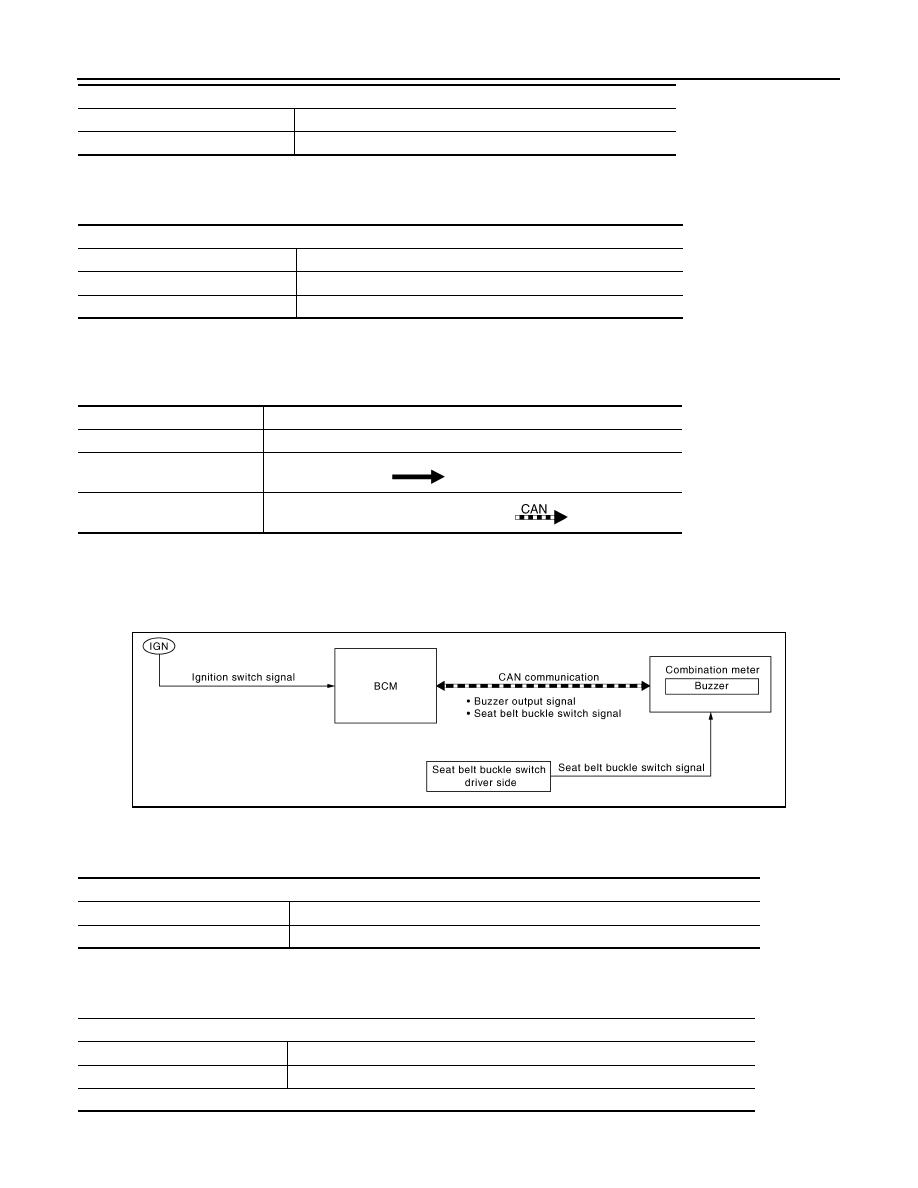

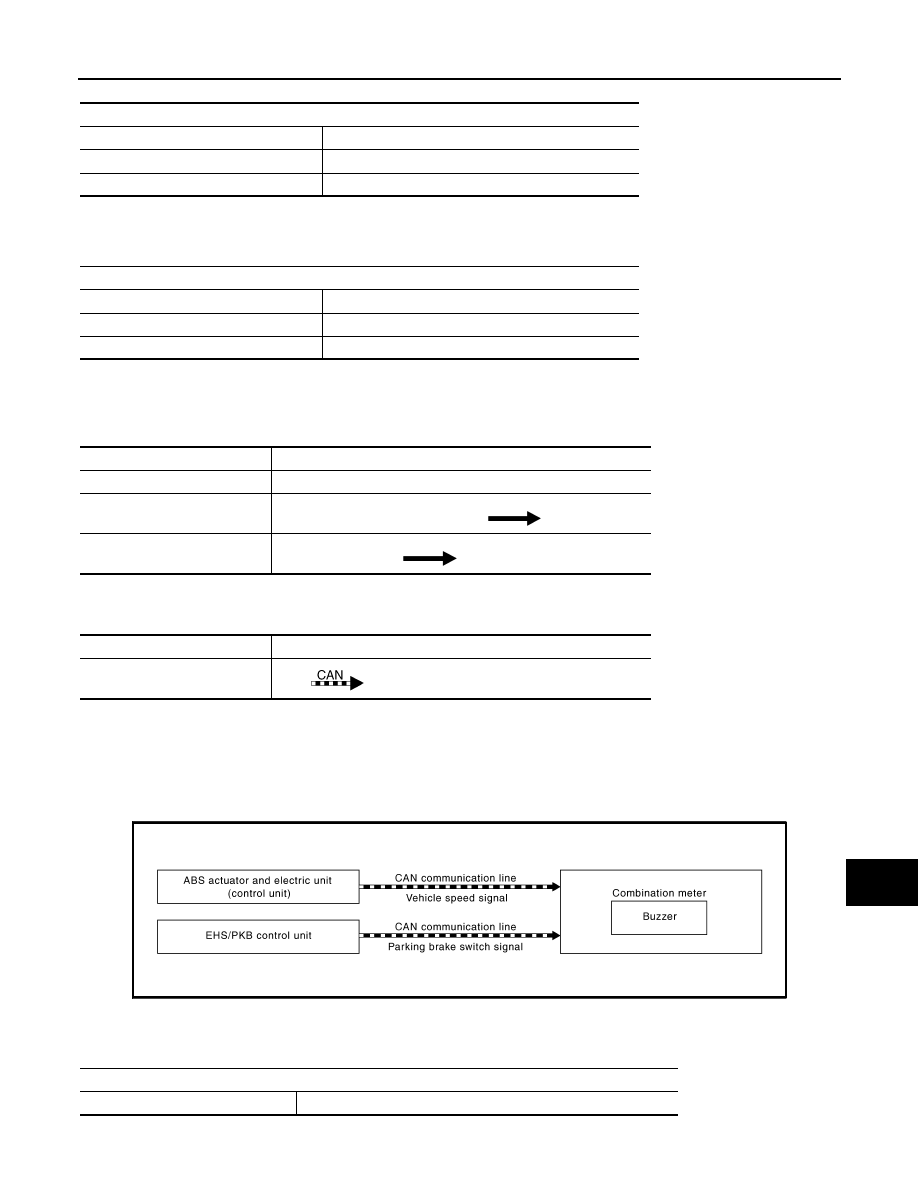

SYSTEM DIAGRAM

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled.

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.

SIGNAL PATH

Parking brake

During the operation (parking brake switch ON)

Vehicle speed

Approximately 4.3 MPH (7 km/h) or more

Operation conditions

Operation conditions

Ignition switch

OFF

Parking brake

Release condition (parking brake switch OFF)

Vehicle speed

Approximately 1.9 MPH (3 km/h) or less

Signal name

Signal source

Ignition switch signal

—

Parking brake switch signal

Parking brake switch

 Combination meter

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

E1NIA0088GB

Operation conditions

Ignition switch

ON

Driver seat belt

Unfastened [seat belt buckle switch LH ON]

Operation conditions

Ignition switch

OFF

Driver seat belt

Fastened (seat belt buckle switch LH OFF)

6 seconds after the start of warning sound

WCS

SYSTEM

WCS-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

1.

BCM requires warning chime output to combination meter when it judges seat belt warning chime is nec-
essary from signals below.

2.

Combination meter sounds integrated buzzer, following the warning chime output requirement (below sig-
nal) from BCM.

KEY WARNING CHIME

KEY WARNING CHIME : Key Warning Chime

INFOID:0000000010438764

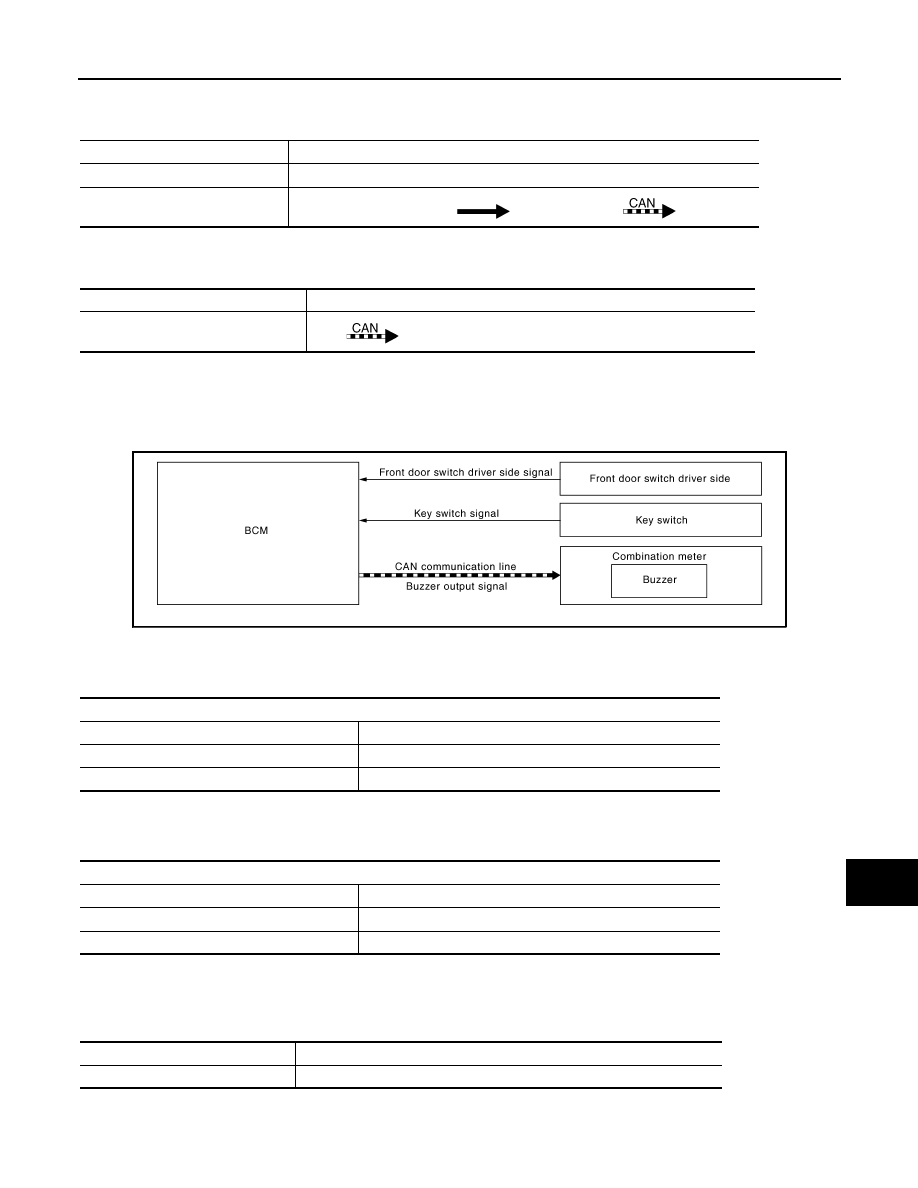

SYSTEM DIAGRAM

WARNING CHIME OPERATION CONDITIONS

If all of the following conditions are fulfilled.

WARNING CHIME CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.

SIGNAL PATH

1.

BCM detects key inserted into the ignition switch, and sends key warning signal to combination meter with
CAN communication line.

Signal name

Signal source

Ignition switch signal

—

Seat belt buckle switch signal (LH)

Seat belt buckle switch (LH)

 Combination meter

 BCM

Signal name

Signal source

Buzzer output signal

BCM

 Combination meter

E1NIA0089GB

Operation conditions

Ignition switch

OFF

Key switch

ON (key is in key cylinder)

Driver side door

Open [front door switch LH ON]

Operation conditions

Ignition switch

ON

Key switch

ON (key is removed from key cylinder)

Driver side door

Close [front door switch LH OFF]

Signal name

Signal source

Ignition switch signal

—

WCS-12

< SYSTEM DESCRIPTION >

SYSTEM

2.

Combination meter sounds integrated buzzer, when it receives a buzzer output signal from BCM.

Key switch signal

Key switch

 BCM

Driver door switch signal

Front door switch LH

 BCM

Signal name

Signal source

Buzzer output signal

BCM

Combination

meter

Signal name

Signal source

WCS

DIAGNOSIS SYSTEM (COMBINATION METER)

WCS-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (COMBINATION METER)

Description

INFOID:0000000010438765

COMBINATION METER SELF-DIAGNOSIS MODE

The following meter functions can be checked during Combination Meter Self-Diagnosis Mode:
• Pointer sweep of speedometer, tachometer and gauges.
• Illumination of all LCD segments and color patterns for meter displays.
• Illumination of all lamps/LEDs that are controlled by the combination meter (regardless of switch status).

STARTING COMBINATION METER SELF-DIAGNOSIS MODE

NOTE:
• Check combination meter power supply and ground circuits if self-diagnosis mode does not start. Refer to

MWI-61, "COMBINATION METER : Diagnosis Procedure"

. Replace combination meter if power supply and

ground circuits are found to be normal and self-diagnosis mode does not start. Refer to

MWI-80, "Removal

and Installation"

.

• Combination meter self-diagnosis mode will function with the ignition switch in ON. Combination meter self-

diagnosis mode will exit upon turning the ignition switch to OFF.

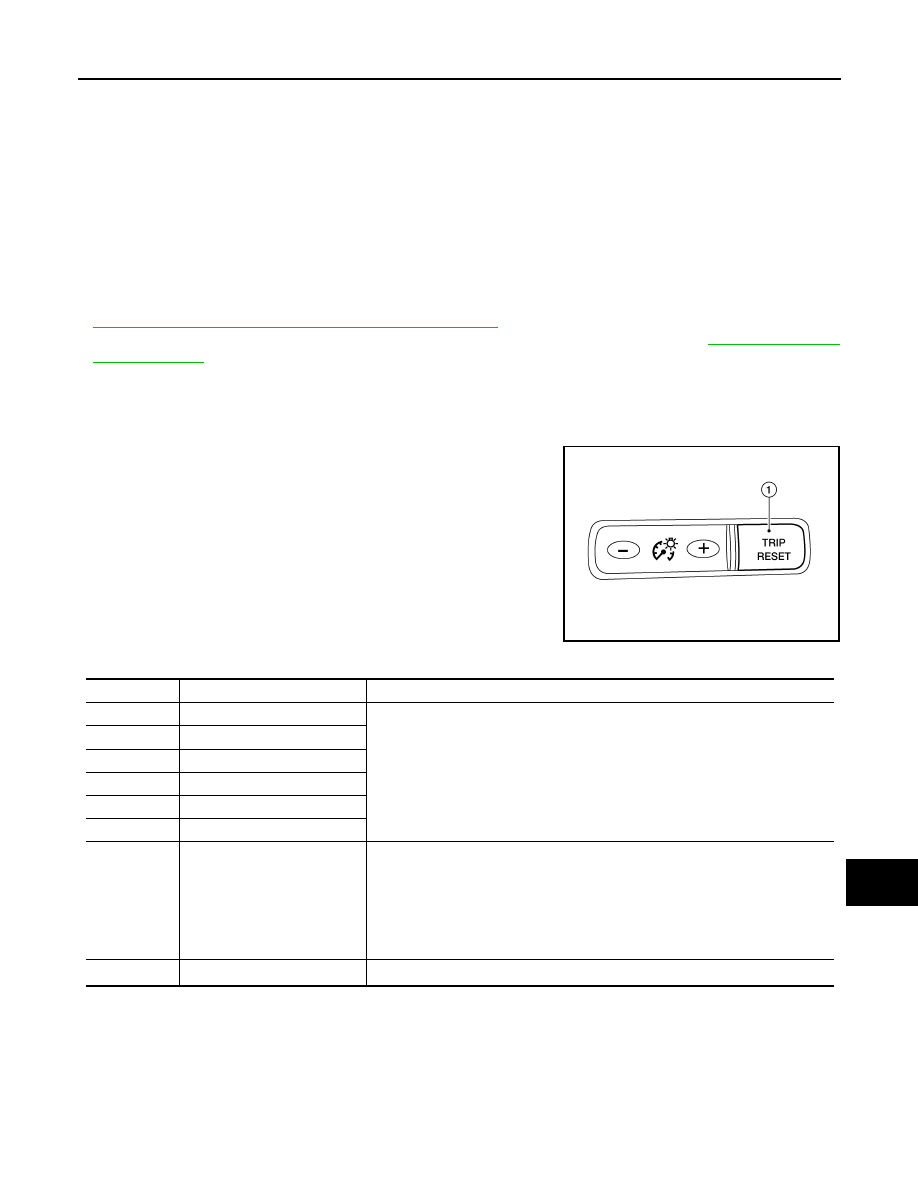

How to Initiate Self-Diagnosis Mode

1.

Turn ignition switch OFF.

2.

While pressing the trip reset switch (1), turn ignition switch ON.

3.

Keep the trip reset switch for 1 seconds or more.

4.

Press the trip reset switch at least 3 times. (Within 7 seconds
after the ignition switch is turned ON.)

5.

“Work instruction code” is indicated in the top portion of informa-
tion display and self-diagnosis is started.

6.

The mode switches in the order shown below each time the trip
reset switch is pressed.

NOTE:
If the trip reset switch is not operated for 20 seconds or more, the
self-diagnosis mode is automatically cancelled.

AWNIA3394ZZ

Test order

Test item

Description

1

Work instruction code

This item is displayed, but not used.

2

Part number

3

Software code

4

EEPROM code

5

Hardware code

6

P.C.B code

7

Circuit check

The pointer of the following items moves from 0 to MAX twice.
• Speedometer
• Tachometer
• Engine coolant temperature gauge
• Fuel gauge
NOTE:
If any one of the pointers does not sweep, replace combination meter.

8

Color check

*1

Performs the color check of the information display.

WCS-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (COMBINATION METER)

NOTE:
When the trip reset switch is pressed during the indication of Test order “10,” test item returns to Test order “2.”

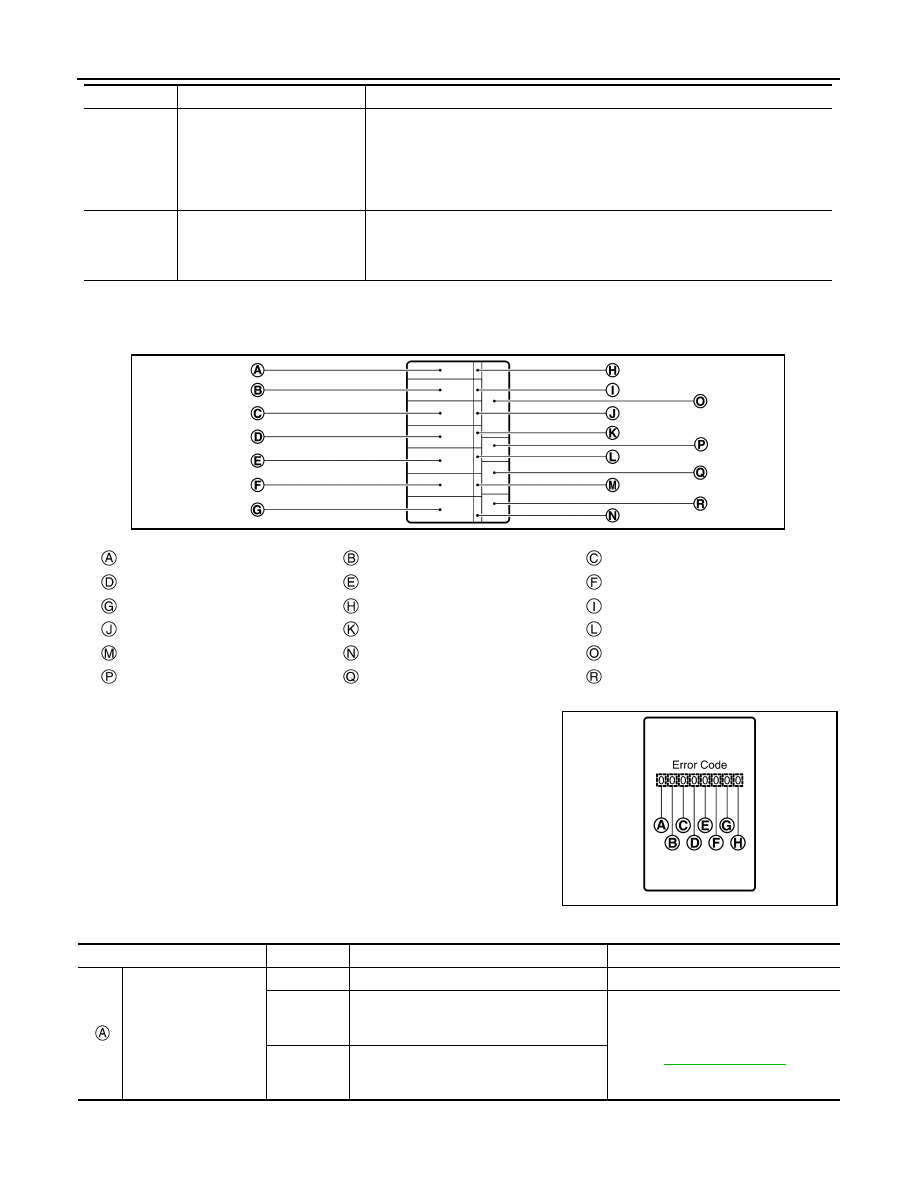

*1: Color Check

*2: Error Code

9

error code

*2

Displays the error code of the following items:
• Speedometer
• Tachometer
• Engine coolant temperature gauge
• Fuel gauge
• Meter control switch

10

Warning/indicator lamp check

All warning/indicator lamp illuminate.
NOTE:
• When either one of them does not turn ON, replace combination meter.
• SRS air bag warning lamp and security indicator lamp are not illuminate.

Blue

Red

Pink

Green

Light blue

Yellow

White

White

Black

Light blue

Black

Pink

Black

Blue

Black

Dark blue

White

Blue

Test order

Test item

Description

JSNIA5944ZZ

JSNIA5945ZZ

Item

Code

Description

Action to take/Reference

Speedometer

0

Normal

—

1

A vehicle speed signal cannot be received
from ABS actuator and electric unit (control
unit).

Perform “Self Diagnostic Result” of
“ABS.”
Refer to

BRC-54, "DTC Index"

.

2

A vehicle speed signal received from the
ABS actuator and electric unit (control unit)
is abnormal.

WCS

DIAGNOSIS SYSTEM (COMBINATION METER)

WCS-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

How to Reset Error Code

Error codes stored in combination meter can be reset by following the instructions below:
1.

Turn ignition switch OFF.

2.

While pressing the trip reset switch, turn ignition switch ON.

3.

Keep the trip reset switch for 1 seconds or more.

4.

Press the trip reset switch at least 3 times. (Within 7 seconds after the ignition switch is turned ON.)

5.

Turn ignition switch OFF.

6.

Perform self-diagnosis and check that the error codes are reset.

CONSULT Function (METER/M&A)

INFOID:0000000010438766

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes shown.

SELF DIAG RESULT

Refer to

WCS-29, "DTC Index"

.

DATA MONITOR

Display Item List

Tachometer

0

Normal

—

1

An engine speed signal cannot be received
from ECM.

Perform “Self Diagnostic Result” of
“ECM.”
Refer to

ECH-71, "DTC Index"

.

Fuel gauge

0

Normal

—

1

Fuel gauge circuit is short.

Refer to

MWI-65, "Component Inspec-

tion"

.

2

Fuel gauge circuit is open.

Engine coolant temper-
ature gauge

0

Normal

—

1

An engine coolant temperature signal can-
not be received from ECM.

Perform “Self Diagnostic Result” of
“ECM.”
Refer to

ECH-71, "DTC Index"

.

Meter control switch

0

Normal

—

1

When judging that the illumination control
switch signal circuit is shorted for 5 minutes
or more.

Refer to

MWI-69, "Diagnosis Proce-

dure"

.

2

When judging that the trip reset switch sig-
nal circuit is shorted for 5 minutes or more.

3

When judging that the both switch signal cir-
cuit is shored for 5 minutes or more.

—

0

Displays “0” constantly.

—

—

0

Displays “0” constantly.

—

—

0

Displays “0” constantly.

—

Item

Code

Description

Action to take/Reference

METER/M&A Diagnosis mode

Description

SELF DIAGNOSTIC RESULT

Displays combination meter self-diagnosis results.

DATA MONITOR

Displays combination meter input/output data in real time.

WARNING HISTORY

Lighting history of the warning lamp and indicator lamp can be checked.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

WCS-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (COMBINATION METER)

X: Applicable

Display item [Unit]

MAIN

SIGNALS

Description

SPEED METER

X

Displays the value of vehicle speed signal.

SPEED OUTPUT
[mph or km/h]

X

Vehicle speed signal value transmitted to other units via CAN communication.

ODO OUTPUT
[mph or km/h]

Odometer signal value transmitted to other units via CAN communication.

TACHO METER
[rpm]

X

Value of the engine speed signal received from ECM via CAN communication.

FUEL METER
[L]

X

Fuel level indicated on combination meter.

W TEMP METER
[

°

F] or [

°

C]

X

Displays the value of engine coolant temperature signal, which is input from ECM.

ABS W/L
[On/Off]

Displays [On/Off] condition of ABS warning indicator.

VDC/TCS IND
[On/Off]

Displays [On/Off] condition of VDC OFF indicator lamp.

SLIP IND
[On/Off]

Displays [On/Off] condition of SLIP indicator lamp.

BRAKE W/L
[On/Off]

Displays [On/Off] condition of brake warning indicator.

DOOR W/L
[On/Off]

Displays [On/Off] condition of door or liftgate warning message in the information
display.

HI-BEAM IND
[On/Off]

Displays [On/Off] condition of high beam indicator.

TURN IND
[On/Off]

Displays [On/Off] condition of turn indicator.

LIGHT IND
[On/Off]

Displays [On/Off] condition of light indicator.

FR FOG IND
[On/Off]

Displays [On/Off] condition of front fog lamp indicator.

OIL W/L
[On/Off]

Displays [On/Off] condition of low engine oil pressure warning message in the in-
formation display.

O/D OFF IND
[On/Off]

Displays [On/Off] condition of O/D OFF indicator.

DDS W/L
[On/Off]

Displays [On/Off] condition of hill descent control warning indicator.

MIL
[On/Off]

Displays [On/Off] condition of malfunction indicator.

SPORT IND
[On/Off]

Displays [On/Off] condition of SPORT indicator.

CHAGE W/L
[On/Off]

Displays [On/Off] condition of charge warning indicator.

4WD LOCK IND
[On/Off]

Displays [On/Off] condition of AWD LOCK indicator lamp.

4WD W/L
[On/Off]

Displays [On/Off] condition of AWD warning message in the information display.

FUEL W/L
[On/Off]

Displays [On/Off] condition of low-fuel warning message.

WASHER W/L
[On/Off]

Displays [On/Off] condition of low washer fluid warning message.
