CONTENTS

SECURITY CONTROL SYSTEM

WITH INTELLIGENT KEY SYSTEM

PRECAUTION ...............................................

7

PRECAUTIONS ...................................................

7

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

7

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

7

Precaution for Procedure without Cowl Top Cover

......

8

Precautions for Removing Battery Terminal  .............

8

SYSTEM DESCRIPTION  .............................

10

COMPONENT PARTS  .......................................

10

Component Parts Location ......................................

10

NATS Antenna Amp. ...............................................

13

Hood Switch  ............................................................

13

Steering Lock Unit ...................................................

13

Siren Control Unit ....................................................

13

Intruder Sensor  .......................................................

14

Sensor Cancel Switch  .............................................

14

SYSTEM .............................................................

15

INTELLIGENT KEY SYSTEM/ENGINE START
FUNCTION .................................................................

15

INTELLIGENT KEY SYSTEM/ENGINE START
FUNCTION : System Description ............................

15

NISSAN ANTI-THEFT SYSTEM ................................

18

NISSAN ANTI-THEFT SYSTEM : System De-
scription ...................................................................

19

VEHICLE SECURITY SYSTEM .................................

22

VEHICLE SECURITY SYSTEM : System Descrip-
tion ..........................................................................

22

DIAGNOSIS SYSTEM (BCM)  ............................

26

COMMON ITEM  .........................................................

26

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

26

INTELLIGENT KEY ....................................................

27

INTELLIGENT KEY : Information ............................

27

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY) (Type 1) ..................................

27

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY) (Type 2) ..................................

31

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY) (Type 5) ..................................

36

MULTI REMOTE ENT  ................................................

40

MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) (Type 3)  .................

40

MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) (Type 4)  .................

42

MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) (Type 6)  .................

43

THEFT ALM  ...............................................................

45

THEFT ALM : CONSULT Function (BCM -
THEFT) (With Intelligent Key System) .....................

45

IMMU ..........................................................................

46

IMMU : CONSULT Function (BCM - IMMU) (With
Intelligent Key System) ............................................

46

DIAGNOSIS SYSTEM (SIREN CONTROL
UNIT) .................................................................

48

Diagnosis Description ..............................................

48

DIAGNOSIS SYSTEM (IPDM E/R)  ...................

52

CONSULT Function (IPDM E/R)  .............................

52

ECU DIAGNOSIS INFORMATION ..............

59

ECM, IPDM E/R, BCM .......................................

59

List of ECU Reference .............................................

59

WIRING DIAGRAM  ......................................

60

SECURITY CONTROL SYSTEM  ......................

60

SEC-2

Wiring Diagram  .......................................................

60

BASIC INSPECTION ...................................

78

DIAGNOSIS AND REPAIR WORK FLOW  ........

78

Work Flow ...............................................................

78

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ................................................

81

ECM ...........................................................................

81

ECM : Description ...................................................

81

ECM : Work Procedure ...........................................

81

STEERING LOCK UNIT ............................................

81

STEERING LOCK UNIT : Description  ....................

81

STEERING LOCK UNIT : Work Procedure  ............

81

DTC/CIRCUIT DIAGNOSIS .........................

83

P161D IMMOBILIZER ........................................

83

DTC Logic ...............................................................

83

Diagnosis Procedure  ..............................................

83

P161E IMMOBILIZER  ........................................

84

DTC Logic ...............................................................

84

Diagnosis Procedure  ..............................................

84

P161F IMMOBILIZER  ........................................

85

DTC Logic ...............................................................

85

Diagnosis Procedure  ..............................................

85

P1616 ECM  ........................................................

86

DTC Logic ...............................................................

86

Diagnosis Procedure  ..............................................

86

B2190 CHAIN OF BCM - IMM ANT ...................

87

DTC Logic ...............................................................

87

Diagnosis Procedure  ..............................................

87

B2191 ID DISCORD, BCM - IMM ANT  ..............

89

DTC Logic ...............................................................

89

Diagnosis Procedure  ..............................................

89

B2192 ID DISCORD, IMMU-ECM  ......................

90

DTC Logic ...............................................................

90

Diagnosis Procedure  ..............................................

90

B2193 CHAIN OF ECM-IMMU ...........................

92

DTC Logic ...............................................................

92

Diagnosis Procedure  ..............................................

92

B2195 ANTI-SCANNING  ...................................

95

DTC Logic ...............................................................

95

Diagnosis Procedure  ..............................................

95

B2196 DONGLE UNIT  .......................................

96

Description ..............................................................

96

DTC Logic ...............................................................

96

Diagnosis Procedure  ..............................................

96

B2198 NATS ANTENNA AMP.  .........................

98

DTC Logic ...............................................................

98

Diagnosis Procedure ...............................................

98

B2556 PUSH-BUTTON IGNITION SWITCH  ....

100

DTC Logic  .............................................................

100

Diagnosis Procedure .............................................

100

Component Inspection  ..........................................

101

B2557 VEHICLE SPEED ..................................

102

DTC Logic  .............................................................

102

Diagnosis Procedure .............................................

102

B2602 SHIFT POSITION  ..................................

104

DTC Logic  .............................................................

104

Diagnosis Procedure .............................................

104

Component Inspection  ..........................................

106

B2604 SHIFT POSITION  ..................................

107

DTC Logic  .............................................................

107

Diagnosis Procedure .............................................

107

Component Inspection  ..........................................

109

B2608 STARTER RELAY  ................................

110

DTC Logic  .............................................................

110

Diagnosis Procedure .............................................

110

B260F ENGINE STATUS  .................................

111

DTC Logic  .............................................................

111

Diagnosis Procedure .............................................

111

B261F ASCD CLUTCH SWITCH  .....................

113

DTC Description ....................................................

113

Diagnosis Procedure .............................................

113

Component Inspection  ..........................................

114

B2620 PARK/NEUTRAL POSITION SWITCH ..

115

DTC Logic  .............................................................

115

Diagnosis Procedure .............................................

115

Component Inspection  ..........................................

117

B26FC KEY REGISTRATION  ..........................

118

DTC Logic  .............................................................

118

Diagnosis Procedure .............................................

118

B26E8 CLUTCH INTERLOCK SWITCH  ..........

119

DTC Logic  .............................................................

119

Diagnosis Procedure .............................................

119

Component Inspection (Clutch interlock switch)  ...

121

B27D1 START CUT RELAY OFF  ....................

122

DTC Logic  .............................................................

122

Diagnosis Procedure .............................................

122

Component Inspection  ..........................................

124

B27D2 START CUT RELAY ON  ......................

125

DTC Logic  .............................................................

125

Diagnosis Procedure .............................................

125

Component Inspection  ..........................................

127

B27D3 S/L THERMAL PROTECTION  .............

128

DTC Logic  .............................................................

128

Diagnosis Procedure .............................................

128

SEC-3

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B27D4 BCM - S/L SENSOR CIRCUIT  .............

129

DTC Logic  .............................................................

129

Diagnosis Procedure .............................................

129

B27D5 S/L SENSOR TEST OUTPUT  ..............

131

DTC Logic  .............................................................

131

Diagnosis Procedure .............................................

131

B27D6 S/L CAN COMM CIRCUIT  ...................

133

DTC Logic  .............................................................

133

Diagnosis Procedure .............................................

133

B27D7 S/L PWR RELAY ..................................

135

DTC Logic  .............................................................

135

Diagnosis Procedure .............................................

135

B27D8 S/L VEHICLE SPEED MALFUNCTION

..

137

DTC Logic  .............................................................

137

Diagnosis Procedure .............................................

137

B27D9 S/L IGN MALFUNCTION  .....................

139

DTC Logic  .............................................................

139

Diagnosis Procedure .............................................

139

B27DA IPDM CAN COMM CIRCUIT  ...............

140

DTC Logic  .............................................................

140

Diagnosis Procedure .............................................

140

B27DB S/L IGN OFF  ........................................

142

DTC Logic  .............................................................

142

Diagnosis Procedure .............................................

142

B27DC S/L POWER SUPPLY ..........................

144

DTC Logic  .............................................................

144

Diagnosis Procedure .............................................

144

B27DD BCM - S/L ID DISCORD  ......................

146

DTC Logic  .............................................................

146

Diagnosis Procedure .............................................

146

B27DE S/L MECHANICAL MALFUNCTION  ...

148

DTC Logic  .............................................................

148

Diagnosis Procedure .............................................

148

B27DF S/L HIGH LEVEL MALFUNCTION  ......

149

DTC Logic  .............................................................

149

Diagnosis Procedure .............................................

149

B27E0 S/L LOW LEVEL MALFUNCTION  .......

150

DTC Logic  .............................................................

150

Diagnosis Procedure .............................................

150

B27E1 S/L SAFETY CIRCUIT ..........................

151

DTC Logic  .............................................................

151

Diagnosis Procedure .............................................

151

B27E3 S/L KEY NOT REGISTRATION  ...........

153

DTC Logic  .............................................................

153

Diagnosis Procedure .............................................

153

B27E4 S/L REGISTRATION STATUS  .............

154

DTC Logic ..............................................................

154

Diagnosis Procedure  .............................................

154

B27E5 S/L IGN OFF POSITION  .....................

155

DTC Logic ..............................................................

155

Diagnosis Procedure  .............................................

155

B27E6 S/L ANTI-SCAN MODE .......................

157

DTC Logic ..............................................................

157

Diagnosis Procedure  .............................................

157

B27E7 S/L UNDETERMINED UNLOCK POS .

159

DTC Logic ..............................................................

159

Diagnosis Procedure  .............................................

159

B27E8 S/L UNDETERMINED LOCK POS  .....

161

DTC Logic ..............................................................

161

Diagnosis Procedure  .............................................

161

B121D STEERING LOCK POWER SUPPLY
CIRCUIT ..........................................................

162

DTC Logic ..............................................................

162

Diagnosis Procedure  .............................................

162

B20DF STARTER RELAY OFF CIRCUIT  ......

164

DTC Logic ..............................................................

164

Diagnosis Procedure  .............................................

164

POWER SUPPLY AND GROUND CIRCUIT  ..

166

SIREN CONTROL UNIT  ..........................................

166

SIREN CONTROL UNIT : Diagnosis Procedure  ...

166

STEERING LOCK UNIT ...........................................

166

STEERING LOCK UNIT : Diagnosis Procedure ....

166

SECURITY INDICATOR LAMP  ......................

169

Component Function Check ................................

169

Diagnosis Procedure  .............................................

169

HOOD SWITCH ...............................................

171

Component Function Check ................................

171

Diagnosis Procedure ............................................

171

Component Inspection ...........................................

172

HORN FUNCTION ...........................................

173

Diagnosis Procedure ............................................

173

INTRUDER SENSOR ......................................

174

Component Function Check  ..................................

174

Diagnosis Procedure  .............................................

174

SENSOR CANCEL SWITCH  ..........................

176

Diagnosis Procedure ............................................

176

Component Inspection ...........................................

177

SIREN CONTROL UNIT CIRCUIT (COMMU-
NICATION SIGNAL) ........................................

178

Component Function Check  ..................................

178

Diagnosis Procedure  .............................................

178

SIREN CONTROL UNIT CIRCUIT (HAZARD
SWITCH SIGNAL) ...........................................

179

SEC-4

Component Function Check  ..................................

179

Diagnosis Procedure  .............................................

179

SYMPTOM DIAGNOSIS  ............................

180

ENGINE DOES NOT START WHEN INTELLI-
GENT KEY IS INSIDE OF VEHICLE  ...............

180

Description .............................................................

180

Diagnosis Procedure  .............................................

180

STEERING DOES NOT LOCK  ........................

181

Description .............................................................

181

Diagnosis Procedure  .............................................

181

SECURITY INDICATOR LAMP DOES NOT
TURN ON OR BLINK .......................................

182

Description .............................................................

182

Diagnosis Procedure  .............................................

182

VEHICLE SECURITY SYSTEM CANNOT BE
SET ..................................................................

183

INTELLIGENT KEY ..................................................

183

INTELLIGENT KEY : Description ..........................

183

INTELLIGENT KEY : Diagnosis Procedure  ...........

183

DOOR REQUEST SWITCH  .....................................

183

DOOR REQUEST SWITCH : Description  .............

183

DOOR REQUEST SWITCH : Diagnosis Proce-
dure .......................................................................

183

VEHICLE SECURITY ALARM DOES NOT
ACTIVATE .......................................................

185

Description .............................................................

185

Diagnosis Procedure  .............................................

185

INTRUDER SENSOR CANNOT BE DEACTI-
VATED .............................................................

186

Diagnosis Procedure  .............................................

186

REMOVAL AND INSTALLATION ..............

187

NATS ANTENNA AMP.  ...................................

187

Removal and Installation  .......................................

187

WITHOUT INTELLIGENT KEY SYSTEM

PRECAUTION ............................................

188

PRECAUTIONS  ...............................................

188

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ................................................................

188

Precaution for Procedure without Cowl Top Cover ..

188

Precautions for Removing Battery Terminal  ..........

188

SYSTEM DESCRIPTION  ...........................

190

COMPONENT PARTS  .....................................

190

Component Parts Location  ....................................

190

NATS Antenna Amp.  .............................................

192

Hood Switch  ..........................................................

192

Siren Control Unit  ..................................................

192

Intruder Sensor  .....................................................

192

Sensor Cancel Switch ...........................................

193

SYSTEM ...........................................................

194

NISSAN ANTI-THEFT SYSTEM  .............................

194

NISSAN ANTI-THEFT SYSTEM : System De-
scription .................................................................

194

VEHICLE SECURITY SYSTEM  ..............................

195

VEHICLE SECURITY SYSTEM : System Descrip-
tion ........................................................................

195

DIAGNOSIS SYSTEM (BCM) ...........................

199

COMMON ITEM .......................................................

199

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  ..................................................

199

MULTI REMOTE ENT  .............................................

200

MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) (Type 3) ...............

200

MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) (Type 4) ...............

201

MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) (Type 6) ...............

203

THEFT ALM .............................................................

205

THEFT ALM : CONSULT Function (BCM -
THEFT) (Without Intelligent Key System) .............

205

IMMU .......................................................................

206

IMMU : CONSULT Function (BCM - IMMU) (With-
out Intelligent Key System)  ...................................

206

DIAGNOSIS SYSTEM (SIREN CONTROL
UNIT) .................................................................

207

Diagnosis Description  ...........................................

207

DIAGNOSIS SYSTEM (IPDM E/R)  ...................

211

CONSULT Function (IPDM E/R) ...........................

211

ECU DIAGNOSIS INFORMATION ............

218

ECM, IPDM E/R, BCM  ......................................

218

List of ECU Reference  ..........................................

218

WIRING DIAGRAM  ...................................

219

SECURITY CONTROL SYSTEM  .....................

219

Wiring Diagram  .....................................................

219

BASIC INSPECTION .................................

237

DIAGNOSIS AND REPAIR WORK FLOW .......

237

Work Flow  .............................................................

237

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ...............................................

240

ECM .........................................................................

240

ECM : Description  .................................................

240

ECM : Work Procedure  .........................................

240

SEC-5

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

DTC/CIRCUIT DIAGNOSIS  .......................

241

P161D IMMOBILIZER  ......................................

241

DTC Logic  .............................................................

241

Diagnosis Procedure .............................................

241

P161E IMMOBILIZER  ......................................

242

DTC Logic  .............................................................

242

Diagnosis Procedure .............................................

242

P161F IMMOBILIZER .......................................

243

DTC Logic  .............................................................

243

Diagnosis Procedure .............................................

243

P1616 ECM .......................................................

244

DTC Logic  .............................................................

244

Diagnosis Procedure .............................................

244

B2190 CHAIN OF BCM - IMM ANT  .................

245

DTC Logic  .............................................................

245

Diagnosis Procedure .............................................

245

B2191 ID DISCORD, BCM - IMM ANT  ............

247

DTC Logic  .............................................................

247

Diagnosis Procedure .............................................

247

B2192 ID DISCORD, IMMU-ECM  ....................

248

DTC Logic  .............................................................

248

Diagnosis Procedure .............................................

248

B2193 CHAIN OF ECM-IMMU  .........................

250

DTC Logic  .............................................................

250

Diagnosis Procedure .............................................

250

B2195 ANTI-SCANNING ..................................

252

DTC Logic  .............................................................

252

Diagnosis Procedure .............................................

252

B2196 DONGLE UNIT ......................................

253

Description ............................................................

253

DTC Logic  .............................................................

253

Diagnosis Procedure .............................................

253

B2198 NATS ANTENNA AMP.  ........................

255

DTC Logic  .............................................................

255

Diagnosis Procedure .............................................

255

B2608 STARTER RELAY  ................................

258

DTC Logic  .............................................................

258

Diagnosis Procedure .............................................

258

B260F ENGINE STATUS  .................................

259

DTC Logic  .............................................................

259

Diagnosis Procedure .............................................

259

B27D1 START CUT RELAY OFF  ....................

261

DTC Logic  .............................................................

261

Diagnosis Procedure .............................................

261

Component Inspection  ..........................................

263

B27D2 START CUT RELAY ON  ......................

264

DTC Logic  .............................................................

264

Diagnosis Procedure  .............................................

264

Component Inspection ...........................................

266

B27DA IPDM CAN COMM CIRCUIT  ..............

267

DTC Logic ..............................................................

267

Diagnosis Procedure  .............................................

267

B20DF STARTER RELAY OFF CIRCUIT  ......

269

DTC Logic ..............................................................

269

Diagnosis Procedure  .............................................

269

POWER SUPPLY AND GROUND CIRCUIT  ..

271

SIREN CONTROL UNIT  ..........................................

271

SIREN CONTROL UNIT : Diagnosis Procedure  ...

271

SECURITY INDICATOR LAMP  ......................

272

Component Function Check ................................

272

Diagnosis Procedure  .............................................

272

HOOD SWITCH ...............................................

274

Component Function Check ................................

274

Diagnosis Procedure ............................................

274

Component Inspection ...........................................

275

HORN FUNCTION ...........................................

276

Diagnosis Procedure ............................................

276

INTRUDER SENSOR ......................................

277

Component Function Check  ..................................

277

Diagnosis Procedure  .............................................

277

SENSOR CANCEL SWITCH  ..........................

279

Diagnosis Procedure ............................................

279

Component Inspection ...........................................

280

SIREN CONTROL UNIT CIRCUIT (COMMU-
NICATION SIGNAL) ........................................

281

Component Function Check  ..................................

281

Diagnosis Procedure  .............................................

281

SIREN CONTROL UNIT CIRCUIT (HAZARD
SWITCH SIGNAL) ...........................................

282

Component Function Check  ..................................

282

Diagnosis Procedure  .............................................

282

SYMPTOM DIAGNOSIS  ............................

283

SECURITY INDICATOR LAMP DOES NOT
TURN ON OR BLINK ......................................

283

Description .............................................................

283

Diagnosis Procedure  .............................................

283

VEHICLE SECURITY SYSTEM CANNOT BE
SET ..................................................................

284

KEY FOB ..................................................................

284

KEY FOB : Description  ..........................................

284

KEY FOB : Diagnosis Procedure ...........................

284

DOOR LOCK AND UNLOCK SWITCH  ...................

284

DOOR LOCK AND UNLOCK SWITCH : Descrip-
tion .........................................................................

284

PRECAUTIONS

SEC-7

< PRECAUTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010491170

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000010491177

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition power source and accessory

power source to the OFF, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Open driver door.

3.

Turn the ignition switch to the ON position.
(At this time, the steering lock will be released.)

4.

Turn the ignition switch to OFF position with driver door open.

5.

Wait for 3 minutes or longer with driver door open.
NOTE:
• Do not close driver door because the steering wheel locks when driver door is closed.

SEC-8

< PRECAUTION >

[WITH INTELLIGENT KEY SYSTEM]

PRECAUTIONS

• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

6.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

7.

Perform the necessary repair operation.

8.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

9.

Perform self-diagnosis check of all control units using CONSULT.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010491213

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions for Removing Battery Terminal

INFOID:0000000010503300

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to instruction described below.
1.

Open the hood.

2.

Turn ignition switch to the ON position.

3.

Turn ignition switch to the OFF position with the driver side door opened.

4.

Get out of the vehicle and close the driver side door.

5.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

PIIB3706J

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

PRECAUTIONS

SEC-9

< PRECAUTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

R9M engine

: 4 minutes

V9X engine

: 4 minutes

SEC-10

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

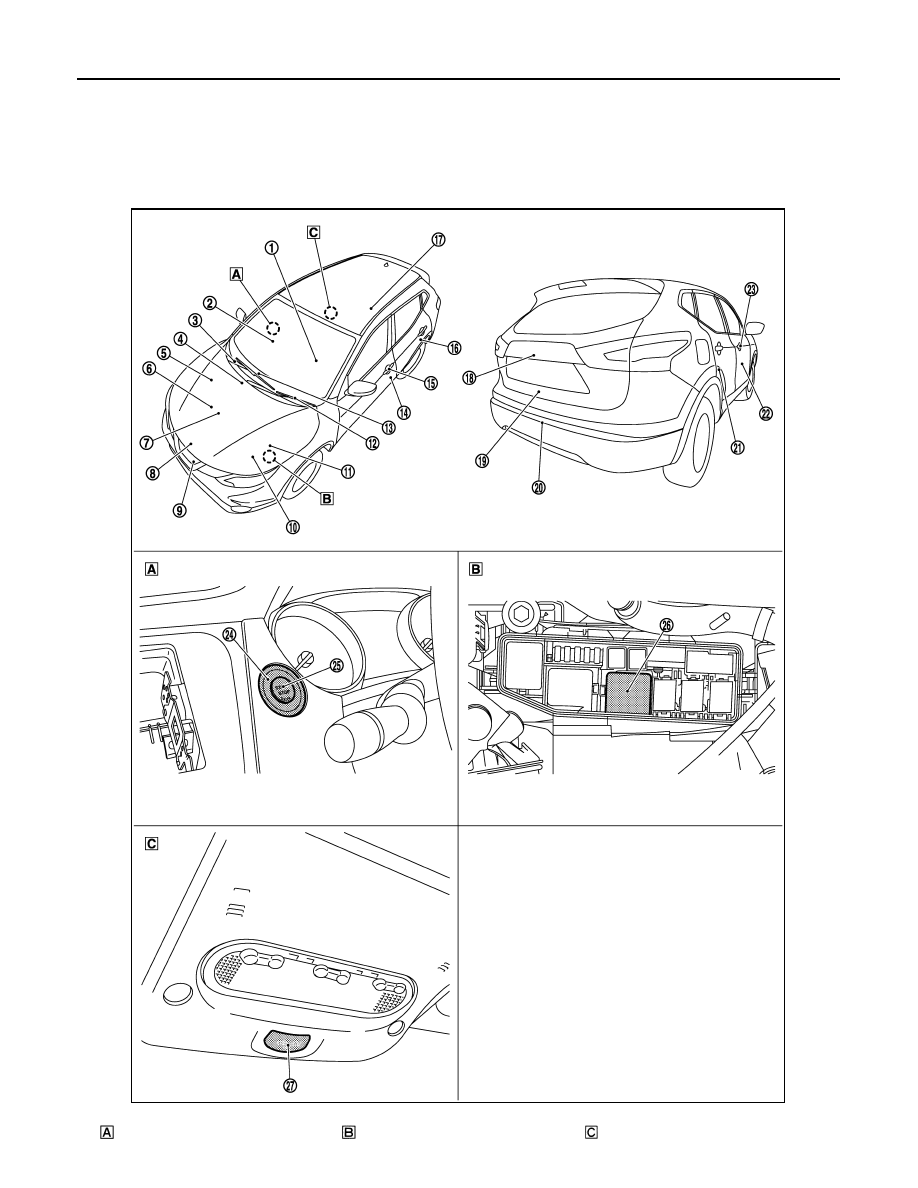

Component Parts Location

INFOID:0000000010337870

View left of steering column

View with F/L Fuse holder No,2

View with headlining

JMKIB3223ZZ

COMPONENT PARTS

SEC-11

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

No.

Component Function

CVT shift selector (detention
switch)
(CVT models)

Detention switch is integrated into CVT shift sector, and detects that selector lever is locked
in the P position, then transmits ON/OFF signal to BCM and IPDM E/R.
Refer to

TM-436, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

Combination meter

Combination meter transmits the vehicle speed signal to BCM via CAN communication.
BCM also receives the vehicle speed signal from ABS actuator and electric unit (control unit)
via CAN communication. BCM compares both signals to detect the vehicle speed.
Security indicator lamp is located on combination meter.
Security indicator lamp blinks when ignition switch is in any position other than ON to warn
that Nissan Anti-Theft System (NATS) is on board.

Stop lamp switch

Stop lamp switch detects that brake pedal is depressed, and then transmits ON/OFF signal
to BCM.
Refer to

ECH-13, "Component Parts Location"

 for detailed installation location.

Clutch interlock switch
(M/T models)

Clutch interlock switch detects that clutch pedal is depressed and transmits ON/OFF signal
to BCM.
Clutch pedal position switch detects that clutch pedal is depressed, and then transmits ON/
OFF signal to BCM and IPDM E/R.

ABS actuator and electric unit
(control unit)

ABS actuator and electric unit (control unit) transmits the vehicle speed signal to BCM via
CAN communication.
BCM also receives the vehicle speed signal from combination meter via CAN communica-
tion. BCM compares both signals to detect the vehicle speed.
Refer to

BRC-9, "Component Parts Location"

 for detailed installation location.

TCM (CVT models)

TCM receives the shift position signal from transmission range switch, and then transmits the
P/N position signal to BCM via CAN communication.
BCM confirms the selector lever position with the following 5 signals.
• P position signal from CVT shift selector (detention switch)
• P/N position signal from transmission range switch
• P position signal from IPDM E/R (CAN)
• Neutral position signal from IPDM E/R (CAN)
• P/N position signal from TCM (CAN)
IPDM E/R confirms the selector lever position with the following 3 signals.
• P position signal from CVT shift selector (detention switch)
• P/N position signal from transmission range switch
• P/N position signal from BCM (CAN)
Refer to

TM-436, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

Transmission range switch
(CVT models)

Transmission range switch detects the selector lever position, and then transmits the P/N po-
sition signal to BCM and IPDM E/R.
BCM confirms the CVT shift selector position with the following 5 signals.
• P position signal from CVT shift selector (detention switch)
• P/N position signal from transmission range switch
• P position signal from IPDM E/R (CAN)
• Neutral position signal from IPDM E/R (CAN)
• P/N position signal from TCM (CAN)
IPDM E/R confirms the CVT shift selector position with the following 3 signals.
• P position signal from CVT shift selector (detention switch)
• P/N position signal from transmission range switch
• P/N position signal from BCM (CAN)
Refer to

TM-436, "CVT CONTROL SYSTEM : Component Parts Location"

 for detailed instal-

lation location.

Reverse/neutral position
switch
(M/T models)

Reverse/neutral position switch detects that shift lever is in the neutral position, and then
transmits ON/OFF signal to BCM.
Refer to

TM-80, "PARK/NEUTRAL POSITION (PNP) SWITCH : Component Parts Location"



for detailed installation location.

Hood switch

Refer to

SEC-13, "Hood Switch"

.

Horn

Horn operate for warning vehicle surroundings when VEHICLE SECURITY SYSTEM oper-
ates.

SEC-12

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

ECM

ECM controls the engine.
When ignition switch is turned ON, BCM starts communication with ECM and performs the
ID verification between BCM and ECM.
If the verification result is OK, the engine can start. If the verification result is NG, the engine
can not start.
Refer to

ECH-13, "Component Parts Location"

 (HRA2DDT engine models),

ECM-629, "EN-

GINE CONTROL SYSTEM : Component Parts Location"

 (MR20DD engine models),

ECK-

12, "Component Parts Location"

 (K9K engine models),

ECM-25, "ENGINE CONTROL SYS-

TEM : Component Parts Location"

 (MR16DDT engine models) or

EC9-14, "Component

Parts Location"

 (R9M engine models) for detailed installation location.

IPDM E/R

Starter control relay and starter relay are integrated in IPDM E/R, and used for the engine-
starting function. Starter relay is controlled by BCM, and starter control relay is controlled by-
IPDM E/R while communicating with BCM. IPDM E/R sends the starter control relay
andstarter relay status signal to BCM.
Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

BCM

BCM controls INTELLIGENT KEY SYSTEM (ENGINE START FUNCTION), NISSAN ANTI-
THEFT SYSTEM (NATS) and VEHICLE SECURITY SYSTEM.
BCM performs the ID verification between BCM and Intelligent Key when the Intelligent Key
is carried into the detection area of inside key antenna, and push-button ignition switch is
pressed. If the ID verification result is OK, ignition switch operation is available.
Then, when the ignition switch is turned ON, BCM performs ID verification between BCM and
ECM. If the ID verification result is OK, ECM can start engine.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for detailed in-

stallation location.

Inside key antenna (console)

Inside key antenna (console) detects whether Intelligent Key is inside the vehicle, and trans-
mits the signal to BCM.
Refer to

DLK-29, "Component Parts Location"

 for detailed installation location.

Front door switch (Passenger
side)

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.

Outside key antenna (Pas-
senger side)

Outside key antenna and door request switch are integrated into outside door handle.
Outside key antenna detects whether Intelligent Key is within the detection area or not, and
then transmits signal to BCM.

Front door request switch
(passenger side)

Front door request switch transmits door lock/unlock request signal to BCM.

Rear door switch LH

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.

Inside key antenna (luggage
room)

Inside key antenna (luggage room) detects whether Intelligent Key is inside the vehicle, and
transmits the signal to BCM.
Refer to

DLK-29, "Component Parts Location"

 for detailed installation location.

Back door opener switch

Back door opener switch transmits door lock/unlock request signal to BCM.
Refer to

DLK-29, "Component Parts Location"

 for detailed installation location.

Back door lock assembly

Back door switch is integrated into back door look assembly.
Back door switch detects back door open/close condition, and then transmits ON/OFF signal
to BCM.
Refer to

DLK-29, "Component Parts Location"

 for detailed installation location.

Outside key antenna (rear
bumper)

Detects whether or not Intelligent Key is within the outside key antenna detection area.
Refer to

DLK-29, "Component Parts Location"

 for detailed installation location.

Rear door switch RH

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.

Front door switch (Driver
side)

Door switch detects door open/close condition and then transmits ON/OFF signal to BCM.

Out side key antenna (Driver
side)

Outside key antenna and door request switch are integrated into outside door handle.
Outside key antenna detects whether Intelligent Key is within the detection area or not, and
then transmits signal to BCM.

Front door request switch
(Driver side)

Front door request switch transmits door lock/unlock request signal to BCM.

NATS antenna amp.

Refer to

SEC-13, "NATS Antenna Amp."

.

No.

Component Function

COMPONENT PARTS

SEC-13

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

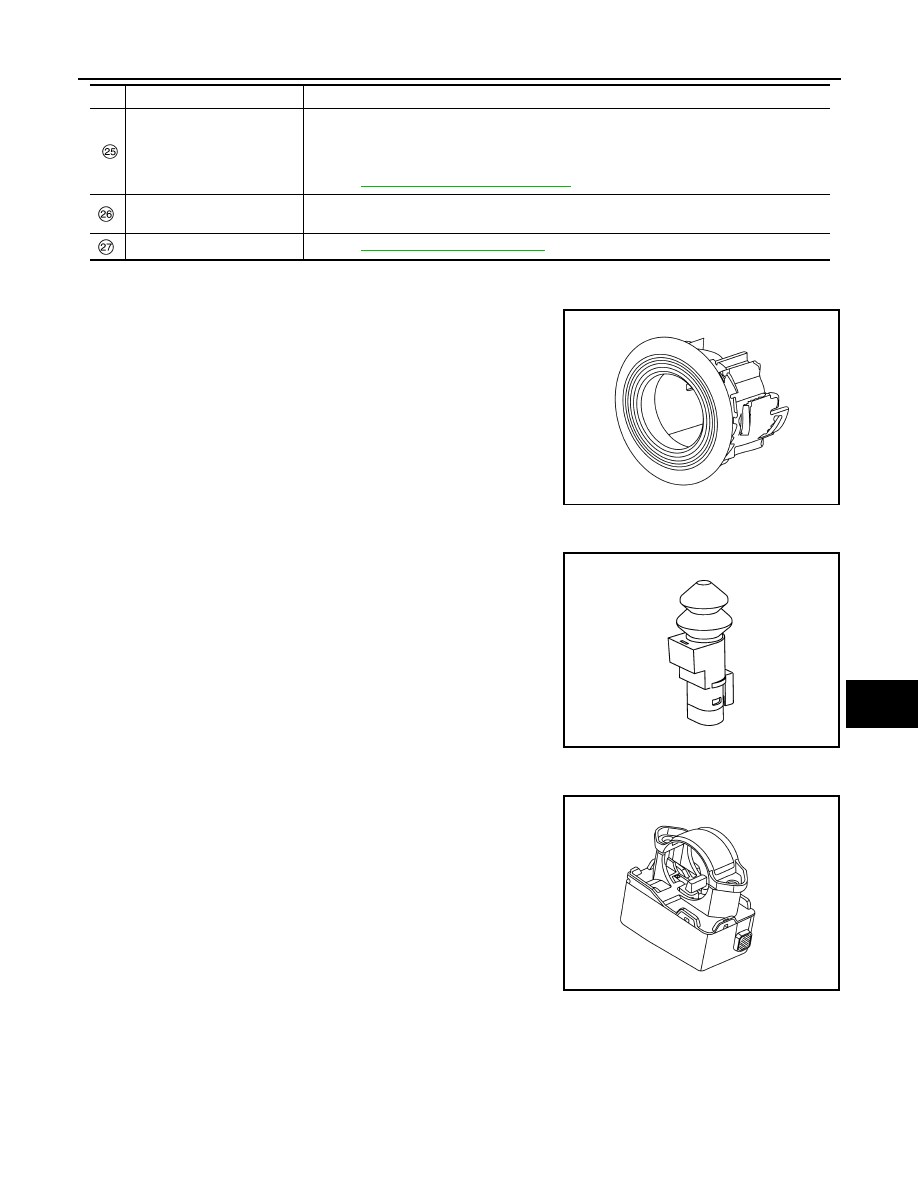

NATS Antenna Amp.

INFOID:0000000010431977

The ID verification is performed between BCM and transponder inte-
grated into Intelligent Key via NATS antenna amp. when Intelligent
Key backside is contacted to push-button ignition switch in case that
Intelligent Key battery is discharged. If the ID verification result is
OK, the operation of ignition switch is available.

Hood Switch

INFOID:0000000010337872

Hood switch detects that hood is open, and then transmits ON/OFF
signal to IPDM E/R. IPDM E/R transmits hood switch signal to BCM
via CAN communication.

Steering Lock Unit

INFOID:0000000010337873

• Steering lock unit performs steering lock/unlock operation on

request and power source is supplied from BCM.

• When push-button ignition switch is pressed while the Intelligent

Key is inside the vehicle, BCM performs the ID verification with
steering lock unit. Steering lock unit releases the steering lock
based on the result of the ID verification.

• BCM judges the lock/unlock status of the steering according to a

Lock/Unlock status signal transmitted from the steering lock unit
via CAN communication.

• The steering lock unit has an interlock function that prohibits lock

operation at ignition switch ON.

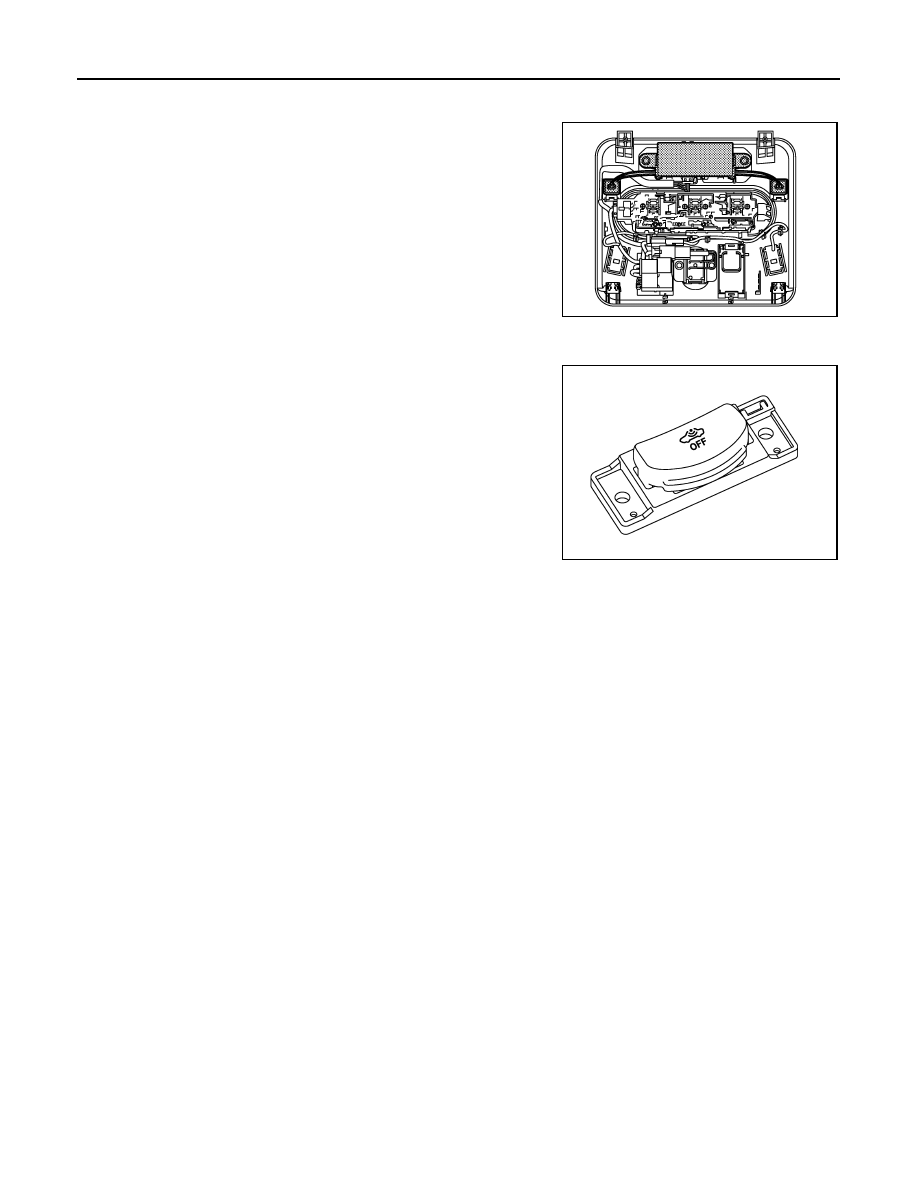

Siren Control Unit

INFOID:0000000010431980

Siren control unit monitors the vehicle condition and controls the vehicle security system.

Push-button ignition switch

Push-button ignition switch has push switch inside which detects that push-button ignition
switch is pressed, and then transmits the signal to BCM. BCM changes the ignition switch
position with the operation of push-button ignition switch. BCM maintains the ignition switch
position status while push-button ignition switch is not operated.
Refer to

PCS-72, "Component Parts Location"

 for detailed installation location.

Starter control relay

BCM controls the starter control relay according to a starter control relay request signal from
ECM.

Sensor cancel switch

Refer to

SEC-14, "Sensor Cancel Switch"

.

No.

Component Function

JMKIB1434ZZ

JMKIB3260ZZ

JMKIB2860ZZ

SEC-14

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

Intruder Sensor

INFOID:0000000010431981

Intruder sensor detects a movement entering passenger compart-
ment, then transmits the signal to siren control unit.

Sensor Cancel Switch

INFOID:0000000010431982

BCM deactivates intruder sensor for the vehicle security system
when BCM receives sensor cancel switch ON signal.

JMKIB3262ZZ

JMKIB3261ZZ

SYSTEM

SEC-15

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SYSTEM

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION : System Description

INFOID:0000000010337874

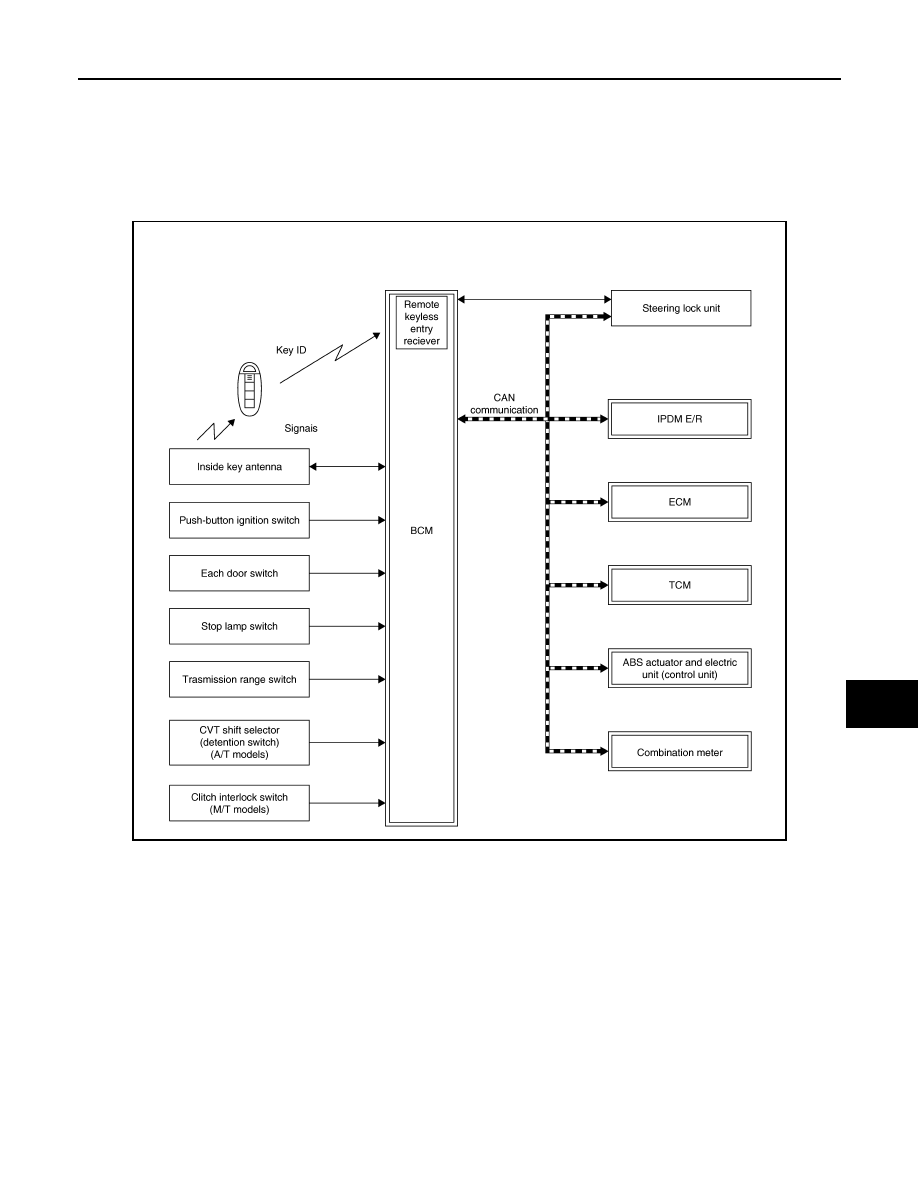

SYSTEM DIAGRAM

BCM INPUT/OUTPUT SIGNAL CHART

Input Signal Item

JMKIB3224GB

SEC-16

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

Output Signal Item

SYSTEM DESCRIPTION

• The engine start function of Intelligent Key system makes it possible to start and stop the engine without

using the key, based on the electronic ID verification. The electronic ID verification is performed between
BCM and Intelligent Key when the push-button ignition switch is pressed while the Intelligent Key is within
the detection area of inside key antenna.
NOTE:
The driver should carry the Intelligent Key at all times.

• Intelligent Key have ID (NATS ID). It can perform the door lock/unlock operation and the push-button ignition

switch operation when the registered Intelligent Key is carried.

• If the ID is successfully verified, when push-button ignition switch is pressed, steering lock is released and

the engine can be started.

• Up to 4 Intelligent Keys can be registered (Including the standard Intelligent Key) upon request from the cus-

tomer.
NOTE:
Refer to

DLK-33, "INTELLIGENT KEY SYSTEM : System Description"

 for any functions other than engine

start function of Intelligent Key system.

Transmit unit

Signal name

ECM

CAN communication

• Engine status signal
• Starter control relay request signal

IPDM E/R

• Push-button ignition switch status

signal

• Ignition ON signal
• Starter relay/Starter control relay

status signal

• Starter control relay status signal
• Neutral position signal

Combination meter

Vehicle speed signal (Meter)

ABS actuator and electric unit (control unit)

Vehicle speed signal (ABS)

TCM

Shift position signal

Steering lock unit

• Steering lock unit lock status signal
• Steering lock unit unlock status sig-

nal

• Lock/unlock position signal
• Steering lock undefined position

signal

• Steering lock wrong code signal

Push-button ignition switch

Push-button ignition switch operation signal

Each door switch

Door open/close condition signal

Stop lamp switch

Brake pedal operation signal

CVT shift selector (detention switch) (CVT models)

P position signal

Transmission range switch (CVT models)

P/N position signal

Reverse/neutral position switch (M/T models)

Neutral position signal

Clutch interlock switch (M/T models)

Clutch interlock switch signal

Reception unit

Signal name

IPDM E/R

CAN communication

Ignition ON signal

Combination meter

Key warning lamp signal

Steering lock unit

• Steering lock unit unlock request signal
• Steering lock unit lock request signal
• Steering lock code signal
• Ignition ON signal

Inside key antenna

Key ID request signal















Content      ..       1      2     ..
