Qashqai J11. Power control system - part 6

PCS

SYSTEM

PCS-81

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

B25A7: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (driver side)

B25A8: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (driver side)

B25A9: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified operations are performed.
• system initialization
• Replace front power window motor (driver side)

B25AA: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Harness or connectors
• Front power window motor (driver side)

B25B6: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Power window main switch
• Front power window motor (driver side)

B25B7: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Power window main switch
• Front power window motor (driver side)

B25B8: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Power window main switch
• Front power window motor (driver side)

B25B9: DR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Power window main switch
• Front power window motor (driver side)

B25BA: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (passenger side)

B25BB: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (passenger side)

B25BC: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (passenger side)

B25BD: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (passenger side)

B25BE: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace front power window motor (passenger side)

B25BF: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified operations are performed.
• system initialization
• Replace front power window motor (passenger side)

Display contents of CONSULT

Fail-safe

Cancellation

PCS-82

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

SYSTEM

B25C0: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Harness or connectors
• Front power window motor (passenger side)

B25CC: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Front power window switch (passenger side)
• Front power window motor (passenger side)

B25CD: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Front power window switch (passenger side)
• Front power window motor (passenger side)

B25CE: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Front power window switch (passenger side)
• Front power window motor (passenger side)

B25CF: PASS PWR WNDW
ACTR MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Front power window switch (passenger side)
• Front power window motor (passenger side)

B25D0: RR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace rear power window motor RH

B25D1: RR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace rear power window motor RH

B25D2: RR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace rear power window motor RH

B25D3: RR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace rear power window motor RH

B25D4: RR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

Replace rear power window motor RH

B25D5: RR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified operations are performed.
• system initialization
• Replace rear power window motor RH

B25D6: RR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Harness or connectors
• Rear power window motor RH

B25E2: RR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Rear power window switch RH
• Rear power window motor RH

B25E3: RR PWR WNDW ACTR
MALFUNC

• Auto-up operation
• Anti-pinch function
• Keyless power win-

dow up/down function

When any of the following specified malfunctioning parts is replaced.
• Rear power window switch RH
• Rear power window motor RH

Display contents of CONSULT

Fail-safe

Cancellation

PCS

SYSTEM

PCS-83

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

FAIL-SAFE CONTROL OF COMBINATION SWITCH READING FUNCTION CAUSED BY LOW
POWER SUPPLY VOLTAGE

If voltage of battery power supply lower, BCM maintains combination switch reading to the status when input
voltage is less than approximately 9 V.
NOTE:
When voltage of battery power supply is approximately 9 V or more, combination switch reading function
returns to normal operation.

B26E8: CLUTCH SW

Inhibit steering lock

When any of the following BCM recognition conditions are fulfilled
• Status 1
- Clutch pedal position switch signal: ON (9 – 16 V: Clutch pedal is re-

leased)

- Clutch interlock switch signal: OFF (0 – 0.5 V: Clutch pedal is re-

leased)

• Status 2
- Clutch pedal position switch signal: OFF (0 – 1.5 V: Clutch pedal is

depressed)

- Clutch interlock switch signal: ON (9 – 16 V: Clutch pedal is de-

pressed)

B261F: ASCD CNCL/CLTCH SW

Inhibit steering lock

BCM detects clutch pedal position switch signal (CAN) status [ON
(Clutch pedal is released)]

B26EF: STRG LCK RELAY OFF

Inhibit engine cranking

When the following conditions are fulfilled
• Steering lock relay signal (CAN): ON
• Steering lock unit status signal (CAN): ON

B26F0: STRG LCK RELAY ON

Inhibit engine cranking

When the following conditions are fulfilled
• Steering lock relay signal (CAN): OFF
• Steering lock unit status signal (CAN): OFF

B26F1: IGN RELAY OFF

Inhibit engine cranking

When the following conditions are fulfilled
• Ignition switch ON signal (CAN: Transmitted from BCM): ON
• Ignition switch ON signal (CAN: Transmitted from IPDM E/R): ON

B26F2: IGN RELAY ON

Inhibit engine cranking

When the following conditions are fulfilled
• Ignition switch ON signal (CAN: Transmitted from BCM): OFF
• Ignition switch ON signal (CAN: Transmitted from IPDM E/R): OFF

B26F3: START CONT RLY ON

Inhibit engine cranking

When the following conditions are fulfilled
• Starter control relay signal (CAN: Transmitted from BCM): OFF
• Starter control relay signal (CAN: Transmitted from IPDM E/R): OFF

B26F4: START CONT RLY OFF

Inhibit engine cranking

When the following conditions are fulfilled
• Starter control relay signal (CAN: Transmitted from BCM): ON
• Starter control relay signal (CAN: Transmitted from IPDM E/R): ON

B26F7: BCM

Inhibit engine cranking
by Intelligent Key sys-
tem

When room antenna and luggage room antenna functions normally

U0415: VEHICLE SPEED

Inhibit steering lock

When vehicle speed signal (Meter) (CAN) is received normally

Display contents of CONSULT

Fail-safe

Cancellation

PCS-84

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010737984

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

: Applicable item

NOTE:
*: This item is displayed, but not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Exterior lamp

HEAD LAMP

Interior room lamp control

INT LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps

FLASHER

—

AIR CONDITONER*

Intelligent Key system

INTELLIGENT KEY

Combination switch

COMB SW

Body control system

BCM

NVIS - NATS

IMMU

Interior room lamp battery saver

BATTERY SAVER

Back door open

TRUNK

Vehicle security

THEFT ALM

RAP

RETAINED PWR

Remote keyless entry system

MULTI REMOTE ENT

Signal buffer system

SIGNAL BUFFER

PCS

DIAGNOSIS SYSTEM (BCM)

PCS-85

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

INTELLIGENT KEY

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 1)

INFOID:0000000010737983

WORK SUPPORT

SELF-DIAG RESULT

Refer to

BCS-89, "DTC Index"

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

External temperature of the moment a particular DTC is detected

VEHICLE COND

—

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

—

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Monitor item

Description

INSIDE ANT DIAGNOSIS

This function allows inside key antenna self-diagnosis

LOCK/UNLOCK BY I-KEY

Door lock/unlock function by door request switch mode can be changed to operation in this
mode
• On: Operate
• Off: Non-operation

ENGINE START BY I-KEY

Engine start function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

TRUNK/GLASS HATCH OPEN

NOTE:
This item is displayed, but cannot be monitored

AUTO LOCK SET

Auto door lock operation time can be changed in this mode
• MODE 1: OFF
• MODE 2: 30 sec
• MODE 3: 1 minute
• MODE 4: 2 minutes
• MODE 5: 3 minutes
• MODE 6: 4 minutes
• MODE 7: 5 minutes

SHORT CRANKING OUTPUT

NOTE:
This item is displayed, but cannot be monitored

IGN/ACC BATTERY SAVER

Ignition battery saver system mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

ANSWER BACK

NOTE:
This item is displayed, but cannot be used

ANSWER BACK I-KEY LOCK UN-
LOCK

Reminder function (door request switch) mode can be selected from the following with this
mode
• On: hazard warning lamp operate
• Off: hazard warning lamp operate

ANSWER BACK KEYLESS LOCK
UNLOCK

Reminder function (Intelligent Key) mode can be selected from the following with this mode
• On: hazard warning lamp operate
• Off: hazard warning lamp operate

WELCOME LIGHT OP SET

NOTE:
This item is indicated, but not used

PCS-86

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Condition

REQ SW -DR

Indicates [On/Off] condition of door request switch (driver side)

REQ SW -AS

Indicates [On/Off] condition of door request switch (passenger side)

REQ SW -BD/TR

Indicates [On/Off] condition of back door request switch

PUSH SW

Indicates [On/Off] condition of push-button ignition switch

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

DETE/CANCL SW

Indicates [On/Off] condition of P position

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

PUSH SW -IPDM

Indicates [On/Off] condition of push-button ignition switch

IGN RLY1 -F/B

Indicates [On/Off] condition of ignition relay 1

NEUTRAL SW - IPDM

Indicates [On/Off] condition of park/neutral position switch

SFT PN -IPDM

Indicates [On/Off] condition of P or N position

STARTER RELAY - IPDM

Indicates [On/Off] condition of starter relay

ENGINE STATE

Indicates [Stop/Stall/Crank/Run] condition of engine states

ST/INHIRELAY-IPDM

Display the starter relay/starter control relay status signal from IPDM E/R via CAN communica-
tion

REVERSE SIGNAL - IPDM

Indicates [On/Off] condition of R position

CRANKING PERMIT - ECM

Display the engine cranking permit signal from ECM via CAN communication

IS STATUS - ECM

Indicates [On/Off] condition of stop/start system

STARTER CUT RELAY - ECM

Indicates [On/Off] condition of starter control relay signal from ECM via CAN communication

VEH SPEED 1

Display the vehicle speed signal received from combination meter by numerical value [Km/h]

VEH SPEED 2

Display the vehicle speed signal received from ABS or VDC or TCM by numerical value [Km/h]

IGN REQ - IPDM

Display the ignition request signal from IPDM E/R via CAN communication

STARTER REQ - IPDM

Display the starter request signal from IPDM E/R via CAN communication

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status

DOOR STAT-RR

Indicates [LOCK/READY/UNLK] condition of rear door RH status

DOOR STAT-RL

Indicates [LOCK/READY/UNLK] condition of rear door LH status

BK DOOR STATE

NOTE:
This item is displayed, but cannot be monitored

ID OK FLAG

Indicates [Set/Reset] condition of Intelligent Key ID

PRMT ENG STRT

Indicates [Set/Reset] condition of engine start possible

PRMT RKE STRT

NOTE:
This item is displayed, but cannot be monitored

I-KEY OK FLAG

Indicates [KEY On/NOT On] condition of Intelligent Key ID and Intelligent Key is detected inside
vehicle

PRBT ENG STRT

Indicates whether or not the engine is in start prohibited status

ID AUTHENT CANCEL TIMER

Indicates whether or not it is in engine start possible status when Intelligent Key verification is
unnecessary

ACC BATTERY SAVER

Indicates [On/Off] whether or not ignition battery saver is in operation

PCS

DIAGNOSIS SYSTEM (BCM)

PCS-87

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

CRNK PRBT TMR

Indicates [On/Off] whether or not in cranking prohibited status due to starter motor protection
function operation

AUT CRANK TMR

Indicates [On/Off] whether or not in AUTO CRANKING MODE status

CRNK PRBT TME

Indicates the time for changing from cranking prohibited status to cranking possible status

AUT CRANK TMR

Indicates the time that AUTO CRANKING MODE operates

CRANKING TME

Indicates the cranking operation time

SHORT CRANK

NOTE:
This item is displayed, but not used

RKE OPE COUN1

When remote keyless entry receiver receives the signal transmitted while operating on Intelli-
gent Key, the numerical value start changing

RKE OPE COUN2

NOTE:
This item is displayed, but cannot be monitored

S/L IGN OFF POSITION

Indicates [On/Off] condition of Ignition OFF signal

S/L SENSOR CIRCUIT 1

Indicates [Gnd/Off] condition of steering lock unit sensor circuit

S/L SENSOR CIRCUIT 2

Indicates [On/Off] condition of steering lock unit sensor circuit

S/L POWER OUTPUT

Indicates [On/Off] condition of steering lock unit power supply

S/L POWER CHECK

Indicates [On/Off] condition of steering lock unit power supply

ANTICIPATED POWER

Indicates [On/Off] condition of anticipated power supply

S/L LOCK REQ

Indicates [On/Off] condition of steering lock unit lock request signal

S/L - BCM (CAN)

Indicates [On/Off] condition of CAN communication

S/L POWER ERROR

Indicates [On/Off] condition of steering lock unit power supply error

VEH SPEED ERROR (S/L)

Indicates [On/Off] condition of vehicle speed signal

VEH SPEED NORMAL (S/L)

Indicates [On/Off] condition of vehicle speed signal

ENGINE RUNNING (S/L)

Indicates [On/Off] condition of engine running

S/L ID DISCORD

Indicates [Correct/Incorrect] condition of ID verification

S/L ANTI-SCAN MODE

Indicates [On/Off] condition of antiscan mode

S/L LOCK NOT PERMIT

Indicates [Inhibition/No inhbt] condition of inhibit steering lock

S/L UNLOCK (CAN)

Indicates [Finished/Unfinished] condition of steering lock unit unlock

S/L ID STATUS (CAN)

Indicates [Coded/Blank] condition of registration ID

S/L RESET STATUS (CAN)

Indicates [Exit/No exit] condition of steering lock unit reset signal

S/L LO-LEVEL MALFUNC (CAN)

Indicates [Malf/No malf] condition of lo-level malfunction

S/L LOCK POSITION (CAN)

Indicates [Armed/Malf/Unlocked/Undefined] condition of lock/unlock position signal

S/L ACT MALFUNCTION (CAN)

Indicates [Malf/No malf] condition of steering lock unit malfunction

S/L HI-LEVEL MALFUNC (CAN)

Indicates [Malf/No malf] condition of hi-level malfunction

S/L OPERATION PRHBT (SPD)

Indicates [On/Off] condition of vehicle speed signal

S/L OPERATION PRHBT (PWR)

Indicates [Allowed/Forbid] condition of safety line inhibition

S/L SENSOR POWER (CAN)

Indicates [On/Off] condition of sensor test power supply

S/L SEN TEST PERMIT (CAN)

Indicates [Forbid/Authorize] condition of sensor test

S/L STAT NOT DETECT (CAN)

Indicates [Ok/Undefind] condition of steering lock undefined position signal

S/L LOCKING FINISHED (CAN)

Indicates [Unfinshd/Finished] condition of steering lock unit lock status signal

STOP/START SW

Indicates [On/Off] condition of stop/start off switch

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Condition

PCS-88

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

DIAGNOSIS SYSTEM (BCM)

: It is displayed but does not operate on CVT models.

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from Intelligent Key

RKE PBD

NOTE:
This item is displayed, but cannot be monitored

KEY SW

NOTE:
This item is displayed, but cannot be monitored

IGN SW

NOTE:
This item is displayed, but cannot be monitored

START SW

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Condition

Test item

Description

OUTSIDE BUZZER

This test is able to check Intelligent Key warning buzzer operation
• On: Operate
• Off: Non-operation

INSIDE BUZZER

This test is able to check warning chime in combination meter operation
• Buzzer 1: Combination meter buzzer sounds (pipipi...) when CONSULT screen is touched
• Buzzer 2: Combination meter buzzer sounds (pipi-pipi-...) when CONSULT screen is

touched

• Buzzer 3: Combination meter buzzer sounds (pipipipi-pipipipi-...) when CONSULT screen is

touched

• Off: Non-operation

INDICATOR

This test is able to check warning lamp operation
• KEY ON:[ Intelligent key system malfunction] displays when CONSULT screen is touched
• KEY IND: “KEY” Warning lamp blinks when CONSULT screen is touched
• Off: Non-operation

FLASHER

This test is able to check security hazard lamp operation
The hazard lamps are activated after “LH/RH/Off” on CONSULT screen is touched

HORN

NOTE:
This item is displayed, but cannot be used

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

MIRROR +5

NOTE:
This item is displayed, but cannot be used

ENGINE SW ILLUMI

This test is able to check push-ignition switch illumination operation
Push-ignition switch illumination illuminates when “ON” on CONSULT screen is touched

PUSH SWITCH INDICATOR

This test is able to check LOCK indicator in push-ignition switch operation
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT screen is touched

ENGINE START REQUEST

This test is able to check BCM sends starter request signal to IPDM E/R via CAN communi-
cation
• MODE 1: IGN ON, START request OFF
• MODE 2: IGN OFF, START request ON
• MODE 3: IGN ON, START request ON
• Off: Non-operation

IGNITION RELAY

NOTE:
This item is displayed, but cannot be used

STARTER CUT RELAY

This test is able to operate the starter control relay
• On: Operates
• Off: Non-operation

PCS

DIAGNOSIS SYSTEM (BCM)

PCS-89

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

ENGINE START

NOTE:
This item is displayed, but cannot be used

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is displayed, but cannot be used

REVERSE LAMP TEST

NOTE:
This item is displayed, but cannot be used

KEYFOB P/W TEST

NOTE:
This item is displayed, but cannot be used

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

AUTOMATIC BACK DOOR

NOTE:
This item is displayed, but cannot be used

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk room lamp operation
• On: Operates
• Off: Non-operation

Test item

Description

PCS-90

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000010434046

ECU

Reference

BCM

BCS-64, "Reference Value"

BCS-88, "Fail-safe"

BCS-89, "DTC Inspection Priority Chart"

BCS-90, "DTC Index"

PCS

POWER DISTRIBUTION SYSTEM

PCS-91

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

WIRING DIAGRAM

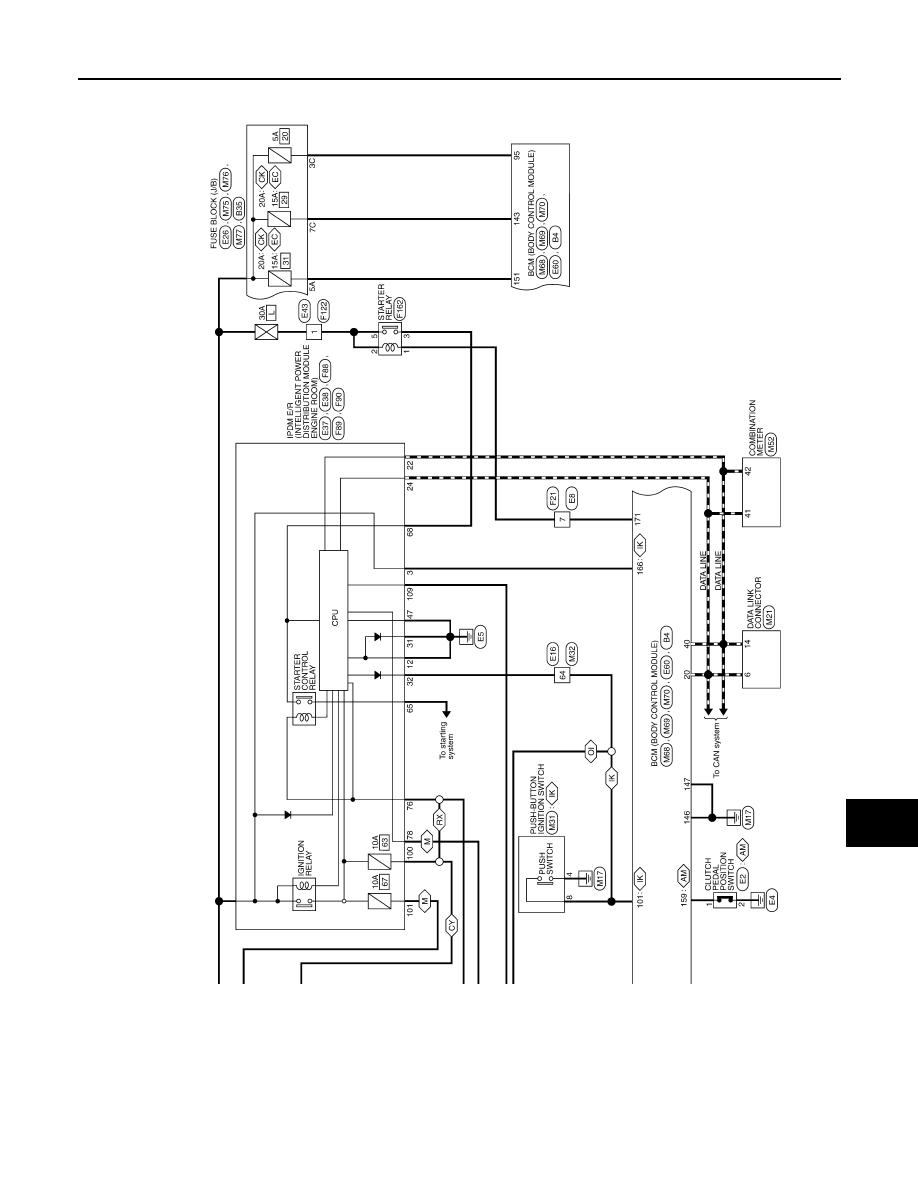

POWER DISTRIBUTION SYSTEM

Wiring Diagram

INFOID:0000000010434047

JRMWE9281GB

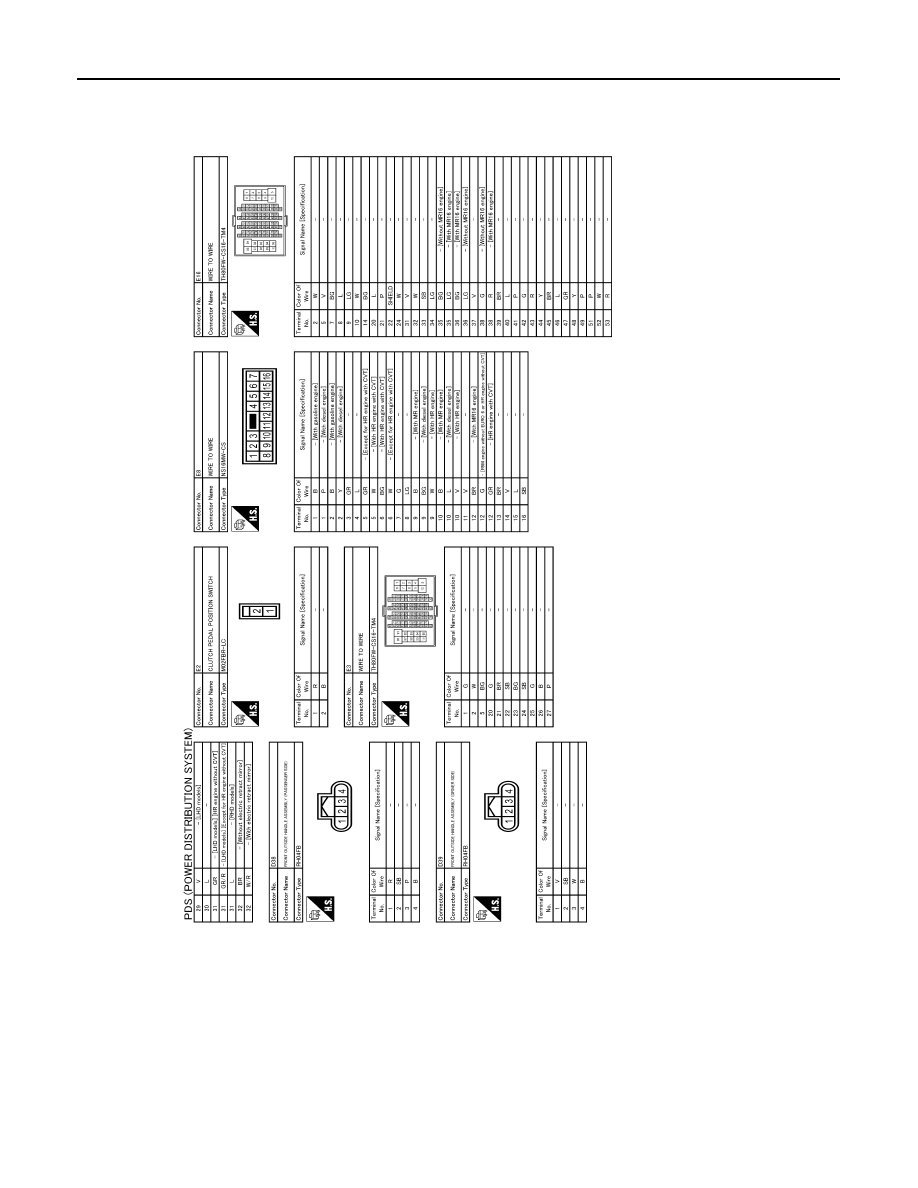

PCS-92

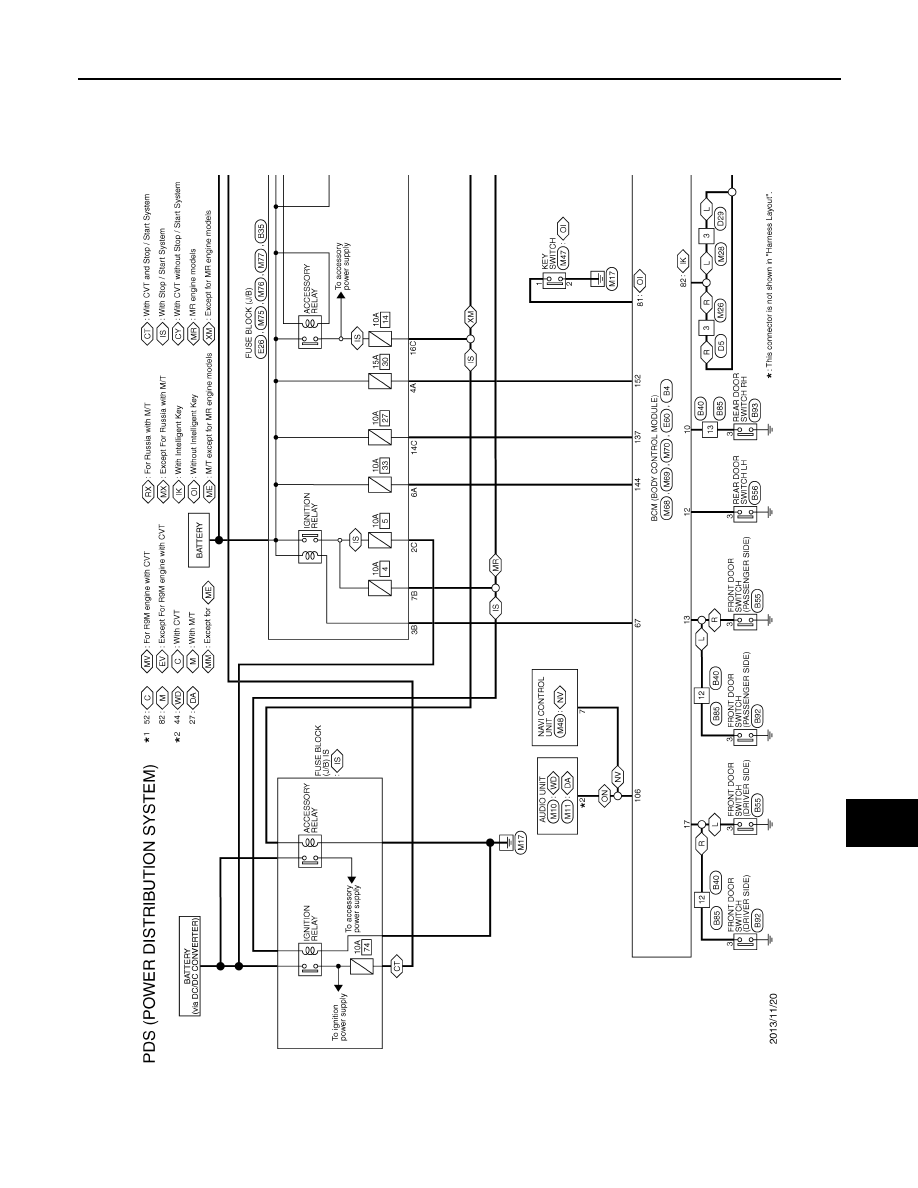

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

JRMWG7380GB

PCS

POWER DISTRIBUTION SYSTEM

PCS-93

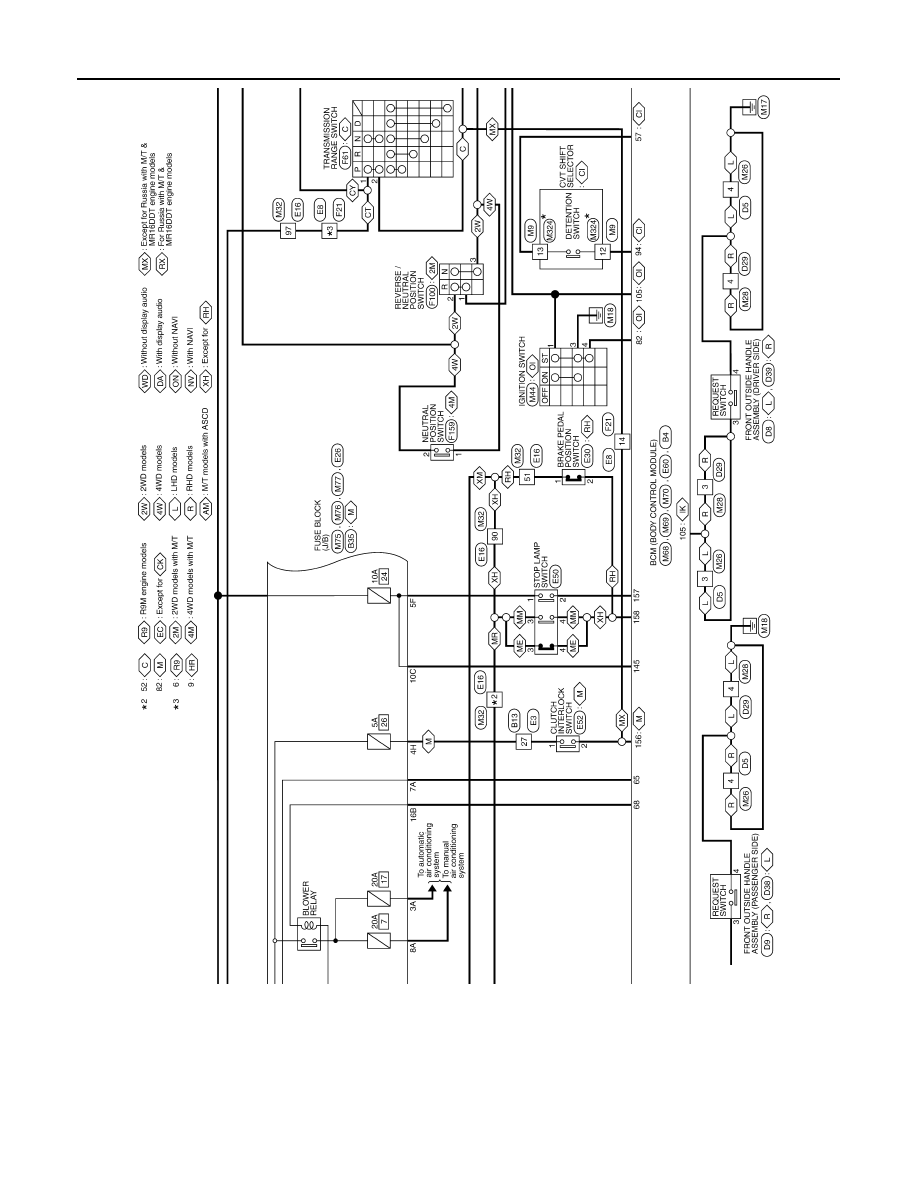

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

JRMWG7381GB

PCS-94

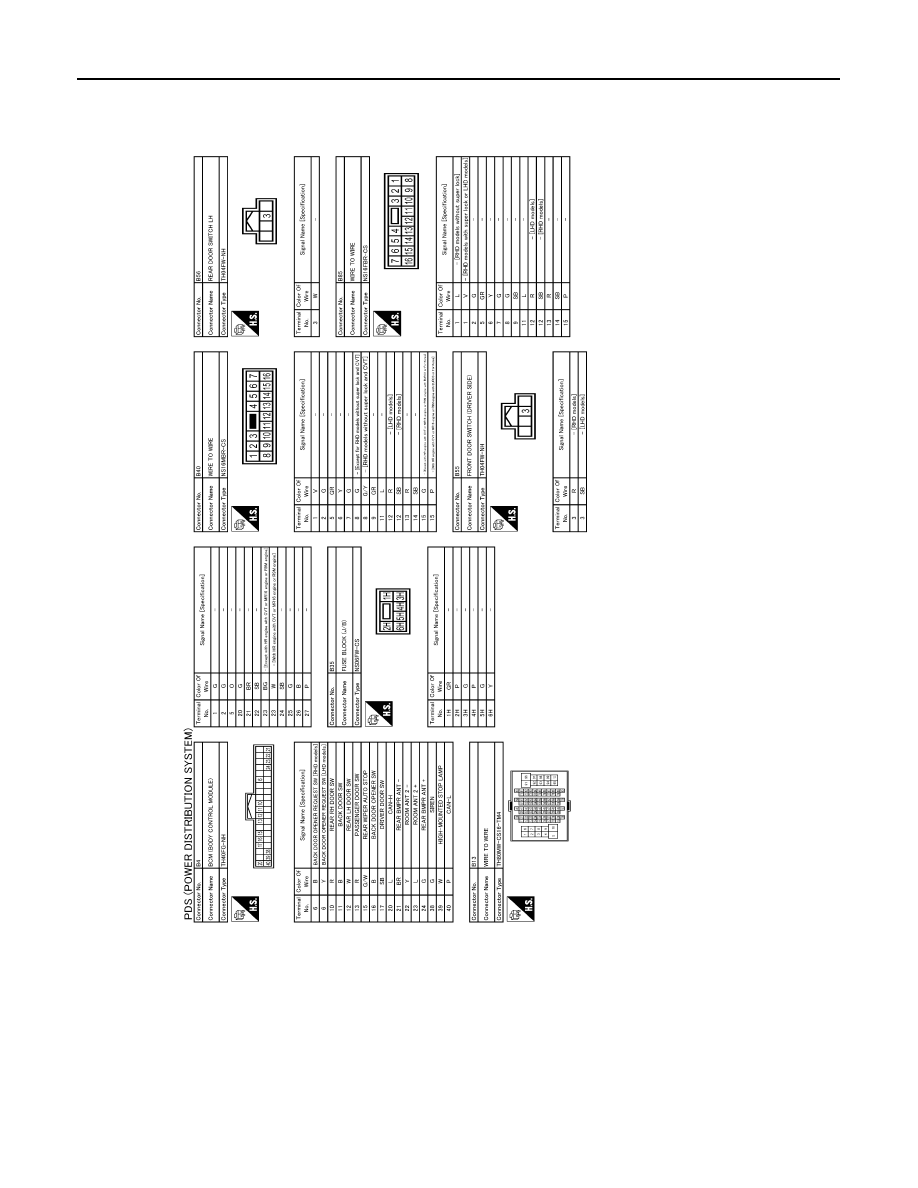

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

JRMWG7382GB

PCS

POWER DISTRIBUTION SYSTEM

PCS-95

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

JRMWG7383GB

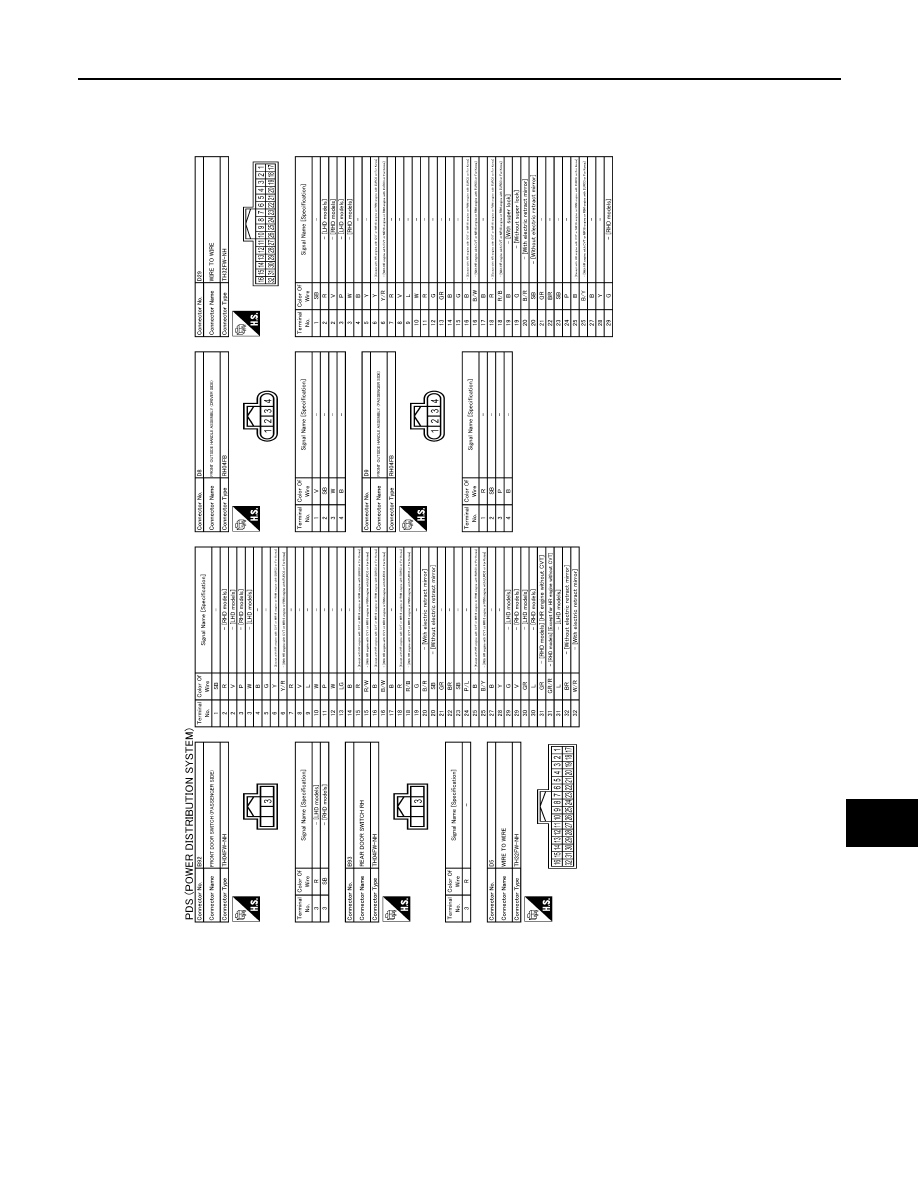

PCS-96

< WIRING DIAGRAM >

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

JRMWG7384GB

Content .. 4 5 6 7 ..
