Fail-safe

INFOID:0000000010499177

FAIL-SAFE CONTROL BY DTC

IPDM E/R performs fail-safe control when any DTC are detected.

109

(G)

Ground

Reverse switch

Input

Ignition
switch
ON

Select lever in R

9 – 16 V

Select lever in any position
other than R

0 – 1 V

Terminal No.

(Wire color)

Description

Condition

Value

Signal name

Input/

Output

+

DTC

CONSULT display description

Fail-safe

B121D

S/L LOCK PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply until the vehicle switches to
sleep status.

B121A

FR FOG LAMP LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the front fog lamp LH power
supply circuit until the front fog lamp ON conditions are no
longer satisfied.

B1231

DTRL RH PWR SPLY CIRC
(Daytime running light right hand power
supply circuit)

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the daytime running light RH
power supply circuit until the daytime running light ON
conditions are no longer satisfied.

B1256

FR FOG LAMP RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the front fog lamp RH power
supply circuit until the front fog lamp ON conditions are no
longer satisfied.

B1C00

HEIGHT SENSOR PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Right and left headlamp aiming motors stop at the posi-
tion when DTC is detected.

[CIRC
SHORT TO
BATTERY]

PCS-34

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

IPDM E/R

B1C02

RR HEIGHT SENSOR SIGNAL

[CIRC
SHORT TO
BATTERY]

Right and left headlamp aiming motors stop at the posi-
tion when DTC is detected.

[CIRC
SHORT TO
GROUND
OR OPEN]

[CIRC
VOLTAGE
OUT OF
RANGE]

B1C07

AIMING MOTOR DRIVE SIGNAL

[CIRC
SHORT TO
GRND]

Right and left headlamp aiming motors stop at the posi-
tion when DTC is detected.

[CIRC
SHORT TO
BATTERY]

[SIGNAL
COMPARE
FAILURE]

B1C12

RR HEIGHT SENSOR SIGNAL

[SIG
PRTCTN
CLCLTN IN-
CRCT]

Right and left headlamp aiming motors stop at the posi-
tion when DTC is detected.

B20BD

BATTERY CURRENT SENSOR

[CIRC
SHORT TO
BATTERY]

Inhibit stop/start system operation

[CIRC
SHORT TO
GRND]

[CIRC
OPEN]

[CMPNENT
INTERNAL
MLFNCTN]

B20CB

DTRL LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the daytime running light LH
power supply circuit until the daytime running light ON
conditions are no longer satisfied.

B20CE

HL (HI) LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the headlamp (HI) LH power
supply circuit until the headlamp (HI) ON conditions are
no longer satisfied.

B20CF

HL (HI) RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the headlamp (HI) RH pow-
er supply circuit until the headlamp (HI) ON conditions are
no longer satisfied.

B20D0

HL (LO) LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the headlamp (LO) LH pow-
er supply circuit until the headlamp (LO) ON conditions
are no longer satisfied.

B20D1

HL (LO) RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the headlamp (LO) RH pow-
er supply circuit until the headlamp (LO) ON conditions
are no longer satisfied.

B20D2

PARKING LAMP PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the parking lamp (LH/RH)
power supply circuit until the parking lamp, license plate
lamp, and tail lamp ON conditions are no longer satisfied.

DTC

CONSULT display description

Fail-safe

PCS

IPDM E/R

PCS-35

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With ECM

If No CAN Communication Is Available With BCM

B20D4

TAIL LAMP LH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the following power supply
circuits until the parking lamp, license plate lamp, and tail
lamp ON conditions are no longer satisfied.
• Tail lamp LH (body side)
• Tail lamp LH (back door side)
• License plate lamp LH
• License plate lamp RH

B20D5

TAIL LAMP RH PWR SPLY CIRC

[CIRC
SHORT TO
GRND]

Shuts off the power supply to the following power supply
circuits until the parking lamp, license plate lamp, and tail
lamp ON conditions are no longer satisfied.
• Tail lamp RH (body side)
• Tail lamp RH (back door side)

B20DB

HEIGHT SENS INITIALIZE NOT DONE

[MISSING
CALIBRA-
TION]

Right and left headlamp aiming motors fix at the initial
aiming position.

[NOT CON-
FIURED]

B20E2

LED HEADLAMP RH

[CMPNENT
INTERNAL
MLFNCTN]

Transmits the headlamp warning signal (CAN communi-
cation) to the combination meter when the headlamp (LO)
ON conditions are satisfied. (When the ignition switch
turns ON, the headlamp warning is displayed on the infor-
mation display of the combination meter.)

B20E3

LED HEADLAMP LH

[CMPNENT
INTERNAL
MLFNCTN]

Transmits the headlamp warning signal (CAN communi-
cation) to the combination meter when the headlamp (LO)
ON conditions are satisfied. (When the ignition switch
turns ON, the headlamp warning is displayed on the infor-
mation display of the combination meter.)

DTC

CONSULT display description

Fail-safe

Control part

Fail-safe operation

Cooling fan

• The cooling fan is operated at HI operation when the ignition switch is turned ON.
• Turn OFF the cooling fan operation when the ignition switch is turned OFF.

A/C compressor

A/C relay OFF

Control part

Fail-safe operation

Headlamp

• Turns ON the headlamp (LO) when the ignition switch is turned ON.
• Turns OFF the headlamp (LO) when the ignition switch is turned OFF.
• Headlamp (HI): OFF

• Parking lamp
• License plate lamp
• Illumination
• Tail  lamp

• Turns ON the tail lamp, parking lamp, license plate lamp and each illumination when the ignition

switch is turned ON.

• Turns OFF the tail lamp, parking lamp, license plate lamp and each illumination when the ignition

switch is turned OFF.

Front wiper

• The status just before activation of fail-safe control is maintained until the ignition switch is turned

OFF while the front wiper is operating at LO or HI speed.

• The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-safe control

is activated while the front wiper is set in the INT mode and the front wiper motor is operating.

Daytime running light

Daytime running light: OFF

Front fog lamp

Front fog lamp: OFF

Ignition relay

The status just before activation of fail-safe is maintained.

Starter motor

Starter control relay: OFF

PCS-36

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

IPDM E/R

IGNITION RELAY CONTROL

• IPDM E/R monitors the voltage at the contact circuit of the ignition relay inside it.
• IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit.

FRONT WIPER CONTROL

When a front wiper stop position signal is in the conditions listed below, IPDM E/R performs fail-safe control.

DTC Inspection Priority Chart

INFOID:0000000010499178

Voltage judgment

IPDM E/R judgment

Operation

Ignition relay con-

tact side

Ignition relay con-

trol condition

ON

ON

Ignition relay ON normal

OFF

OFF

Ignition relay OFF normal

ON

OFF

Ignition relay ON stuck

Detects DTC [B20DD: IGN RELAY ON CIRC]

OFF

ON

Ignition relay OFF stuck

Detects DTC [B20DE: IGN RELAY OFF CIRC]

Ignition switch

Front wiper switch

Front wiper stop position signal

Fail-safe operation

ON

Other than OFF

The front wiper stop position signal (stop
position) cannot be input for 10 seconds.

Front wiper: 20 seconds stop

OFF

The front wiper stop position signal does
not change for 10 seconds.

Priority

DTC No.

CONSULT display

1

U1000

CAN COMM CIRCUIT

2

B120E

IPDM E/R

[SYSTEM INTERNAL FAILURES]

[NOT CONFIURED]

B121D

S/L LOCK PWR SPLY CIRC

[CIRC SHORT TO GRND]

3

B20BD

BATTERY CURRENT SENSOR

[CIRC SHORT TO BATTERY]

[CIRC SHORT TO GRND]

[CIRC OPEN]

[CMPNENT INTERNAL MLFNCTN]

B20DB

HEIGHT SENS INITIALIZE NOT DONE

[MISSING CALIBRATION]

[NOT CONFIURED]

B20DD

IGN RELAY ON CIRC

[CIRC SHORT TO BATTERY]

B20DE

IGN RELAY OFF CIRC

[CIRC SHORT TO GROUND OR OPEN]

B20DF

STARTER RELAY OFF CIRC

[CIRC SHORT TO GROUND OR OPEN]

PCS

IPDM E/R

PCS-37

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DTC Index

INFOID:0000000010499179

NOTE:
The details of time display are as follows.
• CRNT: A malfunction is detected now.
• PASS: A malfunction was detected in the past.

×

: Applicable

4

B121A

FR FOG LAMP LH PWR SPLY CIRC

[CIRC SHORT TO GRND]

B1231

DTRL RH PWR SPLY CIRC

[CIRC SHORT TO GRND]

B1256

FR FOG LAMP RH PWR SPLY CIRC

[CIRC SHORT TO GRND]

B1C00

HEIGHT SENSOR PWR SPLY CIRC

[CIRC SHORT TO BATTERY]

[CIRC SHORT TO GRND]

B1C02

RR HEIGHT SENSOR SIGNAL

[CIRC SHORT TO BATTERY]

[CIRC SHORT TO GROUND OR OPEN]

[CIRC VOLTAGE OUT OF RANGE]

B1C07

AIMING MOTOR DRIVE SIGNAL

[CIRC SHORT TO BATTERY]

[CIRC SHORT TO GRND]

[SIGNAL COMPARE FAILURE]

B1C12

RR HEIGHT SENSOR SIGNAL

[SIG PRTCTN CLCLTN INCRCT]

B20BE

BATTERY TEMPERATURE SENSOR

[CIRC SHORT TO BATTERY OR OPEN]

[CIRC SHORT TO GRND]

B20CB

DTRL LH PWR SPLY CIRC

[CIRC SHORT TO GRND]

B20CE

HL (HI) LH PWR SPLY CIRC

[CIRC SHORT TO GRND]

B20CF

HL (HI) RH PWR SPLY CIRC

[CIRC SHORT TO GRND]

B20D0

HL (LO) LH PWR SPLY CIRC

[CIRC SHORT TO GRND]

B20D1

HL (LO) RH PWR SPLY CIRC

[CIRC SHORT TO GRND]

B20D2

PARKING LAMP PWR SPLY CIRC

[CIRC SHORT TO GRND]

B20D4

TAIL LAMP LH PWR SPLY CIRC

[CIRC SHORT TO GRND]

B20D5

TAIL LAMP RH PWR SPLY CIRC

[CIRC SHORT TO GRND]

5

B20E2

LED HEADLAMP RH

[CMPNENT INTERNAL MLFNCTN]

B20E3

LED HEADLAMP LH

[CMPNENT INTERNAL MLFNCTN]

Priority

DTC No.

CONSULT display

DTC No.

CONSULT display

Fail-safe

Reference

B120E

IPDM E/R

[SYSTEM INTERNAL FAILURES]

PCS-62

[NOT CONFIURED]

B121A

FR FOG LAMP LH PWR SPLY
CIRC

[CIRC SHORT TO GRND]

×

EXL-75

 (LE

headlamp)

EXL-245

 (halo-

gen headlamp)

B121D

S/L LOCK PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

SEC-159

B1231

DTRL RH PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

EXL-77

 (LE

headlamp)

EXL-247

 (halo-

gen headlamp)

B1256

FR FOG LAMP RH PWR SPLY
CIRC

[CIRC SHORT TO GRND]

×

EXL-79

 (LE

headlamp)

EXL-249

 (halo-

gen headlamp)

PCS-38

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

IPDM E/R

B121A

FR FOG LAMP LH PWR SPLY
CIRC

[CIRC SHORT TO GRND]

×

EXL-78

 (LED

headlamp)

EXL-248

 (halo-

gen headlamp)

B121D

S/L LOCK PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

SEC-162

B1231

DTRL RH PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

EXL-80

 (LED

headlamp)

EXL-250

 (halo-

gen headlamp)

B1256

FR FOG LAMP RH PWR SPLY
CIRC

[CIRC SHORT TO GRND]

×

EXL-82

 (LED

headlamp)

EXL-252

 (halo-

gen headlamp)

B1C00

HEIGHT SENSOR PWR SPLY
CIRC

[CIRC SHORT TO BATTERY]

×

EXL-84

[CIRC SHORT TO GRND]

B1C02

RR HEIGHT SENSOR SIGNAL

[CIRC SHORT TO BATTERY]

×

EXL-86

[CIRC SHORT TO GROUND OR
OPEN]

[CIRC VOLTAGE OUT OF
RANGE]

B1C07

AIMING MOTOR DRIVE SIGNAL

[CIRC SHORT TO BATTERY]

×

EXL-89

[CIRC SHORT TO GRND]

[SIGNAL COMPARE FAILURE]

B1C12

RR HEIGHT SENSOR SIGNAL

[SIG PRTCTN CLCLTN INCRCT]

×

EXL-92

B20BD

BATTERY CURRENT SENSOR

[CIRC SHORT TO BATTERY]

×

CHG-18

[CIRC SHORT TO GRND]

[CIRC OPEN]

[CMPNENT INTERNAL
MLFNCTN]

B20BE

BATTERY TEMPERATURE SEN-
SOR

[CIRC SHORT TO BATTERY OR
OPEN]

CHG-22

[CIRC SHORT TO GRND]

B20CB

DTRL LH PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

EXL-94

 (LED

headlamp)

EXL-254

 (halo-

gen headlamp)

B20CE

HL (HI) LH PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

EXL-96

 (LED

headlamp)

EXL-256

 (halo-

gen headlamp)

B20CF

HL (HI) RH PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

EXL-98

 (LED

headlamp)

EXL-259

 (halo-

gen headlamp)

B20D0

HL (LO) LH PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

EXL-100

 (LED

headlamp)

EXL-262

 (halo-

gen headlamp)

B20D1

HL (LO) RH PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

EXL-102

 (LED

headlamp)

EXL-264

 (halo-

gen headlamp)

DTC No.

CONSULT display

Fail-safe

Reference

PCS

IPDM E/R

PCS-39

< ECU DIAGNOSIS INFORMATION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B20D2

PARKING LAMP PWR SPLY
CIRC

[CIRC SHORT TO GRND]

×

EXL-104

 (LED

headlamp)

EXL-266

 (halo-

gen headlamp)

B20D4

TAIL LAMP LH PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

EXL-107

 (LED

headlamp)

EXL-269

 (halo-

gen headlamp)

B20D5

TAIL LAMP RH PWR SPLY CIRC

[CIRC SHORT TO GRND]

×

EXL-111

 (LED

headlamp)

EXL-273

 (halo-

gen headlamp)

B20DB

HEIGHT SENS INITIALIZE NOT
DONE

[MISSING CALIBRATION]

×

EXL-114

[NOT CONFIURED]

B20DD

IGN RELAY ON CIRC

[CIRC SHORT TO BATTERY]

PCS-64

B20DE

IGN RELAY OFF CIRC

[CIRC SHORT TO GROUND OR
OPEN]

PCS-66

B20DF

STARTER RELAY OFF CIRC

[CIRC SHORT TO GROUND OR
OPEN]

SEC-164

B20E2

LED HEADLAMP RH

[CMPNENT INTERNAL
MLFNCTN]

×

EXL-115

B20E3

LED HEADLAMP LH

[CMPNENT INTERNAL
MLFNCTN]

×

EXL-117

U1000

CAN COMM CIRCUIT

×

PCS-61

DTC No.

CONSULT display

Fail-safe

Reference

PCS-40

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R

WIRING DIAGRAM

IPDM E/R

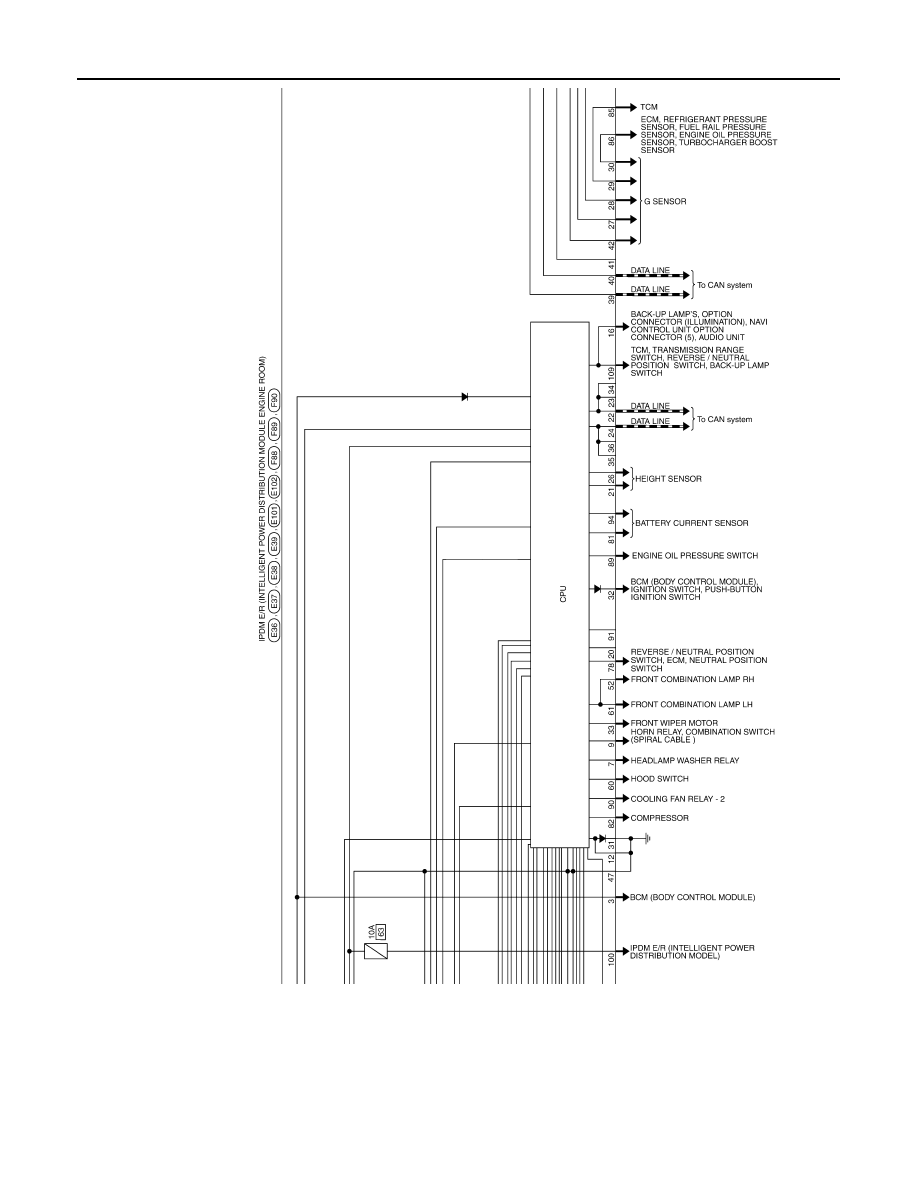

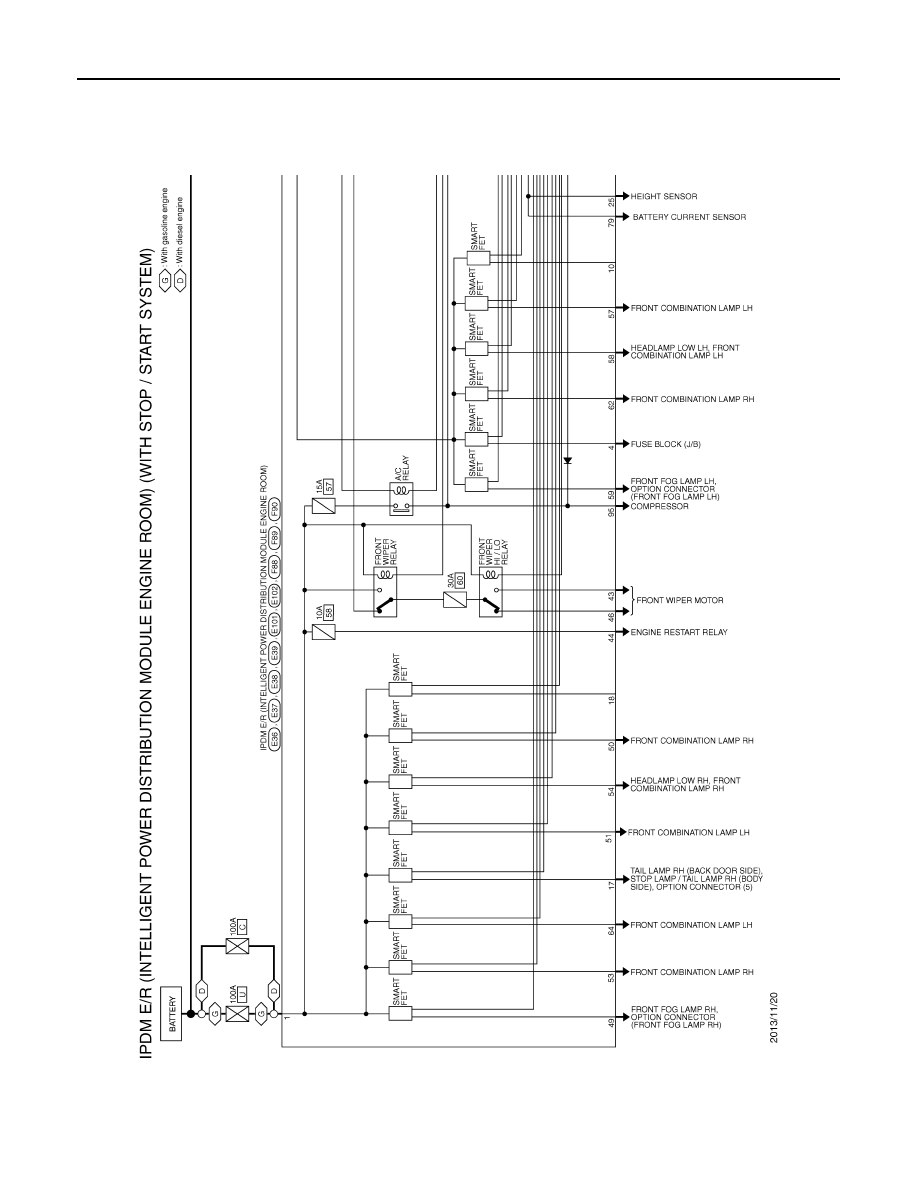

Wiring Diagram (With Stop/Start System)

INFOID:0000000010434024

JRMWE9273GB

PCS

IPDM E/R

PCS-41

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

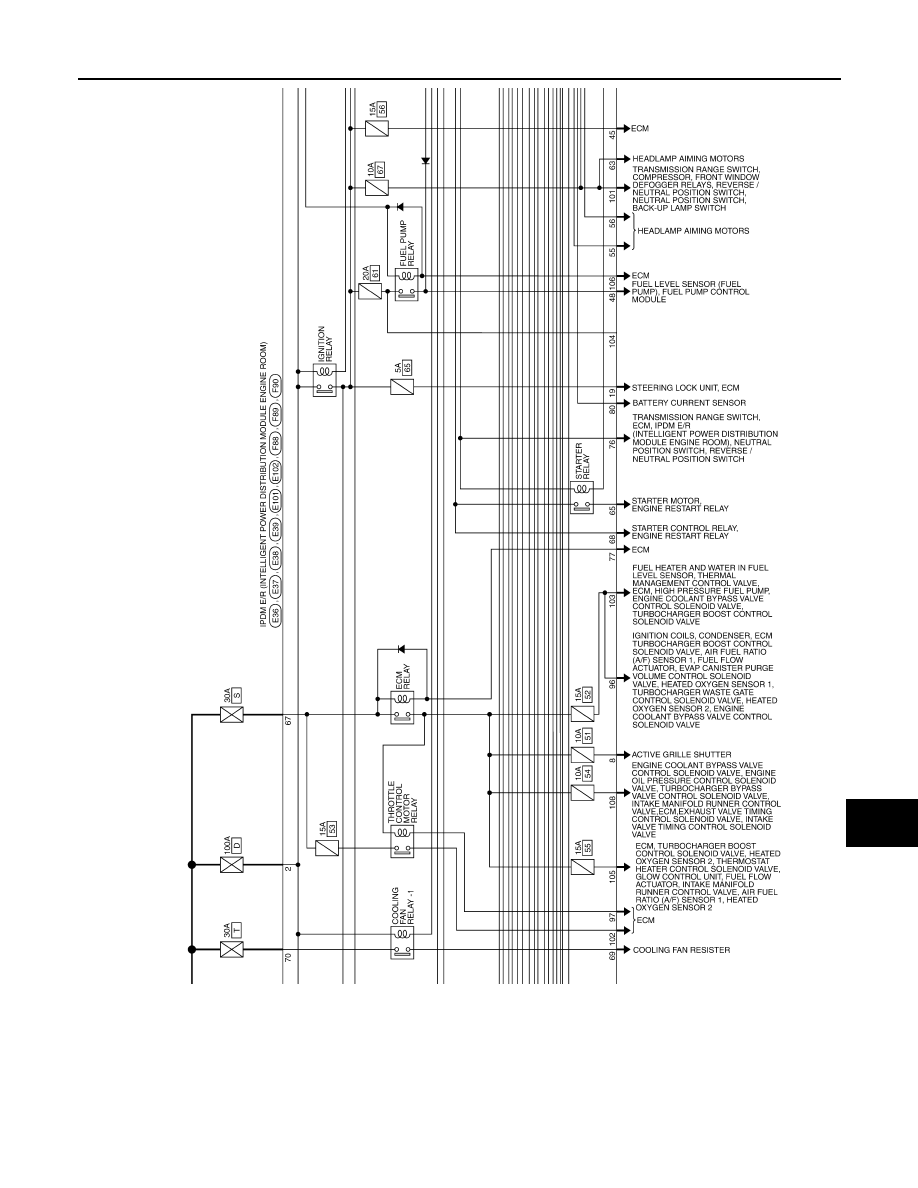

JRMWG7368GB

PCS-42

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R

JRMWG7369GB

PCS

IPDM E/R

PCS-43

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

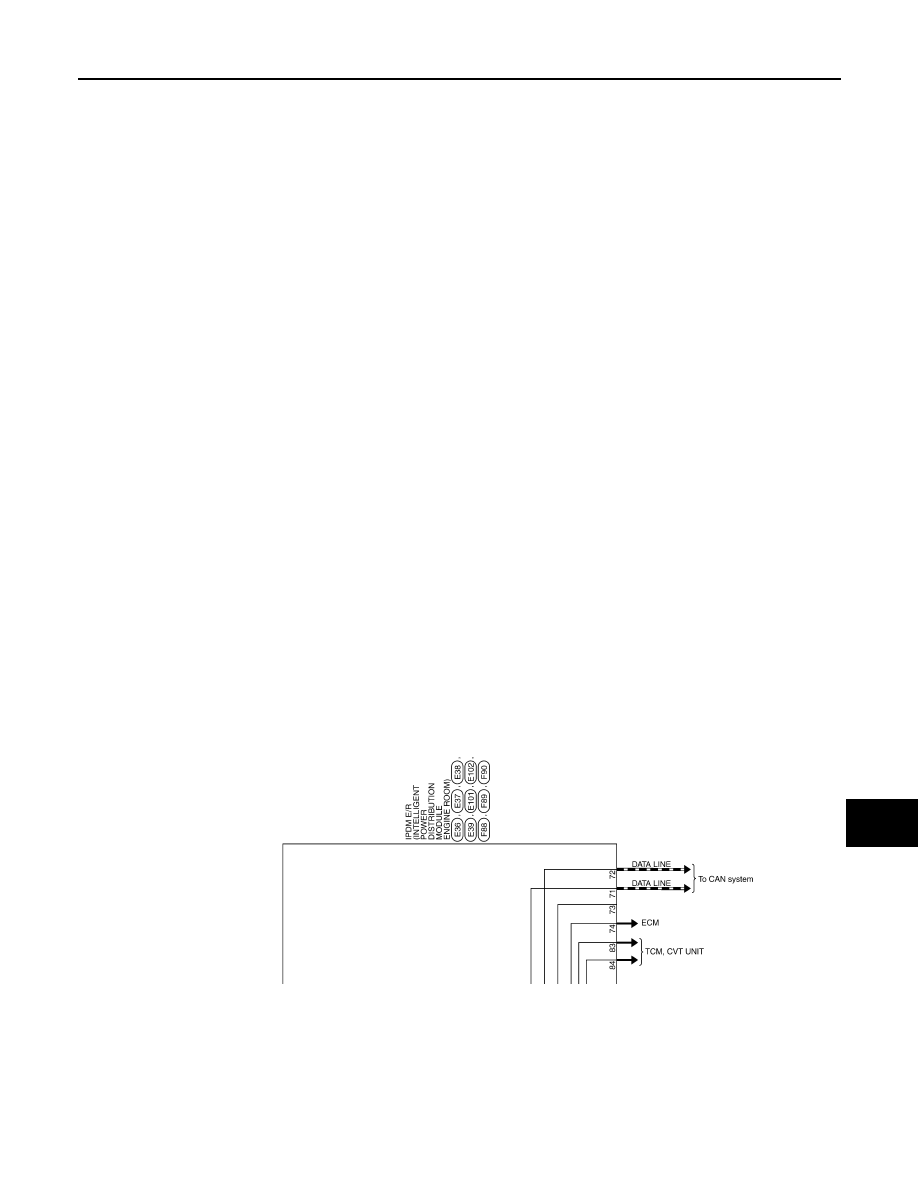

JRMWG7370GB

PCS-44

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R

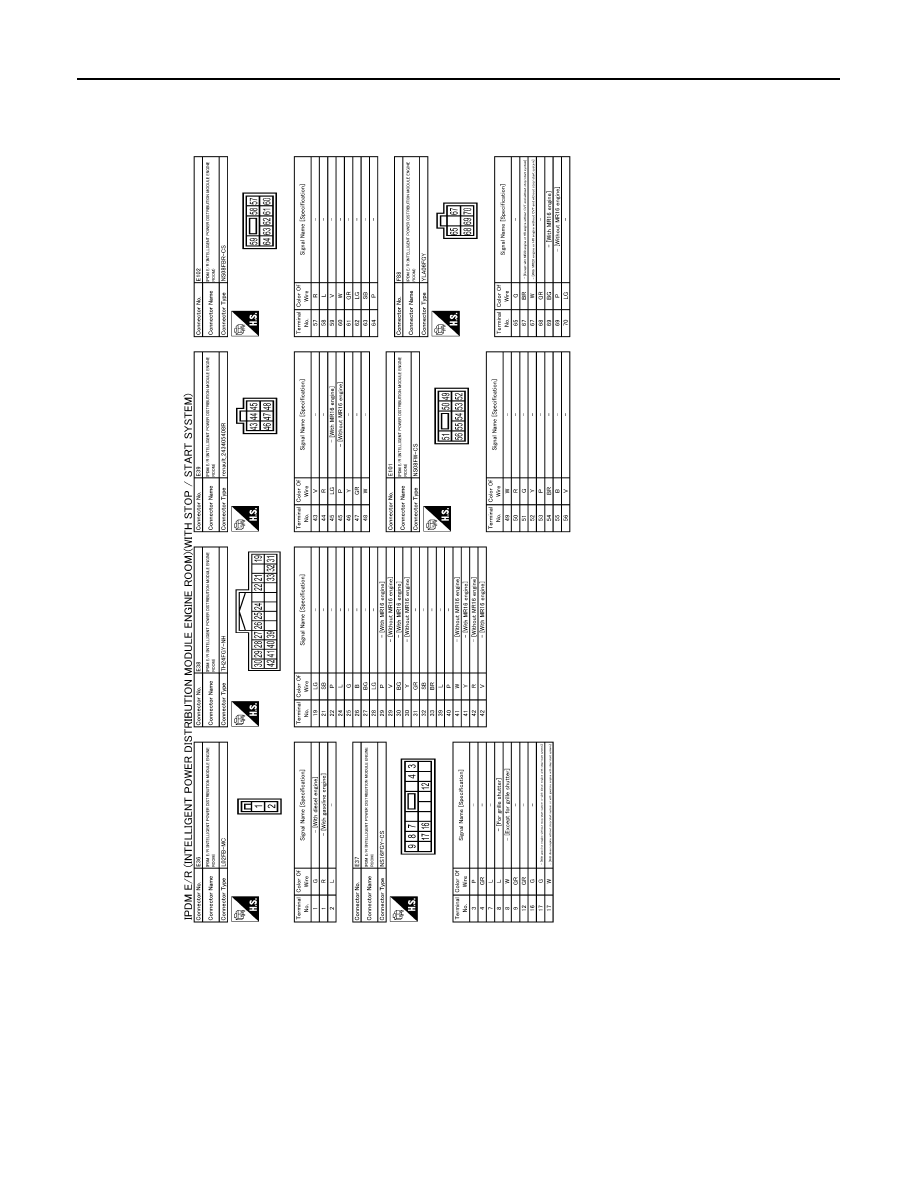

JRMWG7371GB

PCS

IPDM E/R

PCS-45

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

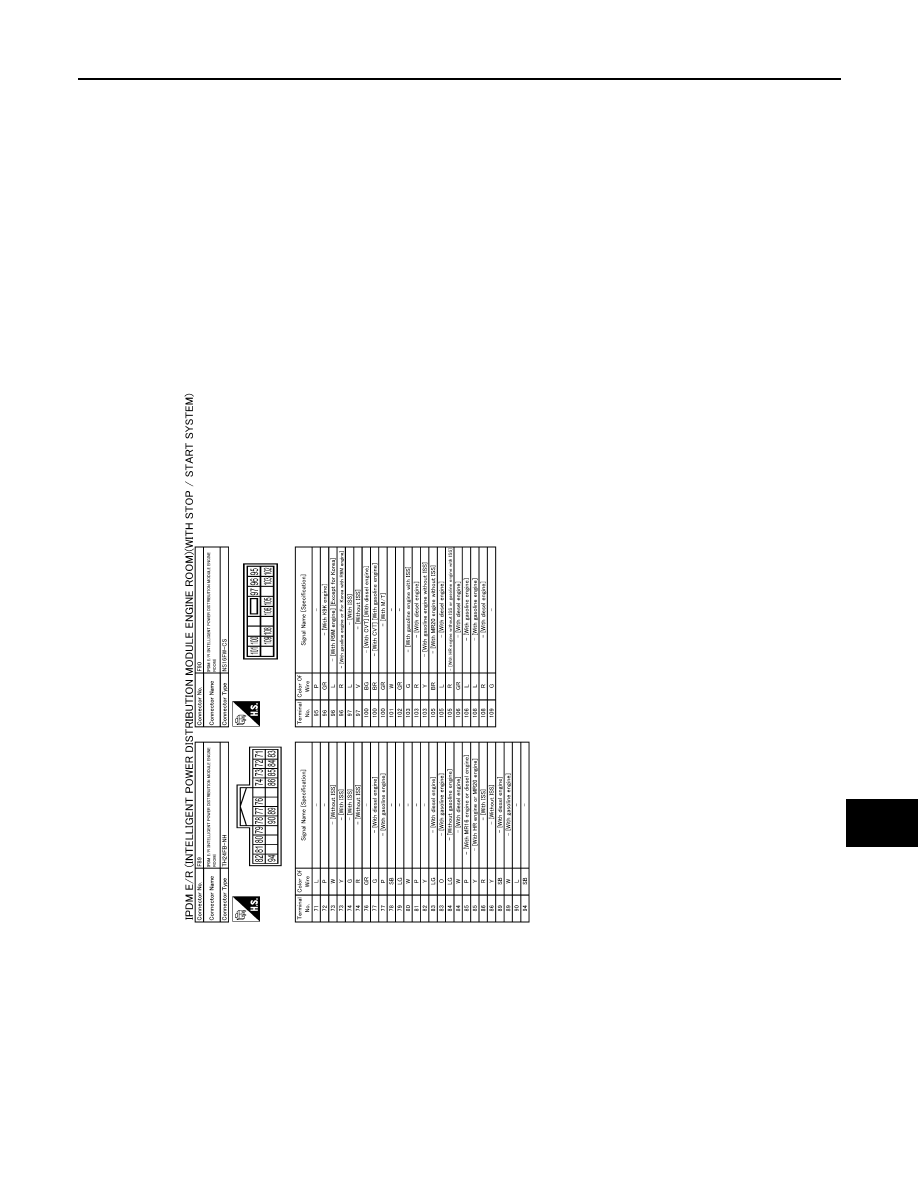

JRMWG7372GB

PCS-46

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R

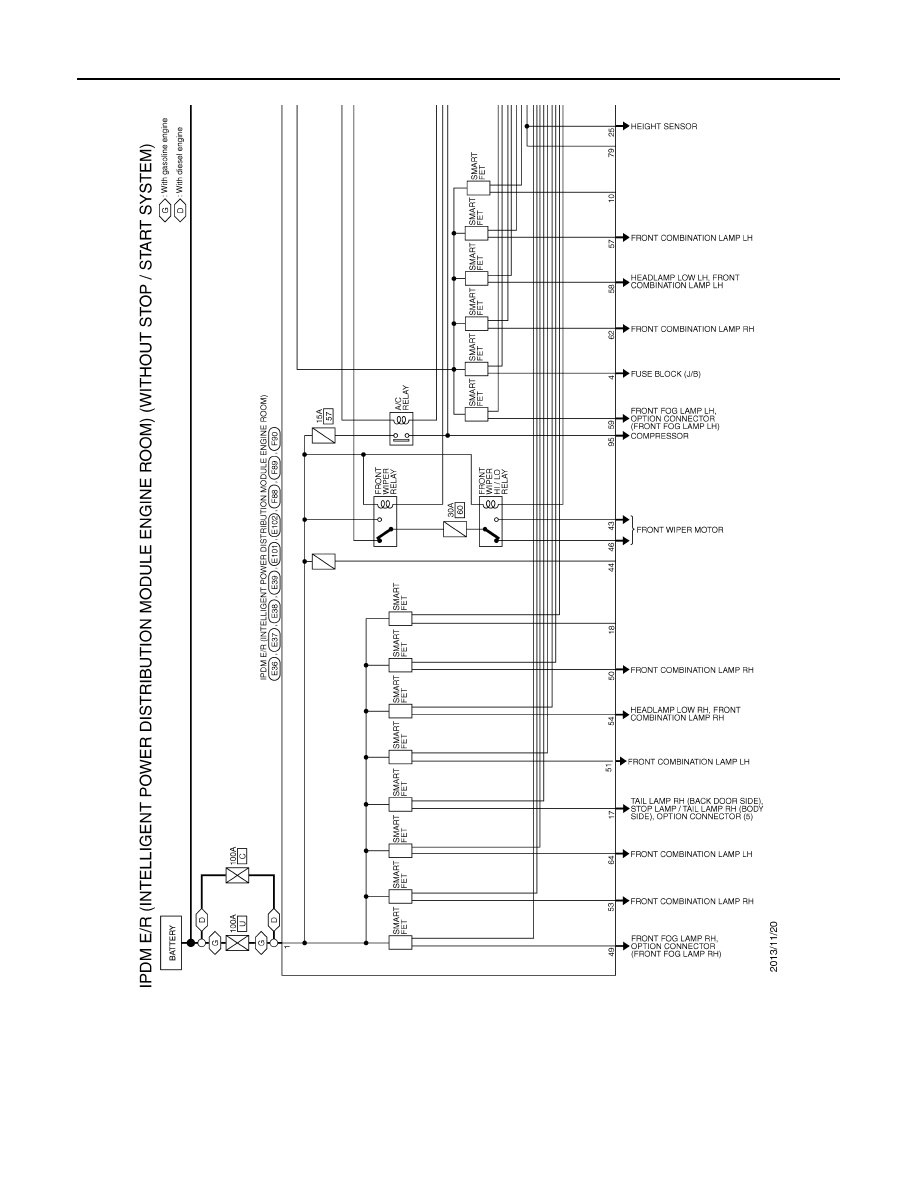

Wiring Diagram (Without Stop/Start System)

INFOID:0000000010502664

JRMWE9277GB

PCS

IPDM E/R

PCS-47

< WIRING DIAGRAM >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

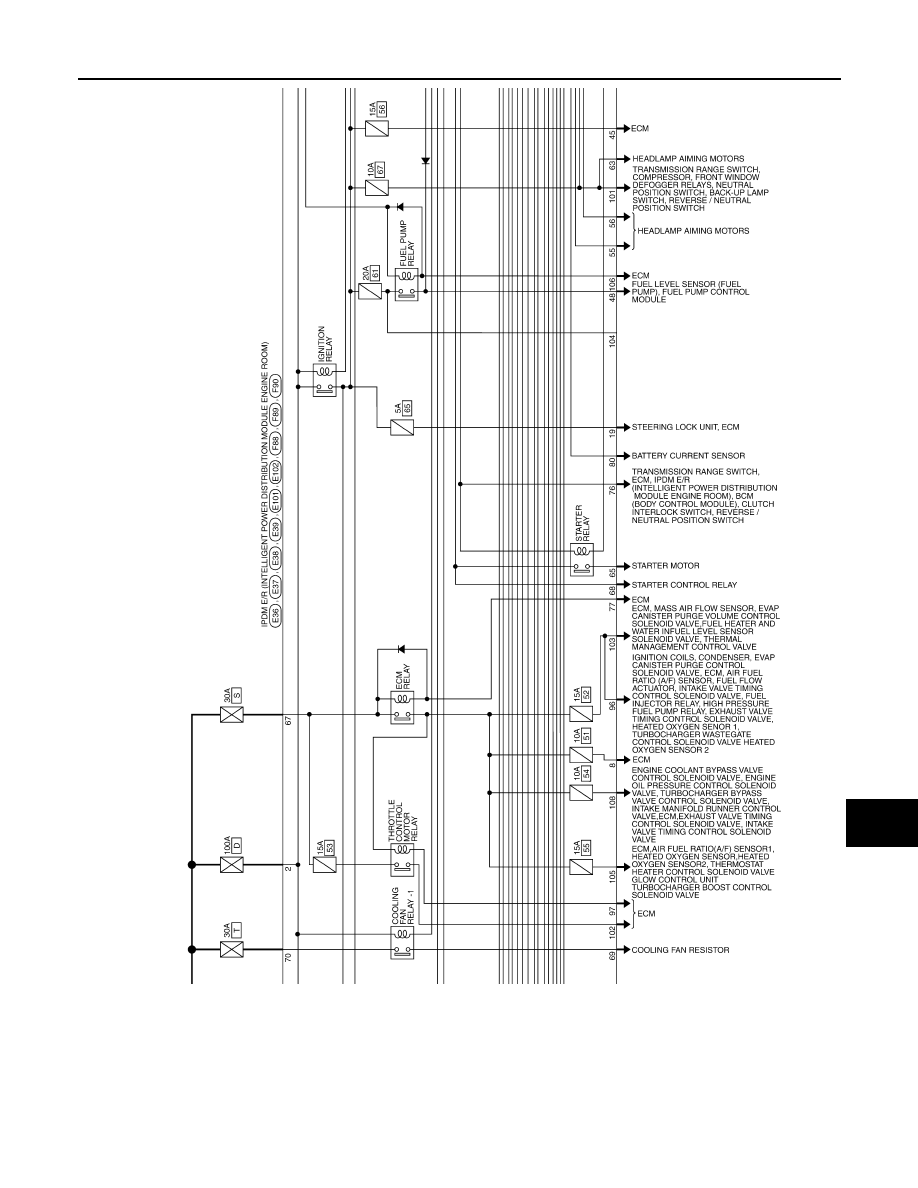

JRMWG7374GB

PCS-48

< WIRING DIAGRAM >

[IPDM E/R]

IPDM E/R

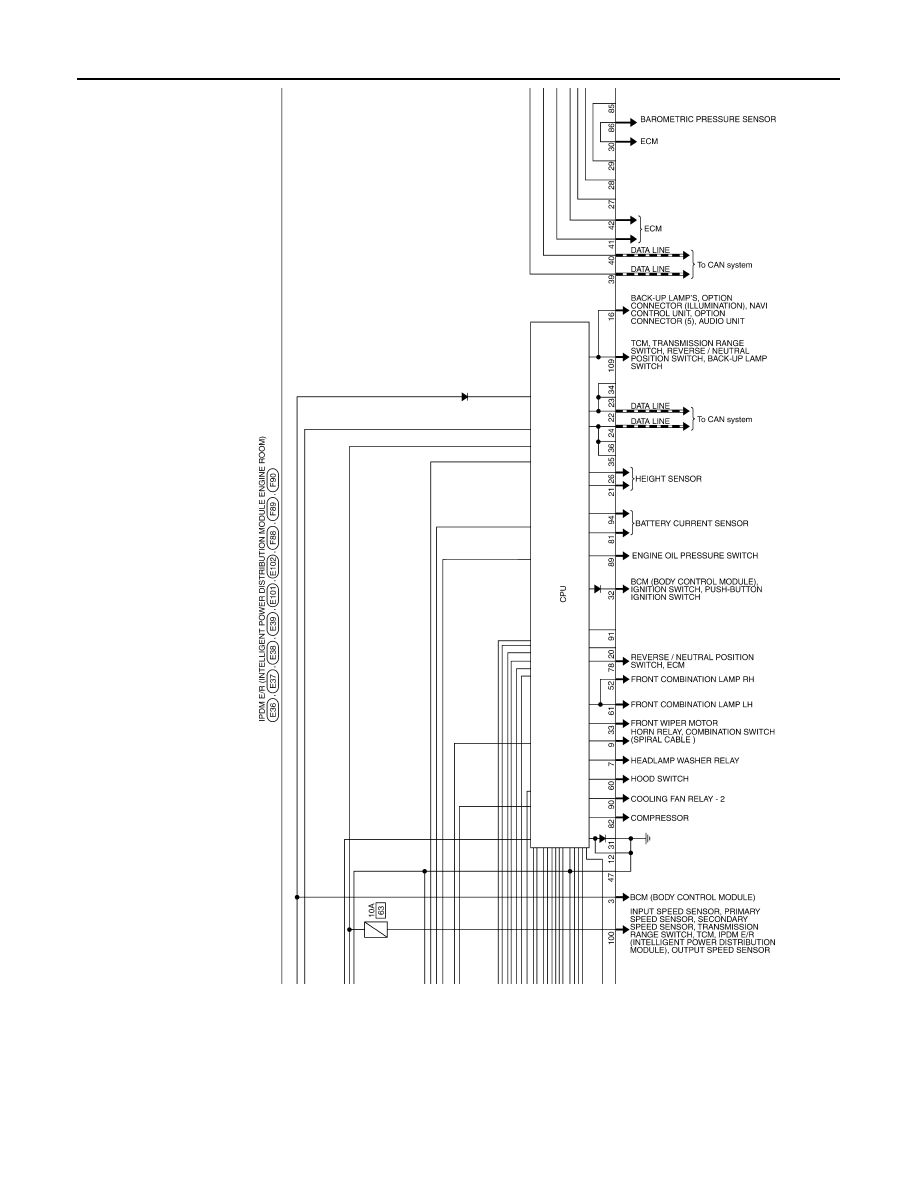

JRMWG7375GB















Content      ..     1      2      3      4      ..
