FRONT FOG LAMP

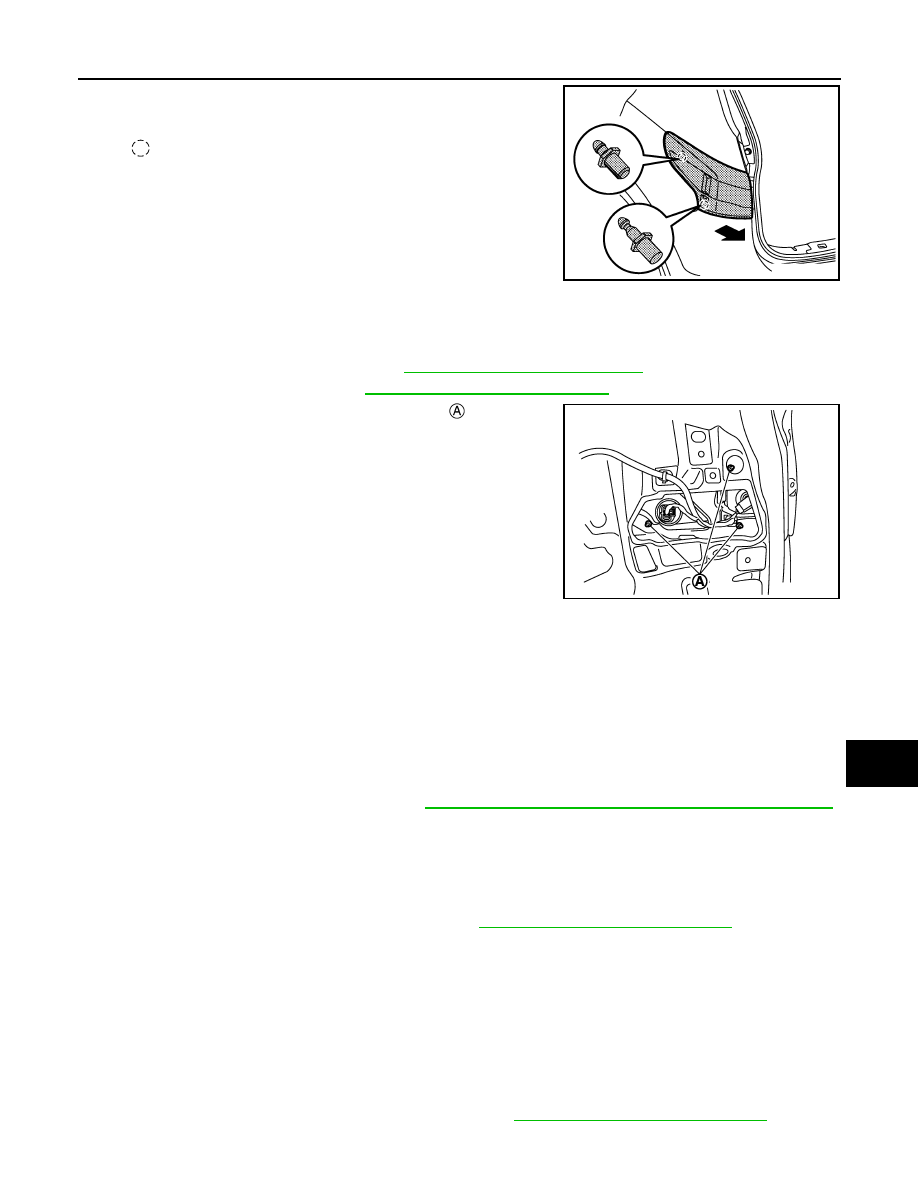

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove fender protector to make work space. Refer to

EXT-32, "Removal and Installation"

.

2.

Disconnect front fog lamp harness connector

.

3.

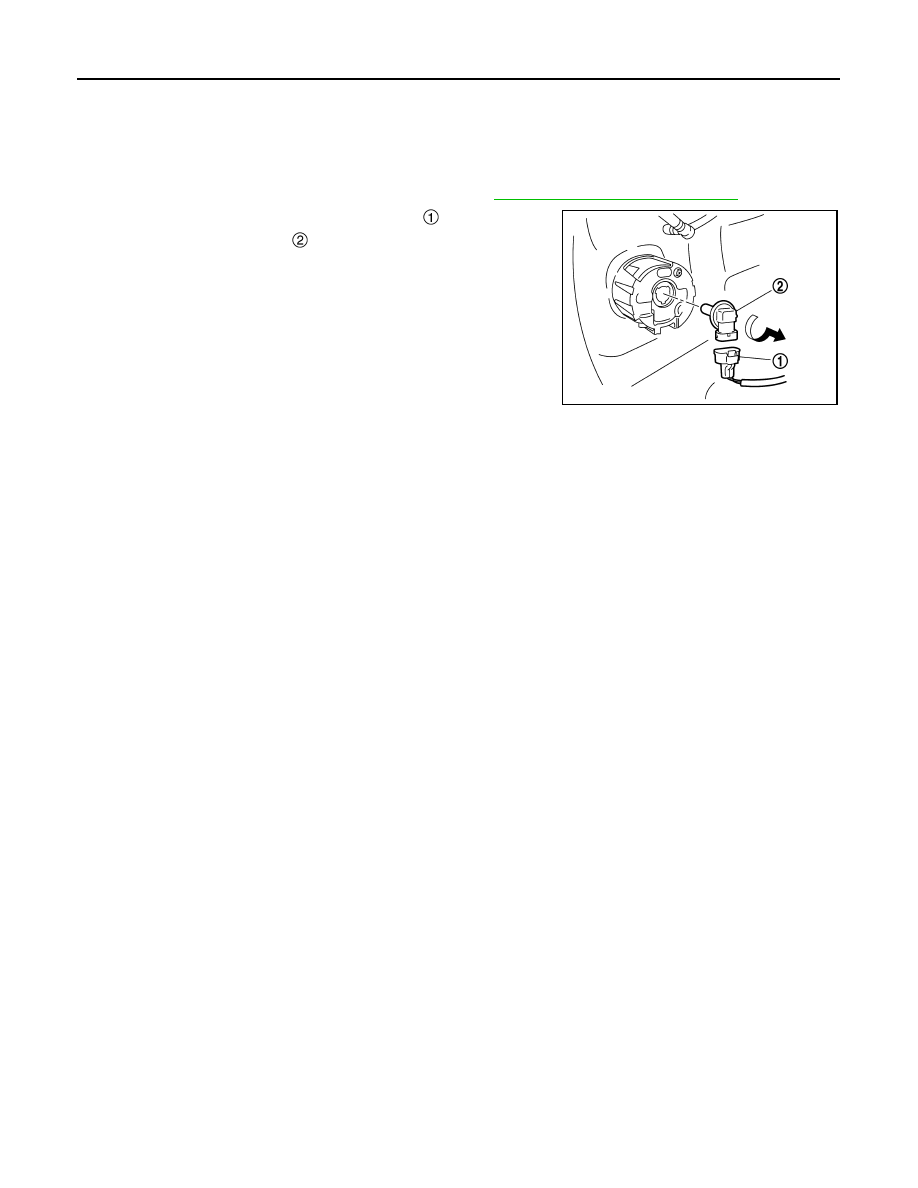

Rotate front fog lamp bulb

 counterclockwise and unlock it.

JPLIA0345ZZ

SIDE TURN SIGNAL LAMP

EXL-323

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SIDE TURN SIGNAL LAMP

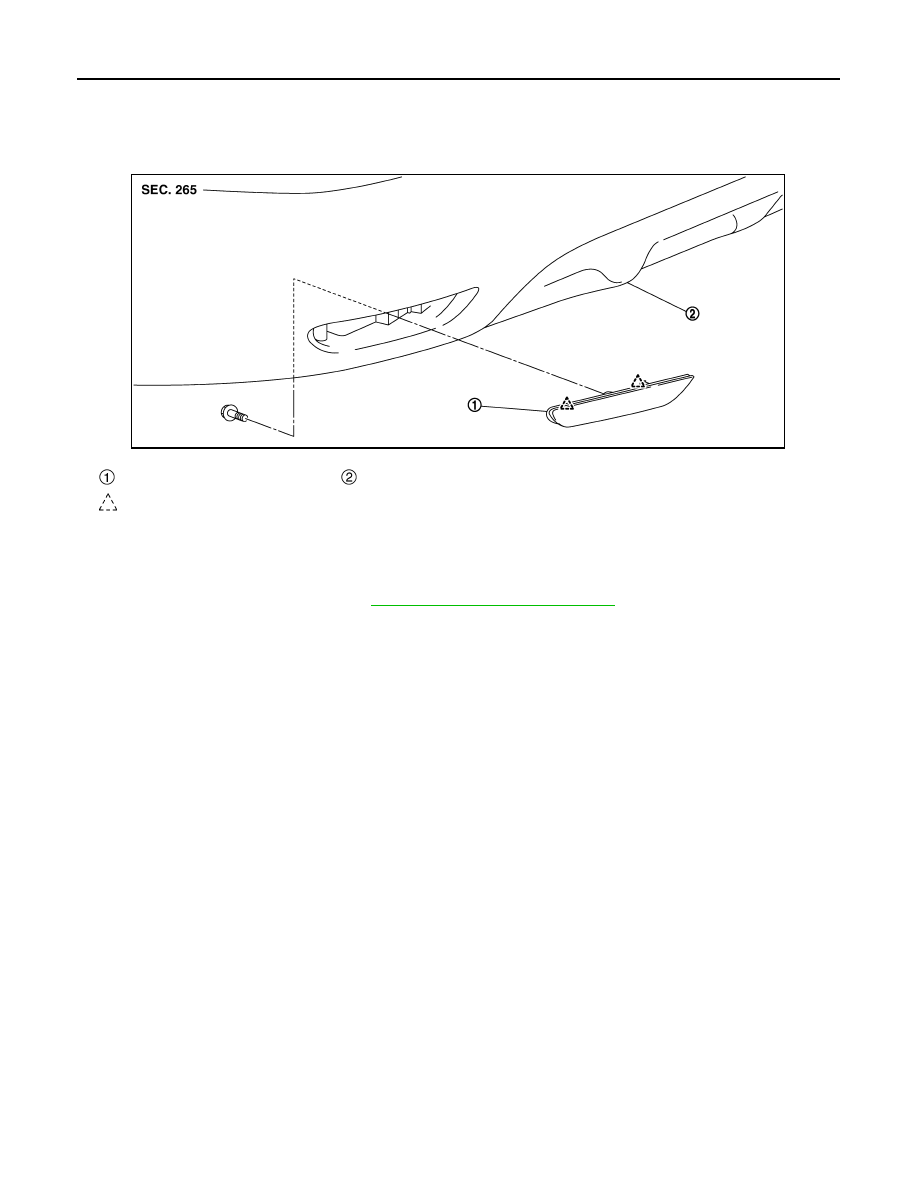

Exploded View

INFOID:0000000010437136

Refer to

MIR-31, "Exploded View"

.

Removal and Installation

INFOID:0000000010437137

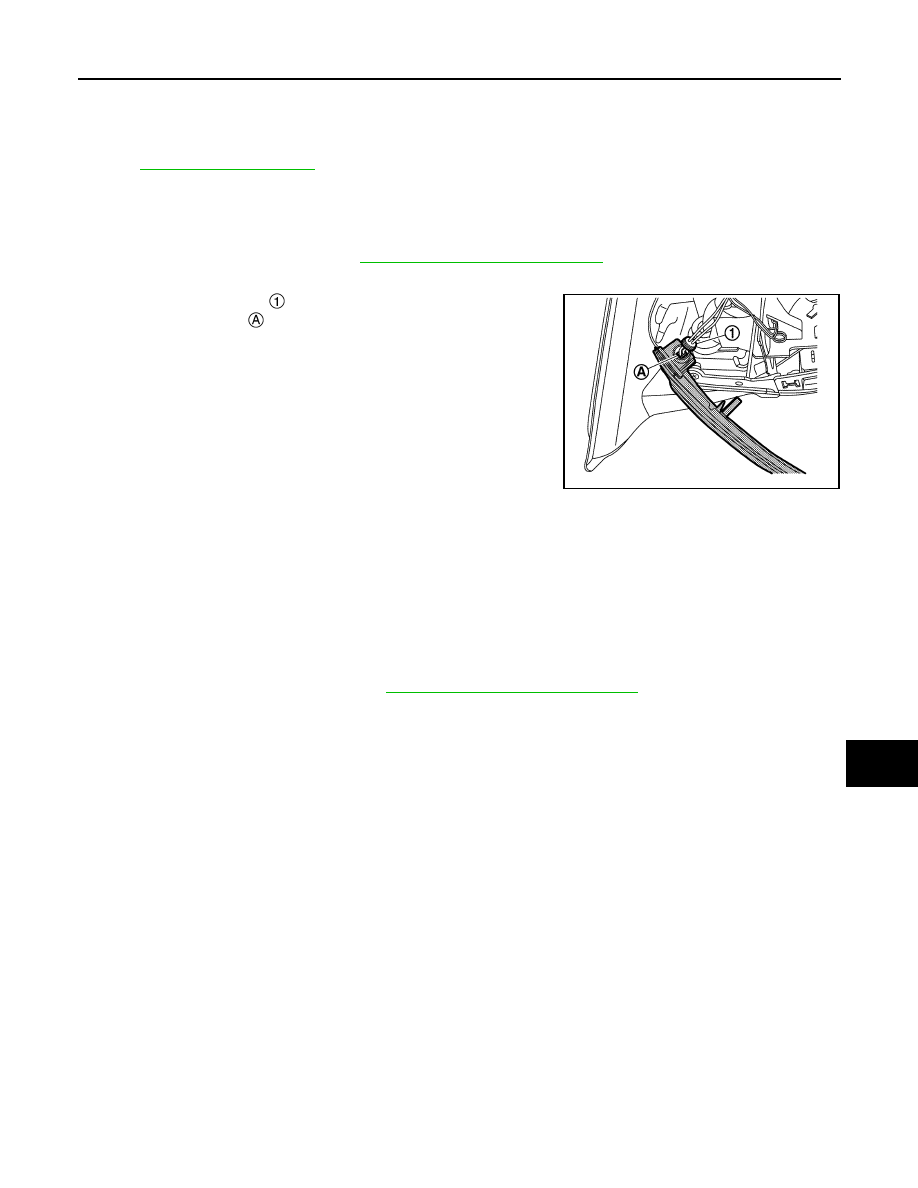

REMOVAL

1.

Remove door mirror cover. Refer to

MIR-31, "Removal and Installation"

.

2.

Remove side turn signal lamp fixing screws.

3.

Remove seal packing

 and disconnect side turn signal lamp

harness connector

, and then remove side turn signal lamp

from door mirror housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010437138

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
side turn signal lamp as a set.

SIDE TURN SIGNAL LAMP

1.

Remove side turn signal lamp. Refer to

EXL-323, "Removal and Installation"

.

2.

Replace side turn signal lamp with new part.

JMLIA4978ZZ

EXL-324

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000010437141

REMOVAL

Remove light & turn signal switch (combination switch). Refer to

BCS-133, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

HAZARD SWITCH

EXL-325

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

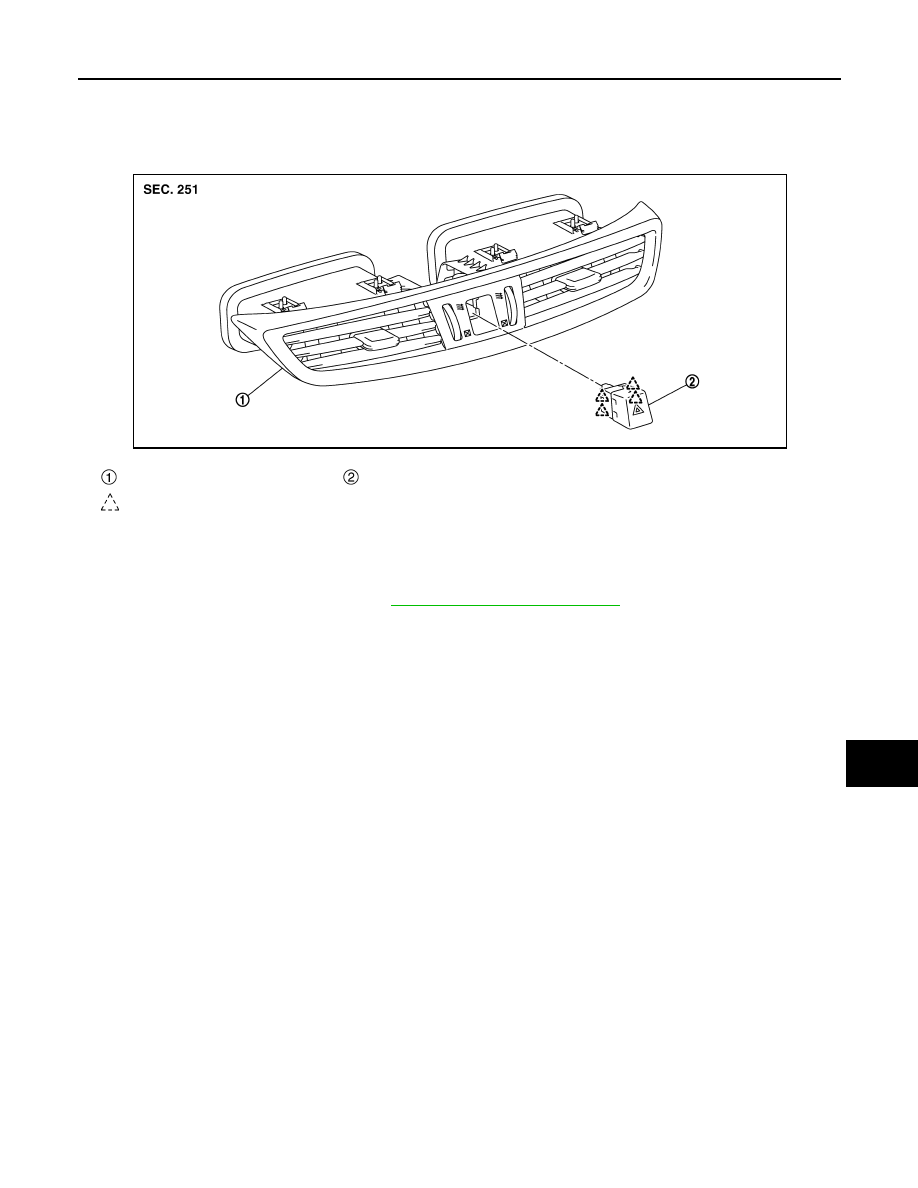

Exploded View

INFOID:0000000010437142

Removal and Installation

INFOID:0000000010437143

REMOVAL

1.

Remove center ventilator grille. Refer to

IP-13, "Removal and Installation"

.

2.

Disengage fixing pawls, and then remove hazard switch from center ventilator grille.

INSTALLATION

Install in the reverse order of removal.

Center ventilator grille

Hazard switch

: Pawl

JMLIA5094ZZ

EXL-326

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

HEADLAMP AIMING SWITCH

HEADLAMP AIMING SWITCH

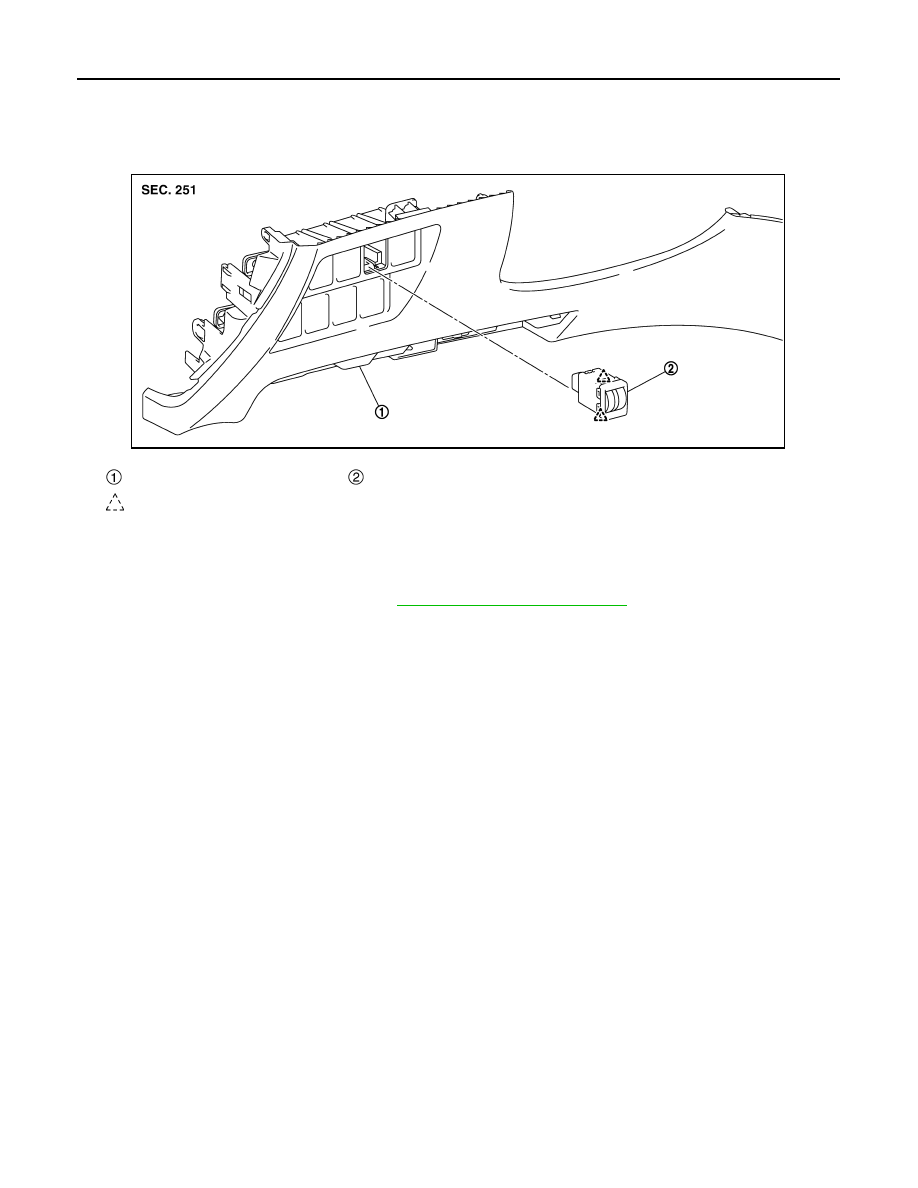

Exploded View

INFOID:0000000010437517

Removal and Installation

INFOID:0000000010437518

REMOVAL

1.

Remove instrument lower panel. Refer to

IP-13, "Removal and Installation"

.

2.

Remove headlamp aiming switch fixing pawl, and then remove headlamp aiming switch from instrument
lower panel.

INSTALLATION

Install in the reverse order of removal.

Instrument lower panel

Headlamp aiming switch

: Pawl

JMLIA5408ZZ

LIGHT & RAIN SENSOR

EXL-327

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHT & RAIN SENSOR

Exploded View

INFOID:0000000010437152

Refer to

WW-92, "Exploded View"

.

Removal and Installation

INFOID:0000000010437153

REMOVAL

Remove light & rain sensor. Refer to

WW-92, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

EXL-328

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Exploded View

INFOID:0000000010437154

REMOVAL

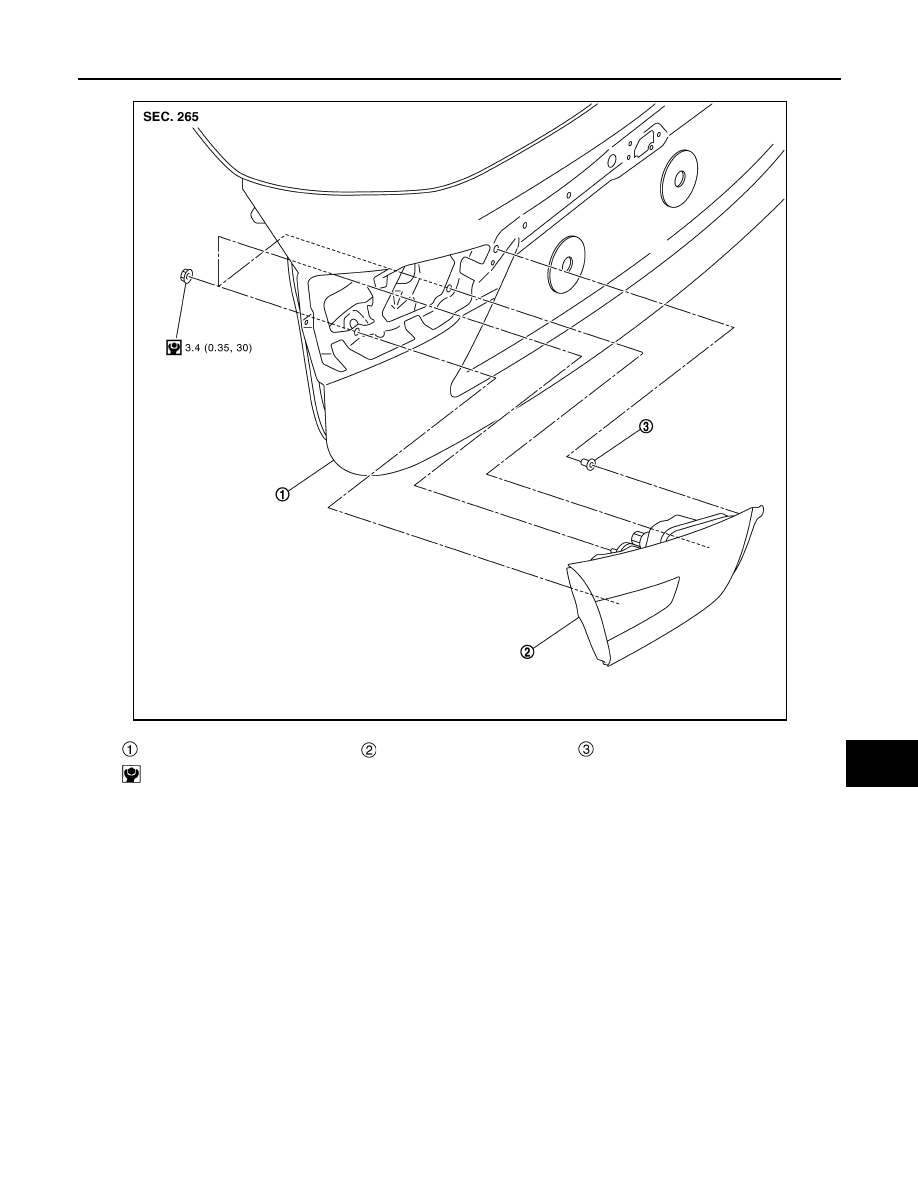

Body Side

Back Door Side

Grommet A

Grommet B

Rear combination lamp

: Clip

: Clip

: N·m (kg-m, in-lb)

JMLIA5098GB

REAR COMBINATION LAMP

EXL-329

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DISASSEMBLY

Back door assembly

Rear combination lamp

Grommet

: N·m (kg-m, in-lb)

JMLIA5099GB

EXL-330

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR COMBINATION LAMP

Removal and Installation

INFOID:0000000010437155

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-8, "Precautions for Removing Battery Terminal"

.

• When removing, always use a remover tool that is made of plastic.

REMOVAL

Rear Combination Lamp (body side)

1.

Fully open trunk lid.

2.

Remove rear combination lamp mounting bolts

.

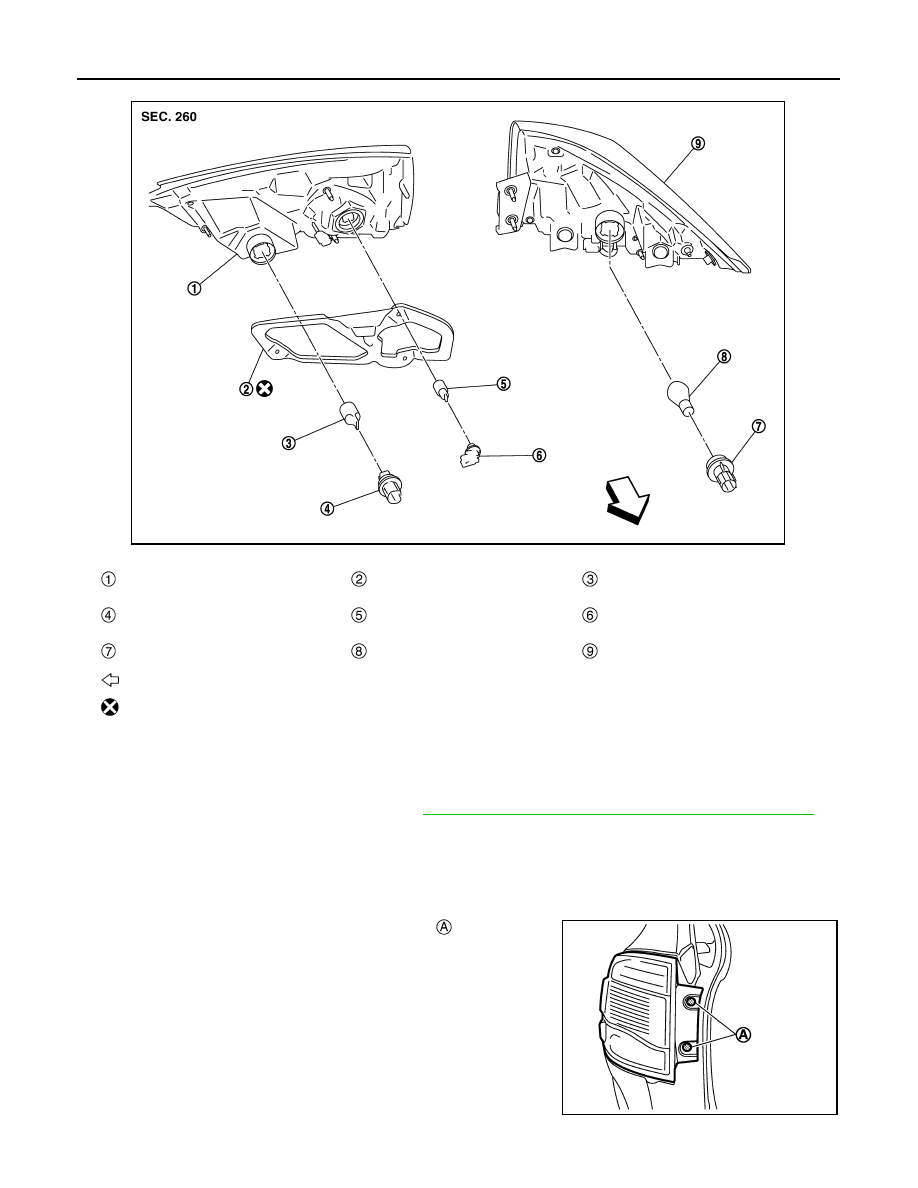

Rear combination lamp housing
(back door side)

Seal packing

Rear fog lamp bulb
 (driver side only)

Rear fog lamp bulb socket
 (driver side only)

Back-up lamp bulb

Back-up lamp bulb socket

Rear turn signal lamp bulb socket

Rear turn signal lamp bulb

Rear combination lamp housing
 (body side)

: Vehicle front

: Always replace after every disassembly

JMLIA5407ZZ

JMLIA5137ZZ

REAR COMBINATION LAMP

EXL-331

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

3.

Pull rear combination lamp toward vehicle rear to disengage fix-
ing clips.

4.

Disconnect rear combination lamp harness connectors, and then remove rear combination lamp from
body panel.

Rear Combination Lamp (back door side)

1.

Remove back door inner finisher. Refer to

INT-31, "Removal and Installation"

.

2.

Remove back door finisher. Refer to

EXT-45, "Removal and Installation"

.

3.

Remove rear combination lamp mounting nuts

 and discon-

nect rear combination lamp harness connectors.

4.

Pull rear combination lamp toward vehicle rear to remove rear combination lamp from back door.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Always replace seal packing with new part after every removal.

Replacement

INFOID:0000000010437156

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-182, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

REAR TURN SIGNAL LAMP BULB

1.

Remove rear combination lamp (body side). Refer to

EXL-330, "Removal and Installation"

.

2.

Rotate rear turn signal lamp bulb socket counterclockwise, and then remove rear turn signal lamp bulb
socket.

3.

Remove rear turn signal lamp bulb from rear turn signal lamp bulb socket.

STOP/TAIL LAMP

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
rear combination lamp assembly as a set.

REAR FOG LAMP (DRIVER SIDE ONLY)

1.

Remove rear combination lamp (back door side). Refer to

EXL-330, "Removal and Installation"

.

2.

Rotate rear fog lamp bulb socket counterclockwise, and then remove rear fog lamp bulb socket.

: Clip

JMLIA5138ZZ

JMLIA5139ZZ

EXL-332

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR COMBINATION LAMP

3.

Remove rear fog lamp bulb from rear fog lamp bulb socket.

BACK-UP LAMP

1.

Remove rear combination lamp (back door side). Refer to

EXL-330, "Removal and Installation"

.

2.

Rotate back-up lamp bulb socket counterclockwise, and then remove back-up lamp bulb socket.

3.

Remove back-up lamp bulb from back-up lamp bulb socket.

HIGH-MOUNTED STOP LAMP

EXL-333

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HIGH-MOUNTED STOP LAMP

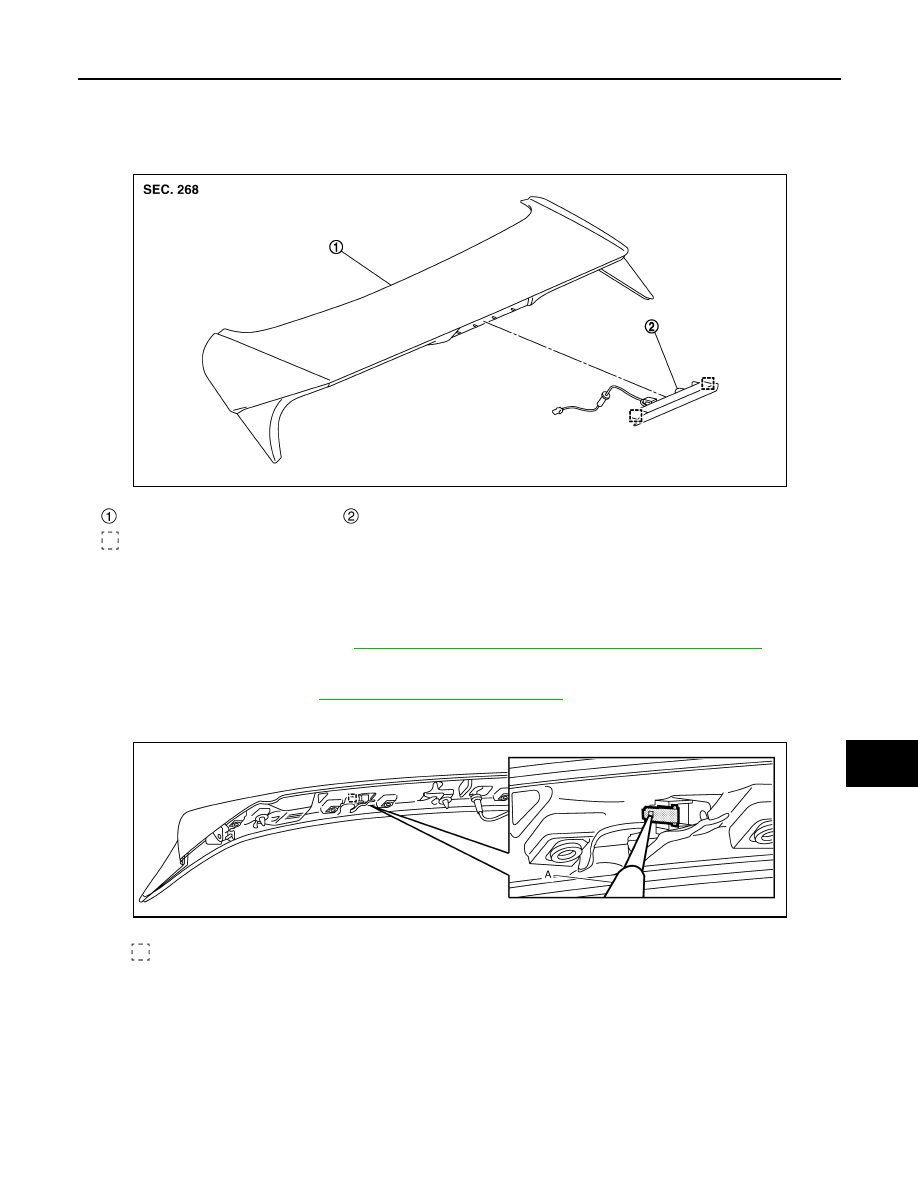

Exploded View

INFOID:0000000010437157

Removal and Installation

INFOID:0000000010437158

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-182, "Precautions for Removing Battery Terminal"

.

REMOVAL

1.

Remove rear spoiler. Refer to

EXT-46, "Removal and Installation"

.

2.

Disengage high-mounted stop lamp fixing metal clips using a remover tool (A), and then remove high-
mounted stop lamp unit.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010437159

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
high-mounted stop lamp unit as a set.

Rear spoiler

High-mounted stop lamp unit

: Metal clip

JMLIA5102ZZ

: Metal clip

JMLIA5136ZZ

EXL-334

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

LICENSE PLATE LAMP

LICENSE PLATE LAMP

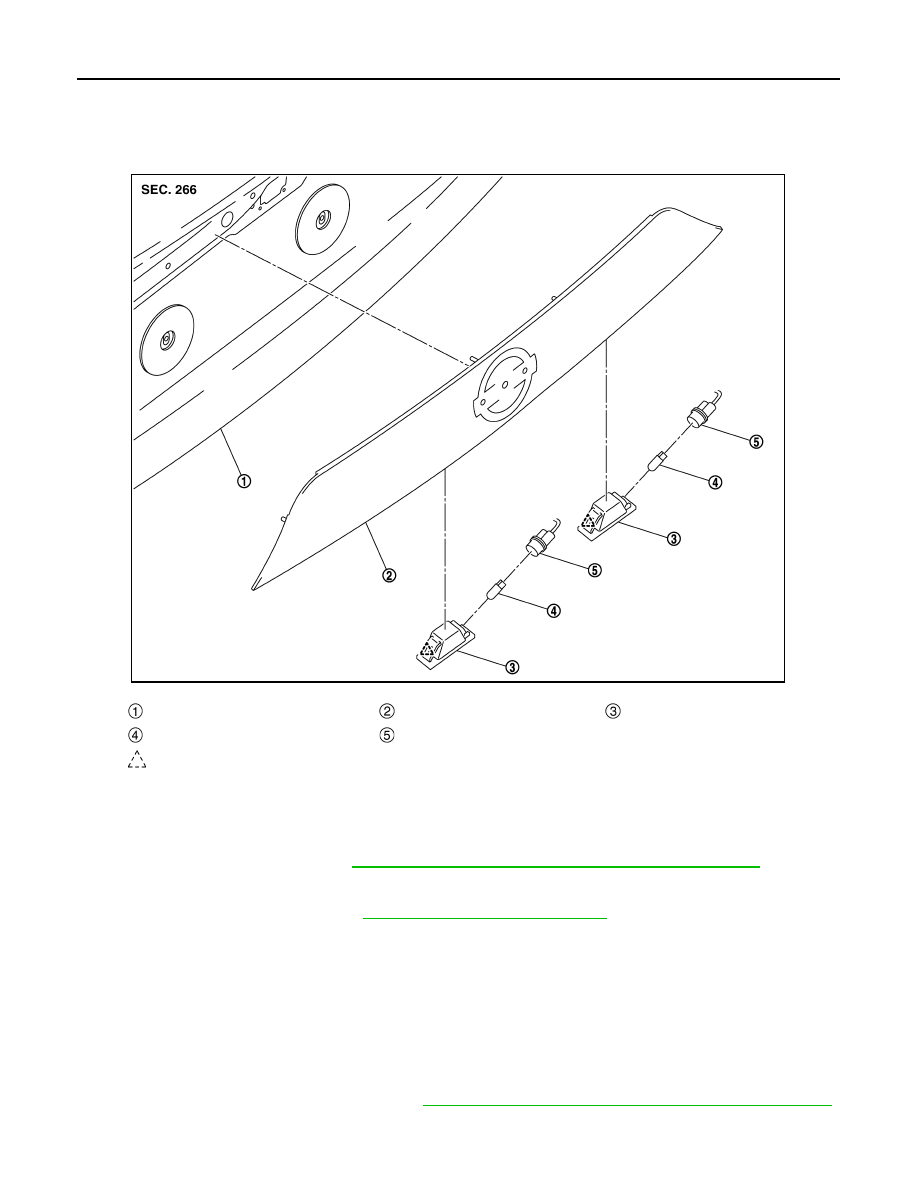

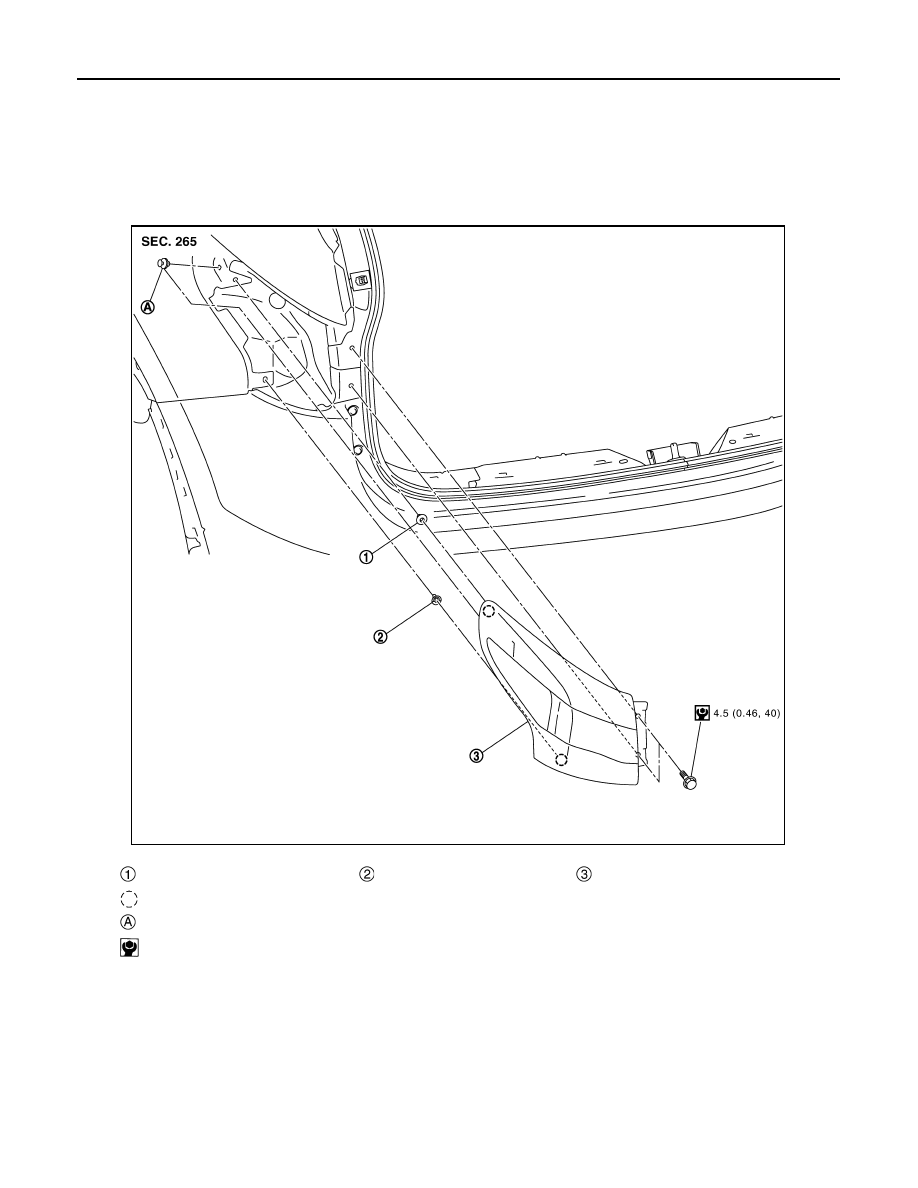

Exploded View

INFOID:0000000010437160

Removal and Installation

INFOID:0000000010437161

CAUTION:

Disconnect battery negative terminal or remove power circuit fuse when performing the operation for
preventing electric leakage. Refer to

EXL-182, "Precautions for Removing Battery Terminal"

.

REMOVAL.

1.

Remove back door finisher. Refer to

EXT-45, "Removal and Installation"

.

2.

Disconnect license plate lamp harness connector.

3.

Disengage license plate lamp housing fixing pawl, and then remove license plate lamp housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010437162

CAUTION:

• Disconnect the battery negative terminal or remove power circuit fuse when performing the opera-

tion for preventing electric leakage. Refer to

EXL-182, "Precautions for Removing Battery Terminal"

.

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.

Back door panel

Back door finisher

License plate lamp housing

License plate lamp bulb

License plate lamp bulb socket

: Pawl

JMLIA5101ZZ

LICENSE PLATE LAMP

EXL-335

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove back door finisher. Refer to

EXT-45, "Removal and Installation"

.

2.

Rotate the bulb socket counterclockwise and unlock it.

3.

Remove the bulb from the socket.

EXL-336

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

REAR REFLEX REFLECTOR

REAR REFLEX REFLECTOR

Exploded View

INFOID:0000000010437163

Removal and Installation

INFOID:0000000010437164

REMOVAL

1.

Remove rear bumper fascia. Refer to

EXT-23, "Removal and Installation"

.

2.

Remove rear reflex reflector mounting bolt and pawls, and then remove rear reflex reflector.

INSTALLATION

Install in the reverse order of removal.

Rear reflex reflector

Rear bumper fascia assembly

: Pawl

JMLIA5103ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-337

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000010437590

Bulb Specifications

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI)

H11

55

Headlamp (LO)

H7

55

Parking lamp/
daytime running light

LED

—

Front turn signal lamp

W21W

21

Front fog lamp

H8

35

Side turn signal lamp (built in door mirror)

LED

—

Rear combination lamp
(body side)

Tail lamp

LED

—

Stop lamp

LED

—

Rear turn signal lamp

WY21W

21

Rear combination lamp
(trunk lid side)

Tail lamp

LED

—

Back-up lamp

W16W

16

Rear fog lamp (driver side only)

W21W

21

License plate lamp

W5W

5

High-mounted stop lamp

LED

—
