Qashqai J11. Exterior Lighting system

EXL-8

< PRECAUTION >

[LED HEADLAMP]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010503406

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010503407

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

• For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

Open the hood.

SEF289H

PRECAUTIONS

EXL-9

< PRECAUTION >

[LED HEADLAMP]

EXL

Turn key switch to the OFF position with the driver side door opened.

Get out of the vehicle and close the driver side door.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

Open the driver side door.

Open the hood.

Close the driver side door.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

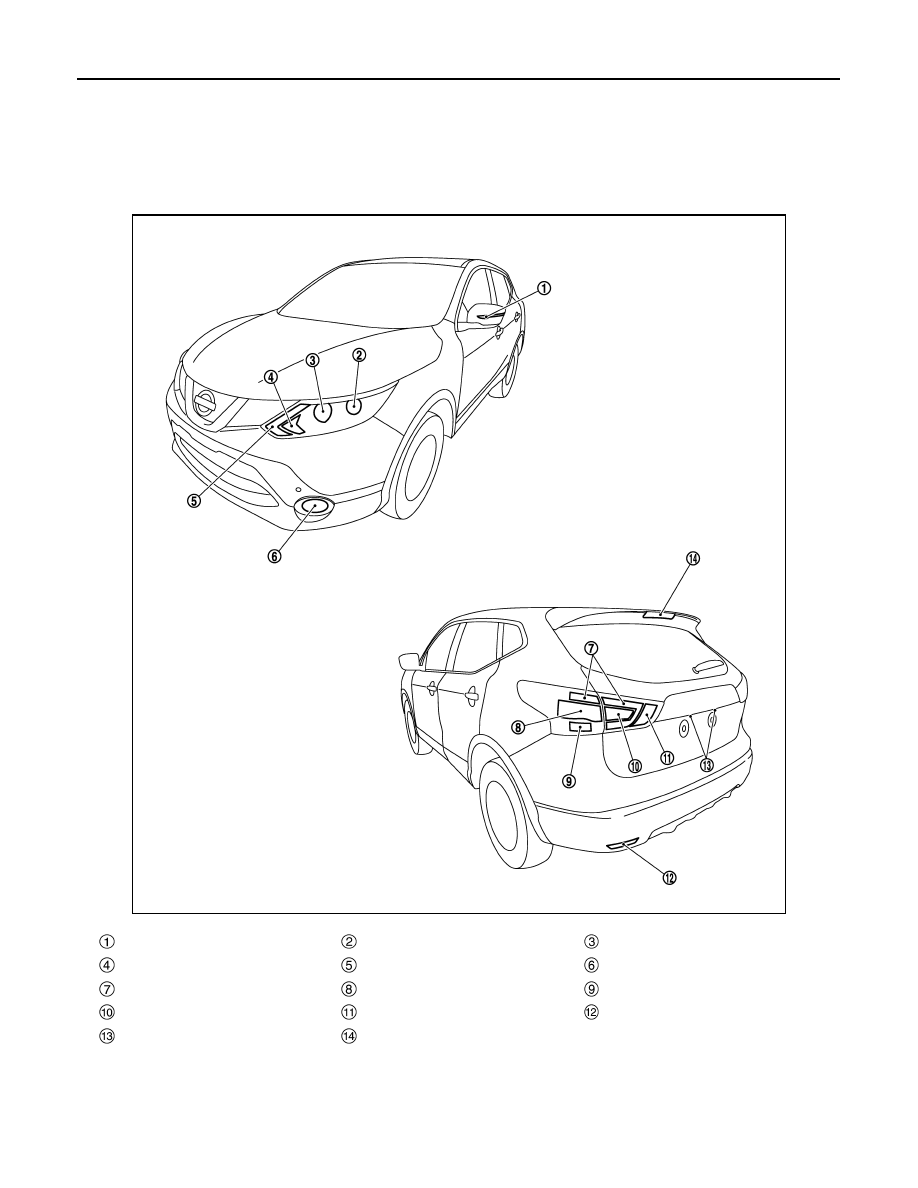

COMPONENT PARTS

EXL-11

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

EXL

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI)

LED

—

Headlamp (LO)

LED

—

Parking lamp/
daytime running light

LED

—

Front turn signal lamp

W21W

Front fog lamp

Side turn signal lamp (built in door mirror)

LED

—

Rear combination lamp
(body side)

Tail lamp

LED

—

Stop lamp

LED

—

Rear turn signal lamp

WY21W

Rear combination lamp
(trunk lid side)

Tail lamp

LED

—

Back-up lamp

W16W

Rear fog lamp (driver side only)

W21W

License plate lamp

W5W

High-mounted stop lamp

LED

—

EXL-12

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

COMPONENT PARTS

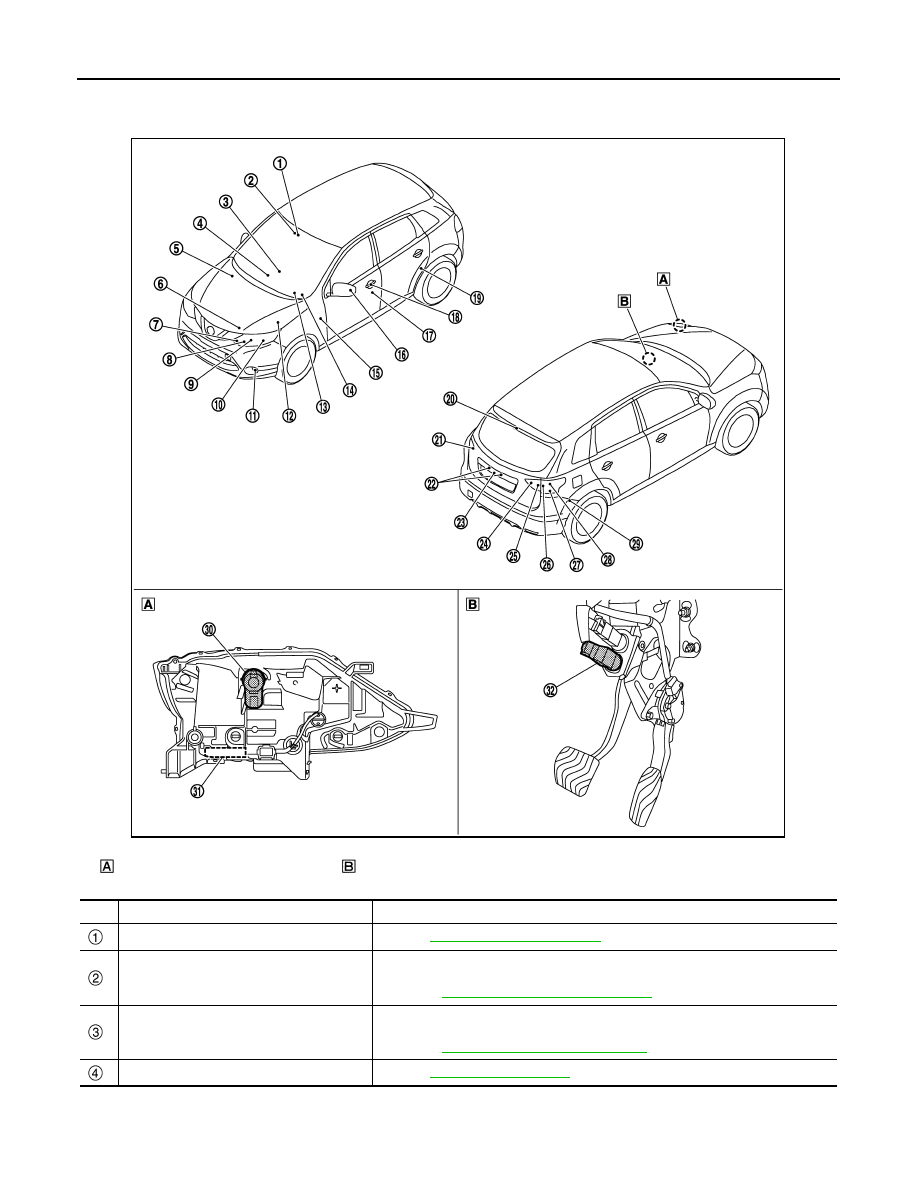

Component Parts Location

INFOID:0000000010338631

Front combination lamp (back)

Brake pedal

No.

Component

Function

Light & rain sensor

Refer to

EXL-16, "Light & Rain Sensor"

Front camera unit*

• Judges the vehicle status from each signal in order to control the high beam as-

sist control.

• Refer to

DAS-13, "Component Parts Location"

for detailed installation location.

Air bag diagnosis sensor unit

• When the air bag operates, a request is transmitted to BCM (CAN communica-

tion) to blinks the hazard lamp.

• Refer to

SRC-6, "Component Parts Location"

for detailed installation location.

Hazard switch

Refer to

EXL-16, "Hazard Switch"

JMLIA5242ZZ

COMPONENT PARTS

EXL-13

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

EXL

ABS actuator and electric unit (control unit)

• When the Forward Emergency Braking operates, a request is transmitted to

BCM (CAN communication) to turn ON the stop lamp.

• Refer to

BRC-148, "Component Parts Location"

for detailed installation loca-

tion.

ECM

• ECM transmits engine status signal and Stop/Start status signal (with Stop/Start

system) to BCM via CAN communication.

• Refer to

ECH-12, "Component Parts Location"

(HRA2DDT),

ECM-14, "EN-

GINE CONTROL SYSTEM : Component Parts Location"

(MR20DD),

ECK-12,

"Component Parts Location"

(K9K) or

EC9-12, "Component Parts Location"

(R9M) for detailed installation location.

Front combination
lamp

Parking lamp/Day-

time running light*

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

Front turn signal
lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

Headlamp (HI)
(LED headlamp)

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

and

EXL-

14, "FRONT COMBINATION LAMP : LED Headlamp"

Headlamp (LO)
(LED headlamp)

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

and

EXL-

14, "FRONT COMBINATION LAMP : LED Headlamp"

Front fog lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

IPDM E/R

• Controls the integrated smart FET, and supplies voltage to the load according

to the request from BCM via CAN communication.

• The headlamp warning signal is input from the LED headlamp control module,

and the IPDM E/R requests the combination meter (CAN communication) to
display the headlamp warning.

• Judges the vehicle status from each signal in order to control the headlamp

aiming control.

• Refer to

PCS-5, "Component Parts Location"

for detailed installation location.

Combination meter

• Turns the indicator lamp and warning (information display/buzzer) ON/OFF ac-

cording to the request from BCM via CAN communication.

• Turns the headlamp warning ON according to the request from IPDM E/R via

CAN communication.

• Blinks the turn signal indicator lamp and outputs the turn signal operating sound

with integrated buzzer according to the request from BCM via CAN communi-
cation.

• Combination meter transmits vehicle speed signal to BCM and IPDM E/R via

CAN communication.

Combination switch

Refer to

BCS-13, "COMBINATION SWITCH READING SYSTEM : System De-

scription"

BCM

• Detects each switch condition by the combination switch reading function.
• Exterior lamp ON/OFF is judged from each signal, and then a request is trans-

mitted to IPDM E/R (CAN communication) to turn each smart FET ON/OFF.

• It also transmits a request to the combination meter (CAN communication) to

turn indicator lamp and warning (information display/buzzer) ON/OFF.

• Blinks the turn signal lamp and hazard warning lamp according to the each

switch condition.

• Requests the turn signal indicator lamp blink to the combination meter via CAN

communication.

• Requests the turn signal operating sound ON to the combination meter via CAN

communication.

• Judges the vehicle status from each signal, and illuminates the stop lamp and

high-mounted stop lamp.

• Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

for

detailed installation location.

Side turn signal lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

Door switch

Refer to

DLK-30, "Component Description"

(TYPE 1),

DLK-204,

"Component Description"

(TYPE 2),

DLK-653, "Component Description"

(TYPE

5) or

DLK-835, "Component Description"

(TYPE 6).

NOTE:
Regarding to the vehicle type, refer to

DLK-24, "Information"

No.

Component

Function

EXL-14

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

COMPONENT PARTS

: With high beam assist system

: With daytime running light system

: With Intelligent Key system

: Torsion beam rear suspension models

: With rear fog lamp

: Multi-link rear suspension models

FRONT COMBINATION LAMP

FRONT COMBINATION LAMP : LED Headlamp

INFOID:0000000010338632

OUTLINE

• Semiconductor device (Light emitting diode: LED), which is illuminated when forward bias electric voltage is

applied, is adopted as the source of light instead of halogen bulb or xenon bulb.

• Comparing to halogen headlamp or xenon headlamp, LED headlamp is electrically power saving, durable,

and is illuminated in the similar color to the sunlight. Bright, natural, and eye-friendly visibility can be
obtained.

PRECAUTIONS FOR TROUBLE DIAGNOSIS

Representative malfunction examples are; “Light does not turn ON”, “Light blinks”, and “Brightness is inade-
quate.” Such malfunctions, however, occasionally by occur LED control module malfunction or lamp case mal-
function. Specify the malfunctioning part with diagnosis procedure.

CAUTION:

• Never touch the harness, LED headlamp control module, the inside and metal part of lamp when

turning the headlamp ON or operating the lighting switch, for preventing electrical shock.

Door request switch*

Refer to

DLK-30, "Component Description"

(TYPE 1),

DLK-204,

"Component Description"

(TYPE 2) or

DLK-653, "Component Description"

(TYPE 5).
NOTE:
Regarding to the vehicle type, refer to

DLK-24, "Information"

Height sensor*

Refer to

EXL-15, "Height Sensor"

High-mounted stop lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

Rear combination
lamp (back door
side)

Rear fog lamp*

(Driver side only)

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

License plate lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

Back door opener switch

Refer to

DLK-30, "Component Description"

(TYPE 1),

DLK-204,

"Component Description"

(TYPE 2),

DLK-653, "Component Description"

(TYPE

5) or

DLK-835, "Component Description"

(TYPE 6).

NOTE:
Regarding to the vehicle type, refer to

DLK-24, "Information"

Rear combination
lamp (back door
side)

Tail lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

Back-up lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

Rear combination
lamp (body side)

Rear turn signal
lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

Stop lamp/Tail lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

Tail lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

Height sensor*

Refer to

EXL-15, "Height Sensor"

Front combination
lamp

Headlamp aiming
motor

Refer to

EXL-15, "FRONT COMBINATION LAMP : Headlamp Aiming Motor"

LED headlamp con-
trol module

Refer to

EXL-15, "FRONT COMBINATION LAMP : LED Headlamp Control Mod-

ule"

Stop lamp switch

Refer to

EXL-16, "Stop Lamp Switch"

No.

Component

Function

COMPONENT PARTS

EXL-15

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

EXL

• Never work with wet hands, for preventing electrical shock.
• Never perform LED headlamp control module circuit diagnosis with a circuit tester or an equivalent.
• Temporarily install the headlamps on the vehicle. Always connect power supply to the connector

(vehicle side) when checking ON/OFF status.

• Disconnect the battery negative terminal before disconnecting the lamp socket connector or the har-

ness connector.

• Check for fusing of the fusible link(s), open around connector, short, disconnection if the symptom

is caused by electric error.

• Always check for deformation or hole of headlamp housing and engagement of bulb cover. Other-

wise, water may enter into headlamp because of damage of headlamp housing and contact to LED
headlamp control module connector. The normal operation may be inhibited when short circuit to
power supply is detected.

NOTE:
Turn the switch OFF once before turning ON, if the ON/OFF is inoperative.

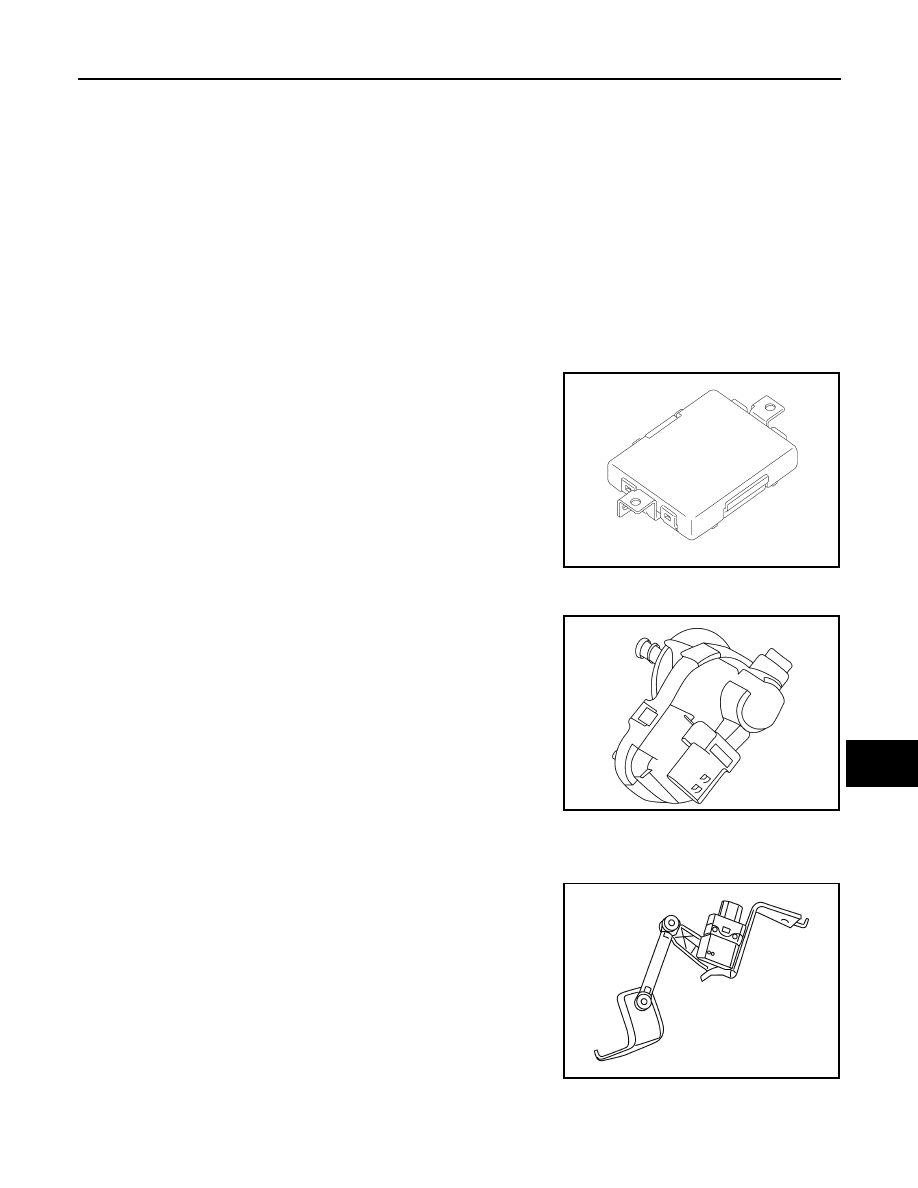

FRONT COMBINATION LAMP : LED Headlamp Control Module

INFOID:0000000010338633

• LED headlamp control module is integrated in the front combina-

tion lamp and turns the LED headlamp ON according to the
request from IPDM E/R.

• Outputs the headlamp warning signal to the IPDM E/R.

FRONT COMBINATION LAMP : Headlamp Aiming Motor

INFOID:0000000010338635

• Headlamp aiming motor is integrated in the front combination

lamp.

• Headlamp aiming motor adjusts the headlamp light axis upward

and downward according to input drive signal from IPDM E/R.

Height Sensor

INFOID:0000000010338639

MULTI-LINK REAR SUSPENSION MODELS

• Height sensor is installed in lower link.
• Height sensor detects the vehicle height deviation with sensor

lever, and transmits the detected value as a height sensor signal to
IPDM E/R.

TORSION BEAM REAR SUSPENSION MODELS

JMLIA4307ZZ

JMLIA3311ZZ

JMLIA5244ZZ

EXL-16

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

COMPONENT PARTS

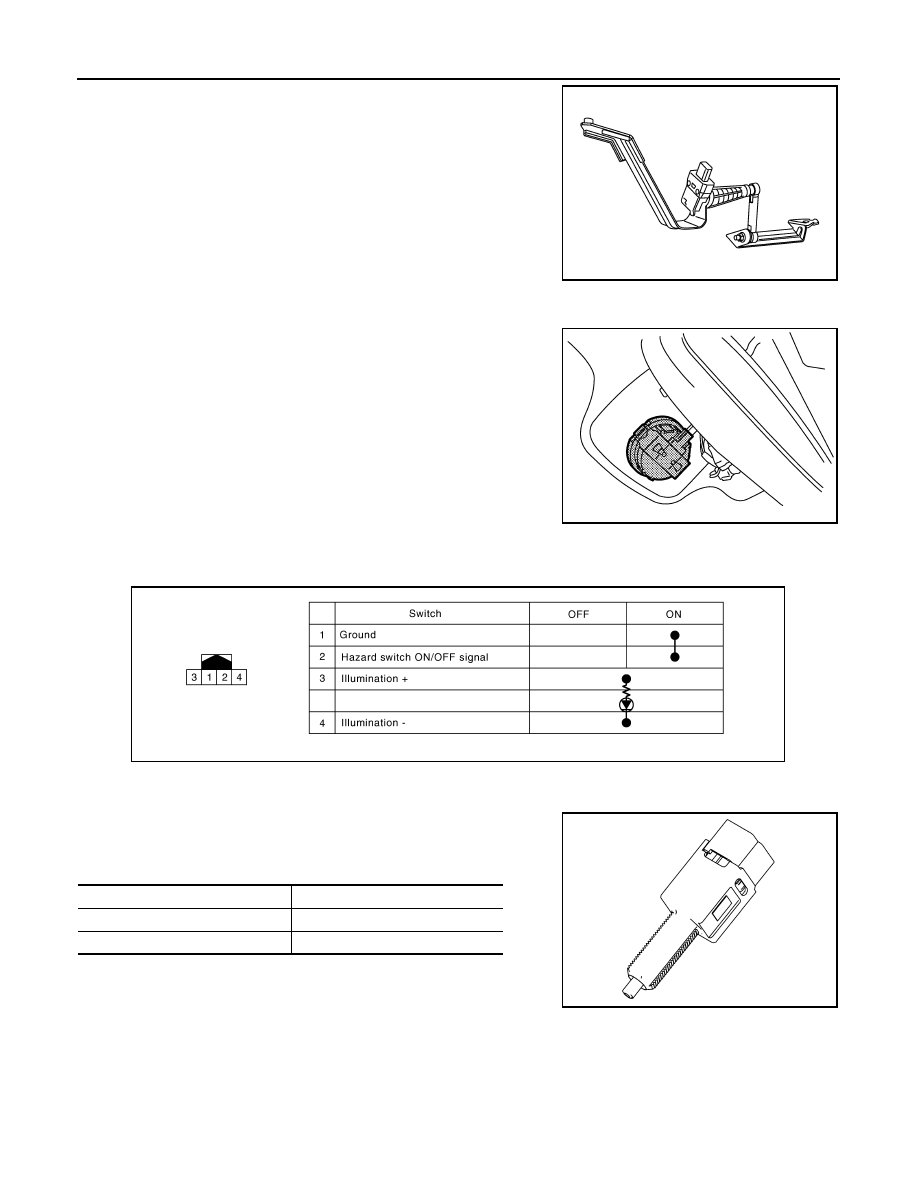

• Height sensor is installed in rear suspension beam.
• Height sensor detects the vehicle height deviation with sensor

lever, and transmits the detected value as a height sensor signal to
IPDM E/R.

Light & Rain Sensor

INFOID:0000000010452405

• The light & rain sensor detects the outside ambient light level, for-

ward light level and sensor conditions.

• Based on ambient light level (day/night detection), forward light

level (tunnel detection) and sensor conditions it judges ON/OFF
condition for exterior lamps.

• And it transmits exterior lamp ON/OFF request to the BCM by the

light & rain sensor serial link.

• BCM controls each function depending on the signals. And it

detects the light & rain sensor serial link error and the light & rain
sensor malfunction.

Hazard Switch

INFOID:0000000010338641

Inputs the hazard switch ON/OFF signal to BCM.

Stop Lamp Switch

INFOID:0000000010452406

• Stop lamp switch is installed to brake pedal bracket.
• BCM detects the brake pedal status from the ON/OFF signal that is

input from the switch.

JMLIA5245ZZ

JSLIA0093ZZ

JMLIA5226GB

Brake pedal

Stop lamp switch

Released

OFF

Depressed

JSBIA0308ZZ

Qashqai J11. Exterior Lighting system - part 1
