Qashqai J11. Engine mechanical (HRA2DDT, K9K, MR20DD) - part 16

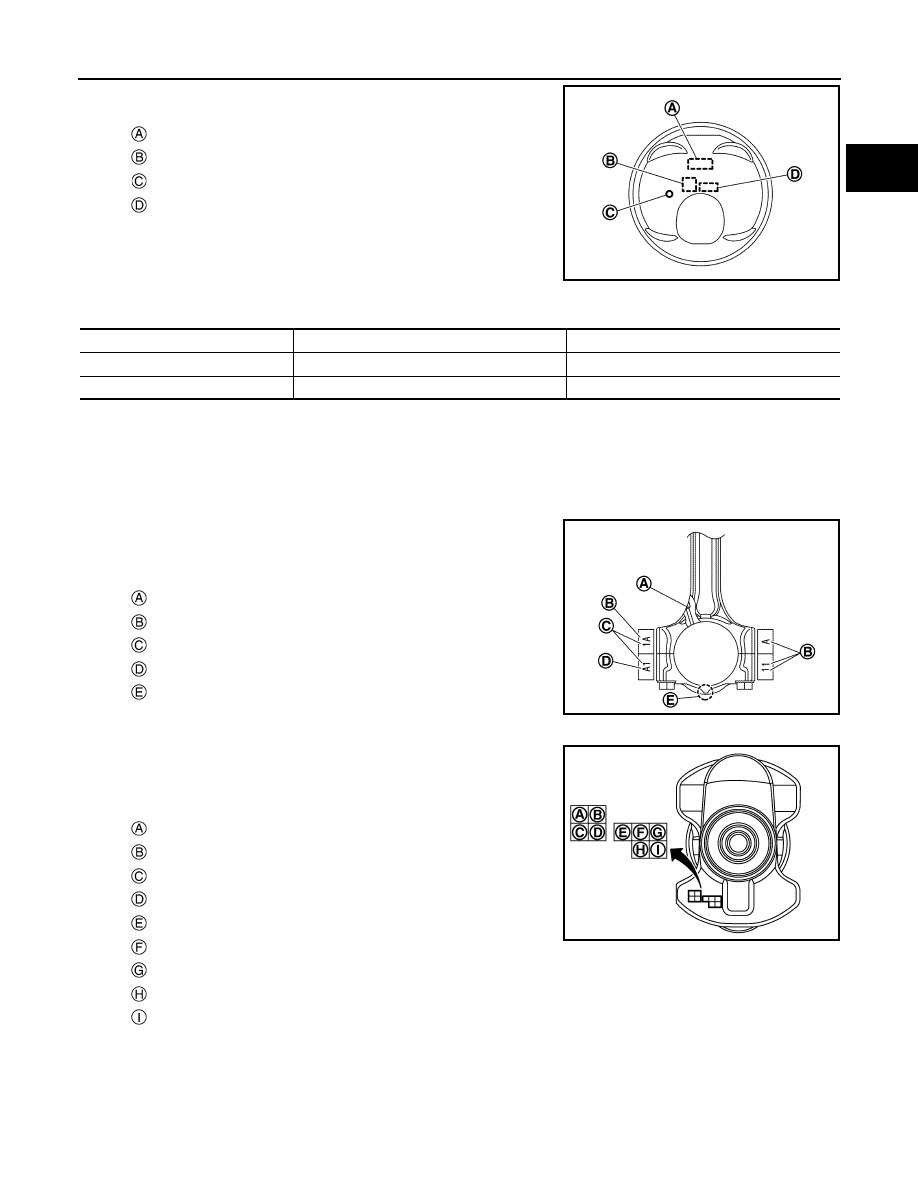

HOW TO SELECT PISTON AND BEARING

EM-241

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

Select piston of the same grade.

PISTON SELECTION TABLE

Unit: mm (in)

NOTE:
Piston is available together with piston pin as an assembly.

Connecting Rod Bearing

INFOID:0000000010715520

WHEN NEW CONNECTING ROD AND CRANKSHAFT ARE USED

Apply connecting rod big end diameter grade stamped on con-
necting rod side face to the row in the “Connecting Rod Bearing
Selection Table”.

Apply crankshaft pin journal diameter grade stamped on crank-
shaft front side to the column in the “Connecting Rod Bearing
Selection Table”.

Read the symbol at the cross point of selected row and column in the “Connecting Rod Bearing Selection
Table”.

Apply the symbol obtained to the “Connecting Rod Bearing Grade Table” to select connecting rod bearing.

WHEN CONNECTING ROD AND CRANKSHAFT ARE REUSED

: Identification code

: Piston grade number

: Front mark

: Sub grade number

JPBIA4439ZZ

Grade number (Mark)

2 [or no mark (piston only)]

Cylinder bore Inner diameter

84.000 - 84.010 (3.3071 - 3.3075)

84.010 - 84.020 (3.3075 - 3.3079)

Piston skirt diameter

83.970 - 83.980 (3.3059 - 3.3063)

83.980 - 83.990 (3.3063 - 3.3067)

: Oil hole

: Management code

: Cylinder number

: Big end diameter grade

: Front mark

JPBIA4442ZZ

: No. 1 pin journal diameter grade

: No. 2 pin journal diameter grade

: No. 3 pin journal diameter grade

: No. 4 pin journal diameter grade

: No. 1 main journal diameter grade

: No. 2 main journal diameter grade

: No. 3 main journal diameter grade

: No. 4 main journal diameter grade

: No. 5 main journal diameter grade

PBIC3261J

EM-242

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

HOW TO SELECT PISTON AND BEARING

Measure the dimensions of the connecting rod big end diameter and crankshaft pin journal diameter indi-
vidually. Refer to

EM-231, "Inspection"

Apply the measured dimension to the “Connecting Rod Bearing Selection Table”.

Read the symbol at the cross point of selected row and column in the “Connecting Rod Bearing Selection
Table”.

Apply the symbol obtained to the “Connecting Rod Bearing Grade Table” to select connecting rod bearing.

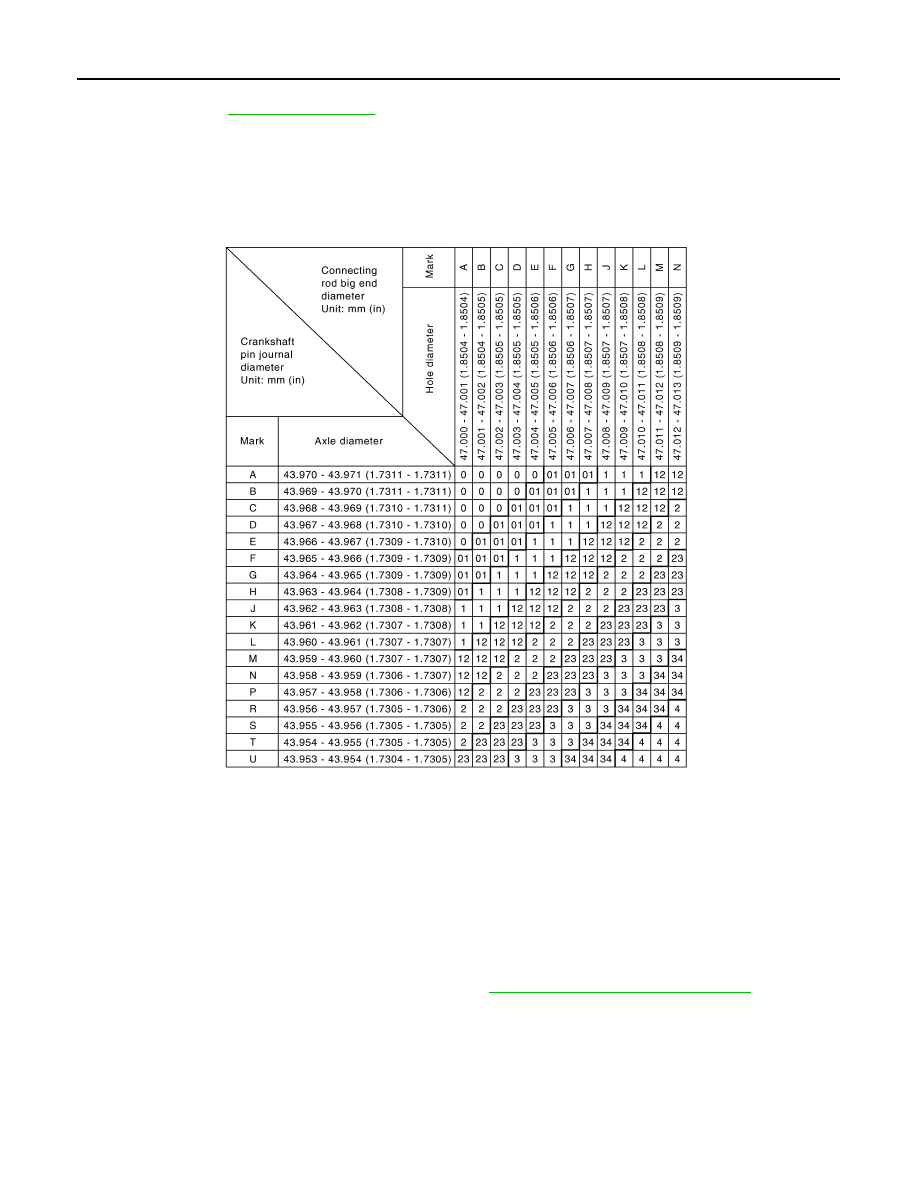

CONNECTING ROD BEARING SELECTION TABLE

CONNECTING ROD BEARING GRADE TABLE

UNDERSIZE BEARINGS USAGE GUIDE

• When the specified connecting rod bearing oil clearance is not obtained with standard size connecting rod

bearings, use undersize (US) bearings.

• When using undersize (US) bearing, measure the connecting rod bearing inner diameter with bearing

installed, and grind the crankshaft pin so that the connecting rod bearing oil clearance satisfies the standard.

CAUTION:

PBIC4077E

Connecting rod bearing grade table

: Refer to

EM-256, "Connecting Rod Bearing"

HOW TO SELECT PISTON AND BEARING

EM-243

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

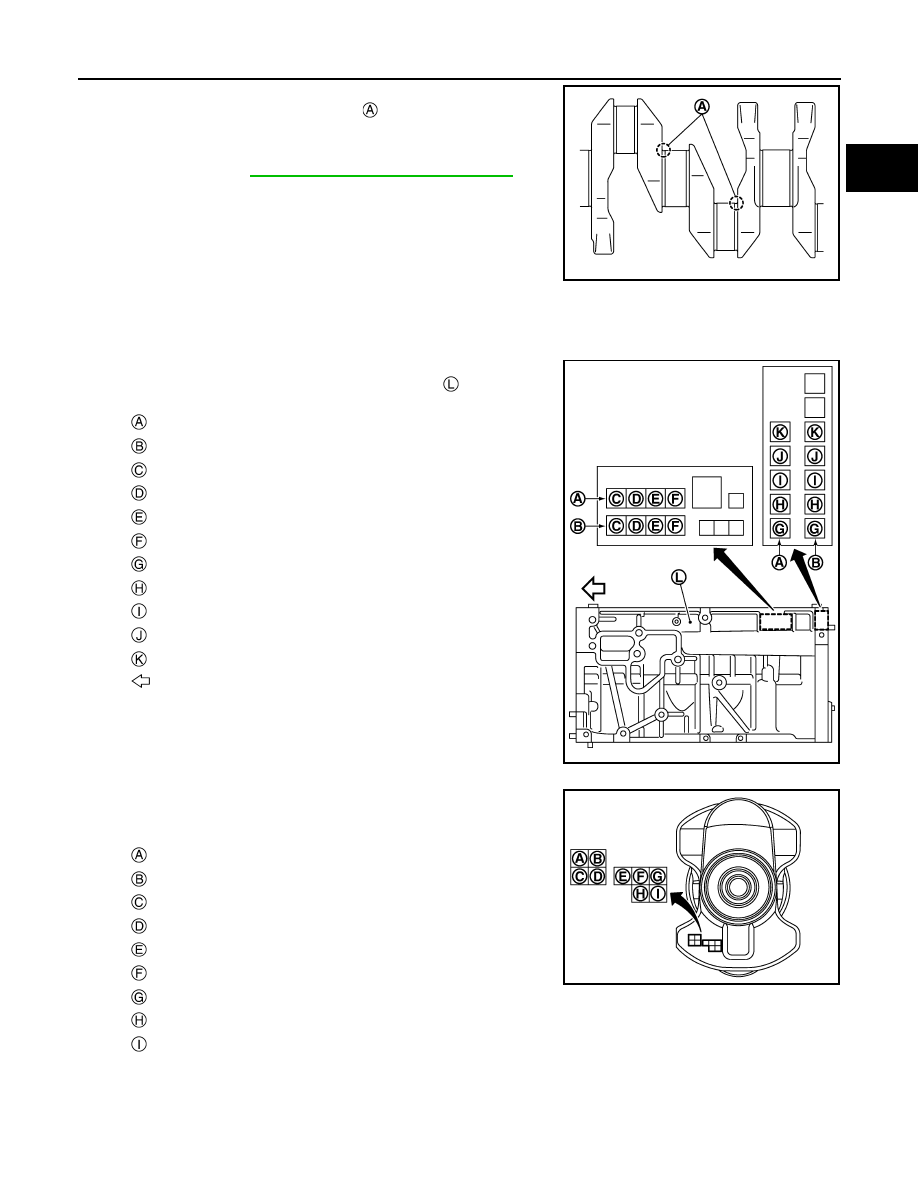

In grinding crankshaft pin to use undersize bearings, keep the
fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)]

Main Bearing

INFOID:0000000010715521

WHEN NEW CYLINDER BLOCK AND CRANKSHAFT ARE USED

“Main Bearing Selection Table” rows correspond to main bearing
housing grade on rear left side of cylinder block

• If there is a correction stamp mark on cylinder block, use it as

a correct reference.

Apply main journal diameter grade stamped on crankshaft front
side to column in the “Main Bearing Selection Table”.

Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”.

CAUTION:

Bearing undersize table

: Refer to

EM-256, "Connecting Rod Bearing"

PBIC3263J

: Correction stamp

: Standard stamp

: Cylinder No. 1 bore grade

: Cylinder No. 2 bore grade

: Cylinder No. 3 bore grade

: Cylinder No. 4 bore grade

: No. 1 main bearing housing grade

: No. 2 main bearing housing grade

: No. 3 main bearing housing grade

: No. 4 main bearing housing grade

: No. 5 main bearing housing grade

: Engine front

PBIC3264J

: No. 1 pin journal diameter grade

: No. 2 pin journal diameter grade

: No. 3 pin journal diameter grade

: No. 4 pin journal diameter grade

: No. 1 main journal diameter grade

: No. 2 main journal diameter grade

: No. 3 main journal diameter grade

: No. 4 main journal diameter grade

: No. 5 main journal diameter grade

PBIC3261J

EM-244

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

HOW TO SELECT PISTON AND BEARING

There are two main bearing selection tables. One is for No. 1 and 4 journals and the other is for
No. 2, 3 and 5 journals. Make certain to use the appropriate table. This is due to differences in the
specified clearances.

Apply the symbol obtained to the “Main Bearing Grade Table” to select main bearing.
NOTE:
Service part is available as a set of both upper and lower.

WHEN CYLINDER BLOCK AND CRANKSHAFT ARE REUSED

Measure the dimensions of the cylinder block main bearing housing inner diameter and crankshaft main
journal diameter individually. Refer to

EM-231, "Inspection"

Apply the measured dimension to the “Main Bearing Selection Table”.

Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”.

CAUTION:

There are two main bearing selection tables. One is for No. 1 and 4 journals and the other is for No.
2, 3 and 5 journals. Make certain to use the appropriate table. This is due to differences in the
specified clearances.

Apply the symbol obtained to the “Main Bearing Grade Table” to select main bearing.
NOTE:
Service part is available as a set of both upper and lower.

HOW TO SELECT PISTON AND BEARING

EM-245

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

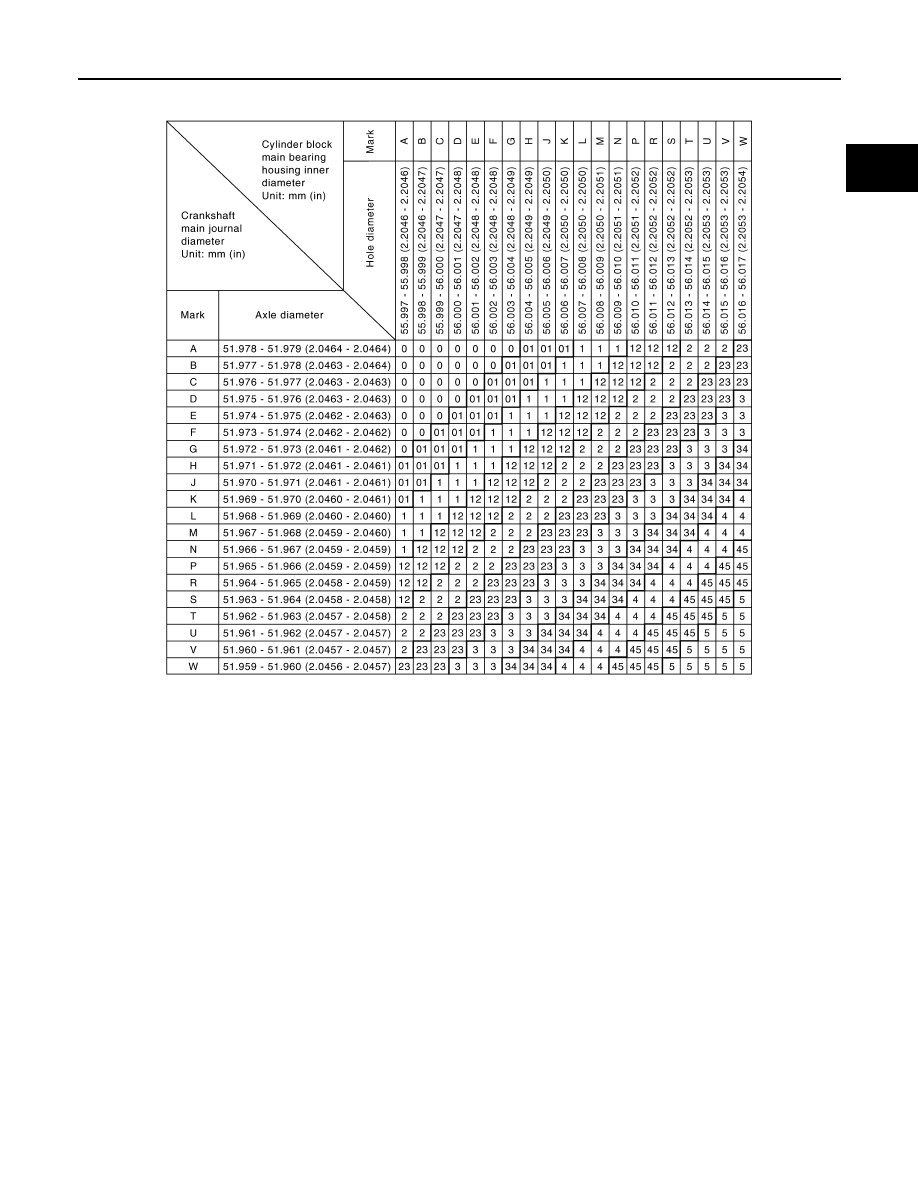

MAIN BEARING SELECTION TABLE (No. 1 AND 4 JOURNAL)

PBIC4078E

EM-246

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

HOW TO SELECT PISTON AND BEARING

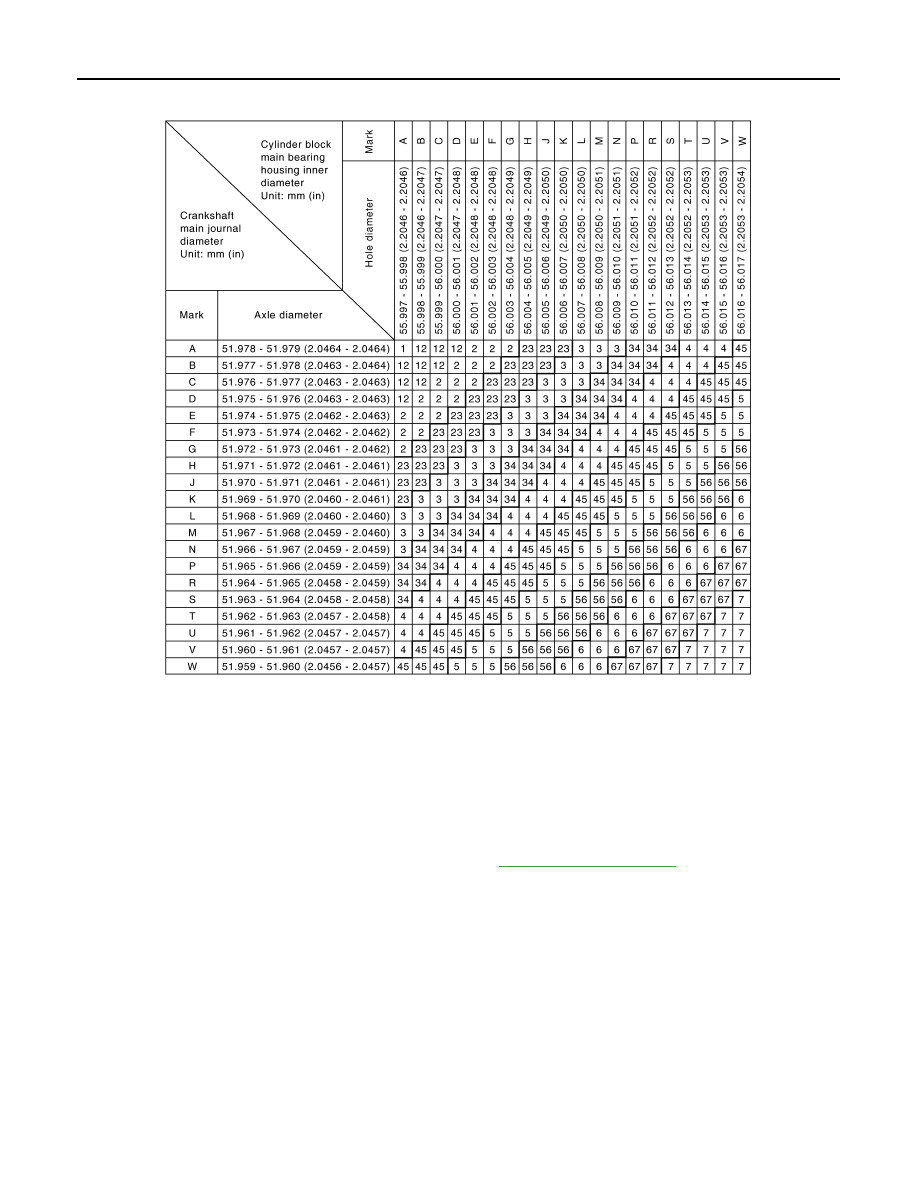

MAIN BEARING SELECTION TABLE (No. 2, 3 AND 5 JOURNAL)

MAIN BEARING GRADE TABLE (ALL JOURNALS)

UNDERSIZE BEARING USAGE GUIDE

• When the specified main bearing oil clearance is not obtained with standard size main bearings, use under-

size (US) bearing.

• When using undersize (US) bearing, measure the main bearing inner diameter with bearing installed, and

grind main journal so that the main bearing oil clearance satisfies the standard.

CAUTION:

PBIC4079E

Main bearing grade table (All journals)

: Refer to

EM-257, "Main Bearing"

HOW TO SELECT PISTON AND BEARING

EM-247

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

In grinding crankshaft main journal to use undersize bearings,
keep the fillet R [1.5 - 1.7 mm (0.059 - 0.067 in)] (A).

Bearing undersize table:

Refer to

EM-257, "Main Bearing"

PBIC3263J

EM-248

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DD]

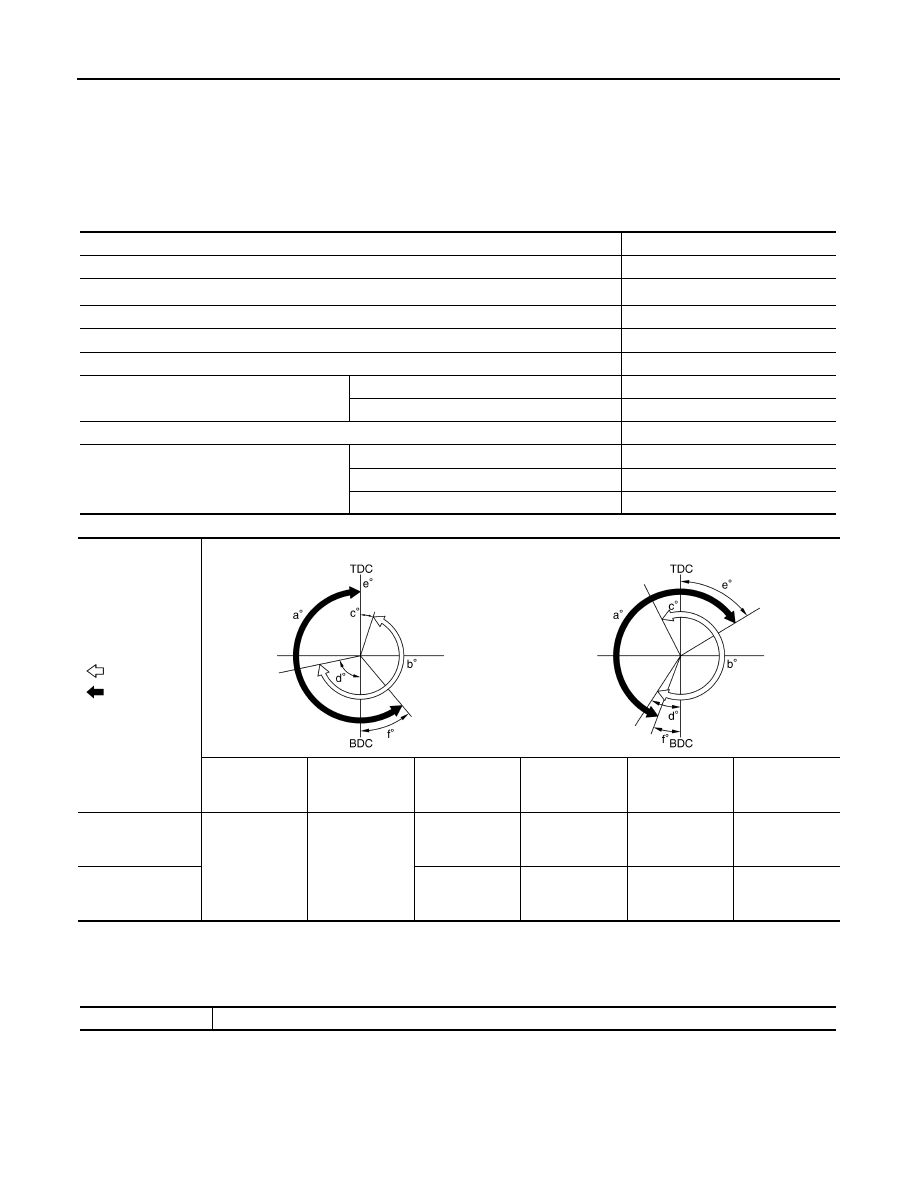

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000010735677

GENERAL SPECIFICATIONS

Unit: degree

Drive Belt

INFOID:0000000010735678

DRIVE BELT

Spark Plug

INFOID:0000000010735679

SPARK PLUG

Engine type

MR20DD

Cylinder arrangement

In-line 4

Displacement cm

(cu in)

1,997 (121.86)

Bore and stroke mm (in)

84.0

90.1 (3.307

3.547)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

Oil

Compression ratio

11.2

Compression pressure

kPa (bar, kg/cm

, psi)/250 rpm

Standard

1,530 (15.3, 15.6, 222)

Minimum

1,280 (12.8, 13.1, 186)

Differential limit between cylinders

100 (1.0, 1.0, 15)

Valve timing

: Intake valve

: Exhaust valve

VTC Minimum phasing (Mechanical)

VTC Maximum phasing (Mechanical)

EXH valve open-

ing angle

INT valve open-

ing angle

INT open

INT close

EXH close

EXH open

VTC Minimum
phasing (Mechani-
cal)

220

240

VTC Maximum
phasing (Mechani-
cal)

JPBIA6790GB

JPBIA6791GB

Tension of drive belt

Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-249

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DD]

Unit: mm (in)

Exhaust Manifold

INFOID:0000000010735680

EXHAUST MANIFOLD

Unit: mm (in)

Camshaft

INFOID:0000000010735681

CAMSHAFT

Unit: mm (in)

*: Total indicator reading

VALVE LIFTER

Unit: mm (in)

Make

NGK

Standard type

DILKAR7D11H

Gap (Nominal)

Standard

1.1 (0.043)

Limit

1.3 (0.051)

Items

Limit

Surface distortion

Each exhaust port

0.3 (0.012)

Entire part

0.7 (0.028)

Items

Standard

Limit

Camshaft journal oil clearance

No. 1

0.045 - 0.086 (0.0018 - 0.0034)

0.15 (0.0059)

No. 2, 3, 4, 5

0.030 - 0.071 (0.0012 - 0.0028)

Camshaft bracket inner diameter

No. 1

28.000 - 28.021 (1.1024 - 1.1032)

—

No. 2, 3, 4, 5

25.000 - 25.021 (0.9843 - 0.9851)

—

Camshaft journal diameter

No. 1

27.935 - 27.955 (1.0998 - 1.1006)

—

No. 2, 3, 4, 5

24.950 - 24.970 (0.9823 - 0.9831)

—

Camshaft end play

0.075 - 0.153 (0.0030 - 0.0060)

0.24 (0.0094)

Camshaft cam height “A”

Intake

45.265 - 45.455 (1.7821 - 1.7896)

45.085 (1.7750)

Exhaust

43.775 - 43.965 (1.7234 - 1.7309)

43.575 (1.7156)

Camshaft runout [TIR*]

Less than 0.02 (0.0008)

0.05 (0.0020)

Camshaft sprocket runout [TIR*]

—

0.15 (0.0059)

SEM671

Items

Standard

Valve lifter outer diameter

Intake

33.977 - 33.987 (1.3377 - 1.3381)

Exhaust

29.977 - 29.987 (1.1802 - 1.1806)

EM-250

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DD]

SERVICE DATA AND SPECIFICATIONS (SDS)

VALVE CLEARANCE

Unit: mm (in)

*: Approximately 80

C (176

AVAILABLE VALVE LIFTER

Unit: mm (in)

Valve lifter hole diameter

Intake

34.000 - 34.021 (1.3386 - 1.3394)

Exhaust

30.000 - 30.021 (1.1811 - 1.1819)

Valve lifter clearance

0.013 - 0.044 (0.0005 - 0.0017)

Items

Cold

Hot* (reference data)

Intake

0.24 - 0.32 (0.009 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

0.26 - 0.34 (0.010 - 0.013)

0.308 - 0.432 (0.012 - 0.017)

Identification mark

Thickness

300H

3.00 (0.1181)

302H

3.02 (0.1189)

304H

3.04 (0.1197)

306H

3.06 (0.1205)

308H

3.08 (0.1213)

310H

3.10 (0.1220)

312H

3.12 (0.1228)

314H

3.14 (0.1236)

316H

3.16 (0.1244)

318H

3.18 (0.1252)

320H

3.20 (0.1260)

322H

3.22 (0.1268)

324H

3.24 (0.1276)

326H

3.26 (0.1283)

328H

3.28 (0.1291)

330H

3.30 (0.1299)

332H

3.32 (0.1307)

334H

3.34 (0.1315)

336H

3.36 (0.1323)

338H

3.38 (0.1331)

340H

3.40 (0.1339)

342H

3.42 (0.1346)

344H

3.44 (0.1354)

JPBIA0170ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-251

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DD]

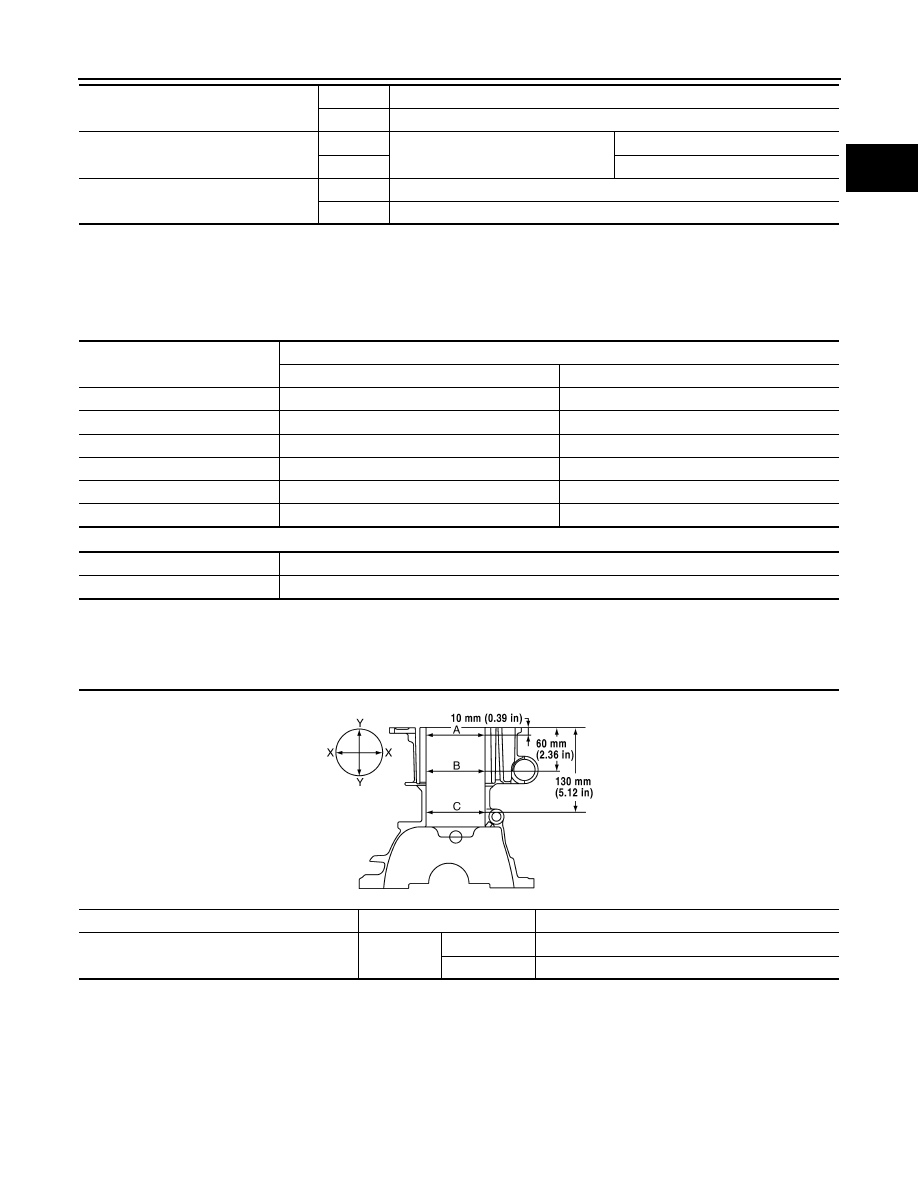

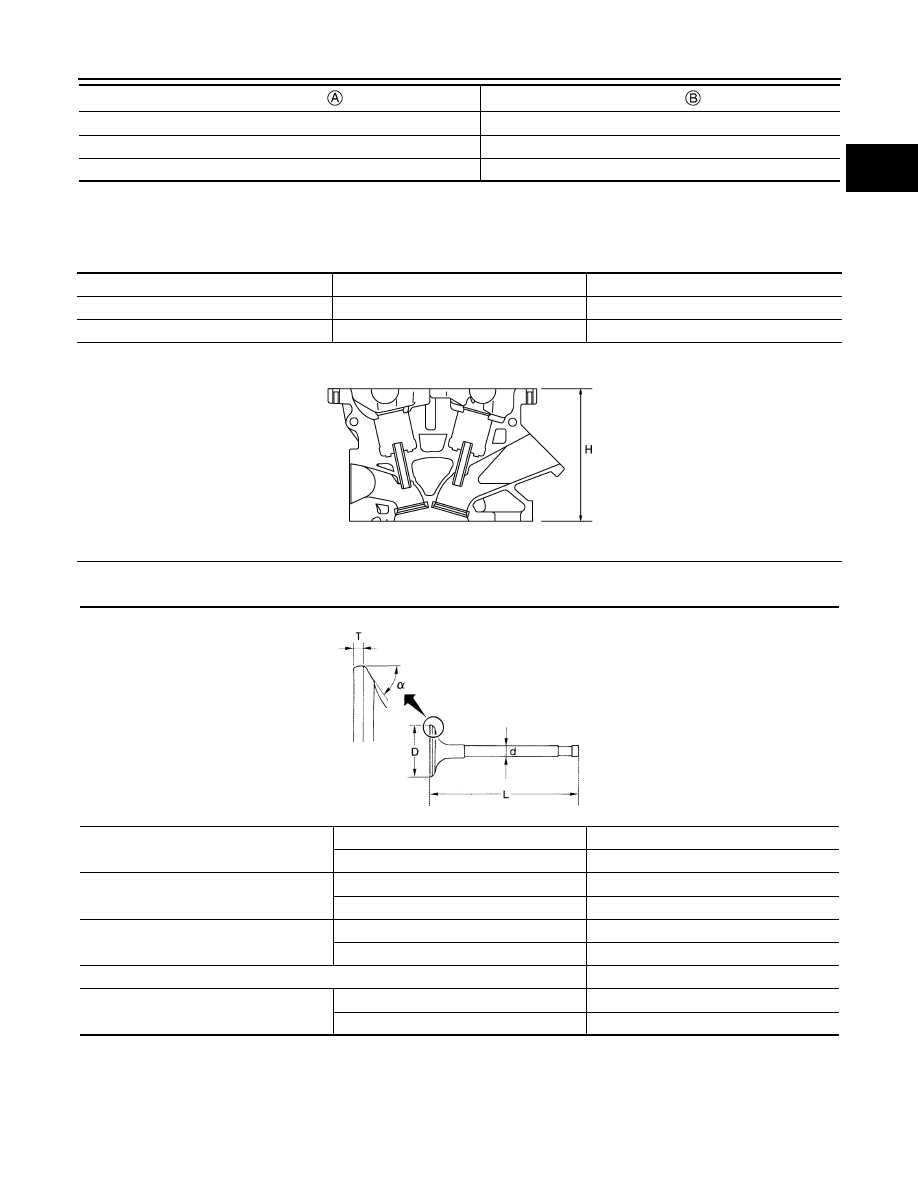

Cylinder Head

INFOID:0000000010735682

CYLINDER HEAD

Unit: mm (in)

VALVE DIMENSIONS

Unit: mm (in)

VALVE GUIDE

346H

3.46 (0.1362)

348H

3.48 (0.1370)

350H

3.50 (0.1378)

Identification mark

Thickness

Items

Standard

Limit

Head surface distortion

—

0.1 (0.004)

Normal cylinder head height “H”

130.9 (5.15)

—

PBIC0924E

Valve head diameter “D”

Intake

33.8 - 34.1 (1.331 - 1.343)

Exhaust

27.6 - 27.9 (1.087 - 1.098)

Valve length “L”

Intake

106.42 (4.19)

Exhaust

105.41 (4.15)

Valve stem diameter “d”

Intake

5.465 - 5.480 (0.2152 - 0.2157)

Exhaust

5.455 - 5.470 (0.2148 - 0.2154)

Valve seat angle “

”

′

- 45

′

Valve margin “T”

Intake

1.2 (0.047)

Exhaust

1.4 (0.055)

JSBIA1166ZZ

EM-252

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DD]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

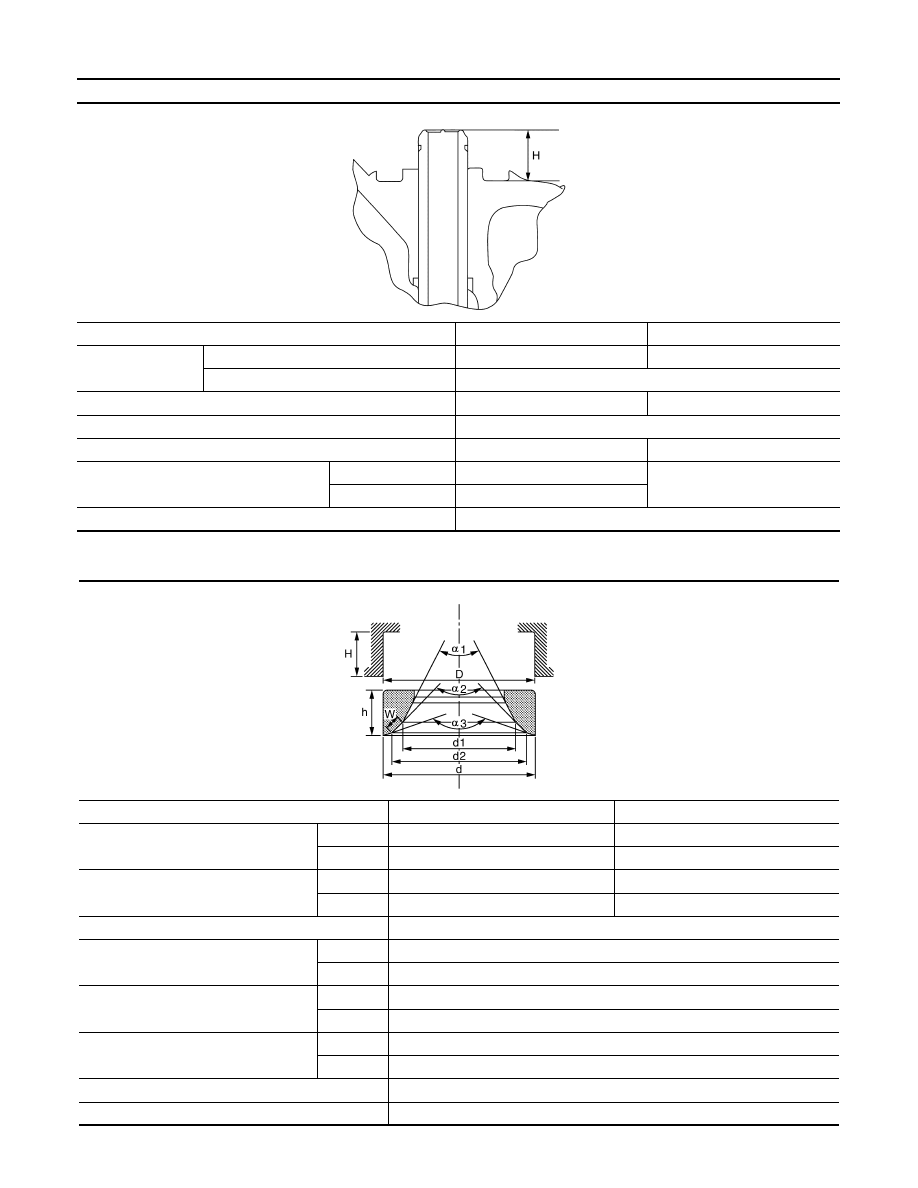

VALVE SEAT

Unit: mm (in)

Items

Standard Oversize

(service) [0.2 (0.008)]

Valve guide

Outer diameter

9.523 - 9.534 (0.3749 - 0.3754)

9.723 - 9.734 (0.3828 - 0.3832)

Inner diameter (Finished size)

5.500 - 5.518 (0.2165 - 0.2172)

Cylinder head valve guide hole diameter

9.475 - 9.496 (0.3730 - 0.3739)

9.675 - 9.696 (0.3809 - 0.3817)

Interference fit of valve guide

0.027 - 0.059 (0.0011 - 0.0023)

Items

Standard

Limit

Valve guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.1 (0.004)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

Projection length “H”

13.35 - 13.65 (0.5256 - 0.5374)

JPBIA6515ZZ

Items

Standard

Oversize (service) [0.5 (0.02)]

Cylinder head seat recess diameter “D”

Intake

34.700 - 34.727 (1.3661 - 1.3672)

35.200 - 35.227 (1.3858 - 1.3869)

Exhaust

28.700 - 28.727 (1.1299 - 1.1310)

29.200 - 29.227 (1.1496 - 1.1507)

Valve seat outer diameter “d”

Intake

34.808 - 34.824 (1.3704 - 1.3710)

35.308 - 35.324 (1.3901 - 1.3907)

Exhaust

28.808 - 28.824 (1.1342 - 1.1348)

29.308 - 29.324 (1.1539 - 1.1545)

Valve seat interference fit

0.081 - 0.124 (0.0032 - 0.0049)

Diameter “d1”*

Intake

31.8 (1.252)

Exhaust

25.3 (0.996)

Diameter “d2”*

Intake

33.1 - 33.6 (1.303 - 1.323)

Exhaust

26.9 - 27.4 (1.059 - 1.079)

Angle “

1”

Intake

Exhaust

Angle “

2”

′

- 90

′

Angle “

3”

120

PBIC2745E

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-253

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DD]

: Diameter made by intersection point of conic angles “

1” and “

2”

: Diameter made by intersection point of conic angles “

2” and “

3”

: Machining data

VALVE SPRING

Unit: mm (in)

Cylinder Block

INFOID:0000000010735683

CYLINDER BLOCK

Unit: mm (in)

Contacting width “W”*

Intake

1.0 - 1.4 (0.039 - 0.055)

Exhaust

1.2 - 1.6 (0.047 - 0.063)

Height “h”

Intake

5.9 - 6.0 (0.232 - 0.236)

5.03 - 5.13 (0.1980 - 0.2020)

Exhaust

4.95 - 5.05 (0.1949 - 0.1988)

Depth “H”

Intake

6.04 (0.2378)

Exhaust

6.05 (0.2382)

Items

Standard

Intake

Exhaust

Free height

49.4 - 49.6 mm (1.945 - 1.953 in)

54.5 - 54.7 mm (2.146 - 2.154 in)

Installation height

38.46 mm (1.514 in)

Installation load

151 - 175 N (15.4 - 17.9 kg, 34 - 39 lb)

257 - 289 N (26.2 - 29.5 kg, 57.8 - 65.0 lb)

Height during valve open

28.86 mm (1.1362 in)

30.03 mm (1.1823 in)

Load with valve open

344 - 392 N (35.0 - 40.0 kg, 77.3 - 88.1 lb)

450 - 502 N (45.9 - 51.2 kg, 101.2 - 112.9 lb)

Identification color

White

Yellow green

Items

Limit

Valve spring squareness

1.0 (0.039)

Cylinder block top surface distortion

Limit

0.1 (0.004)

Cylinder bore inner diameter

Standard

Grade No. 1

84.000 - 84.010 (3.3071 - 3.3075)

Grade No. 2

84.010 - 84.020 (3.3075 - 3.3079)

PBIC4017E

EM-254

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DD]

SERVICE DATA AND SPECIFICATIONS (SDS)

AVAILABLE PISTON

Unit: mm (in)

PISTON RING

Unit: mm (in)

PISTON PIN

Out-of-round

Limit

0.015 (0.0006)

Taper

0.010 (0.0004)

Main bearing housing inner diameter grade

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W

55.997 - 55.998 (2.2046 - 2.2046)
55.998 - 55.999 (2.2046 - 2.2047)
55.999 - 56.000 (2.2047 - 2.2047)
56.000 - 56.001 (2.2047 - 2.2048)
56.001 - 56.002 (2.2048 - 2.2048)
56.002 - 56.003 (2.2048 - 2.2048)
56.003 - 56.004 (2.2048 - 2.2049)
56.004 - 56.005 (2.2049 - 2.2049)
56.005 - 56.006 (2.2049 - 2.2050)
56.006 - 56.007 (2.2050 - 2.2050)
56.007 - 56.008 (2.2050 - 2.2050)
56.008 - 56.009 (2.2050 - 2.2051)
56.009 - 56.010 (2.2051 - 2.2051)

56.010 - 56.011 (2.2051 - 2.2052)
56.011 - 56.012 (2.2052 - 2.2052)

56.012 - 56.013 (2.2052 - 2.2052)
56.013 - 56.014 (2.2052 - 2.2053)
56.014 - 56.015 (2.2053 - 2.2053)
56.015 - 56.016 (2.2053 - 2.2053)
56.016 - 56.017 (2.2053 - 2.2054)

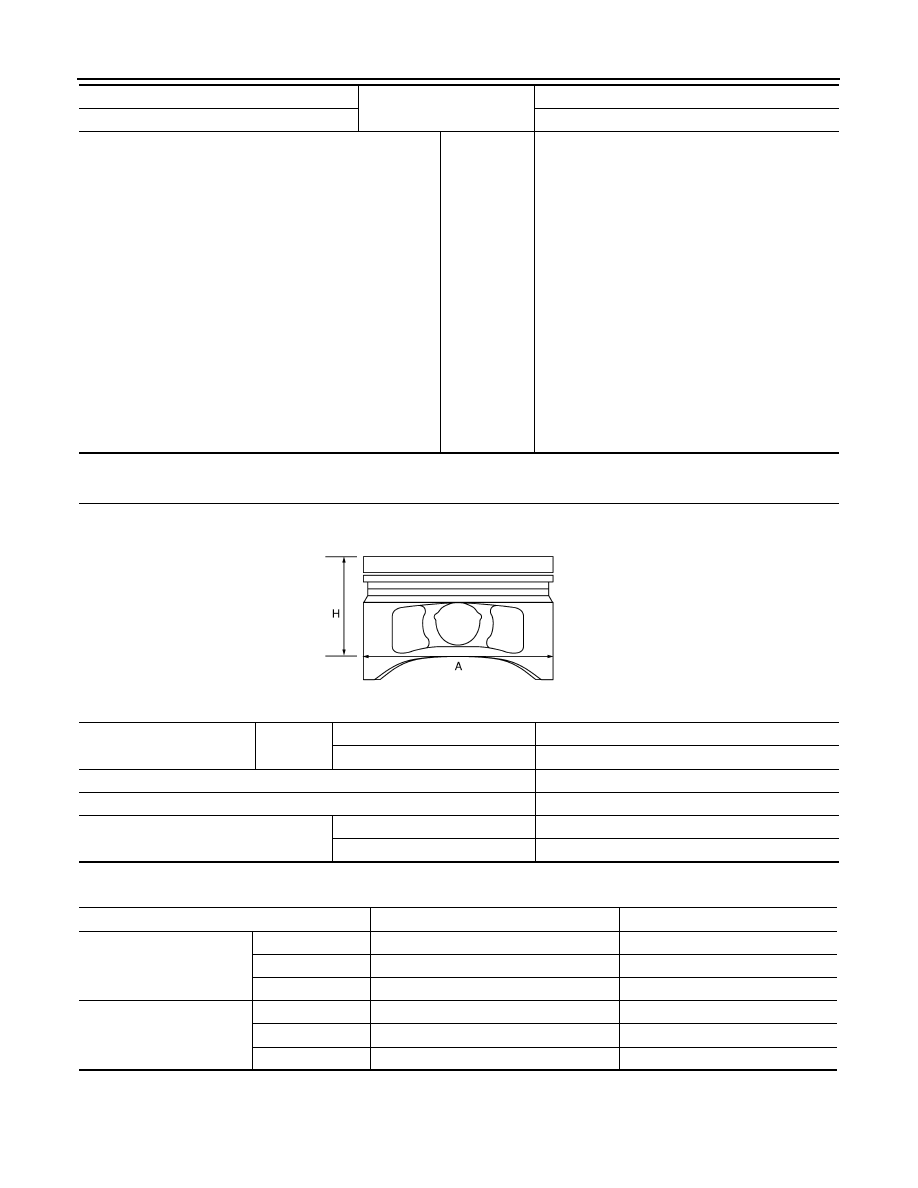

Piston skirt diameter “A”

Standard

Grade No. 1

83.970 - 83.980 (3.3059 - 3.3063)

Grade No. 2

83.980 - 83.990 (3.3063 - 3.3067)

Measure point “H”

39.2 (1.543)

Piston pin hole diameter

19.993 - 19.999 (0.7871 - 0.7874)

Piston to cylinder bore clearance

Standard

0.020 - 0.040 (0.0008 - 0.0016)

Limit

0.08 (0.0031)

PBIC0188E

Items

Standard

Limit

Piston ring side clearance

Top

0.04 - 0.08 (0.0016 - 0.0031)

0.11 (0.0043)

2nd

0.03 - 0.07 (0.0012 - 0.0028)

0.10 (0.0039)

Oil ring

0.055 - 0.155 (0.0022 - 0.0061)

—

Piston ring end gap

Top

0.20 - 0.30 (0.0079 - 0.0118)

0.49 (0.0193)

2nd

0.50 - 0.65 (0.0197 - 0.0256)

0.81 (0.0319)

Oil (rail ring)

0.15 - 0.45 (0.0059 - 0.0177)

0.76 (0.0299)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-255

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DD]

Unit: mm (in)

CONNECTING ROD

Unit: mm (in)

*: After installing in connecting rod

CRANKSHAFT

Unit: mm (in)

Items

Standard

Limit

Piston pin outer diameter

19.989 - 19.995 (0.7870 - 0.7872)

—

Piston to piston pin oil clearance

0.002 - 0.006 (0.0001 - 0.0002)

—

Center distance

138.97 - 139.07 (5.47 - 5.48)

Bend [per 100 (3.94)]

Limit

0.15 (0.0059)

Torsion [per 100 (3.94)]

Limit

0.30 (0.0118)

Connecting rod bushing inner diameter*

Standard

20.000 - 20.012 (0.7874 - 0.7879)

Connecting rod bushing oil clearance

Standard

0.005 - 0.023 (0.0002 - 0.0009)

Limit

0.03 (0.0012)

Connecting rod side clearance

Standard

0.20 - 0.35 (0.0079 - 0.0138)

Limit

0.4 (0.016)

Connecting rod big end diameter grade

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N

47.000 - 47.001 (1.8504 - 1.8504)
47.001 - 47.002 (1.8504 - 1.8505)
47.002 - 47.003 (1.8505 - 1.8505)
47.003 - 47.004 (1.8505 - 1.8505)
47.004 - 47.005 (1.8505 - 1.8506)
47.005 - 47.006 (1.8506 - 1.8506)
47.006 - 47.007 (1.8506 - 1.8507)
47.007 - 47.008 (1.8507 - 1.8507)
47.008 - 47.009 (1.8507 - 1.8507)
47.009 - 47.010 (1.8507 - 1.8508)

47.010 - 47.011 (1.8508 - 1.8508)
47.011 - 47.012 (1.8508 - 1.8509)

47.012 - 47.013 (1.8509 - 1.8509)

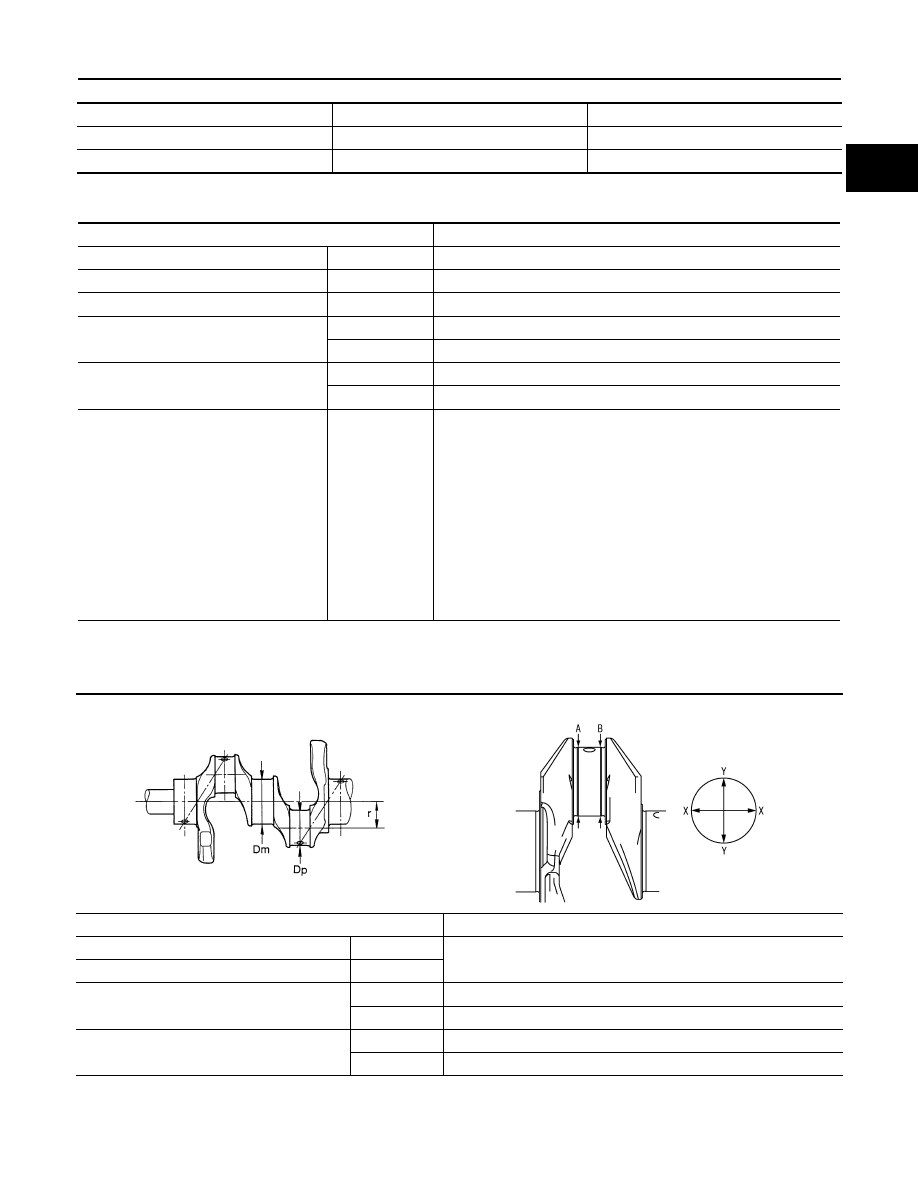

Center distance “r”

44.89 - 44.97 (1.7673 - 1.7705)

Out-of-round

Limit

0.0035 (0.0001)

Taper

Limit

Runout [TIR*]

Standard

0.05 (0.0020)

Limit

0.1 (0.004)

Crankshaft end play

Standard

0.10 - 0.26 (0.0039 - 0.0102)

Limit

0.3 (0.012)

SEM645

PBIC3459J

EM-256

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR20DD]

SERVICE DATA AND SPECIFICATIONS (SDS)

*: Total indicator reading

Connecting Rod Bearing

INFOID:0000000010735684

CONNECTING ROD BEARING GRADE TABLE

Unit: mm (in)

Crankshaft pin journal diameter “Dp” grade.

43.970 - 43.971 (1.7311 - 1.7311)
43.969 - 43.970 (1.7311 - 1.7311)

43.968 - 43.969 (1.7310 - 1.7311)

43.967 - 43.968 (1.7310 - 1.7310)
43.966 - 43.967 (1.7309 - 1.7310)
43.965 - 43.966 (1.7309 - 1.7309)
43.964 - 43.965 (1.7309 - 1.7309)
43.963 - 43.964 (1.7308 - 1.7309)
43.962 - 43.963 (1.7308 - 1.7308)
43.961 - 43.962 (1.7307 - 1.7308)
43.960 - 43.961 (1.7307 - 1.7307)
43.959 - 43.960 (1.7307 - 1.7307)
43.958 - 43.959 (1.7306 - 1.7307)
43.957 - 43.958 (1.7306 - 1.7306)
43.956 - 43.957 (1.7305 - 1.7306)
43.955 - 43.956 (1.7305 - 1.7305)
43.954 - 43.955 (1.7305 - 1.7305)
43.953 - 43.954 (1.7304 - 1.7305)

Crankshaft main journal diameter “Dm” grade.

51.978 - 51.979 (2.0464 - 2.0464)
51.977 - 51.978 (2.0463 - 2.0464)
51.976 - 51.977 (2.0463 - 2.0463)
51.975 - 51.976 (2.0463 - 2.0463)
51.974 - 51.975 (2.0462 - 2.0463)
51.973 - 51.974 (2.0462 - 2.0462)
51.972 - 51.973 (2.0461 - 2.0462)
51.971 - 51.972 (2.0461 - 2.0461)
51.970 - 51.971 (2.0461 - 2.0461)
51.969 - 51.970 (2.0460 - 2.0461)
51.968 - 51.969 (2.0460 - 2.0460)
51.967 - 51.968 (2.0459 - 2.0460)
51.966 - 51.967 (2.0459 - 2.0459)
51.965 - 51.966 (2.0459 - 2.0459)
51.964 - 51.965 (2.0458 - 2.0459)
51.963 - 51.964 (2.0458 - 2.0458)
51.962 - 51.963 (2.0457 - 2.0458)
51.961 - 51.962 (2.0457 - 2.0457)
51.960 - 51.961 (2.0457 - 2.0457)
51.959 - 51.960 (2.0456 - 2.0457)

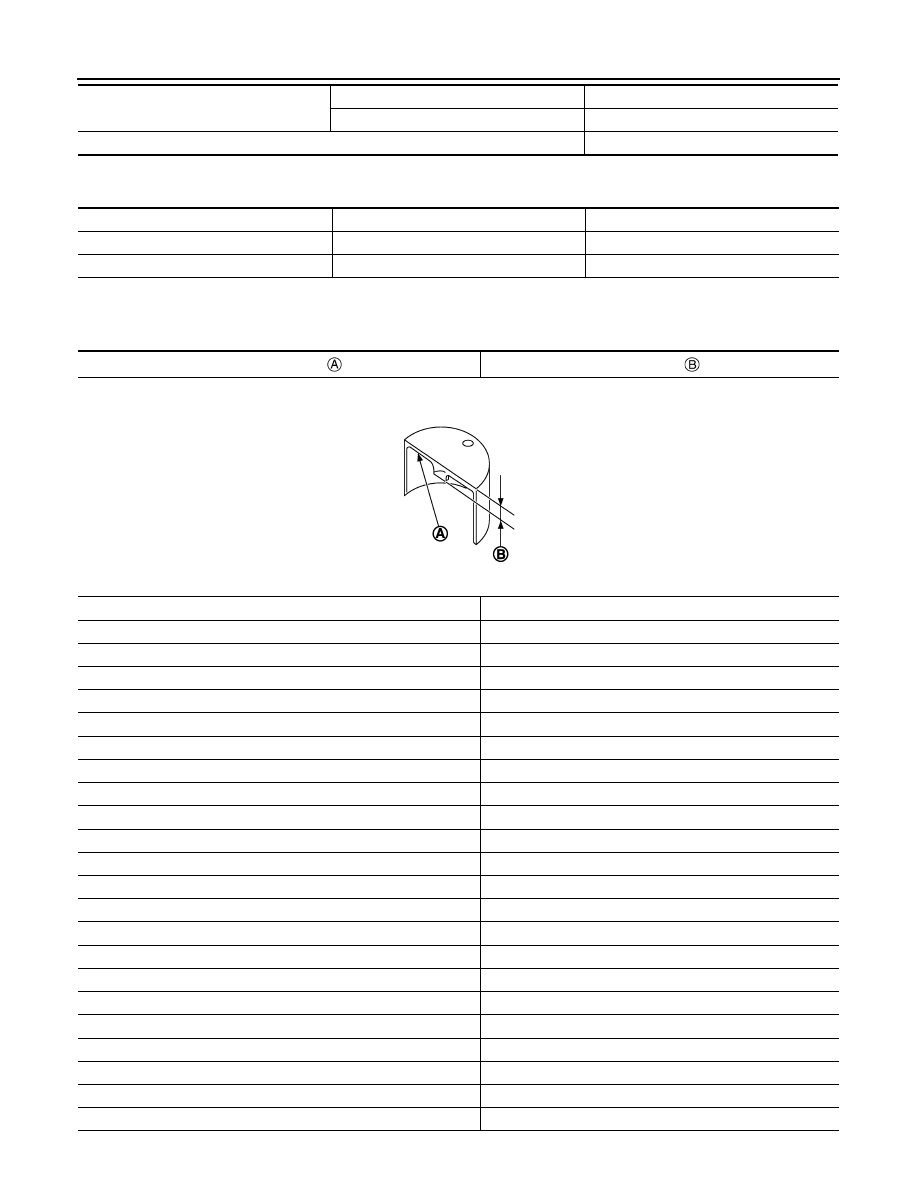

Grade number

Thickness

Identification color

Remarks

1.494 - 1.497 (0.0588 - 0.0589)

Black - Black

Grade and color are the same

for upper and lower bearings.

1.497 - 1.500 (0.0589 - 0.0591)

Brown - Brown

1.500 - 1.503 (0.0591 - 0.0592)

Green - Green

1.503 - 1.506 (0.0592 - 0.0593)

Yellow - Yellow

1.506 - 1.509 (0.0593 - 0.0594)

Blue - Blue

UPR

1.494 - 1.497 (0.0588 - 0.0589)

Black - Black

Grade and color are different

between upper and lower bear-

ings.

LWR

1.497 - 1.500 (0.0589 - 0.0591)

Brown - Brown

UPR

1.497 - 1.500 (0.0589 - 0.0591)

Brown - Brown

LWR

1.500 - 1.503 (0.0591 - 0.0592)

Green - Green

UPR

1.500 - 1.503 (0.0591 - 0.0592)

Green - Green

LWR

1.503 - 1.506 (0.0592 - 0.0593)

Yellow - Yellow

UPR

1.503 - 1.506 (0.0592 - 0.0593)

Yellow - Yellow

LWR

1.506 - 1.509 (0.0593 - 0.0594)

Blue - Blue

Content .. 14 15 16 17 ..
