SYSTEM DESCRIPTION

The stop/start system enables the engine to automatically stop/restart with a simple operation and reduces
unnecessary idling during stoplight or traffic congestion to improve fuel economy, reduce exhaust gas, and
minimize noise.
ECM detects a vehicle condition, engine condition, and driver

s operation condition based on signals sent from

each unit and the sensors to comprehensively control the stop/start system.

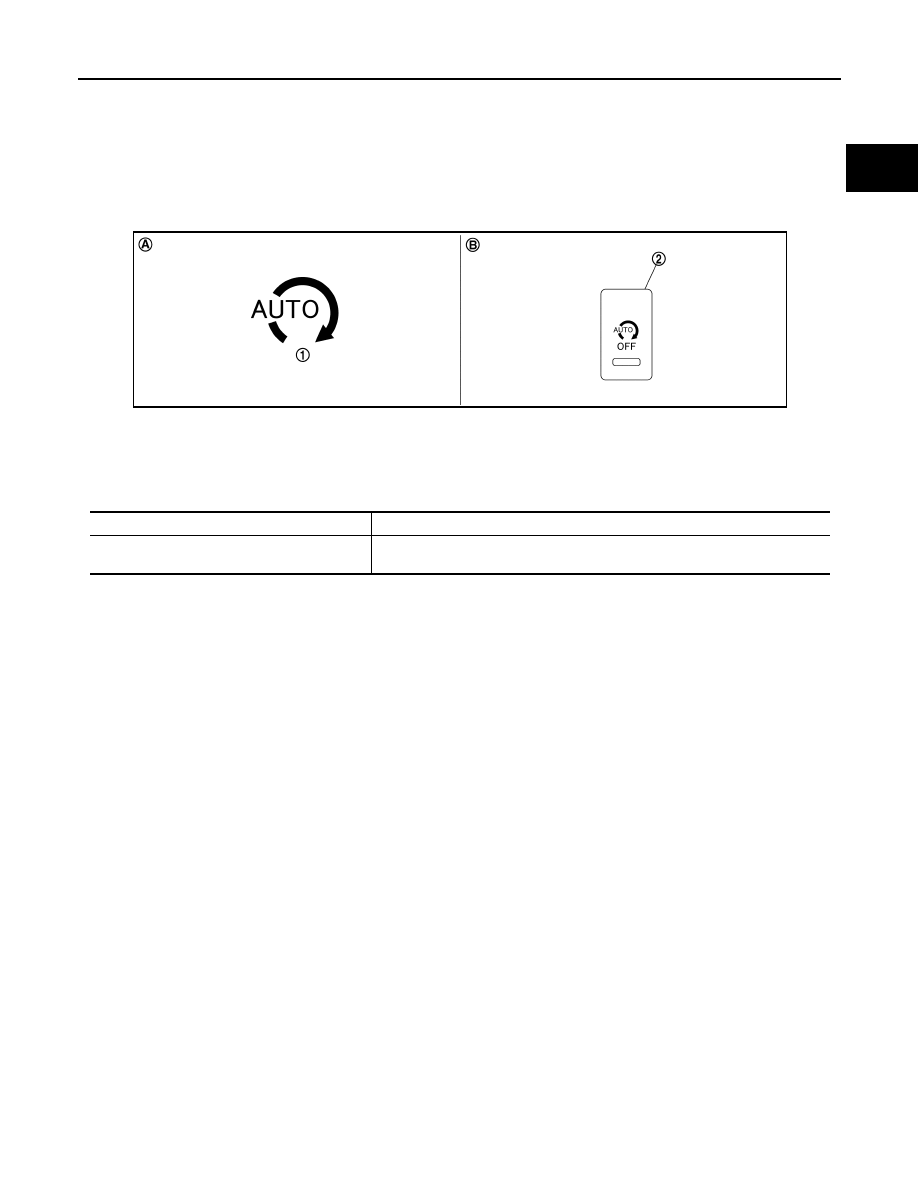

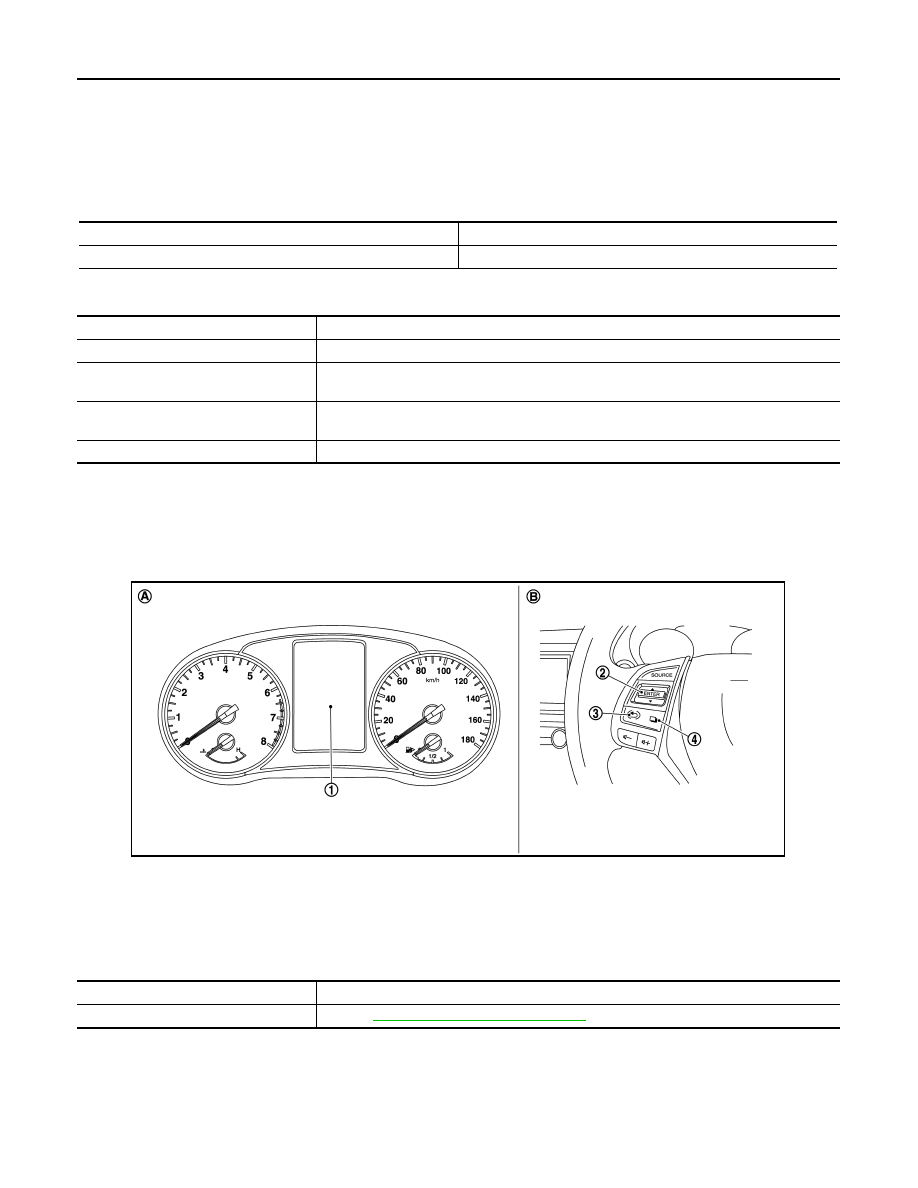

The operation condition of the stop/start system is indicated by the stop/start indicator lamp on the combina-
tion meter and showing on the information display (dot matrix information display). (Refer to

EC9-24, "Stop/

Start Indicator Lamp"

.) If a malfunction is detected in the stop/start system, the system control is automatically

deactivated and the malfunction is alerted to the driver by blinking the stop/start indicator lamp and showing
the status on the information display (dot matrix information display). When a driver

s operation is judged as

dangerous one during the stop/start system operation, the stop/start indicator lamp blinks at a high speed and
the status is shown on the information display (with dot matrix information display). The buzzer mounted on
the combination meter sounds simultaneously to warn the driver of the dangerous operation.
NOTE:
Starting the engine from stop/start system operation is regarded as “Restart”.

Output

Around view monitor control unit

CAN communi-
cation

Stop/Start status signal

Transmits a stop/start status signal

BCM

CAN communi-
cation

Stop/Start status signal

Transmits a stop/start status signal

ABS actuator and electric unit
(control unit)

CAN communi-
cation

Stop/Start status signal

Transmits a stop/start status signal

Brake hold request signal

Transmits the brake hold/release re-
quest according to the stop/start sys-
tem.

EPS control unit

CAN communi-
cation

Stop/Start status signal

Transmits a stop/start status signal

EPS assist request signal

Transmits EPS assist permit/inhibit
signal.

A/C auto amp.

CAN communi-
cation

Stop/Start status signal

Transmits a stop/start status signal

TCM

CAN communi-
cation

Stop/Start status signal

Transmits a stop/start status signal

Combination meter

CAN communi-
cation

Stop/Start status signal

Transmits a stop/start status signal

Stop/Start indicator lamp request
signal

Transmits request signal which turn
ON the stop/start indicator lamp.

DC/DC converter

LIN communica-
tion

DC/DC converter operation
check signal

Checks DC/DC converter operation
status.

DC/DC voltage request signal

Controls the DC/DC output voltage.

Input/

Output

Transmits/Receives component

Signal name

Description

EC9-50

< SYSTEM DESCRIPTION >

[R9M]

SYSTEM

BASIC OPERATION

FUNCTION DESCRIPTION

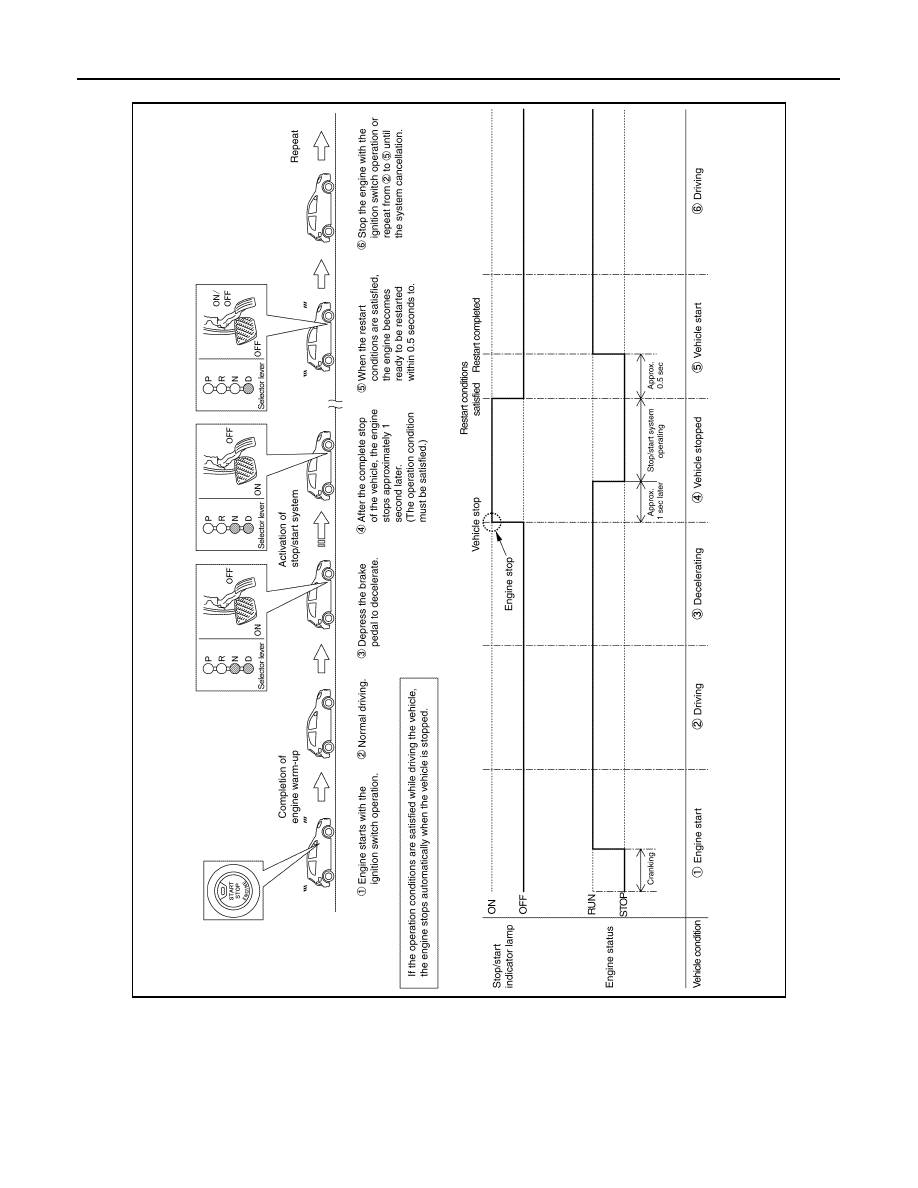

When the stop/start system readiness conditions are satisfied while the vehicle is moving, the system is ready.
When the stop/start system operation conditions are satisfied while the vehicle is in a stop condition, the
engine is stopped.
In addition, the CVT electric oil pump is activated to supply oil pressure to the clutch and the pulley.

JSBIA5087GB

SYSTEM

EC9-51

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

When the engine restart conditions are satisfied, ECM activates the engine restart relay, the engine restart
bypass control relay, and the engine restart bypass relay to restart the engine. And the DC/DC converter
boosts the voltage during cranking to protect the electrical equipment from low voltage.
After restarting the engine, the stop/start indicator lamp and the indication on the information display turn OFF.
NOTE:
• When engine restart conditions are satisfied during the electric parking brake operation, ECM performs the

engine restart after the completion of the electric parking brake operation. This may cause delay in engine
restart, compared with a usual engine restart.

• When the electric parking brake operation and engine restart occur simultaneously, the electric parking

brake activates after the completion of engine restart.

Stop/Start Readiness Condition

ECM judges stop/start system is ready when the following conditions are satisfied.

*1: Depends on the vehicle conditions.

Item

Condition

Vehicle

Stop/start OFF switch

OFF (Switch indicator OFF)

Stop/start indicator Lamp

Not blink (No malfunction)

Door (driver side)

Close

Seat belt (driver side)

Fastened

Driving history

Drive the vehicle at 20 km/h (12 MPH) or more after start the en-
gine with ignition switch

Passes 2 minutes or more after start the engine with ignition

switch

*1

Drive the vehicle at 10 km/h (7 MPH) or more after restart

*2

Passes 5 seconds or more after restart (in D or R position)

Passes 15 seconds or more after restart (in N or P position)

Hood

Close

Air conditioning

Automatic air condi-
tioning

Not in DEF mode

Receives Stop/start permit signal
(for details, refer to

HAC-32, "STOP/START SYSTEM : System

Description"

.)

Manual air condi-
tioning

Not in DEF mode

ABS

System is normal

ABS not activated

*3

ESP not activated

EPS

System is normal

Battery status

Receives Stop/start permit signal from IPDM E/R.
(for details, refer to

CHG-8, "ENERGY MANAGEMENT SYSTEM

: System Description"

.)

Elevation

1,500 m (4,921 ft) or less

Intelligent parking assist

OFF

Engine

MIL (Malfunction indicator lamp)

Not illuminate (No malfunction)

DPF

Not regeneration

Engine coolant temperature

20 - 105

°

C (69 -221

°

F)

Fuel temperature

90

°

C (194

°

F) or less

Turbocharger temperature

670

°

C (1238

°

F) or less

Starter motor

The number of starter motor operations exceeds the specified
times

High pressure fuel pump

The number of high pressure fuel pump operations exceeds the
specified times

EC9-52

< SYSTEM DESCRIPTION >

[R9M]

SYSTEM

*2: When the selector lever is shifted from R position to D position.
*3: If ABS system is activated, drive the vehicle at 12 km/h (7.5 MPH) or more after stop the vehicle.

CAUTION:

• The stop/start system may be cancelled when the battery is weak or if a battery other than the stop/

start system specific battery is used.

• Even though the vehicle is in above conditions, the stop/start system may be cancelled automati-

cally.
Refer to

EC9-10, "Precaution for Stop/Start System Service"

.

Stop/Start Operation Condition

When the following conditions are satisfied, ECM stops the engine. And the combination meter turns ON a
stop/start indicator lamp.

*: The condition are not used in P range.

Restart Condition

When any of the following conditions is satisfied during stop/start system operating condition, ECM restarts
the engine. And the combination meter turns OFF the stop/start indicator lamp.

RELATIONSHIP BETWEEN VEHICLE CONDITION AND RESTART TIMING

Item

Condition

Vehicle

Vehicle speed

Vehicle stopped [0 km/h (0 MPH)]

Steering wheel

Not steer (steering force does not occur)

Brake pedal

*

Depressed

Brake fluid pressure

*

0.8 MPa (8 bar, 8.16 kg/cm

2

, 116 psi)

Brake booster pressure

Presence of sufficient negative pressure to a brake-
force.

Vehicle angularity

Approx. 14% or less

Engine

Engine speed

Around idle speed (Approx. 850 rpm or less)

Transmission

Selector lever position

P, D or N

Item

Condition

Stop/start OFF switch

ON (Switch indicator ON)

Vehicle

Steering wheel

Steered (steering force occurs)

Door (driver side)

Open

Seat belt

Released

Driving history

Passes Approx. 3 minutes after stop/start system
activation

Air conditioning

Automatic air conditioning

DEF switch is pressed.

Air conditioning system cannot keep the perfor-
mance. (Refer to

HAC-32, "STOP/START SYS-

TEM : System Description"

.)

Manual air conditioning

Mode dial is in DEF position.

Brake

Brake booster pressure

Insufficient negative pressure for braking force

Brake fluid pressure

0.4 MPa (4 bar, 4.08 kg/cm

2

, 58 psi)

Accelerator pedal

Conditions differ according to shift position. For
details, see RELATIONSHIP BETWEEN VEHI-
CLE CONDITION AND RESTART TIMING.

Selector lever

Vehicle speed

2 km/h (1.3 MPH) or more

Intelligent parking assist

Intelligent parking assist is activated.

Battery

Poor battery performance
(for details, refer to

CHG-8, "ENERGY MANAGE-

MENT SYSTEM : System Description"

.)

SYSTEM

EC9-53

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

P Position

• STOP/START system operation performs when the selector lever is shifted from P position.

• STOP/START system operation by the brake pedal and accelerator pedal operation in the select lever P

position.

*: When the brake pedal and accelerator pedal are depressed simultaneously, the engine keeps on running.

N Position

• STOP/START system operation performs when the selector lever is shifted from N position.

• STOP/START system operation by the brake pedal and accelerator pedal operation in the select lever N

position.

*: When the brake pedal and accelerator pedal are depressed simultaneously, the engine keeps on running.

D Position

• STOP/START system operation performs when the selector lever is shifted from D position.

• STOP/START system operation by the brake pedal and accelerator pedal operation in the select lever D

position.

When driving the vehicle at Approx. 10 km/h or less after restart

When driving the vehicle at Approx. 10 km/h or more after restart

EARLY START-UP CONTROL

ECM detects engine reverse revolution based on the crankshaft position sensor (POS) when the stop/start
system is activated and judges a piston position on engine stop to reduce the time for restarting the engine.

VOLTAGE STABILIZER FUNCTION

ECM transmits a voltage stabilizer signal to the DC/DC converter during cranking at an engine restart. The
DC/DC converter temporarily increases the voltage to prevent the electric equipment from reset due to low

Selector lever position

P

R

N

D

Engine status

Stop

Restart

Stop

Restart

Vehicle speed

0 km/h (0 MPH)

Brake pedal

ON

OFF

Accelerator pedal

OFF

ON

OFF

ON

*

OFF

Engine status

Stop

Restart

Stop

Restart

Stop

Selector lever position

P

R

N

D

Engine status

Stop

Restart

Stop

Restart

Vehicle speed

0 km/h (0 MPH)

Brake pedal

ON

OFF

ON

Accelerator pedal

OFF

ON

OFF

ON

*

OFF

Engine status

Stop

Restart

Stop

Restart

Run

Stop

Selector lever position

P

R

N

D

Engine status

Stop

Restart

Stop

Stop

Vehicle speed

0 km/h

10 km/h (7 MPH) or less

0 km/h

Brake pedal

ON

OFF

ON

Accelerator pedal

OFF

ON

OFF

ON

OFF

Engine status

Stop

Restart

Run

Vehicle speed

0 km/h

10 km/h (7 MPH) or more

0 km/h

Brake pedal

ON

OFF

ON

Accelerator pedal

OFF

ON

OFF

ON

OFF

Engine status

Stop

Restart

Run

Stop

EC9-54

< SYSTEM DESCRIPTION >

[R9M]

SYSTEM

voltage. The adoption of the DC/DC converter enables a stable power supply to the electric equipment con-
nected to the DC/DC converter and permits a substantial lowering of the voltage. For the electrical equipment
connected to the DC/DC converter, see “SYSTEM DIAGRAM”.
NOTE:
The brightness of the head lamps may be changed due to the voltage reduction at an engine restart because
they are not connected to the DC/DC converter.

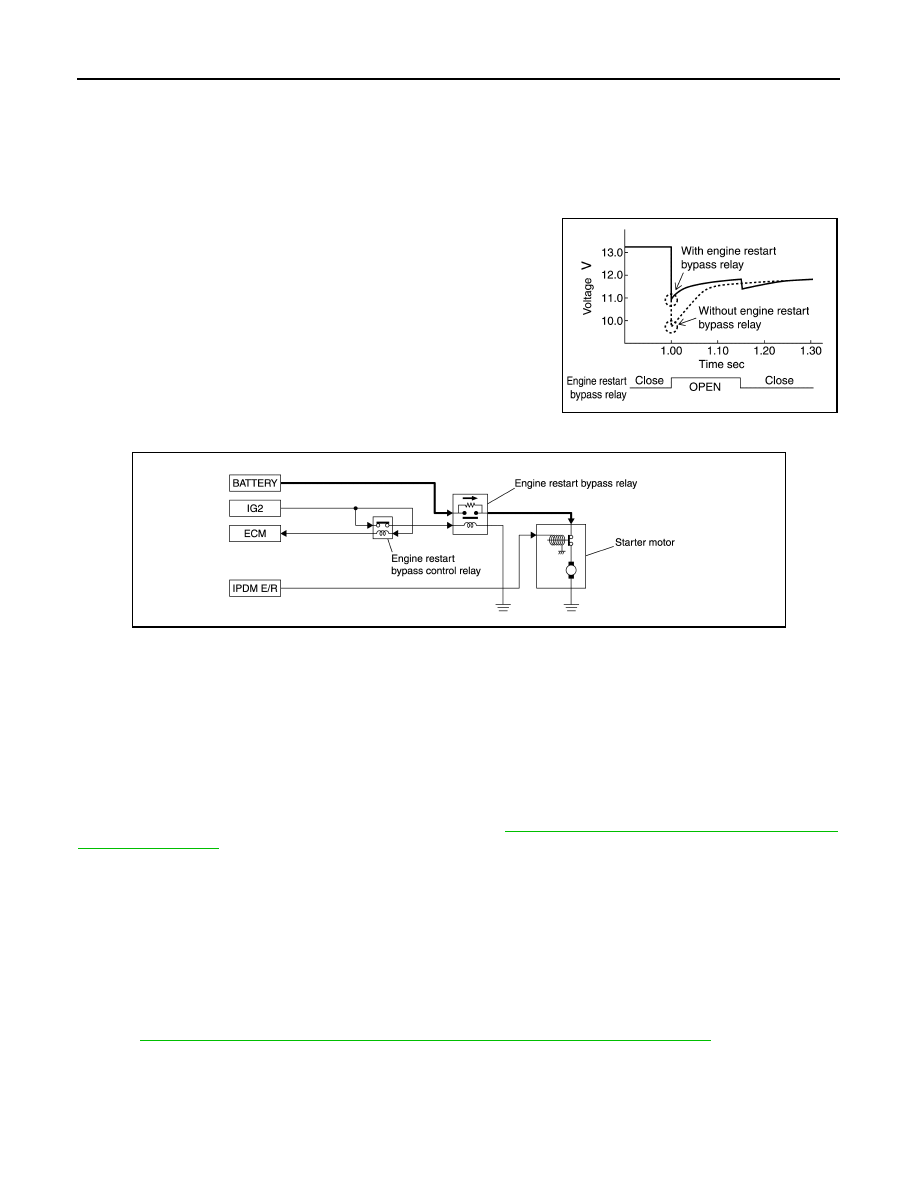

ENGINE RESTART BYPASS RELAY CONTROL

ECM controls the engine restart bypass control relay and activates
the engine restart bypass relay. When the restart conditions are sat-
isfied, ECM turns ON the engine restart bypass control relay instan-
taneously right after the restart and opens the engine restart bypass
relay. This allows a current to pass the inner resistance circuit right
after the starter motor is activated. When the starter motor is rotat-
ing, the voltage is directly supplied to the starter motor without being
passed through the inner resistance circuit in the engine restart
bypass relay because the engine restart bypass relay is closed. In
this way, ECM enables the battery voltage stabilization and reduces
the battery deterioration rate by decreasing the battery voltage drop
resulted from clanking at an engine restart.

ENERGY MANAGEMENT SYSTEM

ENERGY MANAGEMENT SYSTEM : System Description

INFOID:0000000010308991

DESCRIPTION

ECM transmits a target power generation voltage signal received from IPDM E/R to the generator via LIN
communication.
The generator includes a self-diagnosis function and transmits a diagnosis signal to ECM via LIN communica-
tion when detecting a malfunction. When ECM receives a diagnosis signal, ECM detects DTC and transmits a
charge warning lamp request signal to the combination meter to turn ON the charge warning lamp.
For details of ENERGY MANAGEMENT SYSTEM, refer to

CHG-8, "ENERGY MANAGEMENT SYSTEM :

System Description"

.

CAN COMMUNICATION

CAN COMMUNICATION : System Description

INFOID:0000000010308992

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H-line, CAN L-line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to

LAN-51, "CAN COMMUNICATION SYSTEM : CAN Communication Signal Chart"

, about CAN com-

munication for detail.

JSBIA1709GB

JSBIA1710GB

OPERATION

EC9-55

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

OPERATION

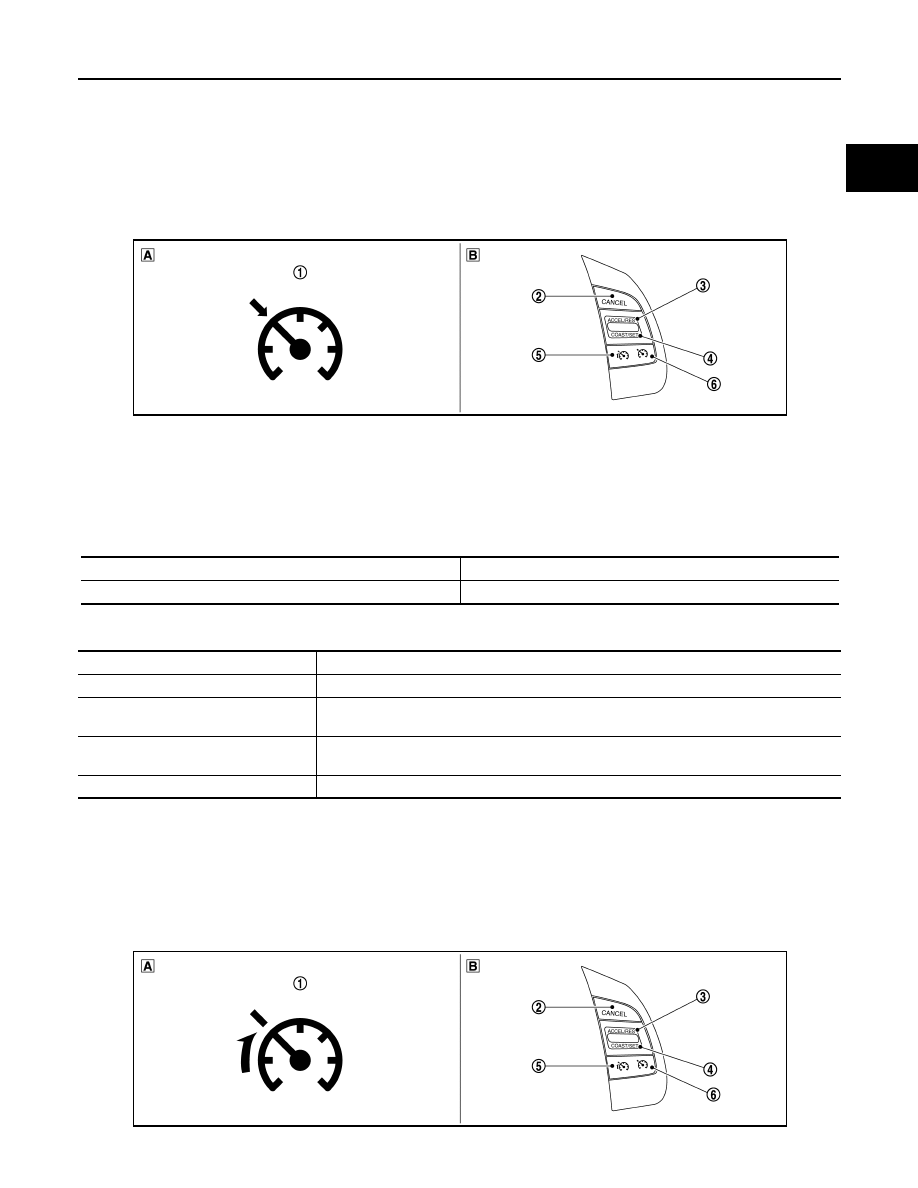

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

AUTOMATIC SPEED CONTROL DEVICE (ASCD) : Switch Name and Function

INFOID:0000000010308993

SWITCHES AND INDICATORS

SET SPEED RANGE

ASCD system can be set the following vehicle speed.

SWITCH OPERATION

SPEED LIMITER

SPEED LIMITER : Switch Name and Function

INFOID:0000000010308994

SWITCHES AND INDICATORS

NOTE:
Shared with ASCD switch.

1.

CRUISE indicator

2.

CANCEL switch

3.

ACCL/RES switch

4.

COAST/SET switch

5.

Speed limiter MAIN Switch

6.

ASCD MAIN switch

A.

On the combination meter

B.

On the steering wheel

JSBIA5014ZZ

Minimum speed (Approx.)

Maximum speed (Approx.)

40 km/h (25 MPH)

170 km/h (105 MPH)

Item

Function

CANCEL switch

Cancels the cruise control driving.

ACCL/RES switch

• Resumes the set speed.
• Increases speed incrementally during cruise control driving.

COAST/SET switch

• Sets desired cruise speed.
• Decreases speed incrementally during cruise control driving.

ASCD MAIN switch

Master switch to activate the ASCD system.

JSBIA5018ZZ

EC9-56

< SYSTEM DESCRIPTION >

[R9M]

OPERATION

SET SPEED RANGE

Speed limiter system can be set the following vehicle speed.

SWITCH OPERATION

OIL CONTROL SYSTEM

OIL CONTROL SYSTEM : Switch Name and Function

INFOID:0000000010308995

SWITCHES AND INDICATORS

SWITCH OPERATION

RESET OPERATION

CAUTION:

When an alert was displayed, change the engine oil, and reset the engine oil data.
1.

Turn ignition switch ON.

2.

On information display, select “Settings” >> “Maintenance” >> “Service”.

3.

Press “ENTER” switch until “YES/NO” is appeared.

1.

Speed limiter indicator

2.

CANCEL switch

3.

ACCL/RES switch

4.

COAST/SET switch

5.

Speed limiter MAIN Switch

6.

ASCD MAIN switch

A.

On the combination meter

B.

On the steering wheel

Minimum speed (Approx.)

Maximum speed (Approx.)

30 km/h (20 MPH)

180 km/h (115 MPH)

Item

Function

CANCEL switch

Cancels the speed limiter control.

ACCL/RES switch

• Resumes the set speed.
• Increases the set speed incrementally.

COAST/SET switch

• Sets desired speed.
• Decreases the set speed incrementally.

Speed limiter MAIN switch

Master switch to activate the speed limiter system.

A.

Combination meter

B.

Steering

1.

Information display

2.

Enter/Up/Down switch

3.

Back switch

4.

Display switch

JSBIA5023ZZ

Item

Function

Steering switch

Refer to

MWI-26, "Switch Name and Function"

.

OPERATION

EC9-57

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

4.

Select “YES”.

5.

Check that “– – –” is displayed.

STOP/START SYSTEM

STOP/START SYSTEM : Switch Name and Function

INFOID:0000000010308996

SWITCHES AND INDICATORS

SWITCH OPERATION

NOTE:
If stop/start OFF switch turn ON when stop/start system is operating, stop/start system is canceled and engine
restart.

1.

Stop/start indicator lamp

2.

Stop/start OFF switch

A.

On the combination meter

B.

Lower instrument panel (driver side)

JSBIA3803ZZ

Item

Function

Stop/start OFF switch

When the switch is pressed, switch indicator (LED) turns ON and the stop/start
system can be deactivated.

EC9-58

< SYSTEM DESCRIPTION >

[R9M]

HANDLING PRECAUTION

HANDLING PRECAUTION

Precaution for Stop/Start System

INFOID:0000000010308997

PRECAUTIONS FOR STOP/START SYSTEM OPERATION

The operation of the stop/start system needs to satisfy various conditions. For details of the conditions, refer to

EC9-39, "STOP/START SYSTEM : System Description (M/T models)"

 (M/T models),

EC9-47, "STOP/START

SYSTEM : System Description (CVT models)"

 (CVT models).

The stop/start system may not operate under the conditions listed below:
• After restarting the engine, the vehicle is repeatedly stopped and started at a low speed due to traffic con-

gestion.

• When driving the vehicle repeatedly back and forth at a low speed due to parallel parking.
• When the intelligent key is not authenticated. (In this case, the KEY warning lamp built in the combination

meter blinks.)

• The battery is deteriorated. (High discharge rate.)
• A battery other than the stop/start system-specific battery is used.
• Ambient temperature is extremely low.

HANDLING PRECAUTIONS

• When engine restart conditions are satisfied during the electric parking brake operation, ECM performs the

engine restart after the completion of the electric parking brake operation. This may cause delay in engine
restart, compared with a usual engine restart.
For a smooth engine restart under the stop/start system operating condition, restart the engine before
releasing the parking brake.

• To use the stop/start system, the vehicle needs to recognize the status of battery. For this reason, the stop/

start system may not be activated immediately after battery change.

• (For M/T only) When restarting the vehicle under stop/start system operating condition, continue depressing

the clutch pedal until the restart completes.

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC9-59

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

ON BOARD DIAGNOSTIC (OBD) SYSTEM

Diagnosis Description

INFOID:0000000010308998

DESCRIPTION

This system uses two malfunction indicator lamps. When detecting a system error, ECM turns ON the mal-
function indicator lamp to alert the driver of the presence of malfunction.

MALFUNCTION INDICATOR LAMP (MIL) (YELLOW)

ECM turns ON MIL (yellow) when an emission-related malfunction occurs or when a component part specified
by European laws and regulations becomes inoperable three trips in a raw.

MALFUNCTION INDICATOR LAMP (MIL) (RED)

ECM may turn ON MIL (red) when a malfunction occurs in the engine.

EC9-60

< SYSTEM DESCRIPTION >

[R9M]

DIAGNOSIS SYSTEM (ECM)

DIAGNOSIS SYSTEM (ECM)

CONSULT Function

INFOID:0000000010308999

FUNCTION

*: The following emission-related diagnostic information is cleared when the ECM memory is erased.

• Diagnostic trouble codes

SELF-DIAGNOSTIC MODE

Self Diagnostic Item

Regarding items detected in “SELF-DIAG RESULTS” mode, refer to —

EC9-108, "DTC Index"

.

Freeze Frame Data and 1st Trip Freeze Frame Data

Diagnostic test mode

Function

Self-diagnostic results

Self-diagnostic results such as DTC can be read and erased quickly.*

Data monitor

Input/Output data in the ECM can be read.

Work support

This mode enables a technician to adjust some devices faster and more accurately by following
the indications on the CONSULT unit.

Active test

Diagnostic Test Mode in which CONSULT drives some actuators apart from the ECMs and also
shifts some parameters in a specified range.

ECU identification

ECM part number and homologation number can be read.

Configuration

This function is used to store vehicle specifications to ECM after ECM replacement.

Item

*

Unit

Remarks

CONSULT screen terms

Full spell

WATER TEMP

Water temperature

°

C or

°

F

ENGINE SPEED

Engine speed

rpm

VEHICLE SPEED

Vehicle speed

km/h or mph

ENGINE TORQUE

Engine torque

Nm

COMPUTER SUPPLY VOLT-
AGE

Computer supply voltage

V

RAIL PRES SET

Rail pressure setting

bar

RAIL PRESSURE

Rail pressure

bar

FUEL FLOW S/V CURRENT

Fuel flow solenoid valve current

mA

FLOW REGULATOR CUR-
RENT REFERENCE VALUE

Flow regulator current reference value

mA

RAIL PRESS SEN VOLT

Rail pressure sensor voltage

mV

FUEL FLOW

Fuel flow

mg/cp

ADDITIONAL INFO FDE1

Additional information FDE1

ADDITIONAL INFO FDE2

Additional information FDE2

ADDITIONAL INFO FD62

Additional information FD62

deg Crs

ADDITIONAL INFO FDE3

Additional information FDE3

deg Crs

ADDITIONAL INFO FD61

Additional information FD61

deg Crs

BOOST PRESSURE

Boost pressure

mbar

BOOST PRESS REF VALUE

Boost pressure reference value

hpa

MEASURE AIR FLOW

Measured air flow

kg/h

TURBOCHARGING SOLE-
NOID VALVE OCR

Turbocharging solenoid valve OCR

%

DIAGNOSIS SYSTEM (ECM)

EC9-61

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

DAMPER VALVE UP-
STREAM TEMPERATURE

Estimated inlet flap upstream tempera-
ture

°

C or

°

F

MANIFOLD PRESSURE

Manifold pressure

mbar

INLET AIR TEMPERATURE

Inlet air temperature

°

C or

°

F

CHARGED AIR TEMPERA-
TURE DOWN STREAM

Charged air temperature down stream

°

C or

°

F

EGR POSITION

EGR position

%

EST. AIR FLOW

Estimated air flow

mg/cp

INLET AIR FLOW

Inlet air flow

mg/cp

ATMOSPHERIC PRESSURE

Atmospheric pressure

mbar

TBN UPSTR PRS SEN VOLT

Turbine upstream pressure sensor volt-
age

mV

ROUGH TC PRESS

Rough turbocharging pressure

mbar

AIR INLET/F REL POS

Air inlet flap relative position

%

AIR INLET TEMP SEN VOLT

Air inlet temperature sensor voltage

mV

FUEL TEMPERATURE

Fuel temperature

°

C or

°

F

IN FLAP ABSO POSI

Air inlet flap absolute position

%

INLET/F SEN SUPPLY VOLT

Inlet flap sensor supply voltage

mV

DAMPER VALVE SEN VOLT

Damper valve sensor voltage

mV

DMPR VLV SET POS

Damper valve setpoint position

%

IN/FLAP CTRL

Inlet flap control

%

SEN 1 FEED V

Sensors No. 1 feed voltage

mV

ADDITIONAL INFO FDE7

Additional information FDE7

ADDITIONAL INFO FDE8

Additional information FDE8

mV

ADDITIONAL INFO FD47

Additional information FD47

mV

OXYGEN RATE

Oxygen rate

ADDITIONAL INFORMA-
TION FDE5

Additional information FDE5

ADDITIONAL INFO FD9C

Additional information FD9C

°

C or

°

F

ADDITIONAL INFO FDF0

Additional information FDF0

hPa

ADDITIONAL INFO FD9D

Additional information FD9D

ADDITIONAL INFO FDE6

Additional information FDE6

hPa

ALTERNATOR LOAD

Alternator load

%

AIR REGULATION CUT-OFF
CONDITIONS

Air regulation cut-off conditions

ADDITIONAL INFO 2069

Additional information 2069

Nm

SEN 2 FEED V

Sensors No. 2 feed voltage

mV

PL PTNMR T2 V

Pedal potentiometer track 2 voltage

mV

PL PTNMR T1 V

Pedal potentiometer track 1 voltage

mV

RAW FUEL PRESSURE
FROM SENSOR

Raw fuel pressure from sensor

bar

PWM OF FUEL PUMP AC-
TUATOR

PWM of fuel pump actuator

%

HEATER PLUG CONTROL

Heater plug control

%

EGR VALVE OPENING REF-
ERENCE

EGR valve opening reference

%

Item

*

Unit

Remarks

CONSULT screen terms

Full spell

EC9-62

< SYSTEM DESCRIPTION >

[R9M]

DIAGNOSIS SYSTEM (ECM)

EGR VALVE CONTROL

EGR valve control

%

LAST EGR VALVE OFFSET

Last EGR valve offset

%

EGR VALVE FIRST OFFSET

EGR valve first offset

%

POTN VAL EGR VALVE
CLSD

Potentiometer value EGR valve closed

%

EGR SENSOR SUPPLY
VOLTAGE

EGR sensor supply voltage

mV

EGR POTENTIOMETER
VOLTAGE

EGR potentiometer voltage

mV

EXHAUST SYSTEM FLOW

Exhaust system flow

g/s

ADDITIONAL INFORMA-
TION 24F3

Additional information 24F3

°

C or

°

F

TEMP. UPSTREAM OF PF

Temperature upstream of particle filter

°

C or

°

F

PRS UPSTR OF TBN

Pressure upstream of turbine

mbar

RFRG TEMP PRESS SEN
VOLT

Refrigerant temperature pressure sen-
sor voltage

V

REFRIGERANT PRESSURE

Refrigerant pressure

bar

TBN UPSTR TEMP SETP

Turbine upstream temperature setpoint

°

C or

°

F

TEMP UPSTREAM TUR-
BINE

Temperature upstream of turbine

°

C or

°

F

TBN UPSTR TMP SEN VOLT

Turbine upstream temperature sensor
voltage

V

RV/LV BUTTON VOLTAGE

RV/LV button voltage

mV

OIL TEMPERATURE SEN-
SOR VOLTAGE - ENGINE

Oil temperature sensor voltage - Engine

ADDITIONAL INFO FDEB

Additional information FDEB

ADDITIONAL INFO FDEC

Additional information FDEC

ADDITIONAL INFO FDED

Additional information FDED

ADDITIONAL INFO FDEE

Additional information FDEE

ADDITIONAL INFO FDEF

Additional information FDEF

LAST OFF/V CLOSE

Last offset damper valve closed

%

LAST OFF/V OPEN

Last offset damper valve open

%

SEN SUPPLY N-3 VOL

Sensor supply No. 3 voltage

mV

SWIRL FLAP - SWIRL POSI-
TION RELATIVE TO THE
CLOSED THRUST

Swirl flap - Swirl position relative to the
closed thrust

%

SWIRL THROTTLE POSI-
TION SETPOINT USED BY
THE MONITORING SYSTEM

Swirl throttle postion setpoint used by
the monitoring system

%

SWIRL FLAP - PWM COM-
MAND ASKED TO THE H -
BRIDGE

Swirl flap - PWM command asked to the
H - bridge

%

SWIRL FLAP - CURRENT
VALUE OF THE ‘LAST
CLOSED THRUST POSI-
TION’ LEARNT

Swirl flap - Current value of the 'last
closed thrust position' learnt

%

SWIRL FLAP - CURRENT
VALUE OF THE FIRST
CLOSED THRUST POSI-
TION LEARNT

Swirl flap - Current value of the first
closed thrust position learnt

%

Item

*

Unit

Remarks

CONSULT screen terms

Full spell

DIAGNOSIS SYSTEM (ECM)

EC9-63

< SYSTEM DESCRIPTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

SWIRL FLAP - CURRENT
VALUE OF THE ‘FIRST
OPENED THRUST POSI-
TION’ LEARNT

Swirl flap - Current value of the 'first
opened thrust position' learnt

%

SWIRL FLAP - ABSOLUTE
POSITION IN PERCENT OF
THE SENSOR SUPPLY
VOLTAGE

Swirl flap - Absolute position in percent
of the sensor supply voltage

%

SWIRL FLAP VOLTAGE

Swirl flap voltage

mV

ADDITIONAL INFO FD2D

Additional information FD2D

ADDITIONAL INFO FD2F

Additional information FD2F

°

C or

°

F

ADDITIONAL INFO FD96

Additional information FD96

mg/Hub

ADDITIONAL INFO FD2E

Additional information FD2E

SOOT IN P/FLT

Soot in the particle filter

G

EXH THROTTLE POSITION

Exhaust throttle position

%

EXHAUST FLAP POSITION
SETPOINT

Exhaust flap position setpoint

%

EXHAUST AIR FLAP OCR

Exhaust air flap OCR

%

EXHAUST AIR FLAP OFF-
SET

Exhaust air flap offset

%

FIRST OFFSET OF THE EX-
HAUST AIR FLAP OPEN

First offset of the exhaust air flap open

%

EXHAUST FLAP ABSOLUTE
POSITION

Exhaust flap absolute position

%

SUPPLY VOLTAGE EX-
HAUST AIR FLAP SENSOR

Supply voltage exhaust air flap sensor

mV

FIRST OFFSET OF THE
CLOSED EXHAUST FLAP

First offset of the closed exhaust flap

%

EGR LOW PRESSURE PO-
SITION

EGR low pressure position

%

LAST OFFSET OF CLOSED
LOW PRESSURE EGR

Last offset of closed low pressure EGR

%

EGR LOW PRESSURE OCR

EGR low pressure OCR

%

LOW PRESSURE EGR PO-
SITION REFERENCE VAL-
UE

Low pressure EGR position reference
value

%

EGR LOW PRESSURE PO-
SITION

EGR low pressure position

%

LOW PRESSURE EGR
VALVE SUPPLY VOLTAGE

Low pressure EGR valve supply voltage

mV

LOW PRESSURE EGR
VALVE FIRST OFFSET

Low pressure EGR valve first offset

%

POSITION SETPOINT SENT
BY THE MONITORING SYS-
TEM

Position setpoint sent by the monitoring
system

%

LOW PRESSURE EMTV -
EGR BP VALVE CONTROL
SETPOINT USED BY THE
MONITORING SYSTEM

Low pressure EMTV - EGR BP valve
control setpoint used by the monitoring
system

%

PART.FILTER UPSTREAM
TEMP SENSOR VOLTAGE

Part. filter upstream temperature sensor
voltage

mV

Item

*

Unit

Remarks

CONSULT screen terms

Full spell

EC9-64

< SYSTEM DESCRIPTION >

[R9M]

DIAGNOSIS SYSTEM (ECM)

ADDITIONAL INFO 2813

Additional information 2813

°

Crk

POST INJECTION FLOW

Post injection flow

mg/cp

POST INJECTION FLOW 1

Post injection flow 1

mg/cp

FLOW GAS IN DPF

Flow of gas inside the particle filter

m3/h

P/FLT DIFF. PRS

Particle filter pressure DIFF.

hPa

REGEN MALFNC

Number of regeneration failure

CSF - DISTANCE SINCE
LAST REGENERATION
SUCCESS PARTIAL OR TO-
TAL TO ALLOW REGENER-
ATION

CSF - Distance since last regeneration
success partial or total to allow regener-
ation

km or mile

FIRST OFF/V CLOSE

First offset damper valve closed

%

FIRST OFF/V OPEN

First offset damper valve open

%

ATMOS PRESS SEN VOLT

Atmospheric pressure sensor voltage

mV

ADDITIONAL INFO FD45

Additional information FD45

OIL DILUTION INFORMA-
TION

Oil dilution information

%

COMPRESSOR BYPASS
COMMAND

Compressor bypass command

• NO COMMAND
• COMMAND ACTIVATED
• INACTIVE

TURBO REGULATION

Turbo regulation

• MAX
• PROTECTED
• DIAG  MODE
• INACTIVE
• REG
• INTRME

MOTOR-DRIVEN FAN UNIT
REQUEST

Motor-driven fan unit request

• ACTIVE
• INACTIVE

MOTOR

Motor

• Off
• RUNNING
• STALLED
• CRANKING
• INACTIVE

LOW FUEL LEVEL INFOR-
MATION

Low fuel level information

• OK
• LOW
• INACTIVE

GEARBOX RATIO

Gearbox ratio

• REVERSE
• DCLTCH
• INACTIVE

COMBUSTION MODE SET

Combustion mode setting

• NORMAL
• STATUS1
• STAT2
• STAT3
• STAT4
• INACTIVE

Item

*

Unit

Remarks

CONSULT screen terms

Full spell















Content      ..     2      3      4      5     ..
