SIGNAL BUFFER SYSTEM : System Description

INFOID:0000000010377991

SYSTEM DIAGRAM

OUTLINE

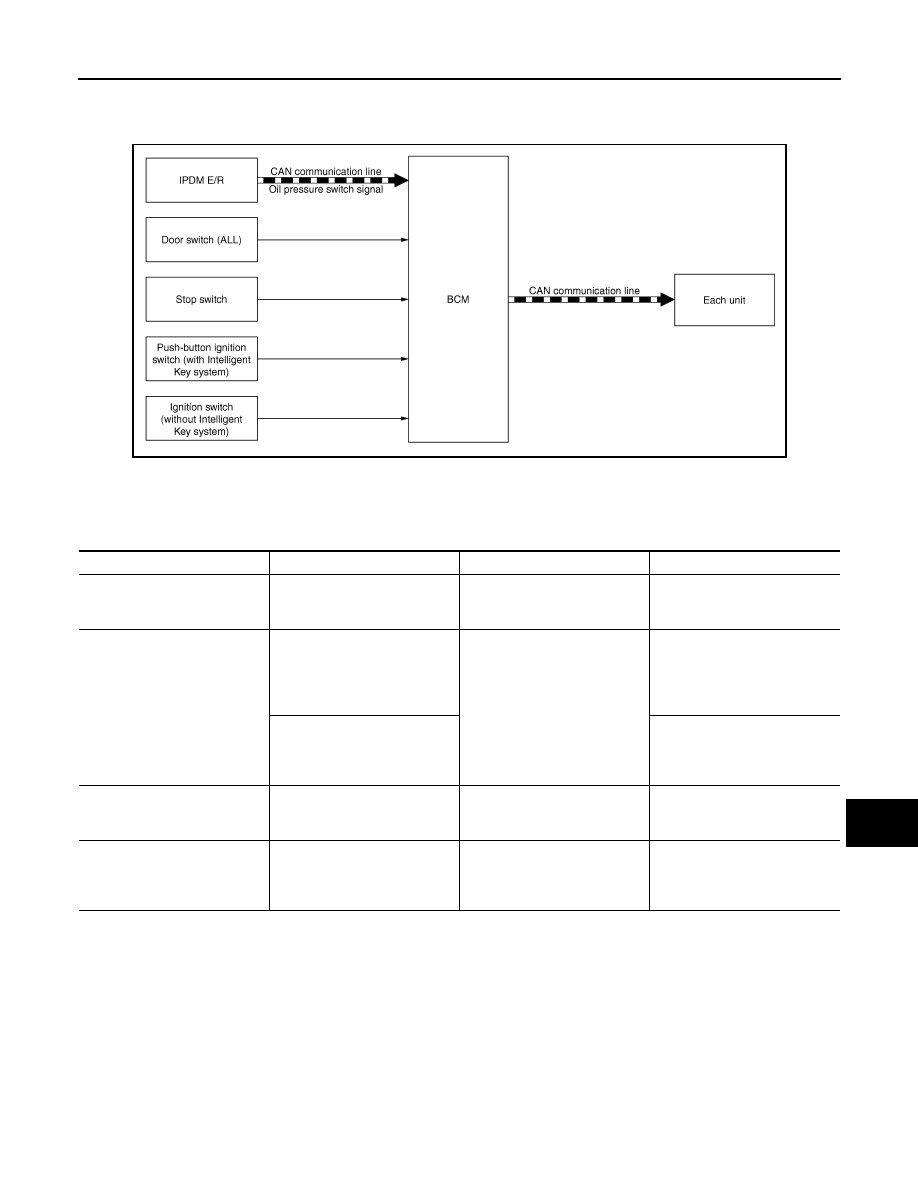

BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.

Signal transmission function list

POWER CONSUMPTION CONTROL SYSTEM

JMMIA1758GB

Signal name

Input

Output

Description

Oil pressure switch signal

IPDM E/R (CAN)

Combination meter (CAN)

Transmits the received oil pres-
sure switch signal via CAN
communication.

Ignition switch ON signal

Push-button ignition switch
(Push switch) (with Intelligent
Key system)

IPDM E/R (CAN)

Inputs the push-button ignition
switch (push switch) signal and
transmits the ignition switch sta-
tus judged by BCM via CAN
communication.

Ignition switch (without Intelli-
gent Key system)

Inputs the ignition switch signal
and transmits the ignition switch
status judged by BCM via CAN
communication.

Door switch signal

Any door switch

• AV control unit (CAN)
• Combination meter (CAN)
• IPDM E/R (CAN)

Inputs the door switch signal
and transmits it via CAN com-
munication.

Stop lamp switch signal

Stop lamp switch

TCM (CAN)

Inputs the stop lamp switch 1
signal and stop lamp switch 2
signal, and transmits it via CAN
communication.

BCS-18

< SYSTEM DESCRIPTION >

SYSTEM

POWER CONSUMPTION CONTROL SYSTEM : System Description

INFOID:0000000010377992

SYSTEM DIAGRAM

OUTLINE

• BCM incorporates a power saving control function that reduces the power consumption according to the

vehicle status.

• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep

request to each unit (IPDM E/R, combination meter and AV control unit) that operates with the ignition switch
OFF.

Normal mode (wake-up)

- CAN communication is normally performed with other units
- Each control with BCM is operating properly

CAN communication sleep mode (CAN sleep)

- CAN transmission is stopped
- Control with BCM only is operating

Low power consumption mode (BCM sleep)

- Low power consumption control is active
- CAN transmission is stopped

LOW POWER CONSUMPTION CONTROL WITH BCM

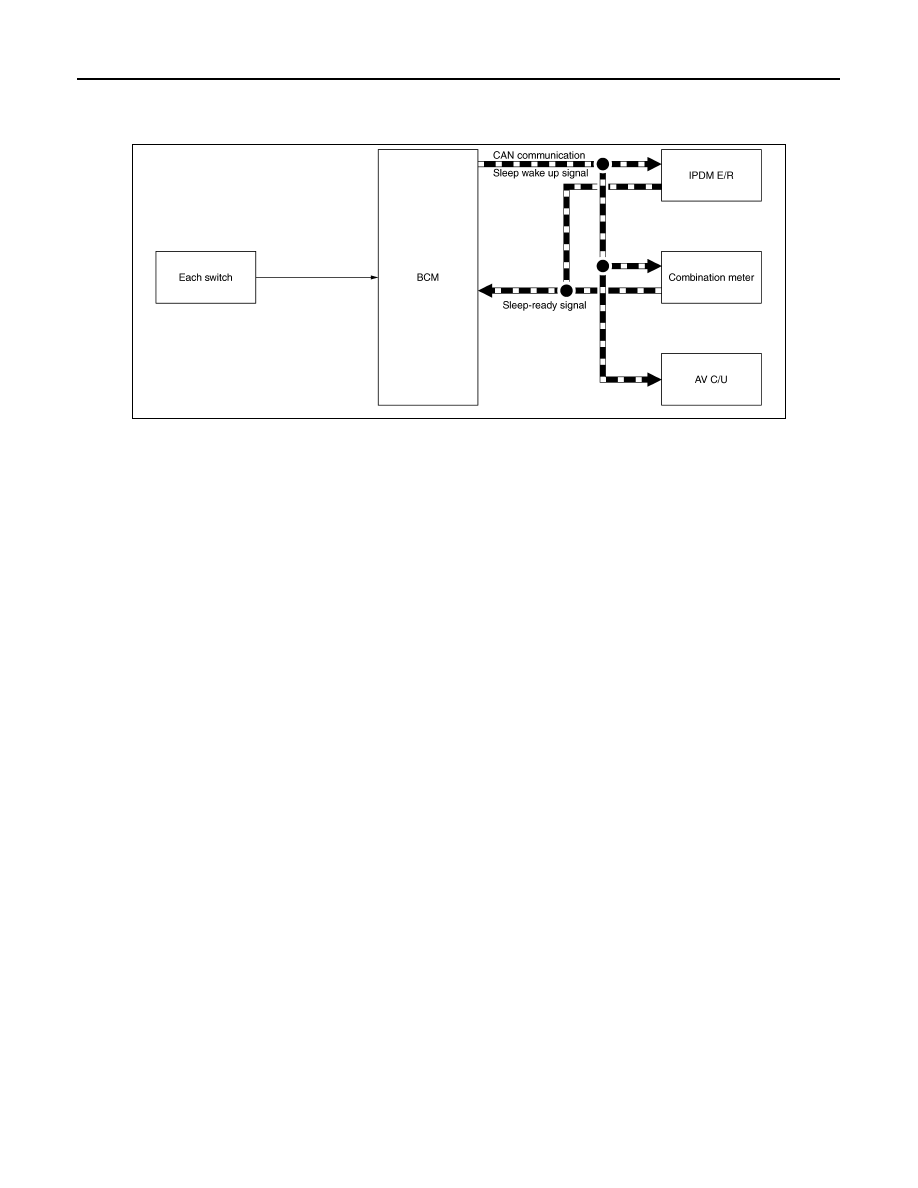

BCM reduces the power consumption with the following operation in the low power consumption mode.
• The reading interval of the each switches changes from 10 ms interval to 60 ms interval.

Sleep mode activation

• BCM receives the sleep-ready signal (ready) from IPDM E/R, combination meter and AV control unit via

CAN communication.

• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful-

filled.

• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN com-

munication sleep mode.

• BCM is in the low power consumption mode and perform the low power consumption control when all of the

BCM sleep conditions are fulfilled with CAN sleep condition.

JMMIA1759GB

BCS

SYSTEM

BCS-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Sleep condition

*1: Without Intelligent Key system
*2: With Intelligent Key system

Wake-up operation

• BCM transmits sleep wake up signal (wake up) to each unit when any condition listed below is established,

and then goes into normal mode from low power consumption mode.

• Each unit starts transmissions with CAN communication by receiving sleep wake up signals.

Wake-up condition

*1: Without Intelligent Key system
*2: With Intelligent Key system

SHIPPING MODE CONTROL SYSTEM

CAN sleep condition

BCM sleep condition

Receiving the sleep-ready signal (ready) from all units

• Ignition switch*

1

: LOCK or OFF

• Push-button ignition switch (push switch)*

2

: No change 2 sec-

onds

• Warning chime: Not operation

• Intelligent Key warning buzzer*

2

: Not operation

• Stop lamp switch: OFF
• Turn signal indicator lamp: Not operation
• Exterior lamp: OFF
• Door lock status: No change
• Meter display signal: Non-transmission
• Door switch status: No change 2 seconds
• Back door opener switch status: No change 2 seconds
• Rear window defogger: OFF
• RAP system: OFF
• CONSULT communication status: Not communication

Wake-up condition

• Receiving the sleep-ready signal (Not-ready) from any units

• Ignition switch*

1

: OFF

 ON or START

• Key switch*

1

: OFF

 ON, ON

 OFF

• Push-button ignition switch (push switch)*

2

: OFF

 ON

• Hazard switch: OFF

 ON, ON

 OFF

• HI BEAM switch: OFF

 ON, ON

 OFF

• PASSING switch: OFF

 ON, ON

 OFF

• HEADLAMP switch: OFF

 ON, ON

 OFF

• TAIL LAMP switch: OFF

 ON

• FR FOG switch: OFF

 ON, ON

 OFF

• RR FOG switch: OFF

 ON, ON

 OFF

• Driver door switch: OFF

 ON, ON

 OFF

• Passenger door switch: OFF

 ON, ON

 OFF

• Rear RH door switch: OFF

 ON, ON

 OFF

• Rear LH door switch: OFF

 ON, ON

 OFF

• Back door switch: OFF

 ON, ON

 OFF

• Driver door request switch: OFF

 ON

• Passenger door request switch: OFF

 ON

• Back door opener switch: OFF

 ON

• Back door opener request switch: OFF

 ON

• Stop lamp switch: OFF

 ON

• Front door lock assembly (driver side) (unlock sensor): OFF

 ON, ON

 OFF

• Remote keyless entry receiver communication: Receiving
• Door lock and unlock switch: NEUTRAL

 LOCK, NEUTRAL

 UNLOCK

BCS-20

< SYSTEM DESCRIPTION >

SYSTEM

SHIPPING MODE CONTROL SYSTEM : System Description

INFOID:0000000010377993

SYSTEM DIAGRAM

DESCRIPTION

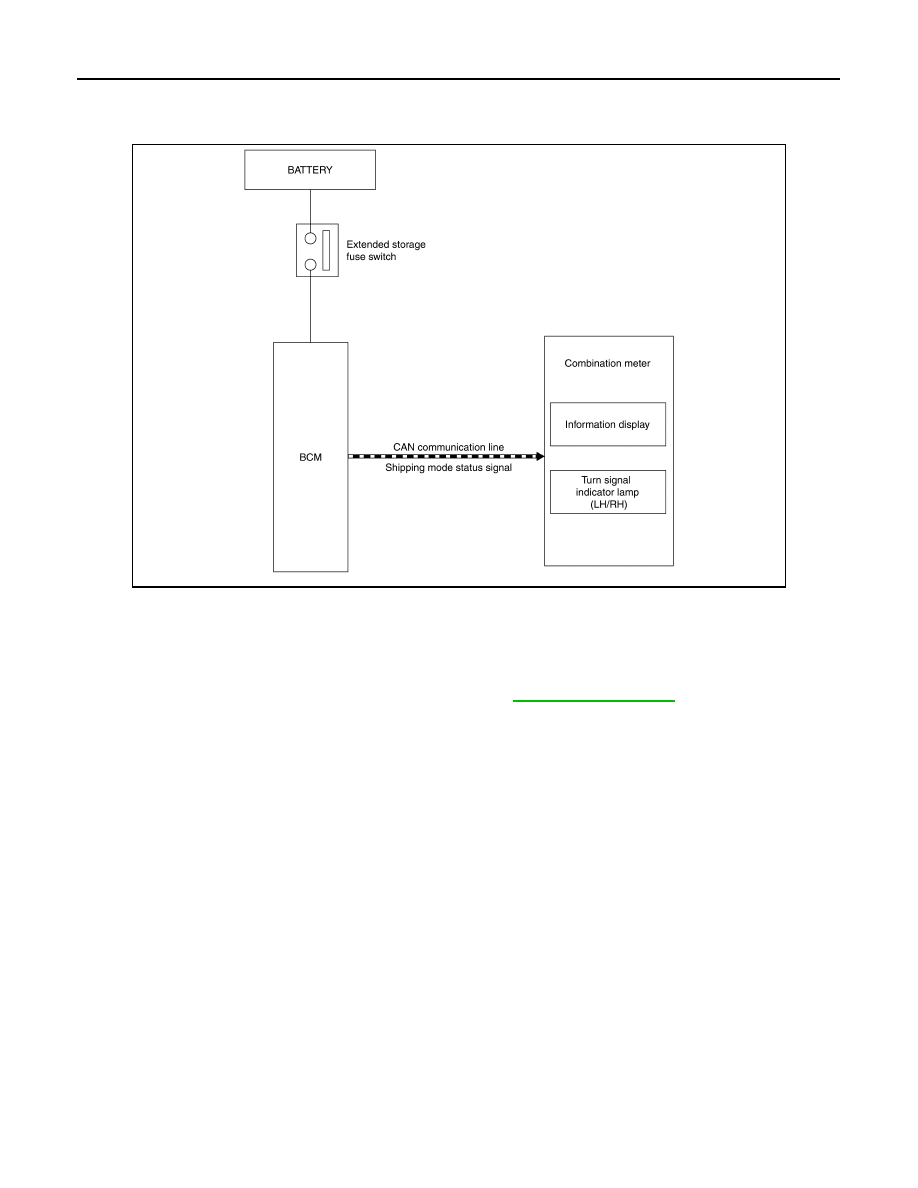

• BCM switches the status (shipping mode or normal mode) by itself according to the extended storage fuse

switch condition, and transmits shipping mode status signal to combination meter and each unit via CAN
communication.

• When shipping mode function operates, each control unit does not detect DTCs.
• BCM control functions are limited in shipping mode. Refer to

BCS-131, "Description"

.

• The combination meter displays extended storage fuse warning message* on the information display, and

turns the turn signal indicator lamp (LH/RH) ON, when BCM is in shipping mode.

*: When shipping mode function operates, “SHIPPING MODE ON PUSH STORAGE FUSE” is displayed.

JMMIA1403GB

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-21

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010377994

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:
*: This item is displayed, but not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Exterior lamp

HEAD LAMP

×

×

×

Interior room lamp control

INT LAMP

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

AIR CONDITONER*

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

Interior room lamp battery saver

BATTERY SAVER

×

Back door open

TRUNK

×

Vehicle security

THEFT ALM

×

×

RAP

RETAINED PWR

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

Signal buffer system

SIGNAL BUFFER

×

×

BCS-22

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DOOR LOCK

DOOR LOCK : Information

INFOID:0000000010699330

Check the vehicle type to use the service information in this section.

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 1)

INFOID:0000000010505210

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

V

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

°

C

External temperature of the moment a particular DTC is detected

VEHICLE COND

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Service information

Destination

Type 1

For Europe

With Intelligent Key and super lock

Type 2

• For Europe
• For South Africa
• For Russia, Ukraine and Kazakhstan

With Intelligent Key, without super lock

Type 3

For Europe

Without Intelligent Key, with super lock

Type 4

• For Europe
• For South Africa
• For Russia, Ukraine and Kazakhstan

Without Intelligent Key and super lock

Type 5

• For  Australia
• For General export

With Intelligent Key, without super lock

Type 6

• For  Australia
• For General export

Without Intelligent Key and super lock

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

SIGNATURE LIGHT SETTING

Signature light function can be changed to operation with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

REQ SW-DR

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS

Indicated [On/Off] condition of door request switch (passenger side)

REQ SW-BD/TR

Indicated [On/Off] condition of back door request switch

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-23

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ACTIVE TEST

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 2)

INFOID:0000000010505211

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

SHOCK SENSOR

Indicates [NOMAL/On/Off] condition of circuit between BCM and air bag diagnosis sensor unit
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag diagnosis sensor

unit.)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY SW

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLOCK” on CONSULT screen is touched

SUPER LOCK

This test is able to check super lock actuator operation
• The all door lock actuators are set when “LOCK” on CONSULT screen is touched
• The all door lock actuators are released when “UNLOCK” on CONSULT screen is touched

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

SIGNATURE LIGHT SETTING

Signature light function can be changed to operation with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

REQ SW-DR

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS

Indicated [On/Off] condition of door request switch (passenger side)

BCS-24

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 3)

INFOID:0000000010505212

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

REQ SW-BD/TR

Indicated [On/Off] condition of back door request switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

SHOCK SENSOR

Indicates [NOMAL/On/Off] condition of circuit between BCM and air bag diagnosis sensor unit
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag diagnosis sensor

unit.)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY SW

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLOCK” on CONSULT screen is touched

SUPER LOCK

NOTE:
This item is displayed, but cannot be monitored

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ACTIVE TEST

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 4)

INFOID:0000000010505213

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

SHOCK SENSOR

NOTE:
This item is displayed, but cannot be monitored

KEY SW

Indicated [On/Off] condition of key switch

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLOCK” on CONSULT screen is touched

SUPER LOCK

This test is able to check super lock actuator operation
• The all door lock actuators are set when “LOCK” on CONSULT screen is touched
• The all door lock actuators are released when “UNLOCK” on CONSULT screen is touched

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

IGN ON SW

Indicated [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicated [On/Off] condition of key switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicated [On/Off] condition of back door switch

LOCK STATUS

Indicated [On/Off] condition of front door driver side

ACC ON SW

Indicated [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicated [On/Off] condition of lock signal from key fob

KEYLESS UNLOCK

Indicated [On/Off] condition of unlock signal from key fob

SHOCK SENSOR

NOTE:
This item is displayed, but cannot be monitored

BCS-26

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 5)

INFOID:0000000010699328

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

WORK SUPPORT

*

: P range interlock door lock/unlock can be selected for M/T models, but automatic door lock/unlock function

does not operate.

DATA MONITOR

NOTE:

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

VEHICLE SPEED

Display the vehicle speed signal received from combination meter by numer-
ical value [Km/h]

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT screen is touched
• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT screen is

touched

• “BD ULK” is displayed, but cannot be used
• “OTR ULK” is displayed, but cannot be used

DOOR LOCK IND

NOTE:
This item is displayed, but cannot be used

SUPER LOCK

NOTE:
This item is displayed, but cannot be used

Monitor item

Description

DOOR LOCK-UNLOCK SET

Selective unlock function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

AUTO UNLOCK TYPE

Automatic door unlock function mode can be selected from the following in this mode
• MODE1: All doors are locked
• MODE2: Only driver door is unlocked

AUTO LOCK FUNCTION

Automatic door lock function mode can be selected from the following in the mode
• MODE1: All doors are locked when vehicle speed more than 10 km/h (6 MPH)

• MODE  2

*

: All doors are locked when shifting the selector lever from P position to other than the

P position

• MODE 3: Non-operation
• Off: Non-operation

AUTO UNLOCK FUNCTION

Automatic door unlock function mode can be selected from the following in this mode
• MODE1: All doors are unlocked when the power supply position is changed from ON to OFF

• MODE  2

*

: All doors are unlocked when shifting the selector lever from any position other than

the P to P position

• MODE 3: Non-operation
• Off: Non-operation

SIGNATURE LIGHT SETTING

Signature light function can be changed to operation with this mode
• On: Operate
• Off: Non-operation

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-27

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 6)

INFOID:0000000010699329

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Contents

REQ SW-DR

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS

Indicated [On/Off] condition of door request switch (passenger side)

REQ SW-BD/TR

Indicated [On/Off] condition of back door request switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

SHOCK SENSOR

Indicates [NOMAL/On/Off] condition of circuit between BCM and air bag diagnosis sensor unit
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag diagnosis sensor

unit.)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY SW

NOTE:
This item is displayed, but cannot be monitored

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLOCK” on CONSULT screen is touched

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function can be changed to operate with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

IGN ON SW

Indicated [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicated [On/Off] condition of key switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

BCS-28

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

MULTI REMOTE ENT

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 3)

INFOID:0000000010796941

WORK SUPPORT

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicated [On/Off] condition of back door switch

LOCK STATUS

Indicated [On/Off] condition of front door driver side

ACC ON SW

Indicated [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicated [On/Off] condition of lock signal from key fob

KEYLESS UNLOCK

Indicated [On/Off] condition of unlock signal from key fob

SHOCK SENSOR

Indicates [NOMAL/On/Off] condition of circuit between BCM and air bag diag-
nosis sensor unit
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal

from air bag diagnosis sensor unit.)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

VEHICLE SPEED

Display the vehicle speed signal received from combination meter by numer-
ical value [Km/h]

Monitor Item

Contents

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT screen is touched
• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT screen is

touched

• “BD ULK” is displayed, but cannot be used
• “OTR ULK” is displayed, but cannot be used

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Test item

Description

AUTO LOCK SET

Auto door lock time can be changed in this mode
• MODE 1: Non-operation
• MODE 2: 30 sec.
• MODE 3: 1 minute
• MODE 4: 2 minute
• MODE 5: 3 minute
• MODE 6: 4 minute
• MODE 7: 5 minute

ANSWER BACK

NOTE:
This item is displayed, but cannot be used

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-29

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

*

1

: It is displayed but does not operate on CVT models.

*

2

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

ANSWER BACK KEYLESS
LOCK UNLOCK

NOTE:
This item is displayed, but cannot be used

WELCOME LIGHT OP SET

NOTE:
This item is displayed, but cannot be used

Test item

Description

Monitor Item

Condition

CONFRM ID ALL

Indicates [Yet] at all time.Switches to [Done] when a registered key is inserted into ignition key
cylinder.

CONFRM ID4

CONFRM ID3

CONFRM ID2

CONFRM ID1

NOT REGISTERED

Indicates [ID OK] when key ID that is registered is received or is not yet received. Indicates [ID
NG] when key ID that is not registered is received.

TP 4

Indicates the number of IDs that are registered.

TP 3

TP 2

TP 1

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

2

 condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status

DOOR STAT-RR

Indicates [LOCK/READY/UNLK] condition of rear door RH status

DOOR STAT-RL

Indicates [LOCK/READY/UNLK] condition of rear door LH status

BK DOOR STATE

NOTE:
This item is displayed, but cannot be monitored

STOP/START SW

Indicates [On/Off] condition of stop/start off switch

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from keyfob

KEY SW

Indicates [On/Off] condition of key switch

IGN SW

Indicates [On/Off] condition of ignition switch in ON position

START SW

Indicates [On/Off] condition of ignition switch in START position

BCS-30

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 4)

INFOID:0000000010827932

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Test item

Description

FLASHER

This test is able to check flasher operation [LH/RH/Off]

HORN

NOTE:
This item is indicated, but not monitored

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

MIRROR+5

NOTE:
This item is indicated, but not monitored

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is indicated, but not monitored

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk/luggage room lamp operation
• On: Operates
• Off: Non-operation

Test item

Description

AUTO LOCK SET

Auto door lock time can be changed in this mode
• MODE 1: Non-operation
• MODE 2: 30 sec.
• MODE 3: 1 minute
• MODE 4: 2 minute
• MODE 5: 3 minute
• MODE 6: 4 minute
• MODE 7: 5 minute

ANSWER BACK

NOTE:
This item is displayed, but cannot be used

ANSWER BACK KEYLESS
LOCK UNLOCK

NOTE:
This item is displayed, but cannot be used

WELCOME LIGHT OP SET

NOTE:
This item is displayed, but cannot be used

Monitor Item

Condition

CONFRM ID ALL

Indicates [Yet] at all time.Switches to [Done] when a registered key is inserted into ignition key
cylinder.

CONFRM ID4

CONFRM ID3

CONFRM ID2

CONFRM ID1

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-31

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

*

1

: It is displayed but does not operate on CVT models.

*

2

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

NOT REGISTERED

Indicates [ID OK] when key ID that is registered is received or is not yet received. Indicates [ID
NG] when key ID that is not registered is received.

TP 4

Indicates the number of IDs that are registered.

TP 3

TP 2

TP 1

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

2

 condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status

DOOR STAT-RR

Indicates [LOCK/READY/UNLK] condition of rear door RH status

DOOR STAT-RL

Indicates [LOCK/READY/UNLK] condition of rear door LH status

BK DOOR STATE

NOTE:
This item is displayed, but cannot be monitored

STOP/START SW

Indicates [On/Off] condition of stop/start off switch

RKE-LOCK

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

RKE-PANIC

NOTE:
This item is displayed, but cannot be monitored

RKE-MODE CHG

Indicates [On/Off] condition of MODE CHANGE signal from keyfob

KEY SW

Indicates [On/Off] condition of key switch

IGN SW

Indicates [On/Off] condition of ignition switch in ON position

START SW

Indicates [On/Off] condition of ignition switch in START position

Monitor Item

Condition

Test item

Description

FLASHER

This test is able to check flasher operation [LH/RH/Off]

HORN

NOTE:
This item is indicated, but not monitored

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

MIRROR+5

NOTE:
This item is indicated, but not monitored

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is indicated, but not monitored

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

BCS-32

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

MULTI REMOTE ENT : CONSULT Function (BCM - MULTI REMOTE ENT) (Type 6)

INFOID:0000000010796954

WORK SUPPORT

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk/luggage room lamp operation
• On: Operates
• Off: Non-operation

Test item

Description

Test item

Description

AUTO LOCK SET

Auto door lock time can be changed in this mode
• MODE 1: Non-operation
• MODE 2: 30 sec.
• MODE 3: 1 minute
• MODE 4: 2 minute
• MODE 5: 3 minute
• MODE 6: 4 minute
• MODE 7: 5 minute

ANSWER BACK

Reminder function (keyfob) mode can be selected from the following with this mode
• On: S mode (horn non-operation)
• Off: C mode (horn operate)

ANSWER BACK KEYLESS
LOCK UNLOCK

Reminder function (keyfob) mode can be selected from the following with this mode
• On: Horn and hazard warning lamp operate
• Off:  Only  hazard  warning lamp operate

WELCOME LIGHT OP SET

NOTE:
This item is displayed, but cannot be used

Monitor Item

Condition

CONFRM ID ALL

Indicates [Yet] at all time.Switches to [Done] when a registered key is inserted into ignition key
cylinder.

CONFRM ID4

CONFRM ID3

CONFRM ID2

CONFRM ID1

NOT REGISTERED

Indicates [ID OK] when key ID that is registered is received or is not yet received. Indicates [ID
NG] when key ID that is not registered is received.

TP 4

Indicates the number of IDs that are registered.

TP 3

TP 2

TP 1

CLUTCH SW*

Indicates [On/Off] condition of clutch interlock switch

BRAKE SW 1

Indicates [On/Off]*

2

 condition of stop lamp switch power supply

BRAKE SW 2

Indicates [On/Off] condition of stop lamp switch

START CLUTCH SW

Indicates [On/Off] condition of clutch pedal position switch

DOOR STAT-DR

Indicates [LOCK/READY/UNLK] condition of driver door status

DOOR STAT-AS

Indicates [LOCK/READY/UNLK] condition of passenger door status















Content      ..      1      2      3      ..
