Qashqai J11. Body Control System

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

• For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

Open the hood.

Turn key switch to the OFF position with the driver side door opened.

Get out of the vehicle and close the driver side door.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

Open the driver side door.

Open the hood.

Close the driver side door.

Wait at least 3 minutes.

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

BCS

PRECAUTIONS

BCS-5

< PRECAUTION >

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000010506859

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition power source and accessory

power source to the OFF, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

Open driver door.

Turn the ignition switch to the ON position.
(At this time, the steering lock will be released.)

Turn the ignition switch to OFF position with driver door open.

Wait for 3 minutes or longer with driver door open.
NOTE:
• Do not close driver door because the steering wheel locks when driver door is closed.
• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

Perform the necessary repair operation.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

Perform self-diagnosis check of all control units using CONSULT.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010435883

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

BCS-6

< PRECAUTION >

PRECAUTIONS

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

BCS

COMPONENT PARTS

BCS-7

< SYSTEM DESCRIPTION >

SYSTEM DESCRIPTION

COMPONENT PARTS

BODY CONTROL SYSTEM

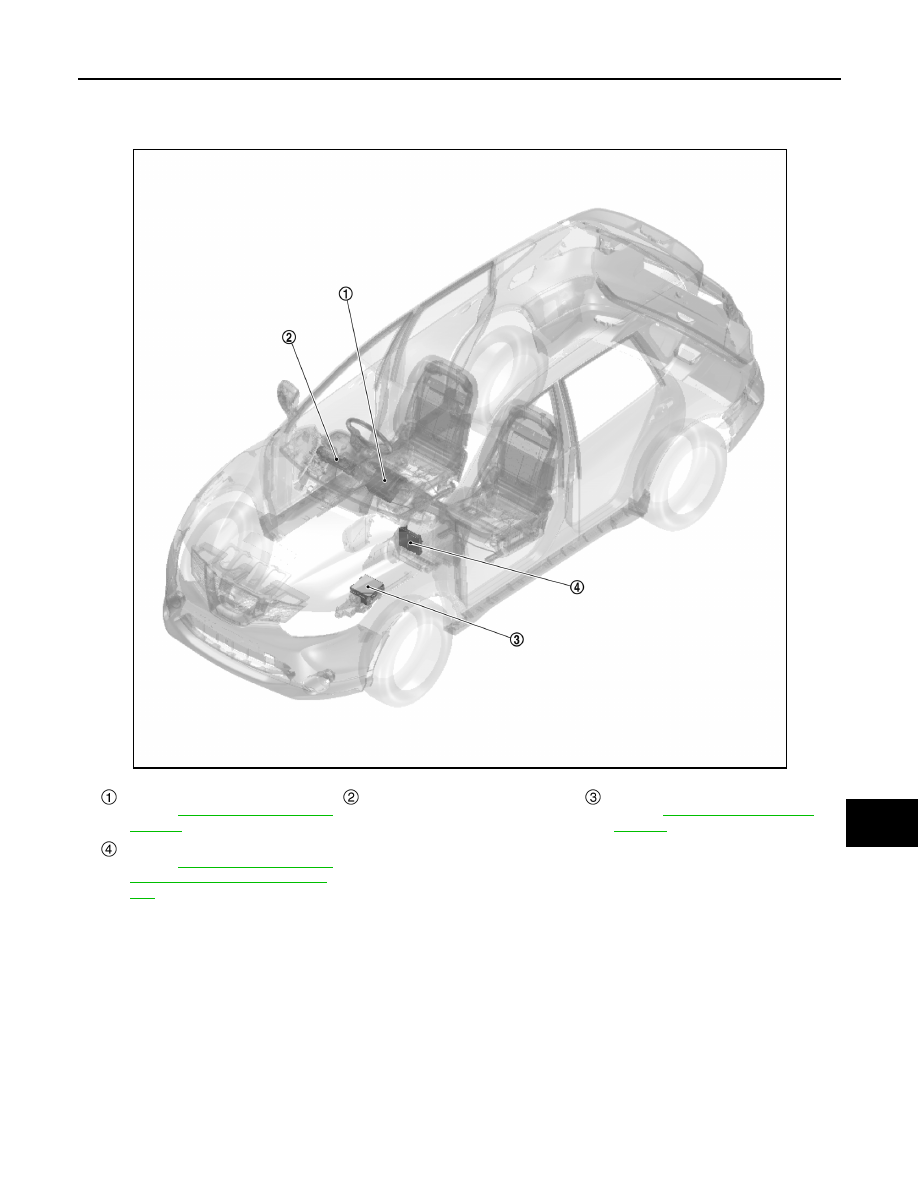

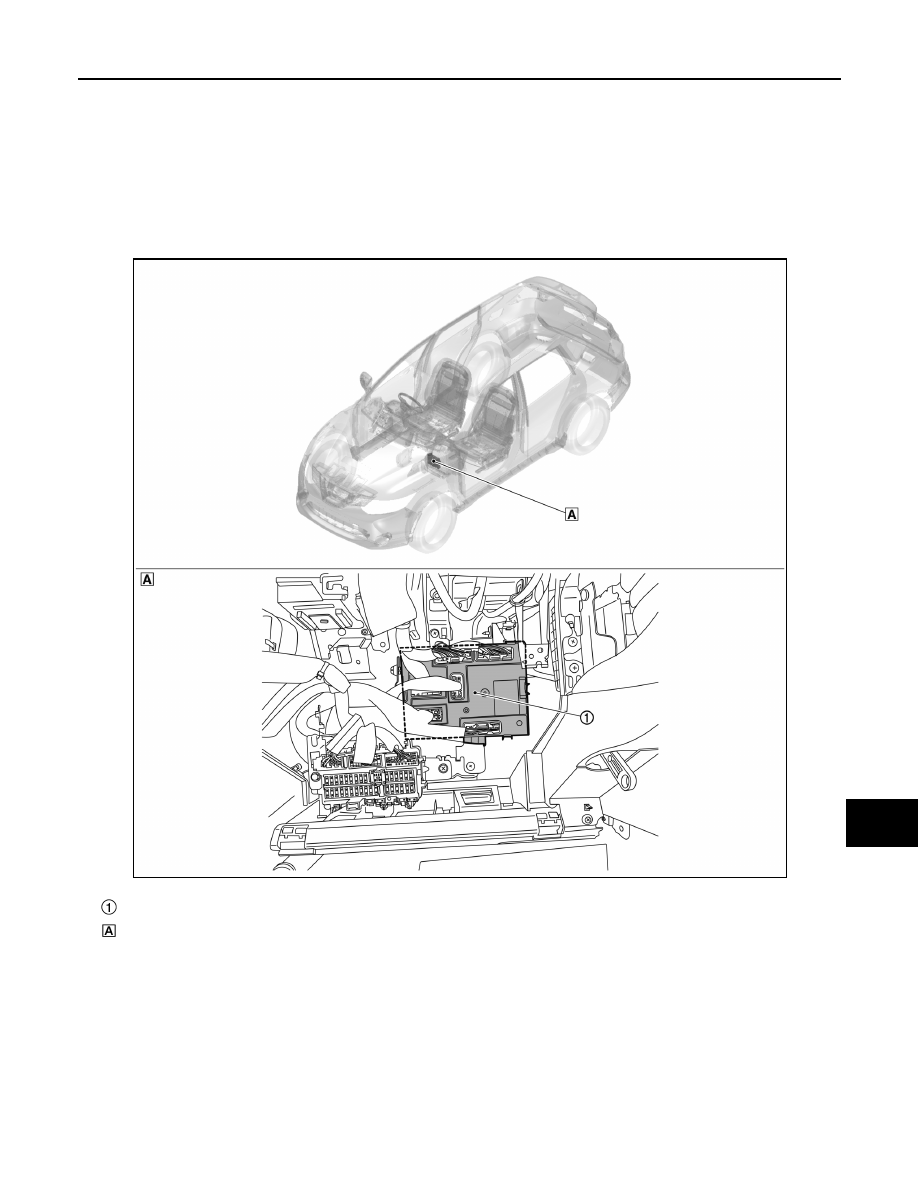

BODY CONTROL SYSTEM : Component Parts Location

INFOID:0000000010377986

RHD MODELS

LHD MODELS

BCM

Behind of glove box

JMMIA1751ZZ

BCS-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

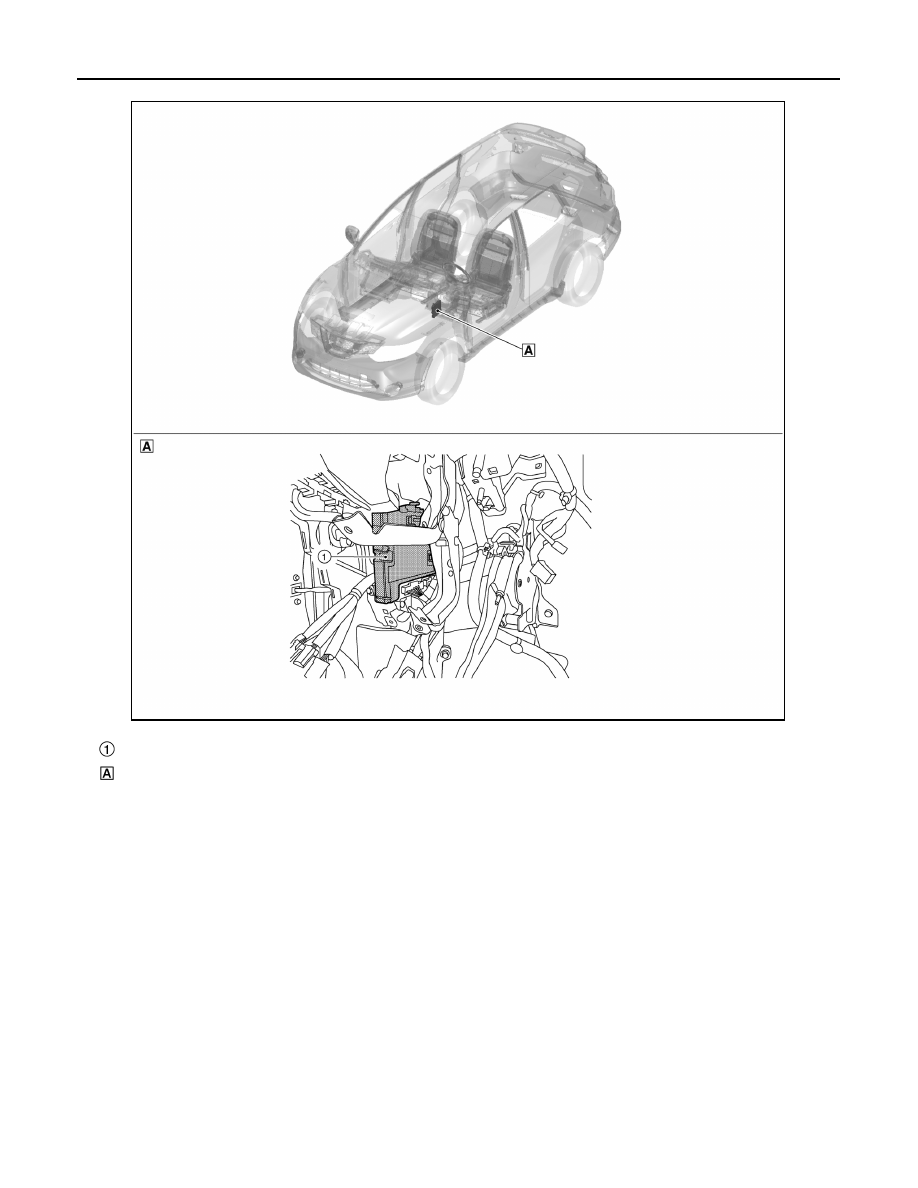

POWER CONSUMPTION CONTROL SYSTEM

BCM

Behind of instrument panel (LH)

JMMIA1766ZZ

BCS

COMPONENT PARTS

BCS-9

< SYSTEM DESCRIPTION >

POWER CONSUMPTION CONTROL SYSTEM : Component Parts Location

INFOID:0000000010377987

AV control unit
Refer to

AV-128, "Component Parts

Location"

Combination meter

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

BCM
Refer to

BCS-7, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

JMMIA1752ZZ

BCS-10

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

BODY CONTROL SYSTEM

BODY CONTROL SYSTEM : System Description

INFOID:0000000010377988

OUTLINE

• BCM (Body Control Module) controls the various electrical components. It inputs the information required to

the control from CAN communication and the signal received from each switch and sensor.

• BCM has combination switch reading function for reading the operation status of combination switches (light,

turn signal, wiper and washer) in addition to a function for controlling the operation of various electrical com-
ponents. It also has the signal transmission function as the passed point of signal and the power saving con-
trol function that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with the diagnosis function that performs the diagnosis with CONSULT and various set-

tings.

BCM CONTROL FUNCTION LIST

System

Reference

Combination switch reading system

BCS-13, "COMBINATION SWITCH READING SYSTEM : Sys-
tem Description"

Signal buffer system

BCS-17, "SIGNAL BUFFER SYSTEM : System Description"

Power consumption control system

BCS-18, "POWER CONSUMPTION CONTROL SYSTEM : Sys-
tem Description"

Shipping mode control system

BCS-20, "SHIPPING MODE CONTROL SYSTEM : System De-
scription"

Headlamp system

•

EXL-17, "HEADLAMP SYSTEM : System Description"

(LED

headlamp)

•

EXL-190, "HEADLAMP SYSTEM : System Description"

(Halo-

gen headlamp)

Auto light system

•

EXL-19, "AUTO LIGHT SYSTEM : System Description"

(LED

headlamp)

•

EXL-192, "AUTO LIGHT SYSTEM : System Description"

(Halogen headlamp)

High beam assist system

EXL-21, "HIGH BEAM ASSIST SYSTEM : System Description"

Daytime running light system

•

EXL-22, "DAYTIME RUNNING LIGHT SYSTEM : System De-
scription"

(LED headlamp)

•

EXL-193, "DAYTIME RUNNING LIGHT SYSTEM : System De-
scription"

(Halogen headlamp)

Turn signal and hazard warning lamp system

•

EXL-25, "TURN SIGNAL AND HAZARD WARNING LAMP
SYSTEM : System Description"

(LED headlamp)

•

EXL-194, "TURN SIGNAL AND HAZARD WARNING LAMP
SYSTEM : System Description"

(Halogen headlamp)

Parking, license plate and tail lamps system

•

EXL-26, "PARKING, LICENSE PLATE AND TAIL LAMP SYS-
TEM : System Description"

(LED headlamp)

•

EXL-195, "PARKING, LICENSE PLATE AND TAIL LAMP SYS-
TEM : System Description"

(Halogen headlamp)

Stop lamp system

•

EXL-28, "STOP LAMP SYSTEM : System Description"

(LED

headlamp)

•

EXL-198, "STOP LAMP SYSTEM : System Description"

(Halo-

gen headlamp)

Front fog lamp system

•

EXL-29, "FRONT FOG LAMP SYSTEM : System Description"

(LED headlamp)

•

EXL-198, "FRONT FOG LAMP SYSTEM : System Descrip-
tion"

(Halogen headlamp)

Rear fog lamp system

•

EXL-30, "REAR FOG LAMP SYSTEM : System Description"

(LED headlamp)

•

EXL-200, "REAR FOG LAMP SYSTEM : System Description"

(Halogen headlamp)

BCS

SYSTEM

BCS-11

< SYSTEM DESCRIPTION >

Exterior lamp battery saver system

•

EXL-31, "EXTERIOR LAMP BATTERY SAVER SYSTEM :
System Description"

(LED headlamp)

•

EXL-200, "EXTERIOR LAMP BATTERY SAVER SYSTEM :
System Description"

(Halogen headlamp)

Interior room lamp control system

INL-8, "INTERIOR ROOM LAMP CONTROL SYSTEM : System
Description"

Interior room lamp battery saver system

INL-10, "INTERIOR ROOM LAMP BATTERY SAVER SYSTEM :
System Description"

Illumination control system

INL-12, "ILLUMINATION CONTROL SYSTEM : System Descrip-
tion"

Spicy illumination control system

INL-13, "SPICY ILLUMINATION CONTROL SYSTEM : System
Description"

Front wiper and washer system

•

WW-10, "FRONT WIPER AND WASHER SYSTEM (WITH
LIGHT & RAIN SENSOR) : System Description"

(With rain sen-

sor)

•

WW-13, "FRONT WIPER AND WASHER SYSTEM (WITH-
OUT LIGHT & RAIN SENSOR) : System Description"

(Without

rain sensor)

Rear wiper and washer system

WW-17, "REAR WIPER AND WASHER SYSTEM : System De-
scription"

Headlamp washer system

WW-19, "HEADLAMP WASHER SYSTEM : System Description"

Rear window defogger system

DEF-7, "System Description"

Warning chime system

WCS-7, "WARNING CHIME SYSTEM : System Description"

Power door lock system

•

DLK-31, "System Diagram"

(Type 1)

•

DLK-205, "System Diagram"

(Type 2)

•

DLK-387, "System Diagram"

(Type 3)

•

DLK-512, "System Diagram"

(Type 4)

•

DLK-654, "System Diagram"

(Type 5)

•

DLK-836, "System Diagram"

(Type 6)

NOTE:
Refer to

DLK-24, "Information"

for details of type.

Intelligent Key system

•

DLK-33, "INTELLIGENT KEY SYSTEM : System Diagram"

(Type 1)

•

DLK-207, "INTELLIGENT KEY SYSTEM : System Diagram"

(Type 2)

•

DLK-657, "INTELLIGENT KEY SYSTEM : System Diagram"

(Type 5)

NOTE:
Refer to

DLK-24, "Information"

for details of type.

Remote keyless entry system

•

DLK-389, "REMOTE KEYLESS ENTRY FUNCTION : System
Diagram"

(Type 3)

•

DLK-514, "System Diagram"

(Type 4)

•

DLK-838, "System Diagram"

(Type 6)

NOTE:
Refer to

DLK-24, "Information"

for details of type.

Back door opener system

•

DLK-45, "System Description"

(Type 1)

•

DLK-219, "System Description"

(Type 2)

•

DLK-392, "System Description"

(Type 3)

•

DLK-516, "System Description"

(Type 4)

•

DLK-661, "BACK DOOR OPEN FUNCTION : System Dia-
gram"

(Type 5)

•

DLK-840, "System Description"

(Type 6)

NOTE:
Refer to

DLK-24, "Information"

for details of type.

Engine start system

SEC-15, "INTELLIGENT KEY SYSTEM/ENGINE START FUNC-
TION : System Description"

System

Reference

BCS-12

< SYSTEM DESCRIPTION >

SYSTEM

BODY CONTROL SYSTEM : Fail-safe

INFOID:0000000010506757

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.

Nissan Vehicle Immobilizer System-NATS

•

SEC-19, "NISSAN ANTI-THEFT SYSTEM : System Descrip-
tion"

(With Intelligent Key)

•

SEC-190, "NISSAN ANTI-THEFT SYSTEM : System Descrip-
tion"

(Without Intelligent Key)

Vehicle security system

•

SEC-22, "VEHICLE SECURITY SYSTEM : System Descrip-
tion"

(With Intelligent Key)

•

SEC-191, "VEHICLE SECURITY SYSTEM : System Descrip-
tion"

(Without Intelligent Key)

Power window system

PWC-10, "System Description"

CAN gateway

LAN-107, "System Description"

System

Reference

Display contents of CONSULT

Fail-safe

B2190–00: NATS ANTENNA AMP

Inhibit engine cranking

B2191–00: DIFFERENCE OF KEY

Inhibit engine cranking

B2192–00: ID DISCORD BCM-ECM

Inhibit engine cranking

B2193–00: CHAIN OF BCM-ECM

Inhibit engine cranking

B2195–00: ANTI-SCANNING

Inhibit engine cranking

B2196–00: DONGLE NG

Inhibit engine cranking

B2198–00: NATS ANTENNA AMP

Inhibit engine cranking

B2557–00: VEHICLE SPEED

Inhibit steering lock

B2602–00: SHIFT POSITION

Inhibit steering lock

B2604–00: PNP/CLUTCH SW

Inhibit steering lock

B2608–00: STARTER RELAY

Inhibit engine cranking

B260F–00: ENG STATE SIG LOST

Inhibit engine cranking

B26F1–00: IGN RELAY OFF

Inhibit engine cranking

B26F2–00: IGN RELAY ON

Inhibit engine cranking

B27D4–00: BCM - S/L SENSOR CIRCUIT

Inhibit steering unlock

B27D5–00: S/L SENSOR TEST OUTPUT

Inhibit steering unlock

B27D6–00: S/L CAN COMM CIRCUIT

Inhibit steering lock

B27D7–00: S/L PWR RELAY

Inhibit steering lock

B27D8–00: S/L VEHICLE SPEED MALFUNCTION

Inhibit steering lock

B27D9–00: S/L IGN MALFUNCTION

Inhibit steering lock/unlock

B27DA–00: IPDM CAN COMM CIRCUIT

Inhibit steering lock

B27DC–00: S/L POWER SUPPLY

Inhibit steering lock

B27DD–00: BCM - S/L ID DISCORD

Inhibit steering lock

B27DE–00: S/L MECHANICAL MALFUNCTION

Inhibit steering lock

B27DF–00: S/L HIGH LEVEL MALFUNCTION

Inhibit steering lock/unlock

B27E0–00: S/L LOW LEVEL MALFUNCTION

Inhibit steering lock

B27E1–00: S/L SAFETY CIRCUIT

Inhibit steering lock

B27E5–00: S/L IGN OFF POSITION

Inhibit steering lock

B27E6–00: S/L ANTI-SCAN MODE

Inhibit steering lock

B27E8–00: S/L UNDETERMINED LOCK POS

Inhibit steering lock

U0415: VEHICLE SPEED

Inhibit steering lock

BCS

SYSTEM

BCS-13

< SYSTEM DESCRIPTION >

REAR WIPER MOTOR PROTECTION

BCM detects the rear wiper stopping position according to the rear wiper stop position signal.
When the rear wiper stop position signal does not change for more than 5 seconds while driving the rear
wiper, BCM stops power supply to protect the rear wiper motor.

Condition of cancellation

More than 1 minute is passed after the rear wiper stop.

Turn rear wiper switch OFF.

Operate the rear wiper switch or rear washer switch.

FAIL-SAFE CONTROL OF COMBINATION SWITCH READING FUNCTION CAUSED BY LOW
POWER SUPPLY VOLTAGE

If voltage of battery power supply lower, BCM maintains combination switch reading to the status when input
voltage is less than approximately 9 V.
NOTE:
When voltage of battery power supply is approximately 9 V or more, combination switch reading function
returns to normal operation.

COMBINATION SWITCH READING SYSTEM

COMBINATION SWITCH READING SYSTEM : System Description

INFOID:0000000010377990

SYSTEM DIAGRAM

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5). It reads a

maximum of 20 switch status.

COMBINATION SWITCH MATRIX

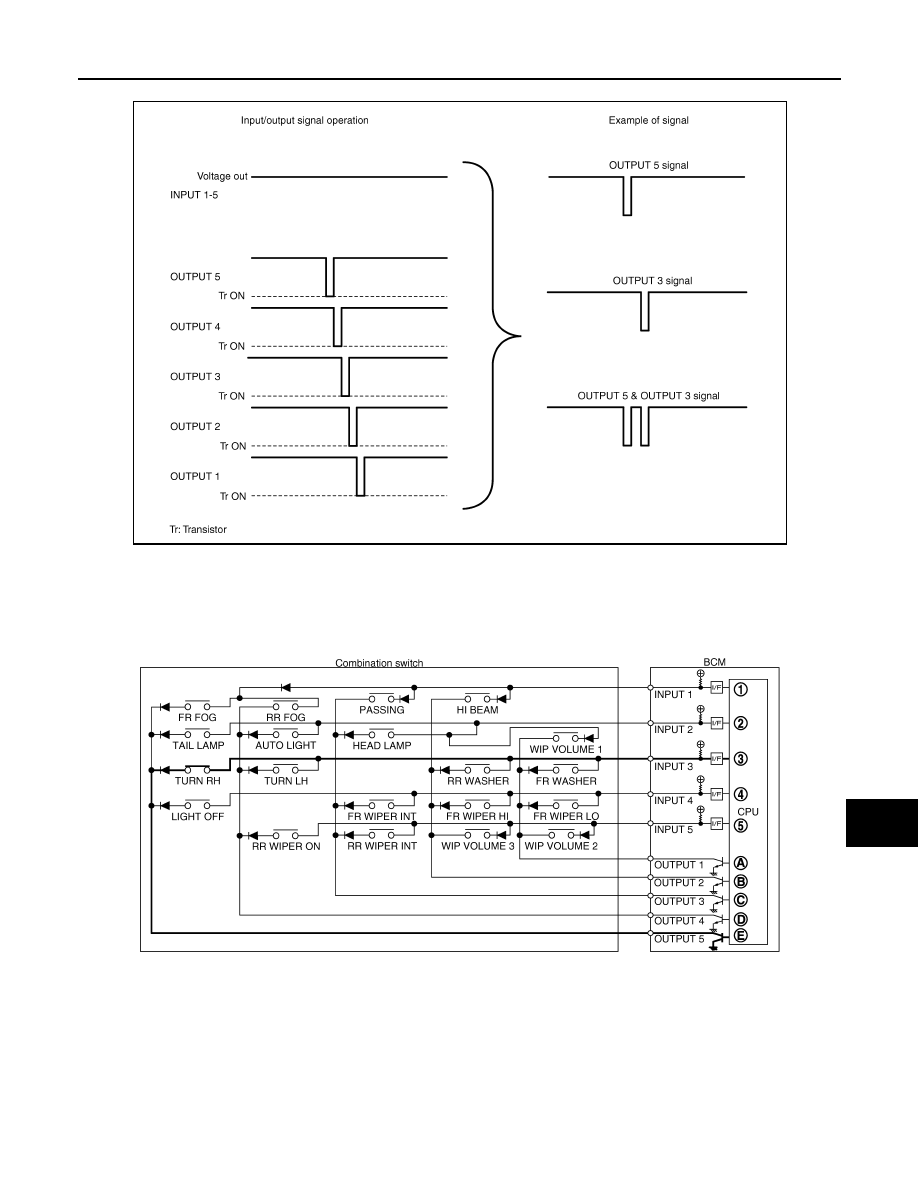

JMMIA1753GB

BCS-14

< SYSTEM DESCRIPTION >

SYSTEM

Combination switch circuit

Combination switch INPUT-OUTPUT system list

COMBINATION SWITCH READING FUNCTION

Description

• BCM reads the status of the combination switch at 10 ms interval

normally.
NOTE:
BCM reads the status of the combination switch at 60 ms interval
when BCM is controlled at low power consumption control mode.

• BCM operates as follows and judges the status of the combination switch.
- It operates the transistor on OUTPUT side in the following order: OUTPUT 5

→

1, and outputs

voltage waveform.

- The voltage waveform of OUTPUT corresponding to the formed circuit is input into the interface on INPUT

side if any (1 or more) switches are ON.

System

OUTPUT 1

OUTPUT 2

OUTPUT 3

OUTPUT 4

OUTPUT 5

INPUT 1

—

HI BEAM

PASSING

RR FOG

FR FOG

INPUT 2

WIP VOLUME 1

—

HEADLAMP

AUTO LIGHT

TAIL LAMP

INPUT 3

FR WASHER

RR WASHER

—

TURN LH

TURN RH

INPUT 4

FR WIPER LO

FR WIPER HI

FR WIPER INT/AUTO

—

LIGHT OFF

INPUT 5

WIP VOLUME 2

WIP VOLUME 3

RR WIPER INT

RR WIPER ON

—

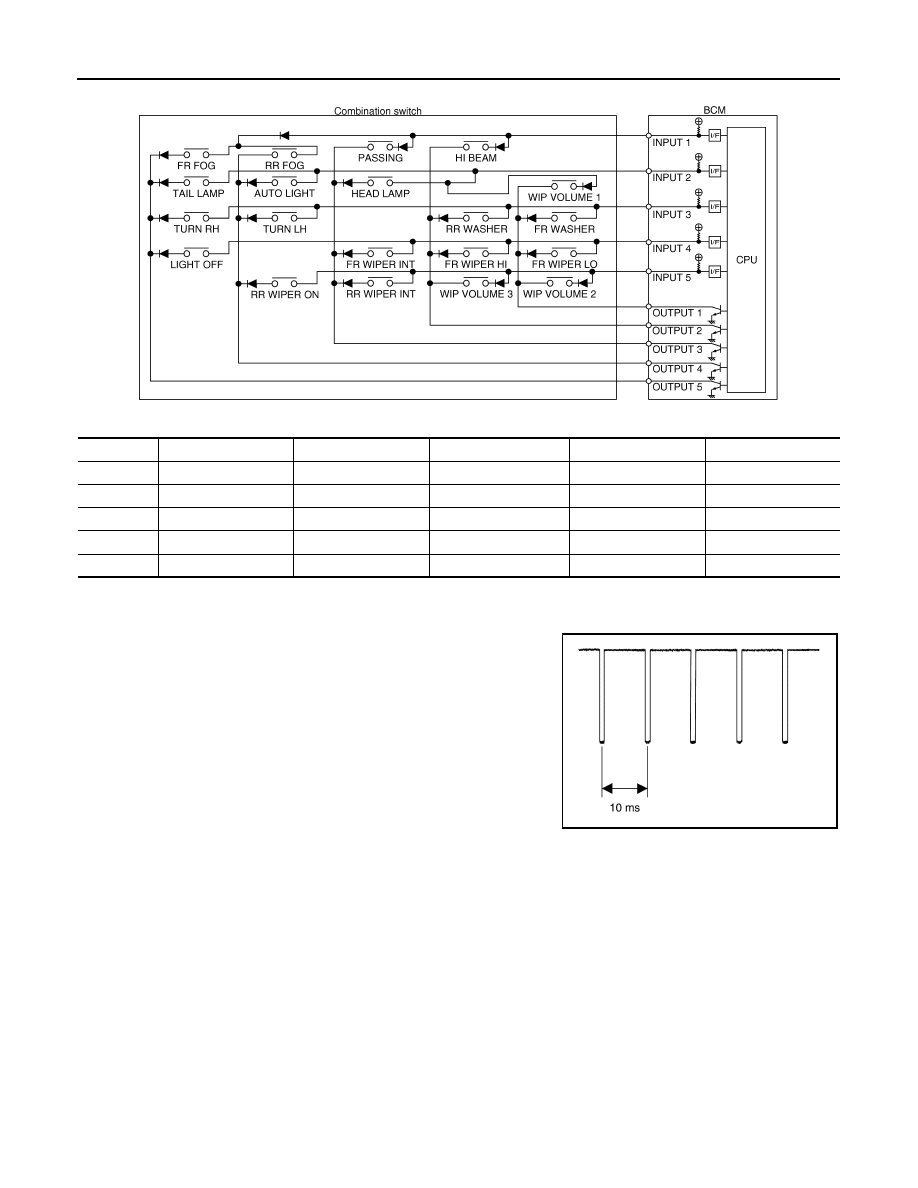

JMMIA1754GB

JMMIA1637GB

BCS

SYSTEM

BCS-15

< SYSTEM DESCRIPTION >

- It reads this change of the voltage as the status signal of the combination switch.

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced
as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

Example 1: When a switch (TURN RH switch) is turned ON

• The circuit between OUTPUT 5 and INPUT 3 is formed when the TURN RH switch is turned ON.

• BCM detects the combination switch status signal “3E” when the signal of OUTPUT 5 is input to INPUT 3.
• BCM judges that the TURN RH switch is ON when the signal “3E” is detected.

Example 2: When some switches (TURN RH switch, FR WASHER switch) are turned ON

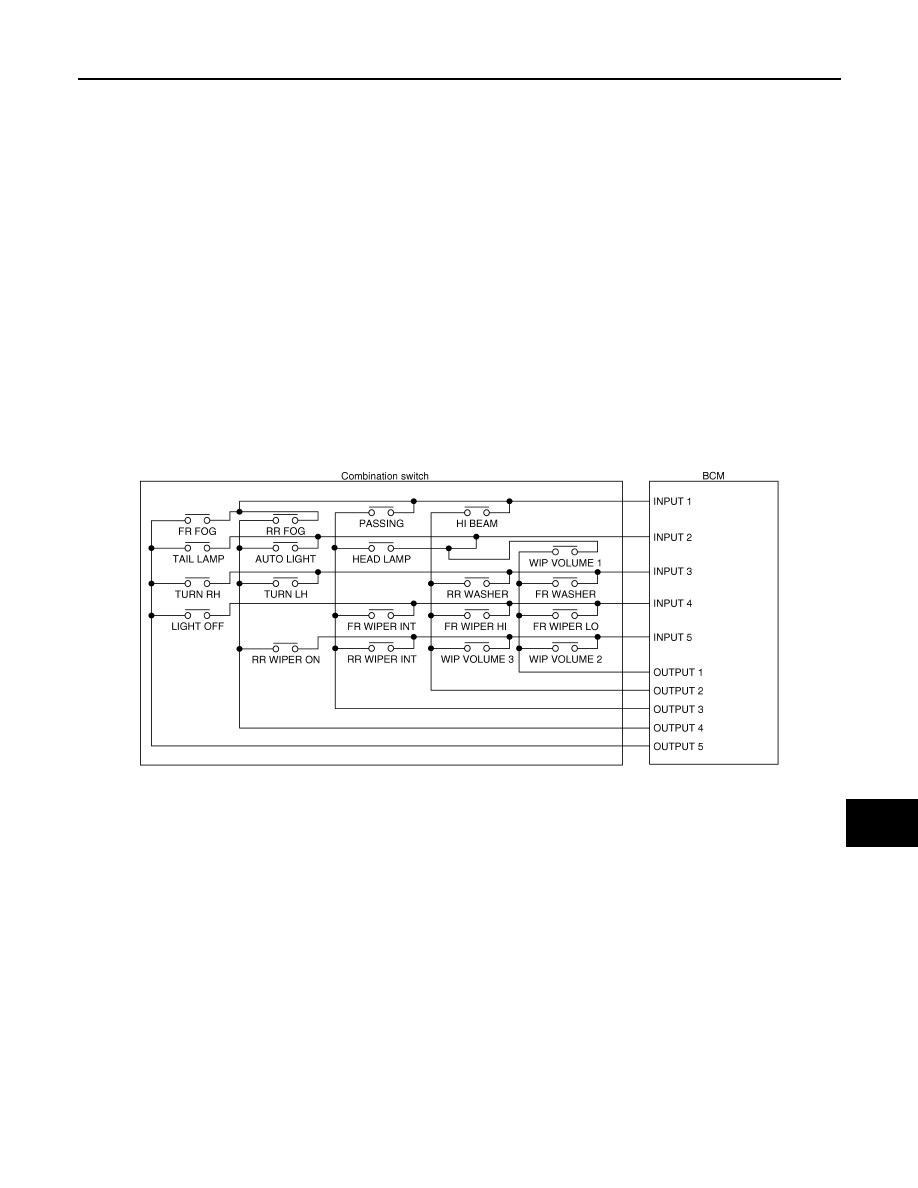

JMMIA1757GB

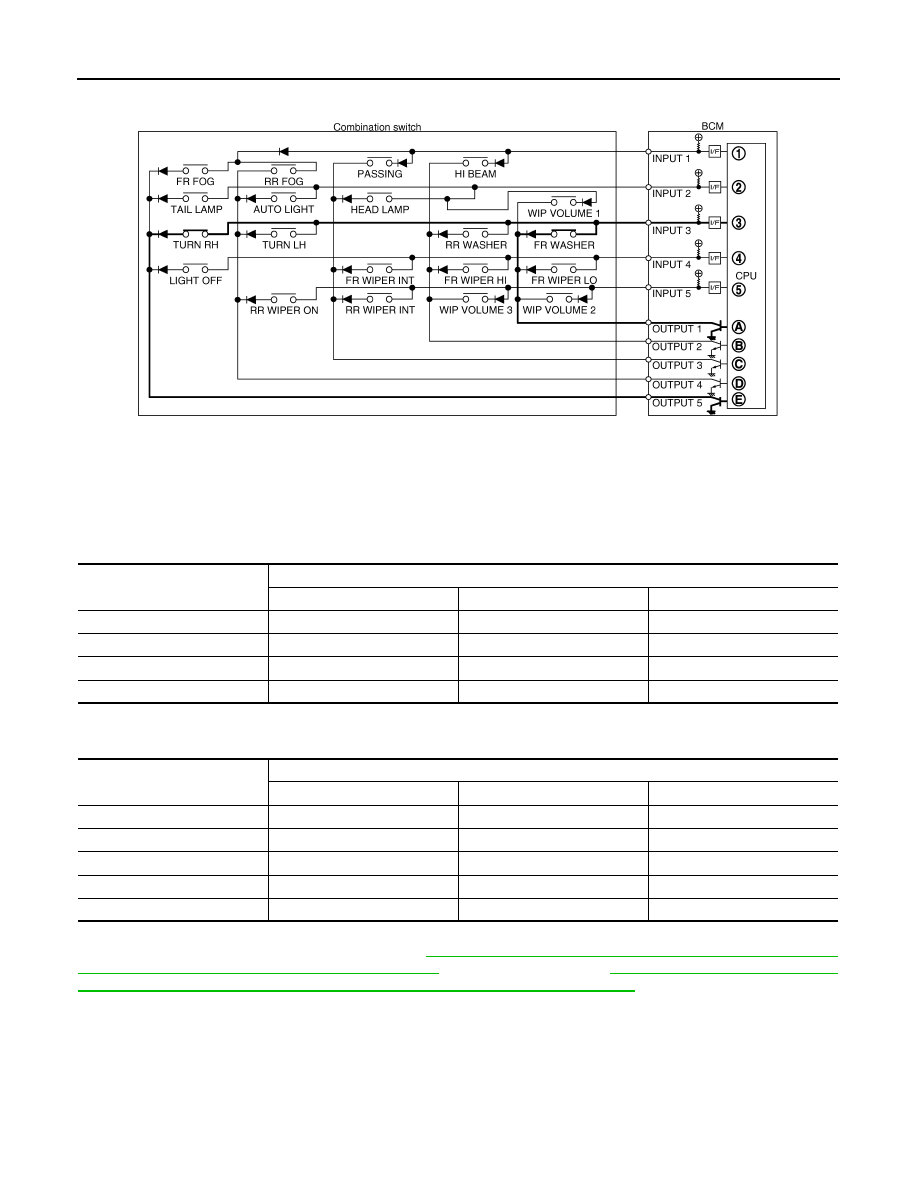

JMMIA1755GB
