HEADLAMP WASHER

WW-91

< REMOVAL AND INSTALLATION >

Replace headlamp washer nozzle assembly with a new part if headlamp washer jet position is outside
the headlamp illumination area.

WASHER TUBE

WASHER TUBE : Removal and Installation

INFOID:0000000010479844

REMOVAL

Remove front bumper fascia assembly. Refer to

EXT-19, "Removal and Installation"

Pull out washer tube from headlamp washer nozzle.

Disengage headlamp washer tube fixing portion, and then remove headlamp washer tube.

INSTALLATION

Note the following item, and then Install in the reverse order of removal.

CAUTION:

After installation, check that there is no leakage at operated washer.

WASHER PUMP

WASHER PUMP : Removal and Installation

INFOID:0000000010479845

REMOVAL

CAUTION:

When the washer tube and washer pump is removed, washer fluid may come out so prepare a con-
tainer to receive the fluid and never allow fluid to be sprinkled.

Remove front fender protector. Refer to

EXT-32, "Removal and Installation"

Pull out washer tube from washer pump.

Disconnect washer pump harness connector, pull out washer pump, and then remove washer pump.

Remove packing.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check that packing is inserted fully. (This may be the cause of washer fluid leakage and washer

pump looseness.)

• Add washer liquid up to the top of the washer tank inlet after installing. Check that there is no leak-

age.

• After installation, check that there is no leakage at operated washer.

WW-92

< REMOVAL AND INSTALLATION >

RAIN SENSOR

RAIN SENSOR

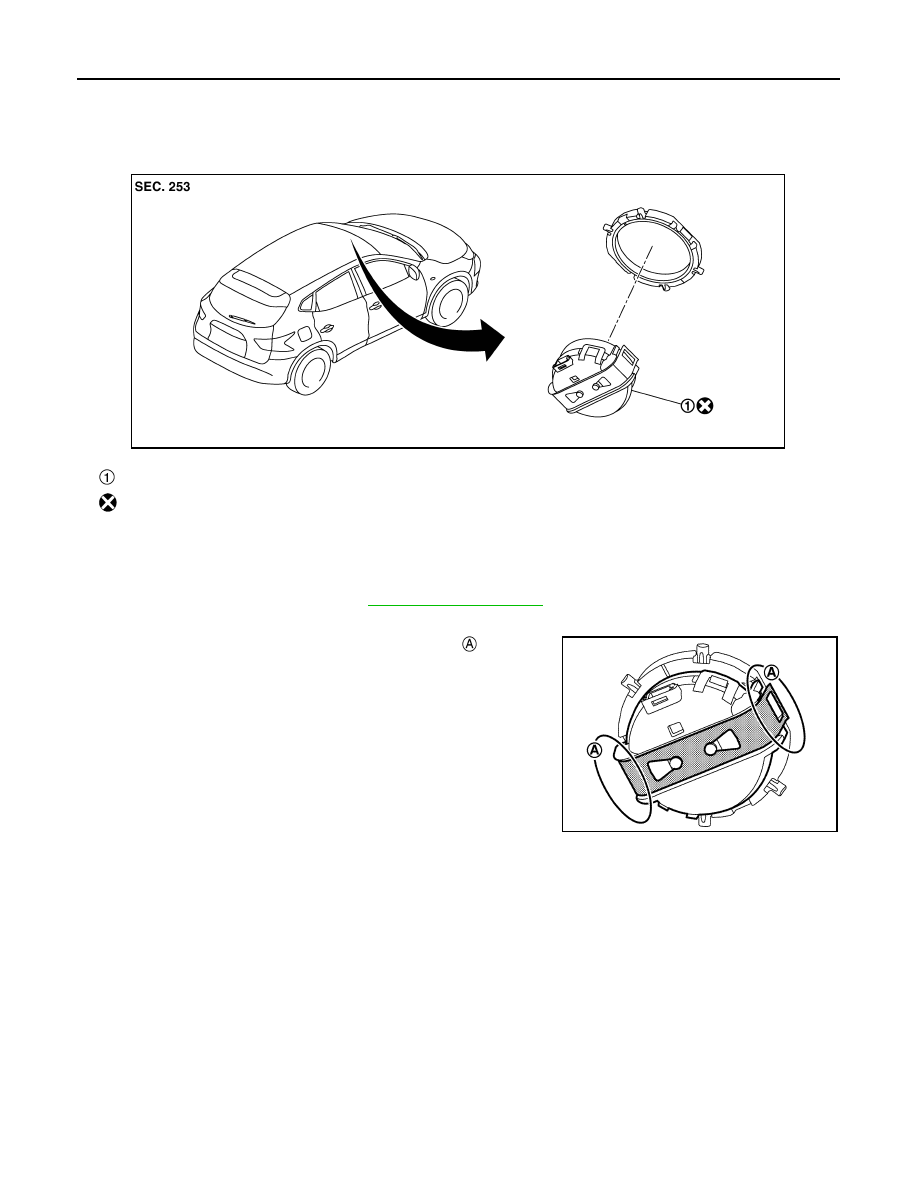

Exploded View

INFOID:0000000010479846

Removal and Installation

INFOID:0000000010479847

REMOVAL

Remove inside mirror cover. Refer to

MIR-29, "Exploded View"

Disconnect rain sensor harness connector.

Disengage rain sensor fixing lock spring portion

, and then

Peel off rain sensor.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace rain sensor with a new part after removal. Never reuse rain sensor.
• Clean the sensor installation portion of the windshield.
• When the sensor is removed, wipe off the silicon pad remaining on the windshield surface.

Rain sensor

: Always replace after every disassembly.

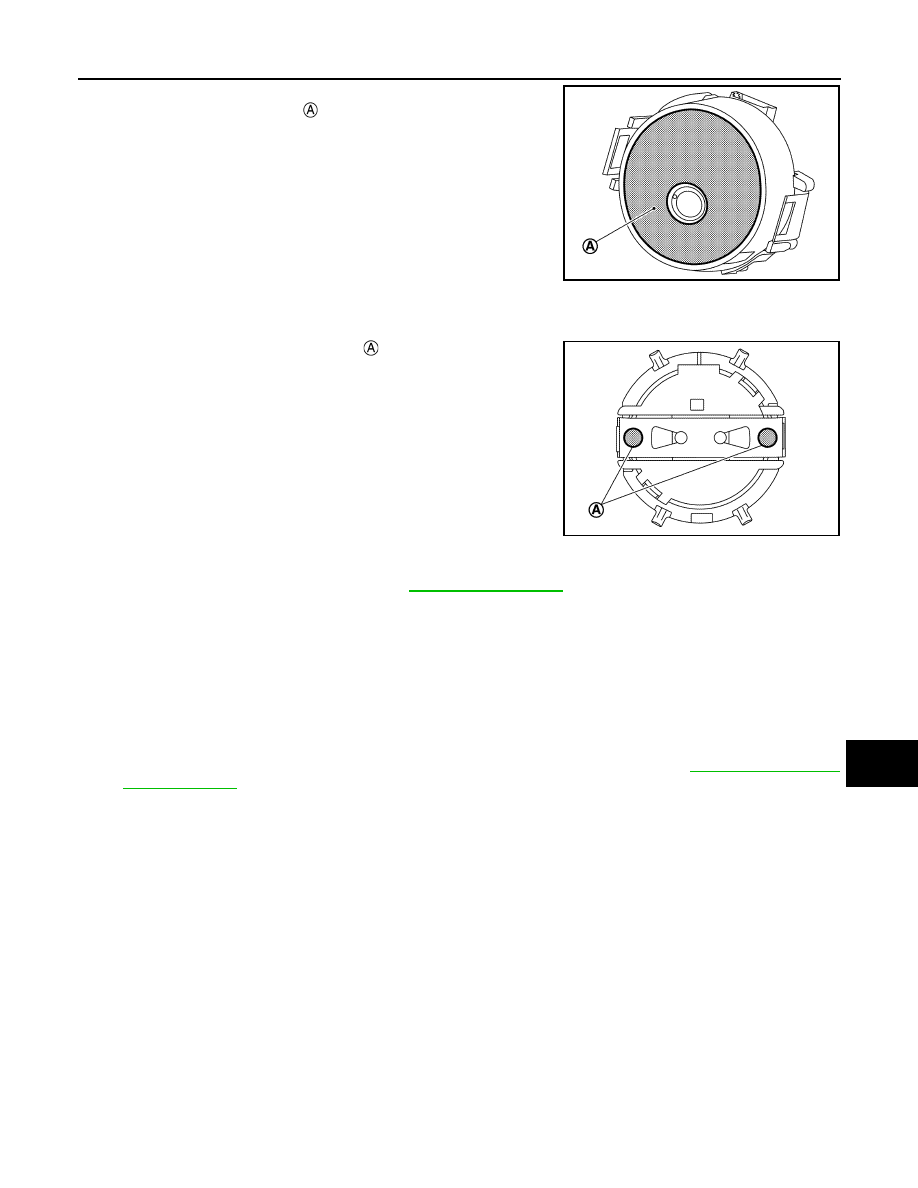

JMLIA5167ZZ

JMLIA4203ZZ

RAIN SENSOR

WW-93

< REMOVAL AND INSTALLATION >

• Remove the sensor protective cover just before installation.

Never touch the silicon pad

after removal of sensor protec-

tive cover.

• Install the rain sensor so that the connector faces vehicle upward.
• When installing, never allow silicon pad to touch the sensor bracket and other parts.
• Compress the lock spring portion

vertically to the glass

surface and fully engage both ends of lock spring.

• Never use a sensor that is dropped.
• Perform check after replacement. Refer to

WW-93, "Inspection"

Inspection

INFOID:0000000010479848

CAUTION:

Clean the windshield glass and wiper refill so that the windshield glass may not be damaged by dust,
etc.

Push the ignition switch to the ON position, and set the combination switch to AUTO.

Spray water mist toward the sensor.

Check that wiper operates.
• If the wiper does not operate, check the connection of the connector. Refer to

WW-54, "Component
