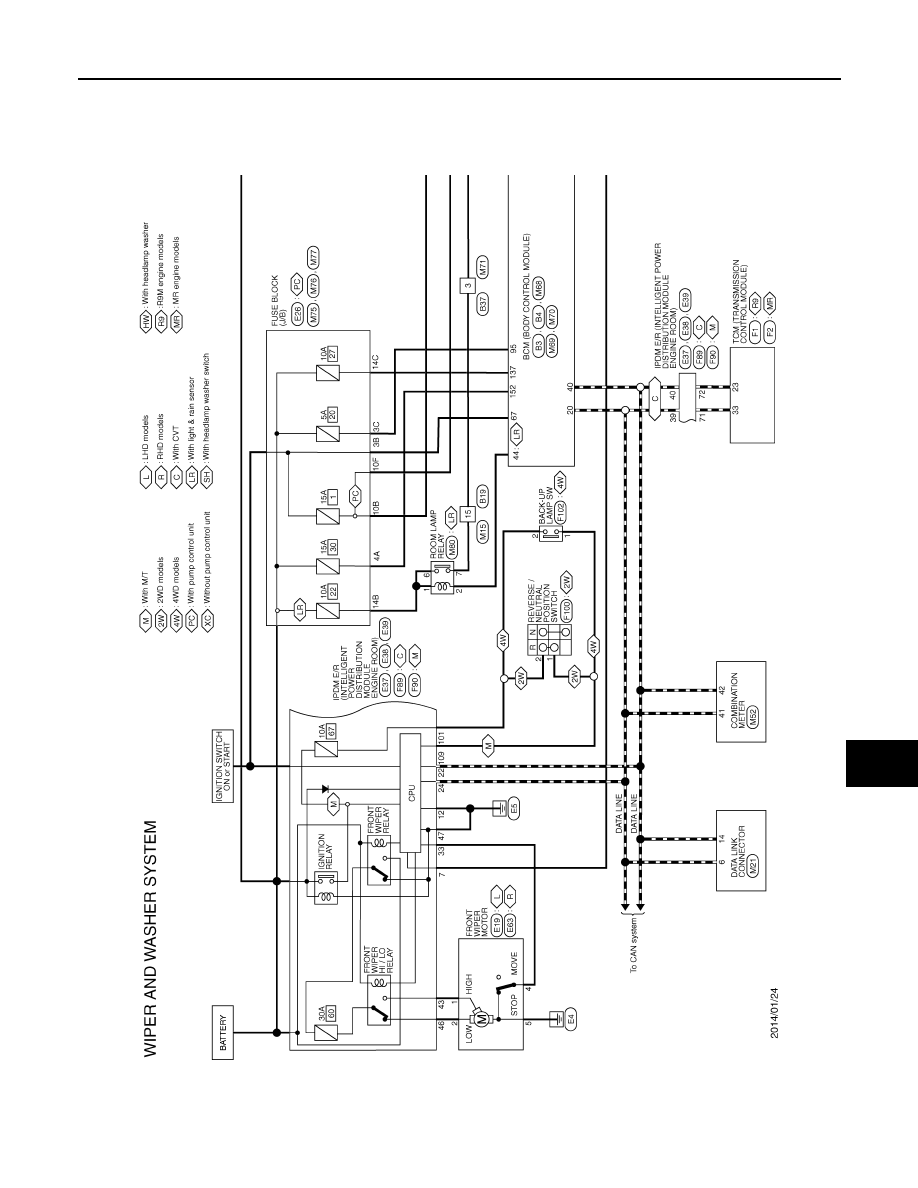

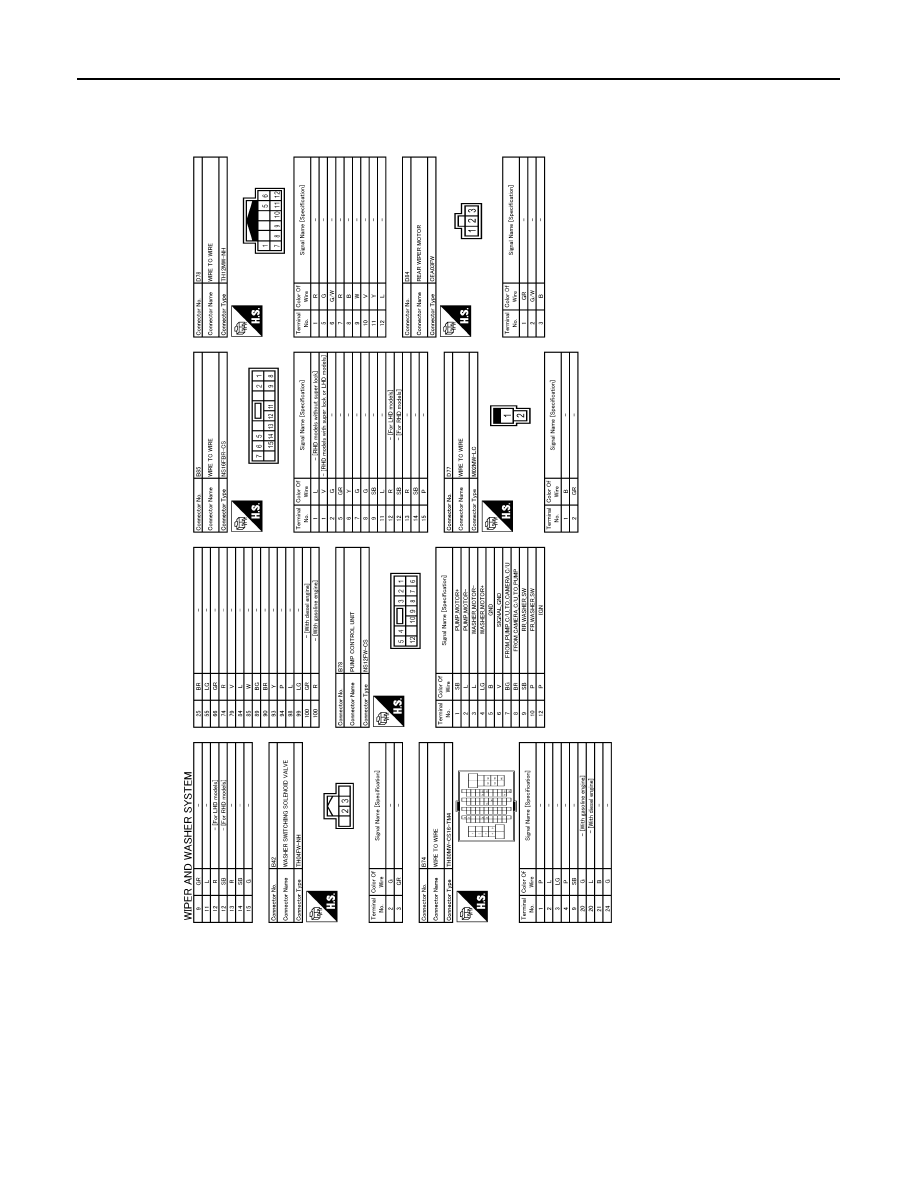

Qashqai J11. Wiper & washer - part 3

DIAGNOSIS SYSTEM (IPDM E/R)

WW-27

< SYSTEM DESCRIPTION >

A/C RELAY
[Off/On]

Displays the status of the A/C relay judged by IPDM E/R.

COMP ECV STATUS
[OK/NG]

Displays the compressor malfunction diagnosis status judged by IPDM E/R.

VEHICLE SECURITY HORN
[Off/On]

NOTE:
The item is indicated, but not monitored.

BATTERY CURRENT SENSOR
[OK/NG]

Displays the battery current sensor malfunction diagnosis status judged by IPDM E/
R.

FRONT FOG LAMP
[Off/On]

Displays the fog lamp illumination control status of IPDM E/R.

COMP ECV CURRENT
[A]

Displays the electric current output to compressor judged by IPDM E/R.

BATTERY VOLTAGE
[V]

Displays the status of the battery voltage judged by IPDM E/R.

COOLING FAN DUTY
[%]

Displays the cooling fan output signal status of IPDM E/R.

HOOD SW (CAN)
[Open/Close]

Displays the status of the hood switch judged by IPDM E/R.

FRONT WIPER
[STOP/HI/LO/NG]

Displays the front wiper motor drive control status of IPDM E/R.

FR WIPER STOP POSITION
[ACTIVE P/STOP P]

Displays the status of the front wiper position status judged by IPDM E/R.

HEADLAMP (HI)
[Off/On]

Displays the headlamp (HI) illumination control status of IPDM E/R.

HEADLAMP (LO)
[Off/On]

Displays the headlamp (LO) illumination control status of IPDM E/R.

IGN RELAY MONITOR
[Off/On]

Displays the status of the ignition relay judged by IPDM E/R.

IGNITION POWER SUPPLY
[Off/On]

Displays the status of the ignition power supply judged by IPDM E/R.

INTERLOCK/PNP SW (CAN)
[Off/On]

Displays the status of the transmission range switch signal that IPDM transmits via
CAN communication.

NEUTRAL SWITCH (CAN)
[Off/On]

Displays the status of the reverse/neutral position switch (M/T) signal that IPDM
transmits via CAN communication.

PUSH-BUTTON IGN SW (CAN)
[Off/On]

Displays the status of the ignition switch signal that IPDM transmits via CAN commu-
nication.

TAIL LAMP
[Off/On]

Displays the tail lamp illumination control status of IPDM E/R.

REVERSE SIGNAL (CAN)
[Off/On]

Displays the status of the steering lock relay signal received from BCM via CAN com-
munication.

STARTER MOTOR STATUS
[Off/On]

Displays the status of the starter motor judged by IPDM E/R.

STARTER RELAY (CAN)
[LOW/HIGH]

Displays the status of the IPDM E/R transmits the starter control relay status signal
via CAN communication.

IPDM NOT SLEEP
[NO RDY/READY]

Displays the status of the IPDM E/R transmits the not sleep signal via CAN commu-
nication.

STOP/START STATUS
[PRHBT/PERMIT]

Displays the status of the stop/starter system ready judged by IPDM E/R.

AFTER COOLING TIME
[No request/0.5min/1.0min/1.5min/
2.0min/2.5min/3.0min/3.5min/4min/5min/
6min/8min/10min/12min/14min/16min]

NOTE:
The item is indicated, but not monitored.

Monitor Item

[Unit]

Description

WW-28

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

AFTER COOLING SPEED
[0%/25%/40%/55%/70%/78%/85%/
100%]

NOTE:
The item is indicated, but not monitored.

COOLING FAN TYPE
[RENAULT/NISSAN]

NOTE:
The item is indicated, but not monitored.

COMPRESSOR REQ 1
[Off/On]

Displays the status of the A/C compressor request signal received from ECM via CAN
communication.

VHCL SECRITY HORN REQ
[Off/On]

NOTE:
The item is indicated, but not monitored.

DTRL REQ
[Off/On]

Displays the status of the daytime running light request signal received from BCM via
CAN communication.

SLEEP/WAKE UP
[SLEEP/WAKEUP]

NOTE:
The item is indicated, but not monitored.

CLUTCH INTERLOCK SW
[Off/On]

NOTE:
The item is indicated, but not monitored.

CRANKING ENABLE-TCM
[OK/NG]

Displays the status of the cranking enable signal received from TCM via CAN com-
munication.

CRANKING ENABLE-ECM
[OK/NG]

Displays the status of the cranking enable signal received from ECM via CAN com-
munication.

CAN DIAGNOSIS
[OK/NG]

Displays the status of the CAN diagnosis signal received from BCM via CAN commu-
nication.

FRONT FOG LAMP REQ
[Off/On]

Displays the status of the front fog light request signal received from BCM via CAN
communication.

H/L WASHER REQ
[Off/On]

Displays the status of the headlamp washer request signal received from BCM via
CAN communication.

PASSING REQ
[Off/On]

NOTE:
The item is indicated, but not monitored.

HIGH BEAM REQ
[Off/On]

Displays the status of the high beam request signal received from BCM via CAN com-
munication.

HORN CHIRP
[Off/On]

NOTE:
The item is indicated, but not monitored.

COOLING FAN REQ
[%]

Displays the status of the cooling fan speed request signal received from ECM via
CAN communication.

ENGINE STATUS
[STOP/IDLING/RUN]

Displays the status of the engine status signal received from ECM via CAN commu-
nication.

TURN SIGNAL REQ
[Off/On]

Displays the status of the turn indicator signal received from BCM via CAN commu-
nication.

FR WIPER REQ
[Off/On]

Displays the status of the front wiper request signal received from BCM via CAN com-
munication.

SHIFT POSITION
[OFF/P/R/N/D/S/L/B/1/2/3/4/5/6/7]

Displays the status of the shift position signal received from TCM via CAN communi-
cation.

LOW BEAM REQ
[Off/On]

Displays the status of the low beam request signal received from BCM via CAN com-
munication.

POSITION LIGHT REQ
[Off/On]

Displays the status of the position light request signal received from BCM via CAN
communication.

COMPRESSOR REQ 2
[Off/On]

Displays the status of the A/C ON signal received from A/C auto amp. via CAN com-
munication.

IGNITION SW
[Off/On/START]

Displays the status of the ignition switch ON signal and starter control relay request
signal received from BCM via CAN communication.

VEHICLE SPEED (METER)
[km/h]

Displays the status of the A/C ON signal received from A/C auto amp. via CAN com-
munication.

Monitor Item

[Unit]

Description

DIAGNOSIS SYSTEM (IPDM E/R)

WW-29

< SYSTEM DESCRIPTION >

BAT DISCHAGE COUNT
[—]

Monitor the cumulative discharge value of the battery.
NOTE:
When 65,000 or more is counted, replace the battery. (Only with stop/start system
modls)

P LAMP CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the parking lamp circuit.
NOTE:
When the number of parking lamp circuit retries count is 20, this item counts 1.

NMB P LAMP CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
parking lamp circuit.
NOTE:
When the number of short circuits in the parking lamp circuit count is 5 and the igni-
tion switch OFF to ON operation is detected, this item counts 1.

NMB P LAMP CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the parking lamp circuit.

DTRL LH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the daytime running light (left) circuit.
NOTE:
When the number of daytime running light (left) circuit retries count is 20, this item
counts 1.

NMB DTRL LH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
daytime running light (left) circuit.
NOTE:
When the number of short circuits in the daytime running light (left) circuit count is 5
and the ignition switch OFF to ON operation is detected, this item counts 1.

NMB DTRL LH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the daytime running light (left) circuit.

DTRL RH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the daytime running light (right) circuit.
NOTE:
When the number of daytime running light (right) circuit retries count is 20, this item
counts 1.

NMB DTRL RH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
daytime running light (right) circuit.
NOTE:
When the number of short circuits in the daytime running light (right) circuit count is
5 and the ignition switch OFF to ON operation is detected, this item counts 1.

NMB DTRL RH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the daytime running light (right) circuit.

F FOG LH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the front fog lamp (left) circuit.
NOTE:
When the number of front fog lamp (left) circuit retries count is 20, this item counts 1.

NMB F FOG LH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
front fog lamp (left) circuit.
NOTE:
When the number of short circuits in the front fog lamp (left) circuit count is 5 and the
ignition switch OFF to ON operation is detected, this item counts 1.

NMB F FOG LH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the front fog lamp (left) circuit.

F FOG RH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the front fog lamp (right) circuit.
NOTE:
When the number of front fog lamp (right) circuit retries count is 20, this item counts 1.

Monitor Item

[Unit]

Description

WW-30

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

NMB F FOG RH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
front fog lamp (right) circuit.
NOTE:
When the number of short circuits in the front fog lamp (right) circuit count is 5 and
the ignition switch OFF to ON operation is detected, this item counts 1.

NMB F FOG RH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the front fog lamp (right) circuit.

HL (HI) LH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the headlamp (HI) (left) circuit.
NOTE:
When the number of headlamp (HI) (left) circuit retries count is 20, this item counts 1.

NMB HL (HI) LH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
headlamp (HI) (left) circuit.
NOTE:
When the number of short circuits in the headlamp (HI) (left) circuit count is 5 and the
ignition switch OFF to ON operation is detected, this item counts 1.

NMB HL (HI) LH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the headlamp (HI) (left) circuit.

HL (HI) RH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the headlamp (HI) (right) circuit.
NOTE:
When the number of headlamp (HI) (right) circuit retries count is 20, this item counts
1.

NMB HL (HI) RH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
headlamp (HI) (right) circuit.
NOTE:
When the number of short circuits in the headlamp (HI) (right) circuit count is 5 and
the ignition switch OFF to ON operation is detected, this item counts 1.

NMB HL (HI) RH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the headlamp (HI) (right) circuit.

S/L CIRC MALFUNCTION
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the steering lock circuit.
NOTE:
When the number of steering lock circuit retries count is 20, this item counts 1.

NMB S/L CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
steering lock circuit.
NOTE:
When the number of short circuits in the steering lock circuit count is 5 and the ignition
switch OFF to ON operation is detected, this item counts 1.

NMB S/L CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the steering lock circuit.

HL (LO) LH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the headlamp (LO) (left) circuit.
NOTE:
When the number of headlamp (LO) (left) circuit retries count is 20, this item counts 1.

NMB HL (LO) LH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
headlamp (LO) (left) circuit.
NOTE:
When the number of short circuits in the headlamp (LO) (left) circuit count is 5 and
the ignition switch OFF to ON operation is detected, this item counts 1.

NMB HL (LO) LH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the headlamp (LO) (left) circuit.

HL (LO) RH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the headlamp (LO) (right) circuit.
NOTE:
When the number of headlamp (LO) (right) circuit retries count is 20, this item counts
1.

Monitor Item

[Unit]

Description

DIAGNOSIS SYSTEM (IPDM E/R)

WW-31

< SYSTEM DESCRIPTION >

ACTIVE TEST

WORK SUPPORT

NMB HL (LO) RH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
headlamp (LO) (right) circuit.
NOTE:
When the number of short circuits in the headlamp (LO) (right) circuit count is 5 and
the ignition switch OFF to ON operation is detected, this item counts 1.

NMB HL (LO) RH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the headlamp (LO) (right) circuit.

T LAMP LH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the tail lamp (left) circuit.
NOTE:
When the number of tail lamp (left) circuit retries count is 20, this item counts 1.

NMB T LAMP LH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
tail lamp (left) circuit.
NOTE:
When the number of short circuits in the tail lamp (left) circuit count is 5 and the igni-
tion switch OFF to ON operation is detected, this item counts 1.

NMB T LAMP LH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the tail lamp (left) circuit.

T LAMP RH CIRC MALFUNCTN
[0 – 1]

Monitor the number of times that the smart FET in IPDM E/R reaches the retry upper
limit of the tail lamp (right) circuit.
NOTE:
When the number of tail lamp (right) circuit retries count is 20, this item counts 1.

NMB T LAMP RH CIRC RETRY
[0 – 20]

Monitor the number of times that the smart FET in IPDM E/R permits the retry of the
tail lamp (right) circuit.
NOTE:
When the number of short circuits in the tail lamp (right) circuit count is 5 and the ig-
nition switch OFF to ON operation is detected, this item counts 1.

NMB T LAMP RH CIRC SHORT
[0 – 5]

Monitor the number of times that the smart FET in IPDM E/R detects the over current
of the tail lamp (right) circuit.

BATTERY STATUS
[OK/NG]

Monitor the battery status from the battery output.

Monitor Item

[Unit]

Description

Test item

Operation

Description

HORN

Operates horn relay for 20 ms.
