ACTIVE TRACE CONTROL FUNCTION

ACTIVE TRACE CONTROL FUNCTION : System Description

INFOID:0000000010329800

• Active trace control function controls the braking utilizing the ABS actuator and electric unit (control unit),

depending on cornering condition calculated from driver's steering input and plural sensors.

• Active trace control function is aimed to enhance traceability at corners and smooth the vehicle movement to

provide confident driving.

• When the ESP/VDC OFF switch is used to turn OFF the ESP/VDC system, the active trace control system is

also turned OFF.

• When the active trace control is operated, active trace control graphics are shown on the information display

of combination meter. These are shown only when “Chassis control” is selected on the information display.
Refer to

MWI-17, "INFORMATION DISPLAY : System Description"

.

• When the active trace control is not functioning properly, the master warning lamp illuminates. Warning mes-

sage “Chassis control” will also appear on information display.

NOTE:
• The active trace control may not be effective depending on the driving condition. Always driving carefully and

attentively.

• Brake pedal may vibrate and brake pedal feel may change during active trace control operation. Also opera-

tion noise may be noticeable during operation. These are not abnormal conditions.

• When the active trace control is selected OFF, some functions will be kept ON to assist driver. (For example,

avoidance condition.)

OPERATION CHARACTERISTICS

Component

Signal description

ECM

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Accelerator pedal position signal
• Engine speed signal
• Engine torque signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• Engine torque request signal

TCM

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Current gear position signal

Chassis control module

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Active trace control signal

Combination meter

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• Brake fluid level switch signal
• Parking brake switch signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• Brake warning lamp signal
• ABS warning lamp signal
• ESP/VDC warning lamp signal
• ESP/VDC OFF indicator lamp signal

Steering angle sensor

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Steering angle sensor signal
• Steering angle sensor malfunction signal

BRC-38

< SYSTEM DESCRIPTION >

[WITH ESP]

SYSTEM

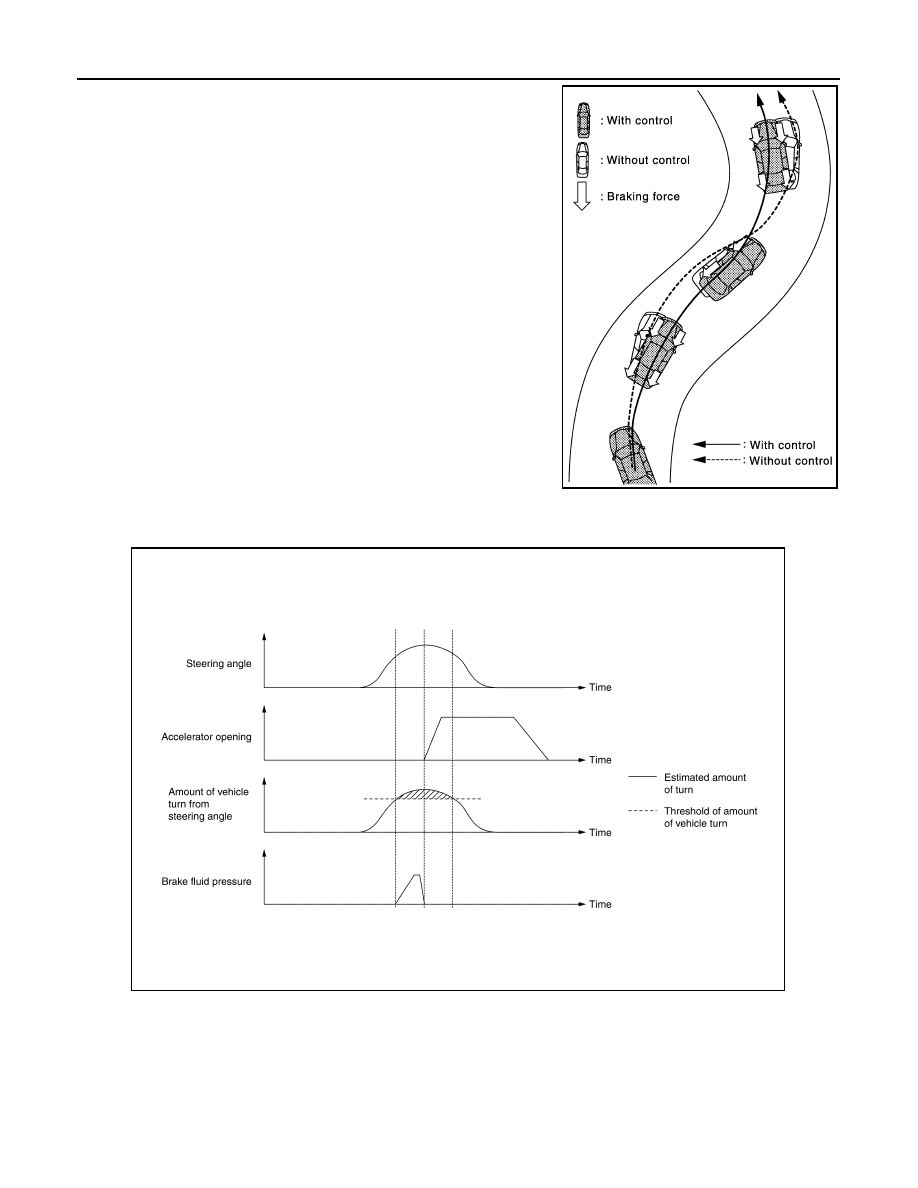

Active trace control helps enhance the transition from braking into
and then accelerating out of corners. Active trace control utilizes the
vehicle

s electrically-driven intelligent brake system to help improve

cornering feel by automatically applying brakes. Furthermore, Active
trace control will apply selective braking to help create increased
steering response in S-turns. For example, if driving through an S-
turn that starts with steering to the right, the right-side brakes are
engaged to create a yaw momentum and help turn the vehicle.

• Brake control amount is controlled according to steering operation status by the driver and vehicle cornering

status.

JPFIC0167GB

JSFIA2098GB

SYSTEM

BRC-39

< SYSTEM DESCRIPTION >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

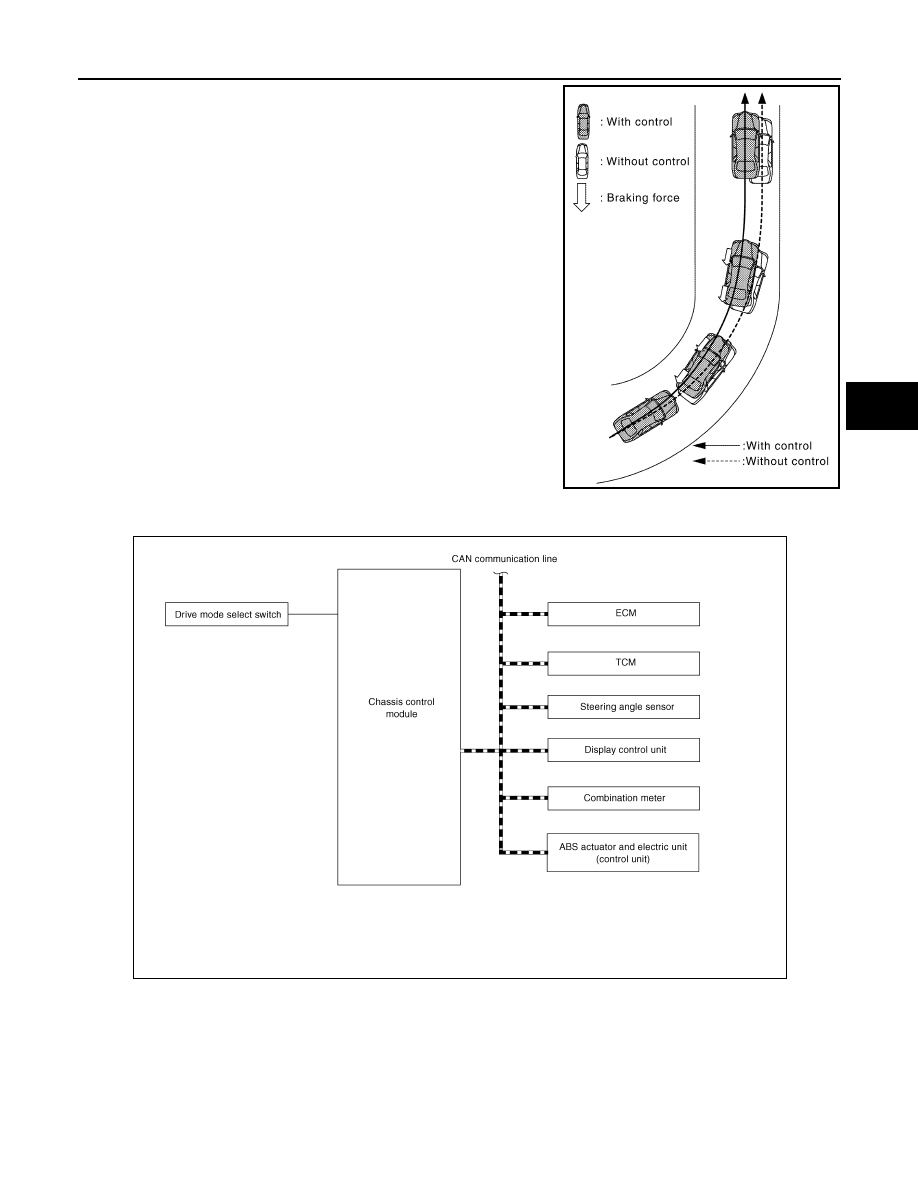

• During cornering, the brake control system limits changes in steer-

ing angle by controlling the inner ring brakes according to acceler-
ator pedal operation and allows smooth movement of the vehicle
to achieve stable cornering.

SYSTEM DIAGRAM

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

JSFIA2009GB

ALFIA0422GB

BRC-40

< SYSTEM DESCRIPTION >

[WITH ESP]

SYSTEM

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp

INFOID:0000000010329801

Component

Signal description

ECM

Mainly transmits the following signals to chassis control module via CAN communication.
• Accelerator pedal position signal
• Engine torque signal
• Engine speed signal

TCM

Mainly transmits the following signals to chassis control module via CAN communication.
• Current gear position signal

ABS actuator and electric unit (control
unit)

Mainly transmits the following signals to chassis control module via CAN communication.
• Front LH wheel speed signal
• Front RH wheel speed signal
• Rear LH wheel speed signal
• Rear RH wheel speed signal
• ABS operation signal
• TCS operation signal
• VDC operation signal
• Stop lamp switch signal
• Vehicle speed signal (ABS)
• Yaw rate signal
• Side G signal
• Decel G signal
• ESP/VDC OFF switch signal
• Brake fluid pressure signal
• Steering angle sensor signal
Mainly receives the following signals from chassis control module via CAN communication.
• Active trace control signal

Steering angle sensor

Mainly transmits the following signals to chassis control module via CAN communication.
• Steering angle sensor signal

Chassis control module

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Active Trace Control signal
• Drive mode signal

Display control unit

Mainly transmits the following signals to chassis control module via CAN communication line.
• System selection signal

Combination meter

Mainly receives the following signals from chassis control module via CAN communication.
• Chassis control malfunction signal
• Active trace control display signal

Name

Design

Layout/Function

ABS warning lamp

or

For layout: Refer to

BRC-28, "ABS FUNCTION : System Description"

.

For function: Refer to

BRC-125, "Component Function Check"

.

Brake warning lamp

or

For layout: Refer to

BRC-36, "BRAKE FORCE DISTRIBUTION FUNCTION : System De-

scription"

.

For function: Refer to

BRC-126, "Component Function Check"

.
