SYSTEM

BRC-25

< SYSTEM DESCRIPTION >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

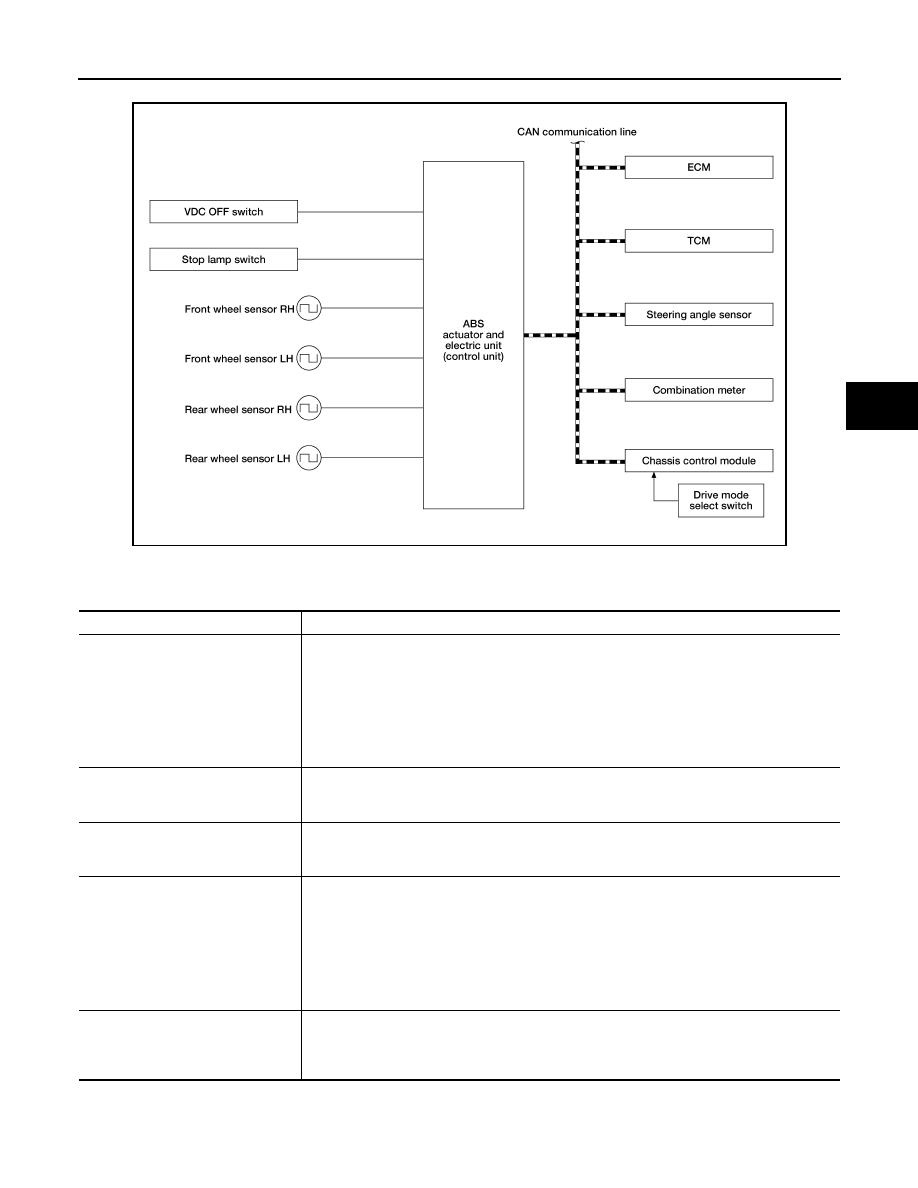

SYSTEM DIAGRAM

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

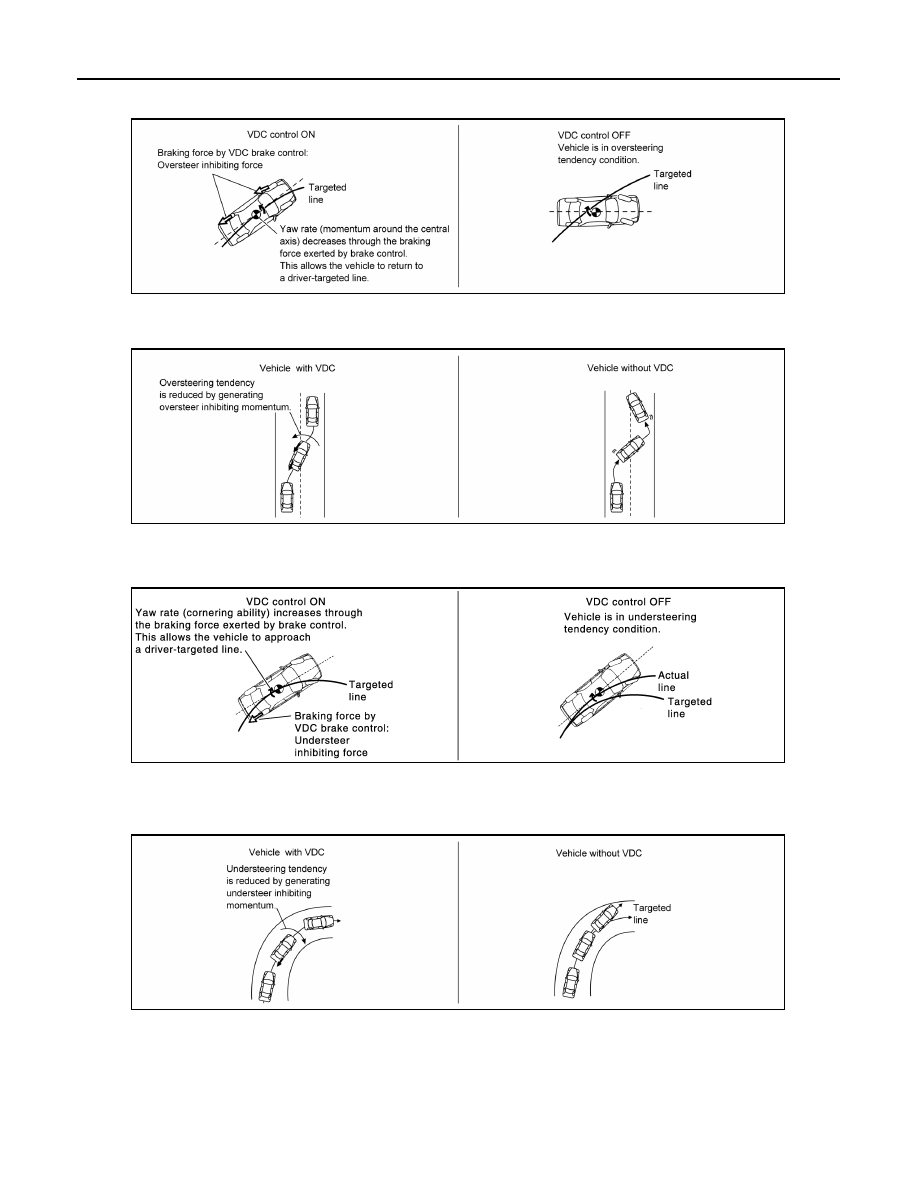

OPERATION CHARACTERISTICS

VDC Function That Prevents Oversteer Tendency

ALFIA0420GB

Component

Signal description

ECM

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Accelerator pedal position signal
• Engine speed signal
• Engine torque signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• Engine torque request signal

TCM

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Current gear position signal

Chassis control module

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Active trace control signal

Combination meter

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• Brake fluid level switch signal
• Parking brake switch signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• ESP warning lamp signal
• ESP OFF indicator lamp signal

Steering angle sensor

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Steering angle sensor signal
• Steering angle sensor malfunction signal

BRC-26

< SYSTEM DESCRIPTION >

[WITH ESP]

SYSTEM

• During a cornering, brake force (brake fluid pressure) is applied on front wheel and rear wheel on the outer

side of turn. Momentum directing towards the outer side of turn is generated. Oversteer is prevented.

• Changing driving lane on a slippery road, when oversteer tendency is judged large, engine output is con-

trolled as well as brake force (brake fluid pressure) of 4 wheels. Oversteer tendency decreases.

ESP/VDC Function That Prevents Understeer Tendency

• During a cornering, brake force (brake fluid pressure) is applied on front wheel and rear wheel on the inner

side of turn. Momentum directing towards the inner side of turn is generated. Understeer is prevented.

• Applying braking during a cornering on a slippery road, when understeer tendency is judged large, engine

output is controlled as well as brake force (brake fluid pressure) of four wheels. Understeer tendency
decreases.

TCS FUNCTION

ALFIA0339GB

ALFIA0340GB

JPFIC0137GB

ALFIA0341GB

SYSTEM

BRC-27

< SYSTEM DESCRIPTION >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

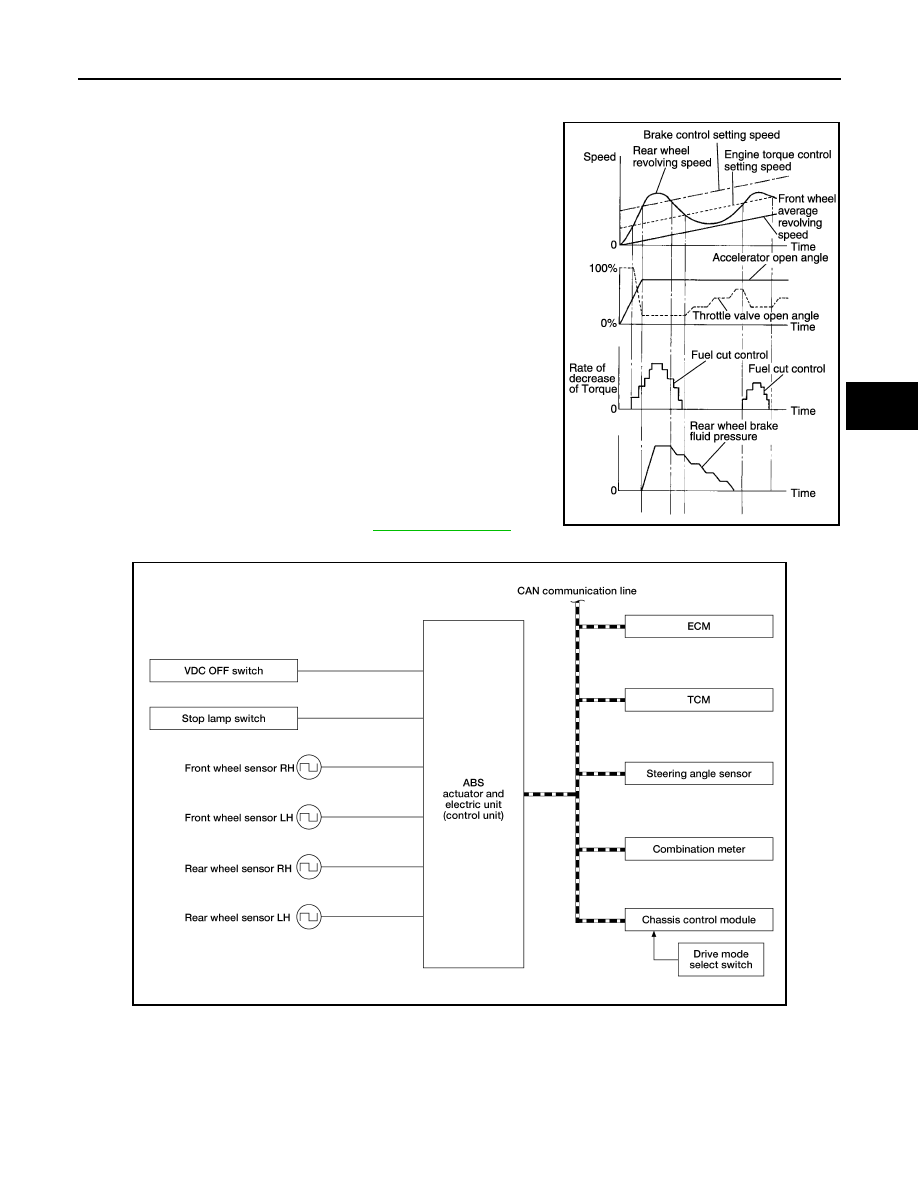

TCS FUNCTION : System Description

INFOID:0000000010329791

• Wheel spin status of drive wheel is detected by wheel sensor of 4

wheels. Engine output and transmission shift status is controlled
so that slip rate of drive wheels is in appropriate level. When wheel
spin occurs on drive wheel, ABS actuator and electric unit (control
unit) perform brake force control of LH and RH drive wheels (apply
brake force by increasing brake fluid pressure of drive wheel) and
decrease engine torque by engine torque control. Wheel spin
amount decreases. Engine torque is controlled to appropriate
level.

• TCS function can be switched to non-operational status (OFF) by

operating ESP/VDC OFF switch. In this case, ESP/VDC OFF indi-
cator lamp turns ON.

• ESP/VDC warning lamp blinks while TCS function is in operation

and indicates to the driver that the function is in operation.

• CONSULT can be used to diagnose the system diagnosis.
• Fail-safe function is adopted. When a malfunction occurs in TCS

function, the control is suspended for ESP/VDC function, TCS
function, Brake limited slip differential (BLSD) function, Brake
assist function, hill start assist function and Brake force distribution
function The vehicle status becomes the same as models without
ESP/VDC function, TCS function, Brake limited slip differential
(BLSD) function, Brake assist function, hill start assist function and
Brake force distribution function However, ABS function and EBD
function are operated normally. Refer to

BRC-21, "Fail-Safe"

.

SYSTEM DIAGRAM

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

JPFIC0139GB

ALFIA0420GB

BRC-28

< SYSTEM DESCRIPTION >

[WITH ESP]

SYSTEM

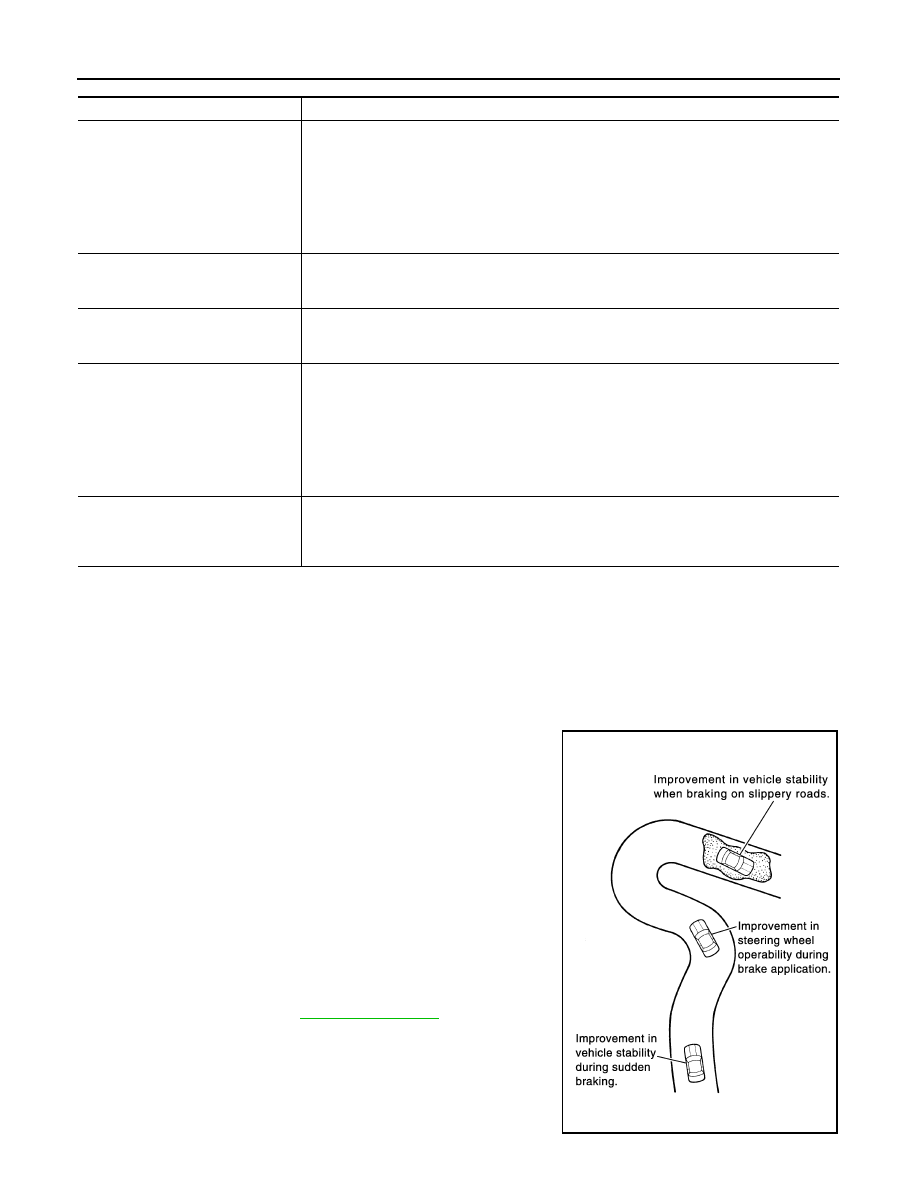

ABS FUNCTION

ABS FUNCTION : System Description

INFOID:0000000010329792

• By preventing wheel lock through brake force (brake fluid pressure) control that is electronically controlled by

detecting wheel speed during braking, stability during emergency braking is improved so that obstacles can
be easily bypassed by steering operation.

• During braking, control units calculates wheel speed and pseudo-vehicle speed, and transmits pressure

increase, hold or decrease signals to actuator portion according to wheel slip status.

• The following effects are obtained by preventing wheel lock during

braking.

- Vehicle tail slip is prevented during braking when driving straight.
- Understeer and oversteer tendencies are moderated during brak-

ing driving on a corner.

- Obstacles may be easily bypassed by steering operation during

braking.

• CONSULT can be used to diagnose the system diagnosis.
• Fail-safe function is adopted. When a malfunction occurs in ABS

function, the control is suspended for VDC function, TCS function,
ABS function, Brake limited slip differential (BLSD) function, Brake
assist function, hill start assist function and Brake force distribution
function. The vehicle status becomes the same as models without
VDC function, TCS function, ABS function, Brake limited slip differ-
ential (BLSD) function, Brake assist function, hill start assist func-
tion and Brake force distribution function. However, EBD function
is operated normally. Refer to

BRC-21, "Fail-Safe"

.

NOTE:
• ABS has the characteristic as described here, This is not the

device that helps reckless driving.

• To stop vehicle efficiently, ABS does not operate and ordinary

brake operates at low speed [approx. 10 km/h (6 MPH) or less, but
differs subject to road conditions).

Component

Signal description

ECM

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Accelerator pedal position signal
• Engine speed signal
• Engine torque signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• Engine torque request signal

TCM

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Current gear position signal

Chassis control module

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Active trace control signal

Combination meter

Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• Brake fluid level switch signal
• Parking brake switch signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• ESP/VDC warning lamp signal
• ESP/VDC OFF indicator lamp signal

Steering angle sensor

Mainly transmits the following signals to ABS actuator and electric unit (control unit) via CAN
communication.
• Steering angle sensor signal
• Steering angle sensor malfunction signal

JPFIC0140GB
