Fail-Safe

INFOID:0000000010329789

VDC FUNCTION, TCS FUNCTION, BRAKE LIMITED SLIP DIFFERENTIAL FUNCTION, BRAKE AS-
SIST FUNCTION, hill start assist FUNCTION AND BRAKE FORCE DISTRIBUTION FUNCTION

ESP warning lamp in combination meter turn ON when a malfunction occurs in system [ABS actuator and
electric unit (control unit)]. The control is suspended for ESP function, TCS function, Brake limited slip differen-
tial (BLSD) function, Brake assist function, hill start assist function and Brake force distribution function. The
vehicle status becomes the same as models without ESP function, TCS function, Brake limited slip differential
(BLSD) function, Brake assist function, hill start assist function and Brake force distribution function. However,
ABS function and EBD function are operated normally.

ABS FUNCTION

ABS warning lamp and ESP warning lamp in combination meter turn ON when a malfunction occurs in system
[ABS actuator and electric unit (control unit)]. The control is suspended for ESP function, TCS function, ABS
function, Brake limited slip differential (BLSD) function, Brake assist function, hill start assist function and
Brake force distribution function. The vehicle status becomes the same as models without ESP function, TCS
function, ABS function, Brake limited slip differential (BLSD) function, Brake assist function, hill start assist
function and Brake force distribution function. However, EBD function is operated normally.
NOTE:
ABS self-diagnosis sound may be heard the same as in the normal condition, because self-diagnosis is per-
formed when ignition switch turns ON and when vehicle initially starts.

EBD FUNCTION

ABS warning lamp, brake warning lamp and ESP warning lamp in combination meter turn ON when a mal-
function occurs in system [ABS actuator and electric unit (control unit)]. The control is suspended for ESP
function, TCS function, ABS function, EBD function, Brake limited slip differential (BLSD) function, Brake
assist function, hill start assist function and Brake force distribution function. The vehicle status becomes the
same as models without ESP function, TCS function, ABS function, EBD function, Brake limited slip differen-
tial (BLSD) function, Brake assist function, hill start assist function and Brake force distribution function.

Approx. 1 seconds after ignition switch is turned ON (when the
system is in normal operation).

OFF

When VDC OFF switch is ON (VDC function, TCS function and
Active trace control function are OFF).

ON

Condition (status)

VDC OFF indicator lamp

DTC

Fail-safe condition

C1101

The following functions are suspended.
• ESP function
• TCS function
• ABS function
• EBD function (only when both 2 rear wheels are malfunctioning)
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1102

C1103

C1104

C1105

C1106

C1107

C1108

C1109

The following functions are suspended.
• ESP function
• TCS function
• ABS function
• EBD function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1111

BRC-22

< SYSTEM DESCRIPTION >

[WITH ESP]

SYSTEM

C1113

The following functions are suspended.
• ESP function
• TCS function
• ABS function
• EBD function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1115

The following functions are suspended.
• ESP function
• TCS function
• ABS function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1120

The following functions are suspended.
• ESP function
• TCS function
• ABS function
• EBD function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1121

C1122

C1123

C1124

C1125

C1126

C1127

C1130

The following functions are suspended.
• ESP function
• TCS function
• Brake limited slip differential (BLSD) function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1138

C1140

The following functions are suspended.
• ESP function
• TCS function
• ABS function
• EBD function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1142

The following functions are suspended.
• ESP function
• TCS function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1143

The following functions are suspended.
• ESP function
• TCS function
• Brake limited slip differential (BLSD) function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1144

DTC

Fail-safe condition

SYSTEM

BRC-23

< SYSTEM DESCRIPTION >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

VDC FUNCTION

C1145

The following functions are suspended.
• ESP function
• TCS function
• ABS function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1146

C1155

The following functions are suspended.
• ESP function
• TCS function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1160

The following functions are suspended.
• ESP function
• TCS function
• ABS function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1164

The following functions are suspended.
• ESP function
• TCS function
• ABS function
• EBD function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1165

C1170

The following functions are suspended.
• ESP function
• TCS function
• ABS function
• Brake limited slip differential (BLSD) function
• Brake assist function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

C1197

Electrical vacuum assistance of brake booster is suspended.

C1198

C1199

—

C119A

Electrical vacuum assistance of brake booster is suspended.

U1000

The following functions are suspended.
• ESP function
• TCS function
• Brake limited slip differential (BLSD) function
• Hill start assist function
• Brake force distribution function
• Active trace control function (control of chassis control module)

DTC

Fail-safe condition

BRC-24

< SYSTEM DESCRIPTION >

[WITH ESP]

SYSTEM

VDC FUNCTION : System Description

INFOID:0000000010329790

• Side slip or tail slip may occur while driving on a slippery road or intending an urgent evasive driving. ESP/

VDC function detects side slip status using each sensor when side slip or tail slip is about to occur and
improves vehicle stability by brake control and engine output control during driving.

• In addition to ABS function, EBD function and TCS function, target side slip amount is calculated according

to steering operation amount from steering angle sensor and brake operation amount from brake pressure
sensor. By comparing this information with vehicle side slip amount that is calculated from information from
yaw rate/side/decel G sensor and wheel sensor, vehicle driving conditions (conditions of understeer or over-
steer) are judged and vehicle stability is improved by brake force control on all 4 wheels and engine output
control.

• ESP/VDC function can be switched to non-operational status (OFF) by operating ESP/VDC OFF switch. In

this case, ESP/VDC OFF indicator lamp turns ON.

• Control unit portion automatically improves driving stability by performing brake force control as well as

engine output control, by transmitting drive signal to actuator portion according to difference between target
side slip amount and vehicle side slip amount

• ESP/VDC warning lamp blinks while ESP/VDC function is in operation and indicates to the driver that the

function is in operation.

• CONSULT can be used to diagnose the system diagnosis.
• Fail-safe function is adopted. When a malfunction occurs in ESP/VDC function, the control is suspended for

ESP/VDC function, TCS function, Brake limited slip differential (BLSD) function, Brake assist function, hill
start assist function and Brake force distribution function. The vehicle status becomes the same as models
without ESP/VDC function, TCS function, Brake limited slip differential (BLSD) function, Brake assist func-
tion, hill start assist function and Brake force distribution function. However, ABS function and EBD function
are operated normally. Refer to

BRC-21, "Fail-Safe"

.

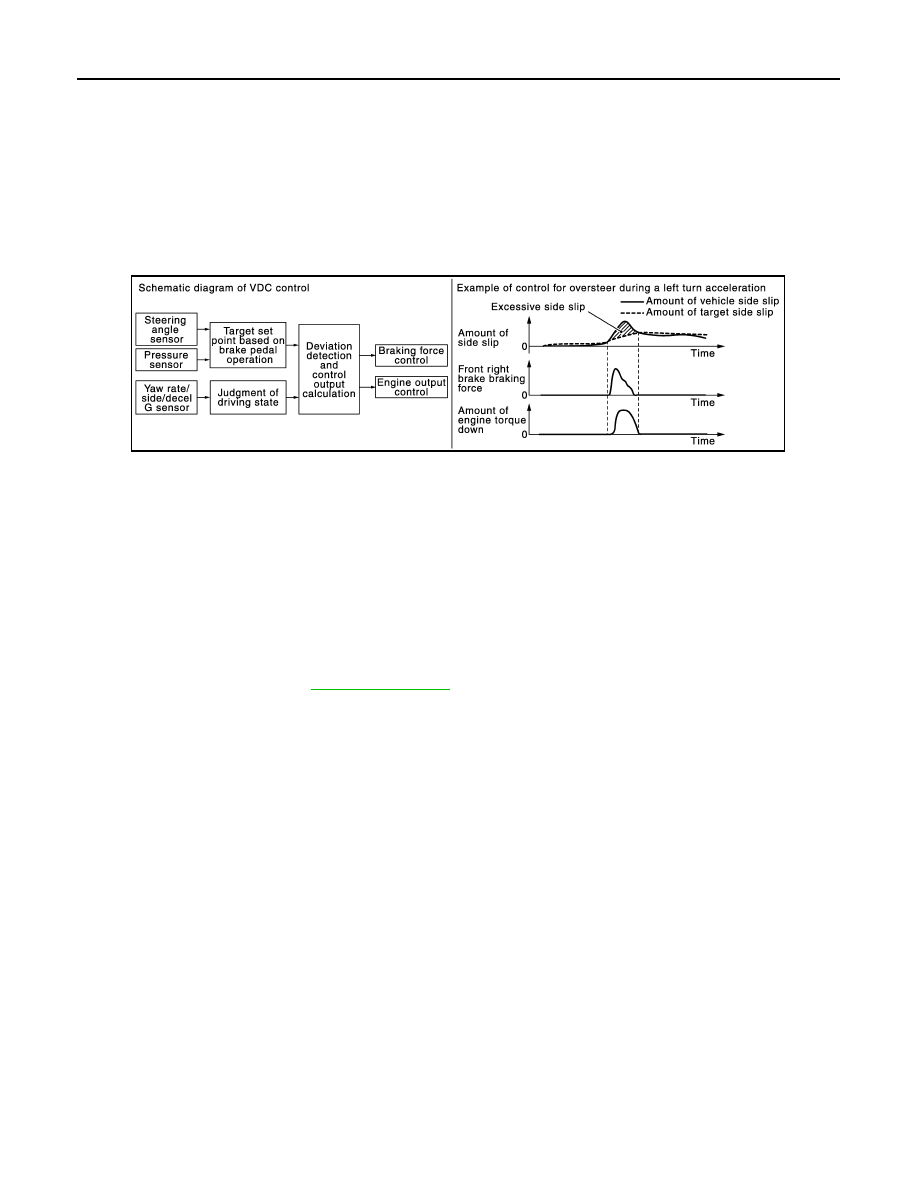

JPFIC0133GB
