Nissan Qashqai J11. Manual - part 915





PB-42

< BASIC INSPECTION >

CONFIGURATION (ELECTRIC PARKING BRAKE CONTROL MODULE)

CONFIGURATION (ELECTRIC PARKING BRAKE CONTROL MODULE)

Work Procedure

INFOID:0000000010833857

CAUTION:

• Use “Manual Configuration” only when “TYPE ID” of electric parking brake control module cannot

be read.

• After configuration, turn the ignition switch from OFF to ON and check that the brake system warn-

ing lamp turns OFF after staying illuminated for approximately two seconds.

• If an error occurs during configuration, start over from the beginning.

1.

CHECKING TYPE ID (1)

Use FAST (service parts catalogue) to search electric parking brake control module of the applicable vehicle
and find “Type ID”.

Is “Type ID” displayed?

YES

>> Print out “Type ID” and GO TO 2.

NO

>> “Configuration” is not required for electric parking brake control module. Replace in the usual

manner. Refer to

PB-142, "Removal and Installation"

.

2.

CHECKING TYPE ID (2)

CONSULT Configuration

1.

Select “Before Replace ECU” of “Read/Write Configuration”.

2.

Check that “Type ID” is displayed on the CONSULT screen.

Is “Type ID” displayed?

YES

>> GO TO 3.

NO

>> GO TO 7.

3.

VERIFYING TYPE ID (1)

CONSULT Configuration

Compare a “Type ID” displayed on the CONSULT screen with the one searched by using FAST (service parts
catalogue) to check that these “Type ID” agree with each other.
NOTE:
For the “Type ID” searched by using FAST (service parts catalog), use the last five digits of the “Type ID”.

>> GO TO 4.

4.

SAVING TYPE ID

CONSULT Configuration

Save “Type ID” on CONSULT.

>> GO TO 5.

5.

REPLACING ELECTRIC PARKING BRAKE CONTROL MODULE (1)

Replace the electric parking brake control module. Refer to

PB-142, "Removal and Installation"

.

CAUTION:

Never perform the following work items:
• Change of system mode
• Calibration of G sensor
• Reset of clutch stroke sensor
• Adjustment of rear brake caliper initial position
• Operation of rear brake caliper
• Release of rear brake caliper

>> GO TO 6.

6.

WRITING (AUTOMATIC WRITING)

CONSULT Configuration

1.

Select “After Replace ECU” of “Re/programming, Configuration” or that of “Read / Write Configuration”.

CONFIGURATION (ELECTRIC PARKING BRAKE CONTROL MODULE)

PB-43

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

>> End of work.

PB-44

< BASIC INSPECTION >

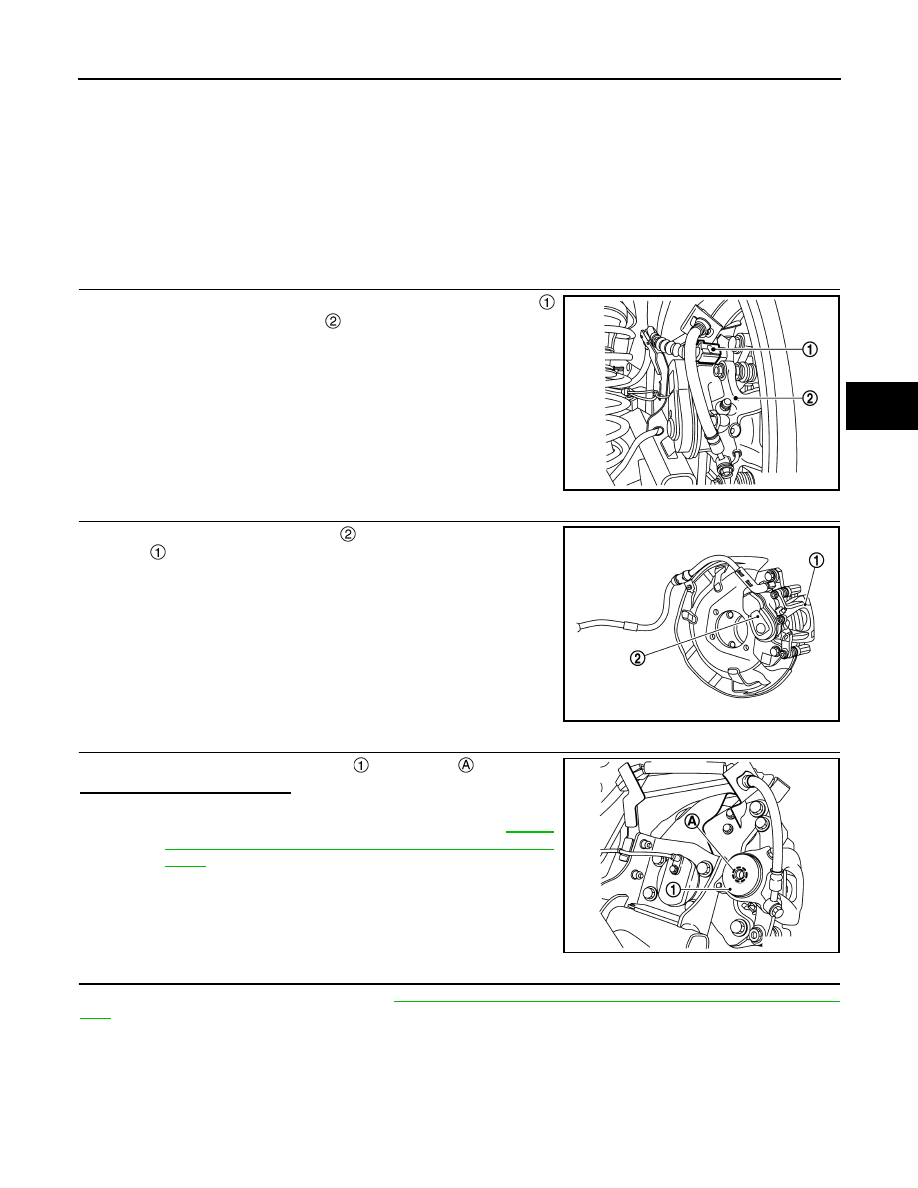

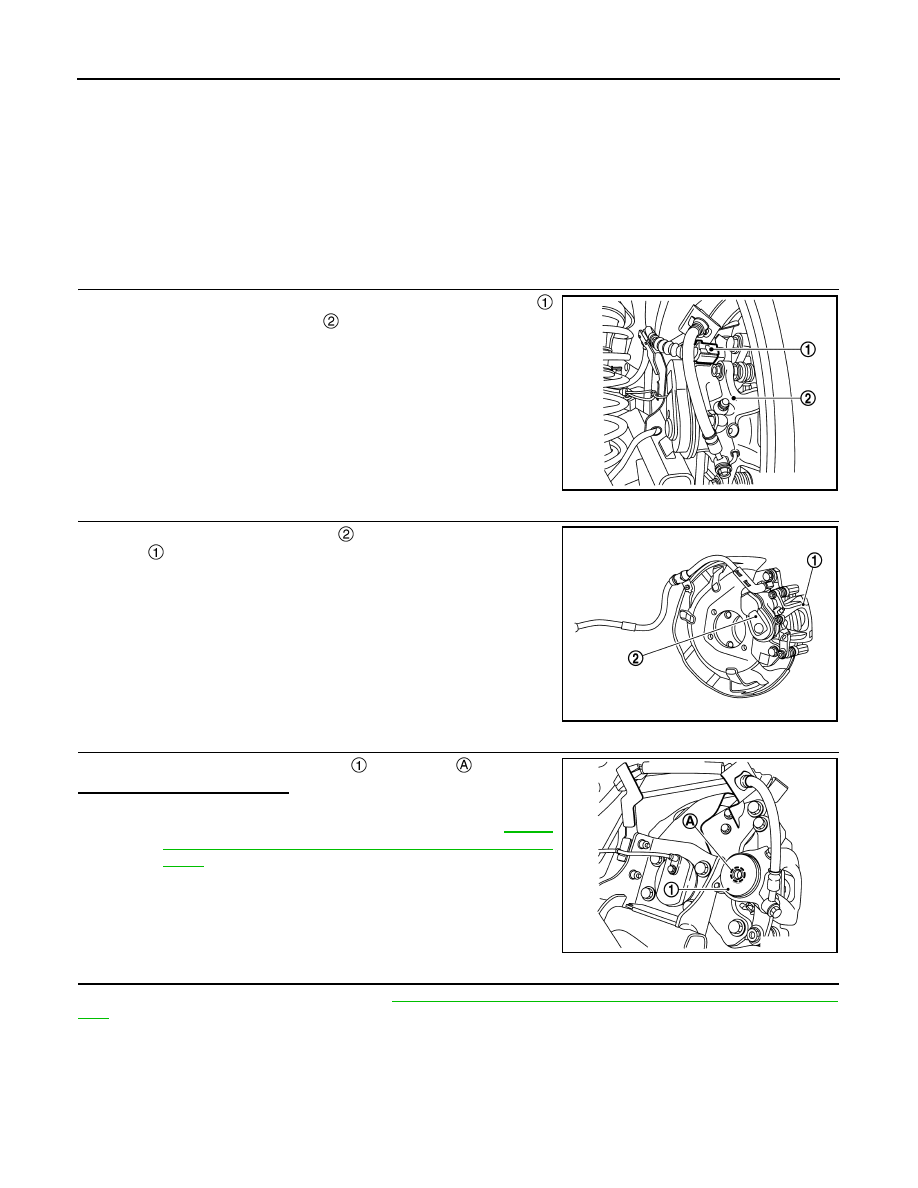

INSTRUCTIONS FOR RELEASING PARKING BRAKE WHERE PARKING

BRAKE SWITCH CANNOT BE USED

INSTRUCTIONS FOR RELEASING PARKING BRAKE WHERE PARKING
BRAKE SWITCH CANNOT BE USED

Description

INFOID:0000000010833858

Disconnecting the battery negative terminal with the parking brake on, prevents the parking brake from releas-
ing. Releasing is performed mechanically.

Work Procedure

INFOID:0000000010833859

1.

DISCONNECT PARKING BRAKE ACTUATOR HARNES CONNECTOR

1.

Disconnect the parking brake actuator harness connector
from the rear caliper assembly

.

>> GO TO 2.

2.

REMOVE PARKING BRAKE ACTUATOR

Remove the parking brake actuator

 from the rear brake caliper

assembly .

>> GO TO 3.

3.

RELEASE OF PARKING BRAKE

Rotate the rear brake caliper assembly

 spindle part

 clockwise.

Is the parking brake released?

YES

>> GO TO 4.

NO

>> Check the rear brake caliper assembly. Refer to

BR-46,

"BRAKE CALIPER ASSEMBLY : Inspection and Adjust-
ment"

.

4.

REPLACE REAR CALIPER ASSEMBLY

Replace the rear caliper assembly. Refer to

BR-43, "BRAKE CALIPER ASSEMBLY : Removal and Installa-

tion"

.

CAUTION:

Never reuse the parking brake actuator.

>> End of work.

JSFIA2443ZZ

JSFIA2426ZZ

JSFIA2444ZZ

INSTRUCTIONS FOR RELEASING PARKING BRAKE WHERE PARKING

BRAKE SWITCH CANNOT BE USED

PB-45

< BASIC INSPECTION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

INSTRUCTIONS FOR RELEASING PARKING BRAKE WHERE PARKING
BRAKE SWITCH CANNOT BE USED

Description

INFOID:0000000010833858

Disconnecting the battery negative terminal with the parking brake on, prevents the parking brake from releas-
ing. Releasing is performed mechanically.

Work Procedure

INFOID:0000000010833859

1.

DISCONNECT PARKING BRAKE ACTUATOR HARNES CONNECTOR

1.

Disconnect the parking brake actuator harness connector
from the rear caliper assembly

.

>> GO TO 2.

2.

REMOVE PARKING BRAKE ACTUATOR

Remove the parking brake actuator

 from the rear brake caliper

assembly .

>> GO TO 3.

3.

RELEASE OF PARKING BRAKE

Rotate the rear brake caliper assembly

 spindle part

 clockwise.

Is the parking brake released?

YES

>> GO TO 4.

NO

>> Check the rear brake caliper assembly. Refer to

BR-46,

"BRAKE CALIPER ASSEMBLY : Inspection and Adjust-
ment"

.

4.

REPLACE REAR CALIPER ASSEMBLY

Replace the rear caliper assembly. Refer to

BR-43, "BRAKE CALIPER ASSEMBLY : Removal and Installa-

tion"

.

CAUTION:

Never reuse the parking brake actuator.

>> End of work.

JSFIA2443ZZ

JSFIA2426ZZ

JSFIA2444ZZ
