PB-26
< ECU DIAGNOSIS INFORMATION >
ELECTRIC PARKING BRAKE CONTROL MODULE
*: Refer to
WCS-7, "WARNING CHIME SYSTEM : System Description"
for ON/OFF/BRINK conditions of each
warning lamp and each indicator lamp, buzzer and information display in the combination meter.

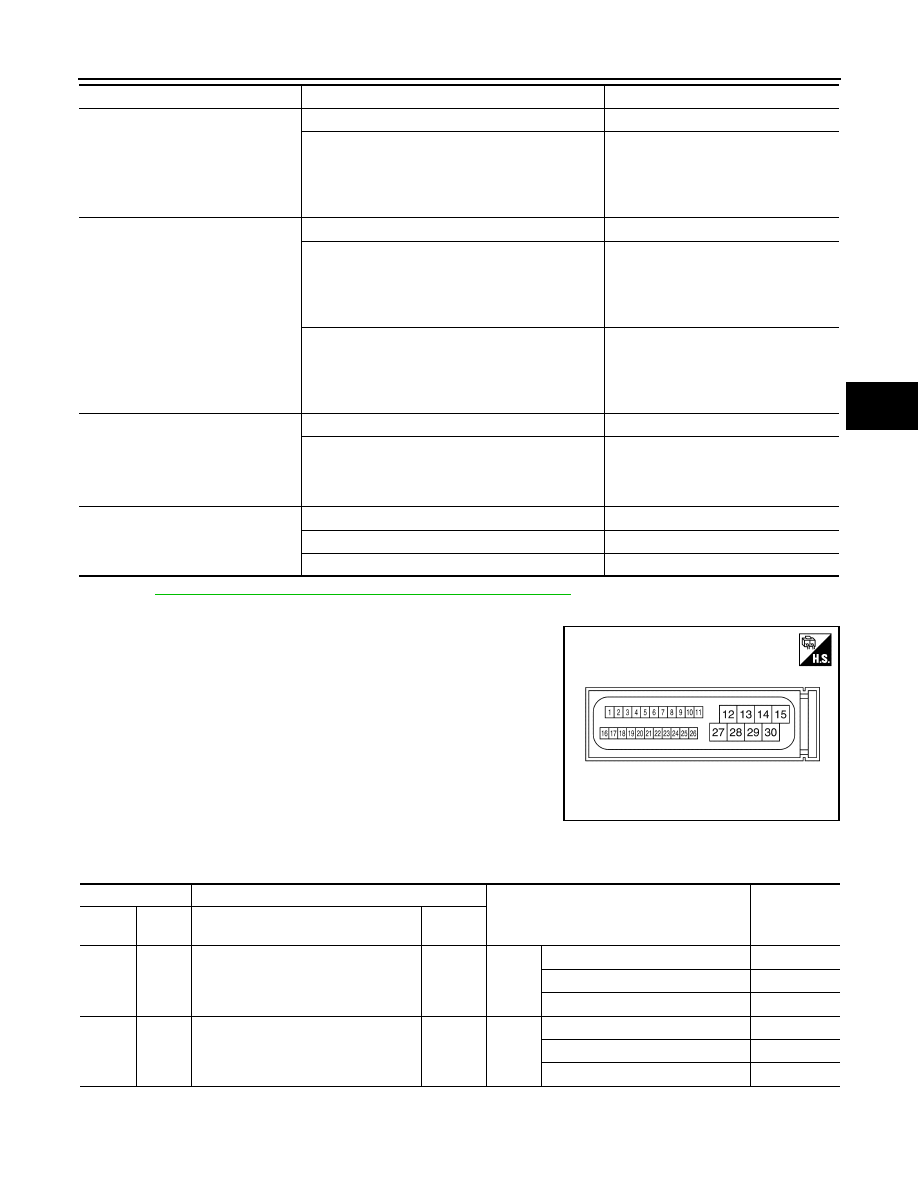

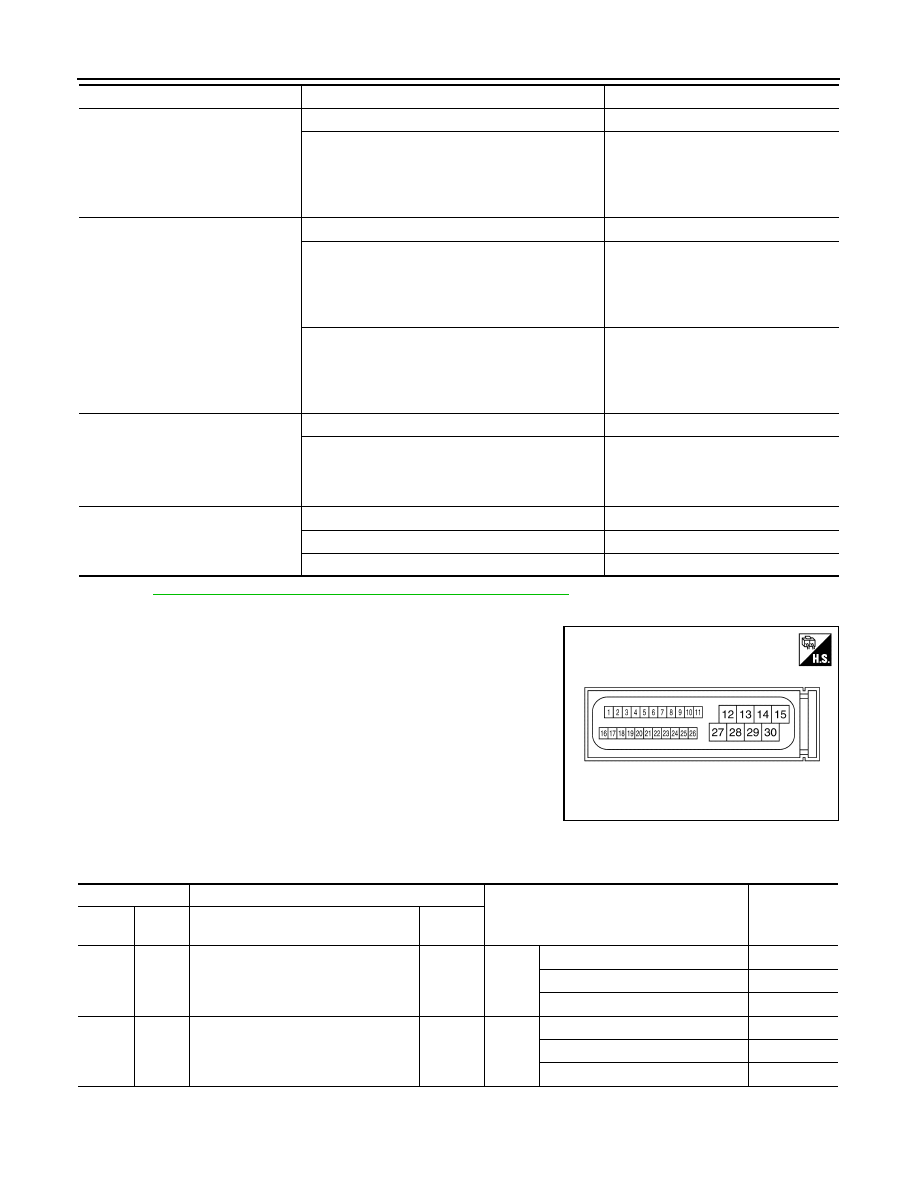

TERMINAL LAYOUT
PHYSICAL VALUE
PB WARNING 3
*
No warning
NO
When the parking brake switch is continued to be
pulled while the vehicle is travelling. (Displays the
“Release parking brake” by information display in the
combination meter, master warning lamp turns ON
and buzzer is operate)
WARN
PB WARNING 4
*
No warning
NO
When the electric parking brake system cannot be
cancelled automatically after trying this without fas-
tening the seat belt. (Displays the “Release parking
brake” by information display in the combination
meter)
WARN 1
When the electric parking brake system cannot be
cancelled automatically after trying this again with-
out fastening the seat belt. (Displays the “Release
parking brake” by information display in the combi-
nation meter)
WARN 2
PB WARNING 5
*
No warning
NO
When driving the vehicle without releasing the park-
ing brake. (Displays the “Release parking brake” by
information display in the combination meter, master
warning lamp turns ON and buzzer is operate)
WARN
PB SW INDICATOR
*
Parking switch indicator lamp is OFF
Off
Parking switch indicator lamp is ON
On
Parking switch indicator lamp is blinking
BLINK
Monitor item
Condition
Reference values in normal operation
JSFIA2475ZZ
Terminal No.
Description
Condition
Value
(Approx.)
+
–
Signal name
Input/
Output
8
(SB)
Ground
Parking brake switch indicator lamp
Output
Igni-
tion
switch
ON
Parking brake switch is pulling
0 V
Parking brake switch is neutral
0 V
Parking brake switch is pushing
9
−
16 V
9
(BR)
Ground
Parking brake switch release (NOR-
OP)
Input
Igni-
tion
switch
ON
Parking brake switch is pulling
0.8
−
3.7 V
Parking brake switch is neutral
0.8
−
3.7 V
Parking brake switch is pushing
9
−
16 V
