Nissan Qashqai J11. Manual - part 906





PB-6

< PRECAUTION >

PRECAUTIONS

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for Parking Brake System

INFOID:0000000010318112

WARNING:

Since dust covering the parking brake shoes and back plates has an affect on human body, the dust
must be removed with a dust collector. Never splatter the dust with an air blow gun.
• The electric parking brake indicator lamp turns ON while the electric parking brake is operating.
• When a malfunction occurs in the electric parking brake system, master warning lamp (yellow) turns ON.

CAUTION:

When vehicle is parked, press the select lever P range position switch into the P range.

• When parking brake switch is pulled/pushed under electric parking brake system malfunction, master warn-

ing lamp (red) turns ON when electric parking brake cannot be operated.

• When a malfunction occurs that prevents the parking brake from being released and the parking brake must

be released, manually release it

PB-10, "Parking Brake Actuator"

.

• When parking brake must be released while the 12V battery negative terminal is disconnected, manually

release it.

PB-10, "Parking Brake Actuator"

.

• When parking brake shoe is ground or replaced, perform break-in operation. Refer to

PB-144, "Inspection"

.

Precaution for Harness Repair

INFOID:0000000010318113

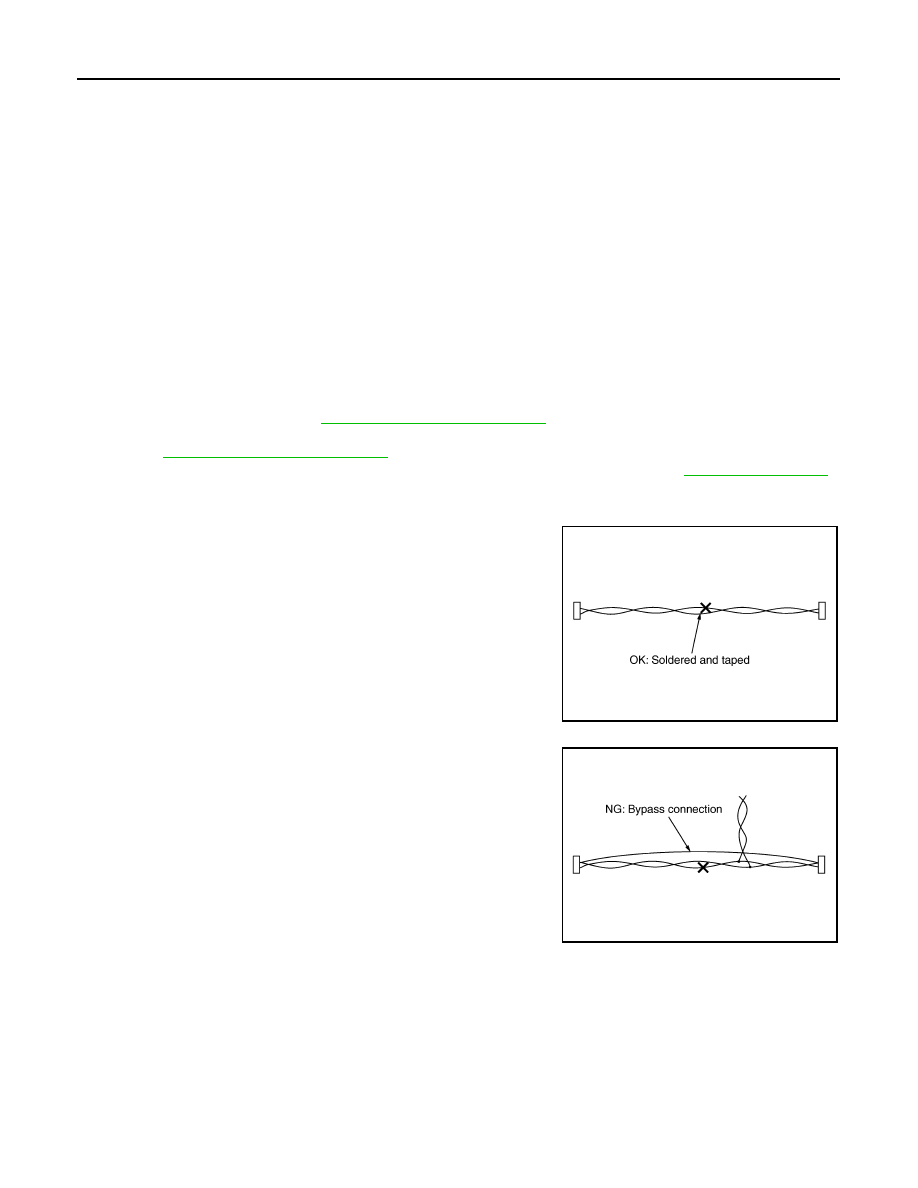

• Solder the repair part, and wrap it with tape. [Twisted wire fray

must be 110 mm (4.33 in) or less.]

• Never bypass the repair point with wire. (If it is bypassed, the turn-

out point cannot be separated and the twisted wire characteristics
are lost.)

SKIB8766E

SKIB8767E

PREPARATION

PB-7

< PREPARATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PREPARATION

PREPARATION

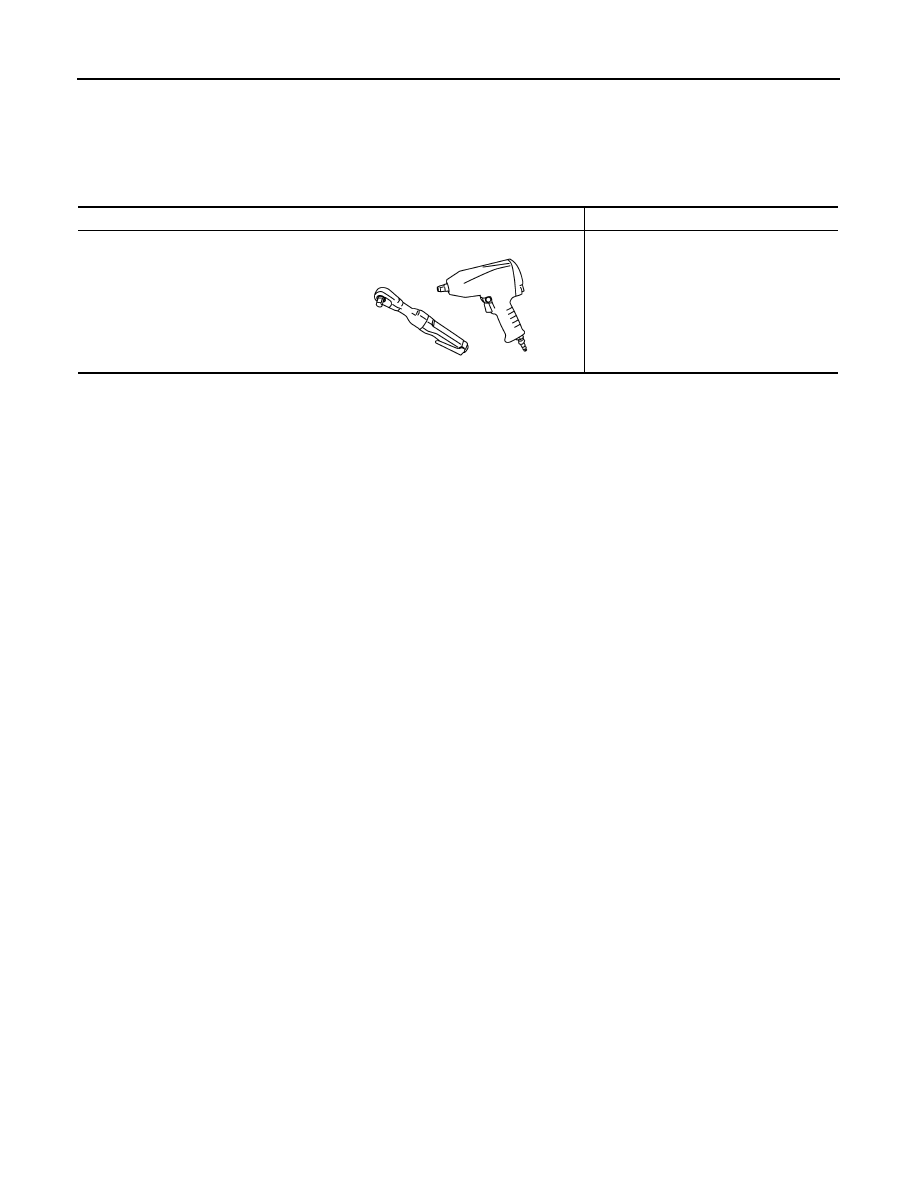

Commercial Service Tools

INFOID:0000000010318114

Tool name

Description

Power tool

Loosening bolts and nuts.

PBIC0190E

PB-8

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

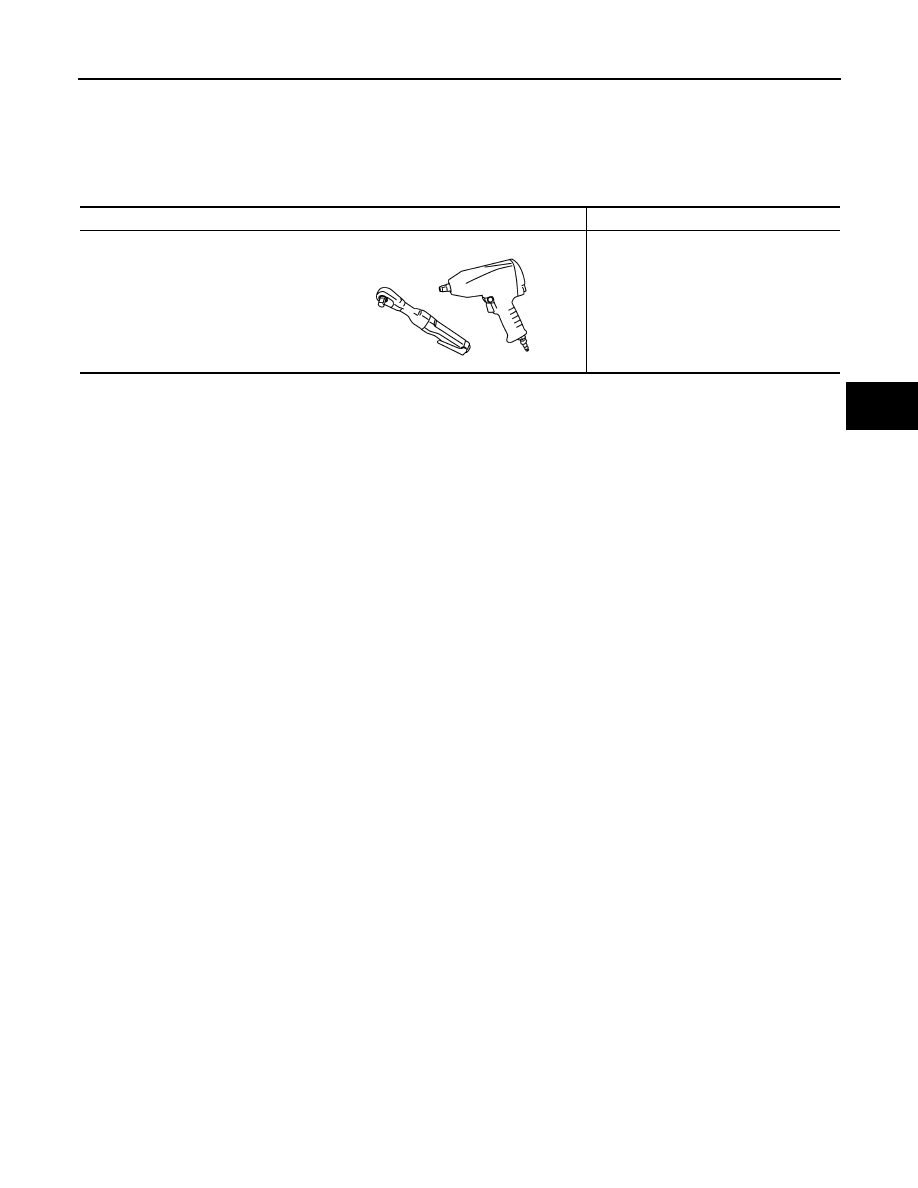

Commercial Service Tools

INFOID:0000000010318114

Tool name

Description

Power tool

Loosening bolts and nuts.

PBIC0190E

DESCRIPTION

PB-9

< SYSTEM DESCRIPTION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

SYSTEM DESCRIPTION

DESCRIPTION

Description

INFOID:0000000010318115

• The electric parking brake system is adopted.
• The electric parking brake system uses the signal from the parking brake switch to have the electric parking

brake control module operate the parking brake actuator to apply and release the parking brake.

• The parking brake switch is placed in the center console so that it can be operated close at hand (applied/

released).
