Nissan Qashqai J11. Manual - part 902

BR-80

< REMOVAL AND INSTALLATION >

[RHD]

FRONT DISC BRAKE

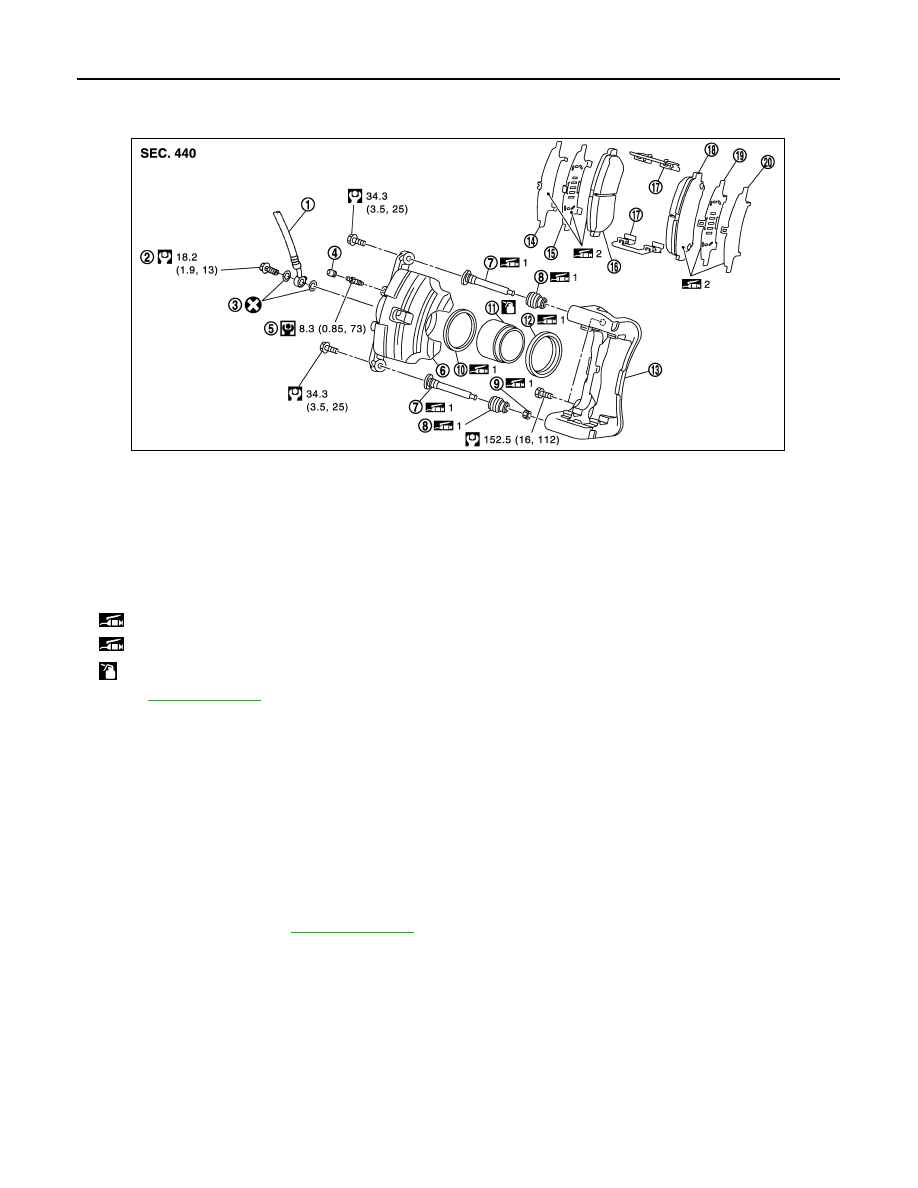

BRAKE CALIPER ASSEMBLY : Exploded View

INFOID:0000000010305479

BRAKE CALIPER ASSEMBLY : Removal and Installation

INFOID:0000000010305480

REMOVAL

WARNING:

Clean any dust from the brake caliper and brake pads with a vacuum dust collector. Never blow with
compressed air.

CAUTION:

Never depress the brake pedal. Brake fluid may splash while removing the brake hose.
1.

Remove tires.

Fix the disc rotor using wheel nuts.

Drain brake fluid. Refer to

BR-55, "Draining"

CAUTION:

Never spill or splash brake fluid on the disc rotor.

Remove union bolt, and then disconnect brake hose from caliper assembly.

Brake hose

Union bolt

Copper washer

Cap

Bleeder valve

Cylinder body

Sliding pin

Sliding pin boot

Bushing

10.

Piston seal

11.

Piston

12.

Piston boot

13.

Torque member

14.

Inner shim cover

15.

Inner shim

16.

Inner pad

17.

Pad retainer

18.

Outer pad

19.

Outer shim

20.

Outer shim cover

1: Apply rubber grease.

2: Apply copper based brake grease.

: Apply brake fluid.

Refer to

GI-4, "Components"

for symbols not described on the above.

JPFIA0090GB

FRONT DISC BRAKE

BR-81

< REMOVAL AND INSTALLATION >

[RHD]

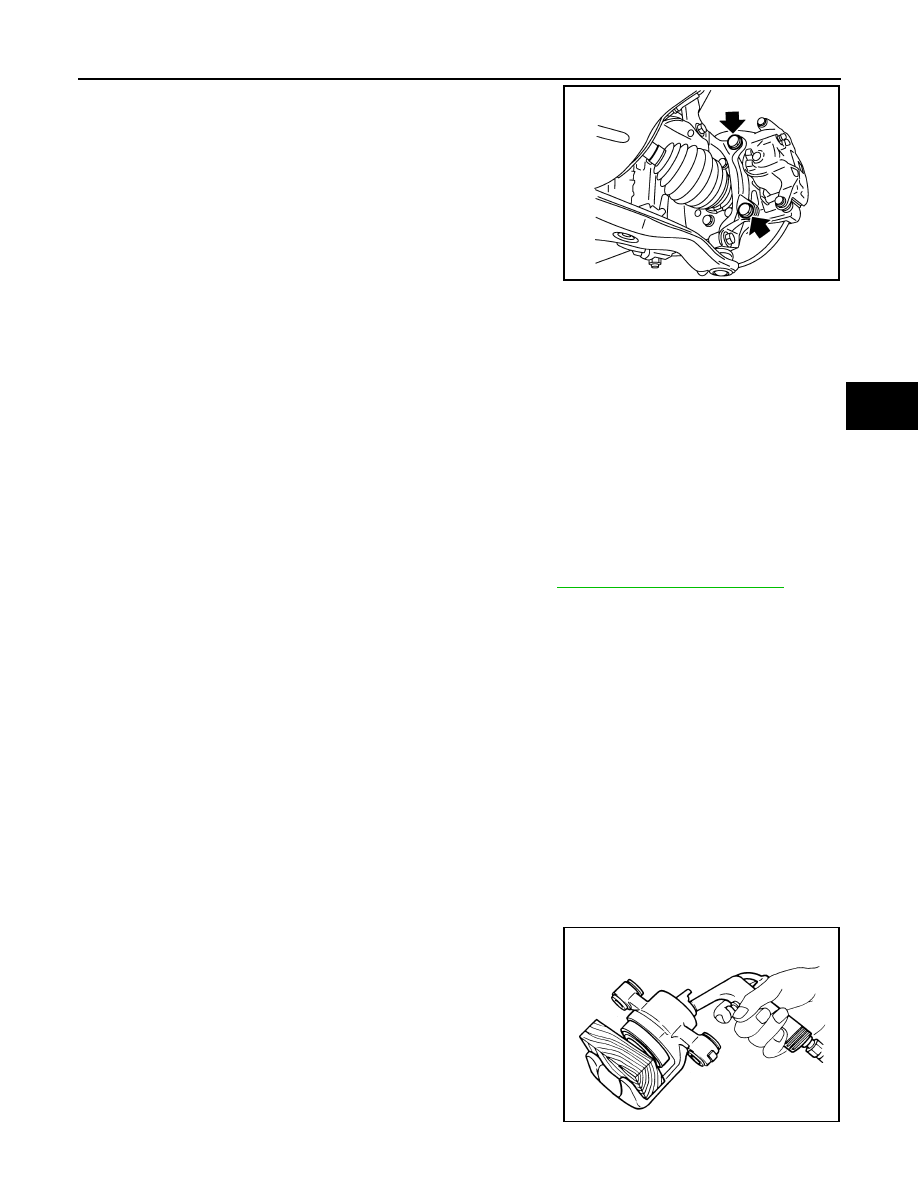

Remove torque member mounting bolts, and remove brake cali-
per assembly.

CAUTION:

Never drop brake pads and caliper assembly.

Remove disc rotor.

CAUTION:

• Put matching marks on the wheel hub and bearing assem-

bly and the disc rotor before removing the disc rotor.

• Never drop disc rotor.

INSTALLATION

WARNING:

Clean any dust from the brake caliper and brake pads with a vacuum dust collector. Never blow with
compressed air.

CAUTION:

Never depress the brake pedal. Brake fluid may splash while removing the brake hose.
1.

Install disc rotor.

CAUTION:

Align the matching marks made during removal when reusing the disc rotor.

Install the brake caliper assembly to the vehicle and tighten the torque member mounting bolts at 120N.m
(12,3 ; 88,5).

CAUTION:

Never spill or splash any grease and moisture on the brake caliper assembly mounting face,
threads, mounting bolts and washers. Wipe out any grease and moisture.

Install brake hose to brake caliper assembly, and tighten union bolts to the specified torque.

Refill with new brake fluid and perform the air bleeding. Refer to

BR-56, "Bleeding Brake System"

CAUTION:

• Never reuse drained brake fluid.
• Never spill or splash brake fluid on the disc rotor.

Check that no drag feel is present for the front disc brake.

Install tires.

BRAKE CALIPER ASSEMBLY : Disassembly and Assembly

INFOID:0000000010305481

DISASSEMBLY

NOTE:
Never remove the torque member, brake pads, shims, shim covers and pad retainers when disassembling and
assembling the cylinder body.

Remove the sliding pin bolts, and remove the cylinder body from the torque member.

CAUTION:

Never drop pads, shims, shim covers and pad retainers from torque member.

Remove sliding pins and sliding pin boots from torque member.

Remove bushing from sliding pin.

Place a wooden block as shown in the figure, and blow air from
union bolt mounting hole to remove piston and piston boot.

CAUTION:

Never get fingers caught in the piston.

JPFIA0030ZZ

MAA0272D

BR-82

< REMOVAL AND INSTALLATION >

[RHD]

FRONT DISC BRAKE

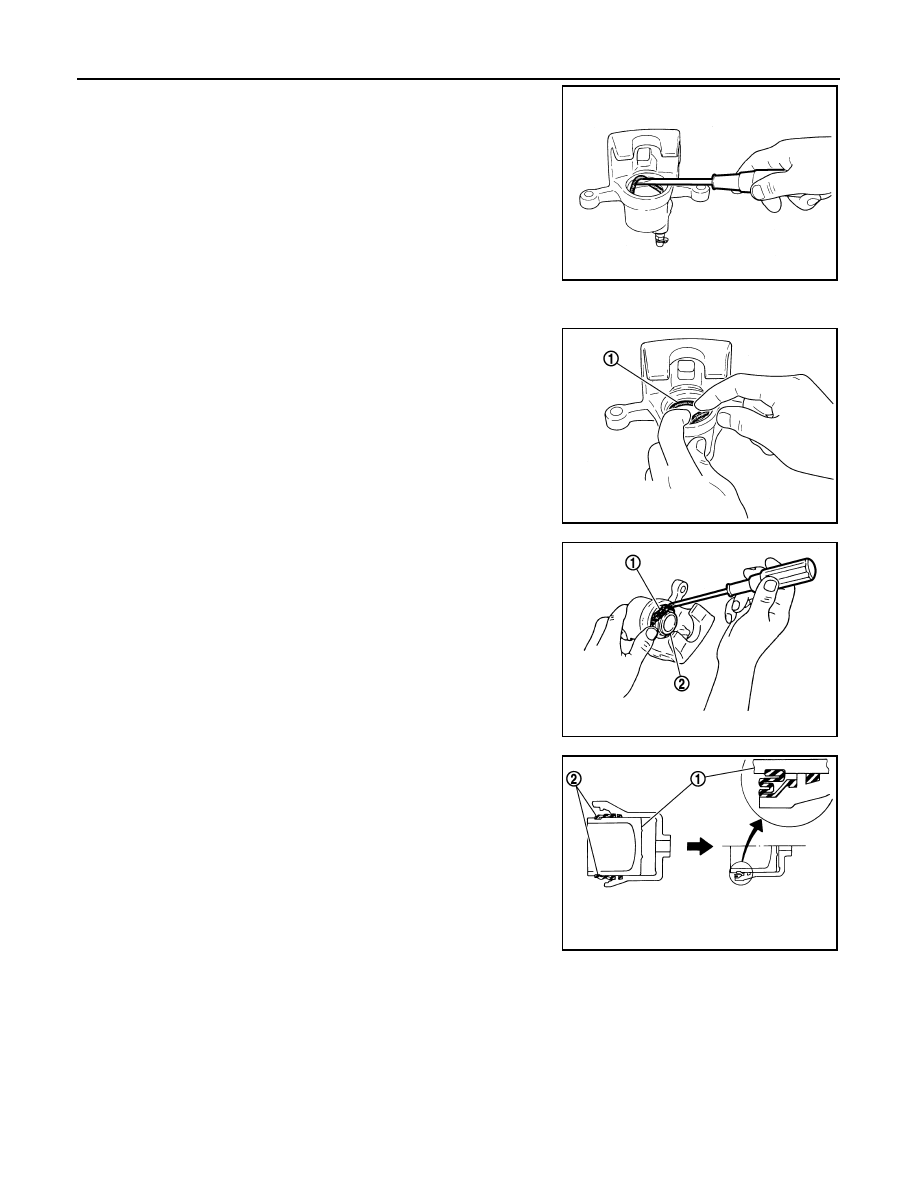

Remove piston seal from cylinder body using suitable tool.

CAUTION:

Be careful not to damage a cylinder inner wall.

ASSEMBLY

Apply rubber grease to piston seal (1), and install to cylinder
body.

CAUTION:

Never reuse piston seal.

Apply rubber grease to piston boot (1). Cover the piston (2) end
with piston boot, and then install cylinder side lip on piston boot
securely into a groove on cylinder body.

CAUTION:

Never reuse piston boot.

Apply brake fluid to piston (1). Push piston into cylinder body by
hand and push piston boot (2) piston-side lip into the piston
groove.

CAUTION:

Press the piston evenly and vary the pressing point to pre-
vent cylinder inner wall from being rubbed.

Apply rubber grease to bushing, install bushing to sliding pin.

Apply rubber grease to sliding pins and sliding pin boots, install
sliding pins and sliding pin boots to torque member.

Install the cylinder body to the torque member and tighten the
sliding pin bolts to the specified torque.

BRAKE CALIPER ASSEMBLY : Inspection and Adjustment

INFOID:0000000010305482

INSPECTION AFTER DISASSEMBLY

Cylinder Body

Check the inner wall of the cylinder for rust, wear, cracks or damage. Replace the cylinder if any abnormal
condition is detected.

CAUTION:

Always clean with new brake fluid. Never clean with mineral oil such as gasoline and light oil.

JPFIA0038ZZ

JPFIA0039ZZ

JPFIA0040ZZ

JPFIA0034ZZ

FRONT DISC BRAKE

BR-83

< REMOVAL AND INSTALLATION >

[RHD]

Torque Member

Check the torque member for rust, wear, cracks or damage. Replace the member if any abnormal condition is
detected.

Piston

Check the surface of the piston for rust, wear, cracks or damage. Replace the piston if any abnormal condition
is detected.

CAUTION:

A piston sliding surface is plated. Never polish with sandpaper.

Sliding Pin and Sliding Pin Boot

Check the sliding pins and sliding boots for rust, wear, cracks or damage. Replace the parts if any abnormal
condition is detected.

ADJUSTMENT AFTER INSTALLATION

Brake Burnishing Procedure

Burnish contact surfaces between disc rotors and pads according to following procedure after refinishing or
replacing disc rotor, or if a soft pedal occurs at very low mileage.

CAUTION:

• Be careful of vehicle speed because the brake does not operate easily until pad and disc rotor are

securely fitted.

• Only perform this procedure under safe road and traffic conditions. Use extreme caution.
1.

Drive vehicle on straight, flat road.

Depress brake pedal with the power to stop vehicle within 3 to 5 seconds until the vehicle stops.

Drive without depressing brake for a few minutes to cool the brake.

Repeat steps 1 to 3 until pad and disc rotor are securely fitted.
