BRAKE PIPING

FRONT

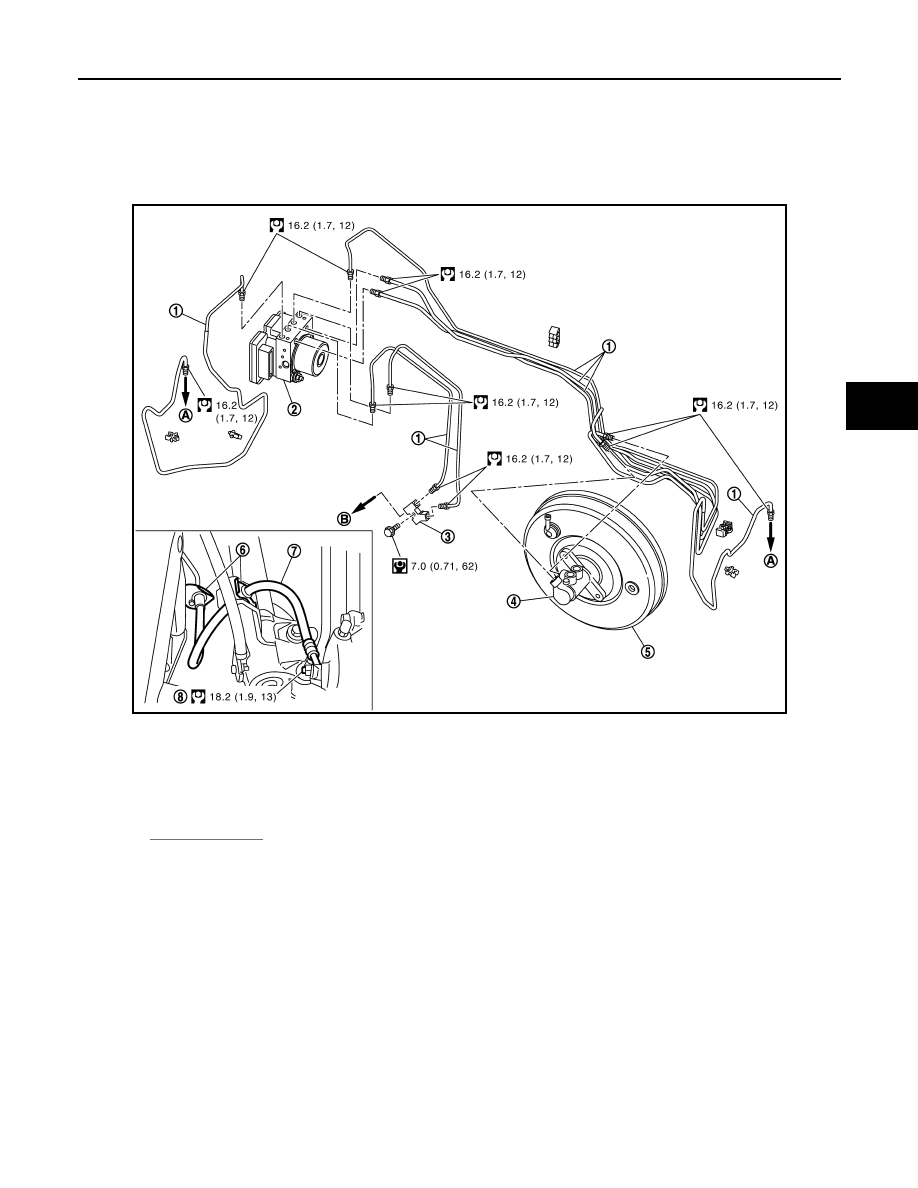

FRONT : Exploded View

INFOID:0000000010305360

K9K - R9M

E1FIA0148GB

1.

Brake tube

2.

ABS actuator and electric unit (con-
trol unit)

3.

Connector

4.

Master cylinder assembly

5.

Brake booster

6.

Lock plate

7.

Brake hose

8.

Union bolt

A.

To front brake hose

B.

To rear brake tube

Refer to

GI-4, "Components"

 for symbols in the figure

BRAKE PIPING

BR-21

< REMOVAL AND INSTALLATION >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

FRONT : Removal and Installation

INFOID:0000000010305362

REMOVAL

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.
1.

Remove tires.

2.

Drain brake fluid. Refer to

BR-11, "Draining"

.

3.

Loosen the flare nut with a flare nut wrench and separate the brake tube from the hose.

CAUTION:

• Never scratch the flare nut and the brake tube.
• Never bend sharply, twist or strongly pull out the brake hoses and tubes.
• Cover open end of brake tubes and hoses when disconnecting to prevent entrance of dirt.

4.

Remove the union bolt and remove the brake hose from the brake caliper assembly.

5.

Remove the lock plate and remove the brake hose.

INSTALLATION

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.
1.

Assemble the union bolt and the copper washer to the brake hose.

CAUTION:

Never reuse the copper washer.

2.

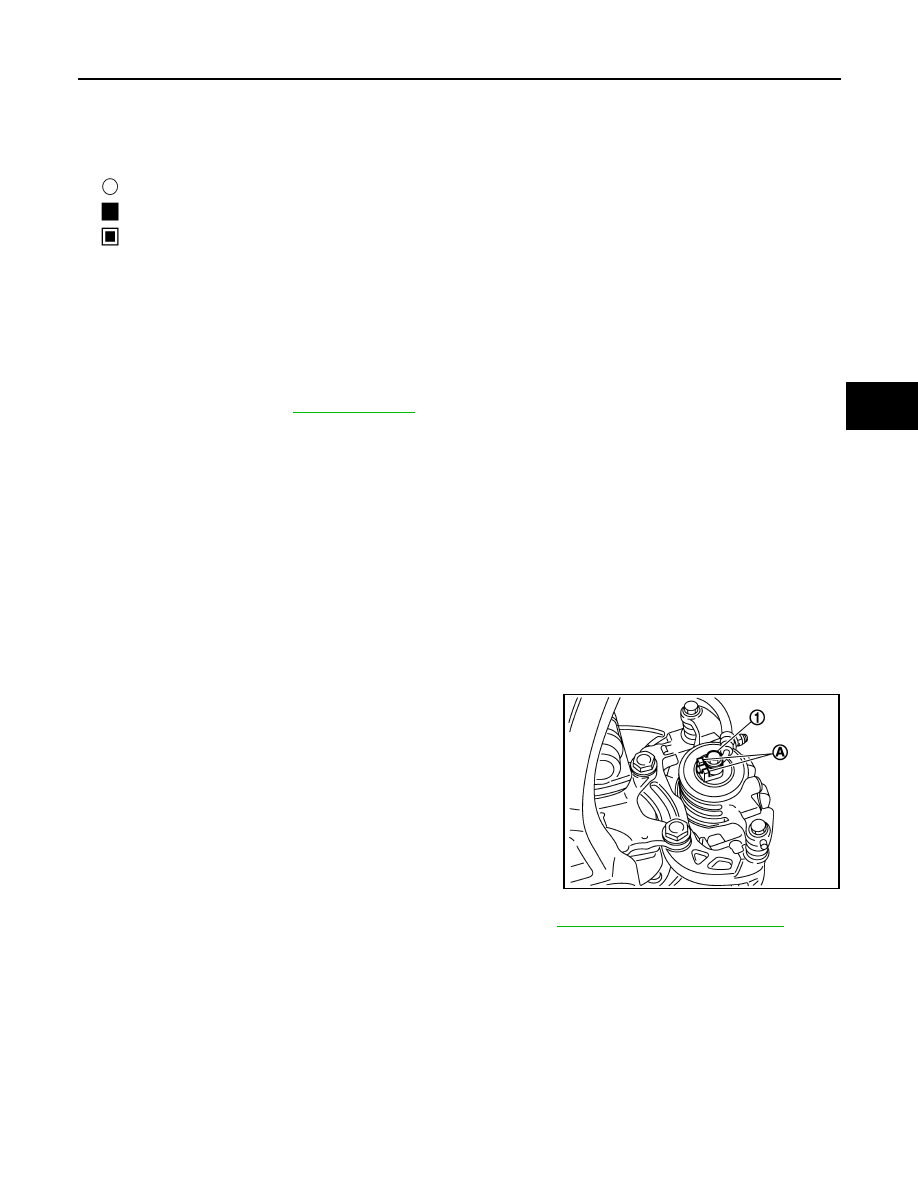

Align the brake hose pin to the projection (A) of the brake caliper
assembly and tighten the union bolt (1) to the specified torque.

3.

Install the brake tube to the brake hose, temporarily tighten the
flare nut by hand until it does not rotate further, and fix the brake
hose to the bracket with the lock plate.

CAUTION:

Check that all brake hoses and tubes are not twisted and
bent.

4.

Tighten the flare nut to the specified torque with a flare nut
torque wrench.

CAUTION:

Never scratch the flare nut and the brake tube.

5.

Refill with new brake fluid and perform the air bleeding. Refer to

BR-12, "Bleeding Brake System"

.

CAUTION:

Never reuse drained brake fluid.

6.

Install tires.

FRONT : Inspection

INFOID:0000000010305363

INSPECTION AFTER INSTALLATOIN

1.

Check the brake hoses and tubes for the following: no scratches; no twist and deformation; no interfer-
ence with other components when steering the steering wheel; no looseness at connections.

2.

Depress the brake pedal with a force of 785 N (80 kg, 176 lb) and hold down the pedal for approximately
5 seconds with the engine running. Check for any fluid leakage.

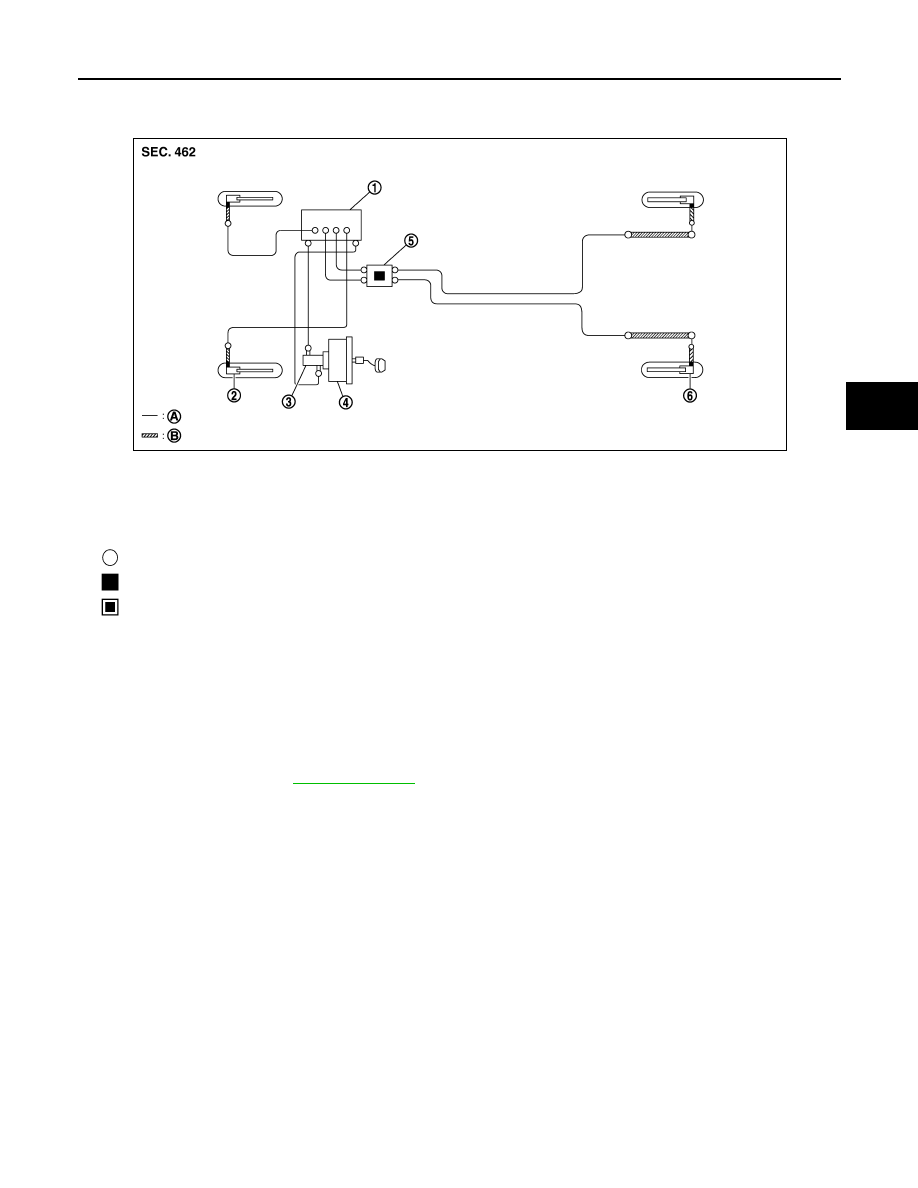

1.

ABS actuator and electric unit (con-
trol unit)

2.

Front disc brake

3.

Master cylinder assembly

4.

Brake booster

5.

Connector

6.

Rear disc brake

A.

Brake tube

B.

Brake hose

 : Flare nut

 : Union bolt

 : Connector

JPFIA0099ZZ

BR-22

< REMOVAL AND INSTALLATION >

[LHD]

BRAKE PIPING

CAUTION:

Retighten the applicable connection to the specified torque and repair any abnormal (damaged,
worn or deformed) part if any brake fluid leakage is present.

REAR

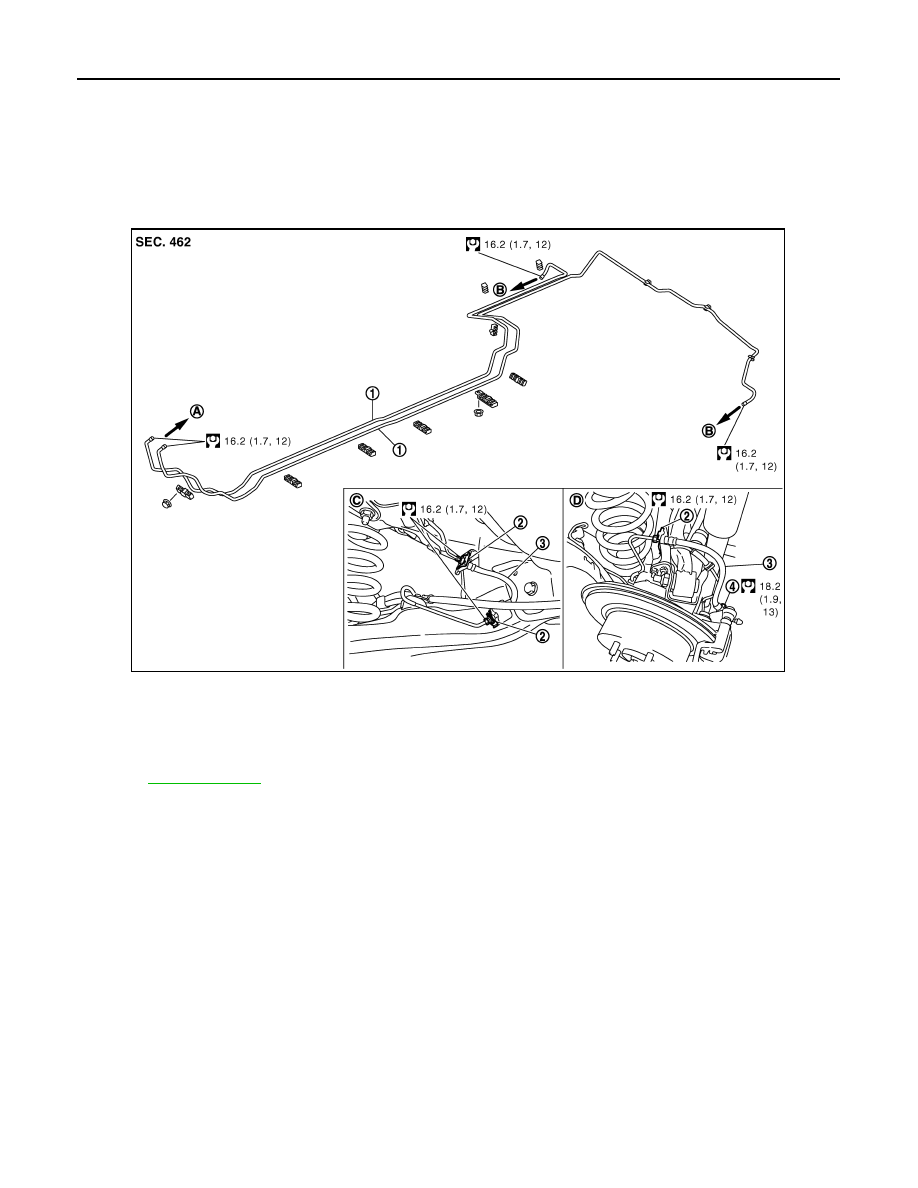

REAR : Exploded View

INFOID:0000000010305364

1.

Brake tube

2.

Lock plate

3.

Brake hose

4.

Union bolt

A.

To front brake tube

B.

To rear brake hose

C.

Floor side

D.

Caliper side

Refer to

GI-4, "Components"

 for symbols in the figure.

JPFIA0077GB

BRAKE PIPING

BR-23

< REMOVAL AND INSTALLATION >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REAR : Hydraulic Piping

INFOID:0000000010305365

REAR : Removal and Installation

INFOID:0000000010305366

REMOVAL

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.
1.

Remove tires.

2.

Drain brake fluid. Refer to

BR-11, "Draining"

.

3.

Loosen the flare nut with a flare nut wrench and separate the brake tube from the hose.

CAUTION:

• Never scratch the flare nut and the brake tube.
• Never sharply bend, twist or strongly pull the brake hoses and tubes.
• Cover the open end of brake tubes and hoses when disconnecting to prevent entrance of dirt.

4.

Remove the union bolt and remove the brake hose from the brake caliper assembly.

5.

Remove the lock plate and remove the brake hose from the vehicle.

INSTALLATION

CAUTION:

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.
1.

Assemble the union bolt and the copper washer to the brake hose.

CAUTION:

Never reuse copper washer.

1.

ABS actuator and electric unit (con-
trol unit)

2.

Front disc brake

3.

Master cylinder

4.

Brake booster

5.

Connector

6.

Rear disc brake

A.

Brake tube

B.

Brake hose

 : Flare nut

 : Union bolt
