Nissan Qashqai J11. Manual - part 877

WT-54

< SYMPTOM DIAGNOSIS >

[WITH TPMS]

TIRE PRESSURE SENSOR ID REGISTRATION CANNOT BE COMPLETED

TIRE PRESSURE SENSOR ID REGISTRATION CANNOT BE COMPLETED

Description

INFOID:0000000010339563

The ID of the tire pressure sensor installed in each wheel cannot be registered in the tire pressure monitoring
system. Inspect the tire pressure sensor or the tire pressure monitoring system circuit.

Diagnosis Procedure

INFOID:0000000010339564

1.

CHECK TIRE PRESSURE SENSOR INSTALLATION

Check visually that tire pressure sensors are installed to each wheels correctly.
NOTE:
In the following case, tire pressure monitoring system (TPMS) does not function.
• Tire pressure sensor(s) are not installed.
• Tire pressure sensor(s) of other cars are installed.

Are the genuine NISSAN tire pressure sensors are installed correctly?

YES

>> GO TO 2.

NO

>> Replace and/or Install tire pressure sensor(s). Refer to

WT-62, "Removal and Installation"

. GO TO

3.

2.

CHECK TIRE PRESSURE SENSOR ACTIVATION TOOL

Check tire pressure sensor activation tool.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace the battery of tire pressure sensor activation tool or repair/replace the tire pressure sen-

sor activation tool.

3.

TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration. Refer to

WT-29, "Work Procedure"

.

CAUTION:

To perform ID registration, observe the following points:

• Never register ID in a place where radio waves are interfered (e.g. radio tower).
• Never register ID in a place close to vehicles including TPMS.

Is tire pressure sensor ID registration completed?

YES

>> INSPECTION END

NO

>> GO TO 4.

4.

CHECK TIRE PRESSURE SIGNAL

Change the work location and perform ID registration again.
NOTE:

Depending on the tire pressure sensor position*, a blind spot exists, and the tire pressure receiver gets a
poor reception. If an ID registration is performed under this condition, the registration may not be completed.
In such case, follow the instructions below to improve the radio wave receiving environment.

• Rotate tire by 90

°

, 180

°

, or 270

°

. (This step is to change tire pressure sensor position.)

• Open the door close to the tire of which ID registration is ongoing.
*: Radio wave reception condition depends on vehicle architecture (e.g. body harness layout, tire wheel
design) or environment.
When ID registration is performed, which wheels do not react?

All wheels react and ID registration is possible.>>INSPECTION END
Only certain wheel(s) do not react.>>Replace applicable tire pressure sensor. Refer to

WT-62, "Removal and

Installation"

.

All wheels do not react.>>Replace the BCM. Refer to

BCS-132, "Removal and Installation"

.

HAZARD WARNING LAMP REMAINS ON

WT-55

< SYMPTOM DIAGNOSIS >

[WITH TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

HAZARD WARNING LAMP REMAINS ON

Description

INFOID:0000000010339565

The hazard warning lamp remains on.

Diagnosis Procedure

INFOID:0000000010339566

1.

CHECK HAZARD WARNING LAMP OPERATION

Check hazard warning lamp operation with hazard switch.

Is the operation normal?

YES

>> GO TO 2.

NO

>> Perform trouble diagnosis for the hazard warning lamp. Refer to

EXL-143, "Diagnosis Procedure"

(LED headlamp),

EXL-299, "Diagnosis Procedure"

 (halogen headlamp).

2.

CHECK HAZARD REQUEST SIGNAL CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect the hazard warning switch connector and BCM harness connector.

3.

Check the continuity between the BCM harness connector and the ground.

Is the inspection result normal?

YES

>> Replace the BCM. Refer to

BCS-132, "Removal and Installation"

.

NO

>> Repair or replace harness or connector.

BCM

—

Continuity

Connector

Terminal

M13

36

Ground

Not existed

WT-56

< SYMPTOM DIAGNOSIS >

[WITH TPMS]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000010339567

Use the chart below to find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

WT

-60

WT

-60

WT

-57

 (Al

u

mi

nu

m

whe

e

l)

WT

-58

 (S

te

el

 whe

e

l)

WT

-66

WT

-57

 (Al

u

mi

nu

m

whe

e

l)

WT

-58

 (S

te

el

 whe

e

l)

—

—

WT

-66

NVH in DLN

 section.

NVH in DLN

 section.

NVH in F

AX and FSU sections.

NVH in RAX

and RSU sections.

Ref

e

r to

 TI

RE in

 th

is ch

art

.

Ref

e

r to

 ROAD WHE

E

L i

n

 t

h

is cha

rt.

NVH in F

AX, RAX

 section.

NVH in BR section.

NVH in ST section.

Possible cause and SUSPECTED PARTS

Im

p

rop

er i

n

s

ta

lla

ti

o

n

, lo

os

en

es

s

Out

-of-ro

un

d

Un

ba

la

nc

e

Incorrect t

ire

pressure

Uneven tire

wear

Def

o

rm

ati

o

n

 o

r da

ma

ge

No

n-u

n

if

ormi

ty

In

co

rrec

t t

ire

si

ze

PROPELLER SHAFT

DIFF

ERENTIAL

FRONT A

X

LE

AND FRONT SUSP

ENSION

REAR A

X

LE

AND REAR SUSP

ENSION

TI

RE

ROAD WHEE

LS

DRIVE SHAFT

BRAKE

STE

E

RING

Symptom

TIRE

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

×

×

×

×

×

×

Judder

×

×

×

×

×

×

×

×

×

×

×

×

Poor quality ride or
handling

×

×

×

×

×

×

×

×

×

×

ROAD
WHEEL

Noise

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

×

Shimmy, Judder

×

×

×

×

×

×

×

×

×

Poor quality ride or
handling

×

×

×

×

×

×

×

ROAD WHEEL

WT-57

< PERIODIC MAINTENANCE >

[WITH TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

PERIODIC MAINTENANCE

ROAD WHEEL

Inspection

INFOID:0000000010339568

APPEARANCE

Road Wheel

• Check road wheel for deformation, cracks, corrosion and other damage.
• Check wheel nuts for looseness by using torque wrench.

Tire

• Check entire circumference and both sides of each tire for deformation, cracks, scratch and other damage.
• Check tire tread for wear and foreign matter such as nails and small rock.
• Check that tire pressure is the specified value.

Wheel Balance Adjustment (Aluminum Wheel)

INFOID:0000000010339569

PREPARATION BEFORE ADJUSTMENT

Using releasing agent, remove double-faced adhesive tape from the road wheel.

CAUTION:

• Never scratch the road wheel during removal.
• After removing double-faced adhesive tape, wipe clean traces of releasing agent from the road

wheel.

ADJUSTMENT

• The details of the adjustment procedure are different for each model of wheel balancer. Therefore, refer to

each instruction manual.

• If a tire balance machine has adhesion balance weight mode settings and drive-in weight mode setting,

select and adjust a drive-in weight mode suitable for aluminum wheels.

1.

Set road wheel on tire balance machine using the center hole as a guide. Start the tire balance machine.

2.

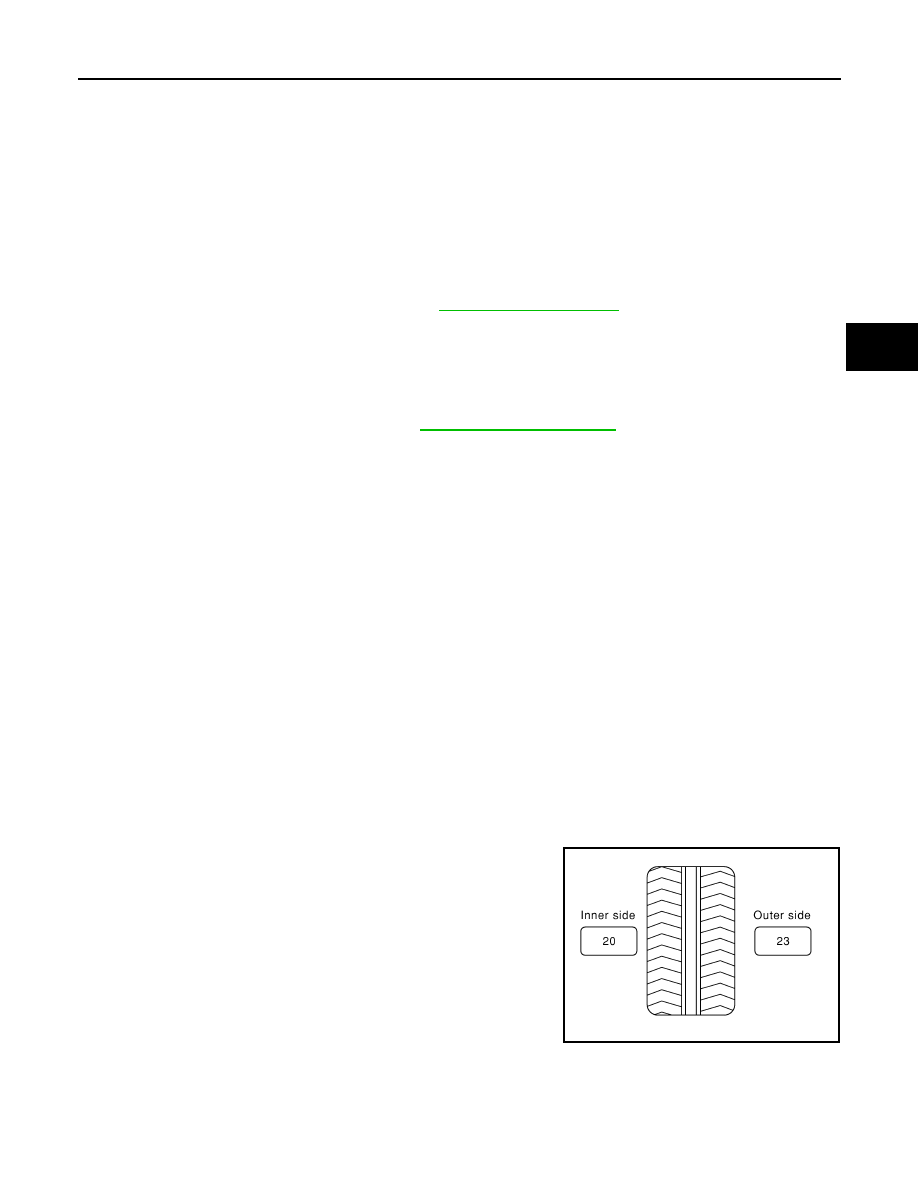

When inner and outer unbalance values are shown on the tire balance machine indicator, multiply outer
unbalance value by 5/3 to determine balance weight that should be used. Select the outer balance weight
with a value closest to the calculated value above and install to the designated outer position of, or at the
designated angle in relation to the road wheel.

CAUTION:

• Never install the inner balance weight before installing the outer balance weight.
• Before installing the balance weight, always to clean the mating surface of the road wheel.

a.

Indicated unbalance value

×

 5/3 = balance weight to be installed

Calculation example:
23 g (0.81 oz)

×

 5/3 = 38.33 g (1.35 oz)

⇒

 40 g (1.41 oz) bal-

ance weight (closer to calculated balance weight value)
NOTE:
Note that balance weight value must be closer to the calculated
balance weight value.
Example:
37.4

⇒

 35 g (1.23 oz)

37.5

⇒

 40 g (1.41 oz)

b.

Installed balance weight in the position.

Wheel nut tightening torque

: Refer to

WT-60, "Exploded View"

.

Tire pressure

: Refer to

WT-66, "Tire Air Pressure"

.

SMA054D
