WT-26

< BASIC INSPECTION >

[WITH TPMS]

DIAGNOSIS AND REPAIR WORK FLOW

CAUTION:

Customers are not professional. Never guess easily like “maybe the customer means that...,” or “
maybe the customer mentions this symptom”.

>> GO TO 2.

2.

CHECK LOW TIRE PRESSURE WARNING LAMP BULB

Check that low tire pressure warning lamp in combination meter turns ON when ignition switch is turned ON.

Does low tire pressure warning lamp turns ON?

YES

>> GO TO 3.

NO

>> Perform combination meter diagnosis. If combination meter is normal, perform configuration.

Refer to

WT-30, "Work Procedure"

. And check low tire pressure warning lamp again.

3.

CHECK LOW TIRE PRESSURE WARNING LAMP STATES (1)

Check states of low tire pressure warning lamp in combination meter when ignition switch is turned ON.

How is states of low tire pressure warning lamp?

Stays ON>>GO TO 4.
Blinks for 1 minute and then stays ON>>GO TO 5.
Turns ON for 1 second and then stays OFF>>GO TO 6.

4.

CHECK AIR LEAK

Adjust the tire pressure for all wheels specified to the value. Refer to

WT-66, "Tire Air Pressure"

.

And then check air leak using soapsuds etc..
NOTE:
Check valve core and around valve stem too.

Is air leak detected?

YES

>> Repair or replace error-detected parts. And then GO TO 8.

NO

>> GO TO 8.

5.

CHECK TIRE PRESSURE SENSOR INSTALLATION

Check visually that tire pressure sensors are installed to each wheels correctly.
NOTE:
In the following case, tire pressure monitoring system (TPMS) does not function.
• Tire pressure sensor(s) are not installed.
• Tire pressure sensor(s) of other cars are installed.

Are the genuine NISSAN tire pressure sensors are installed correctly?

YES

>> GO TO 9.

NO

>> GO TO 7.

6.

EXPLAIN TO THE CUSTOMER

Explain the following possibilities to the customer.
• When illuminating low tire pressure warning lamp went out:
- Tire pressure was lower than the warning tire pressure value.
• When blinking low tire pressure warning lamp went out:
- Radio waves of tire pressure sensor broke off temporarily by interference of other radio waves (e.g. radio

tower, battery charger of smart phone).

- Wheel(s) to which tire pressure sensor was not installed were attached.
NOTE:
Low tire pressure warning lamp turned off since malfunction was solved in any case.
Has the customer been convinced?

YES

>> INSPECTION END

NO

>> GO TO 9.

7.

REPLACING/INSTALLING TIRE PRESSURE SENSOR

1.

Replace and/or Install tire pressure sensor(s). Refer to

WT-62, "Removal and Installation"

.

2.

Perform tire pressure sensor ID registration. Refer to

WT-29, "Work Procedure"

.

Is tire pressure sensor ID registration completed?

YES

>> GO TO 8.

DIAGNOSIS AND REPAIR WORK FLOW

WT-27

< BASIC INSPECTION >

[WITH TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

NO

>> Perform diagnosis procedure of “TIRE PRESSURE SENSOR ID REGISTRATION CANNOT BE

COMPLETED”. Refer to

WT-54, "Diagnosis Procedure"

. And then GO TO 8.

8.

CHECK LOW TIRE PRESSURE WARNING LAMP STATES (2)

1.

Adjust the tire pressure for all wheels specified to the value. Refer to

WT-66, "Tire Air Pressure"

.

2.

Perform TPMS temperature calibration. Refer to

WT-14, "TPMS temperature calibration"

.

3.

Check states of low tire pressure warning lamp in combination meter when ignition switch is turned ON.

Does low tire pressure warning lamp turn ON for 1 second and then turn OFF?

YES

>> Explain to the customer that this is TPMS normal operation, and GO TO 13.

NO

>> GO TO 9.

9.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “AIR PRESSURE MONITOR”.
Is DTC detected?

YES

>> Record or print self-diagnosis results and freeze frame data (FFD). GO TO 10.

NO

>> GO TO 11.

10.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

Perform DTC CONFIRMATION PROCEDURE for the detected DTC, and then check that DTC is detected
again.
Is DTC detected?

YES

>> GO TO 12.

NO

>> Check harness and connectors based on the information obtained by interview and repair or

replace error-detected parts. Refer to

GI-41, "Intermittent Incident"

. GO TO 13.

11.

CONFIRM THE SYMPTOM

Perform symptom diagnosis. refer to

WT-47, "Symptom Table"

.

>> Repair or replace error-detected parts. GO TO 13.

12.

DIAGNOSIS PROCEDURE

Perform DTC Diagnosis Procedure.

>> Repair or replace error-detected parts. GO TO 13.

13.

FINAL CHECK

Recheck the symptom and check that the symptom is not reproduced on the same conditions.

Is the symptom reproduced?

YES

>> GO TO 3.

NO

>> INSTPECTION END

WT-28

< BASIC INSPECTION >

[WITH TPMS]

ADDITIONAL SERVICE WHEN REPLACING BCM

ADDITIONAL SERVICE WHEN REPLACING BCM

Description

INFOID:0000000010339520

When replacing BCM, configuration (BCM, CAN gateway and TPMS) and then tire pressure sensor ID regis-
tration is required.

Work Procedure

INFOID:0000000010339521

1.

PERFORM CONFIGURATION (BCM)

Perform configuration BCM. Refer to

BCS-116, "Work Procedure"

.

>> GO TO 2.

2.

PERFORM CONFIGURATION (CAN GATEWAY)

Perform configuration CAN gateway. Refer to

LAN-110, "Work Procedure"

.

>> GO TO 3.

3.

PERFORM CONFIGURATION (TIRE PRESSURE MONITORING SYSTEM)

Perform configuration tire pressure monitoring system. Refer to

WT-30, "Work Procedure"

.

>> GO TO 4.

4.

PERFORM TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration. Refer to

WT-29, "Work Procedure"

.

>> WORK END

TIRE PRESSURE SENSOR ID REGISTRATION

WT-29

< BASIC INSPECTION >

[WITH TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

TIRE PRESSURE SENSOR ID REGISTRATION

Description

INFOID:0000000010339522

This procedure must be performed:
• After replacement of a tire pressure sensor or BCM.
• After replacement of tire or road wheel.

NOTE:
ID registration is unnecessary if there are no change in the positions of each wheels (tire pressure sensors)
before wheel removal and after wheel installation.

• After performing tire rotation.

Work Procedure

INFOID:0000000010339523

1.

TIRE PRESSURE SENSOR ID REGISTRATION PROCEDURE

CAUTION:

To perform ID registration, observe the following points:

• Never register ID in a place where radio waves are interfered (e.g. radio tower).
• Never register ID in a place close to vehicles including TPMS.
NOTE:
Refer to the manufacture operating instructions for how to use the tire pressure sensor activation tool
[KV48105501 (NI-4032)].

With CONSULT

1.

Turn the ignition switch ON.

2.

Display the “WORK SUPPORT” screen and select “ID REGIST”.

3.

Select the start button on the “ID REGIST” screen.

4.

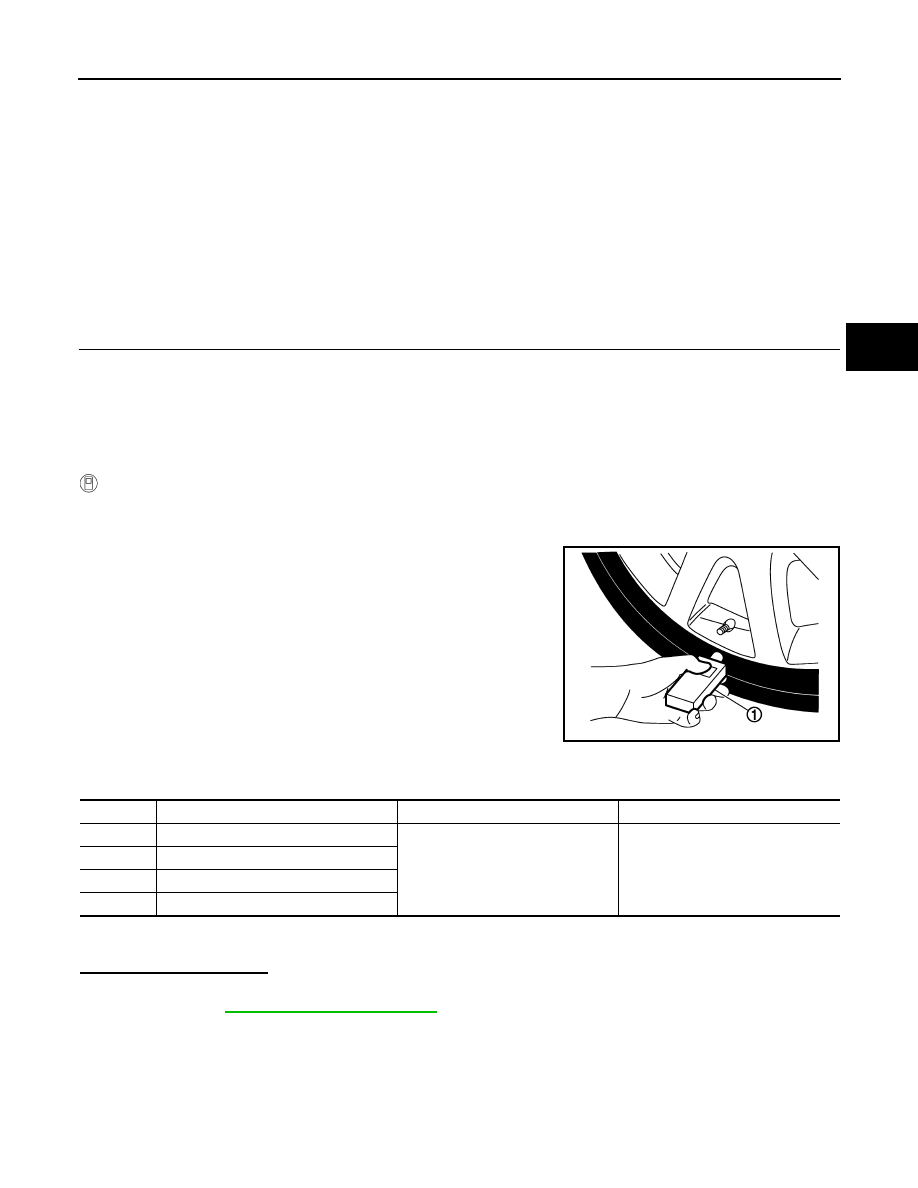

Contact the tire pressure sensor activation tool [KV48105501
(NI-4032)] (1) to the side of the tire at the location to the tire
pressure sensor.

5.

Press the registration button and wait until the hazard warning
lamp blinks twice.

CAUTION:

Perform the ID registration procedure starting from the
vehicle front left wheel, then repeat the procedure in the
order of the front right wheel, rear right wheel, and rear left
wheel.

6.

When ID registration is completed, check the following pattern at each wheel.

7.

After the ID registration procedure for all wheels is completed, press “End” to end ID registration, and
check that ID registration for all wheels is completed.

Is the check result normal?

YES

>> ID registration END.

NO

>> Refer to

WT-34, "Diagnosis Procedure"

.

NNEIC0020ZZ

Sequence

ID registration position

Turn signal lamp

CONSULT

1

Front  left  wheel

2 blinks

“Yet (red)”

↓

“Done (green)”

2

Front right wheel

3

Rear right wheel

4

Rear left wheel
