< WIRING DIAGRAM >

[WITH TPMS]

TIRE PRESSURE MONITORING SYSTEM

JREWC0695GB

TIRE PRESSURE MONITORING SYSTEM

WT-23

< WIRING DIAGRAM >

[WITH TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

JREWC0696GB

WT-24

< WIRING DIAGRAM >

[WITH TPMS]

TIRE PRESSURE MONITORING SYSTEM

JREWC0697GB

DIAGNOSIS AND REPAIR WORK FLOW

WT-25

< BASIC INSPECTION >

[WITH TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010339519

OVERALL SEQUENCE

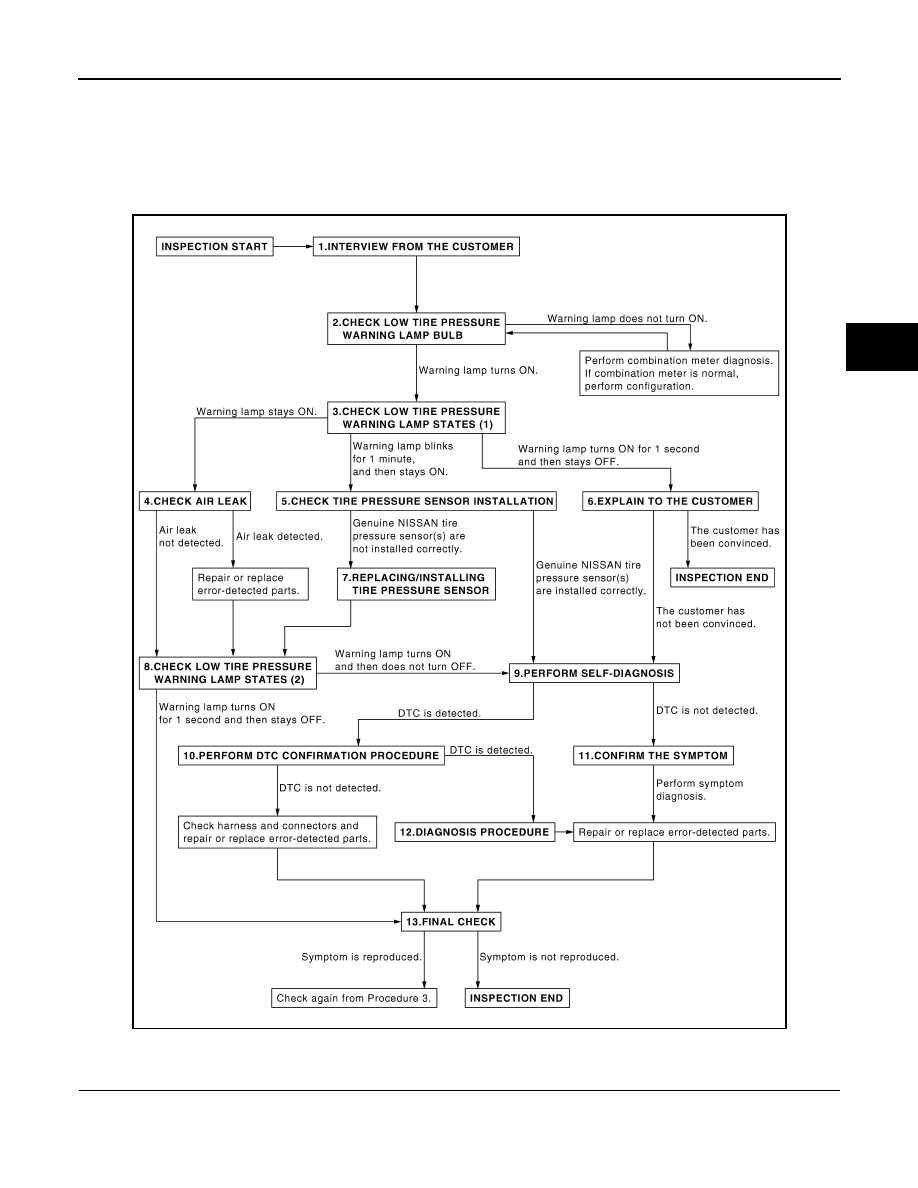

DETAILED FLOW

1.

INTERVIEW FROM THE CUSTOMER

Clarify customer complaints before inspection. First of all, perform an interview utilizing and reproduce the
symptom as well as fully understand it. Ask customer about his/her complaints carefully. Check symptoms by
driving vehicle with customer, if necessary.

JMEIA0239GB
