WT-10

< SYSTEM DESCRIPTION >

[WITH TPMS]

SYSTEM

SYSTEM

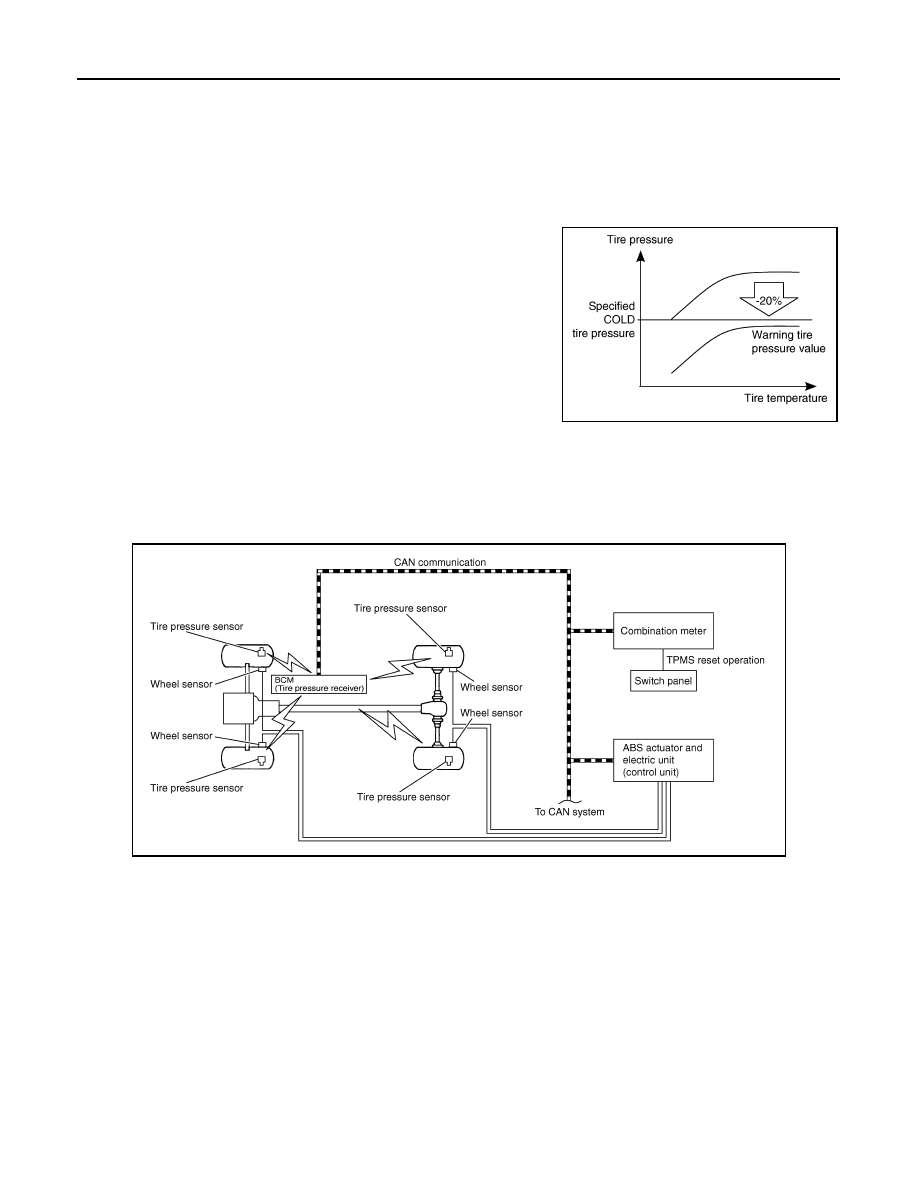

System Description

INFOID:0000000010339510

• During driving, the TPMS (Tire Pressure Monitoring System) receives the signal transmitted from tire pres-

sure sensor installed in each wheel. The BCM of this system has pressure judgment and trouble diagnosis
functions. When the TPMS (Tire Pressure Monitoring System) detects low inflation pressure or another
unusual symptom, the low tire pressure warning lamps in the combination meter comes on.

• Tire pressure varies as per the change in tire temperature. There-

fore, warning tire pressure value is varied as per the change in tire
temperature. TPMS temperature calibration is required for record-
ing basic temperature and tire pressure at the time of adjusting tire
pressure.

• If the tire pressure is less than the warning tire pressure value, the

low tire pressure warning lamp illuminates.

• Location of wheel is specified due to the synchronism of wheel sensor position and tire pressure sensor

position.

• Activates the TPMS (Tire Pressure Monitoring System) when the vehicle speed is 40 km/h (25 MPH) or

more.

SYSTEM DIAGRAM

INPUT/OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

JMEIA0240GB

JMEIA0246GB

SYSTEM

WT-11

< SYSTEM DESCRIPTION >

[WITH TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

LOW TIRE PRESSURE WARNING LAMP INDICATION CONDITION

Uses CAN communication from the BCM to illuminate the low tire pressure warning lamp on the combination
meter.

TPMS TEMPERATURE CLIBRATION CONDITION

TPMS temperature calibration the following conditions.
• Adjust tire pressure.
• Replace tire or road wheel. Refer to

WT-60, "Removal and Installation"

.

• After performing tire rotation. Refer to

WT-59, "Tire Rotation"

.

TPMS temperature calibration: Refer to

WT-14, "TPMS temperature calibration"

.

HAZARD WARNING LAMP INDICATION CONDITION

The hazard warning lamp blinks under the following conditions.
• When ID registration is completed. Refer to

WT-29, "Work Procedure"

.

WARNING/INDICATOR/CHIME LIST

WARNING/INDICATOR/CHIME LIST : Warning Lamp/Indicator Lamp

INFOID:0000000010339511

INFORMATION DISPLAY (COMBINATION METER)

Component parts

Signal item

BCM

Mainly transmits the following signals to combination meter via CAN communication.
• Low tire pressure warning lamp signal
• Low tire pressure wheel location signal
• TPMS malfunction warning lamp signal
Mainly receives the following signals from combination meter via CAN communication.
• TPMS reset signal
Mainly receives the following signals from ABS actuator and electric unit (control unit) via CAN
communication.
• Vehicle speed signal (ABS)
• Wheel sensor pulse signal (ABS)

Combination meter

Mainly receives the following signals from BCM via CAN communication.
• Low tire pressure warning lamp signal
• Low tire pressure wheel location signal
• TPMS malfunction warning lamp signal
Mainly transmits the following signals to BCM via CAN communication.
• TPMS reset signal

ABS actuator and electric unit (con-
trol unit)

Mainly transmits the following signals to BCM via CAN communication.
• Vehicle speed signal (ABS)
• Wheel sensor pulse signal (ABS)

Condition

Low tire pressure warning lamp

Ignition switch OFF

OFF

Ignition switch ON
(system normal)

Warning lamp turns ON for 1 second, then turns OFF.

Low tire pressure

ON

Configuration not performed in tire pressure
monitoring system

Warning lamp blinks 1 minute, then turns ON.

Tire pressure sensor ID not registered in BCM

Tire pressure monitoring system malfunction
(Other diagnostic item)

Name

Design

Layout/Function

Low tire pressure warn-
ing lamp

For layout, refer to

MWI-7, "Component Description"

.

For function, refer to

WT-47, "Symptom Table"

.

WT-12

< SYSTEM DESCRIPTION >

[WITH TPMS]

SYSTEM

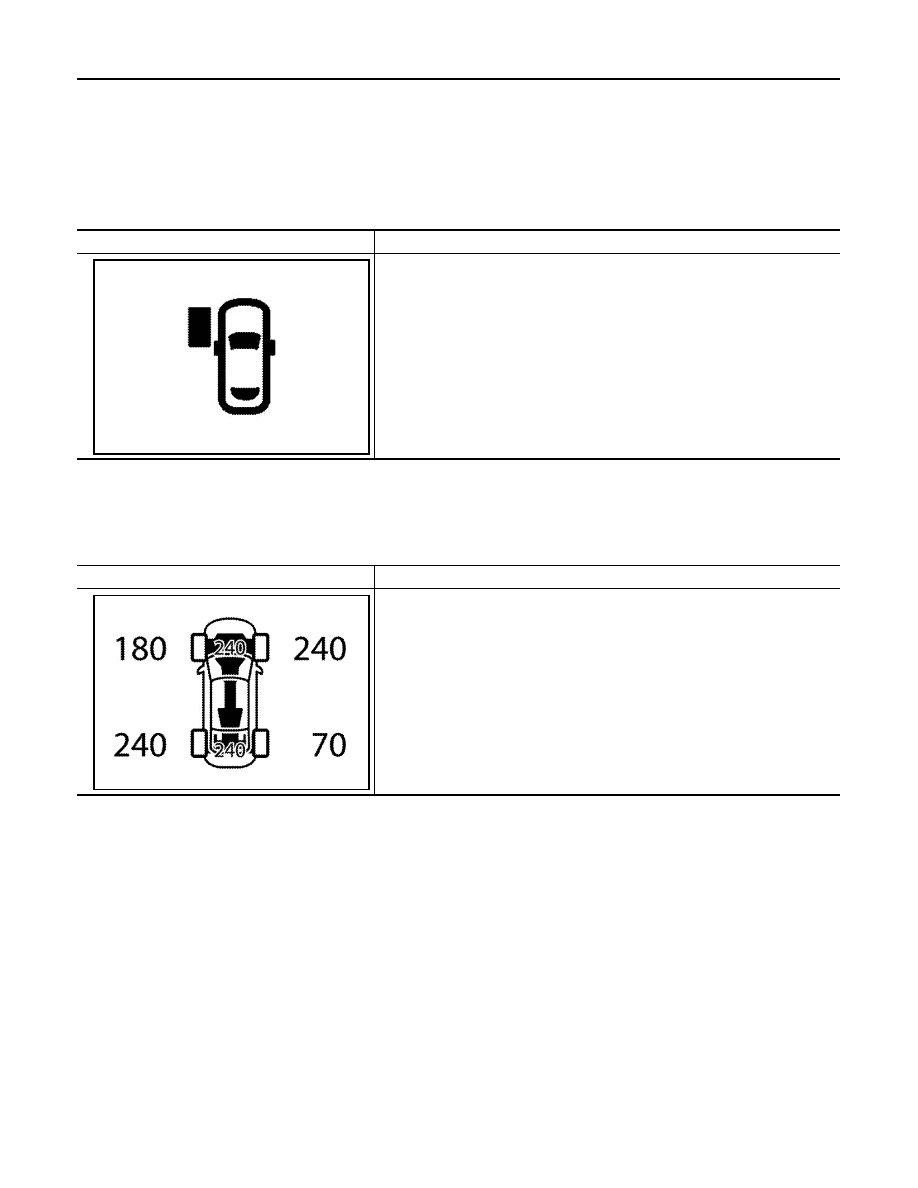

INFORMATION DISPLAY (COMBINATION METER) : Low Tire Pressure Location In-
dicator

INFOID:0000000010362967

The low tire pressure location indicator is displayed in the information display of combination meter with the
low tire pressure warning lamp and warning message when following conditions;
• Tire pressure is low.
• Tire goes flat.

INFORMATION DISPLAY (COMBINATION METER) : Tire Pressure Display

INFOID:0000000010435830

The adoption of this function allows tire pressure indication on the information display installed to the combina-
tion meter.

Design

Description

Following warning message is displayed with low tire pressure warning lamp and
low tire pressure location indicator when BCM detects low tire pressure or flat tire.
• Tyre Pressure Low Add AIr
• Flat Tyre Visit Dealer

JMEIA0247ZZ

Design

Description

• Tire pressure of each tire is displayed at side of each tire.
• Setting tire pressure of front and rear tires are displayed between front/rear

tires.

JMEIA0248ZZ

OPERATION

WT-13

< SYSTEM DESCRIPTION >

[WITH TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

OPERATION

Recommended tire pressure setting

INFOID:0000000010415455

DESCRIPTION

Recommended tire pressure setting can set the tire pressure as a TPMS reference value.
NOTE:
• Setting is done separately in the front and rear tires.
• When “Factory reset”“SETTINGS” menu is performed, recommended tire pressure setting can be reset back

to the factory default. Set the recommended tire pressure setting again if necessary.

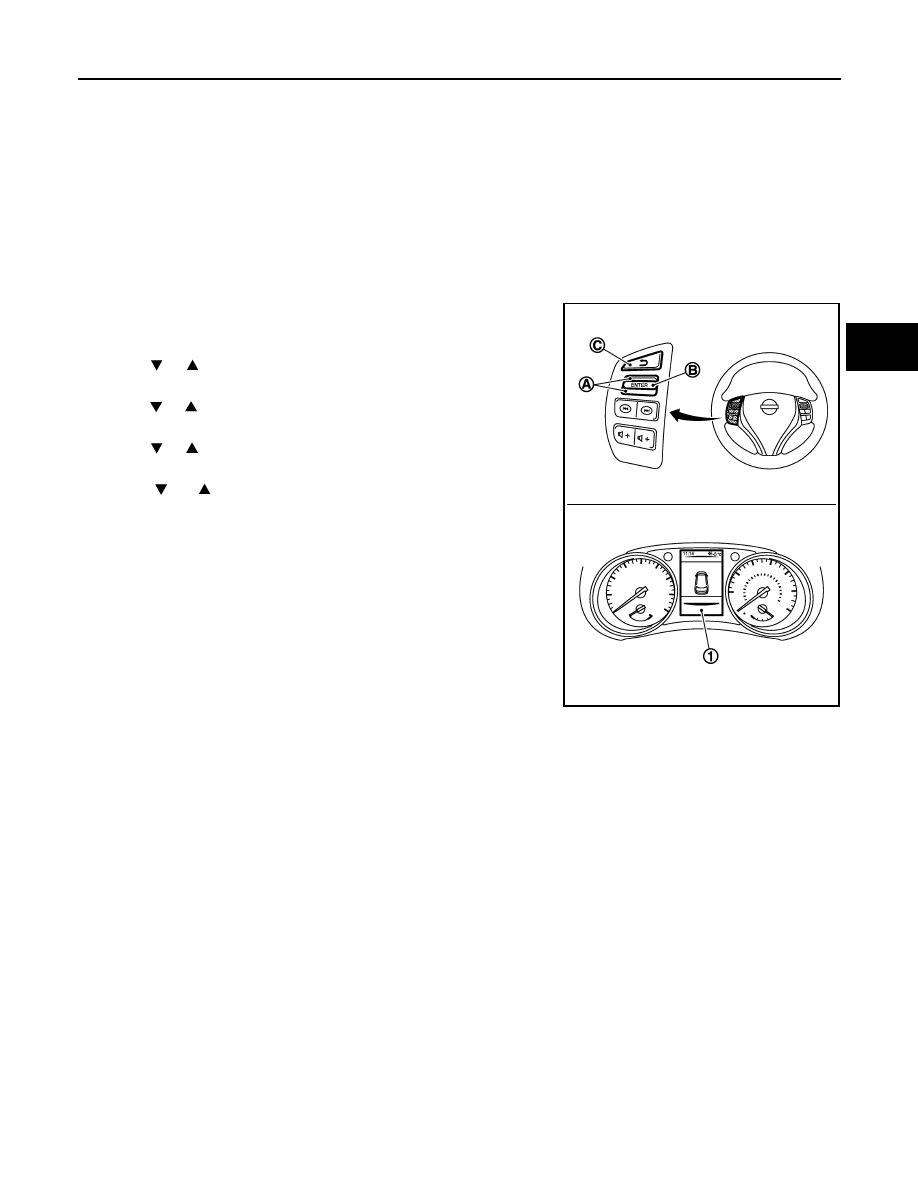

RECOMMENDED TIRE PRESSURE SETTING PROCEDURE

1.

Place Ignition in the ON position.

CAUTION:

Never start the engine.

2.

Push   or   button (A) to select “SETTINGS” in the information
display (1), then press ENTER button (B).

3.

Push   or   button (A) to select “Tyre pressures” in the informa-
tion display (1), then press ENTER button (B).

4.

Push   or   button (A) to select “Target front” or “Target rear” in
the information display (1), then press ENTER button (B).

5.

Push   or   button (A) to select tire pressure, then press
ENTER button (B) to set recommended tire pressure.

NOTE:
Press the BACK button (C) to return to the previous display screen
or menu level, or to cancel the selection if it is not completed.

Tire pressure unit setting

INFOID:0000000010415457

DESCRIPTION

Tire pressure unit setting can change tire pressure unit.
NOTE:
Tire pressure unit can be selected from “kPa”, “psi”, “bar” and “kgf/cm

2

”.

TIRE PRESSURE UNIT SETTING PROCEDURE

JMEIA0249ZZ
