WT-8

< SYSTEM DESCRIPTION >

[WITH TPMS]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

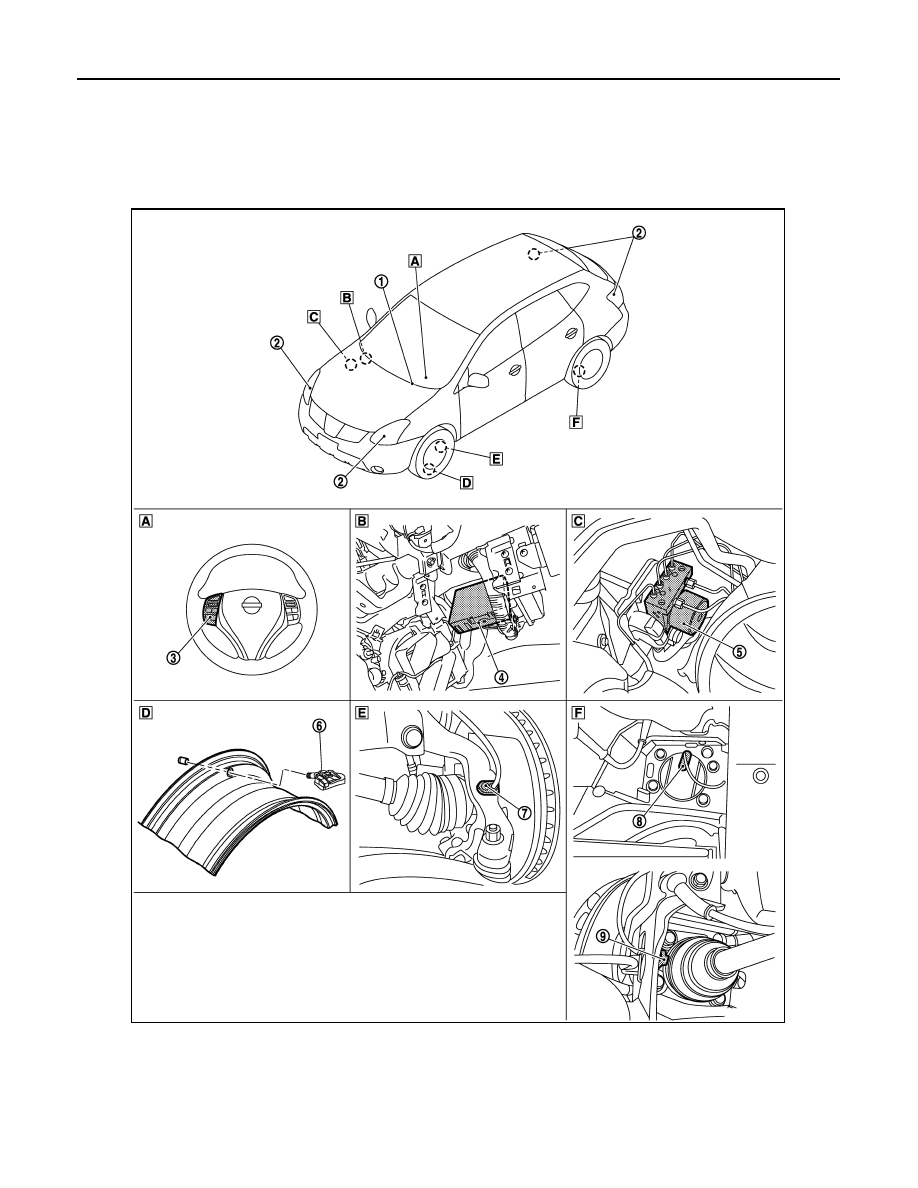

Component Parts Location

INFOID:0000000010339507

A.

Steering wheel

B.

Over glove box

C.

Right side of engine comportment

D.

Wheel assembly

E.

Left front wheel area

F.

Left rear wheel area

JMEIA0244ZZ

COMPONENT PARTS

WT-9

< SYSTEM DESCRIPTION >

[WITH TPMS]

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

BCM

INFOID:0000000010339508

• Tire pressure receiver is integrated in BCM (1).
• The tire pressure receiver receives the tire pressure and tire tem-

perature signal transmitted by the tire pressure sensor in each
wheel.

• The BCM (1) reads the tire pressure and tire temperature signal

received by tire pressure receiver, and controls the low tire pres-
sure warning lamp operations. It also has a judgment function to
detect a system malfunction.

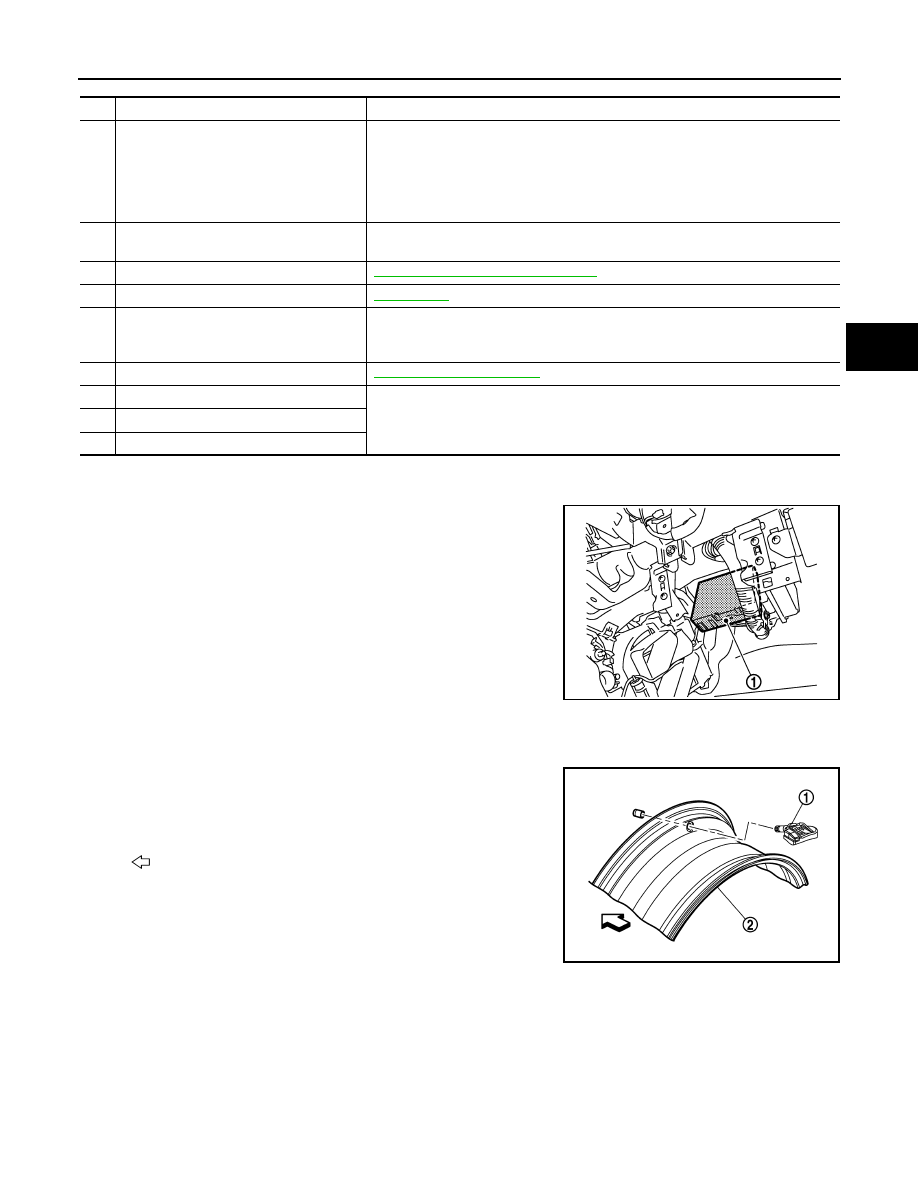

Tire Pressure Sensor

INFOID:0000000010339509

The tire pressure sensor (1) integrated with the valve is installed in
each wheel (2), and transmits the detected tire pressure and tire
temperature signal in the form of the radio wave. The radio signal is
received by the BCM (tire pressure receiver).

No.

Component parts

Function

1.

Combination meter

Mainly receives the following signals from BCM via CAN communication.
• Low tire pressure warning lamp signal
• Low tire pressure wheel location signal
• TPMS malfunction warning lamp signal
Mainly transmits the following signals to BCM via CAN communication.
• TPMS reset signal

2.

Turn signal lamp (Hazard warning lamp)

ID registration of each wheel has been completed, turn signal lamp (hazard warning
lamp) flashes.

3.

Steering wheel switches

WT-14, "TPMS temperature calibration"

4.

BCM

WT-9, "BCM"

.

5.

ABS actuator and electric unit (control unit)

Mainly transmits the following signals to BCM via CAN communication.
• Vehicle speed signal (ABS)
• wheel sensor pulse signal (ABS)

6.

Tire pressure sensor

WT-9, "Tire Pressure Sensor"

.

7.

Front wheel sensor

Location of wheel is specified due to the synchronism of wheel sensor position and
tire pressure sensor position.

8.

Rear wheel sensor (2WD)

9.

Rear wheel sensor (4WD)

JMEIA0245ZZ

: Outside

JSEIA0747ZZ
